Proofpoint Insider Threat Management (ITM)
Version 1.3.0 (View all)
Managed integration release status GA
Subscription level
What's this?		 Basic
Developed by
What's this?		 Elastic
Ingestion method(s) API
Minimum Kibana version(s) 9.0.0
8.18.0
Important - Managed integrations on Elastic Cloud Hosted

You can use this integration as an Elastic Managed integration on Elastic Cloud Hosted deployments running this version or later.

Proofpoint Insider Threat Management (ITM) is a people-centric SaaS solution that helps you protect sensitive data from insider threats and data loss at the endpoint. It combines context across content, behavior and threats to provide you with deep visibility into user activities. Proofpoint ITM helps security teams tackle the challenges of detecting and preventing insider threats. It can streamline their responses to insider-led incidents and provide insights that help prevent further damage.

Use this integration to collect and parse data from your Proofpoint ITM instance.

This module has been tested against the Proofpoint ITM API version v2.

This integration collects the following logs:

  • Reports - This data stream enables users to retrieve reports from Proofpoint ITM, including the following log types:

  • User activity

  • DBA activity

  • System events

  • Alerts activity

  • Audit activity

  • In-App elements

Elastic Managed integrations are only supported on Elastic Cloud Serverless and Elastic Cloud Hosted deployments. An Elastic Managed integration lets you ingest data from a cloud source while avoiding the orchestration, management, and maintenance associated with standard ingest infrastructure. Elastic runs the collector for you, so you can focus on your data instead of the infrastructure that collects it.

For more information, refer to Elastic Managed integrations and the Elastic Managed integrations FAQ.

Elastic Agent must be installed. For more details, check the Elastic Agent installation instructions. You can install only one Elastic Agent per host.

Follow the ITM On-Prem (ObserveIT) API Portal guide to setup the Proofpoint ITM On-Prem API Portal.

  1. In Kibana navigate to Management > Integrations.
  2. In the search top bar, type Proofpoint ITM.
  3. Select the Proofpoint ITM integration and add it.
  4. Add all the required integration configuration parameters: URL, Token URL, Client ID, and Client type.
  5. Save the integration.

This is the report dataset.

Example
{
    "@timestamp": "2025-03-01T12:00:00.000Z",
    "agent": {
        "ephemeral_id": "12fe4ae6-bc36-46eb-8476-a1bd11861a63",
        "id": "45f2c37d-e743-4930-a341-4fb252244526",
        "name": "elastic-agent-17075",
        "type": "filebeat",
        "version": "8.18.0"
    },
    "data_stream": {
        "dataset": "proofpoint_itm.report",
        "namespace": "39091",
        "type": "logs"
    },
    "ecs": {
        "version": "8.17.0"
    },
    "elastic_agent": {
        "id": "45f2c37d-e743-4930-a341-4fb252244526",
        "snapshot": true,
        "version": "8.18.0"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "session"
        ],
        "created": "2025-02-25T16:08:11.000Z",
        "dataset": "proofpoint_itm.report",
        "id": "7340EB6D-A8BB-4F25-9408-2BD807FB7B13",
        "ingested": "2025-03-20T06:31:52Z",
        "kind": "alert",
        "original": "{\"_time\":\"2025-02-25T16:08:11Z\",\"accessedSiteName\":\"c-awfi.top\",\"accessedUrl\":\"http://c-awfi.top/\",\"applicationName\":\"Windows Shell Experience Host\",\"collectorId\":\"C2C1C429-C002-4FB8-99F4-7F1005ED9889\",\"collectorUrl\":\"https://code1.preview.observeit.net/\",\"command\":\"example_command\",\"commandParams\":\"--example --params\",\"createdAt\":\"2025-02-25T16:08:11Z\",\"databaseName\":\"example_database\",\"details\":\"Detailed description of the event.\",\"detailsUrl\":\"https://details.example.com/event/abcde\",\"domainName\":\"code1.observeit.net\",\"endpointId\":\"E035BBC2-1D72-4F25-9408-2BD807FB7B13\",\"endpointName\":\"Example Endpoint\",\"eventPlaybackUrl\":\"https://playback.example.com/event/abcde\",\"host\":\"host.example.com\",\"id\":\"7340EB6D-A8BB-4F25-9408-2BD807FB7B13\",\"loginName\":\"Administrator\",\"observedAt\":\"2025-02-25T16:08:11Z\",\"operationKind\":\"Read\",\"originFileName\":\"confidential.docx\",\"originSiteName\":\"Internal SharePoint\",\"os\":\"Windows\",\"playbackUrl\":\"https://code1.preview.observeit.net/ObserveIT/SlideViewer.aspx?SessionID=1A8B5249-EDAC-A8BB-4F25-9408-2BD807FB7B13\",\"processExecutable\":\"shellexexperiencehost\",\"remoteAddress\":\"175.16.199.0\",\"remoteHostName\":\"Dake-WinX\",\"risingValue\":\"2025-03-01T12:00:00Z\",\"ruleCategoryName\":\"Security\",\"ruleDesc\":\"Description of the security rule.\",\"ruleName\":\"Invalid User Asstempt\",\"secondaryDomainName\":\"n/a\",\"secondaryLoginName\":\"n/a\",\"sessionId\":\"1A8B52A9-EDAC-448E-9871-79DB21D53C28\",\"sessionUrl\":\"https://session.example.com/abc123\",\"severity\":\"High\",\"sqlCommand\":\"SELECT * FROM users;\",\"sqlUserName\":\"db_user\",\"targetFileName\":\"confidential_copy.docx\",\"targetSiteName\":\"External Drive\",\"timezoneOffset\":\"0\",\"userActivityEventId\":9876543210,\"userActivityObservedAt\":\"2025-02-25T16:08:11Z\",\"windowTitle\":\"Start\"}",
        "type": [
            "info"
        ]
    },
    "file": {
        "name": "confidential.docx"
    },
    "host": {
        "ip": [
            "175.16.199.0"
        ],
        "name": "Dake-WinX",
        "os": {
            "type": "windows"
        }
    },
    "input": {
        "type": "cel"
    },
    "observer": {
        "product": "ObserveIT",
        "vendor": "Proofpoint"
    },
    "process": {
        "args": [
            "--example --params"
        ],
        "command_line": "example_command"
    },
    "proofpoint_itm": {
        "report": {
            "_time": "2025-02-25T16:08:11.000Z",
            "accessed": {
                "site_name": "c-awfi.top",
                "url": "http://c-awfi.top/"
            },
            "application_name": "Windows Shell Experience Host",
            "collector": {
                "id": "C2C1C429-C002-4FB8-99F4-7F1005ED9889",
                "url": "https://code1.preview.observeit.net/"
            },
            "command": {
                "params": "--example --params",
                "value": "example_command"
            },
            "created_at": "2025-02-25T16:08:11.000Z",
            "database_name": "example_database",
            "details": {
                "name": "Detailed description of the event.",
                "url": "https://details.example.com/event/abcde"
            },
            "domain_name": "code1.observeit.net",
            "endpoint": {
                "id": "E035BBC2-1D72-4F25-9408-2BD807FB7B13",
                "name": "Example Endpoint"
            },
            "event_playback_url": "https://playback.example.com/event/abcde",
            "friendly_name": "Invalid User Asstempt",
            "host": "host.example.com",
            "id": "7340EB6D-A8BB-4F25-9408-2BD807FB7B13",
            "login_name": "Administrator",
            "observed_at": "2025-02-25T16:08:11.000Z",
            "operation_kind": "Read",
            "origin": {
                "file_name": "confidential.docx",
                "site_name": "Internal SharePoint"
            },
            "os": "Windows",
            "playback_url": "https://code1.preview.observeit.net/ObserveIT/SlideViewer.aspx?SessionID=1A8B5249-EDAC-A8BB-4F25-9408-2BD807FB7B13",
            "process_executable": "shellexexperiencehost",
            "remote": {
                "address": "175.16.199.0",
                "host_name": "Dake-WinX"
            },
            "rising_value": "2025-03-01T12:00:00.000Z",
            "rule": {
                "category_name": "Security",
                "desc": "Description of the security rule.",
                "name": "Invalid User Asstempt"
            },
            "secondary": {
                "domain_name": "n/a",
                "login_name": "n/a"
            },
            "session": {
                "id": "1A8B52A9-EDAC-448E-9871-79DB21D53C28",
                "url": "https://session.example.com/abc123"
            },
            "severity": "High",
            "sql": {
                "command": "SELECT * FROM users;",
                "user_name": "db_user"
            },
            "target": {
                "file_name": "confidential_copy.docx",
                "site_name": "External Drive"
            },
            "timezone_offset": 0,
            "user_activity": {
                "event_id": "9876543210",
                "observed_at": "2025-02-25T16:08:11.000Z"
            },
            "window_title": "Start"
        }
    },
    "related": {
        "hosts": [
            "Dake-WinX"
        ],
        "ip": [
            "175.16.199.0"
        ],
        "user": [
            "Administrator",
            "n/a",
            "db_user"
        ]
    },
    "rule": {
        "category": "Security",
        "description": "Description of the security rule.",
        "name": "Invalid User Asstempt"
    },
    "source": {
        "domain": "code1.observeit.net"
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "proofpoint_itm-report"
    ],
    "url": {
        "domain": "c-awfi.top",
        "full": "http://c-awfi.top/",
        "original": "http://c-awfi.top/",
        "path": "/",
        "scheme": "http"
    },
    "user": {
        "name": "Administrator"
    }
}
Exported fields
Field Description Type
@timestamp Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events. date
data_stream.dataset The field can contain anything that makes sense to signify the source of the data. Examples include nginx.access, prometheus, endpoint etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. event.dataset should have the same value as data_stream.dataset. Beyond the Elasticsearch data stream naming criteria noted above, the dataset value has additional restrictions: * Must not contain - * No longer than 100 characters constant_keyword
data_stream.namespace A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with default. If no value is used, it falls back to default. Beyond the Elasticsearch index naming criteria noted above, namespace value has the additional restrictions: * Must not contain - * No longer than 100 characters constant_keyword
data_stream.type An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future. constant_keyword
event.dataset Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name. constant_keyword
event.module Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), event.module should contain the name of this module. constant_keyword
input.type Type of Filebeat input. keyword
log.offset Log offset. long
proofpoint_itm.report._time date
proofpoint_itm.report.accessed.site_name keyword
proofpoint_itm.report.accessed.url keyword
proofpoint_itm.report.application_name keyword
proofpoint_itm.report.collector.id keyword
proofpoint_itm.report.collector.url keyword
proofpoint_itm.report.command.params keyword
proofpoint_itm.report.command.value keyword
proofpoint_itm.report.created_at date
proofpoint_itm.report.database_name keyword
proofpoint_itm.report.details.name keyword
proofpoint_itm.report.details.url keyword
proofpoint_itm.report.domain_name keyword
proofpoint_itm.report.endpoint.id keyword
proofpoint_itm.report.endpoint.name keyword
proofpoint_itm.report.event_playback_url keyword
proofpoint_itm.report.friendly_name keyword
proofpoint_itm.report.host keyword
proofpoint_itm.report.id keyword
proofpoint_itm.report.login_name keyword
proofpoint_itm.report.observed_at date
proofpoint_itm.report.operation_kind keyword
proofpoint_itm.report.origin.file_name keyword
proofpoint_itm.report.origin.site_name keyword
proofpoint_itm.report.os keyword
proofpoint_itm.report.playback_url keyword
proofpoint_itm.report.process_executable keyword
proofpoint_itm.report.remote.address ip
proofpoint_itm.report.remote.host_name keyword
proofpoint_itm.report.rising_value date
proofpoint_itm.report.rule.category_name keyword
proofpoint_itm.report.rule.desc keyword
proofpoint_itm.report.rule.name keyword
proofpoint_itm.report.secondary.domain_name keyword
proofpoint_itm.report.secondary.login_name keyword
proofpoint_itm.report.session.id keyword
proofpoint_itm.report.session.url keyword
proofpoint_itm.report.severity keyword
proofpoint_itm.report.sql.command keyword
proofpoint_itm.report.sql.user_name keyword
proofpoint_itm.report.target.file_name keyword
proofpoint_itm.report.target.site_name keyword
proofpoint_itm.report.timezone_offset long
proofpoint_itm.report.user_activity.event_id keyword
proofpoint_itm.report.user_activity.observed_at date
proofpoint_itm.report.window_title keyword

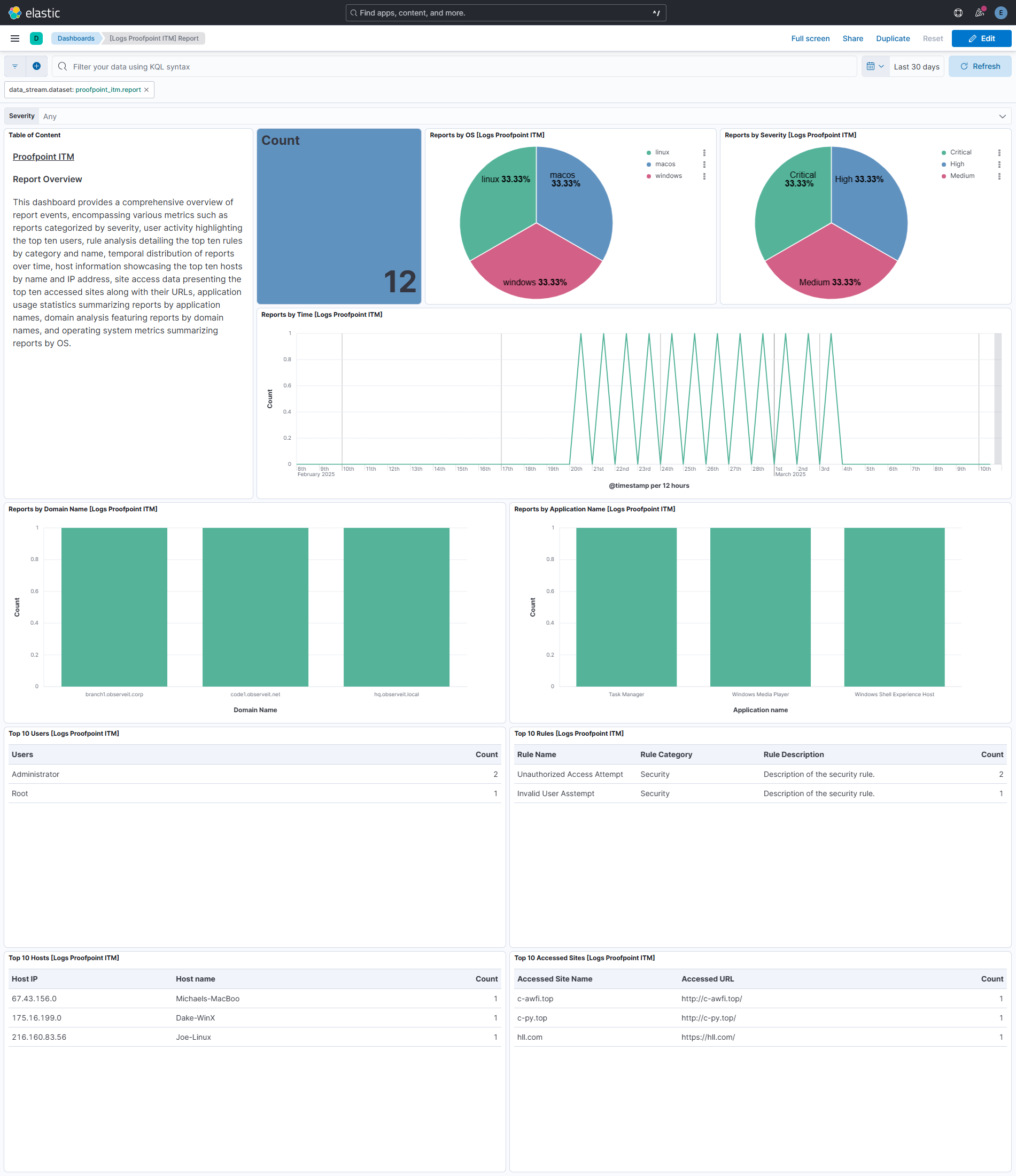

This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.

Proofpoint ITM Report Dahsboard
Changelog
Version Details Minimum Kibana version
1.3.0 Enhancement (View pull request)
Update Elastic Managed integration documentation to the current wording and docs links.		 9.0.0
8.18.0
1.2.0 Enhancement (View pull request)
Add tags to ingest pipeline processors.		 9.0.0
8.18.0
1.1.1 Enhancement (View pull request)
Set agentless deployment mode release field to ga.		 9.0.0
8.18.0
1.1.0 Enhancement (View pull request)
Use new release field for agentless deployment mode to establish as beta.		 9.0.0
8.18.0
1.0.1 Bug fix (View pull request)
Downgrade the format_version to the minimum version that supports all the necessary features for the package.		 9.0.0
8.18.0
1.0.0 Enhancement (View pull request)
Release package as GA.		 9.0.0
8.18.0
0.3.0 Enhancement (View pull request)
Use terminate processor instead of fail processor to handle agent errors.		 9.0.0
8.18.0
0.2.0 Enhancement (View pull request)
Remove duplicated installation instructions from the documentation		 9.0.0
8.18.0
0.1.2 Bug fix (View pull request)
Add temporary processor to remove the fields added by the Agentless policy.		 9.0.0
8.18.0
0.1.1 Bug fix (View pull request)
Fix default request trace enabled behavior.		 9.0.0
8.18.0
0.1.0 Enhancement (View pull request)
Initial release.		 9.0.0
8.18.0
