Traefik OpenTelemetry Assets

Traefik is an open-source cloud-native application proxy and edge router that acts as the single entry point for incoming traffic, routing requests to backend services based on configurable rules.

This content pack provides dashboards, alert rules, and SLO templates powered by the Prometheus receiver, covering proxy health, traffic flow, error rates, backend performance, TLS and configuration health, and process resource usage.

The Traefik OpenTelemetry assets have been tested with OpenTelemetry Prometheus receiver v0.146.1.

Traefik tested against:

• Traefik v2.x, v3.x

You need Elasticsearch for storing and searching your data and Kibana for visualizing and managing it. You can use our hosted Elasticsearch Service on Elastic Cloud, which is recommended, or self-manage the Elastic Stack on your own hardware.

Enable Traefik's Prometheus metrics endpoint. Traefik exposes metrics on a dedicated entrypoint (typically traefik on port 8080). Configure the metrics in your static configuration:

# Enable Prometheus metrics
metrics:
  prometheus:
    addEntryPointsLabels: true
    addRoutersLabels: true
    addServicesLabels: true
    entryPoint: traefik


If using the Docker provider, ensure the traefik entrypoint is exposed. Verify metrics are available:

curl http://<TRAEFIK_METRICS_HOST>/metrics


Configure the OpenTelemetry Collector (or Elastic Distribution of OpenTelemetry Collector) to scrape Traefik's Prometheus endpoint and export to Elasticsearch. Ensure the Prometheus receiver, resourcedetection, cumulativetodelta, and resource processors are available.

Placeholder reference:

receivers:
  prometheus:
    config:
      scrape_configs:
        - job_name: traefik
          scrape_interval: 15s
          metrics_path: /metrics
          static_configs:
            - targets: ['<TRAEFIK_METRICS_HOST>']
              labels:
                host: traefik

processors:
  resourcedetection/system:
    detectors: ['hostname']
  # Required for Traefik request-duration histograms: the Prometheus receiver emits cumulative-temporality histograms,
  # but the Elasticsearch exporter in `otel` mapping mode expects delta-temporality histograms.
  # Without this, you’ll see logs like "dropping cumulative temporality histogram traefik_*_request_duration_seconds".
  cumulativetodelta:
    include:
      match_type: regexp
      metrics: ['traefik_.*', 'go_.*', 'process_.*']
  # Ensures metrics land in the dataset this package’s dashboards/alerts expect.
  # Sets `data_stream.dataset=traefik` (upsert); the Elasticsearch exporter appends `.otel`, so it becomes `traefik.otel`.
  resource/dataset:
    attributes:
      - key: data_stream.dataset
        value: traefik
        action: upsert

exporters:
  elasticsearch/otel:
    endpoints: ['<ES_ENDPOINT>']
    api_key: ${env:ES_API_KEY}
    mapping:
      mode: otel

service:
  pipelines:
    metrics:
      receivers: [prometheus]
      processors: [resourcedetection/system, cumulativetodelta, resource/dataset]
      exporters: [elasticsearch/otel]


Refer to the metadata.yaml of the OpenTelemetry Prometheus receiver for details on the receiver. For the authoritative Traefik metric specification (metric names, types, and labels) exposed at /metrics, refer to Traefik's Prometheus metrics documentation. Traefik metrics include entrypoint, router, service, and global metrics (request counts, duration histograms, open connections, TLS certificate expiry, configuration reload counts, and Go runtime metrics).

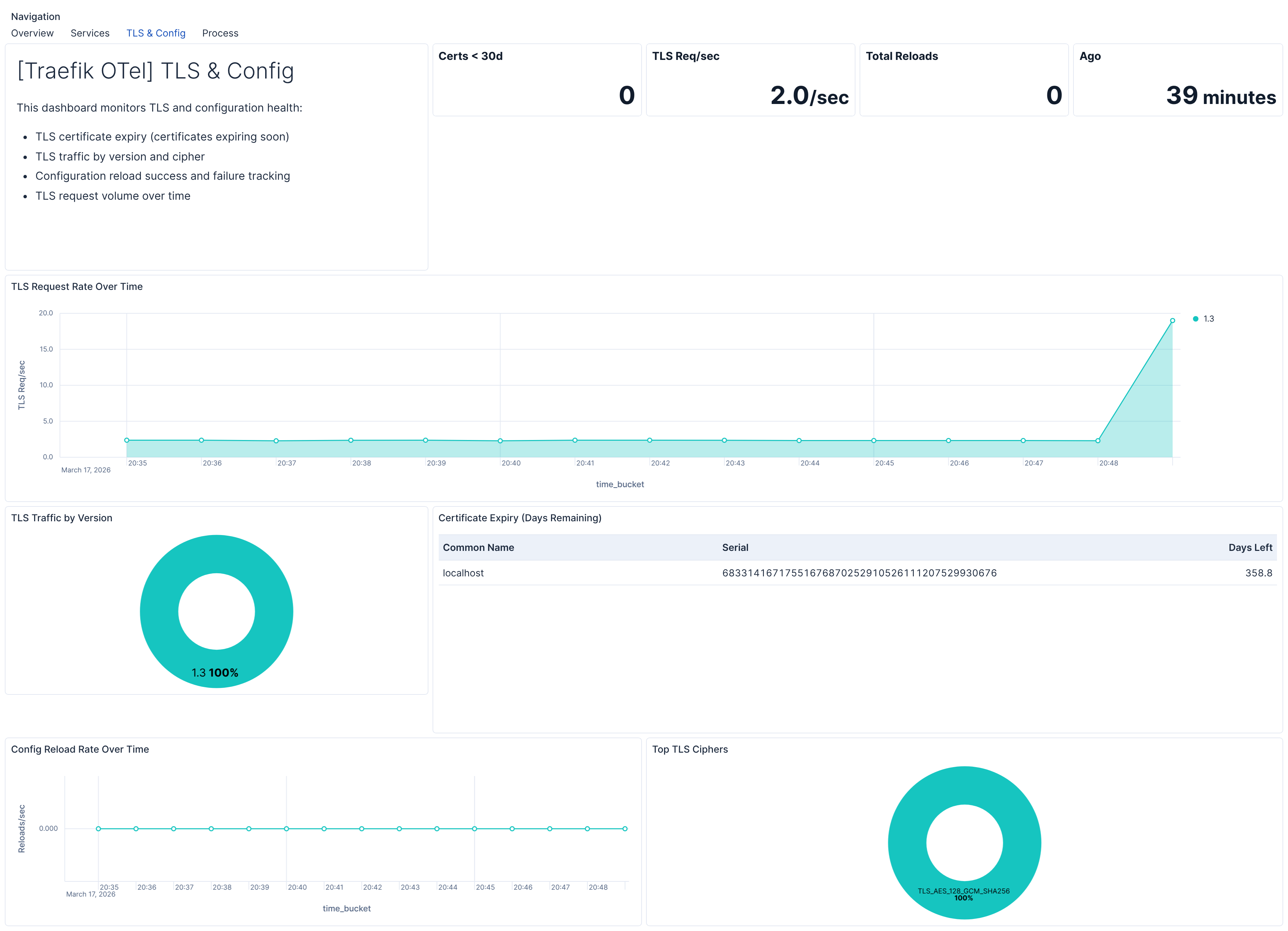

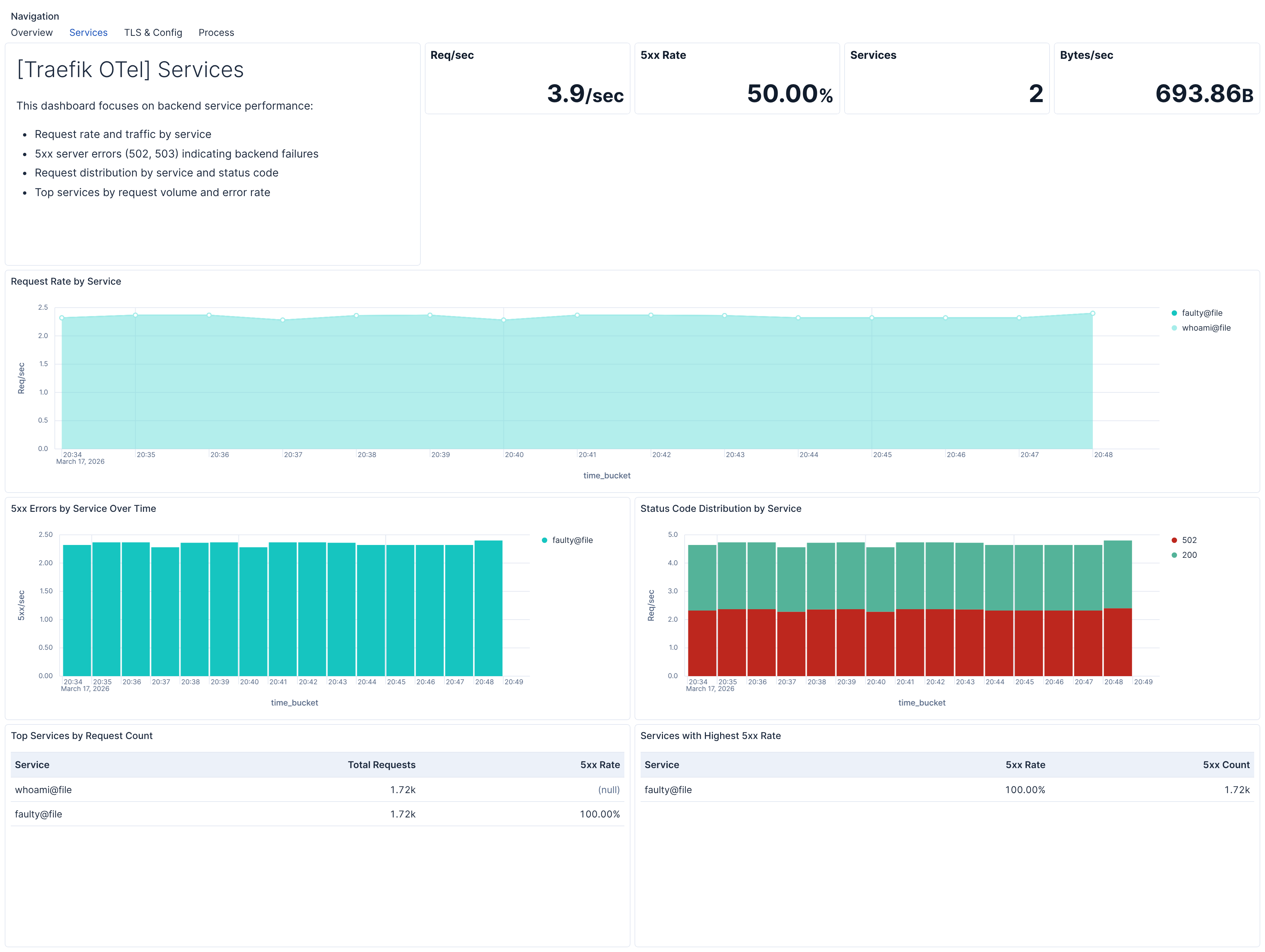

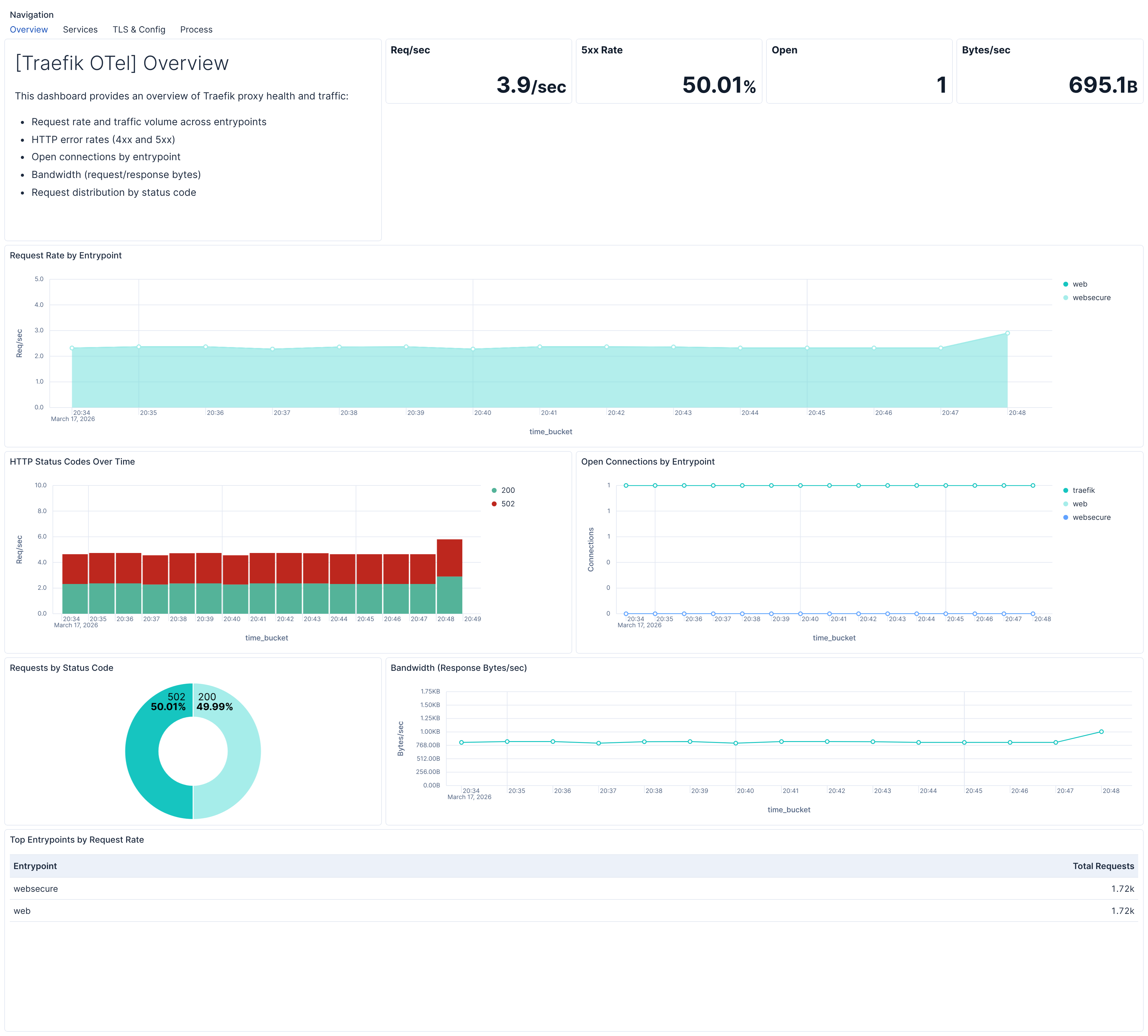

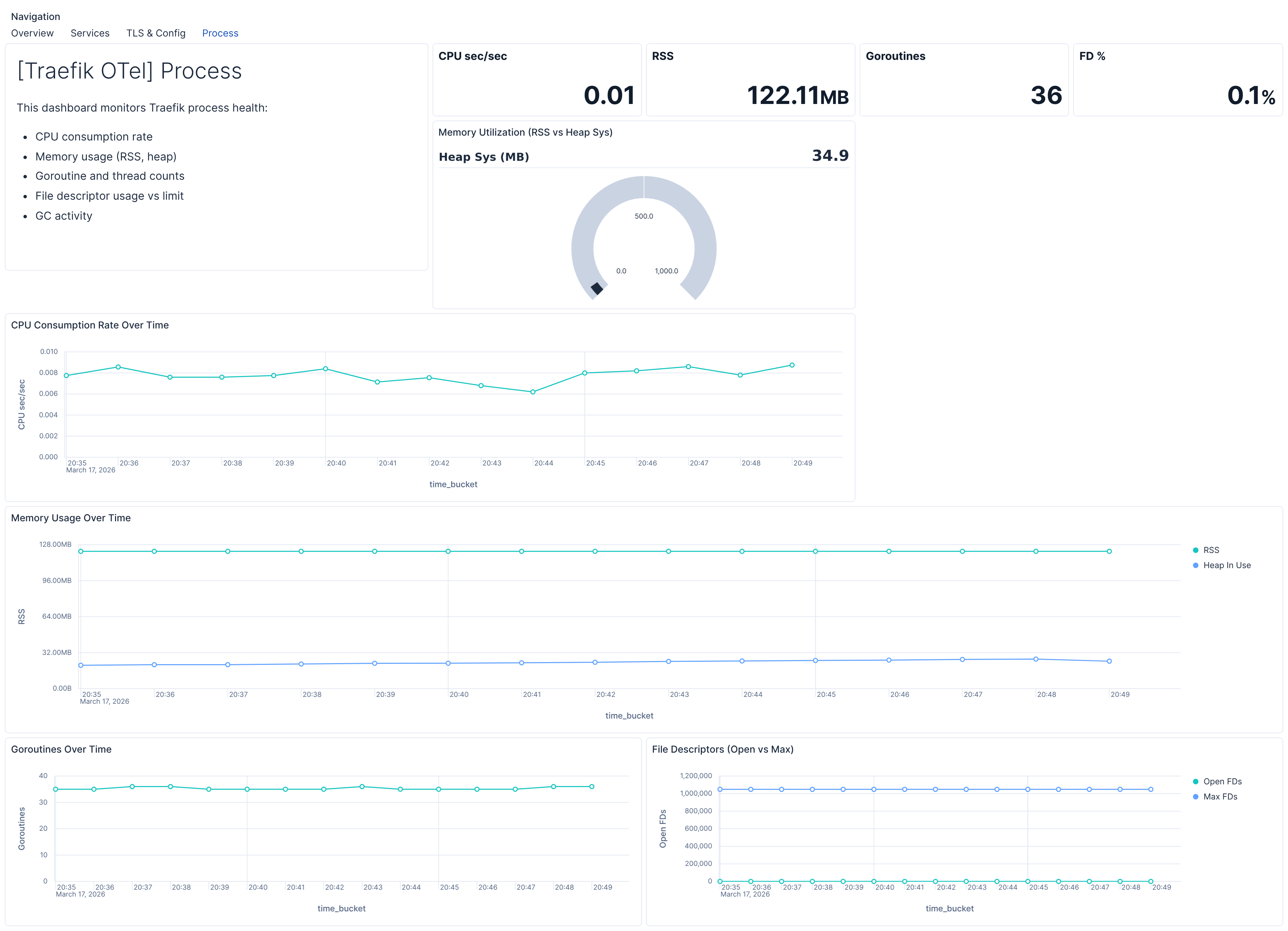

This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.

← →

×

×

×

×
