Oracle Database OTel Content Pack

This content pack provides monitoring for Oracle Database instances via the OpenTelemetry oracledbreceiver. It targets SREs and database administrators managing production Oracle deployments.

The pack operates on two data streams:

• metrics-oracledbreceiver.otel-* — Instance-level metrics (resource capacity, SQL execution, I/O, memory, locking, transaction health, storage). Powers the metrics dashboards: [Metrics Oracle] Overview, [Metrics Oracle] Resource Capacity, Sessions & Locking, [Metrics Oracle] SQL Execution, I/O & Cache Performance, and [Metrics Oracle] Transaction Health & Storage Management.
• logs-oracledbreceiver.otel-* — Per-query log events. Powers [Logs Oracle] Active Query Analysis and [Logs Oracle] Query Performance & Plans for active session analysis and top-N query optimization.

• OTel Collector Contrib — Use a version that includes the oracledbreceiver. See the OpenTelemetry Collector Contrib documentation for compatibility.
• Oracle Database — Supported versions are defined in the oracledbreceiver documentation.
• Receiver permissions — The database user must have the grants required by the oracledbreceiver for base metrics. Consult the oracledbreceiver documentation for the exact list.

For per-query analysis in [Logs Oracle] Active Query Analysis and [Logs Oracle] Query Performance & Plans, additional Oracle grants are required. See Query Event Configuration.

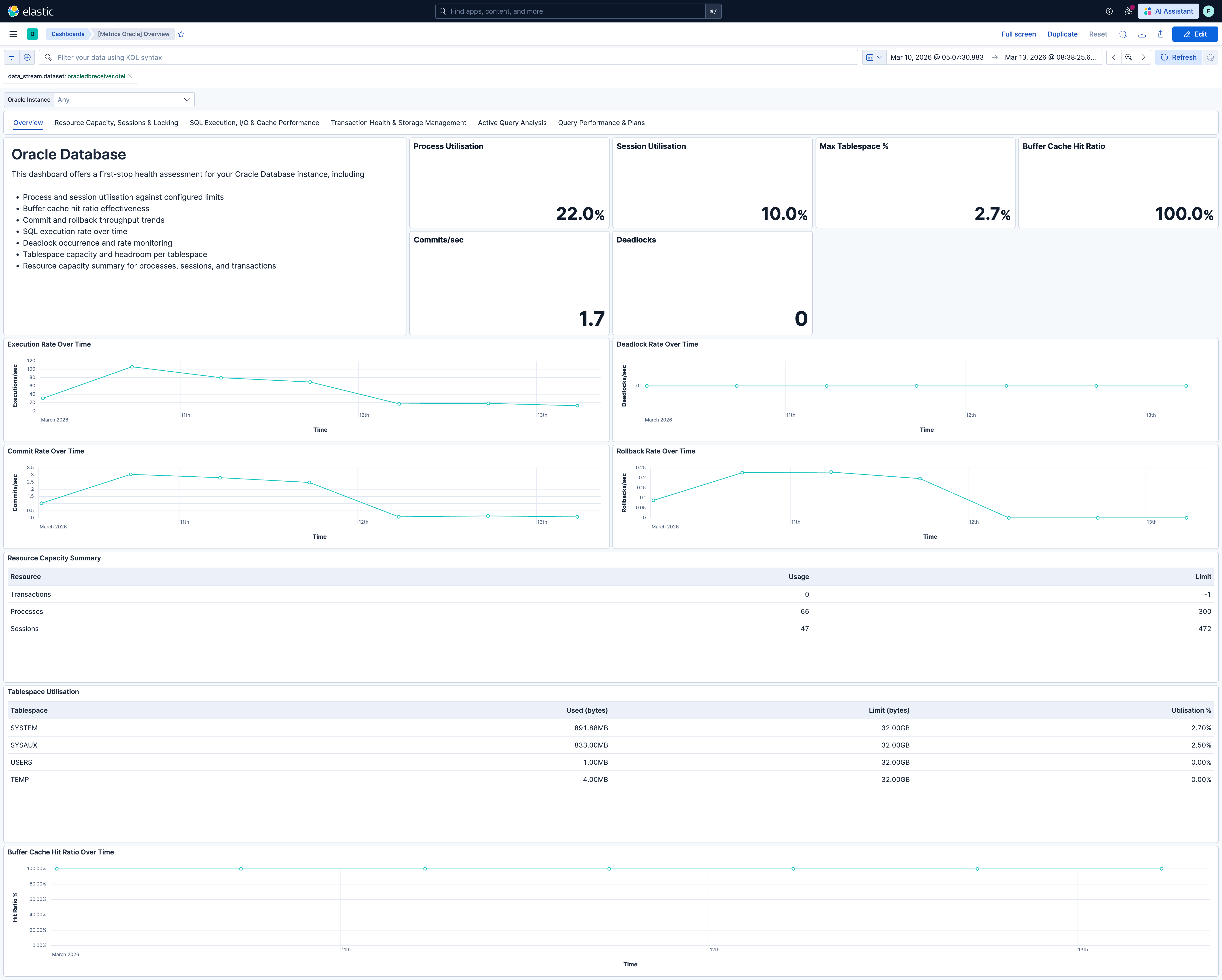

Purpose: First-stop health assessment. Answers: "Is the Oracle instance healthy?"

Data source: metrics-oracledbreceiver.otel-*

Key panels: Process utilisation, session utilisation, buffer cache hit ratio, commit rate, deadlocks in time range, max tablespace utilisation. Execution rate, deadlock rate, commit rate, and rollback rate over time. Resource capacity summary table. Tablespace utilisation table. Buffer cache hit ratio over time.

Derived metrics: Buffer cache hit ratio = 1 - (physical_reads / logical_reads) (displayed as %). Process/session utilisation = usage / limit. Rollback-to-commit ratio (via user_commits and user_rollbacks).

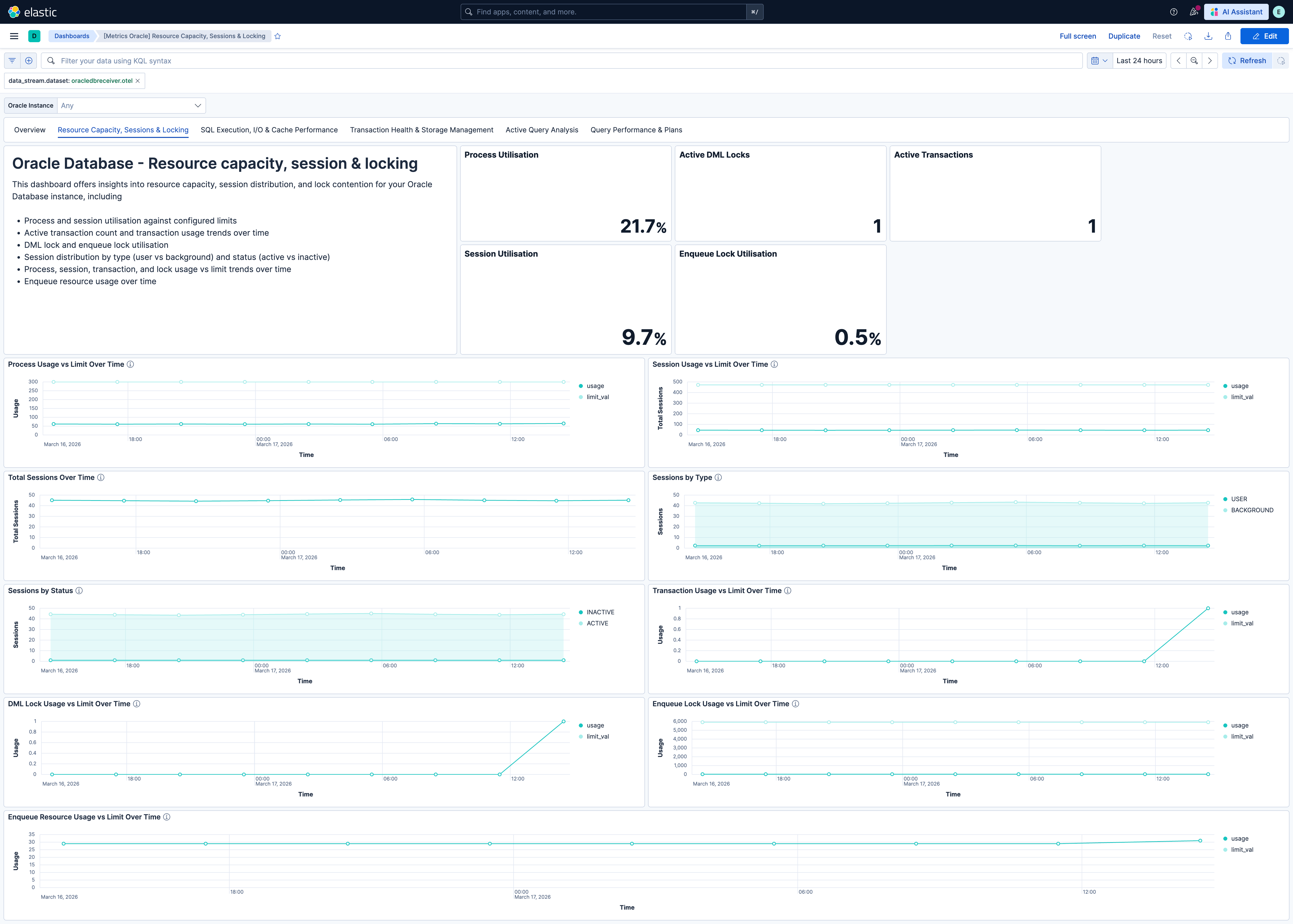

Purpose: Deep dive into connection capacity and resource contention. Answers: "Are we approaching any resource limits? How are sessions distributed? Is lock contention emerging?"

Data source: metrics-oracledbreceiver.otel-*

Key panels: Process, session, DML lock, and enqueue lock utilisation stats. Process and session usage vs limit over time. Total sessions, sessions by type (USER/BACKGROUND), sessions by status (ACTIVE/INACTIVE). Transaction, DML lock, enqueue lock, and enqueue resource usage vs limit over time.

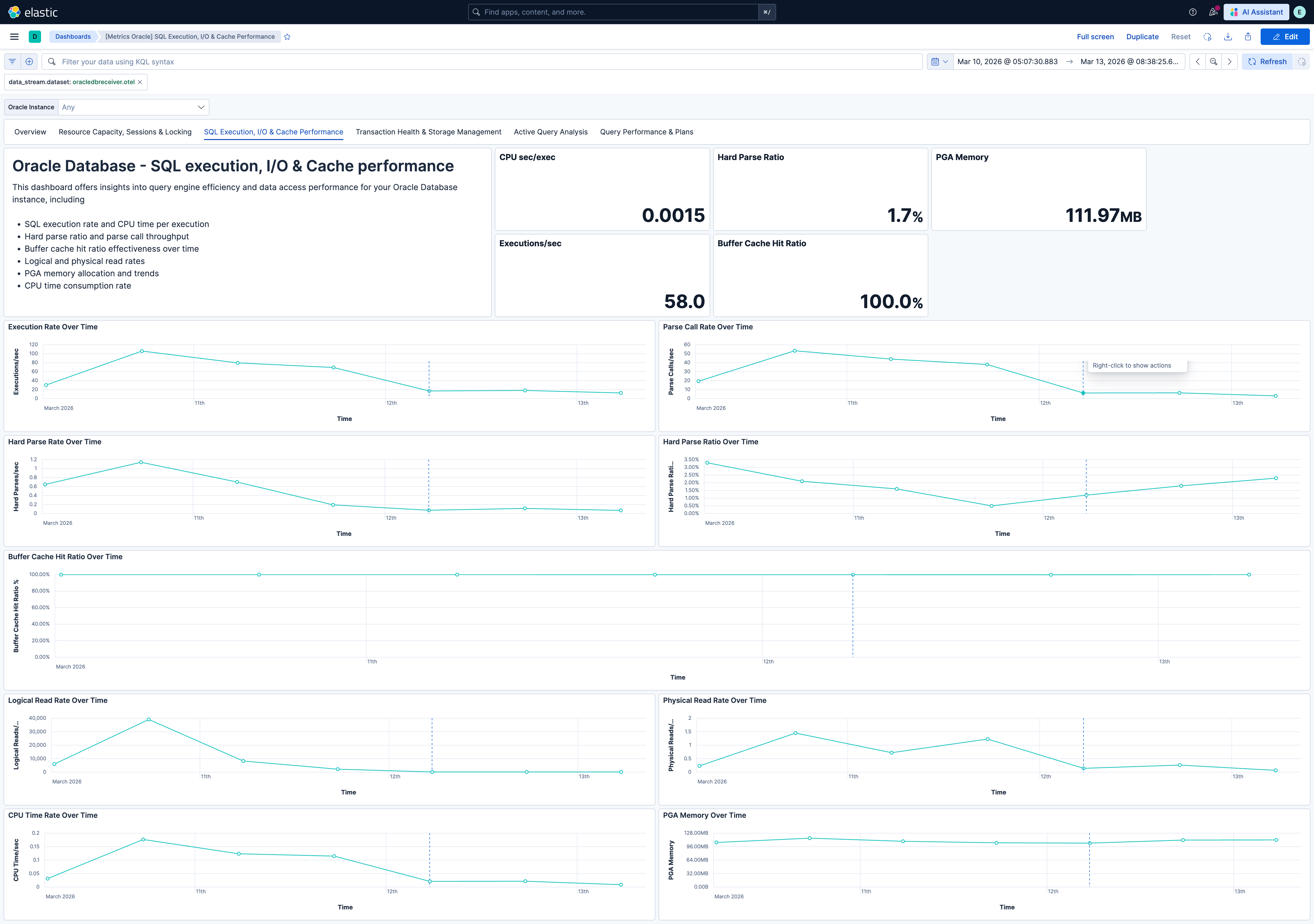

Purpose: Query engine efficiency and data access performance. Answers: "Are applications using the database efficiently? Is the buffer cache effective? Is the instance doing excessive disk I/O?"

Data source: metrics-oracledbreceiver.otel-*

Key panels: Execution rate, hard parse ratio, buffer cache hit ratio, CPU time per execution, PGA memory. Execution rate, parse call rate, hard parse rate, hard parse ratio over time. Buffer cache hit ratio, logical read rate, physical read rate over time. CPU time rate and PGA memory over time.

Derived metrics: Buffer cache hit ratio = 1 - (physical_reads / logical_reads). Hard parse ratio = hard_parses / parse_calls. CPU time per execution = delta(cpu_time) / delta(executions).

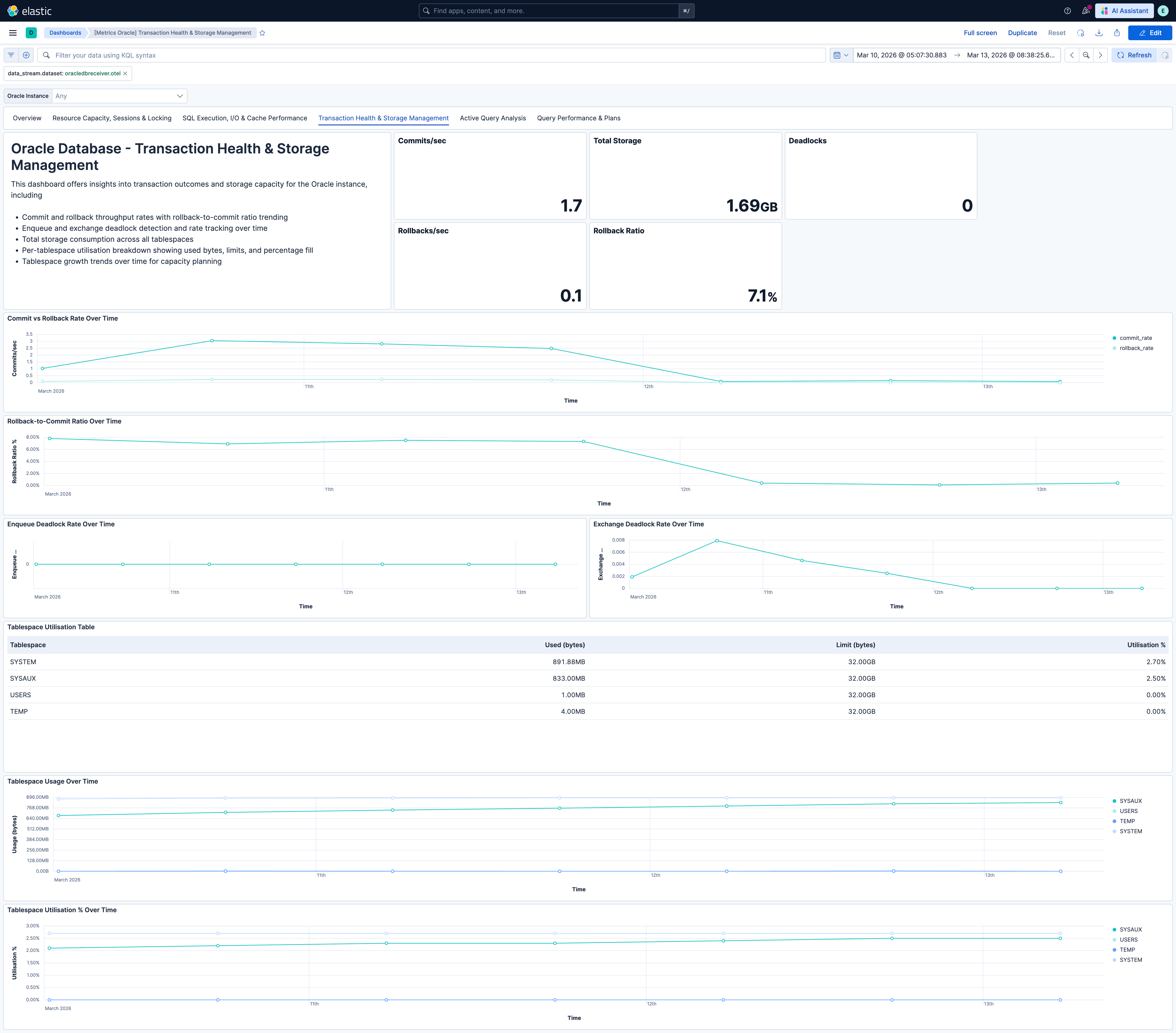

Purpose: Transaction outcomes and tablespace capacity. Answers: "Are transactions succeeding? Are deadlocks occurring? Which tablespaces are growing?"

Data source: metrics-oracledbreceiver.otel-*

Key panels: Commit rate, rollback rate, rollback-to-commit ratio, deadlocks in time range, total storage consumed. Commit vs rollback rate over time. Rollback-to-commit ratio over time. Enqueue and exchange deadlock rate over time. Tablespace utilisation table. Tablespace usage and utilisation % over time by tablespace.

Derived metrics: Rollback-to-commit ratio = user_rollbacks / (user_commits + user_rollbacks). Tablespace utilisation = usage / limit per tablespace.

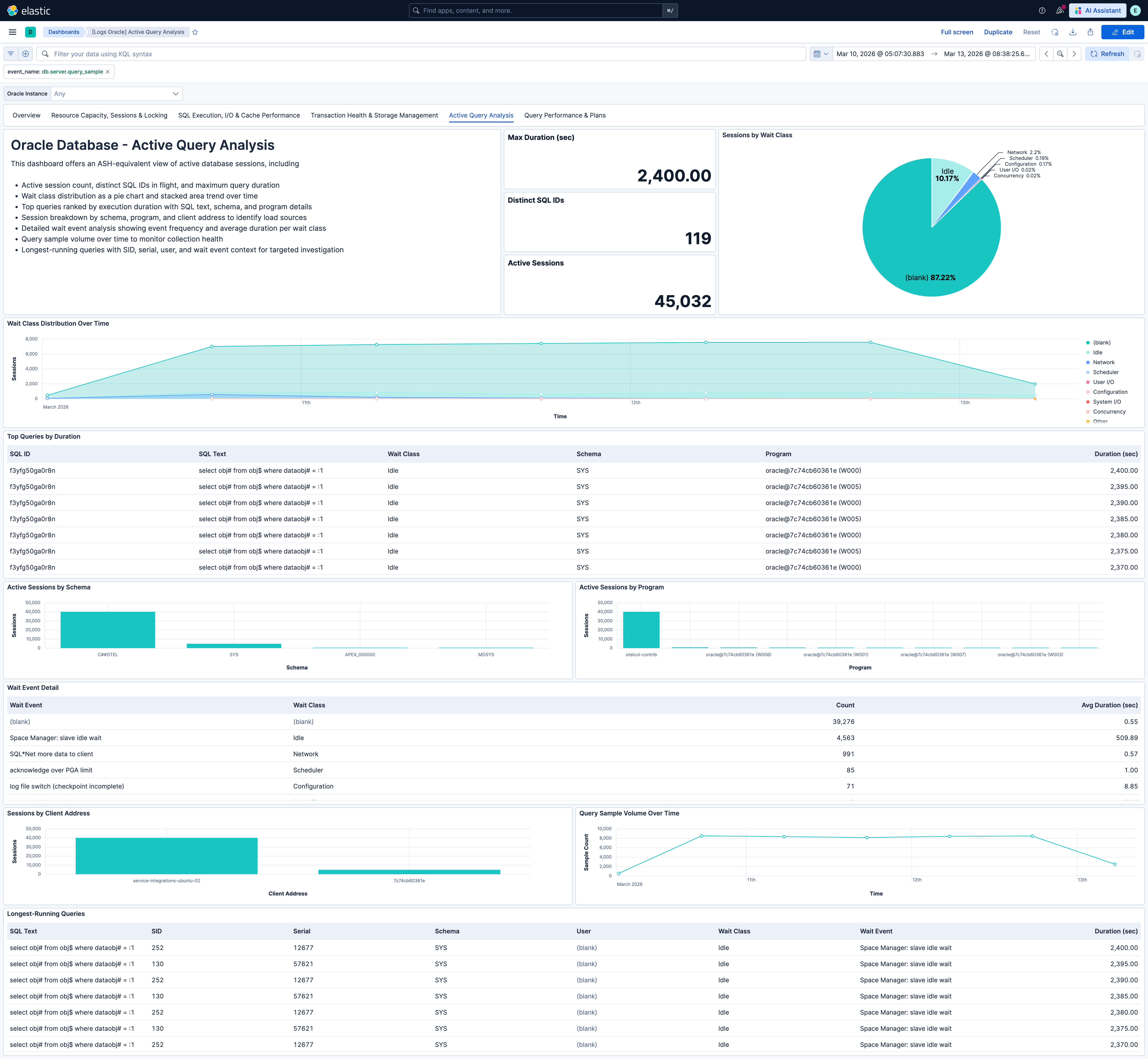

Purpose: Real-time view of currently executing queries (ASH-equivalent). Answers: "What is running right now? What are sessions waiting on? Which schemas, programs, and clients are driving load?"

Data source: logs-oracledbreceiver.otel-* filtered by event_name == "db.server.query_sample"

Key panels: Sampled active sessions, distinct active SQL IDs, max query duration. Sessions by wait class (donut), wait class distribution over time. Top queries by duration (SQL text, duration, wait class, schema, program). Active sessions by schema and by program. Wait event detail table. Sessions by client address. Query sample volume over time. Longest-running queries table.

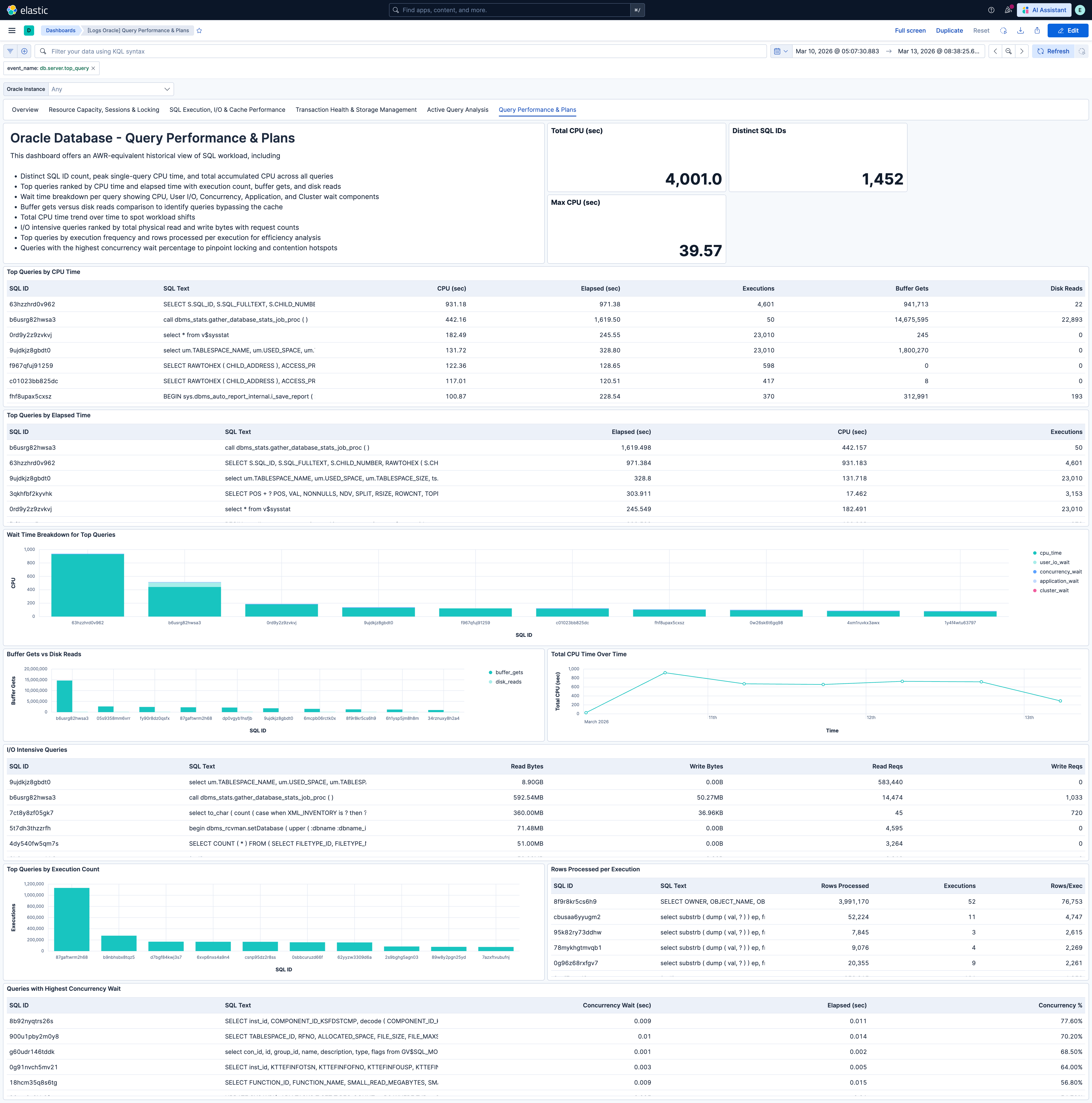

Purpose: Historical top-N query analysis (AWR-equivalent). Answers: "What has been most expensive? Where is CPU time going? Which queries are doing excessive I/O? Are there lock contention hotspots at the query level?"

Data source: logs-oracledbreceiver.otel-* filtered by event_name == "db.server.top_query"

Key panels: Distinct SQL IDs, top query CPU time, total CPU time. Top queries by CPU time and by elapsed time. Wait time breakdown for top queries (CPU, user I/O, concurrency, application, cluster). Buffer gets vs disk reads. Total CPU time over time. I/O intensive queries. Top queries by execution count. Rows processed per execution. Queries with highest concurrency wait.

Several dashboard panels display data from metrics that are disabled by default in the oracledbreceiver. To see data in these panels, you must explicitly enable the corresponding metrics in your OTel Collector configuration.

To enable a single optional metric, add it under receivers.oracledb.metrics in your collector configuration:

receivers:
  oracledb:
    datasource: "oracle://otel:password@localhost:1521/ORCLCDB"
    metrics:
      oracledb.physical_writes:
        enabled: true


To get the full monitoring experience across all dashboards (including optional panels), enable all optional metrics:

receivers:
  oracledb:
    datasource: "oracle://otel:password@localhost:1521/ORCLCDB"
    metrics:
      # I/O Detail
      oracledb.physical_reads_direct:
        enabled: true
      oracledb.physical_writes:
        enabled: true
      oracledb.physical_writes_direct:
        enabled: true
      oracledb.physical_read_io_requests:
        enabled: true
      oracledb.physical_write_io_requests:
        enabled: true
      # Buffer Cache Detail
      oracledb.consistent_gets:
        enabled: true
      oracledb.db_block_gets:
        enabled: true
      # Session & Authentication
      oracledb.logons:
        enabled: true
      # Parallel Execution
      oracledb.queries_parallelized:
        enabled: true
      oracledb.ddl_statements_parallelized:
        enabled: true
      oracledb.dml_statements_parallelized:
        enabled: true
      oracledb.parallel_operations_not_downgraded:
        enabled: true
      oracledb.parallel_operations_downgraded_to_serial:
        enabled: true
      oracledb.parallel_operations_downgraded_1_to_25_pct:
        enabled: true
      oracledb.parallel_operations_downgraded_25_to_50_pct:
        enabled: true
      oracledb.parallel_operations_downgraded_50_to_75_pct:
        enabled: true
      oracledb.parallel_operations_downgraded_75_to_99_pct:
        enabled: true


The [Logs Oracle] Active Query Analysis and [Logs Oracle] Query Performance & Plans dashboards require per-query log events to be enabled. These events provide Oracle ASH and AWR-equivalent analysis through the oracledbreceiver.

Active Query Sampling (db.server.query_sample) — Captures currently executing queries with wait class, duration, SQL text, and session details. Powers [Logs Oracle] Active Query Analysis for real-time incident response.

Top N Queries by CPU (db.server.top_query) — Captures the most expensive queries with full execution plans and per-query wait-time breakdowns. Powers [Logs Oracle] Query Performance & Plans for query optimization and capacity planning.

receivers:
  oracledb:
    datasource: "oracle://otel:password@localhost:1521/ORCLCDB"
    events:
      db.server.query_sample:
        enabled: true
      db.server.top_query:
        enabled: true
    query_sample_collection:
      max_rows_per_query: 100
    top_query_collection:
      max_query_sample_count: 1000
      top_query_count: 200
      collection_interval: 60s


The database user must have SELECT access to additional views beyond the base metrics grants:

GRANT SELECT ON V_$SQL TO <username>;
GRANT SELECT ON V_$SQLAREA TO <username>;
GRANT SELECT ON V_$SQL_PLAN TO <username>;
GRANT SELECT ON V_$SQL_PLAN_STATISTICS_ALL TO <username>;
GRANT SELECT ON V_$PROCESS TO <username>;
GRANT SELECT ON DBA_PROCEDURES TO <username>;
GRANT SELECT ON DBA_OBJECTS TO <username>;


Multitenant (CDB) deployments: If you are using a common user (e.g. C##OTEL) in a Container Database, append CONTAINER=ALL to each grant so the privileges apply across all pluggable databases. For non-CDB deployments or local PDB users, omit the clause.

The OTel Collector service must include a logs pipeline for query events:

service:
  pipelines:
    metrics:
      receivers: [oracledb]
      exporters: [elasticsearch/otel]
    logs:
      receivers: [oracledb]
      exporters: [elasticsearch/otel]


All alert rules use default metrics only; none depend on optional metrics.

All SLOs use default metrics only.

If a panel is empty, the required metric may not be enabled. Many panels use default metrics, but some (e.g. logon rate, physical write rate, parallel execution panels) rely on optional metrics. Refer to Optional Metrics Configuration and enable the metrics used by that panel.

Query events are not enabled in the receiver configuration, or the Oracle user is missing the required grants for V_$SQL, DBA_PROCEDURES, etc. Ensure you have:

1. Enabled db.server.query_sample and/or db.server.top_query in receivers.oracledb.events
2. Granted SELECT on V_$SQL, V_$SQLAREA, V_$SQL_PLAN, V_$SQL_PLAN_STATISTICS_ALL, V_$PROCESS, DBA_PROCEDURES, and DBA_OBJECTS to the collection user
3. Added a logs pipeline to the OTel Collector service with the oracledb receiver and Elasticsearch exporter

See Query Event Configuration.

Check that the OTel Collector service includes a logs pipeline with the oracledb receiver and the elasticsearch/otel exporter. Ensure logs_dynamic_index is enabled on the exporter if required. Verify the collector can connect to the database and that the Oracle user has the required grants.

The Oracle instance may not be exercising that code path. For example, parallel execution metrics remain zero if no parallel queries are running. Optional I/O metrics (physical_writes, physical_reads_direct, etc.) reflect actual disk activity.

Oracle can temporarily exceed soft limits under certain conditions. Values above 100% are expected in some edge cases.

This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.

← →

×

×

×

×

×

×
