CockroachDB OpenTelemetry Assets


Version	0.1.0 (View all)
Subscription level What's this?	Basic
Developed by What's this?	Elastic
Minimum Kibana version(s)	9.2.1

The CockroachDB OpenTelemetry Assets integration v0.1.0 is in beta

To use beta integrations, go to the Integrations page in Kibana, scroll down, and toggle on the Display beta integrations option.

CockroachDB is a distributed SQL database designed for horizontal scalability, strong consistency, and survivability. It uses the Raft consensus protocol to replicate data across nodes and exposes a PostgreSQL-compatible wire protocol.

The CockroachDB OpenTelemetry assets provide dashboards, alert rules, and SLO templates for monitoring CockroachDB clusters. They consume metrics from the Prometheus receiver scraping CockroachDB's /_status/vars endpoint, covering cluster availability, replication health, SQL workload, storage, and resource utilization.

Compatibility

The CockroachDB OpenTelemetry assets have been tested with:

OpenTelemetry Collector Contrib prometheusreceiver v0.146.0
Elastic Distribution of OpenTelemetry (EDOT) Collector v9.2.1

CockroachDB tested against:

CockroachDB v24.3

Requirements

You need Elasticsearch for storing and searching your data and Kibana for visualizing and managing it. You can use our hosted Elasticsearch Service on Elastic Cloud, which is recommended, or self-manage the Elastic Stack on your own hardware.

Setup

Prerequisites

CockroachDB exposes a Prometheus-compatible metrics endpoint at /_status/vars by default. No additional service-side configuration is required; ensure the HTTP port (typically 8080) is reachable from the OpenTelemetry Collector.

Configuration

Install and configure the upstream OpenTelemetry Collector or Elastic Distribution of OpenTelemetry (EDOT) Collector to scrape CockroachDB metrics and export them to Elasticsearch. Replace the following placeholders in the configuration:

<COCKROACHDB_TARGET>: CockroachDB node endpoint to scrape (format: host:port, for example, localhost:8080 or cockroachdb-node-1.example.com:8080)
<ES_ENDPOINT>: Elasticsearch endpoint (for example, https://elasticsearch.example.com:9200)
<ES_API_KEY>: Elasticsearch API key for authentication (use ${env:ES_API_KEY} in the YAML and set the variable in your environment)

		receivers:
  prometheus/cockroachdb:
    config:
      scrape_configs:
        - job_name: cockroachdb
          scrape_interval: 15s
          metrics_path: /_status/vars
          params:
            format: [prometheus]
          scheme: http
          static_configs:
            - targets: [<COCKROACHDB_TARGET>]

processors:
  resource/dataset:
    attributes:
      - key: data_stream.dataset
        value: cockroachdb
        action: upsert

exporters:
  elasticsearch/otel:
    endpoint: <ES_ENDPOINT>
    api_key: <ES_API_KEY>
    mapping:
      mode: otel

service:
  pipelines:
    metrics:
      receivers: [prometheus/cockroachdb]
      processors: [resource/dataset]
      exporters: [elasticsearch/otel]



Note

For multi-node clusters, add additional targets to the static_configs list or use appropriate service discovery. Ensure service.name: cockroachdb is set so the dashboards and alerts filter correctly.

Dashboard	Description

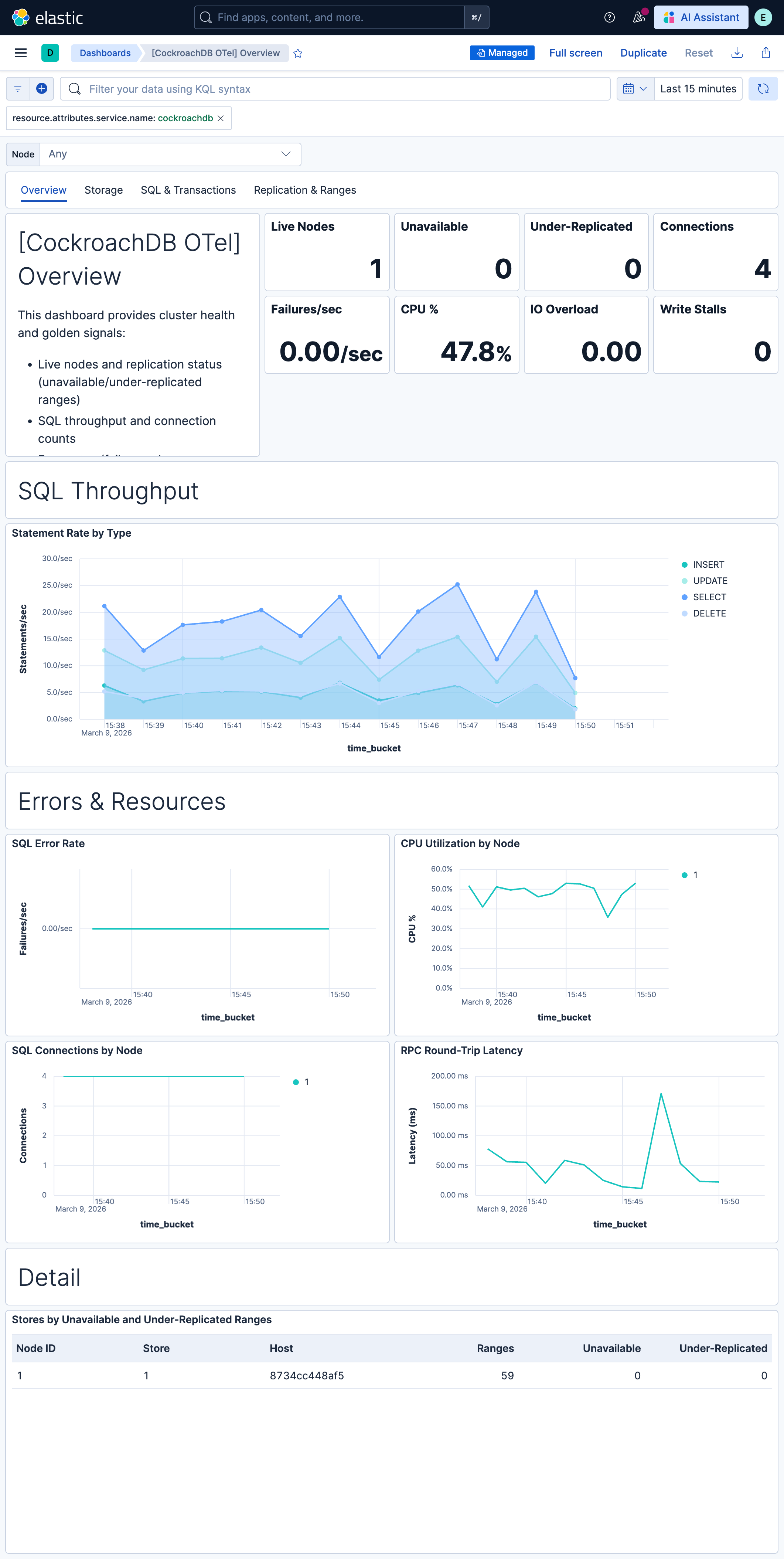

[CockroachDB OTel] Overview	Cluster health, availability, and golden signals for CockroachDB. Covers live nodes, replication status, SQL throughput, errors, CPU, and storage.

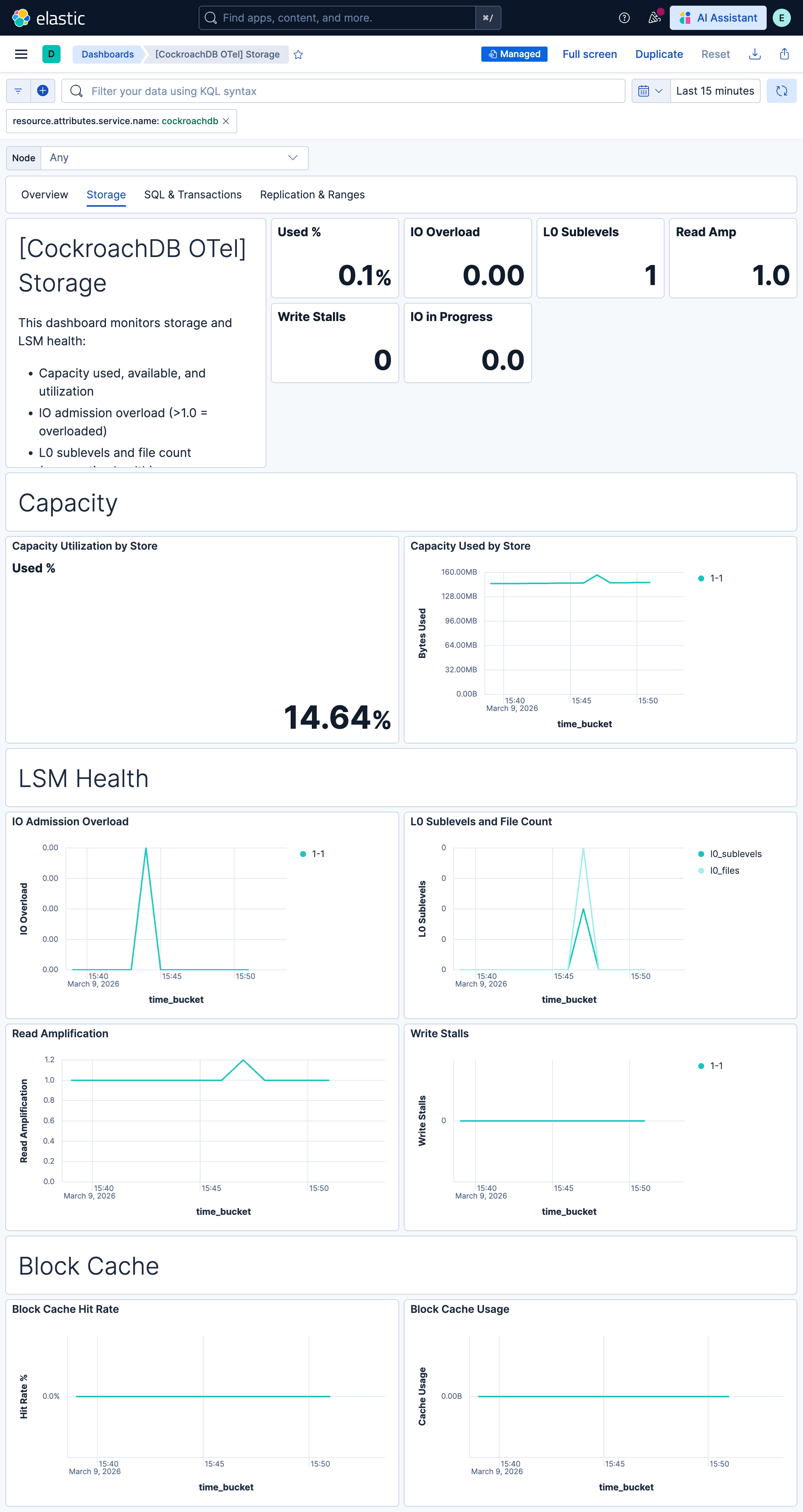

[CockroachDB OTel] Storage	Storage capacity, LSM tree health, and disk I/O metrics. Monitor capacity usage, admission IO overload, L0 sublevels, read amplification, and write stalls.

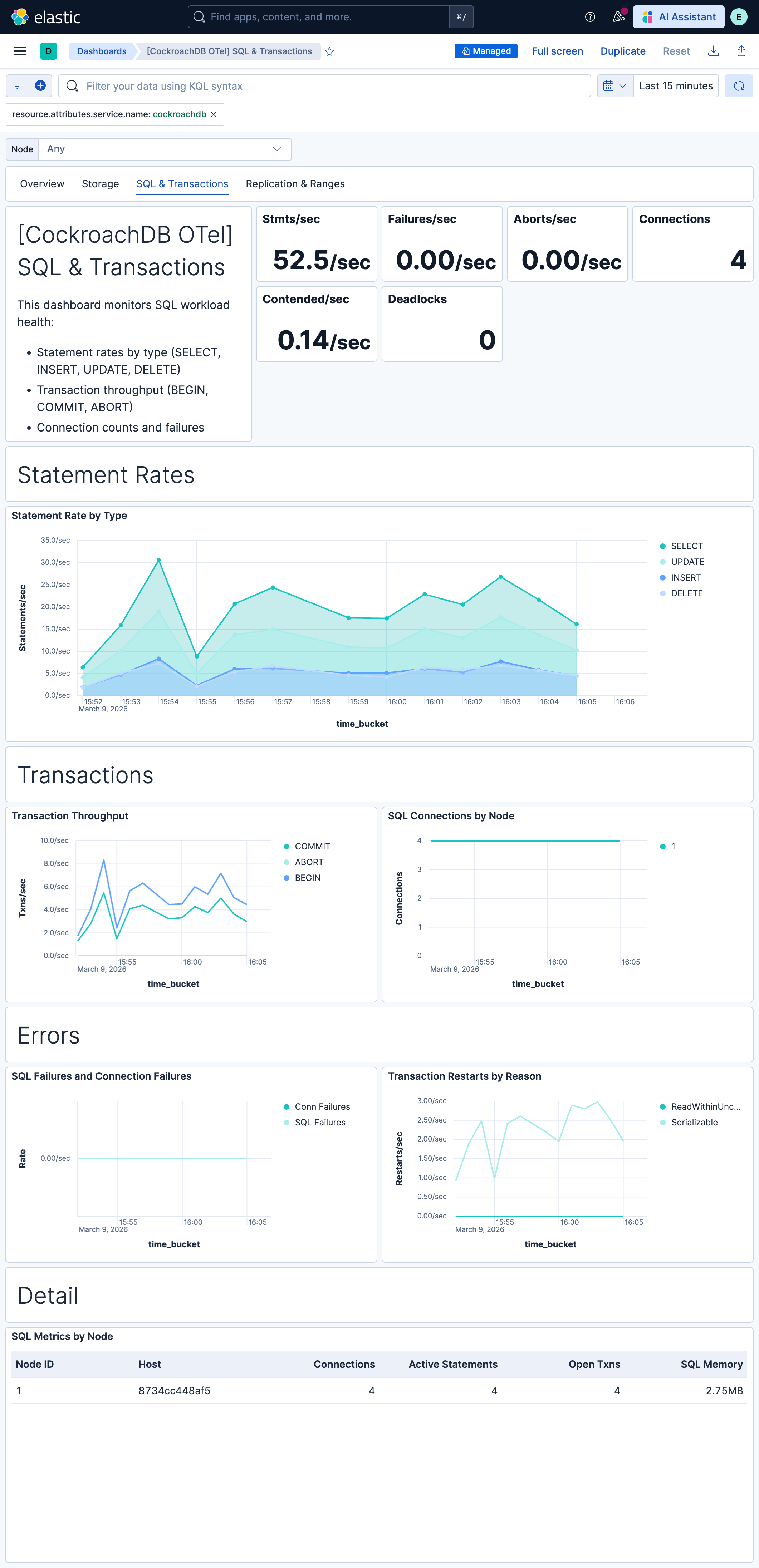

[CockroachDB OTel] SQL & Transactions	SQL statement rates, transaction throughput, errors, and contention. Monitor SELECT/INSERT/UPDATE/DELETE rates, connection counts, failures, aborts, and deadlocks.

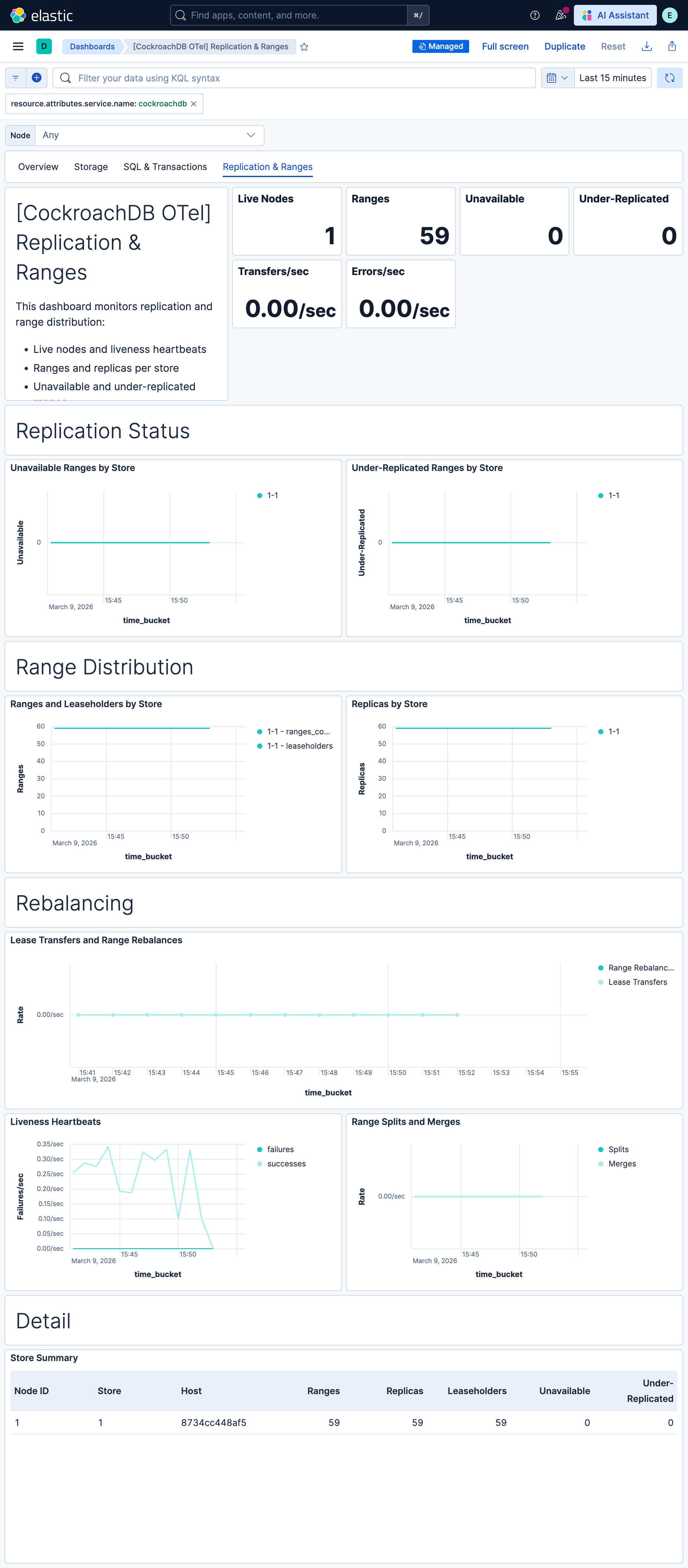

[CockroachDB OTel] Replication & Ranges	Range distribution, replication health, and rebalancing activity. Monitor ranges per store, unavailable/under-replicated ranges, lease transfers, and rebalancing.

Alert rules

Alert	Trigger	Severity
[CockroachDB OTel] Unavailable ranges detected	One or more ranges have insufficient live replicas for quorum	Critical
[CockroachDB OTel] Under-replicated ranges detected	One or more ranges have fewer replicas than the replication target	High
[CockroachDB OTel] Liveness heartbeat failures	Node liveness heartbeats are failing	Critical
[CockroachDB OTel] Storage write stalls detected	Storage engine is intentionally stalling writes due to disk backpressure	Critical
[CockroachDB OTel] IO admission control overload	IO admission overload indicator exceeds 1.0 on any store	High
[CockroachDB OTel] Storage capacity usage high	Storage capacity utilization exceeds 60% on any store	High
[CockroachDB OTel] LSM read amplification high	Read amplification exceeds 50, indicating unhealthy LSM tree	High
[CockroachDB OTel] L0 file count high	L0 file count exceeds 1000 on any store	Medium
[CockroachDB OTel] Disk I/O operations queued high	Disk I/O operations in queue persistently high	High
[CockroachDB OTel] CPU utilization high	CockroachDB process CPU utilization exceeds 80%	High
[CockroachDB OTel] Runnable goroutines per CPU high	Runnable goroutines per CPU exceed 30, indicating CPU overload	Medium
[CockroachDB OTel] Unhealthy RPC connections	One or more unhealthy inter-node RPC connections detected	High
[CockroachDB OTel] Deadlocks detected	Transaction deadlocks detected on any node	Medium

SLO templates

SLO	Target	Window	Description
[CockroachDB OTel] Admission IO overload under 1.0 99.5% rolling 30 days	99.5%	30-day rolling	Ensures IO admission overload stays below 1.0 for 99.5% of 1-minute intervals over a rolling 30-day window.
[CockroachDB OTel] Storage capacity utilization under 60% rolling 30 days	99.5%	30-day rolling	Ensures storage capacity utilization stays below 60% for 99.5% of 1-minute intervals over a rolling 30-day window.
[CockroachDB OTel] SQL statement success rate 99.5% rolling 30 days	99.5%	30-day rolling	Ensures SQL statement success rate is at least 99.5% for 99.5% of 1-minute intervals over a rolling 30-day window.

Screenshots

This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.
