SonicWall Firewall Integration for Elastic

The SonicWall Firewall integration for Elastic enables you to collect logs from SonicWall firewall devices. This integration provides essential visibility into network security events and device activities, helping you monitor threats and troubleshoot network issues within the Elastic Stack.

This integration is compatible with SonicWall Firewall devices running SonicOS 6.5 and 7.0. It supports the Enhanced Syslog format provided by these versions.

The integration collects data from SonicWall firewalls through two primary methods:

• Network syslog: You can configure your SonicWall device to send Enhanced Syslog messages to the Elastic Agent over UDP. The agent acts as a listener, receiving and processing the incoming data.
• Log files: You can configure the integration to read logs directly from specified file paths on the host where the agent's running.

Regardless of the collection method, the Elastic Agent sends the processed logs to your Elastic deployment, where they're stored in the log data stream and normalized for analysis.

The SonicWall Firewall integration collects various security and network event logs. This data is normalized into the sonicwall_firewall.log dataset within the Elastic Stack, so you'll have comprehensive visibility into network activity and potential threats.

The SonicWall Firewall integration collects log messages of the following types:

• Syslog messages sent using UDP, including firewall access rules and application firewall data.
• Flood protection and network events such as ARP, DNS, IP, and TCP.
• Security services logs including anti-spyware, anti-virus, Intrusion Prevention System (IPS), and content filtering events.
• System administration and user authentication logs.
• Enhanced Syslog messages captured from specified file paths on your agent's host.

Integrating your SonicWall logs with the Elastic Stack helps you monitor your network security and gain visibility into firewall operations. Key use cases include:

• Real-time threat detection where you use Elastic SIEM to identify and respond to threats identified in your firewall logs.
• Network traffic analysis to visualize patterns and identify anomalies using Kibana dashboards.
• Compliance and auditing to maintain searchable, long-term archives of firewall logs for regulatory requirements.
• Incident response to correlate firewall events with other observability data for faster investigations.

This integration features generic support for enhanced syslog messages produced by SonicOS and features more detailed ECS enrichment for the following messages:

To use the SonicWall Firewall integration, you'll need to meet the following vendor and Elastic requirements:

You must configure your SonicWall device with these settings:

• Administrative access to the SonicWall firewall web interface is required to configure syslog settings.
• The Elastic Agent must be reachable from the SonicWall firewall over the network using the UDP protocol on the configured syslog port (the default is 9514). Ensure no firewalls or security groups are blocking this communication.
• The SonicWall firewall must be configured to send logs in Enhanced Syslog format.
• You'll need to enable Display UTC in logs (instead of local time) under the firewall's Device > Settings > Time menu to ensure correct timestamp parsing and avoid timezone-related issues.
• You must know the IP address of the Elastic Agent where the syslog listener is running.

Ensure your Elastic environment meets these specifications:

• You have an Elastic Agent installed and enrolled in Fleet.
• Your Elastic Stack version is compatible with Elastic Stack 7.17.0 or higher, including 8.x versions.
• The Elastic Agent has network connectivity to the SonicWall firewall to receive syslog messages on the configured UDP port.

Elastic Agent must be installed. For more details, check the Elastic Agent installation instructions. You can install only one Elastic Agent per host.

Elastic Agent is required to stream data from the syslog or log file receiver and ship the data to Elastic, where the events will then be processed using the integration's ingest pipelines.

Depending on your firewall version, follow these steps to configure your SonicWall device to send logs to the Elastic Agent:

For SonicOS 7.x:

1. Log in to your SonicWall firewall's administration interface.
2. Navigate to Device > Log > Syslog.
3. Under Syslog Servers, click the Add button.
4. In the Add Syslog Server window, enter the IP address of your Elastic Agent in the Name or IP Address field.
5. From the Syslog Format dropdown menu, select Enhanced Syslog.
6. (Optional) Enter a Syslog ID. The default is firewall. This ID is used to differentiate logs from multiple firewalls and is mapped to the observer.name field in Elastic.
7. Click OK to save the syslog server configuration.
8. Navigate to Device > Log > Settings.
9. For each category of events you wish to forward (for example, System, Firewall, Network), enable the Syslog checkbox (often represented by a small paper airplane icon).
10. Set the desired logging level for each category. It's recommended to set the level to Informational to capture sufficient detail.
11. Click Accept or Save at the bottom of the page to apply the changes.
12. Navigate to Device > Settings > Time.
13. Under Display Time Zone, select the option Display UTC in logs (instead of local time).
14. Click Accept to save the time setting.

For SonicOS 6.5:

1. Log in to your SonicWall firewall's administration interface.
2. Navigate to Manage > Log Settings > SYSLOG.
3. Click the Add button.
4. In the Add Syslog Server window, enter the name or IP address of your Elastic Agent in the Name or IP Address field. The port will default to 514 (UDP).
5. From the Syslog Format dropdown menu, select Enhanced Syslog.
6. (Optional) Set the Syslog ID. The default is firewall. This ID is used to differentiate logs from multiple firewalls and is mapped to the observer.name field in Elastic.
7. Click OK to save the syslog server configuration.
8. Navigate to Manage > Log Settings > Base Setup.
9. For each category of events you wish to forward (for example, System, Firewall, Network), enable the Syslog checkbox (often represented by a small paper airplane icon).
10. Set the desired logging level for each category. It's recommended to set the level to Informational to capture sufficient detail.
11. Click Accept or Save at the bottom of the page to apply the changes.
12. Navigate to Manage > System Setup > Time.
13. Under Display Time Zone, select the option Display UTC in logs (instead of local time).
14. Click Accept to save the time setting.

You can find more detailed information about SonicWall log events in the following vendor documentation:

• SonicOS 6.5.4 Log Events Reference Guide

To set up the SonicWall Firewall integration in Kibana:

1. In Kibana, navigate to Management > Integrations.
2. Search for SonicWall Firewall and select the integration.
3. Click Add SonicWall Firewall.
4. Configure the integration settings based on your preferred collection method.

Choose one of the following input types:

This input receives real-time syslog messages directly from your SonicWall firewall over UDP.

Under Advanced options, you can configure:

Example for Custom UDP Options:

read_buffer: 100MiB
max_message_size: 50KiB
timeout: 300s


This input collects logs directly from file paths on the host where the Elastic Agent is running.

After configuring the input, assign the integration to an agent policy and click Save and continue.

To verify that your integration is working correctly, follow these steps:

1. Verify Elastic Agent status: Navigate to Management > Fleet > Agents in Kibana and ensure your agent's status is Healthy.
2. Trigger data flow on the firewall: Generate some activity that the firewall will log:
   • Browse several websites from a client behind the firewall to generate access logs.
   • Attempt to access a blocked service to generate denial events.
   • Log out and back into the SonicWall administration interface to generate authentication logs.
   • Modify a minor setting (like time display) and click Accept to trigger a configuration audit log.
3. Check data in Discover:
   • In Kibana, navigate to Analytics > Discover.
   • Filter for data_stream.dataset : "sonicwall_firewall.log".
   • Confirm that logs are appearing with recent timestamps and that fields like source.ip, destination.ip, and observer.name are correctly populated.
4. Check dashboards: Navigate to Analytics > Dashboards and search for SonicWall Firewall to view the pre-built visualizations. Confirm they are populated with data from your device.

For help with Elastic ingest tools, check the Common problems documentation.

You might encounter the following issues when configuring the SonicWall Firewall integration:

• Incorrect syslog format: Ensure the SonicWall firewall is configured to send logs in Enhanced Syslog format. This integration is designed for the enhanced format and will not correctly parse logs sent in Legacy or other formats.
• Timezone mismatch: Check if the SonicWall firewall is sending logs in UTC. If the firewall is using local time, you must configure the Timezone Offset setting in the integration settings to ensure timestamps are parsed correctly. Enabling Display UTC in logs on the firewall is the recommended approach.
• Network connectivity problems: Verify that the SonicWall device can reach the Elastic Agent host on the configured UDP port (default is 9514). Check for any intermediate firewalls or host-based security software that might be blocking the traffic.
• Missing log categories: Confirm that the desired log categories (such as Firewall, Network, or System) have the syslog forwarding option enabled in the SonicWall administration interface under the log settings menu.
• Syslog listener not starting: Ensure no other process on the Elastic Agent host is already using the configured UDP port. You can use tools like netstat or ss to check for port conflicts.

For more detailed information on SonicWall log events and troubleshooting, refer to the following resources:

• SonicOS 6.5.4 Log Events Reference Guide
• SonicWall Technical Documentation
• SonicWall Support Portal

To ensure optimal performance and reliable data ingestion in high-volume environments, consider the following factors:

• Transport and collection: The SonicWall Firewall integration primarily uses UDP Syslog for log collection. UDP offers high speed and low overhead, which makes it suitable for high-volume log streams. However, UDP is an unreliable protocol. For environments where log loss is unacceptable, ensure network reliability between the firewall and the Elastic Agent by implementing network quality-of-service (QoS) or ensuring sufficient buffer sizes.
• Data volume management: To manage data volume and reduce the load on both the SonicWall firewall and the Elastic Agent, filter or limit the data at the source. Configure your SonicWall firewall to only send relevant log categories and severity levels to the Syslog server. Excessive logging of low-priority events can consume significant network bandwidth and processing resources on both ends.
• Elastic Agent scaling: While a single Elastic Agent can handle a significant volume of syslog data, for extremely high-throughput environments or to ensure redundancy, deploy multiple Elastic Agents. Place Elastic Agents strategically in the same network segment as the firewall to minimize network latency.
• Resource monitoring: Monitor agent resource utilization, such as CPU, memory, and disk I/O. This helps you size resources appropriately and scale out by adding more agents as your data volume increases.

For more information on architectures that can be used for scaling this integration, check the Ingest Architectures documentation.

The following reference material provides details about the SonicWall Firewall integration.

These inputs can be used with this integration:

The SonicWall Firewall integration includes the following data stream.

The log data stream provides events from SonicWall Firewall devices of the following types:

• Traffic logs
• Unified Threat Management (UTM) logs
• System event logs
• Authentication logs
• Security service logs

{
    "@timestamp": "2022-05-16T08:18:39.000+02:00",
    "agent": {
        "ephemeral_id": "8f24cddd-67ce-47a5-abbf-f121166c864d",
        "id": "8601d89d-ddce-4945-96ce-7d8dd35e7d9e",
        "name": "docker-fleet-agent",
        "type": "filebeat",
        "version": "8.11.4"
    },
    "data_stream": {
        "dataset": "sonicwall_firewall.log",
        "namespace": "ep",
        "type": "logs"
    },
    "destination": {
        "geo": {
            "city_name": "London",
            "continent_name": "Europe",
            "country_iso_code": "GB",
            "country_name": "United Kingdom",
            "location": {
                "lat": 51.5142,
                "lon": -0.0931
            },
            "region_iso_code": "GB-ENG",
            "region_name": "England"
        },
        "ip": "81.2.69.193",
        "mac": "00-17-C5-30-F9-D9",
        "port": 64889
    },
    "ecs": {
        "version": "8.17.0"
    },
    "elastic_agent": {
        "id": "8601d89d-ddce-4945-96ce-7d8dd35e7d9e",
        "snapshot": false,
        "version": "8.11.4"
    },
    "event": {
        "action": "connection-denied",
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "code": "713",
        "dataset": "sonicwall_firewall.log",
        "ingested": "2024-01-29T19:06:19Z",
        "kind": "event",
        "outcome": "success",
        "sequence": 692,
        "severity": 7,
        "timezone": "+02:00",
        "type": [
            "connection",
            "denied"
        ]
    },
    "input": {
        "type": "udp"
    },
    "log": {
        "level": "debug",
        "source": {
            "address": "172.23.0.4:37942"
        },
        "syslog": {
            "priority": 135
        }
    },
    "message": "� (TCP Flag(s): RST)",
    "network": {
        "bytes": 46,
        "protocol": "https",
        "transport": "tcp"
    },
    "observer": {
        "egress": {
            "interface": {
                "name": "X1"
            },
            "zone": "Untrusted"
        },
        "ingress": {
            "interface": {
                "name": "X1"
            },
            "zone": "Untrusted"
        },
        "ip": [
            "10.0.0.96"
        ],
        "name": "firewall",
        "product": "SonicOS",
        "serial_number": "0040103CE114",
        "type": "firewall",
        "vendor": "SonicWall"
    },
    "related": {
        "ip": [
            "10.0.0.96",
            "81.2.69.193"
        ],
        "user": [
            "admin"
        ]
    },
    "rule": {
        "id": "15 (WAN->WAN)"
    },
    "sonicwall": {
        "firewall": {
            "app": "12",
            "event_group_category": "Firewall Settings",
            "gcat": "6",
            "sess": "Web"
        }
    },
    "source": {
        "bytes": 46,
        "ip": "10.0.0.96",
        "mac": "00-06-B1-DD-4F-D4",
        "port": 443
    },
    "tags": [
        "sonicwall-firewall",
        "forwarded"
    ],
    "user": {
        "name": "admin"
    }
}


For more information about the logs generated by your device, you can refer to the following documentation:

• SonicOS 6.5.4 Log Events Reference Guide

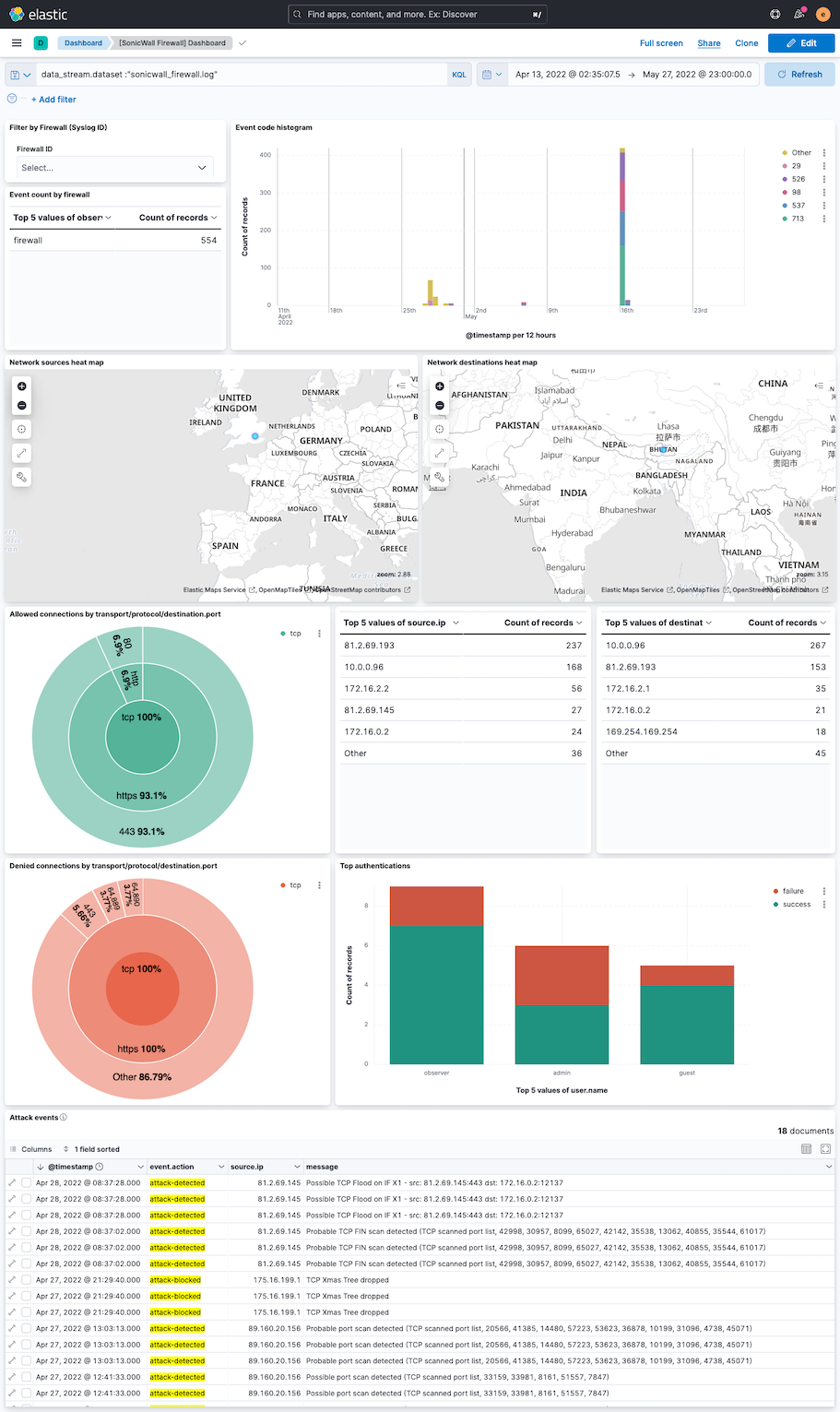

This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.

×
