Jamf Pro integration

Version 2.2.0 (View all)
Managed integration release status GA
Subscription level
What's this?
Basic
Developed by
What's this?
Elastic
Ingestion method(s) API, AWS S3, Webhook
Minimum Kibana version(s) 9.0.5
8.19.2
Important - Managed integrations on Elastic Cloud Hosted

You can use this integration as an Elastic Managed integration on Elastic Cloud Hosted deployments running this version or later.

Jamf Pro is a comprehensive management solution designed to help organizations deploy, configure, secure, and manage Apple devices. This integration enables organizations to seamlessly monitor and protect their Mac fleet through Elastic, providing a unified view of security events across all endpoints and facilitating a more effective response to threats. This integration encompasses both event and inventory data ingestion from Jamf Pro.

Agentless integrations allow you to collect data without having to manage Elastic Agent in your cloud. They make manual agent deployment unnecessary, so you can focus on your data instead of the agent that collects it. For more information, refer to Agentless integrations and the Agentless integrations FAQ. Agentless deployments are only supported in Elastic Serverless and Elastic Cloud environments. This functionality is in beta and is subject to change. Beta features are not subject to the support SLA of official GA features.

Note

When using this integration as an Elastic Managed integration, only the Inventory data data stream is available. This data stream uses inputs compatible with the Elastic Managed deployment mode. Other data streams (Jamf Pro Access Logs and Jamf Pro Events) require AWS S3 or HTTP Endpoint inputs, which are not supported in the Elastic Managed deployment mode. To collect data from these data streams, use Elastic Agent.

  • inventory Provides Inventory data for computers. Includes: hardware, OS, etc. Saves each device as a separate log record.
    This data stream utilizes the Jamf Pro API's /v1/computers-inventory endpoint.

  • events Receives events sent by Jamf Pro Webhooks.
    This data stream requires opening a port on the Elastic Agent host.

  • access Collects Jamf Pro Log Stream access logs (logins, logouts, API token operations) delivered to AWS S3, read directly or via SQS.

  • change_management Receives Jamf Pro Log Stream change management logs. These arrive on the access input and are rerouted to this data stream by ingest routing rules; no separate input is configured.

  • Jamf Pro Active License and OAuth2 Credentials
    This connector utilizes Jamf Pro API, therefore an active license - either Jamf Business or Enterprise - is required (Jamf Now does not have access to the API)
  • HTTP(S) port open for incoming connections
    A port for incoming connections (9202 by default) will be set during policy configuration. This port on host must be accessible from the Jamf server.

  • Jamf Pro webhooks
    Please refer to the Jamf Pro documentation about Setting up webhooks.
    NOTE: For HTTPS usage, a valid, trusted certificate is essential; Jamf Pro webhooks cannot accept a self-signed certificate. If necessary, the HTTP protocol may serve as a fallback option. Although Jamf Pro webhooks do not require HTTPS, its use is strongly recommended for security reasons.

To create a connection to Jamf Pro, an application must be created first. Credentials generated during this process are required for the subsequent steps.

Permissions required by the Jamf Pro application:

  • Read Computer Inventory Collection: Access to read inventory data from the computer collection.
  • Read Computers: Allows the application to access and read data from computers.

Jamf Pro API Credentials

  • client_id is an app specific ID generated during app creation, and is available in the app settings.
  • client_secret is only available once after app creation. Can be regenerated if lost.

Permissions can be set up on app creation or can be updated for existing app

To set up the inventory data stream these three fields are required:

  • api_host (the Jamf Pro host)
  • client_id
  • client_secret

The events data stream is a passive listener, it should be set up before webhooks are created in the Jamf Pro Dashboard.
The following network settings should be confirmed by an IT or security person:

  • Listen Address
  • Listen Port
  • URL

Auth settings will be required for the Jamf Pro Webhook settings:

  • Secret Header
  • Secret Value

Please follow the Jamf Pro Webhooks documentation.

You will require the following settings:

  • Webhook URL: must be in form https://your-elastic-agent:9202/jamf-pro-events
    Note: 9202 is a port and /jamf-pro-events are default values and can be changed this connector's setup.

  • Authentication type: "None" and "Header Authentication" are supported.
    "None" means the (target) Webhook URL is available without authentication, so no secret header or secret value were set during integration policy configuration.
    "Header Authentication" will require an auth token name and value, set during integration policy configuration.

Jamf Pro setting Corresponding integration setting Example value
Webhook URL Port + URL https://your-elastic-agent:${PORT}${URL}
Authentication type Header Authentication
Header Authentication Secret Header + Secret Value {"${Header}":"${Value}"}
  • Content Type: JSON

  • Webhook Event: Event to be selected. In case set of events is required, 1:1 webhooks should be created.

The access and change management data streams collect logs from the Jamf Pro Log Stream via AWS S3. To set them up:

  1. In Jamf Pro, navigate to Settings > System > Jamf Pro Log Stream and enable log streaming to AWS S3. Select the Access and Change Management log types.
  2. Create or reuse the S3 bucket that Jamf Pro will write to.
  3. (SQS mode, default) Create an SQS queue and add an S3 event notification for s3:ObjectCreated:* that targets the queue. In the integration policy, provide the Queue URL.
  4. (S3 polling mode) Enable Collect logs via S3 Bucket in the integration policy and provide the Bucket ARN instead.
  5. Grant the credentials used by Elastic Agent the following IAM permissions:
    • s3:GetObject and s3:ListBucket on the bucket.
    • For SQS mode: sqs:ReceiveMessage, sqs:DeleteMessage, and sqs:ChangeMessageVisibility on the queue.

Inventory documents can be found in logs-* by setting the filter event.dataset :"jamf_pro.inventory".

By default these sections are included inventory documents:

  • GENERAL
  • HARDWARE
  • OPERATING_SYSTEM

All the sections can be enabled or disabled on the integration policy settings page.

This integration includes a latest transform that maintains a single up-to-date document per device in a dedicated index. The transform destination is accessible via the logs-jamf_pro_latest.inventory alias.

The source data stream accumulates all inventory snapshots (one per device per report cycle). A default ILM policy rolls the source index over every 7 days and deletes each rolled-over index 30 days later. The transform's retention policy removes devices from the latest index whose @timestamp is more than 30 days old.

Here is an example inventory document:

The following non-ECS fields are used in inventory documents:

Documents from events data_stream are saved under logs-* and can be found on discover page with filtering by event.dataset :"jamf_pro.events"

Here is an example real-time event document:

The following non-ECS fields are used in real-time event documents:

The access data stream collects Jamf Pro Log Stream access logs delivered via AWS S3. These logs record authentication events such as user logins, logouts, and API token operations. Both access and change management logs arrive on this data stream; change management events are automatically rerouted to the change_management data stream by ingest routing rules.

To collect Jamf Pro Log Stream logs, configure the Jamf Pro Log Stream to deliver logs to an AWS S3 bucket, then configure the integration to read from that bucket (either directly or via an SQS queue).

Documents from the access data stream can be found with the filter event.dataset: "jamf_pro.access".

The following non-ECS fields are used in access documents:

The change management data stream collects Jamf Pro Log Stream change management logs. These logs record configuration changes such as creating, reading, updating, or deleting objects in Jamf Pro (computers, policies, configuration profiles, etc.).

Change management events are automatically rerouted from the access data stream. No separate input configuration is required.

Documents from the change management data stream can be found with the filter event.dataset: "jamf_pro.change_management".

The following non-ECS fields are used in change management documents:

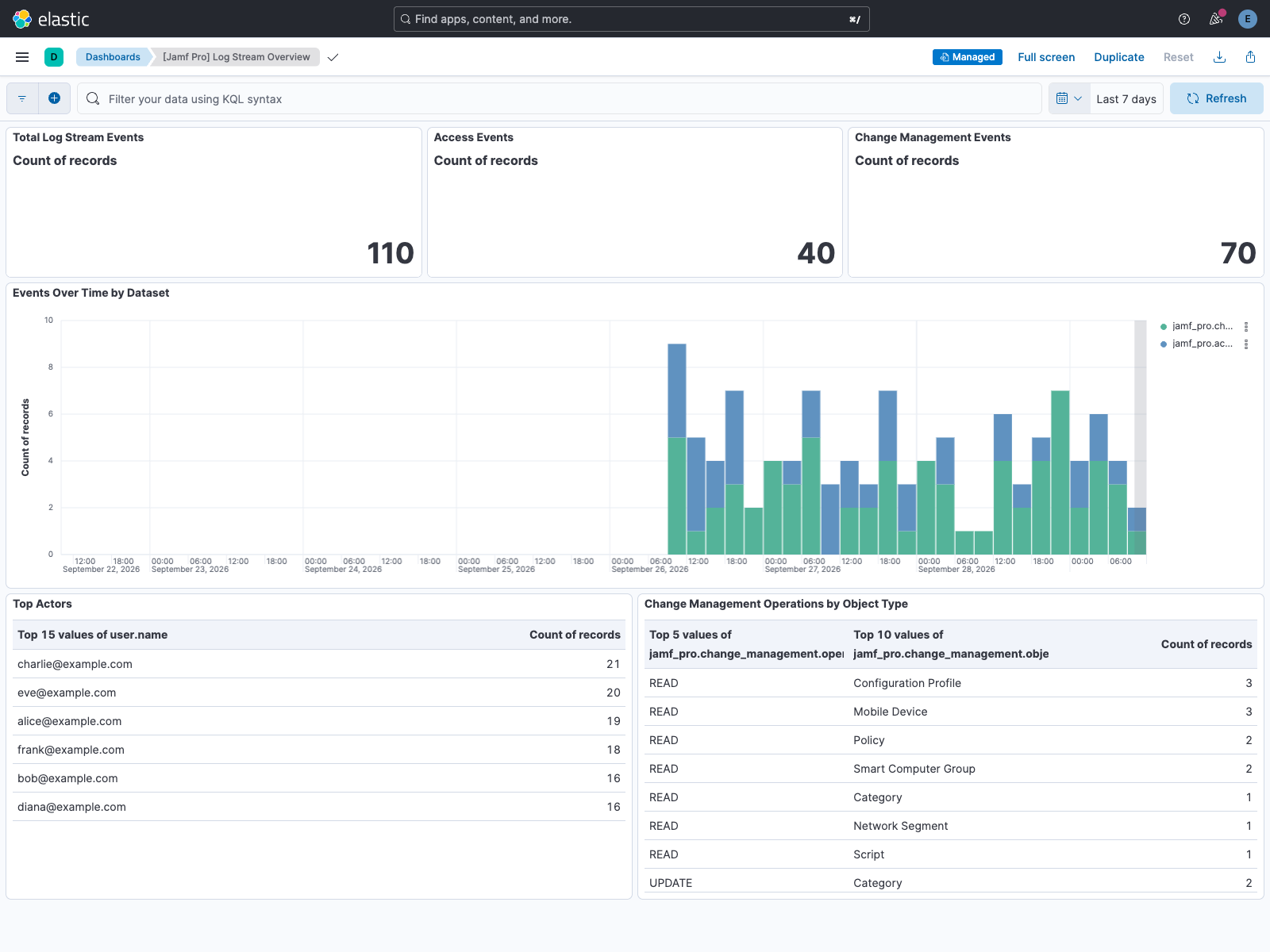

The integration ships a Log Stream Overview dashboard that summarizes access and change management events — event volume over time, top actors, and a breakdown of change management operations by object type. It is tagged Security Solution, so it also appears in the Security app, and can be found in Kibana under Dashboards after installing the integration.

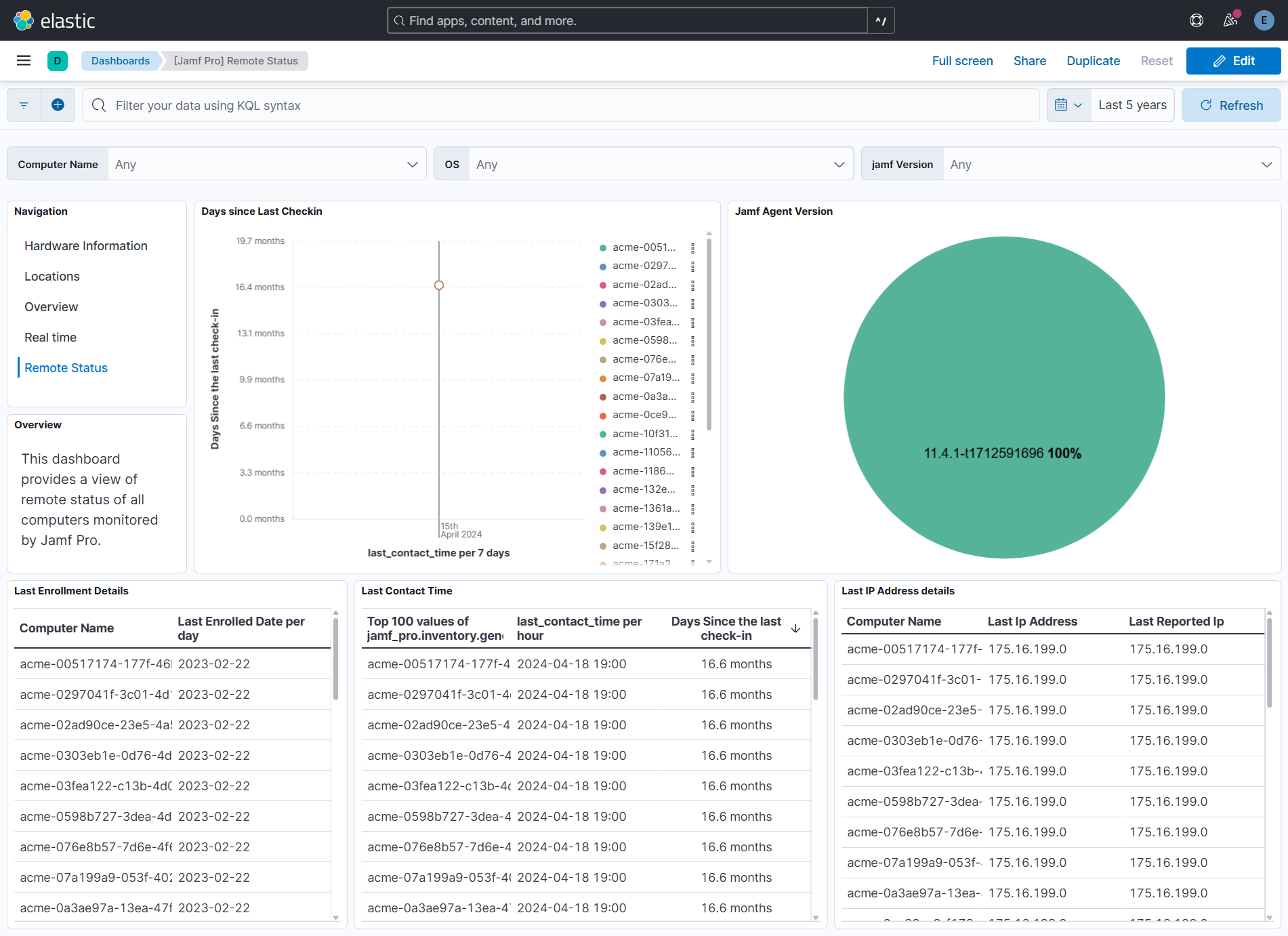

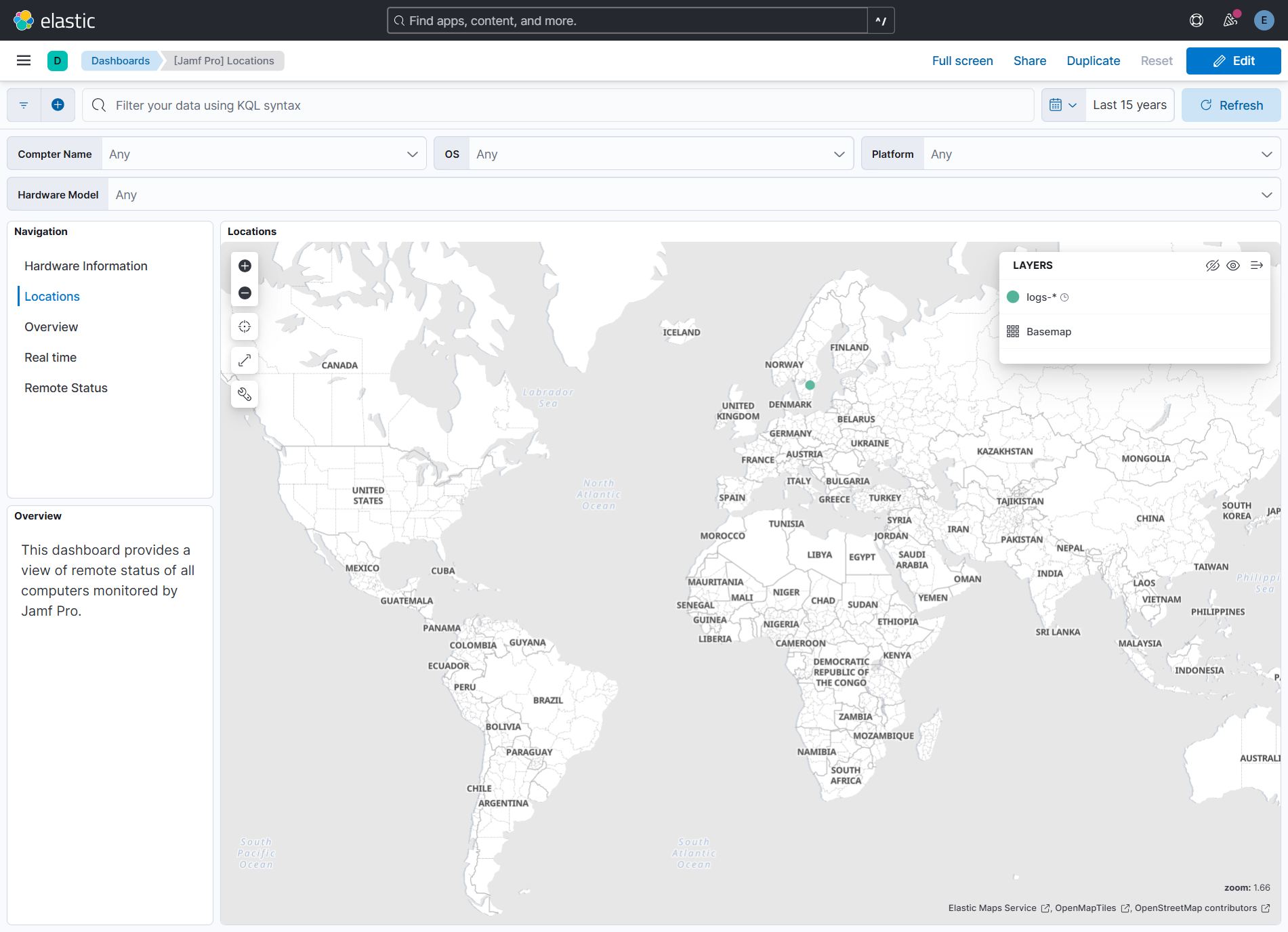

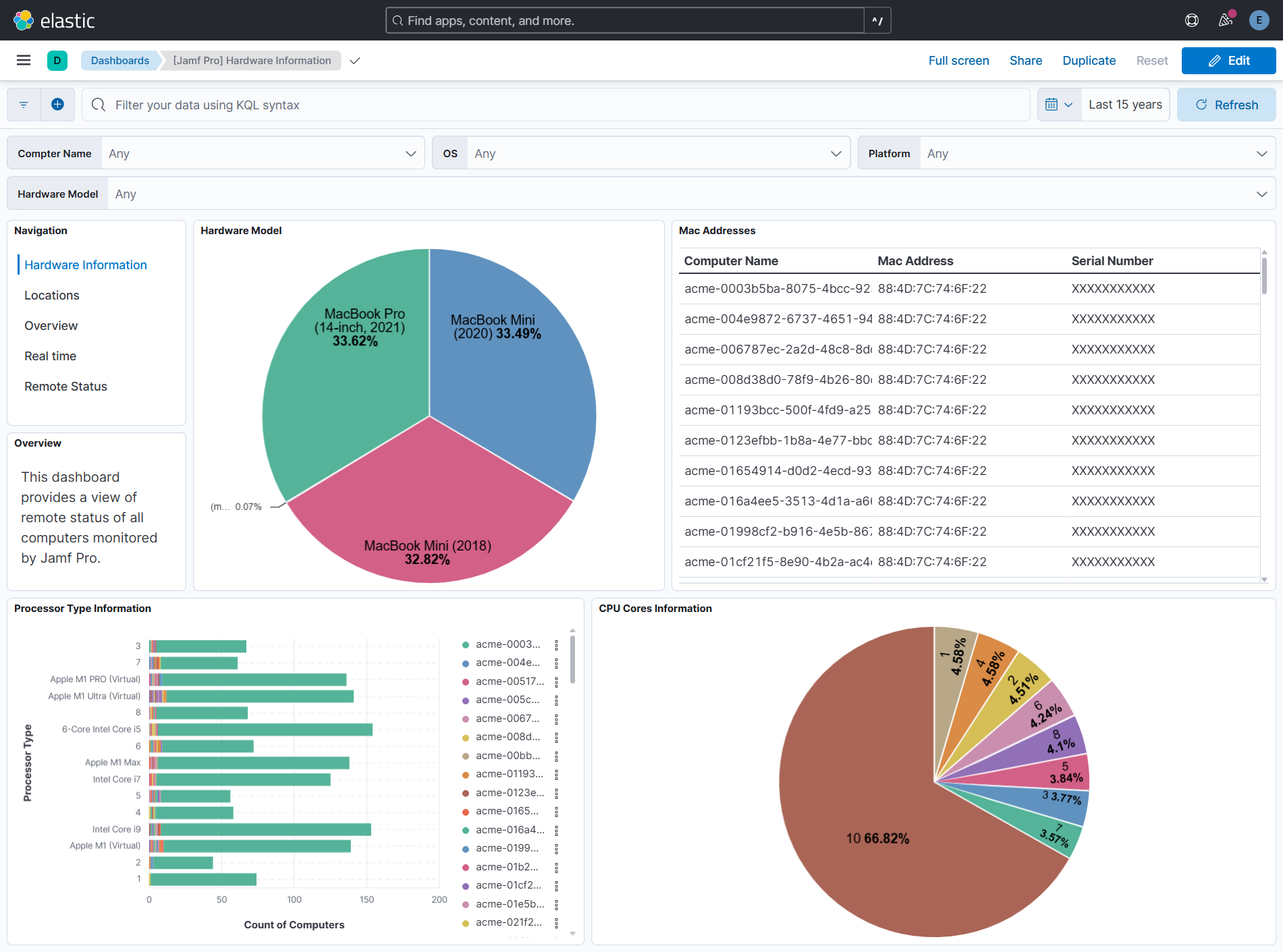

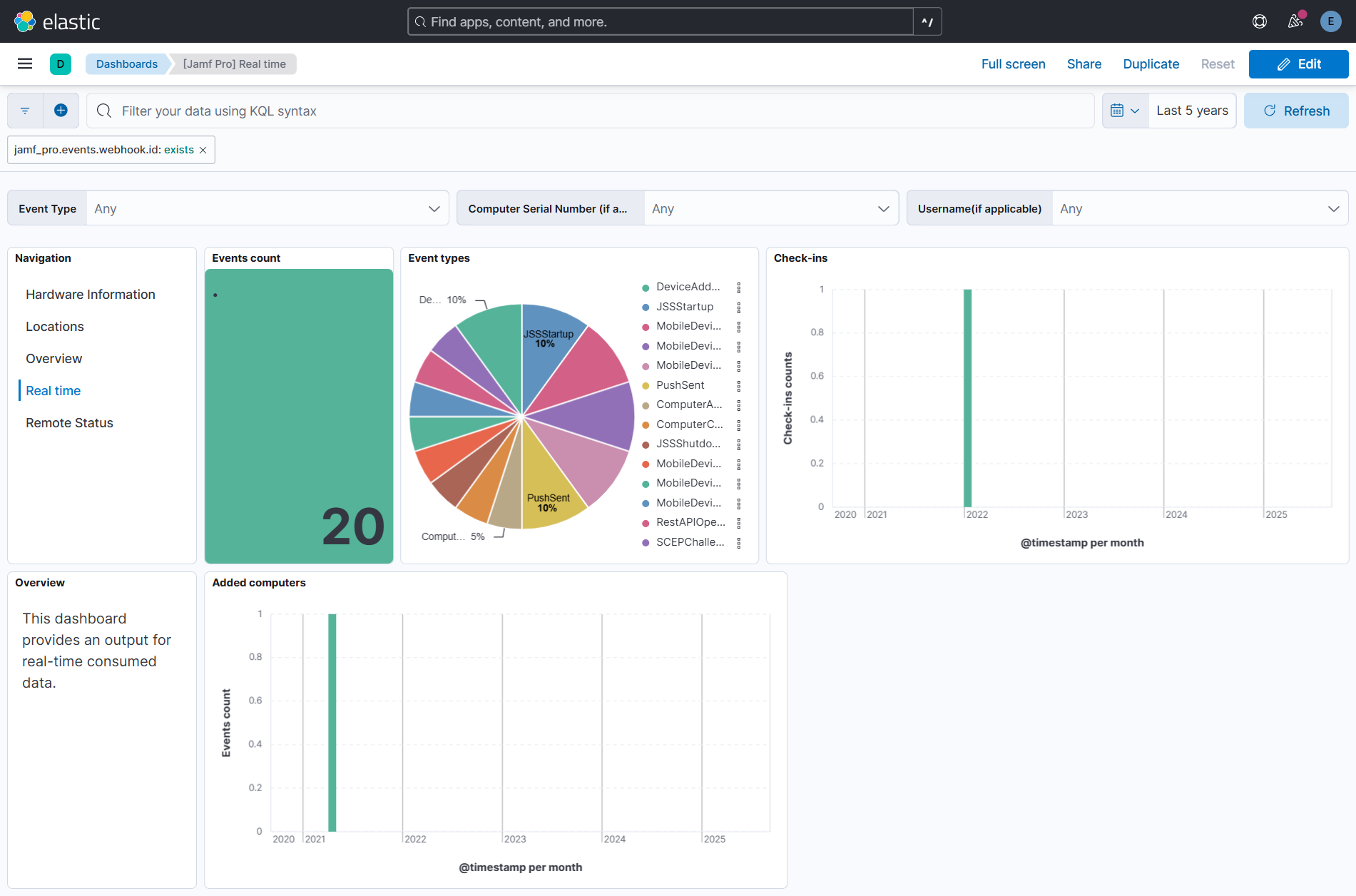

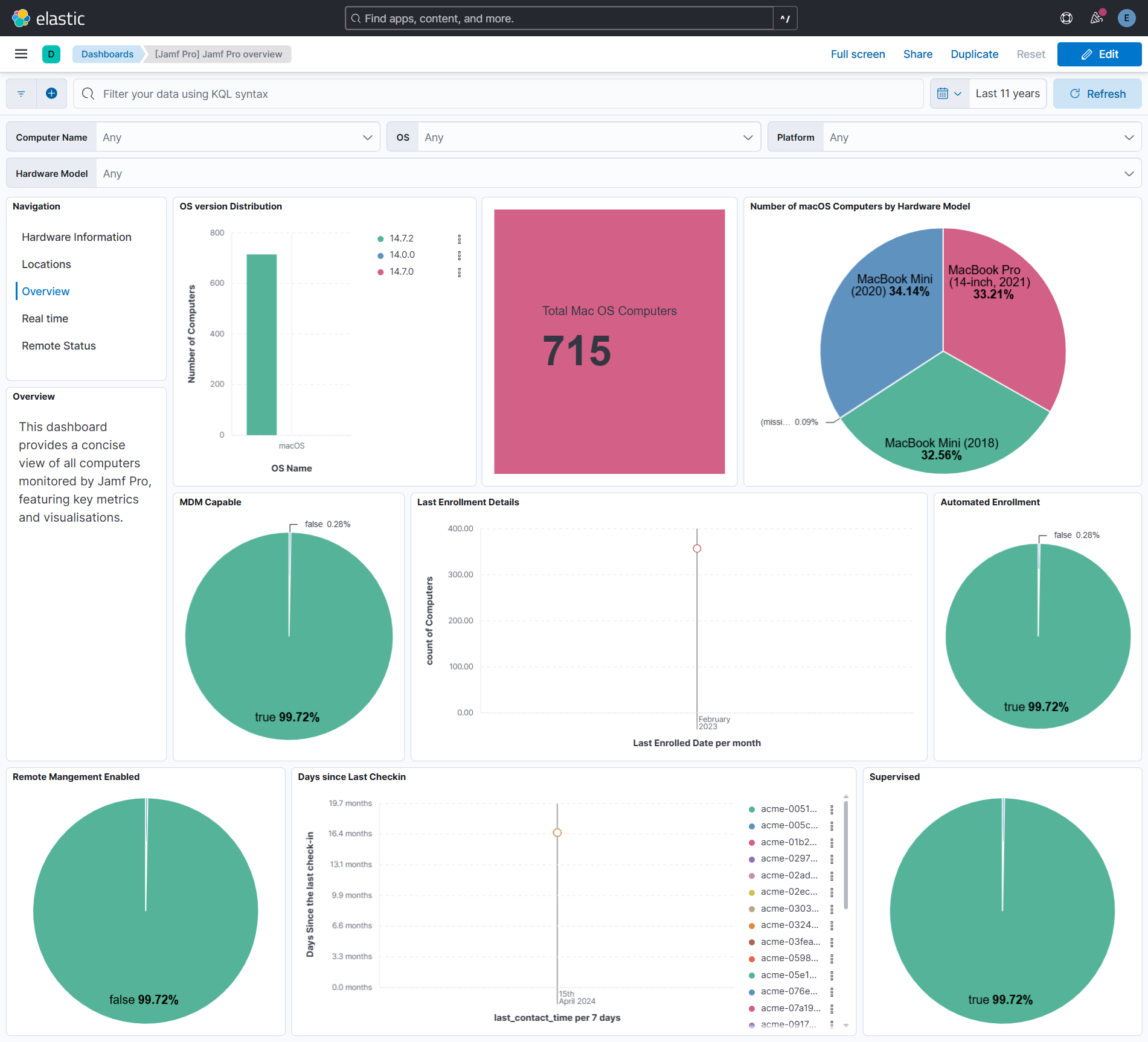

This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.
