NetBox Integration
Version 0.1.0 (View all)
Subscription level
What's this?		 Basic
Developed by
What's this?		 Elastic
Ingestion method(s) API
Minimum Kibana version(s) 9.2.1
The NetBox integration v0.1.0 is in technical preview

To use pre-release integrations, go to the Integrations page in Kibana, scroll down, and toggle on the Display beta integrations option.

This integration is for NetBox. It currently supports retrieving devices and ip addresses from the NetBox API.

Retrieve an API token from your NetBox Server and update the URL to your NetBox Server.

The NetBox module has been developed with and tested against the community edition version 4.3.5

Collects devices from the Devices API.

Example
{
    "@timestamp": "2025-11-19T16:29:30.984Z",
    "agent": {
        "ephemeral_id": "26808a50-5696-4206-86b9-3f8f56d7dd48",
        "id": "c17ce5b2-739e-4040-a21c-79a45b4570fe",
        "name": "elastic-agent-89017",
        "type": "filebeat",
        "version": "9.2.1"
    },
    "data_stream": {
        "dataset": "netbox.devices",
        "namespace": "89710",
        "type": "logs"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "c17ce5b2-739e-4040-a21c-79a45b4570fe",
        "snapshot": false,
        "version": "9.2.1"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "configuration"
        ],
        "created": "2025-11-19T16:29:30.984Z",
        "dataset": "netbox.devices",
        "ingested": "2025-11-19T16:29:33Z",
        "kind": "asset",
        "original": "{\"airflow\":{\"label\":\"Front to rear\",\"value\":\"front-to-rear\"},\"asset_tag\":\"WEB-001\",\"cluster\":{\"description\":\"Production web application cluster\",\"display\":\"web-cluster\",\"id\":1,\"name\":\"web-cluster\",\"url\":\"http://localhost:8000/api/virtualization/clusters/1/\"},\"comments\":\"\",\"config_context\":{\"backup_enabled\":true,\"environment\":\"production\"},\"config_template\":{\"description\":\"Standard Ubuntu web server configuration template\",\"display\":\"ubuntu-web-template\",\"id\":1,\"name\":\"ubuntu-web-template\",\"url\":\"http://localhost:8000/api/extras/config-templates/1/\"},\"console_port_count\":0,\"console_server_port_count\":0,\"created\":\"2025-08-11T14:37:28.180540Z\",\"custom_fields\":{\"maintenance_window\":\"Sunday 02:00-04:00 EST\"},\"description\":\"Primary web server for customer portal\",\"device_bay_count\":0,\"device_type\":{\"description\":\"Dell PowerEdge R740 2U Rack Server\",\"display\":\"dell poweredge r740\",\"id\":1,\"manufacturer\":{\"description\":\"\",\"display\":\"Dell\",\"id\":1,\"name\":\"Dell\",\"slug\":\"dell\",\"url\":\"http://localhost:8000/api/dcim/manufacturers/1/\"},\"model\":\"poweredge r740\",\"slug\":\"poweredge-r740\",\"url\":\"http://localhost:8000/api/dcim/device-types/1/\"},\"display\":\"web-srv-01 (WEB-001)\",\"display_url\":\"http://localhost:8000/dcim/devices/2/\",\"face\":{\"label\":\"Front\",\"value\":\"front\"},\"front_port_count\":0,\"id\":2,\"interface_count\":4,\"inventory_item_count\":0,\"last_updated\":\"2025-08-11T18:12:23.512163Z\",\"latitude\":39.0458,\"local_context_data\":{\"monitoring\":\"enabled\",\"ssl_cert\":\"wildcard.acme.com\"},\"location\":{\"_depth\":0,\"description\":\"Primary server room - Zone A\",\"display\":\"server-room-a\",\"id\":1,\"name\":\"server-room-a\",\"rack_count\":0,\"slug\":\"server-room-a\",\"url\":\"http://localhost:8000/api/dcim/locations/1/\"},\"longitude\":-76.6413,\"module_bay_count\":0,\"name\":\"web-srv-01\",\"oob_ip\":{\"address\":\"10.0.100.15/24\",\"description\":\"Out-of-band management interface\",\"display\":\"10.0.100.15/24\",\"family\":{\"label\":\"IPv4\",\"value\":4},\"id\":1,\"url\":\"http://localhost:8000/api/ipam/ip-addresses/1/\"},\"parent_device\":null,\"platform\":{\"description\":\"Ubuntu Server 22.04 LTS\",\"display\":\"ubuntu-server\",\"id\":1,\"name\":\"ubuntu-server\",\"slug\":\"ubuntu-server\",\"url\":\"http://localhost:8000/api/dcim/platforms/1/\"},\"position\":15,\"power_outlet_count\":0,\"power_port_count\":2,\"primary_ip\":{\"address\":\"10.0.1.15/24\",\"description\":\"Primary web server interface\",\"display\":\"10.0.1.15/24\",\"family\":{\"label\":\"IPv4\",\"value\":4},\"id\":1,\"url\":\"http://localhost:8000/api/ipam/ip-addresses/1/\"},\"primary_ip4\":{\"address\":\"10.0.1.15/24\",\"description\":\"Primary web server interface\",\"display\":\"10.0.1.15/24\",\"family\":{\"label\":\"IPv4\",\"value\":4},\"id\":1,\"url\":\"http://localhost:8000/api/ipam/ip-addresses/1/\"},\"primary_ip6\":null,\"rack\":{\"description\":\"42U server rack - Zone A, Row 1\",\"display\":\"rack-a01 (DC-EAST-A01)\",\"id\":1,\"name\":\"rack-a01\",\"url\":\"http://localhost:8000/api/dcim/racks/1/\"},\"rear_port_count\":0,\"role\":{\"_depth\":0,\"description\":\"\",\"display\":\"web-server\",\"id\":1,\"name\":\"web-server\",\"slug\":\"web-server\",\"url\":\"http://localhost:8000/api/dcim/device-roles/1/\"},\"serial\":\"CN7016A2B90001\",\"site\":{\"description\":\"\",\"display\":\"datacenter-east\",\"id\":1,\"name\":\"datacenter-east\",\"slug\":\"datacenter-east\",\"url\":\"http://localhost:8000/api/dcim/sites/1/\"},\"status\":{\"label\":\"Active\",\"value\":\"active\"},\"tags\":[{\"color\":\"4caf50\",\"display\":\"production\",\"display_url\":\"http://localhost:8000/extras/tags/2/\",\"id\":2,\"name\":\"production\",\"slug\":\"production\",\"url\":\"http://localhost:8000/api/extras/tags/2/\"},{\"color\":\"2196f3\",\"display\":\"web-tier\",\"display_url\":\"http://localhost:8000/extras/tags/4/\",\"id\":4,\"name\":\"web-tier\",\"slug\":\"web-tier\",\"url\":\"http://localhost:8000/api/extras/tags/4/\"},{\"color\":\"f44336\",\"display\":\"critical\",\"display_url\":\"http://localhost:8000/extras/tags/1/\",\"id\":1,\"name\":\"critical\",\"slug\":\"critical\",\"url\":\"http://localhost:8000/api/extras/tags/1/\"},{\"color\":\"ff9800\",\"display\":\"monitored\",\"display_url\":\"http://localhost:8000/extras/tags/3/\",\"id\":3,\"name\":\"monitored\",\"slug\":\"monitored\",\"url\":\"http://localhost:8000/api/extras/tags/3/\"}],\"tenant\":{\"description\":\"Acme Corporation primary tenant\",\"display\":\"acme-corp\",\"id\":1,\"name\":\"acme-corp\",\"slug\":\"acme-corp\",\"url\":\"http://localhost:8000/api/tenancy/tenants/1/\"},\"url\":\"http://localhost:8000/api/dcim/devices/2/\",\"vc_position\":1,\"vc_priority\":null,\"virtual_chassis\":{\"description\":\"\",\"display\":\"web-cluster-vc\",\"id\":1,\"master\":{\"display\":\"web-srv-01 (WEB-001)\",\"display_url\":\"http://localhost:8000/dcim/devices/2/\",\"id\":2,\"name\":\"web-srv-01\",\"url\":\"http://localhost:8000/api/dcim/devices/2/\"},\"member_count\":2,\"name\":\"web-cluster-vc\",\"url\":\"http://localhost:8000/api/dcim/virtual-chassis/1/\"}}"
    },
    "input": {
        "type": "httpjson"
    },
    "netbox": {
        "created": "2025-08-11T14:37:28.180Z",
        "custom_fields": {
            "maintenance_window": "Sunday 02:00-04:00 EST"
        },
        "device": {
            "airflow": {
                "label": "Front to rear",
                "value": "front-to-rear"
            },
            "asset_tag": "WEB-001",
            "cluster": {
                "description": "Production web application cluster",
                "display": "web-cluster",
                "id": 1,
                "name": "web-cluster",
                "url": "http://localhost:8000/api/virtualization/clusters/1/"
            },
            "config_context": {
                "backup_enabled": "true",
                "environment": "production"
            },
            "config_template": {
                "description": "Standard Ubuntu web server configuration template",
                "display": "ubuntu-web-template",
                "id": 1,
                "name": "ubuntu-web-template",
                "url": "http://localhost:8000/api/extras/config-templates/1/"
            },
            "console_port_count": 0,
            "console_server_port_count": 0,
            "coordinates": [
                -76.6413,
                39.0458
            ],
            "description": "Primary web server for customer portal",
            "device_bay_count": 0,
            "device_type": {
                "description": "Dell PowerEdge R740 2U Rack Server",
                "display": "dell poweredge r740",
                "id": 1,
                "manufacturer": {
                    "display": "Dell",
                    "id": 1,
                    "name": "Dell",
                    "slug": "dell",
                    "url": "http://localhost:8000/api/dcim/manufacturers/1/"
                },
                "model": "poweredge r740",
                "slug": "poweredge-r740",
                "url": "http://localhost:8000/api/dcim/device-types/1/"
            },
            "face": {
                "label": "Front",
                "value": "front"
            },
            "front_port_count": 0,
            "id": 2,
            "interface_count": 4,
            "inventory_item_count": 0,
            "local_context_data": {
                "monitoring": "enabled",
                "ssl_cert": "wildcard.acme.com"
            },
            "location": {
                "_depth": 0,
                "description": "Primary server room - Zone A",
                "display": "server-room-a",
                "id": 1,
                "name": "server-room-a",
                "rack_count": 0,
                "slug": "server-room-a",
                "url": "http://localhost:8000/api/dcim/locations/1/"
            },
            "module_bay_count": 0,
            "name": "web-srv-01",
            "oob_ip": {
                "address": "10.0.100.15",
                "description": "Out-of-band management interface",
                "display": "10.0.100.15/24",
                "family": {
                    "label": "IPv4",
                    "value": 4
                },
                "id": 1,
                "url": "http://localhost:8000/api/ipam/ip-addresses/1/"
            },
            "platform": {
                "description": "Ubuntu Server 22.04 LTS",
                "display": "ubuntu-server",
                "id": 1,
                "name": "ubuntu-server",
                "slug": "ubuntu-server",
                "url": "http://localhost:8000/api/dcim/platforms/1/"
            },
            "position": 15,
            "power_outlet_count": 0,
            "power_port_count": 2,
            "primary_ip": {
                "address": "10.0.1.15",
                "description": "Primary web server interface",
                "display": "10.0.1.15/24",
                "family": {
                    "label": "IPv4",
                    "value": 4
                },
                "id": 1,
                "url": "http://localhost:8000/api/ipam/ip-addresses/1/"
            },
            "primary_ip4": {
                "address": "10.0.1.15",
                "description": "Primary web server interface",
                "display": "10.0.1.15/24",
                "family": {
                    "label": "IPv4",
                    "value": 4
                },
                "id": 1,
                "url": "http://localhost:8000/api/ipam/ip-addresses/1/"
            },
            "rack": {
                "description": "42U server rack - Zone A, Row 1",
                "display": "rack-a01 (DC-EAST-A01)",
                "id": 1,
                "name": "rack-a01",
                "url": "http://localhost:8000/api/dcim/racks/1/"
            },
            "rear_port_count": 0,
            "role": {
                "_depth": 0,
                "display": "web-server",
                "id": 1,
                "name": "web-server",
                "slug": "web-server",
                "url": "http://localhost:8000/api/dcim/device-roles/1/"
            },
            "serial": "CN7016A2B90001",
            "site": {
                "display": "datacenter-east",
                "id": 1,
                "name": "datacenter-east",
                "slug": "datacenter-east",
                "url": "http://localhost:8000/api/dcim/sites/1/"
            },
            "status": {
                "label": "Active",
                "value": "active"
            },
            "vc_position": 1,
            "virtual_chassis": {
                "display": "web-cluster-vc",
                "id": 1,
                "master": {
                    "display": "web-srv-01 (WEB-001)",
                    "display_url": "http://localhost:8000/dcim/devices/2/",
                    "id": 2,
                    "name": "web-srv-01",
                    "url": "http://localhost:8000/api/dcim/devices/2/"
                },
                "member_count": 2,
                "name": "web-cluster-vc",
                "url": "http://localhost:8000/api/dcim/virtual-chassis/1/"
            }
        },
        "display": "web-srv-01 (WEB-001)",
        "display_url": "http://localhost:8000/dcim/devices/2/",
        "last_updated": "2025-08-11T18:12:23.512Z",
        "tags": [
            {
                "color": [
                    "4caf50"
                ],
                "display": [
                    "production"
                ],
                "display_url": [
                    "http://localhost:8000/extras/tags/2/"
                ],
                "id": [
                    2
                ],
                "name": [
                    "production"
                ],
                "slug": [
                    "production"
                ],
                "url": [
                    "http://localhost:8000/api/extras/tags/2/"
                ]
            },
            {
                "color": [
                    "2196f3"
                ],
                "display": [
                    "web-tier"
                ],
                "display_url": [
                    "http://localhost:8000/extras/tags/4/"
                ],
                "id": [
                    4
                ],
                "name": [
                    "web-tier"
                ],
                "slug": [
                    "web-tier"
                ],
                "url": [
                    "http://localhost:8000/api/extras/tags/4/"
                ]
            },
            {
                "color": [
                    "f44336"
                ],
                "display": [
                    "critical"
                ],
                "display_url": [
                    "http://localhost:8000/extras/tags/1/"
                ],
                "id": [
                    1
                ],
                "name": [
                    "critical"
                ],
                "slug": [
                    "critical"
                ],
                "url": [
                    "http://localhost:8000/api/extras/tags/1/"
                ]
            },
            {
                "color": [
                    "ff9800"
                ],
                "display": [
                    "monitored"
                ],
                "display_url": [
                    "http://localhost:8000/extras/tags/3/"
                ],
                "id": [
                    3
                ],
                "name": [
                    "monitored"
                ],
                "slug": [
                    "monitored"
                ],
                "url": [
                    "http://localhost:8000/api/extras/tags/3/"
                ]
            }
        ],
        "tenant": {
            "description": "Acme Corporation primary tenant",
            "display": "acme-corp",
            "id": 1,
            "name": "acme-corp",
            "slug": "acme-corp",
            "url": "http://localhost:8000/api/tenancy/tenants/1/"
        },
        "url": "http://localhost:8000/api/dcim/devices/2/"
    },
    "related": {
        "ip": [
            "10.0.1.15",
            "10.0.100.15"
        ]
    },
    "tags": [
        "preserve_original_event",
        "forwarded",
        "netbox-devices"
    ]
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
input.type Input type keyword
netbox.comments User-provided comments for the device. text
netbox.created The timestamp when the device was created. date
netbox.custom_fields Custom fields configured for the device. object
netbox.device.airflow.label The airflow label of the device. keyword
netbox.device.airflow.value The airflow value of the device. keyword
netbox.device.asset_tag The asset tag of the device. keyword
netbox.device.cluster.description The description of the cluster. text
netbox.device.cluster.display The display name of the cluster. keyword
netbox.device.cluster.id The unique identifier of the cluster. long
netbox.device.cluster.name The name of the cluster. keyword
netbox.device.cluster.url The API URL for the cluster. keyword
netbox.device.config_context The configuration context of the device. object
netbox.device.config_template.description The description of the config template. text
netbox.device.config_template.display The display name of the config template. keyword
netbox.device.config_template.id The unique identifier of the config template. long
netbox.device.config_template.name The name of the config template. keyword
netbox.device.config_template.url The API URL for the config template. keyword
netbox.device.console_port_count The number of console ports on the device. long
netbox.device.console_server_port_count The number of console server ports on the device. long
netbox.device.coordinates GPS coordinates in decimal format (longitude, latitude). float
netbox.device.description The description of the device. text
netbox.device.device_bay_count The number of device bays on the device. long
netbox.device.device_type.description The description of the device type. text
netbox.device.device_type.display The display name of the device type. keyword
netbox.device.device_type.id The unique identifier of the device type. long
netbox.device.device_type.manufacturer.description The description of the manufacturer. text
netbox.device.device_type.manufacturer.display The display name of the manufacturer. keyword
netbox.device.device_type.manufacturer.id The unique identifier of the manufacturer. long
netbox.device.device_type.manufacturer.name The name of the manufacturer. keyword
netbox.device.device_type.manufacturer.slug The slug of the manufacturer. keyword
netbox.device.device_type.manufacturer.url The API URL for the manufacturer. keyword
netbox.device.device_type.model The model of the device type. keyword
netbox.device.device_type.slug The slug of the device type. keyword
netbox.device.device_type.url The API URL for the device type. keyword
netbox.device.face.label The label of the device face. keyword
netbox.device.face.value The value of the device face. keyword
netbox.device.front_port_count The number of front ports on the device. long
netbox.device.id The unique numeric identifier for the device. long
netbox.device.interface_count The number of interfaces on the device. long
netbox.device.inventory_item_count The number of inventory items associated with the device. long
netbox.device.local_context_data The local context data of the device. object
netbox.device.location._depth The depth level of the location. long
netbox.device.location.description The description of the location. text
netbox.device.location.display The display name of the location. keyword
netbox.device.location.id The unique identifier of the location. long
netbox.device.location.name The name of the location. keyword
netbox.device.location.rack_count The number of racks in the location. long
netbox.device.location.slug The slug of the location. keyword
netbox.device.location.url The API URL for the location. keyword
netbox.device.module_bay_count The number of module bays on the device. long
netbox.device.name The name of the device. keyword
netbox.device.oob_ip.address The out-of-band IP address. ip
netbox.device.oob_ip.description The description of the out-of-band IP address. text
netbox.device.oob_ip.display The display name of the out-of-band IP address. keyword
netbox.device.oob_ip.family.label The IP family label (IPv4 or IPv6). keyword
netbox.device.oob_ip.family.value The IP family value (4 for IPv4, 6 for IPv6). long
netbox.device.oob_ip.id The unique identifier of the out-of-band IP address. long
netbox.device.oob_ip.name The name of the out-of-band IP address. keyword
netbox.device.oob_ip.url The API URL for the out-of-band IP address. keyword
netbox.device.parent_device The parent device identifier. keyword
netbox.device.platform.description The description of the platform. text
netbox.device.platform.display The display name of the platform. keyword
netbox.device.platform.id The unique identifier of the platform. long
netbox.device.platform.name The name of the platform. keyword
netbox.device.platform.slug The slug of the platform. keyword
netbox.device.platform.url The API URL for the platform. keyword
netbox.device.position The position of the device in the rack. long
netbox.device.power_outlet_count The number of power outlets on the device. long
netbox.device.power_port_count The number of power ports on the device. long
netbox.device.primary_ip.address The primary IP address. ip
netbox.device.primary_ip.description The description of the primary IP address. text
netbox.device.primary_ip.display The display name of the primary IP address. keyword
netbox.device.primary_ip.family.label The IP family label (IPv4 or IPv6). keyword
netbox.device.primary_ip.family.value The IP family value (4 for IPv4, 6 for IPv6). long
netbox.device.primary_ip.id The unique identifier of the primary IP address. long
netbox.device.primary_ip.name The name of the primary IP address. keyword
netbox.device.primary_ip.url The API URL for the primary IP address. keyword
netbox.device.primary_ip4.address The primary IPv4 address. ip
netbox.device.primary_ip4.description The description of the primary IPv4 address. text
netbox.device.primary_ip4.display The display name of the primary IPv4 address. keyword
netbox.device.primary_ip4.family.label The IP family label (IPv4). keyword
netbox.device.primary_ip4.family.value The IP family value (4 for IPv4). long
netbox.device.primary_ip4.id The unique identifier of the primary IPv4 address. long
netbox.device.primary_ip4.name The name of the primary IPv4 address. keyword
netbox.device.primary_ip4.url The API URL for the primary IPv4 address. keyword
netbox.device.primary_ip6.address The primary IPv6 address. ip
netbox.device.primary_ip6.description The description of the primary IPv6 address. text
netbox.device.primary_ip6.display The display name of the primary IPv6 address. keyword
netbox.device.primary_ip6.family.label The IP family label (IPv6). keyword
netbox.device.primary_ip6.family.value The IP family value (6 for IPv6). long
netbox.device.primary_ip6.id The unique identifier of the primary IPv6 address. long
netbox.device.primary_ip6.name The name of the primary IPv6 address. keyword
netbox.device.primary_ip6.url The API URL for the primary IPv6 address. keyword
netbox.device.rack.description The description of the rack. text
netbox.device.rack.display The display name of the rack. keyword
netbox.device.rack.id The unique identifier of the rack. long
netbox.device.rack.name The name of the rack. keyword
netbox.device.rack.url The API URL for the rack. keyword
netbox.device.rear_port_count The number of rear ports on the device. long
netbox.device.role._depth The depth level of the device role. long
netbox.device.role.description The description of the device role. text
netbox.device.role.display The display name of the device role. keyword
netbox.device.role.id The unique identifier of the device role. long
netbox.device.role.name The name of the device role. keyword
netbox.device.role.slug The slug of the device role. keyword
netbox.device.role.url The API URL for the device role. keyword
netbox.device.serial The serial number of the device. keyword
netbox.device.site.description The description of the site. text
netbox.device.site.display The display name of the site. keyword
netbox.device.site.id The unique identifier of the site. long
netbox.device.site.name The name of the site. keyword
netbox.device.site.slug The slug of the site. keyword
netbox.device.site.url The API URL for the site. keyword
netbox.device.status.label The status label of the device. keyword
netbox.device.status.value The status value of the device. keyword
netbox.device.vc_position The virtual chassis position of the device. long
netbox.device.vc_priority The virtual chassis priority of the device. long
netbox.device.virtual_chassis.description The description of the virtual chassis. text
netbox.device.virtual_chassis.display The display name of the virtual chassis. keyword
netbox.device.virtual_chassis.id The unique identifier of the virtual chassis. long
netbox.device.virtual_chassis.master.display The display name of the master device. keyword
netbox.device.virtual_chassis.master.display_url The web UI URL for the master device. keyword
netbox.device.virtual_chassis.master.id The unique identifier of the master device. long
netbox.device.virtual_chassis.master.name The name of the master device. keyword
netbox.device.virtual_chassis.master.url The API URL for the master device. keyword
netbox.device.virtual_chassis.member_count The number of members in the virtual chassis. long
netbox.device.virtual_chassis.name The name of the virtual chassis. keyword
netbox.device.virtual_chassis.url The API URL for the virtual chassis. keyword
netbox.display The display name of the device. keyword
netbox.display_url The web UI URL for the device. keyword
netbox.last_updated The timestamp when the device was last updated. date
netbox.tags.color The color code of the tag. keyword
netbox.tags.display The display name of the tag. keyword
netbox.tags.display_url The display URL for the tag. keyword
netbox.tags.id The unique identifier of the tag. long
netbox.tags.name The name of the tag. keyword
netbox.tags.slug The slug of the tag. keyword
netbox.tags.url The API URL for the tag. keyword
netbox.tenant.description The description of the tenant. text
netbox.tenant.display The display name of the tenant. keyword
netbox.tenant.id The unique identifier of the tenant. long
netbox.tenant.name The name of the tenant. keyword
netbox.tenant.slug The slug of the tenant. keyword
netbox.tenant.url The API URL for the tenant. keyword
netbox.url The API URL for the device. keyword

Collects IP addresses from the IP Addresses API.

Example
{
    "@timestamp": "2025-11-19T16:30:17.238Z",
    "agent": {
        "ephemeral_id": "aa94dc52-91c8-4549-a2d7-2d2c9ad0ff46",
        "id": "edba1e8a-5a84-4b40-804b-9cb97eac5bd7",
        "name": "elastic-agent-48422",
        "type": "filebeat",
        "version": "9.2.1"
    },
    "data_stream": {
        "dataset": "netbox.ips",
        "namespace": "82567",
        "type": "logs"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "edba1e8a-5a84-4b40-804b-9cb97eac5bd7",
        "snapshot": false,
        "version": "9.2.1"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "configuration"
        ],
        "created": "2025-11-19T16:30:17.238Z",
        "dataset": "netbox.ips",
        "ingested": "2025-11-19T16:30:20Z",
        "kind": "asset",
        "original": "{\"address\":\"192.168.1.101/32\",\"assigned_object\":{\"_occupied\":false,\"cable\":null,\"description\":\"test-description\",\"device\":{\"description\":\"test-description\",\"display\":\"user-1-macbook-pro (tag-1234)\",\"id\":1,\"name\":\"user-1-macbook-pro\",\"url\":\"http://localhost:8000/api/dcim/devices/1/\"},\"display\":\"hello\",\"id\":2,\"name\":\"user-hello\",\"url\":\"http://localhost:8000/api/dcim/interfaces/2/\"},\"assigned_object_id\":2,\"assigned_object_type\":\"dcim.interface\",\"comments\":\"\",\"created\":\"2025-08-11T18:07:04.795476Z\",\"custom_fields\":{},\"description\":\"desc\",\"display\":\"192.168.1.101/32\",\"display_url\":\"http://localhost:8000/ipam/ip-addresses/2/\",\"dns_name\":\"hello.world\",\"family\":{\"label\":\"IPv4\",\"value\":4},\"id\":2,\"last_updated\":\"2025-08-11T18:07:04.795486Z\",\"nat_inside\":null,\"nat_outside\":[],\"role\":{\"label\":\"Secondary\",\"value\":\"secondary\"},\"status\":{\"label\":\"Active\",\"value\":\"active\"},\"tags\":[{\"color\":\"ff9800\",\"display\":\"elastic\",\"display_url\":\"http://localhost:8000/extras/tags/4/\",\"id\":4,\"name\":\"elastic\",\"slug\":\"elastic\",\"url\":\"http://localhost:8000/api/extras/tags/4/\"}],\"tenant\":{\"description\":\"first tenant\",\"display\":\"tenant-1\",\"id\":1,\"name\":\"tenant-1\",\"slug\":\"tenant-1\",\"url\":\"http://localhost:8000/api/tenancy/tenants/1/\"},\"url\":\"http://localhost:8000/api/ipam/ip-addresses/2/\",\"vrf\":{\"description\":\"asdf\",\"display\":\"test\",\"id\":1,\"name\":\"test\",\"rd\":null,\"url\":\"http://localhost:8000/api/ipam/vrfs/1/\"}}"
    },
    "input": {
        "type": "httpjson"
    },
    "netbox": {
        "created": "2025-08-11T18:07:04.795Z",
        "display": "192.168.1.101/32",
        "display_url": "http://localhost:8000/ipam/ip-addresses/2/",
        "ip": {
            "address": "192.168.1.101",
            "assigned_object": {
                "_occupied": false,
                "description": "test-description",
                "device": {
                    "description": "test-description",
                    "display": "user-1-macbook-pro (tag-1234)",
                    "id": 1,
                    "name": "user-1-macbook-pro",
                    "url": "http://localhost:8000/api/dcim/devices/1/"
                },
                "display": "hello",
                "id": 2,
                "name": "user-hello",
                "url": "http://localhost:8000/api/dcim/interfaces/2/"
            },
            "assigned_object_id": 2,
            "assigned_object_type": "dcim.interface",
            "description": "desc",
            "dns_name": "hello.world",
            "family": {
                "label": "IPv4",
                "value": 4
            },
            "id": 2,
            "role": {
                "label": "Secondary",
                "value": "secondary"
            },
            "status": {
                "label": "Active",
                "value": "active"
            },
            "vrf": {
                "description": "asdf",
                "display": "test",
                "id": 1,
                "name": "test",
                "url": "http://localhost:8000/api/ipam/vrfs/1/"
            }
        },
        "last_updated": "2025-08-11T18:07:04.795Z",
        "tags": {
            "color": [
                "ff9800"
            ],
            "display": [
                "elastic"
            ],
            "display_url": [
                "http://localhost:8000/extras/tags/4/"
            ],
            "id": [
                4
            ],
            "name": [
                "elastic"
            ],
            "slug": [
                "elastic"
            ],
            "url": [
                "http://localhost:8000/api/extras/tags/4/"
            ]
        },
        "tenant": {
            "description": "first tenant",
            "display": "tenant-1",
            "id": 1,
            "name": "tenant-1",
            "slug": "tenant-1",
            "url": "http://localhost:8000/api/tenancy/tenants/1/"
        },
        "url": "http://localhost:8000/api/ipam/ip-addresses/2/"
    },
    "related": {
        "ip": [
            "192.168.1.101"
        ]
    },
    "tags": [
        "preserve_original_event",
        "forwarded",
        "netbox-ips"
    ]
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
input.type Input type keyword
netbox.comments User-provided comments for the IP address. text
netbox.created The timestamp when the IP address was created. date
netbox.custom_fields Custom fields configured for the IP address. object
netbox.display The display name of the IP address. keyword
netbox.display_url The web UI URL for the IP address. keyword
netbox.ip.address The IP address in CIDR notation. ip
netbox.ip.assigned_object._occupied Whether the interface is occupied. boolean
netbox.ip.assigned_object.cable The cable connection information. keyword
netbox.ip.assigned_object.description The description of the assigned object. text
netbox.ip.assigned_object.device.description The description of the device. text
netbox.ip.assigned_object.device.display The display name of the device. keyword
netbox.ip.assigned_object.device.id The unique identifier of the device. long
netbox.ip.assigned_object.device.name The name of the device. keyword
netbox.ip.assigned_object.device.url The API URL for the device. keyword
netbox.ip.assigned_object.display The display name of the assigned object. keyword
netbox.ip.assigned_object.id The unique identifier of the assigned object. long
netbox.ip.assigned_object.name The name of the assigned object (interface). keyword
netbox.ip.assigned_object.url The API URL for the assigned object. keyword
netbox.ip.assigned_object.virtual_machine.description The description of the virtual machine. text
netbox.ip.assigned_object.virtual_machine.display The display name of the virtual machine. keyword
netbox.ip.assigned_object.virtual_machine.id The unique identifier of the virtual machine. long
netbox.ip.assigned_object.virtual_machine.name The name of the virtual machine. keyword
netbox.ip.assigned_object.virtual_machine.url The API URL for the virtual machine. keyword
netbox.ip.assigned_object_id The unique identifier of the assigned object. long
netbox.ip.assigned_object_type The type of object this IP address is assigned to. keyword
netbox.ip.description The description of the IP address. text
netbox.ip.dns_name The DNS name associated with the IP address. keyword
netbox.ip.family.label The IP family label (IPv4 or IPv6). keyword
netbox.ip.family.value The IP family value (4 for IPv4, 6 for IPv6). long
netbox.ip.id The unique numeric identifier for the IP address. long
netbox.ip.nat_inside.address ip
netbox.ip.nat_inside.display keyword
netbox.ip.nat_inside.display_url keyword
netbox.ip.nat_inside.family long
netbox.ip.nat_inside.id long
netbox.ip.nat_inside.url keyword
netbox.ip.nat_outside.address The NAT outside IP address. ip
netbox.ip.nat_outside.display The display name of the NAT outside IP address. keyword
netbox.ip.nat_outside.display_url The web UI URL for the NAT outside IP address. keyword
netbox.ip.nat_outside.family The IP family value (4 for IPv4, 6 for IPv6). long
netbox.ip.nat_outside.id The unique identifier of the NAT outside IP address. long
netbox.ip.nat_outside.url The API URL for the NAT outside IP address. keyword
netbox.ip.role.label The role label of the IP address. keyword
netbox.ip.role.value The role value of the IP address. keyword
netbox.ip.status.label The status label of the IP address. keyword
netbox.ip.status.value The status value of the IP address. keyword
netbox.ip.vrf.description The description of the VRF. text
netbox.ip.vrf.display The display name of the VRF. keyword
netbox.ip.vrf.id The unique identifier of the VRF. long
netbox.ip.vrf.name The name of the VRF. keyword
netbox.ip.vrf.rd The route distinguisher of the VRF. keyword
netbox.ip.vrf.url The API URL for the VRF. keyword
netbox.last_updated The timestamp when the IP address was last updated. date
netbox.tags.color The color code of the tag. keyword
netbox.tags.display The display name of the tag. keyword
netbox.tags.display_url The display URL for the tag. keyword
netbox.tags.id The unique identifier of the tag. long
netbox.tags.name The name of the tag. keyword
netbox.tags.slug The slug of the tag. keyword
netbox.tags.url The API URL for the tag. keyword
netbox.tenant.description The description of the tenant. text
netbox.tenant.display The display name of the tenant. keyword
netbox.tenant.id The unique identifier of the tenant. long
netbox.tenant.name The name of the tenant. keyword
netbox.tenant.slug The slug of the tenant. keyword
netbox.tenant.url The API URL for the tenant. keyword
netbox.url The API URL for the IP address. keyword

This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.

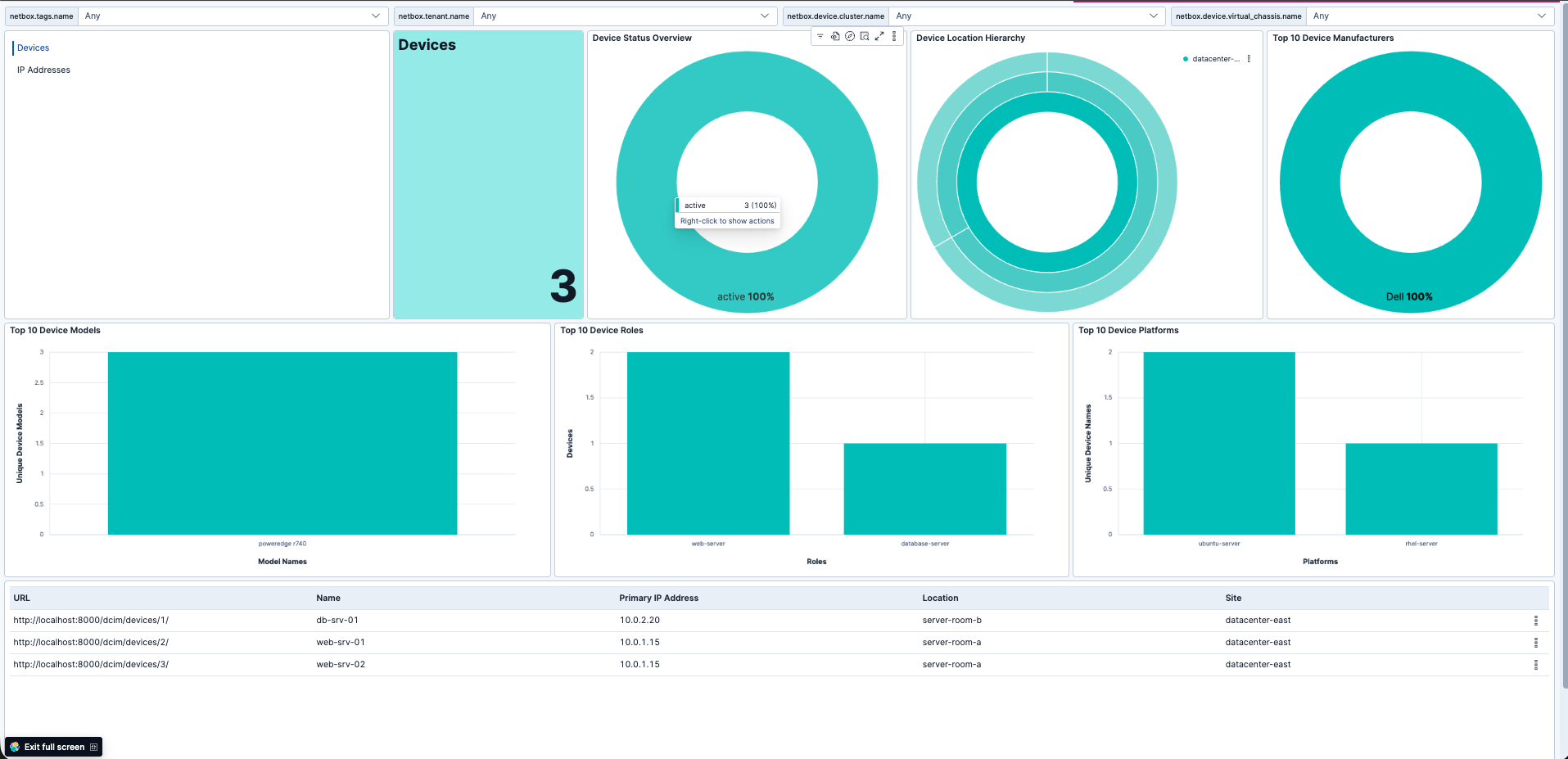

Devices overview

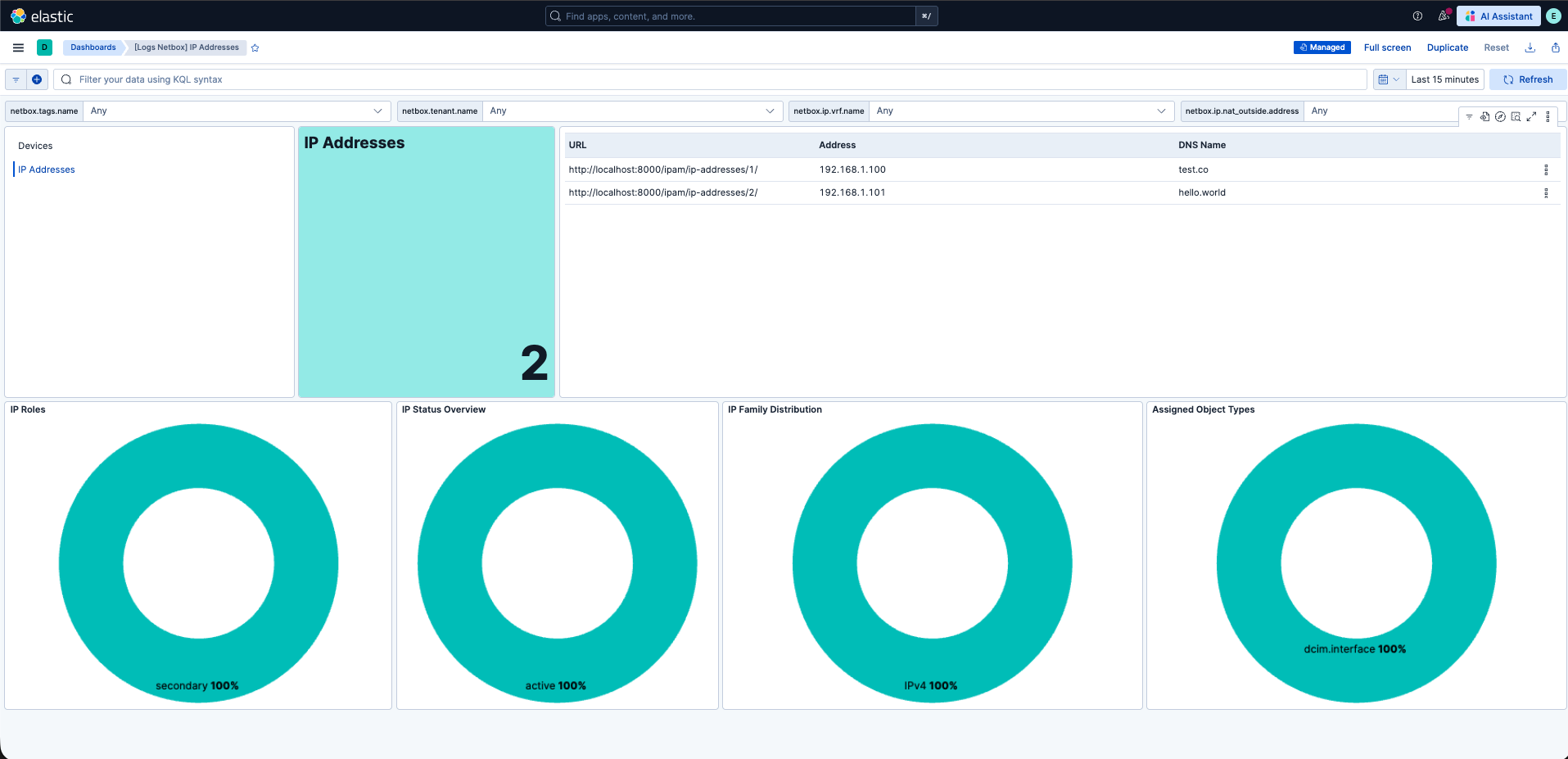

IP Addresses overview
Changelog
Version Details Minimum Kibana version
0.1.0 Enhancement (View pull request)
Initial draft of the package		 9.2.1
