Nextron Thor APT Scanner
Version 0.0.1 (View all)
Subscription level
What's this?		 Basic
Developed by
What's this?		 Elastic
Ingestion method(s) API
Minimum Kibana version(s) 9.2.0
The Nextron Thor APT Scanner integration v0.0.1 is in beta

To use beta integrations, go to the Integrations page in Kibana, scroll down, and toggle on the Display beta integrations option.

Nextron Thor APT Scanner is a powerful threat hunting and incident response tool that provides comprehensive scanning capabilities for detecting advanced persistent threats (APTs), malware, and security vulnerabilities across Windows systems. The Nextron Thor APT Scanner integration enables you to consume and analyze Thor Cloud scan results within Elastic Security, providing centralized visibility into threat detection findings and facilitating automated incident response workflows.

The Nextron Thor APT Scanner integration collects one type of data:

  • Thor Forwarding - Scan results and findings from Thor Cloud API, including detected threats, malware signatures, suspicious files, and security events identified during system scans.

This integration supports Elastic Agent-based data collection.

Elastic Agent must be installed. For more details, check the Elastic Agent installation instructions.

The minimum kibana.version required is 9.1.3.

This integration has been tested against the Nextron Thor Cloud API.

  1. Access your Nextron Thor Cloud dashboard.
  2. Navigate to the API settings section.
  3. Copy the API Endpoint URL (default: https://thor-cloud.nextron-services.com/api).
  1. In the Thor Cloud dashboard, navigate to General Settings > API Key.
  2. Click Generate.
  3. Copy the generated API key. You won't be able to copy it after this stage.
  1. In Kibana navigate to Management > Integrations.
  2. In the search top bar, type Nextron Thor APT Scanner.
  3. Select the Nextron Thor APT Scanner integration and add it.
  4. Configure the required integration parameters:
    • API URL: The Thor Cloud API endpoint URL
    • API Key: Your Thor Cloud API key
    • Initial Interval: How far back to pull scan logs (default: 24h)
    • Interval: Duration between API requests (default: 5m)
  5. Save the integration.

Note:

  • Scan data is fetched based on the configured initial interval and polling frequency.
  • The integration supports batch processing with configurable batch sizes for optimal performance.

Elastic Agent must be installed. For more details, check the Elastic Agent installation instructions. You can install only one Elastic Agent per host.

Elastic Agent is required to stream data from the syslog or log file receiver and ship the data to Elastic, where the events will then be processed via the integration's ingest pipelines.

To completely set up the Nextron Thor APT Scanner integration:

  1. Prepare Thor Cloud Access

    • Log into your Nextron Thor Cloud dashboard
    • Generate an API key from General Settings > API Key
    • Note your API endpoint URL

  2. Install Elastic Agent

  3. Add the Integration

    • Navigate to Kibana > Management > Integrations
    • Search for "Nextron Thor APT Scanner"
    • Click "Add Nextron Thor APT Scanner"

  4. Configure Integration Settings

    • Enter your Thor Cloud API URL
    • Provide your API key
    • Set initial interval (recommended: 24h for first run)
    • Configure polling interval (recommended: 5m)
    • Adjust batch size if needed (default: 100)

  5. Deploy Configuration

    • Review all settings
    • Save and deploy the integration
    • Monitor the agent logs for successful connection
Exported fields
Field Description Type Metric Type
@timestamp Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events. date
data_stream.dataset The field can contain anything that makes sense to signify the source of the data. Examples include nginx.access, prometheus, endpoint etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. event.dataset should have the same value as data_stream.dataset. Beyond the Elasticsearch data stream naming criteria noted above, the dataset value has additional restrictions: * Must not contain - * No longer than 100 characters constant_keyword
data_stream.namespace A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with default. If no value is used, it falls back to default. Beyond the Elasticsearch index naming criteria noted above, namespace value has the additional restrictions: * Must not contain - * No longer than 100 characters constant_keyword
data_stream.type An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future. constant_keyword
ecs.version ECS version this event conforms to. ecs.version is a required field and must exist in all events. When querying across multiple indices -- which may conform to slightly different ECS versions -- this field lets integrations adjust to the schema version of the events. keyword
event.category This is one of four ECS Categorization Fields, and indicates the second level in the ECS category hierarchy. event.category represents the "big buckets" of ECS categories. For example, filtering on event.category:process yields all events relating to process activity. This field is closely related to event.type, which is used as a subcategory. This field is an array. This will allow proper categorization of some events that fall in multiple categories. keyword
event.kind This is one of four ECS Categorization Fields, and indicates the highest level in the ECS category hierarchy. event.kind gives high-level information about what type of information the event contains, without being specific to the contents of the event. For example, values of this field distinguish alert events from metric events. The value of this field can be used to inform how these kinds of events should be handled. They may warrant different retention, different access control, it may also help understand whether the data is coming in at a regular interval or not. keyword
event.type This is one of four ECS Categorization Fields, and indicates the third level in the ECS category hierarchy. event.type represents a categorization "sub-bucket" that, when used along with the event.category field values, enables filtering events down to a level appropriate for single visualization. This field is an array. This will allow proper categorization of some events that fall in multiple event types. keyword
file.accessed Last time the file was accessed. Note that not all filesystems keep track of access time. date
file.ctime Last time the file attributes or metadata changed. Note that changes to the file content will update mtime. This implies ctime will be adjusted at the same time, since mtime is an attribute of the file. date
file.group Primary group name of the file. keyword
file.hash.md5 MD5 hash. keyword
file.hash.sha1 SHA1 hash. keyword
file.hash.sha256 SHA256 hash. keyword
file.mtime Last time the file content was modified. date
file.name Name of the file including the extension, without the directory. keyword
file.owner File owner's username. keyword
file.path Full path to the file, including the file name. It should include the drive letter, when appropriate. keyword
file.path.text Multi-field of file.path. match_only_text
file.size File size in bytes. Only relevant when file.type is "file". long
group Group owner of a file in a files array (Linux/Unix systems). keyword
input.type Input type keyword
log.level Original log level of the log event. If the source of the event provides a log level or textual severity, this is the one that goes in log.level. If your source doesn't specify one, you may put your event transport's severity here (e.g. Syslog severity). Some examples are warn, err, i, informational. keyword
message For log events the message field contains the log message, optimized for viewing in a log viewer. For structured logs without an original message field, other fields can be concatenated to form a human-readable summary of the event. If multiple messages exist, they can be combined into one message. match_only_text
tags List of keywords used to tag each event. keyword
thor.alerts Number of alerts generated during the THOR scan. long counter
thor.command Command line or executable path associated with a scheduled task, service, or process. keyword
thor.connection_count Total number of network connections associated with a process. long gauge
thor.created creation time date
thor.description Description text for a service, file, or other system object. keyword
thor.duration Duration of a THOR scan module execution in seconds. long
thor.enabled Whether a scheduled task or service is enabled. boolean
thor.entry Registry entry value or cache entry (e.g., URL in MS Office connection cache). keyword
thor.errors Number of errors encountered during the THOR scan. float
thor.event_consumer WMI event consumer configuration or command. keyword
thor.event_consumer_name Name of a WMI event consumer used for persistence. keyword
thor.event_filter WMI event filter query (e.g., WQL SELECT statement). keyword
thor.event_filter_name Name of a WMI event filter used for persistence. keyword
thor.exe_group Group owner of an executable file (Linux/Unix systems). keyword
thor.exe_magic Detected file type based on magic bytes. keyword
thor.exe_mode File permissions mode of an executable (Linux/Unix systems). keyword
thor.exe_owner Owner of an executable file. keyword
thor.executable Path to an executable file. keyword
thor.file.company Company name from PE file metadata. keyword
thor.file.created creation time of the file date
thor.file.description File description from PE file metadata. keyword
thor.file.ext File extension of a detected file. keyword
thor.file.first_bytes First bytes of a file in hexadecimal format, often with ASCII representation. keyword
thor.file.imphash Import hash (imphash) of a PE file, used for malware classification. keyword
thor.file.internal_name Internal name from PE file metadata. keyword
thor.file.legal_copyright Legal copyright information from PE file metadata. keyword
thor.file.original_name Original filename from PE file metadata. keyword
thor.file.permissions File permissions or access control list (ACL) information. keyword
thor.file.product Product name from PE file metadata. keyword
thor.file.type File type classification (e.g., EXE, DLL, UNKNOWN, Import). keyword
thor.files.company Company name from PE file metadata in a files array. keyword
thor.files.created creation time of the file date
thor.files.description File description from PE file metadata in a files array. keyword
thor.files.exists Whether a file exists on the filesystem (e.g., "yes", "no"). keyword
thor.files.first_bytes First bytes of a file in hexadecimal format in a files array. keyword
thor.files.imphash Import hash (imphash) of a PE file in a files array. keyword
thor.files.internal_name Internal name from PE file metadata in a files array. keyword
thor.files.legal_copyright Legal copyright information from PE file metadata in a files array. keyword
thor.files.md5 MD5 hash of a file in a files array. keyword
thor.files.original_name Original filename from PE file metadata in a files array. keyword
thor.files.owner Owner of a file in a files array. keyword
thor.files.path Full path to a file in a files array. keyword
thor.files.product Product name from PE file metadata in a files array. keyword
thor.files.sha1 SHA1 hash of a file in a files array. keyword
thor.files.sha256 SHA256 hash of a file in a files array. keyword
thor.files.size Size of a file in bytes in a files array. long
thor.files.type File type classification in a files array (e.g., EXE, Windows At Job). keyword
thor.filter_type Type of WMI event filter (e.g., NTEventLogEventConsumer). keyword
thor.full_name Full name or display name of a user account. keyword
thor.groupid Group ID (GID) of a user account (Linux/Unix systems). keyword
thor.hive Path to a Windows registry hive file being analyzed. keyword
thor.home Home directory path of a user account. keyword
thor.image.accessed access time of the image date
thor.image.changed Change time (ctime) of an image/executable file (Linux/Unix systems). date
thor.image.company Company name from PE file metadata of an image/executable. keyword
thor.image.created creation time of the image date
thor.image.description File description from PE file metadata of an image/executable. keyword
thor.image.first_bytes First bytes of an image/executable file in hexadecimal format. keyword
thor.image.group Group owner of an image/executable file (Linux/Unix systems). keyword
thor.image.imphash Import hash (imphash) of an image/executable PE file. keyword
thor.image.internal_name Internal name from PE file metadata of an image/executable. keyword
thor.image.legal_copyright Legal copyright information from PE file metadata of an image/executable. keyword
thor.image.md5 MD5 hash of an image/executable file. keyword
thor.image.modified modification time of the image date
thor.image.original_name Original filename from PE file metadata of an image/executable. keyword
thor.image.owner Owner of an image/executable file. keyword
thor.image.path Full path to an image/executable file. keyword
thor.image.permissions File permissions or access control list (ACL) of an image/executable. keyword
thor.image.product Product name from PE file metadata of an image/executable. keyword
thor.image.sha1 SHA1 hash of an image/executable file. keyword
thor.image.sha256 SHA256 hash of an image/executable file. keyword
thor.image.size Size of an image/executable file in bytes. long
thor.image.type File type classification of an image/executable (e.g., EXE, DLL). keyword
thor.image_path Image path or executable path for a Windows service. keyword
thor.job Path to a Windows At Job (scheduled task) file. keyword
thor.key Full path to a registry key or WMI binding key. keyword
thor.key_name Name of a registry key or service name. keyword
thor.last_run Last execution time of a scheduled task. date
thor.listen_ports Network ports on which a process is listening. keyword
thor.logontype Logon type for a scheduled task or service. keyword
thor.memory_usage Memory usage information for a process or system. keyword
thor.modified Modification time of a file, registry key, or other object. date
thor.name Name of a scheduled task, service, or other system object. keyword
thor.next_run Next scheduled execution time of a scheduled task. date
thor.notices Number of notices generated during the THOR scan. float
thor.owner Owner of a process, file, THOR license or other system object. keyword
thor.parent Path to the parent process executable. keyword
thor.path Path to a file, scheduled task, or other system object. keyword
thor.pid Process ID (PID) of a running process. long
thor.ppid Parent process ID (PPID) of a running process. long
thor.process_name Name of a running process executable. keyword
thor.reason Reason for a detection or alert (e.g., "Password is too short", "Port explicitly specified"). keyword
thor.reasons.matched.context Contextual data surrounding a signature match (surrounding bytes or text). keyword
thor.reasons.matched.data Actual data that matched a signature rule (matched string or pattern). keyword
thor.reasons.matched.offset Byte offset within a file where a signature match occurred. long
thor.reasons.name Name or description of a detection reason (e.g., YARA rule name with description). keyword
thor.reasons.score Threat score assigned to a specific detection reason. long
thor.reasons.sigclass Signature class or type (e.g., YARA Rule, Filename IOC, Sigma Rule). keyword
thor.reasons.signature.author Author of a signature rule. keyword
thor.reasons.signature.ref Reference or source of a signature rule (e.g., threat intelligence feed, research). keyword
thor.reasons.signature.ruledate Date when a signature rule was created or last updated. date
thor.reasons.signature.rulename Name of a signature rule (e.g., YARA rule name). keyword
thor.reasons.signature.tags Tags associated with a signature rule (e.g., MITRE ATT&CK techniques, threat categories). keyword
thor.reasons.sigtype Signature type classification (e.g., internal, custom). keyword
thor.run_as_group Group under which a systemd service runs. keyword
thor.run_as_user User account under which a systemd service runs. keyword
thor.runlevel Run level or privilege level for a scheduled task (e.g., LeastPrivilege). keyword
thor.scan_id Unique identifier for a THOR scan. keyword
thor.scanned_elements Number of elements scanned with a module. long counter
thor.score Threat score assigned to a detection (higher scores indicate higher severity). long
thor.service_name Name or display name of a Windows service. keyword
thor.session Session identifier for a process (e.g., Console, Services) keyword
thor.sha1 SHA1 hash of a file. keyword
thor.shell Login shell path for a user account (Linux/Unix systems). keyword
thor.start Start time or start condition for a scheduled task. date
thor.start_type Startup type of a Windows service (e.g., AUTO_START, MANUAL, DISABLED). keyword
thor.unit Name of a systemd unit (Linux systems). keyword
thor.unit_group Group owner of a systemd unit file (Linux systems). keyword
thor.unit_mode File permissions mode of a systemd unit file (Linux systems). keyword
thor.unit_owner Owner of a systemd unit file (Linux systems). keyword
thor.unit_path Path to a systemd unit file (Linux systems). keyword
thor.warnings Number of warnings generated during the THOR scan. float
Example
{
    "@timestamp": "2025-11-10T17:52:49.000Z",
    "agent": {
        "ephemeral_id": "e54573c2-f5e4-4e78-b614-ad0d11b51769",
        "id": "23617f49-e7ce-42ae-ba5b-26fbb5ae1a06",
        "name": "elastic-agent-37213",
        "type": "filebeat",
        "version": "9.2.3"
    },
    "data_stream": {
        "dataset": "nextron_thor_apt_scanner.thor_forwarding",
        "namespace": "20381",
        "type": "logs"
    },
    "ecs": {
        "version": "9.2.0"
    },
    "elastic_agent": {
        "id": "23617f49-e7ce-42ae-ba5b-26fbb5ae1a06",
        "snapshot": false,
        "version": "9.2.3"
    },
    "event": {
        "category": [
            "file"
        ],
        "dataset": "nextron_thor_apt_scanner.thor_forwarding",
        "ingested": "2026-02-10T08:51:53Z",
        "kind": "event",
        "module": "AtJobs",
        "type": [
            "info"
        ],
        "version": "v2.0.0"
    },
    "host": {
        "name": "myhostname"
    },
    "input": {
        "type": "cel"
    },
    "log": {
        "level": "Info"
    },
    "message": "At Job detected",
    "related": {
        "hosts": [
            "myhostname"
        ]
    },
    "tags": [
        "forwarded"
    ],
    "thor": {
        "command": "",
        "job": "C:\\Windows\\System32\\Tasks\\Microsoft\\Windows\\Task Manager\\Interactive",
        "logontype": "",
        "runlevel": "",
        "scan_id": "S-VavZi0stuDo"
    },
    "user": {
        "name": ""
    }
}

This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.

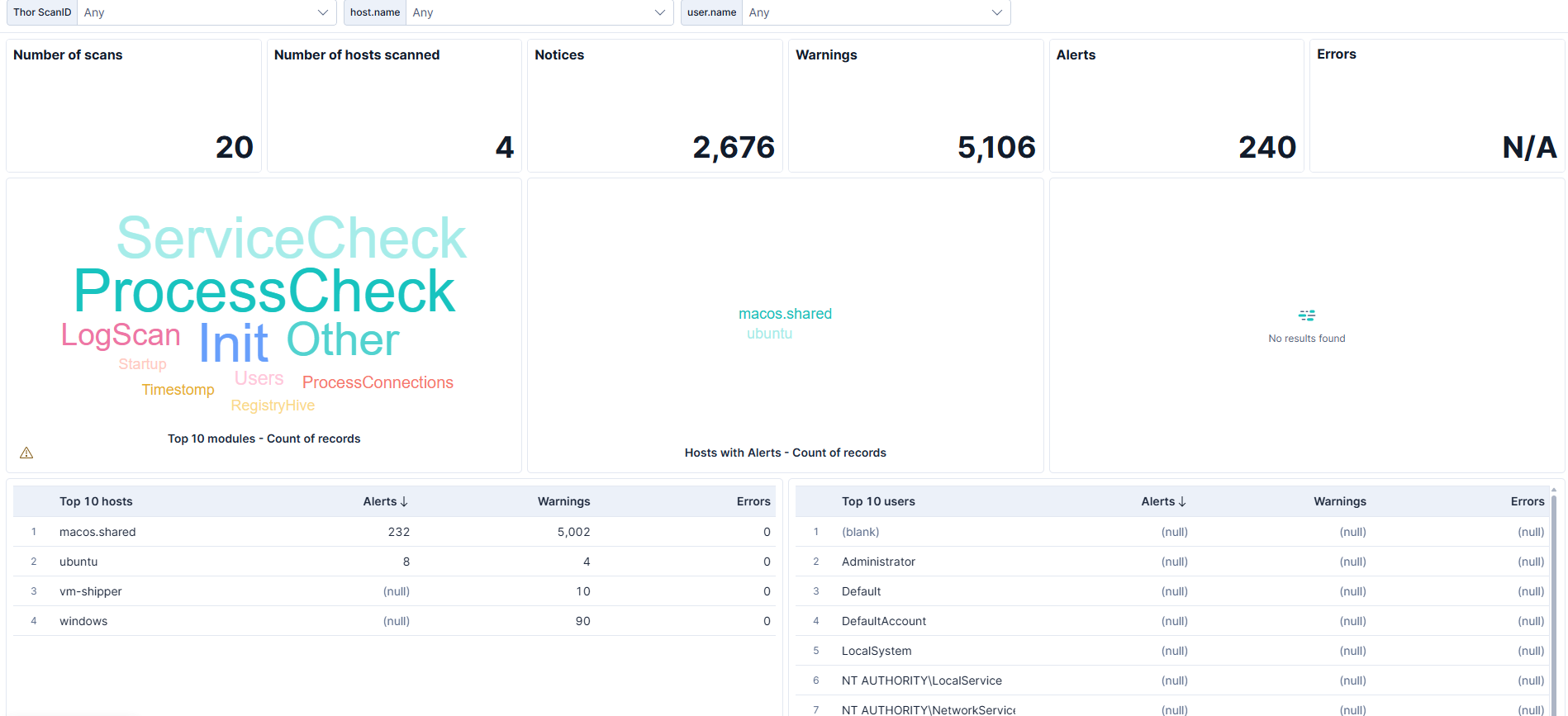

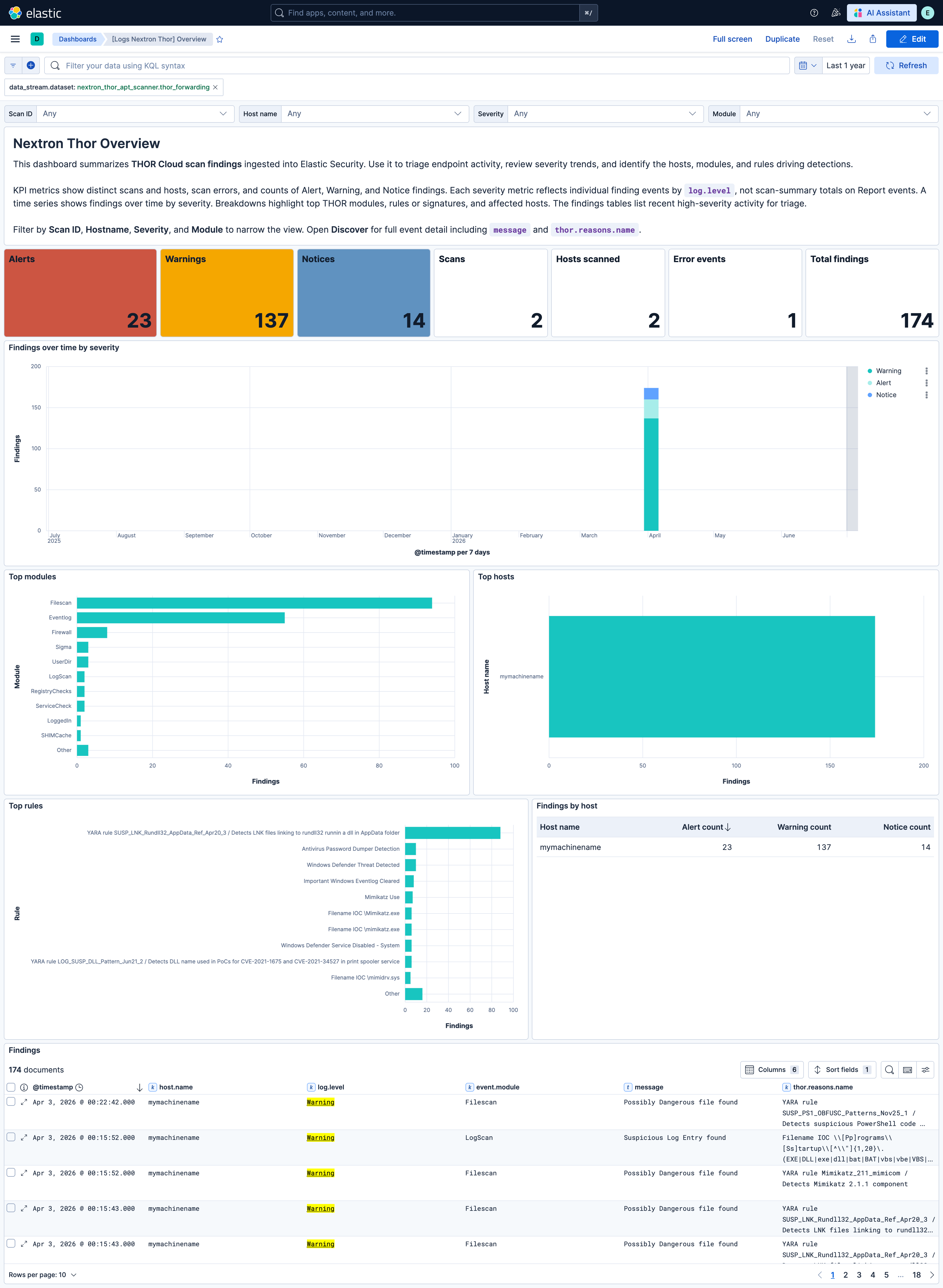

Nextron Thor Overview Dashboard Screenshot
Changelog
Version Details Minimum Kibana version
0.0.1 Enhancement (View pull request)
Initial draft of the package		 —
