Zscaler ZIA
Version 3.22.0 (View all)
Subscription level
What's this?		 Basic
Developed by
What's this?		 Elastic
Ingestion method(s) API, Network Protocol, Webhook
Minimum Kibana version(s) 9.0.0
8.18.0

This integration is for Zscaler Internet Access logs ZIA. It can be used to receive logs sent by NSS log server on respective TCP ports, and Sandbox Report using API.

The log message is expected to be in JSON format. The data is mapped to ECS fields where applicable and the remaining fields are written under zscaler_zia.<data-stream-name>.*.

This module has been tested against the Zscaler Internet Access version 6.1 and API version v1.

Agentless integrations allow you to collect data without having to manage Elastic Agent in your cloud. They make manual agent deployment unnecessary, so you can focus on your data instead of the agent that collects it. For more information, refer to Agentless integrations and the Agentless integrations FAQ.

Agentless deployments are only supported in Elastic Serverless and Elastic Cloud environments. This functionality is in beta and is subject to change. Beta features are not subject to the support SLA of official GA features.

Note

When using an agentless deployment, only the Sandbox Report data stream is available. Sandbox Report uses the API-based CEL input, which is compatible with agentless mode. Other data streams (Alerts, Audit, DNS, Endpoint DLP, Firewall, Tunnel, Web) require TCP or HTTP Endpoint inputs, which are not supported in agentless deployments. To collect data from these data streams, use Elastic Agent.

Elastic Agent must be installed. For more details, check the Elastic Agent installation instructions.

  1. Go to the Zscaler ZIA Portal and log in by entering your email address and password.
  2. Configure OAuth 2.0 for Okta or Microsoft Entra ID for generating OAuth2.0 Credentials.
  3. Add OAuth2.0 Authorization Server.
  1. Enable the integration with the TCP input.
  2. Configure the Zscaler NSS Server and NSS Feeds to send logs to the Elastic Agent that is running this integration. Check the Add NSS Server and Add NSS Feeds documentation. Use the IP address hostname of the Elastic Agent as the 'NSS Feed SIEM IP Address/FQDN', and use the listening port of the Elastic Agent as the 'SIEM TCP Port' on the Add NSS Feed configuration screen. To configure Zscaler NSS Server and NSS Feeds follow the following steps.

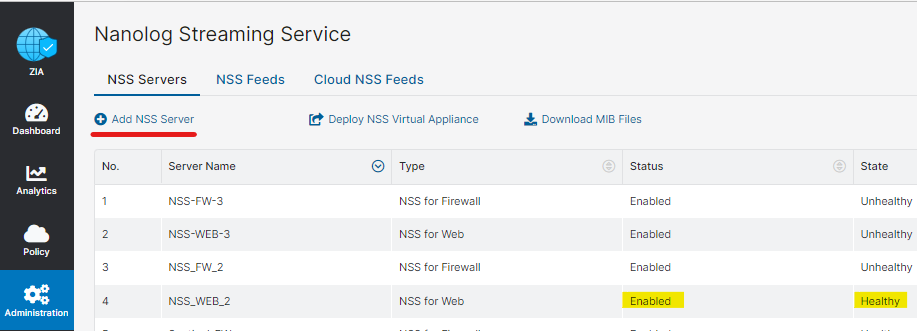

    • In the ZIA Admin Portal, add an NSS Server.
      • Log in to the ZIA Admin Portal using your admin account. If you're unable to log in, contact Support.
      • Add an NSS server. Refer to Adding NSS Servers to set up an Add NSS Server for Web and/or Firewall.
      • Verify that the state of the NSS Server is healthy.
        • In the ZIA Admin Portal, go to Administration > Nanolog Streaming Service > NSS Servers.
        • In the State column, confirm that the state of the NSS server is healthy. NSS server setup image

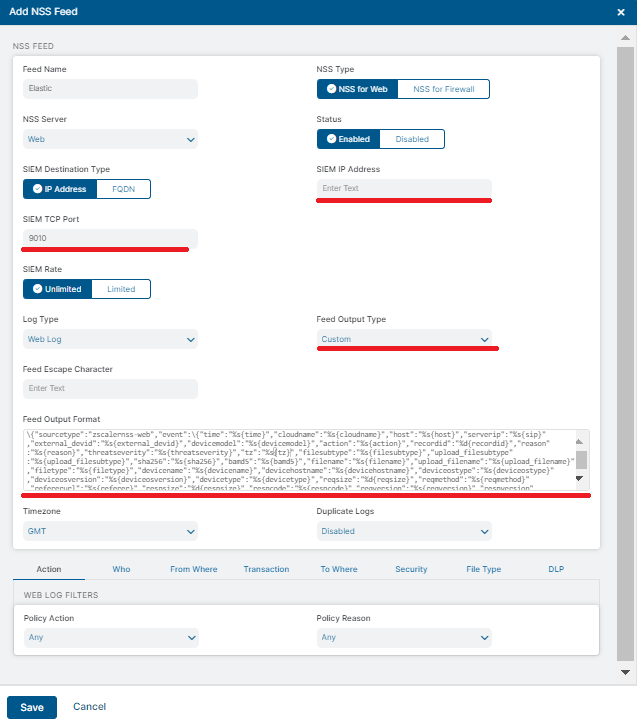

    • In the ZIA Admin Portal, add an NSS Feed.
      • Refer to Add NSS Feeds and select the type of feed you want to configure. The following fields require specific inputs:
        • SIEM IP Address: Enter the IP address of the Elastic agent you’ll be assigning the Zscaler integration to.
        • SIEM TCP Port: Enter the port number, depending on the logs associated with the NSS Feed. You will need to create an NSS Feed for each log type.
          • Alerts: 9010
          • Audit: 9029
          • DNS: 9011
          • Endpoint DLP: 9023
          • Firewall: 9012
          • SaaS Security Activity: 9026
          • SaaS Security: 9024
          • Tunnel: 9013
          • Web: 9014
        • Feed Output Type: Select Custom in Feed output type and paste the appropriate response format in Feed output format as follows: NSS Feeds setup image
  1. Enable the integration with the HTTP Endpoint input.
  2. Configure the Zscaler Cloud NSS Feeds to send logs to the Elastic Agent that is running this integration. Provide API URL to send logs to the Elastic Agent. To configure Zscaler Cloud NSS Feeds follow the following steps.

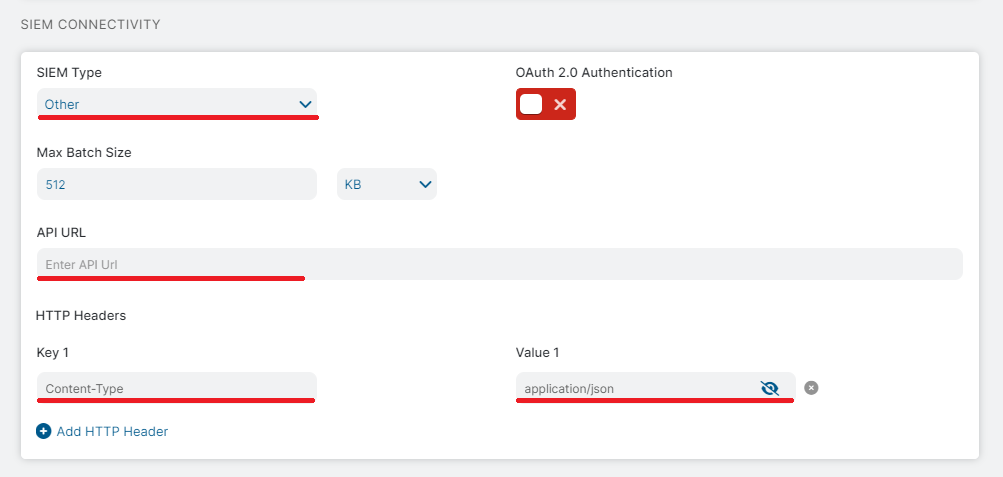

    • In the ZIA Admin Portal, add a Cloud NSS Feed.
      • Log in to the ZIA Admin Portal using your admin account.
      • Add a Cloud NSS Feed. See to Add Cloud NSS Feed.
        • In the ZIA Admin Portal, go to Administration > Nanolog Streaming Service > Cloud NSS Feeds.
        • Give Feed Name, change status to Enabled.
        • Select NSS Type.
        • Change SIEM Type to other.
        • Add an API URL.
        • Default ports:
          • Audit: 9562
          • DNS: 9556
          • Endpoint DLP: 9561
          • Firewall: 9557
          • SaaS Security Activity: 9565
          • SaaS Security: 9563
          • Tunnel: 9558
          • Web: 9559
        • Select JSON as feed output type.
        • Add same custom header along with its value on both the side for additional security. Cloud NSS Feeds setup image
  3. Repeat step 2 for each log type.
Note

Make sure to use the latest version of given response formats for NSS and Cloud NSS Feeds.

  • Default port (NSS Feed): 9010

See: Zscaler Vendor documentation

Zscaler Alerts response format (v1):

<%d{syslogid}>%s{Monthname} %2d{Dayofmonth} %02d{Hour}:%02d{Minutes}:%02d{Seconds} [%s{Deviceip}] ZscalerNSS: %s{Eventinfo}\n

Sample Response:

<114>Dec 10 14:04:28 [175.16.199.1] ZscalerNSS: Zscaler cloud configuration connection to  175.16.199.1:443 lost and unavailable for the past 2325.00 minutes
  • Default port (NSS Feed): 9029
  • Default port (Cloud NSS Feed): 9562

See: Zscaler Vendor documentation

Zscaler Audit Log response format (v1):

\{"version":"v1","sourcetype":"zscalernss-audit","event":\{"time":"%s{time}","recordid":"%d{recordid}","action":"%s{action}","category":"%s{category}","subcategory":"%s{subcategory}","resource":"%s{resource}","interface":"%s{interface}","adminid":"%s{adminid}","clientip":"%s{clientip}","result":"%s{result}","errorcode":"%s{errorcode}","auditlogtype":"%s{auditlogtype}","preaction":%s{preaction},"postaction":%s{postaction}\}\}

Sample Response:

{"version":"v1","sourcetype":"zscalernss-audit","event":{"time":"Mon Oct 16 22:55:48 2023","recordid":"1234","action":"Activate","category":"DATA_LOSS_PREVENTION_RESOURCE","subcategory":"DLP_DICTIONARY","resource":"SSL Rule Name","interface":"API","adminid":"example@zscaler.com","clientip":"89.160.20.112","result":"SUCCESS","errorcode":"AUTHENTICATION_FAILED","auditlogtype":"ZIA Portal Audit Log","timezone":"UTC","preaction":{},"postaction":{}}}
  • Default port (NSS Feed): 9011
  • Default port (Cloud NSS Feed): 9556

See: Zscaler Vendor documentation

Zscaler DNS Log response format (v3):

\{"version":"v3","sourcetype":"zscalernss-dns","event":\{"user":"%s{elogin}","department":"%s{edepartment}","location":"%s{elocation}","clt_sip":"%s{cip}","cloudname":"%s{cloudname}","company":"%s{company}","datacenter":"%s{datacenter}","datacentercity":"%s{datacentercity}","datacentercountry":"%s{datacentercountry}","day_of_month":"%02d{dd}","dept":"%s{dept}","deviceappversion":"%s{deviceappversion}","devicehostname":"%s{devicehostname}","devicemodel":"%s{devicemodel}","devicename":"%s{devicename}","deviceostype":"%s{deviceostype}","deviceosversion":"%s{deviceosversion}","deviceowner":"%s{deviceowner}","devicetype":"%s{devicetype}","dnsapp":"%s{dnsapp}","dnsappcat":"%s{dnsappcat}","dns_gateway_status":"%s{dnsgw_flags}","dns_gateway_rule":"%s{dnsgw_slot}","dns_gateway_server_protocol":"%s{dnsgw_srv_proto}","category":"%s{domcat}","durationms":"%d{durationms}","ecs_prefix":"%s{ecs_prefix}","ecs_slot":"%s{ecs_slot}","ednsreq":"%s{ednsreq}","epochtime":"%d{epochtime}","error":"%s{error}","hour":"%02d{hh}","http_code":"%s{http_code}","istcp":"%d{istcp}","loc":"%s{location}","login":"%s{login}","minutes":"%02d{mm}","month":"%s{mon}","month_of_year":"%02d{mth}","odevicehostname":"%s{odevicehostname}","odevicename":"%s{odevicename}","odeviceowner":"%s{odeviceowner}","odomcat":"%s{odomcat}","protocol":"%s{protocol}","recordid":"%d{recordid}","dns_req":"%s{req}","reqaction":"%s{reqaction}","reqrulelabel":"%s{reqrulelabel}","dns_reqtype":"%s{reqtype}","dns_resp":"%s{res}","resaction":"%s{resaction}","respipcategory":"%s{respipcat}","resrulelabel":"%s{resrulelabel}","restype":"%s{restype}","srv_dip":"%s{sip}","srv_dport":"%d{sport}","second":"%02d{ss}","datetime":"%s{time}","tz":"%s{tz}","year":"%04d{yyyy}"\}\}

Sample Response:

{"version":"v3","sourcetype":"zscalernss-dns","event":{"cloudname":"zscaler.net","datetime":"Mon Oct 16 22:55:48 2023","devicemodel":"VMware7,1","restype":"IPv4","dns_req":"mail.safemarch.com","dns_reqtype":"A record","error":"EMPTY_RESP","durationms":"1000","recordid":"45648954","tz":"GMT","devicename":"admin","devicehostname":"THINKPADSMITH","deviceostype":"Windows OS","deviceosversion":"Microsoft Windows 10 Enterprise;64 bit","devicetype":"Zscaler Client Connector","http_code":"100","dnsapp":"Google DNS","dns_gateway_server_protocol":"TCP","protocol":"TCP","company":"Zscaler","reqrulelabel":"RULE_1","resrulelabel":"RULE_RES","clt_sip":"81.2.69.192","srv_dip":"175.16.199.0","srv_dport":"1025","user":"jdoe1@safemarch.com","datacentercity":"Sa","datacentercountry":"US","datacenter":"CA Client Node DC","day":"Mon","day_of_month":"16","department":"EDept","dept":"Sales","deviceappversion":"4.3.0.18","deviceowner":"jsmith","dnsappcat":"Network Service","dns_gateway_rule":"DNS GATEWAY Rule 1","dns_gateway_status":"PRIMARY_SERVER_RESPONSE_PASS","category":"Professional Services","ecs_prefix":"192.168.0.0","ecs_slot":"ECS Slot #17","ednsreq":"ABC123","eedone":"Yes","epochtime":"1578128400","hour":"22","istcp":"1","loc":"Headquarters","location":"ELocation","login":"jdoe@safemarch.com","minutes":"55","month":"Oct","month_of_year":"10","oclientsourceip":"9960223283","odevicename":"2175092224","odeviceowner":"10831489","odomcat":"4951704103","odevicehostname":"2168890624","reqaction":"REQ_ALLOW","dns_resp":"www.example.com","respipcategory":"Adult Themes","resaction":"RES_Action","respipcat":"Adult Themes","second":"48","year":"2023"}}
  • Default port (NSS Feed): 9023
  • Default port (Cloud NSS Feed): 9561

See: Zscaler Vendor documentation

Zscaler Endpoint DLP Log response format (v1):

\{"version":"v1","sourcetype":"zscalernss-edlp","event":\{"actiontaken":"%s{actiontaken}","activitytype":"%s{activitytype}","additionalinfo":"%s{addinfo}","channel":"%s{channel}","confirmaction":"%s{confirmaction}","confirmjustification":"%s{confirmjust}","datacenter":"%s{datacenter}","datacentercity":"%s{datacentercity}","datacentercountry":"%s{datacentercountry}","day":"%s{day}","dd":"%02d{dd}","department":"%s{department}","deviceappversion":"%s{deviceappversion}","devicehostname":"%s{devicehostname}","devicemodel":"%s{devicemodel}","devicename":"%s{devicename}","deviceostype":"%s{deviceostype}","deviceosversion":"%s{deviceosversion}","deviceowner":"%s{deviceowner}","deviceplatform":"%s{deviceplatform}","devicetype":"%s{devicetype}","dlpdictcount":"%s{dlpcounts}","dlpdictnames":"%s{dlpdictnames}","dlpenginenames":"%s{dlpengnames}","dlpidentifier":"%llu{dlpidentifier}","dsttype":"%s{dsttype}","eventtime":"%s{eventtime}","expectedaction":"%s{expectedaction}","filedoctype":"%s{filedoctype}","filedstpath":"%s{filedstpath}","filemd5":"%s{filemd5}","filesha":"%s{filesha}","filesrcpath":"%s{filesrcpath}","filetypecategory":"%s{filetypecategory}","filetypename":"%s{filetypename}","hh":"%02d{hh}","itemdstname":"%s{itemdstname}","itemname":"%s{itemname}","itemsrcname":"%s{itemsrcname}","itemtype":"%s{itemtype}","logtype":"%s{logtype}","mm":"%02d{mm}","mon":"%s{mon}","mth":"%02d{mth}","numdlpdictids":"%u{numdlpdictids}","numdlpengineids":"%u{numdlpengids}","odepartment":"%s{odepartment}","odevicehostname":"%s{odevicehostname}","odevicename":"%s{odevicename}","odeviceowner":"%s{odeviceowner}","odlpdictnames":"%s{odlpdictnames}","odlpenginenames":"%s{odlpengnames}","ofiledstpath":"%s{ofiledstpath}","ofilesrcpath":"%s{ofilesrcpath}","oitemdstname":"%s{oitemdstname}","oitemname":"%s{oitemname}","oitemsrcname":"%s{oitemsrcname}","ootherrulelabels":"%s{ootherrulelabels}","otherrulelabels":"%s{otherrulelabels}","orulename":"%s{otriggeredrulelabel}","ouser":"%s{ouser}","recordid":"%llu{recordid}","feedtime":"%s{rtime}","scannedbytes":"%llu{scanned_bytes}","scantime":"%llu{scantime}","severity":"%s{severity}","srctype":"%s{srctype}","ss":"%02d{ss}","datetime":"%s{time}","rulename":"%s{triggeredrulelabel}","timezone":"%s{tz}","user":"%s{user}","yyyy":"%04d{yyyy}","zdpmode":"%s{zdpmode}"\}\}

Sample Response:

{"version":"v1","sourcetype":"zscalernss-edlp","event":{"actiontaken":"allow","activitytype":"email_sent","additionalinfo":"File already open by another application","channel":"Network Drive Transfer","confirmaction":"confirm","confirmjustification":"My manager approved it","datacenter":"Georgia","datacentercity":"Atlanta","datacentercountry":"US","day":"Mon","dd":"16","department":"TempDept","deviceappversion":"Ver-2199","devicehostname":"Host","devicemodel":"Model-2022","devicename":"Dev 1","deviceostype":"Windows","deviceosversion":"Win-11","deviceowner":"Administrator","deviceplatform":"Windows","devicetype":"WinUser","dlpdictcount":"12|13","dlpdictnames":"dlp: dlp discription|dlp1: dlp discription1|dlp2: dlp discription2","dlpenginenames":"dlpengine","dlpidentifier":"12","dsttype":"personal_cloud_storage","eventtime":"Mon Oct 16 22:55:48 2023","expectedaction":"block","filedoctype":"Medical","filedstpath":"dest_path","filemd5":"938c2cc0dcc05f2b68c4287040cfcf71","filesha":"076085239f3a10b8f387c4e5d4261abf8d109aa641be35a8d4ed2d775eb09612","filesrcpath":"source_path","filetypecategory":"PLS File (pls)","filetypename":"exe64","hh":"22","itemdstname":"nanolog","itemname":"endpoint_dlp","itemsrcname":"endpoint","itemtype":"email_attachment","logtype":"dlp_incident","mm":"55","mon":"Oct","mth":"10","numdlpdictids":"8","numdlpengineids":"12","recordid":"2","feedtime":"Mon Oct 16 22:55:48 2023","scannedbytes":"290812","scantime":"1210","severity":"High Severity","srctype":"network_share","ss":"48","datetime":"Mon Oct 16 22:55:48 2023","rulename":"configured_rule","timezone":"GMT","user":"TempUser","yyyy":"2023","zdpmode":"block mode","odepartment":"4094304256","odevicehostname":"4094304255","odevicename":"4094304251","odeviceowner":"4094304226","odlpdictnames":"4094304456","odlpenginenames":"4094364256","ofiledstpath":"4094304296","ofilesrcpath":"4094304206","oitemdstname":"409430476","oitemname":"40943042567","oitemsrcname":"4094305256","ootherrulelabels":"4036304256","orulename":"40943049956","ouser":"40943042569","otherrulelabels":"9094304256" } }
  • Default port (NSS Feed): 9012
  • Default port (Cloud NSS Feed): 9557

See: Zscaler Vendor documentation

Zscaler Firewall Log response format (v2):

\{"version":"v2","sourcetype":"zscalernss-fw","event":\{"datetime":"%s{time}","outbytes":"%ld{outbytes}","cltdomain":"%s{cdfqdn}","destcountry":"%s{destcountry}","cdip":"%s{cdip}","sdip":"%s{sdip}","cdport":"%d{cdport}","sdport":"%d{sdport}","devicemodel":"%s{devicemodel}","action":"%s{action}","duration":"%d{duration}","recordid":"%d{recordid}","tz":"%s{tz}","devicename":"%s{devicename}","devicehostname":"%s{devicehostname}","deviceostype":"%s{deviceostype}","deviceosversion":"%s{deviceosversion}","nwapp":"%s{nwapp}","nwsvc":"%s{nwsvc}","proto":"%s{ipproto}","ipsrulelabel":"%s{ipsrulelabel}","dnatrulelabel":"%s{dnatrulelabel}","rdr_rulename":"%s{rdr_rulename}","rule":"%s{rulelabel}","rulelabel":"%s{erulelabel}","inbytes":"%ld{inbytes}","srcipcountry":"%s{srcip_country}","csip":"%s{csip}","ssip":"%s{ssip}","csport":"%d{csport}","ssport":"%d{ssport}","user":"%s{elogin}","aggregate":"%s{aggregate}","bypassed_session":"%d{bypassed_session}","bypass_time":"%s{bypass_etime}","datacentercity":"%s{datacentercity}","datacentercountry":"%s{datacentercountry}","datacenter":"%s{datacenter}","day_of_month":"%02d{dd}","department":"%s{edepartment}","dept":"%s{dept}","deviceappversion":"%s{deviceappversion}","deviceowner":"%s{deviceowner}","avgduration":"%d{avgduration}","durationms":"%d{durationms}","epochtime":"%d{epochtime}","external_deviceid":"%s{external_deviceid}","flow_type":"%s{flow_type}","forward_gateway_name":"%s{fwd_gw_name}","hour":"%02d{hh}","ipcat":"%s{ipcat}","ips_custom_signature":"%d{ips_custom_signature}","location":"%s{location}","locationname":"%s{elocation}","login":"%s{login}","minute":"%02d{mm}","month":"%s{mon}","month_of_year":"%02d{mth}","dnat":"%s{dnat}","odevicename":"%s{odevicename}","odeviceowner":"%s{odeviceowner}","ofwd_gw_name":"%s{ofwd_gw_name}","odevicehostname":"%s{odevicehostname}","oipcat":"%s{oipcat}","oipsrulelabel":"%s{oipsrulelabel}","ordr_rulename":"%s{ordr_rulename}","orulelabel":"%s{orulelabel}","ozpa_app_seg_name":"%s{ozpa_app_seg_name}","second":"%02d{ss}","numsessions":"%d{numsessions}","stateful":"%s{stateful}","threat_name":"%s{threatname}","threatcat":"%s{threatcat}","threatname":"%s{ethreatname}","tsip":"%s{tsip}","tuntype":"%s{ttype}","year":"%04d{yyyy}","ztunnelversion":"%s{ztunnelversion}","zpa_app_seg_name":"%s{zpa_app_seg_name}"\}\}

Sample Response:

{"version":"v2","sourcetype":"zscalernss-fw","event":{"datetime":"Mon Oct 16 22:55:48 2023","cltdomain":"www.example.com","cdip":"2a02:cf40::","outbytes":"10000","cdport":"22","destcountry":"USA","devicemodel":"20L8S7WC08","sdip":"67.43.156.0","duration":"600","sdport":"443","tz":"GMT","action":"Blocked","devicehostname":"THINKPADSMITH","recordid":"123456","deviceosversion":"Version 10.14.2 (Build 18C54)","devicename":"admin","nwsvc":"HTTP","deviceostype":"iOS","ipsrulelabel":"Default IPS Rule","nwapp":"Skype","rdr_rulename":"FWD_Rule_1","proto":"TCP","rulelabel":"rule1","dnatrulelabel":"DNAT_Rule_1","srcipcountry":"United States","rule":"Default_Firewall_Filtering_Rule","ssip":"1.128.0.0","inbytes":"10000","ssport":"22","csip":"0.0.0.0","aggregate":"Yes","csport":"25","bypass_time":"Mon Oct 16 22:55:48 2023","user":"jdoe%40safemarch.com","datacentercountry":"US","bypassed_session":"1","day":"Mon","datacentercity":"Sa","department":"sales","datacenter":"CA Client Node DC","deviceappversion":"2.0.0.120","day_of_month":"16","avgduration":"600","dept":"Sales","eedone":"Yes","deviceowner":"jsmith","external_deviceid":"1234","durationms":"600","forward_gateway_name":"FWD_1","epochtime":"1578128400","ipcat":"Finance","flow_type":"Direct","location":"Headquarters","hour":"22","login":"jdo%40safemarch.com","ips_custom_signature":"0","month":"Oct","locationname":"Headquarters","dnat":"Yes","minute":"55","odevicename":"2175092224","month_of_year":"10","ofwd_gw_name":"8794487099","ocsip":"9960223283","oipcat":"5300295980","odeviceowner":"10831489","odnatlabel":"7956407282","odevicehostname":"2168890624","orulelabel":"624054738","oipsrulelabel":"6200694987","second":"48","ordr_rulename":"3399565100","stateful":"Yes","ozpa_app_seg_name":"7648246731","threatcat":"Botnet Callback","numsessions":"5","tsip":"89.160.20.128","threat_name":"Linux.Backdoor.Tsunami","year":"2023","threatname":"Linux.Backdoor","zpa_app_seg_name":"ZPA_test_app_segment","tuntype":"L2 tunnel","ztunnelversion":"ZTUNNEL_1_0"}}
  • Default port (NSS Feed): 9026
  • Default port (Cloud NSS Feed): 9565

See: Zscaler Vendor documentation

To collect SaaS Security Activity logs, configure the NSS feed in the ZIA Admin Console using the Feed Output Format below. The format uses snake_case nested JSON keys that the integration parses without additional field renaming, and includes a version token so the pipeline can validate the template at ingest time.

Zscaler SaaS Security Activity Log response format (v1):

\{"version":"v1","sourcetype":"zscalernss-saas_security_activity","time":"%s{time}","tz":"%s{tz}","event_time":"%s{eventtime}","activity":\{"type":"%s{act_type_name}","count":"%d{act_cnt}"\},"is_admin":"%s{is_admin_act}","application":\{"name":"%s{appname}"\},"tenant":"%s{tenant}","user_name":"%s{username}","external_owner":"%s{extownername}","object":\{"type":"%s{objtypename1}","subtype":"%s{objtypename2}","names":"%s{objnames1}","subnames":"%s{objnames2}"\},"src_ip":"%s{src_ip}"\}

Sample Response:

{"version":"v1","sourcetype":"zscalernss-saas_security_activity","time":"Tue Jan 14 16:22:01 2026","tz":"GMT","event_time":"Tue Jan 14 16:22:01 2026","activity":{"type":"Share","count":"3"},"is_admin":"0","application":{"name":"SALESFORCE"},"tenant":"example-corp.my.salesforce.com","user_name":"bob.smith@example.com","external_owner":"partner@guest.example.net","object":{"type":"Record","subtype":"Account","names":"[Acme-Corp-Account, Acme-Corp-Opportunity]","subnames":"None"},"src_ip":"81.2.69.144"}
  • Default port (NSS Feed): 9024
  • Default port (Cloud NSS Feed): 9563

See: Zscaler Vendor documentation

To integrate SaaS Security data, create a separate NSS Feed in the ZIA Admin Portal for each SaaS subtype. All feeds should point to the same Elastic Agent listening port (TCP input for NSS 9024; HTTP Endpoint input for Cloud NSS 9563).

The integration identifies and parses data from these multiple feeds (e.g., Collaboration, CRM, Email) by using the sourcesubtype field within the Feed Output Format. Ensure the sourcesubtype is correctly mapped to one of the supported values: collaboration, crm, email, file, genai, itsm, public_cloud_storage, and repository.

Troubleshooting — Test Connectivity Failed: Zscaler Internal Error (0) or Error found in the following segment: ...

Some tokens in the templates below may not be enabled on every Zscaler tenant. When the ZIA Admin Portal rejects one, Test Connectivity fails or the UI flags the offending segment.

Fix: remove the rejected field from the Feed Output Format and save again. Dropping fields is safe — the ingest pipeline tolerates missing values and only the corresponding ECS mapping will be empty.

Recommended Feed Output Format — Zscaler SaaS Security (Collaboration), v1:

\{"version":"v1","sourcetype":"zscalernss-saas_security","sourcesubtype":"collaboration","time":"%d{epochtime}","tz":"%s{tz}","record_id":"%d{recordid}","message_id":"%s{msgid}","message_id_obfuscated":"%s{omsgid}","severity":"%s{severity}","is_incident":"%s{any_incident}","policy":"%s{policy}","rule":\{"label":"%s{rulelabel}","label_obfuscated":"%s{orulelabel}","type":"%s{ruletype}"\},"company":\{"name":"%s{company}"\},"datacenter":\{"name":"%s{datacenter}","city":"%s{datacentercity}","country":"%s{datacentercountry}"\},"tenant":"%s{tenant}","tenant_obfuscated":"%s{otenant}","threat":\{"indicator":\{"name":"%s{threatname}"\},"malware":"%s{malware}","malware_class":"%s{malwareclass}"\},"copilot_accessible":"%s{copilot_accessible}","accessibility_flags":"%s{accessibility_flags}","label_name":"%s{labelname}","department":"%s{department}","application":\{"name":"%s{applicationname}"\},"dlp":\{"identifier":"%llu{dlpidentifier}","dict_names":"%s{dlpdictnames}","dict_names_obfuscated":"%s{odlpdictnames}","dict_counts":"%s{dlpdictcount}","engine_names":"%s{dlpenginenames}","engine_names_obfuscated":"%s{odlpenginenames}"\},"document":\{"type":"%s{upload_doctypename}"\},"user_name":"%s{owner}","user_name_obfuscated":"%s{oowner}","collaboration":\{"channel":\{"name":"%s{channel_name}","name_obfuscated":"%s{ochannel_name}","hostname":"%s{sharedchannel_hostname}","hostname_obfuscated":"%s{osharedchannel_hostname}"\},"external_recipients":"%s{external_recptnames}","external_recipients_obfuscated":"%s{oexternal_recptnames}","internal_recipients":"%s{internal_recptnames}","internal_recipients_obfuscated":"%s{ointernal_recptnames}","sender":"%s{sender}","sender_obfuscated":"%s{osender}"\},"file":\{"owner":"%s{extownername}","owner_obfuscated":"%s{oextownername}"\}\}

Recommended Feed Output Format — Zscaler SaaS Security (Email), v1:

\{"version":"v1","sourcetype":"zscalernss-saas_security","sourcesubtype":"email","time":"%d{epochtime}","tz":"%s{tz}","record_id":"%d{recordid}","message_id":"%s{messageid}","message_id_obfuscated":"%s{omessageid}","severity":"%s{severity}","is_incident":"%s{any_incident}","policy":"%s{policy}","rule":\{"label":"%s{rulelabel}","label_obfuscated":"%s{orulelabel}","type":"%s{ruletype}"\},"company":\{"id":"%d{companyid}","name":"%s{company}"\},"datacenter":\{"name":"%s{datacenter}","city":"%s{datacentercity}","country":"%s{datacentercountry}"\},"tenant":"%s{tenant}","tenant_obfuscated":"%s{otenant}","threat":\{"indicator":\{"name":"%s{threatname}"\},"malware":"%s{malware}","malware_class":"%s{malwareclass}"\},"copilot_accessible":"%s{copilot_accessible}","accessibility_flags":"%s{accessibility_flags}","label_name":"%s{labelname}","department":"%s{department}","application":\{"name":"%s{applicationname}"\},"dlp":\{"identifier":"%llu{dlpidentifier}","dict_names":"%s{dlpdictnames}","dict_names_obfuscated":"%s{odlpdictnames}","dict_counts":"%s{dlpdictcount}","engine_names":"%s{dlpenginenames}","engine_names_obfuscated":"%s{odlpenginenames}"\},"document":\{"type":"%s{upload_doctypename}","subtype":"%s{upload_doc_subtype}"\},"user_name":"%s{owner}","user_name_obfuscated":"%s{oowner}","file":\{"owner":"%s{externalownername}","owner_obfuscated":"%s{oexternalownername}","download_time_ms":"%d{filedownloadtimems}","scan_time_ms":"%d{filescantimems}"\},"email":\{"is_inbound":"%s{is_inbound}","received_time":"%d{repochtime}","external_recipients_count":"%d{num_ext_recpts}","internal_recipients_count":"%d{num_int_recpts}","external_recipients":"%s{extrecptnames}","external_recipients_obfuscated":"%s{oextrecptnames}","internal_recipients":"%s{intrecptnames}","internal_recipients_obfuscated":"%s{ointrecptnames}","message_size_bytes":"%d{msgsize}","attachments":\{"file_names":"%s{attchcomponentfilenames}","file_names_obfuscated":"%s{oattchcomponentfilenames}","file_sizes":"%s{attchcomponentfilesizes}","file_types":"%s{attchcomponentfiletypes}","md5s":"%s{attchcomponentmd5s}"\}\}\}

Recommended Feed Output Format — Zscaler SaaS Security (File Sharing), v1:

\{"version":"v1","sourcetype":"zscalernss-saas_security","sourcesubtype":"file","time":"%d{epochtime}","tz":"%s{tz}","record_id":"%d{recordid}","severity":"%s{severity}","policy":"%s{policy}","rule":\{"label":"%s{rulelabel}","label_obfuscated":"%s{orulelabel}","type":"%s{ruletype}"\},"company":\{"name":"%s{company}"\},"datacenter":\{"name":"%s{datacenter}","city":"%s{datacentercity}","country":"%s{datacentercountry}"\},"tenant":"%s{tenant}","tenant_obfuscated":"%s{otenant}","threat":\{"indicator":\{"name":"%s{threatname}"\},"malware":"%s{malware}","malware_class":"%s{malwareclass}"\},"copilot_accessible":"%s{copilot_accessible}","accessibility_flags":"%s{accessibility_flags}","label_name":"%s{labelname}","department":"%s{department}","application":\{"name":"%s{applicationname}"\},"dlp":\{"identifier":"%llu{dlpidentifier}","dict_names":"%s{dlpdictnames}","dict_names_obfuscated":"%s{odlpdictnames}","dict_counts":"%s{dlpdictcount}","engine_names":"%s{dlpenginenames}","engine_names_obfuscated":"%s{odlpenginenames}"\},"document":\{"type":"%s{upload_doctypename}"\},"hostname":"%s{hostname}","hostname_obfuscated":"%s{ohostname}","user_name":"%s{user}","user_name_obfuscated":"%s{ouser}","external_collab_groups":"%s{extcollab_groups}","external_collab_groups_obfuscated":"%s{oextcollab_groups}","external_collab_names":"%s{extcollabnames}","external_collab_names_obfuscated":"%s{oextcollabnames}","internal_collab_groups":"%s{intcollab_groups}","internal_collab_groups_obfuscated":"%s{ointcollab_groups}","internal_collab_names":"%s{intcollabnames}","internal_collab_names_obfuscated":"%s{ointcollabnames}","file":\{"owner":"%s{extownername}","owner_obfuscated":"%s{oextownername}","id":"%s{fileid}","id_obfuscated":"%s{ofileid}","name":"%s{filename}","size":"%d{filesize}","directory":"%s{filesource}","extension":"%s{filetypename}","hash":\{"md5":"%s{filemd5}"\},"full_url":"%s{fullurl}","full_url_obfuscated":"%s{ofullurl}","sub_url":"%s{suburl}","last_modified_time":"%s{lastmodtime}","last_share_user":"%s{last_share_user}","last_shared_on":"%s{last_shared_on}","collaboration_scope":"%s{collabscope}","download_time_ms":"%d{filedownloadtimems}","scan_time_ms":"%d{filescantimems}"\}\}

Recommended Feed Output Format — Zscaler SaaS Security (Gen AI), v1:

\{"version":"v1","sourcetype":"zscalernss-saas_security","sourcesubtype":"genai","time":"%d{epochtime}","tz":"%s{tz}","record_id":"%d{recordid}","message_id":"%s{msgid}","severity":"%s{severity}","is_incident":"%s{any_incident}","policy":"%s{policy}","rule":\{"label":"%s{rulelabel}","type":"%s{ruletype}"\},"company":\{"name":"%s{company}"\},"datacenter":\{"name":"%s{datacenter}","city":"%s{datacentercity}","country":"%s{datacentercountry}"\},"tenant":"%s{tenant}","threat":\{"indicator":\{"name":"%s{threatname}"\},"malware":"%s{malware}","malware_class":"%s{malwareclass}"\},"department":"%s{departmentname}","application":\{"name":"%s{appname}"\},"dlp":\{"identifier":"%llu{dlpidentifier}","dict_names":"%s{dlpdictnames}","dict_counts":"%s{dlpdictcnts}","engine_names":"%s{dlpengnames}"\},"document":\{"type":"%s{file_doctype}"\},"component":"%s{component}","user_name":"%s{owner}","internal_user_name":"%s{username}","external_user_name":"%s{extusername}","genai":\{"bot_name":"%s{botname}","run_id":"%d{runid}","scan_id":"%d{scanid}","sender_type":"%s{sender_type}"\},"file":\{"name":"%s{filename}","size":"%d{filesize}","extension":"%s{filetype}","hash":\{"md5":"%s{filemd5}","sha256":"%s{filesha}"\},"download_time_ms":"%d{download_time}","scan_time_ms":"%d{scan_time}"\}\}

Recommended Feed Output Format — Zscaler SaaS Security (CRM), v1:

\{"version":"v1","sourcetype":"zscalernss-saas_security","sourcesubtype":"crm","time":"%d{epochtime}","tz":"%s{tz}","record_id":"%d{recordid}","message_id":"%s{file_msg_id}","message_id_obfuscated":"%s{ofile_msg_id}","severity":"%s{severity}","policy":"%s{policy}","rule":\{"label":"%s{rulelabel}","label_obfuscated":"%s{orulelabel}","type":"%s{ruletype}"\},"company":\{"name":"%s{company}"\},"datacenter":\{"name":"%s{datacenter}","city":"%s{datacentercity}","country":"%s{datacentercountry}"\},"tenant":"%s{tenant}","tenant_obfuscated":"%s{otenant}","threat":\{"indicator":\{"name":"%s{threatname}"\},"malware":"%s{malware}","malware_class":"%s{malwareclass}"\},"component":"%s{component}","department":"%s{department}","application":\{"name":"%s{applicationname}"\},"dlp":\{"identifier":"%llu{dlpidentifier}","dict_names":"%s{dlpdictnames}","dict_names_obfuscated":"%s{odlpdictnames}","dict_counts":"%s{dlpdictcount}","engine_names":"%s{dlpenginenames}","engine_names_obfuscated":"%s{odlpenginenames}"\},"document":\{"type":"%s{upload_doctypename}"\},"hostname":"%s{hostname}","hostname_obfuscated":"%s{ohostname}","user_name":"%s{owner}","user_name_obfuscated":"%s{oowner}","external_collab_count":"%d{num_external_collab}","internal_collab_count":"%d{num_internal_collab}","external_collab_names":"%s{external_collabnames}","external_collab_names_obfuscated":"%s{oexternal_collabnames}","internal_collab_names":"%s{internal_collabnames}","internal_collab_names_obfuscated":"%s{ointernal_collabnames}","object":\{"name":"%s{objectname}","type":"%s{objecttype}"\},"file":\{"owner":"%s{extownername}","owner_obfuscated":"%s{oextownername}","name":"%s{filename}","path":"%s{filepath}","size":"%d{filesize}","type_category":"%s{filetypecategory}","hash":\{"md5":"%s{filemd5}","sha256":"%s{sha}"\},"full_url":"%s{fullurl}","full_url_obfuscated":"%s{ofullurl}","last_modified_time":"%s{file_msg_mod_time}","collaboration_scope":"%s{collabscope}"\}\}

Recommended Feed Output Format — Zscaler SaaS Security (ITSM), v1:

\{"version":"v1","sourcetype":"zscalernss-saas_security","sourcesubtype":"itsm","time":"%d{epochtime}","tz":"%s{tz}","record_id":"%d{recordid}","message_id":"%s{file_msg_id}","message_id_obfuscated":"%s{ofile_msg_id}","severity":"%s{severity}","policy":"%s{policy}","rule":\{"label":"%s{rulelabel}","label_obfuscated":"%s{orulelabel}","type":"%s{ruletype}"\},"company":\{"name":"%s{company}"\},"datacenter":\{"name":"%s{datacenter}","city":"%s{datacentercity}","country":"%s{datacentercountry}"\},"tenant":"%s{tenant}","tenant_obfuscated":"%s{otenant}","threat":\{"indicator":\{"name":"%s{threatname}"\},"malware":"%s{malware}","malware_class":"%s{malwareclass}"\},"component":"%s{component}","department":"%s{department}","application":\{"name":"%s{applicationname}"\},"dlp":\{"identifier":"%llu{dlpidentifier}","dict_names":"%s{dlpdictnames}","dict_names_obfuscated":"%s{odlpdictnames}","dict_counts":"%s{dlpdictcount}","engine_names":"%s{dlpenginenames}","engine_names_obfuscated":"%s{odlpenginenames}"\},"document":\{"type":"%s{upload_doctypename}"\},"hostname":"%s{hostname}","hostname_obfuscated":"%s{ohostname}","user_name":"%s{owner}","user_name_obfuscated":"%s{oowner}","external_collab_count":"%d{num_external_collab}","internal_collab_count":"%d{num_internal_collab}","external_collab_names":"%s{external_collabnames}","external_collab_names_obfuscated":"%s{oexternal_collabnames}","internal_collab_names":"%s{internal_collabnames}","internal_collab_names_obfuscated":"%s{ointernal_collabnames}","object":\{"name":"%s{objectname}","type":"%s{objecttype}"\},"file":\{"owner":"%s{extownername}","owner_obfuscated":"%s{oextownername}","name":"%s{filename}","path":"%s{filepath}","size":"%d{filesize}","type_category":"%s{filetypecategory}","hash":\{"md5":"%s{filemd5}","sha256":"%s{sha}"\},"full_url":"%s{fullurl}","full_url_obfuscated":"%s{ofullurl}","last_modified_time":"%s{file_msg_mod_time}"\}\}

Recommended Feed Output Format — Zscaler SaaS Security (Public Cloud Storage), v1:

\{"version":"v1","sourcetype":"zscalernss-saas_security","sourcesubtype":"public_cloud_storage","time":"%d{epochtime}","tz":"%s{tz}","record_id":"%d{recordid}","severity":"%s{severity}","policy":"%s{policy}","rule":\{"label":"%s{rulelabel}","label_obfuscated":"%s{orulelabel}","type":"%s{ruletype}"\},"company":\{"name":"%s{company}"\},"datacenter":\{"name":"%s{datacenter}","city":"%s{datacentercity}","country":"%s{datacentercountry}"\},"tenant":"%s{tenant}","tenant_obfuscated":"%s{otenant}","threat":\{"indicator":\{"name":"%s{threatname}"\},"malware":"%s{malware}","malware_class":"%s{malwareclass}"\},"department":"%s{department}","application":\{"name":"%s{applicationname}"\},"dlp":\{"identifier":"%llu{dlpidentifier}","dict_names":"%s{dlpdictnames}","dict_names_obfuscated":"%s{odlpdictnames}","dict_counts":"%s{dlpdictcount}","engine_names":"%s{dlpenginenames}","engine_names_obfuscated":"%s{odlpenginenames}"\},"document":\{"type":"%s{upload_doctypename}"\},"hostname":"%s{hostname}","hostname_obfuscated":"%s{ohostname}","user_name":"%s{owner}","user_name_obfuscated":"%s{oowner}","collab_count":"%d{numcollab}","collab_names":"%s{collabnames}","collab_names_obfuscated":"%s{ocollabnames}","bucket":\{"id":"%d{bucketid}","name":"%s{bucketname}","name_obfuscated":"%s{obucketname}","owner":"%s{bucketowner}","owner_obfuscated":"%s{obucketowner}"\},"file":\{"owner":"%s{extownername}","owner_obfuscated":"%s{oextownername}","id":"%s{fileid}","id_obfuscated":"%s{ofileid}","full_url":"%s{fullurl}","full_url_obfuscated":"%s{ofullurl}"\}\}

Recommended Feed Output Format — Zscaler SaaS Security (Repository), v1:

\{"version":"v1","sourcetype":"zscalernss-saas_security","sourcesubtype":"repository","time":"%d{epochtime}","tz":"%s{tz}","record_id":"%d{recordid}","severity":"%s{severity}","policy":"%s{policy}","rule":\{"label":"%s{rulelabel}","label_obfuscated":"%s{orulelabel}","type":"%s{ruletype}"\},"company":\{"name":"%s{company}"\},"datacenter":\{"name":"%s{datacenter}","city":"%s{datacentercity}","country":"%s{datacentercountry}"\},"tenant":"%s{tenant}","tenant_obfuscated":"%s{otenant}","threat":\{"indicator":\{"name":"%s{threatname}"\},"malware":"%s{malware}","malware_class":"%s{malwareclass}"\},"department":"%s{department}","application":\{"name":"%s{applicationname}"\},"dlp":\{"identifier":"%llu{dlpidentifier}","dict_names":"%s{dlpdictnames}","dict_names_obfuscated":"%s{odlpdictnames}","dict_counts":"%s{dlpdictcount}","engine_names":"%s{dlpenginenames}","engine_names_obfuscated":"%s{odlpenginenames}"\},"document":\{"type":"%s{upload_doctypename}"\},"user_name":"%s{owner}","user_name_obfuscated":"%s{oowner}","external_collab_count":"%d{num_external_collab}","external_collab_names":"%s{external_collabnames}","external_collab_names_obfuscated":"%s{oexternal_collabnames}","internal_collab_names":"%s{internal_collabnames}","internal_collab_names_obfuscated":"%s{ointernal_collabnames}","repository":\{"name":"%s{reponame}","project_name":"%s{projectname}"\},"file":\{"owner":"%s{extownername}","owner_obfuscated":"%s{oextownername}","id":"%s{fileid}","id_obfuscated":"%s{ofileid}","name":"%s{filename}","path":"%s{filepath}","size":"%d{filesize}","type_category":"%s{filetypecategory}","hash":\{"md5":"%s{filemd5}","sha256":"%s{sha}"\}\}\}
  • Default port (NSS Feed): 9013
  • Default port (Cloud NSS Feed): 9558

See: Zscaler Vendor documentation

Zscaler Tunnel Log response formats (v2):

  • Tunnel Event:
    \{"version":"v2","sourcetype":"zscalernss-tunnel","event":\{"datetime":"%s{datetime}","day":"%s{day}","dd":"%02d{dd}","destinationip":"%s{destvip}","event":"%s{event}","eventreason":"%s{eventreason}","hh":"%02d{hh}","locationname":"%s{locationname}","mm":"%02d{mm}","mon":"%s{mon}","mth":"%02d{mth}","olocationname":"%s{olocationname}","ovpncredentialname":"%s{ovpncredentialname}","recordid":"%d{recordid}","sourceip":"%s{sourceip}","sourceport":"%d{srcport}","ss":"%02d{ss}","Recordtype":"%s{tunnelactionname}","tunneltype":"%s{tunneltype}","timezone":"%s{tz}","user":"%s{vpncredentialname}","yyyy":"%04d{yyyy}"\}\}
  • Sample Event:
    \{"version":"v2","sourcetype":"zscalernss-tunnel","event":\{"datetime":"%s{datetime}","day":"%s{day}","dd":"%02d{dd}","destinationip":"%s{destvip}","dpdrec":"%d{dpdrec}","hh":"%02d{hh}","locationname":"%s{locationname}","mm":"%02d{mm}","mon":"%s{mon}","mth":"%02d{mth}","olocationname":"%s{olocationname}","ovpncredentialname":"%s{ovpncredentialname}","recordid":"%d{recordid}","rxbytes":"%lu{rxbytes}","rxpackets":"%d{rxpackets}","sourceip":"%s{sourceip}","sourceport":"%d{srcport}","ss":"%02d{ss}","Recordtype":"%s{tunnelactionname}","tunneltype":"%s{tunneltype}","txbytes":"%lu{txbytes}","txpackets":"%d{txpackets}","timezone":"%s{tz}","user":"%s{vpncredentialname}","yyyy":"%04d{yyyy}"\}\}
  • IKE Phase 1
    \{"version":"v2","sourcetype":"zscalernss-tunnel","event":\{"algo":"%s{algo}","authentication":"%s{authentication}","authtype":"%s{authtype}","datetime":"%s{datetime}","day":"%s{day}","dd":"%02d{dd}","destinationip":"%s{destvip}","destinationport":"%d{dstport}","hh":"%02d{hh}","ikeversion":"%d{ikeversion}","lifetime":"%d{lifetime}","locationname":"%s{locationname}","mm":"%02d{mm}","mon":"%s{mon}","mth":"%02d{mth}","olocationname":"%s{olocationname}","ovpncredentialname":"%s{ovpncredentialname}","recordid":"%d{recordid}","sourceip":"%s{sourceip}","spi_in":"%lu{spi_in}","spi_out":"%lu{spi_out}","sourceport":"%d{srcport}","ss":"%02d{ss}","Recordtype":"%s{tunnelactionname}","tunneltype":"IPSEC IKEV %d{ikeversion}","timezone":"%s{tz}","vendorname":"%s{vendorname}","user":"%s{vpncredentialname}","yyyy":"%04d{yyyy}"\}\}
  • IKE Phase 2
    \{"version":"v2","sourcetype":"zscalernss-tunnel","event":\{"algo":"%s{algo}","authentication":"%s{authentication}","authtype":"%s{authtype}","datetime":"%s{datetime}","day":"%s{day}","dd":"%02d{dd}","destinationipend":"%s{destipend}","destinationipstart":"%s{destipstart}","destinationportstart":"%d{destportstart}","destinationip":"%s{destvip}","hh":"%02d{hh}","ikeversion":"%d{ikeversion}","lifebytes":"%d{lifebytes}","lifetime":"%d{lifetime}","locationname":"%s{locationname}","mm":"%02d{mm}","mon":"%s{mon}","mth":"%02d{mth}","olocationname":"%s{olocationname}","ovpncredentialname":"%s{ovpncredentialname}","protocol":"%s{protocol}","recordid":"%d{recordid}","sourceip":"%s{sourceip}","spi":"%d{spi}","srcipend":"%s{srcipend}","srcipstart":"%s{srcipstart}","sourceportstart":"%d{srcportstart}","ss":"%02d{ss}","Recordtype":"%s{tunnelactionname}","tunnelprotocol":"%s{tunnelprotocol}","tunneltype":"IPSEC IKEV %d{ikeversion}","timezone":"%s{tz}","user":"%s{vpncredentialname}","yyyy":"%04d{yyyy}"\}\}

Sample Response:

{"version":"v2","sourcetype":"zscalernss-tunnel","event":{"datetime":"Mon Oct 16 22:55:48 2023","destinationip":"67.43.156.1","destinationport":"500","recordid":"111234","timezone":"GMT","sourceip":"67.43.156.0","sourceport":"500","user":"jdoe@safemarch.com","authentication":"HMAC_MD5","authtype":"PSKEY","day":"Mon","dd":"16","algo":"DES_CBC","hh":"22","ikeversion":"IKE_VERSION_2","lifetime":"86400","locationname":"Headquarters","mm":"55","mon":"Oct","mth":"10","olocationname":"2168890624","ovpncredentialname":"4094304256","ss":"48","spi_in":"None","spi_out":"None","Recordtype":"None","vendorname":"CISCO","yyyy":"2023"}}
  • Default port (NSS Feed): 9014
  • Default port (Cloud NSS Feed): 9559
  • Add characters " and \ in feed escape character while configuring Web Log.

Escape feed setup image See: Zscaler Vendor documentation

Zscaler Web Log response format (v11):

\{"version":"v11","sourcetype":"zscalernss-web","event":\{"time":"%s{time}","cloudname":"%s{cloudname}","host":"%s{ehost}","serverip":"%s{sip}","external_devid":"%s{external_devid}","devicemodel":"%s{devicemodel}","action":"%s{action}","recordid":"%d{recordid}","reason":"%s{reason}","threatseverity":"%s{threatseverity}","tz":"%s{tz}","filesubtype":"%s{filesubtype}","upload_filesubtype":"%s{upload_filesubtype}","sha256":"%s{sha256}","bamd5":"%s{bamd5}","filename":"%s{efilename}","upload_filename":"%s{eupload_filename}","filetype":"%s{filetype}","devicename":"%s{edevicename}","devicehostname":"%s{devicehostname}","deviceostype":"%s{deviceostype}","deviceosversion":"%s{deviceosversion}","devicetype":"%s{devicetype}","reqsize":"%d{reqsize}","reqmethod":"%s{reqmethod}","b64referer":"%s{b64referer}","respsize":"%d{respsize}","respcode":"%s{respcode}","reqversion":"%s{reqversion}","respversion":"%s{respversion}","proto":"%s{proto}","company":"%s{company}","dlpmd5":"%s{dlpmd5}","apprulelabel":"%s{eapprulelabel}","dlprulename":"%s{dlprulename}","rulelabel":"%s{erulelabel}","urlfilterrulelabel":"%s{eurlfilterrulelabel}","cltip":"%s{cip}","cltintip":"%s{cintip}","cltsourceport":"%d{clt_sport}","threatname":"%s{threatname}","cltsslcipher":"%s{clientsslcipher}","clttlsversion":"%s{clienttlsversion}","b64url":"%s{b64url}","useragent":"%s{eua}","login":"%s{elogin}","applayerprotocol":"%s{alpnprotocol}","appclass":"%s{appclass}","appname":"%s{appname}","appriskscore":"%s{app_risk_score}","bandwidthclassname":"%s{bwclassname}","bandwidthrulename":"%s{bwrulename}","bwthrottle":"%s{bwthrottle}","bypassedtime":"%s{bypassed_etime}","bypassedtraffic":"%d{bypassed_traffic}","cltsslsessreuse":"%s{clientsslsessreuse}","cltpubip":"%s{cpubip}","cltsslfailcount":"%d{cltsslfailcount}","cltsslfailreason":"%s{cltsslfailreason}","client_tls_keyex_pqc_offers":"%d{client_tls_keyex_pqc_offers}","client_tls_keyex_non_pqc_offers":"%d{client_tls_keyex_non_pqc_offers}","client_tls_keyex_hybrid_offers":"%d{client_tls_keyex_hybrid_offers}","client_tls_keyex_unknown_offers":"%d{client_tls_keyex_unknown_offers}","client_tls_sig_pqc_offers":"%d{client_tls_sig_pqc_offers}","client_tls_sig_non_pqc_offers":"%d{client_tls_sig_non_pqc_offers}","client_tls_sig_hybrid_offers":"%d{client_tls_sig_hybrid_offers}","client_tls_sig_unknown_offers":"%d{client_tls_sig_unknown_offers}","client_tls_keyex_alg":"%s{client_tls_keyex_alg}","client_tls_sig_alg":"%s{client_tls_sig_alg}","contenttype":"%s{contenttype}","datacentercity":"%s{datacentercity}","datacentercountry":"%s{datacentercountry}","datacenter":"%s{datacenter}","day":"%s{day}","day_of_month":"%02d{dd}","dept":"%s{dept}","dstip_country":"%s{dstip_country}","deviceappversion":"%s{deviceappversion}","deviceowner":"%s{deviceowner}","df_hosthead":"%s{df_hosthead}","df_hostname":"%s{df_hostname}","dlpdicthitcount":"%s{dlpdicthitcount}","dlpdict":"%s{dlpdict}","dlpeng":"%s{dlpeng}","dlpidentifier":"%d{dlpidentifier}","eedone":"%s{eedone}","epochtime":"%d{epochtime}","fileclass":"%s{fileclass}","flow_type":"%s{flow_type}","forward_gateway_ip":"%s{fwd_gw_ip}","forward_gateway_name":"%s{fwd_gw_name}","forward_type":"%s{fwd_type}","ft_rulename":"%s{ft_rulename}","hour":"%02d{hh}","is_sslexpiredca":"%s{is_sslexpiredca}","is_sslselfsigned":"%s{is_sslselfsigned}","is_ssluntrustedca":"%s{is_ssluntrustedca}","is_src_cntry_risky":"%s{is_src_cntry_risky}","is_dst_cntry_risky":"%s{is_dst_cntry_risky}","keyprotectiontype":"%s{keyprotectiontype}","location":"%s{elocation}","malwarecategory":"%s{malwarecat}","malwareclass":"%s{malwareclass}","minute":"%02d{mm}","mobappcategory":"%s{mobappcat}","mobappname":"%s{emobappname}","mobdevtype":"%s{mobdevtype}","module":"%s{module}","month":"%s{mon}","month_of_year":"%02d{mth}","nssserviceip":"%s{nsssvcip}","oapprulelabel":"%s{oapprulelabel}","obwclassname":"%s{obwclassname}","ocip":"%d{ocip}","ocpubip":"%d{ocpubip}","odevicehostname":"%s{odevicehostname}","odevicename":"%s{odevicename}","odeviceowner":"%s{odeviceowner}","odlpdict":"%s{odlpdict}","odlpeng":"%s{odlpeng}","odlprulename":"%s{odlprulename}","ofwd_gw_name":"%s{ofwd_gw_name}","ologin":"%s{ologin}","ordr_rulename":"%s{ordr_rulename}","ourlcat":"%s{ourlcat}","ourlfilterrulelabel":"%s{ourlfilterrulelabel}","ozpa_app_seg_name":"%s{ozpa_app_seg_name}","externalsslpolicyreason":"%s{externalspr}","productversion":"%s{productversion}","prompt_req":"%s{prompt_req}","rdr_rulename":"%s{rdr_rulename}","refererhost":"%s{erefererhost}","reqheadersize":"%d{reqhdrsize}","reqdatasize":"%d{reqdatasize}","respheadersize":"%d{resphdrsize}","respdatasize":"%d{respdatasize}","riskscore":"%d{riskscore}","ruletype":"%s{ruletype}","second":"%02d{ss}","srcip_country":"%s{srcip_country}","srvcertchainvalpass":"%s{srvcertchainvalpass}","srvcertvalidationtype":"%s{srvcertvalidationtype}","srvcertvalidityperiod":"%s{srvcertvalidityperiod}","srvsslcipher":"%s{srvsslcipher}","serversslsessreuse":"%s{serversslsessreuse}","server_tls_keyex_alg":"%s{server_tls_keyex_alg}","server_tls_sig_alg":"%s{server_tls_sig_alg}","srvocspresult":"%s{srvocspresult}","srvtlsversion":"%s{srvtlsversion}","srvwildcardcert":"%s{srvwildcardcert}","ssldecrypted":"%s{ssldecrypted}","ssl_rulename":"%s{ssl_rulename}","throttlereqsize":"%d{throttlereqsize}","throttlerespsize":"%d{throttlerespsize}","totalsize":"%d{totalsize}","trafficredirectmethod":"%s{trafficredirectmethod}","unscannabletype":"%s{unscannabletype}","upload_doctypename":"%s{upload_doctypename}","upload_fileclass":"%s{upload_fileclass}","upload_filetype":"%s{upload_filetype}","urlcatmethod":"%s{urlcatmethod}","urlsubcat":"%s{urlcat}","urlsupercat":"%s{urlsupercat}","urlclass":"%s{urlclass}","useragentclass":"%s{uaclass}","useragenttoken":"%s{ua_token}","userlocationname":"%s{euserlocationname}","year":"%04d{yyyy}","ztunnelversion":"%s{ztunnelversion}","zpa_app_seg_name":"%s{zpa_app_seg_name}"\}\}

Sample Response:

{"version":"v11","sourcetype":"zscalernss-web","event":{"time":"Mon Oct 16 22:55:48 2023","cloudname":"zscaler.net","host":"mail.google.com","serverip":"81.2.69.142","external_devid":"1234","devicemodel":"20L8S7WC08","action":"Allowed","recordid":"123456789","reason":"File Attachment Cautioned","threatseverity":"Critical (90\u2013100)","tz":"GMT","filesubtype":"rar","upload_filesubtype":"rar","sha256":"81ec78bc8298568bb5ea66d3c2972b670d0f7459b6cdbbcaacce90ab417ab15c","bamd5":"196a3d797bfee07fe4596b69f4ce1141","filename":"nssfeed.txt","upload_filename":"nssfeed.exe","filetype":"RAR Files","devicename":"PC11NLPA:5F08D97BBF43257A8FB4BBF4061A38AE324EF734","devicehostname":"THINKPADSMITH","deviceostype":"iOS","deviceosversion":"Version 10.14.2 (Build 18C54)","devicetype":"Zscaler Client Connector","reqsize":"1300","reqmethod":"invalid","b64referer":"d3d3LmV4YW1wbGUuY29t","respsize":"10500","respcode":"100","reqversion":"1.1","respversion":"1","proto":"HTTP","company":"Zscaler","dlpmd5":"154f149b1443fbfa8c121d13e5c019a1","apprulelabel":"File_Sharing_1","dlprulename":"DLP_Rule_1","rulelabel":"URL_Filtering_1","urlfilterrulelabel":"URL_Filtering_1","cltip":"81.2.69.142","cltintip":"81.2.69.142","cltsourceport":"1235","threatname":"EICAR Test File","cltsslcipher":"SSL3_CK_RSA_NULL_MD5","clttlsversion":"SSL2","b64url":"d3d3LnRyeXRoaXNlbmNvZGV1cmwuY29tL2luZGV4","useragent":"Mozilla\/5.0","login":"jdoe@safemarch.com","applayerprotocol":"FTP","appclass":"Administration","appname":"Adobe Connect","appriskscore":"None","bandwidthclassname":"Entertainment","bandwidthrulename":"Office 365","bwthrottle":"Yes","bypassedtime":"Mon Oct 16 22:55:48 2023","bypassedtraffic":"0","cltsslsessreuse":"Unknown","cltpubip":"81.2.69.142","cltsslfailcount":"100","cltsslfailreason":"Bad Record Mac","client_tls_keyex_pqc_offers":0,"client_tls_keyex_non_pqc_offers":0,"client_tls_keyex_hybrid_offers":1,"client_tls_keyex_unknown_offers":1,"client_tls_sig_pqc_offers":1,"client_tls_sig_non_pqc_offers":0,"client_tls_sig_hybrid_offers":1,"client_tls_sig_unknown_offers":0,"client_tls_keyex_alg":"X23319LMKEM788","client_tls_sig_alg":"rsa_pss_rsae_sha256","contenttype":"application\/vnd_apple_keynote","datacentercity":"Sa","datacentercountry":"US","datacenter":"CA Client Node DC","day":"Mon","day_of_month":"16","dept":"Sales","dstip_country":"India","deviceappversion":"81.2.69.142","deviceowner":"jsmith","df_hosthead":"df_hosthead","df_hostname":"df_hostname","dlpdicthitcount":"4","dlpdict":"Credit Cards","dlpeng":"HIPAA","dlpidentifier":"6646484838839026000","eedone":"Yes","epochtime":"1578128400","fileclass":"Active Web Contents","flow_type":"Direct","forward_gateway_ip":"10.1.1.1","forward_gateway_name":"FWD_1","forward_type":"Direct","ft_rulename":"FT Name","hour":"22","is_sslexpiredca":"Yes","is_sslselfsigned":"Yes","is_ssluntrustedca":"Pass","is_src_cntry_risky":"Yes","is_dst_cntry_risky":"No","keyprotectiontype":"HSM Protection","location":"Headquarters","malwarecategory":"Adware","malwareclass":"Sandbox","minute":"55","mobappcategory":"Communication","mobappname":"Amazon","mobdevtype":"Google Android","module":"Administration","month":"Oct","month_of_year":"10","nssserviceip":"192.168.2.200","oapprulelabel":"5300295980","obwclassname":"10831489","ocip":"6200694987","ocpubip":"624054738","odevicehostname":"2168890624","odevicename":"2175092224","odeviceowner":"10831489","odlpdict":"10831489","odlpeng":"4094304256","odlprulename":"6857275752","ofwd_gw_name":"8794487099","ologin":"4094304256","ordr_rulename":"3399565100","ourlcat":"7956407282","ourlfilterrulelabel":"4951704103","ozpa_app_seg_name":"7648246731","externalsslpolicyreason":"Blocked","productversion":"5.0.902.95524_04","prompt_req":"Prompt","rdr_rulename":"FWD_Rule_1","refererhost":"www.example.com for http:\/\/www.example.com\/index.html","reqheadersize":"300","reqdatasize":"1000","respheadersize":"500","respdatasize":"10000","riskscore":"10","ruletype":"File Type Control","second":"48","srcip_country":"India","srvcertchainvalpass":"Unknown","srvcertvalidationtype":"EV (Extended Validation)","srvcertvalidityperiod":"Short","srvsslcipher":"SSL3_CK_RSA_NULL_MD5","serversslsessreuse":"Unknown","server_tls_keyex_alg":"X23319LMKEM788","server_tls_sig_alg":"rsa_pss_rsae_sha256","srvocspresult":"Good","srvtlsversion":"SSL2","srvwildcardcert":"Unknown","ssldecrypted":"Yes","ssl_rulename":"SSL Policy","throttlereqsize":"5","throttlerespsize":"7","totalsize":"11800","trafficredirectmethod":"DNAT (Destination Translation)","unscannabletype":"Encrypted File","upload_doctypename":"Corporate Finance","upload_fileclass":"upload_fileclass","upload_filetype":"RAR Files","urlcatmethod":"Database A","urlsubcat":"Entertainment","urlsupercat":"Travel","urlclass":"Bandwidth Loss","useragentclass":"Firefox","useragenttoken":"Google Chrome (0.x)","userlocationname":"userlocationname","year":"2023","ztunnelversion":"ZTUNNEL_1_0","zpa_app_seg_name":"ZPA_test_app_segment"}}
  1. In Kibana go to Management > Integrations.
  2. In "Search for integrations" search bar, type Zscaler ZIA.
  3. Click on the "Zscaler ZIA" integration from the search results.
  4. Click on the "Add Zscaler ZIA" button to add the integration.
  5. Configure all required integration parameters, including URL, Client ID, Client Secret, Scope, Token URL, Details and MD5, to enable data collection for Zscaler ZIA API. For TCP and HTTP Endpoint data collection, provide parameters such as listen address and listen port.
  6. Save the integration.

Caveats:

  • To ensure that URLs are processed correctly, logs which have a network.protocol value that is not http or https will be implicitly converted to https for the purposes of URL parsing. The original value of network.protocol will be preserved.

This is the alerts dataset.

Example
{
    "@timestamp": "2024-12-10T13:40:32.000Z",
    "agent": {
        "ephemeral_id": "9c123331-181f-42a0-af82-70e49ce7aaa1",
        "id": "7a8d18bc-b73c-424e-a30b-120ddeb66eeb",
        "name": "docker-fleet-agent",
        "type": "filebeat",
        "version": "8.13.0"
    },
    "data_stream": {
        "dataset": "zscaler_zia.alerts",
        "namespace": "ep",
        "type": "logs"
    },
    "destination": {
        "address": "81.2.69.193",
        "ip": "81.2.69.193",
        "port": 9012
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "7a8d18bc-b73c-424e-a30b-120ddeb66eeb",
        "snapshot": false,
        "version": "8.13.0"
    },
    "event": {
        "agent_id_status": "verified",
        "dataset": "zscaler_zia.alerts",
        "ingested": "2024-07-04T11:58:59Z"
    },
    "input": {
        "type": "tcp"
    },
    "log": {
        "source": {
            "address": "192.168.243.6:40328"
        },
        "syslog": {
            "priority": 114
        }
    },
    "message": "ZscalerNSS: SIEM Feed connection \"DNS Logs Feed\" to 81.2.69.193:9012 lost and unavailable for the past 2440.00 minutes",
    "related": {
        "ip": [
            "81.2.69.193"
        ]
    },
    "tags": [
        "forwarded",
        "zscaler_zia-alerts"
    ],
    "zscaler_zia": {
        "alerts": {
            "connection_lost_minutes": 2440,
            "log_feed_name": "DNS Logs Feed"
        }
    }
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
event.dataset Event dataset. constant_keyword
event.module Event module. constant_keyword
input.type Type of Filebeat input. keyword
log.offset Log offset. long
log.source.address Source address from which the log event was read / sent from. keyword
zscaler_zia.alerts.connection_lost_minutes Amount of time after loosing connection to a server in Minutes. double
zscaler_zia.alerts.destination.address keyword
zscaler_zia.alerts.destination.ip ip
zscaler_zia.alerts.destination.port long
zscaler_zia.alerts.log_feed_name Name of the NSS log feed. keyword
zscaler_zia.alerts.log_syslog_priority long
zscaler_zia.alerts.message keyword
zscaler_zia.alerts.timestamp date

This is the audit dataset.

Example
{
    "@timestamp": "2023-10-16T22:55:48.000Z",
    "agent": {
        "ephemeral_id": "8fbed883-d7e9-41ab-99d8-6fef7131d443",
        "id": "7a8d18bc-b73c-424e-a30b-120ddeb66eeb",
        "name": "docker-fleet-agent",
        "type": "filebeat",
        "version": "8.13.0"
    },
    "data_stream": {
        "dataset": "zscaler_zia.audit",
        "namespace": "ep",
        "type": "logs"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "7a8d18bc-b73c-424e-a30b-120ddeb66eeb",
        "snapshot": false,
        "version": "8.13.0"
    },
    "error": {
        "code": "AUTHENTICATION_FAILED"
    },
    "event": {
        "action": "activate",
        "agent_id_status": "verified",
        "category": [
            "configuration"
        ],
        "dataset": "zscaler_zia.audit",
        "id": "1234",
        "ingested": "2024-07-04T12:01:12Z",
        "kind": "event",
        "outcome": "success",
        "timezone": "UTC",
        "type": [
            "change"
        ]
    },
    "input": {
        "type": "http_endpoint"
    },
    "related": {
        "ip": [
            "89.160.20.112"
        ],
        "user": [
            "example",
            "example@zscaler.com"
        ]
    },
    "rule": {
        "category": "DLP_DICTIONARY",
        "name": "SSL Rule Name",
        "ruleset": "DATA_LOSS_PREVENTION_RESOURCE"
    },
    "source": {
        "geo": {
            "city_name": "Linköping",
            "continent_name": "Europe",
            "country_iso_code": "SE",
            "country_name": "Sweden",
            "location": {
                "lat": 58.4167,
                "lon": 15.6167
            },
            "region_iso_code": "SE-E",
            "region_name": "Östergötland County"
        },
        "ip": "89.160.20.112"
    },
    "tags": [
        "forwarded",
        "zscaler_zia-audit"
    ],
    "user": {
        "domain": "zscaler.com",
        "email": "example@zscaler.com",
        "name": "example"
    },
    "zscaler_zia": {
        "audit": {
            "audit_log_type": "ZIA Portal Audit Log",
            "interface": "API",
            "result": "SUCCESS"
        }
    }
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
event.dataset Event dataset. constant_keyword
event.module Event module. constant_keyword
input.type Type of Filebeat input. keyword
log.offset Log offset. long
log.source.address Source address from which the log event was read / sent from. keyword
zscaler_zia.audit.action The action performed by the admin in the ZIA Admin Portal. keyword
zscaler_zia.audit.admin_id The admin's login ID. keyword
zscaler_zia.audit.audit_log_type The Admin Audit log type. keyword
zscaler_zia.audit.category The location in the ZIA Admin Portal where the action was performed. keyword
zscaler_zia.audit.client_ip The source IP address for the admin. ip
zscaler_zia.audit.error_code An optional field that exists only if the result is a failure. keyword
zscaler_zia.audit.interface The means by which the user performs their actions. keyword
zscaler_zia.audit.post_action Data after any policy or configuration changes. flattened
zscaler_zia.audit.pre_action Data before any policy or configuration changes. flattened
zscaler_zia.audit.record.id The unique record identifier for each log. keyword
zscaler_zia.audit.resource The specific location within a sub-category. keyword
zscaler_zia.audit.result The outcome of an action. keyword
zscaler_zia.audit.sub_category The sub-location in the ZIA Admin Portal where the action was performed. keyword
zscaler_zia.audit.time The time and date of the transaction. date
zscaler_zia.audit.timezone The time zone. keyword

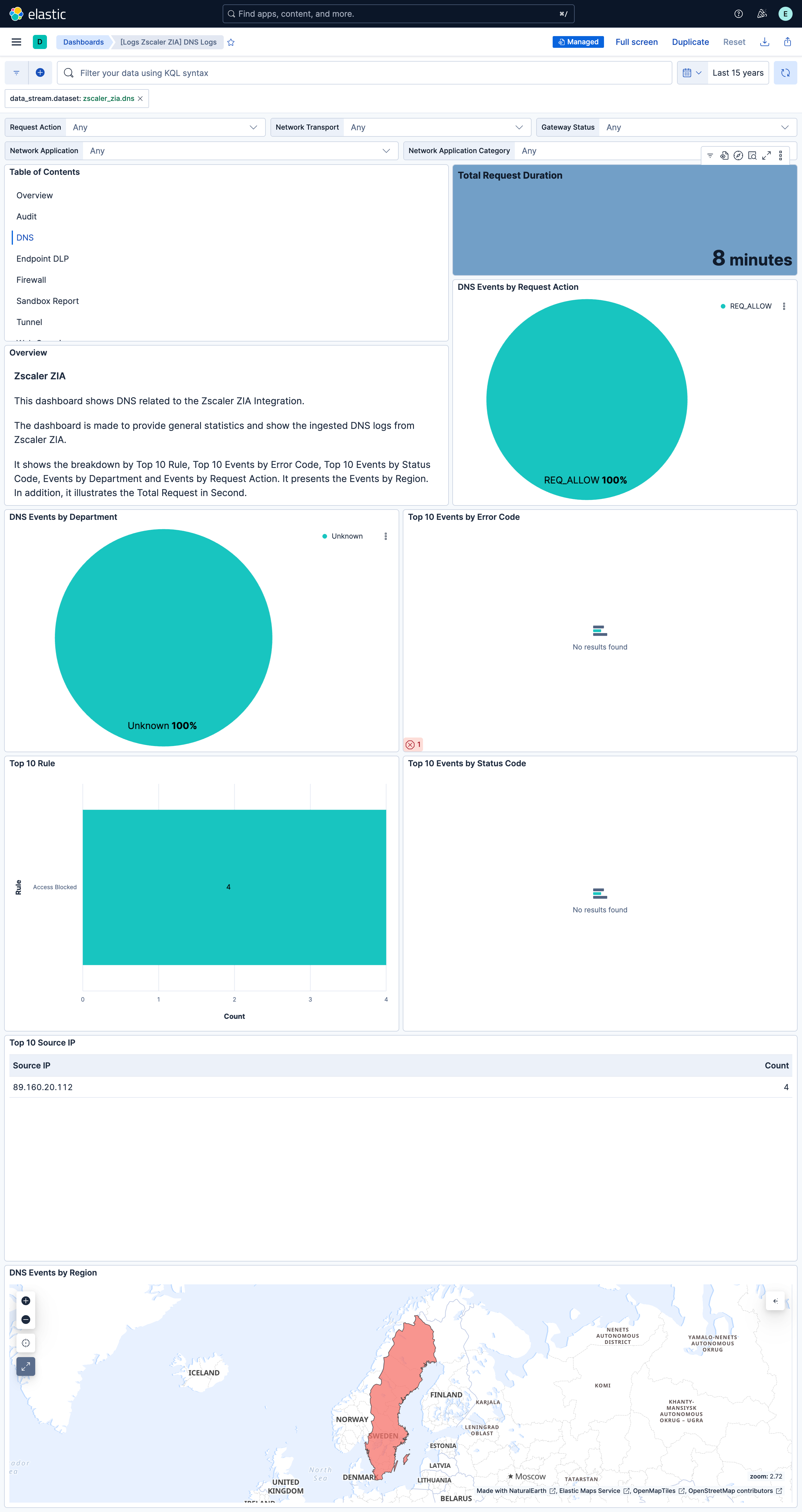

This is the dns dataset.

Example
{
    "@timestamp": "2023-10-16T22:55:48.000Z",
    "agent": {
        "ephemeral_id": "189ba002-e0c4-4952-80d4-a8b37461decf",
        "id": "b7b8276c-fd97-4c9b-97b8-a4ab6497e132",
        "name": "elastic-agent-39582",
        "type": "filebeat",
        "version": "8.18.0"
    },
    "cloud": {
        "provider": "zscaler.net"
    },
    "data_stream": {
        "dataset": "zscaler_zia.dns",
        "namespace": "50410",
        "type": "logs"
    },
    "destination": {
        "geo": {
            "city_name": "Changchun",
            "continent_name": "Asia",
            "country_iso_code": "CN",
            "country_name": "China",
            "location": {
                "lat": 43.88,
                "lon": 125.3228
            },
            "region_iso_code": "CN-22",
            "region_name": "Jilin Sheng"
        },
        "ip": "175.16.199.0"
    },
    "device": {
        "model": {
            "name": "VMware7,1"
        }
    },
    "dns": {
        "answers": [
            {
                "data": "www.example.com",
                "type": "IPv4"
            }
        ],
        "question": {
            "name": "mail.safemarch.com",
            "type": "A record"
        },
        "response_code": "EMPTY_RESP"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "b7b8276c-fd97-4c9b-97b8-a4ab6497e132",
        "snapshot": false,
        "version": "8.18.0"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "zscaler_zia.dns",
        "duration": 1000000000,
        "id": "45648954",
        "ingested": "2025-12-09T09:11:42Z",
        "kind": "event",
        "timezone": "GMT",
        "type": [
            "info"
        ]
    },
    "host": {
        "hostname": "admin",
        "name": "thinkpadsmith",
        "os": {
            "version": "Microsoft Windows 10 Enterprise;64 bit"
        },
        "type": "Zscaler Client Connector"
    },
    "input": {
        "type": "tcp"
    },
    "log": {
        "source": {
            "address": "192.168.246.3:40862"
        }
    },
    "network": {
        "application": "google dns",
        "protocol": "dns",
        "transport": [
            "tcp"
        ]
    },
    "organization": {
        "name": "Zscaler"
    },
    "related": {
        "hosts": [
            "thinkpadsmith",
            "admin"
        ],
        "ip": [
            "81.2.69.192",
            "175.16.199.0"
        ],
        "user": [
            "jsmith",
            "jdoe1",
            "jdoe1@safemarch.com"
        ]
    },
    "rule": {
        "name": [
            "RULE_1",
            "RULE_RES"
        ]
    },
    "source": {
        "geo": {
            "city_name": "London",
            "continent_name": "Europe",
            "country_iso_code": "GB",
            "country_name": "United Kingdom",
            "location": {
                "lat": 51.5142,
                "lon": -0.0931
            },
            "region_iso_code": "GB-ENG",
            "region_name": "England"
        },
        "ip": "81.2.69.192",
        "port": 1025
    },
    "tags": [
        "forwarded",
        "zscaler_zia-dns"
    ],
    "user": {
        "domain": "safemarch.com",
        "email": "jdoe1@safemarch.com",
        "name": "jdoe1"
    },
    "zscaler_zia": {
        "dns": {
            "datacenter": {
                "city": "Sa",
                "country": "US",
                "name": "CA Client Node DC"
            },
            "day": "Mon",
            "day_of_month": 16,
            "department": "EDept",
            "dept": "Sales",
            "device": {
                "appversion": "4.3.0.18",
                "os": {
                    "type": "Windows OS"
                },
                "owner": "jsmith"
            },
            "dns": {
                "category": "Network Service",
                "gateway": {
                    "rule": "DNS GATEWAY Rule 1",
                    "status": "PRIMARY_SERVER_RESPONSE_PASS"
                }
            },
            "dom": {
                "category": "Professional Services"
            },
            "ecs": {
                "prefix": "192.168.0.0",
                "slot": "ECS Slot #17"
            },
            "ednsreq": "XP44535PP",
            "eedone": "Yes",
            "epochtime": "2020-01-04T09:00:00.000Z",
            "hour": 22,
            "http_code": "100",
            "istcp": "1",
            "loc": "Headquarters",
            "location": "ELocation",
            "login": "jdoe@safemarch.com",
            "minutes": 55,
            "month": "Oct",
            "month_of_year": 10,
            "obfuscated": {
                "client_source_ip": "9960223283",
                "device": {
                    "name": "2175092224",
                    "owner": "10831489"
                },
                "dom": {
                    "category": "4951704103"
                },
                "host_name": "2168890624"
            },
            "request": {
                "action": "REQ_ALLOW"
            },
            "response": {
                "action": "RES_Action",
                "category": "Adult Themes"
            },
            "second": 48,
            "timezone": "GMT",
            "year": 2023
        }
    }
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
event.dataset Event dataset. constant_keyword
event.module Event module. constant_keyword
input.type Type of Filebeat input. keyword
log.offset Log offset. long
log.source.address Source address from which the log event was read / sent from. keyword
zscaler_zia.dns.client.ip The IP address of the user. ip
zscaler_zia.dns.cloud.name The Zscaler cloud name. keyword
zscaler_zia.dns.company The company name. keyword
zscaler_zia.dns.datacenter.city The city where the data center is located. keyword
zscaler_zia.dns.datacenter.country The country where the data center is located. keyword
zscaler_zia.dns.datacenter.name The name of the data center. keyword
zscaler_zia.dns.day The day of the week. keyword
zscaler_zia.dns.day_of_month The day of the month. long
zscaler_zia.dns.department keyword
zscaler_zia.dns.dept The department. keyword
zscaler_zia.dns.device.appversion The app version that the device uses. keyword
zscaler_zia.dns.device.hostname The host name of the device. keyword
zscaler_zia.dns.device.model The model of the device. keyword
zscaler_zia.dns.device.name The name of the device. keyword
zscaler_zia.dns.device.os.type The OS type of the device. keyword
zscaler_zia.dns.device.os.version The OS version that the device uses. keyword
zscaler_zia.dns.device.owner The owner of the device. keyword
zscaler_zia.dns.device.type The type of device. keyword
zscaler_zia.dns.dns.category The DNS tunnel or network application category. keyword
zscaler_zia.dns.dns.gateway.rule The name of the DNS Gateway rule. keyword
zscaler_zia.dns.dns.gateway.server_protocol The DNS Gateway server protocol. keyword
zscaler_zia.dns.dns.gateway.status Flags indicating the DNS Gateway status for the transaction. keyword
zscaler_zia.dns.dns.type The type of DNS tunnel or network application. keyword
zscaler_zia.dns.dom.category The URL Category of the FQDN in the DNS request. keyword
zscaler_zia.dns.duration.milliseconds The duration of the DNS request in milliseconds. long
zscaler_zia.dns.ecs.prefix The EDNS Client Subnet (ECS) prefix used in the DNS request. keyword
zscaler_zia.dns.ecs.slot The name of the EDNS Client Subnet (ECS) rule that was applied to the DNS transaction. keyword
zscaler_zia.dns.ednsreq This field is the hex-encoded version of DNS request. keyword
zscaler_zia.dns.eedone Indicates if the characters specified in the Feed Escape Character field of the NSS configuration page were hex encoded. keyword
zscaler_zia.dns.epochtime The epoch time of the transaction. date
zscaler_zia.dns.error The DNS error code. keyword
zscaler_zia.dns.hour Hours. long
zscaler_zia.dns.http_code The HTTP return code. keyword
zscaler_zia.dns.istcp Indicates if the DNS transaction uses TCP. keyword
zscaler_zia.dns.loc The gateway location or sub-location of the source. keyword
zscaler_zia.dns.location keyword
zscaler_zia.dns.login The login name in email address format. keyword
zscaler_zia.dns.minutes Minutes. long
zscaler_zia.dns.month The name of the month. keyword
zscaler_zia.dns.month_of_year The month of the year. long
zscaler_zia.dns.obfuscated.client_source_ip The obfuscated version of the client source IP address. keyword
zscaler_zia.dns.obfuscated.device.name The obfuscated version of the name of the device. keyword
zscaler_zia.dns.obfuscated.device.owner The obfuscated version of the owner of the device. keyword
zscaler_zia.dns.obfuscated.dom.category The obfuscated version of the FQDN in the DNS request. keyword
zscaler_zia.dns.obfuscated.host_name The obfuscated version of the host name of the device. keyword
zscaler_zia.dns.protocol The protocol type. keyword
zscaler_zia.dns.record.id The unique record identifier for each log. keyword
zscaler_zia.dns.request.action The name of the action that was applied to the DNS request. keyword
zscaler_zia.dns.request.name The Fully Qualified Domain Name (FQDN) in the DNS request. keyword
zscaler_zia.dns.request.rule.label The name of the rule that was applied to the DNS request. keyword
zscaler_zia.dns.request.type The DNS request type. keyword
zscaler_zia.dns.response.action The name of the action that was applied to the DNS response. keyword
zscaler_zia.dns.response.category The URL Category of the FQDN in the DNS response. keyword
zscaler_zia.dns.response.ip The resolved IP in the DNS response. ip
zscaler_zia.dns.response.name The NAME in the DNS response. keyword
zscaler_zia.dns.response.rule.label The name of the rule that was applied to the DNS response. keyword
zscaler_zia.dns.response.type The DNS response type. keyword
zscaler_zia.dns.second Seconds. long
zscaler_zia.dns.server.ip The server IP address of the request. ip
zscaler_zia.dns.server.port The server port of the request. long
zscaler_zia.dns.time The time and date of the transaction. date
zscaler_zia.dns.timezone The time zone. This is the same as the time zone you specified when you configured the NSS feed. keyword
zscaler_zia.dns.user keyword
zscaler_zia.dns.year Year. long

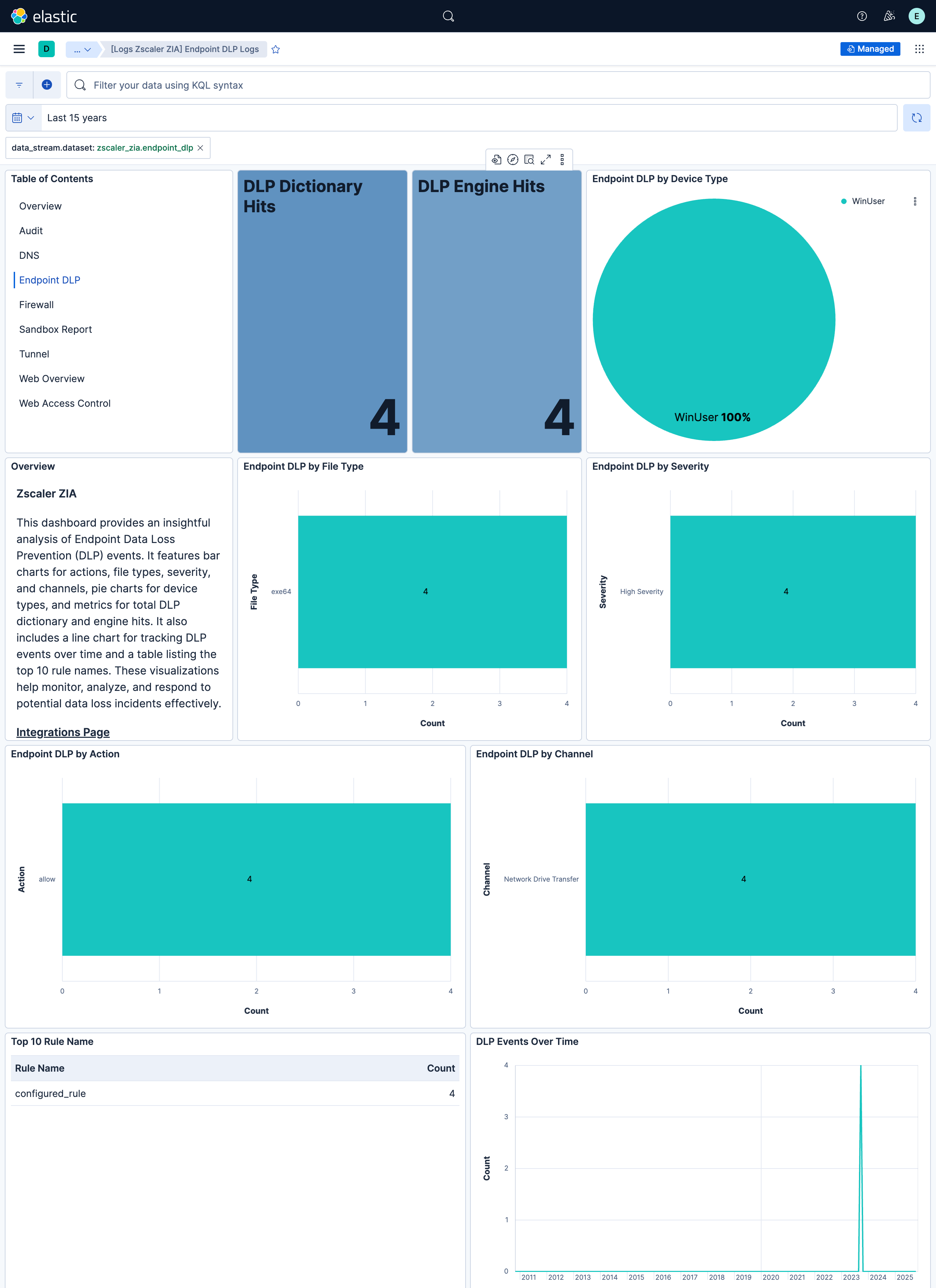

This is the endpoint_dlp dataset.

Example
{
    "@timestamp": "2023-10-16T22:55:48.000Z",
    "agent": {
        "ephemeral_id": "8455a4fe-aa90-48fd-9136-5bbf8e89473d",
        "id": "7a8d18bc-b73c-424e-a30b-120ddeb66eeb",
        "name": "docker-fleet-agent",
        "type": "filebeat",
        "version": "8.13.0"
    },
    "data_stream": {
        "dataset": "zscaler_zia.endpoint_dlp",
        "namespace": "ep",
        "type": "logs"
    },
    "device": {
        "model": {
            "identifier": "Model-2022"
        }
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "7a8d18bc-b73c-424e-a30b-120ddeb66eeb",
        "snapshot": false,
        "version": "8.13.0"
    },
    "event": {
        "action": "allow",
        "agent_id_status": "verified",
        "category": [
            "intrusion_detection"
        ],
        "dataset": "zscaler_zia.endpoint_dlp",
        "id": "2",
        "ingested": "2024-07-04T12:05:26Z",
        "kind": "alert",
        "timezone": "GMT",
        "type": [
            "allowed"
        ]
    },
    "file": {
        "hash": {
            "md5": "938c2cc0dcc05f2b68c4287040cfcf71",
            "sha256": "076085239f3a10b8f387c4e5d4261abf8d109aa641be35a8d4ed2d775eb09612"
        },
        "path": "dest_path",
        "type": "file"
    },
    "host": {
        "hostname": "Dev 1",
        "name": "host",
        "os": {
            "platform": "Windows",
            "version": "Win-11"
        },
        "type": "WinUser"
    },
    "input": {
        "type": "http_endpoint"
    },
    "related": {
        "hash": [
            "938c2cc0dcc05f2b68c4287040cfcf71",
            "076085239f3a10b8f387c4e5d4261abf8d109aa641be35a8d4ed2d775eb09612"
        ],
        "hosts": [
            "host",
            "Dev 1"
        ],
        "user": [
            "Administrator",
            "TempUser"
        ]
    },
    "rule": {
        "name": [
            "configured_rule"
        ]
    },
    "tags": [
        "forwarded",
        "zscaler_zia-endpoint_dlp"
    ],
    "user": {
        "name": "TempUser"
    },
    "zscaler_zia": {
        "endpoint_dlp": {
            "activity_type": "email_sent",
            "additional_info": "File already open by another application",
            "channel": "Network Drive Transfer",
            "confirm_action": "confirm",
            "confirm_just": "My manager approved it",
            "datacenter": {
                "city": "Atlanta",
                "country": "US",
                "name": "Georgia"
            },
            "day": "Mon",
            "day_of_month": 16,
            "department": "TempDept",
            "destination_type": "personal_cloud_storage",
            "device": {
                "appversion": "Ver-2199",
                "os": {
                    "type": "Windows"
                },
                "owner": "Administrator"
            },
            "dictionary": {
                "id": 8
            },
            "dictionary_names": [
                "[dlp]"
            ],
            "engine": {
                "id": 12
            },
            "engine_names": [
                "dlpengine"
            ],
            "event_time": "2023-10-16T22:55:48.000Z",
            "expected_action": "block",
            "feed_time": "2023-10-16T22:55:48.000Z",
            "file": {
                "doc_type": "Medical",
                "source_path": "source_path",
                "type": {
                    "name": "exe64"
                },
                "type_category": "PLS File (pls)"
            },
            "hour": 22,
            "identifier": "12",
            "item": {
                "destination_name": "nanolog",
                "name": "endpoint_dlp",
                "source_name": "endpoint",
                "type": "email_attachment"
            },
            "log_type": "dlp_incident",
            "minute": 55,
            "month": "Oct",
            "month_of_year": 10,
            "scan_time": 1210,
            "scanned_bytes": 290812,
            "second": 48,
            "severity": "High Severity",
            "source_type": "network_share",
            "timezone": "GMT",
            "year": 2023,
            "zdp_mode": "block mode"
        }
    }
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
event.dataset Event dataset. constant_keyword
event.module Event module. constant_keyword
input.type Type of Filebeat input. keyword
log.offset Log offset. long
log.source.address Source address from which the log event was read / sent from. keyword
zscaler_zia.endpoint_dlp.action_taken The action taken by Zscaler Data Protection. keyword
zscaler_zia.endpoint_dlp.activity_type The activity type. keyword
zscaler_zia.endpoint_dlp.additional_info Additional information. keyword
zscaler_zia.endpoint_dlp.channel The channel. keyword
zscaler_zia.endpoint_dlp.confirm_action The confirmation action by the user. keyword
zscaler_zia.endpoint_dlp.confirm_just The confirmation action justification by the user. keyword
zscaler_zia.endpoint_dlp.counts The number of hits for each of the DLP dictionaries. long
zscaler_zia.endpoint_dlp.datacenter.city The city where the data center is located. keyword
zscaler_zia.endpoint_dlp.datacenter.country The country where the data center is located. keyword
zscaler_zia.endpoint_dlp.datacenter.name The name of the data center. keyword
zscaler_zia.endpoint_dlp.day The day of the week. keyword
zscaler_zia.endpoint_dlp.day_of_month The day of the month. long
zscaler_zia.endpoint_dlp.department The name of the department. keyword
zscaler_zia.endpoint_dlp.destination_type The destination type. keyword
zscaler_zia.endpoint_dlp.device.appversion The device application version. keyword
zscaler_zia.endpoint_dlp.device.hostname The device host name. keyword
zscaler_zia.endpoint_dlp.device.model The device model. keyword
zscaler_zia.endpoint_dlp.device.name The device name. keyword
zscaler_zia.endpoint_dlp.device.os.type The device OS type. keyword
zscaler_zia.endpoint_dlp.device.os.version The device OS version. keyword
zscaler_zia.endpoint_dlp.device.owner The device owner. keyword
zscaler_zia.endpoint_dlp.device.platform The device platform. keyword
zscaler_zia.endpoint_dlp.device.type The device type. keyword
zscaler_zia.endpoint_dlp.dictionary.id The number of DLP dictionaries hit. long
zscaler_zia.endpoint_dlp.dictionary_names The DLP dictionary names. keyword
zscaler_zia.endpoint_dlp.engine.id The number of DLP engines hit. long
zscaler_zia.endpoint_dlp.engine_names The DLP engine names. keyword
zscaler_zia.endpoint_dlp.event_time The event time. date
zscaler_zia.endpoint_dlp.expected_action The expected action by ZDP. keyword
zscaler_zia.endpoint_dlp.feed_time The feed time. date
zscaler_zia.endpoint_dlp.file.destination_path The file destination path. keyword
zscaler_zia.endpoint_dlp.file.doc_type The file document type. keyword
zscaler_zia.endpoint_dlp.file.md5 The file MD5 hash. keyword
zscaler_zia.endpoint_dlp.file.sha256 The file SHA256 hash. keyword
zscaler_zia.endpoint_dlp.file.source_path The file source path. keyword
zscaler_zia.endpoint_dlp.file.type.name The file type. keyword
zscaler_zia.endpoint_dlp.file.type_category The file type category. keyword
zscaler_zia.endpoint_dlp.hour Hours. long
zscaler_zia.endpoint_dlp.identifier The unique DLP identifier. keyword
zscaler_zia.endpoint_dlp.item.destination_name The item destination name. keyword
zscaler_zia.endpoint_dlp.item.name The item name. keyword
zscaler_zia.endpoint_dlp.item.source_name The item source name. keyword
zscaler_zia.endpoint_dlp.item.type The item type. keyword
zscaler_zia.endpoint_dlp.log_type The type of record. keyword
zscaler_zia.endpoint_dlp.minute Minutes. long
zscaler_zia.endpoint_dlp.month The name of the month. keyword
zscaler_zia.endpoint_dlp.month_of_year The month of the year. long
zscaler_zia.endpoint_dlp.obfuscated.department The obfuscated version of the department name. keyword
zscaler_zia.endpoint_dlp.obfuscated.device.hostname The obfuscated version of the device host name. keyword
zscaler_zia.endpoint_dlp.obfuscated.device.name The obfuscated version of the device name. keyword
zscaler_zia.endpoint_dlp.obfuscated.device.owner The obfuscated version of the device owner. keyword
zscaler_zia.endpoint_dlp.obfuscated.dlp.dictionary_names The obfuscated version of the DLP dictionary names. keyword
zscaler_zia.endpoint_dlp.obfuscated.dlp.engine_names The obfuscated version of the DLP engine names. keyword
zscaler_zia.endpoint_dlp.obfuscated.file.destination_path The obfuscated version of the file destination path. keyword
zscaler_zia.endpoint_dlp.obfuscated.file.source_path The obfuscated version of the file source path. keyword
zscaler_zia.endpoint_dlp.obfuscated.item.destination_names The obfuscated version of the item destination name. keyword
zscaler_zia.endpoint_dlp.obfuscated.item.name The obfuscated version of the item name. keyword
zscaler_zia.endpoint_dlp.obfuscated.item.source_names The obfuscated version of the item source name. keyword
zscaler_zia.endpoint_dlp.obfuscated.other_rule_labels The obfuscated version of the other rule labels. keyword
zscaler_zia.endpoint_dlp.obfuscated.triggered_rule_label The obfuscated version of the triggered DLP rule. keyword
zscaler_zia.endpoint_dlp.obfuscated.user The obfuscated version of the username. keyword
zscaler_zia.endpoint_dlp.other_rule_labels The labels of other rules that were triggered. keyword
zscaler_zia.endpoint_dlp.record.id The unique record identifier. keyword
zscaler_zia.endpoint_dlp.scan_time The scan time in milliseconds. long
zscaler_zia.endpoint_dlp.scanned_bytes The scanned item size in bytes. long
zscaler_zia.endpoint_dlp.second Seconds. long
zscaler_zia.endpoint_dlp.severity The severity of the event. keyword
zscaler_zia.endpoint_dlp.source_type The source type. keyword
zscaler_zia.endpoint_dlp.time The log time. date
zscaler_zia.endpoint_dlp.timezone The time zone. keyword
zscaler_zia.endpoint_dlp.triggered_rule_label The DLP rule that was triggered. keyword
zscaler_zia.endpoint_dlp.user The username. keyword
zscaler_zia.endpoint_dlp.year Year. long
zscaler_zia.endpoint_dlp.zdp_mode The ZDP mode. keyword

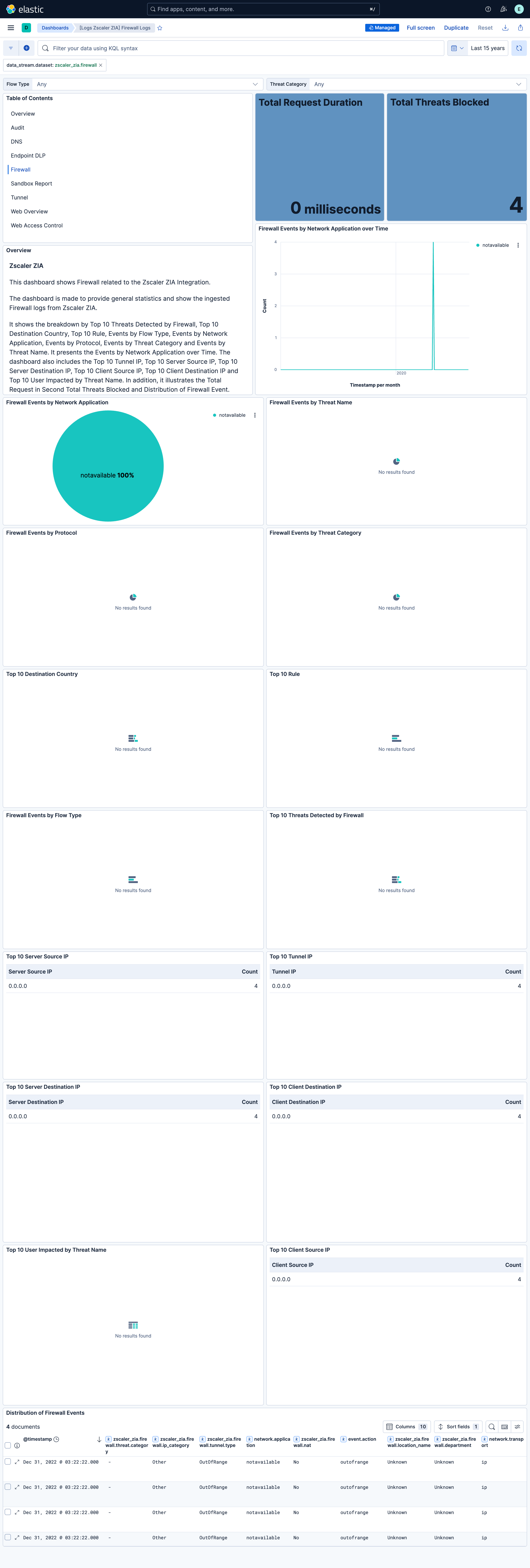

This is the firewall dataset.

Example
{
    "@timestamp": "2022-12-31T02:22:22.000Z",
    "agent": {
        "ephemeral_id": "e9bfb284-65f1-4d68-8a50-004b259d481f",
        "id": "c484a04a-ca60-4ebd-a941-425901026a2c",
        "name": "elastic-agent-76313",
        "type": "filebeat",
        "version": "8.13.0"
    },
    "data_stream": {
        "dataset": "zscaler_zia.firewall",
        "namespace": "35906",
        "type": "logs"
    },
    "destination": {
        "bytes": 0,
        "ip": "0.0.0.0",
        "port": [
            120,
            0
        ]
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "c484a04a-ca60-4ebd-a941-425901026a2c",
        "snapshot": false,
        "version": "8.13.0"
    },
    "event": {
        "action": "outofrange",
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "zscaler_zia.firewall",
        "duration": 0,
        "ingested": "2024-11-01T08:59:18Z",
        "kind": "event",
        "timezone": "UTC",
        "type": [
            "info"
        ]
    },
    "input": {
        "type": "http_endpoint"
    },
    "network": {
        "application": "notavailable",
        "bytes": 0,
        "transport": "ip"
    },
    "observer": {
        "product": "ZIA",
        "type": "firewall",
        "vendor": "Zscaler"
    },
    "related": {
        "ip": [
            "0.0.0.0"
        ]
    },
    "source": {
        "bytes": 0,
        "ip": "0.0.0.0",
        "nat": {
            "ip": "0.0.0.0"
        },
        "port": [
            0
        ]
    },
    "tags": [
        "forwarded",
        "zscaler_zia-firewall"
    ],
    "zscaler_zia": {
        "firewall": {
            "aggregate": "No",
            "client": {
                "destination": {
                    "ip": "0.0.0.0"
                },
                "source": {
                    "ip": "0.0.0.0"
                }
            },
            "department": "Unknown",
            "duration": {
                "average_duration": 0,
                "seconds": 0
            },
            "ip_category": "Other",
            "location_name": "Unknown",
            "nat": "No",
            "server": {
                "destination": {
                    "ip": "0.0.0.0"
                },
                "source": {
                    "ip": "0.0.0.0"
                }
            },
            "session": {
                "count": 1
            },
            "stateful": "Yes",
            "tunnel": {
                "ip": "0.0.0.0",
                "type": "OutOfRange"
            }
        }
    }
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
event.dataset Event dataset. constant_keyword
event.module Event module. constant_keyword
input.type Type of Filebeat input. keyword
log.offset Log offset. long
log.source.address Source address from which the log event was read / sent from. keyword
zscaler_zia.firewall.action The action that the service took on the transaction. keyword
zscaler_zia.firewall.aggregate Indicates whether the Firewall session is aggregated. keyword
zscaler_zia.firewall.bypassed.session Indicates whether the traffic bypassed the Zscaler Client Connector. keyword
zscaler_zia.firewall.bypassed.time The date and time when the traffic bypassed the Zscaler Client Connector. date
zscaler_zia.firewall.bytes_in The number of bytes sent from the server to the client. long
zscaler_zia.firewall.client.destination.ip The client destination IP address. ip
zscaler_zia.firewall.client.destination.port The client destination port. long
zscaler_zia.firewall.client.domain The client destination FDQN. keyword
zscaler_zia.firewall.client.source.ip The client source IP address. ip
zscaler_zia.firewall.client.source.port The client source port. long
zscaler_zia.firewall.datacenter.city The city where the data center is located. keyword
zscaler_zia.firewall.datacenter.country The country where the data center is located. keyword
zscaler_zia.firewall.datacenter.name The name of the data center. keyword
zscaler_zia.firewall.day The day of the week. keyword
zscaler_zia.firewall.day_of_month The day of the month. long
zscaler_zia.firewall.department keyword
zscaler_zia.firewall.dept The department of the user. keyword
zscaler_zia.firewall.destination.country The abbreviated code of the country of the destination IP address. keyword
zscaler_zia.firewall.device.appversion The app version that the device app uses. keyword
zscaler_zia.firewall.device.hostname The host name of the device. keyword
zscaler_zia.firewall.device.model The model of the device. keyword
zscaler_zia.firewall.device.name The name of the device. keyword
zscaler_zia.firewall.device.os.type The OS type of the device. keyword
zscaler_zia.firewall.device.os.version The OS version that the device uses. keyword
zscaler_zia.firewall.device.owner The owner of the device. keyword
zscaler_zia.firewall.duration.average_duration The average session duration, in milliseconds, if the sessions were aggregated. long
zscaler_zia.firewall.duration.milliseconds The session or request duration in milliseconds. long
zscaler_zia.firewall.duration.seconds The session or request duration in seconds. long
zscaler_zia.firewall.eedone Indicates if the characters specified in the Feed Escape Character field of the NSS feed configuration page were hex encoded. keyword
zscaler_zia.firewall.epochtime The epoch time of the transaction. date
zscaler_zia.firewall.external_device_id The external device ID that associates a user’s device with the mobile device management (MDM) solution. keyword
zscaler_zia.firewall.flow_type The flow type of the transaction. keyword
zscaler_zia.firewall.forward_gateway_name The name of the gateway defined in a forwarding rule. keyword
zscaler_zia.firewall.hour Hours. long
zscaler_zia.firewall.ip_category The URL category that corresponds to the server IP address. keyword
zscaler_zia.firewall.ip_protocol The type of IP protocol. keyword
zscaler_zia.firewall.ips.custom_signature Indicates if a custom IPS signature rule was applied. keyword
zscaler_zia.firewall.ips.rule_label The name of the IPS policy that was applied to the Firewall session. keyword
zscaler_zia.firewall.location The name of the location from which the session was initiated. keyword
zscaler_zia.firewall.location_name keyword
zscaler_zia.firewall.login The user's login name in email address format. keyword
zscaler_zia.firewall.minutes Minutes. long
zscaler_zia.firewall.month The name of the month. keyword
zscaler_zia.firewall.month_of_year The month of the year. long
zscaler_zia.firewall.nat Indicates if the destination NAT policy was applied. keyword
zscaler_zia.firewall.nat_rule_label The name of the destination NAT policy that was applied. keyword
zscaler_zia.firewall.network.application The network application that was accessed. keyword
zscaler_zia.firewall.network.service The network service that was used. keyword
zscaler_zia.firewall.obfuscated.client_source_ip The obfuscated version of the client source IP address. keyword
zscaler_zia.firewall.obfuscated.device.name The obfuscated version of the name of the device. keyword
zscaler_zia.firewall.obfuscated.device.owner The obfuscated version of the owner of the device. keyword
zscaler_zia.firewall.obfuscated.forward_gateway_name The obfuscated version of the gateway defined in a forwarding rule. keyword
zscaler_zia.firewall.obfuscated.host_name The obfuscated version of the host name of the device. keyword
zscaler_zia.firewall.obfuscated.ip.category The obfuscated version of the URL category that corresponds to the server IP address. keyword
zscaler_zia.firewall.obfuscated.ips_rule_label The obfuscated version of the name of the IPS policy that was applied to the Firewall session. keyword
zscaler_zia.firewall.obfuscated.nat_label The obfuscated version of the name of the destination NAT policy that was applied. keyword
zscaler_zia.firewall.obfuscated.redirect_policy_name The obfuscated version of the name of the redirect/forwarding policy. keyword
zscaler_zia.firewall.obfuscated.rule_label The obfuscated version of the name of the rule that was applied to the transaction. keyword
zscaler_zia.firewall.obfuscated.zpa_app_segment The obfuscated version of the ZPA application segment. keyword
zscaler_zia.firewall.out_bytes The number of bytes sent from the client to the server. long
zscaler_zia.firewall.record.id The record ID. keyword
zscaler_zia.firewall.redirect_policy_name The name of the redirect/forwarding policy. keyword
zscaler_zia.firewall.rule The name of the rule that was applied to the transaction. keyword
zscaler_zia.firewall.rule_label keyword
zscaler_zia.firewall.second Seconds. long
zscaler_zia.firewall.server.destination.ip The server destination IP address. ip
zscaler_zia.firewall.server.destination.port The server destination port. long
zscaler_zia.firewall.server.source.ip The server source IP address. ip
zscaler_zia.firewall.server.source.port The server source port. long
zscaler_zia.firewall.session.count The number of sessions that were aggregated. long
zscaler_zia.firewall.source_ip_country The traffic's source country, which is determined by the client IP address location. keyword
zscaler_zia.firewall.stateful Indicates if the Firewall session is stateful. keyword
zscaler_zia.firewall.threat.category The category of the threat in the Firewall session by the IPS engine. keyword
zscaler_zia.firewall.threat.name keyword
zscaler_zia.firewall.threat_name The name of the threat detected in the Firewall session by the IPS engine. keyword
zscaler_zia.firewall.time The time and date of the transaction. date
zscaler_zia.firewall.timezone The time zone. keyword
zscaler_zia.firewall.tunnel.ip The tunnel IP address of the client (source). ip
zscaler_zia.firewall.tunnel.type The traffic forwarding method used to send the traffic to the Firewall. keyword
zscaler_zia.firewall.user keyword
zscaler_zia.firewall.year Year. long
zscaler_zia.firewall.z_tunnel_version The Z-Tunnel version. keyword
zscaler_zia.firewall.zpa_app_segment The name of the Zscaler Private Access (ZPA) application segment. keyword

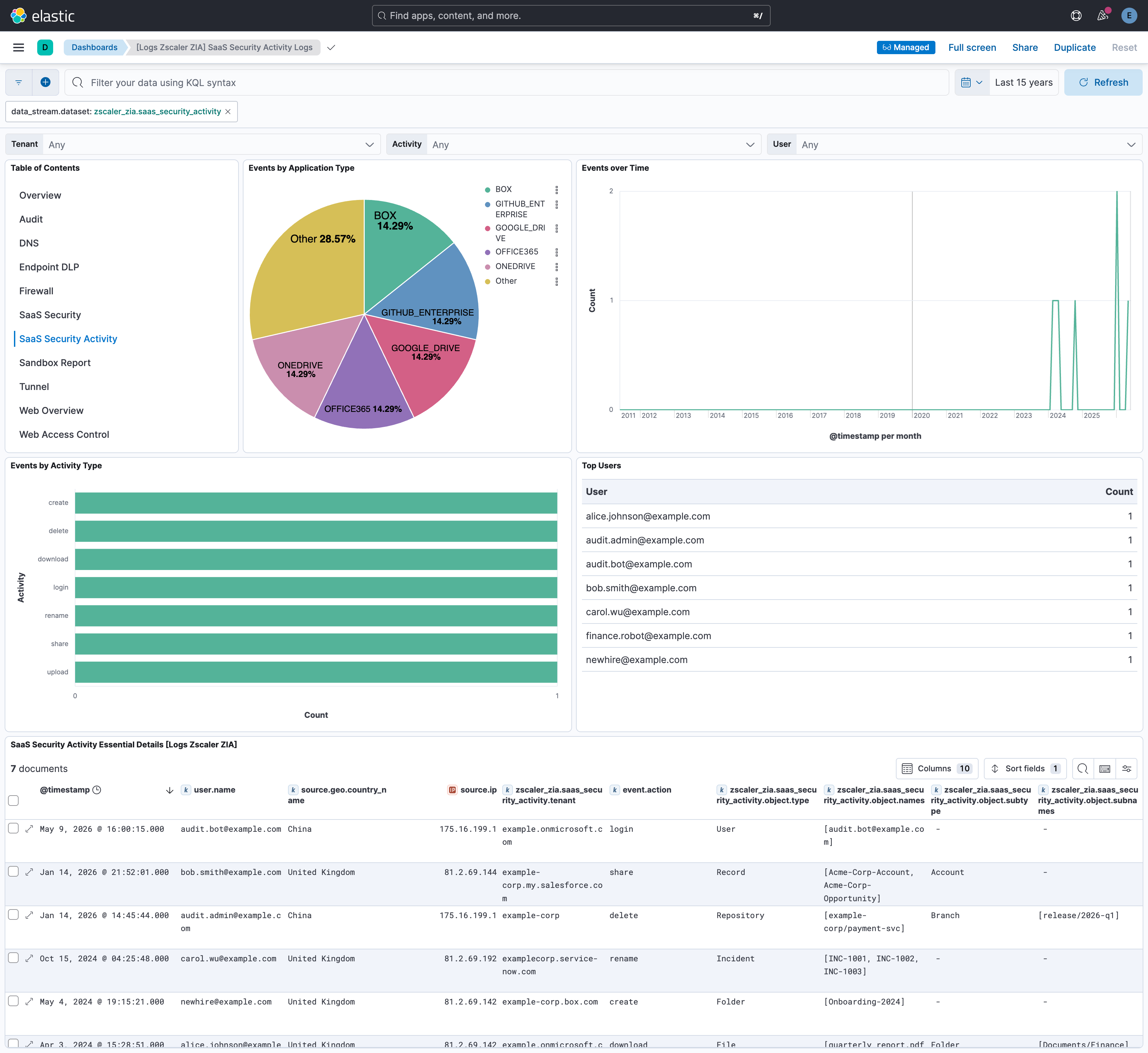

This is the saas_security_activity dataset.

Example
{
    "@timestamp": "2024-03-15T11:30:00.000Z",
    "agent": {
        "ephemeral_id": "b29c5410-623b-42c9-a787-06f7986404ba",
        "id": "213c4a4d-0280-41fb-a648-98539fccf384",
        "name": "elastic-agent-24278",
        "type": "filebeat",
        "version": "8.18.0"
    },
    "data_stream": {
        "dataset": "zscaler_zia.saas_security_activity",
        "namespace": "89548",
        "type": "logs"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "213c4a4d-0280-41fb-a648-98539fccf384",
        "snapshot": false,
        "version": "8.18.0"
    },
    "event": {
        "action": "upload",
        "agent_id_status": "verified",
        "category": [
            "iam"
        ],
        "dataset": "zscaler_zia.saas_security_activity",
        "ingested": "2026-06-02T06:32:41Z",
        "kind": "event",
        "original": "{\"activity\":{\"count\":\"1\",\"type\":\"Upload\"},\"application\":{\"name\":\"GOOGLE_DRIVE\"},\"event_time\":\"Fri Mar 15 11:30:00 2024\",\"external_owner\":\"vendor@partner.example.org\",\"is_admin\":\"0\",\"object\":{\"names\":\"[invoice-2024-Q1.xlsx]\",\"subnames\":\"[Shared with Vendors]\",\"subtype\":\"Folder\",\"type\":\"File\"},\"sourcetype\":\"zscalernss-saas_security_activity\",\"src_ip\":\"89.160.20.112\",\"tenant\":\"example.com\",\"time\":\"Fri Mar 15 11:30:00 2024\",\"tz\":\"GMT\",\"user_name\":\"finance.robot@example.com\",\"version\":\"v1\"}",
        "provider": "Zscaler",
        "timezone": "GMT",
        "type": [
            "change"
        ]
    },
    "input": {
        "type": "http_endpoint"
    },
    "observer": {
        "product": "Zscaler ZIA",
        "vendor": "Zscaler"
    },
    "related": {
        "ip": [
            "89.160.20.112"
        ],
        "user": [
            "finance.robot@example.com",
            "vendor@partner.example.org"
        ]
    },
    "source": {
        "as": {
            "number": 29518,
            "organization": {
                "name": "Bredband2 AB"
            }
        },
        "geo": {
            "city_name": "Linköping",
            "continent_name": "Europe",
            "country_iso_code": "SE",
            "country_name": "Sweden",
            "location": {
                "lat": 58.4167,
                "lon": 15.6167
            },
            "region_iso_code": "SE-E",
            "region_name": "Östergötland County"
        },
        "ip": "89.160.20.112"
    },
    "tags": [
        "preserve_original_event",
        "forwarded",
        "zscaler_zia-saas_security_activity"
    ],
    "user": {
        "domain": "example.com",
        "email": "finance.robot@example.com",
        "name": "finance.robot@example.com"
    },
    "zscaler_zia": {
        "saas_security_activity": {
            "activity": {
                "count": 1,
                "type": "Upload"
            },
            "application": {
                "name": "GOOGLE_DRIVE"
            },
            "event_time": "2024-03-15T11:30:00.000Z",
            "external_owner": "vendor@partner.example.org",
            "is_admin": false,
            "object": {
                "names": "[invoice-2024-Q1.xlsx]",
                "subnames": "[Shared with Vendors]",
                "subtype": "Folder",
                "type": "File"
            },
            "sourcetype": "zscalernss-saas_security_activity",
            "tenant": "example.com",
            "version": "v1"
        }
    }
}
Exported fields
Field Description Type
@timestamp Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events. date
data_stream.dataset The field can contain anything that makes sense to signify the source of the data. Examples include nginx.access, prometheus, endpoint etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. event.dataset should have the same value as data_stream.dataset. Beyond the Elasticsearch data stream naming criteria noted above, the dataset value has additional restrictions: * Must not contain - * No longer than 100 characters constant_keyword
data_stream.namespace A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with default. If no value is used, it falls back to default. Beyond the Elasticsearch index naming criteria noted above, namespace value has the additional restrictions: * Must not contain - * No longer than 100 characters constant_keyword
data_stream.type An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future. constant_keyword
event.dataset Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name. constant_keyword
event.module Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), event.module should contain the name of this module. constant_keyword
input.type Type of Filebeat input. keyword
log.offset Log offset. long
log.source.address Source address from which the log event was read / sent from. keyword
zscaler_zia.saas_security_activity.activity.count The activity count. long
zscaler_zia.saas_security_activity.activity.type The type of activity performed by the user. keyword
zscaler_zia.saas_security_activity.application.name The SaaS application name associated with the activity. keyword
zscaler_zia.saas_security_activity.event_time The event time of the activity. date
zscaler_zia.saas_security_activity.external_owner The external owner of the SaaS application. keyword
zscaler_zia.saas_security_activity.is_admin Indicates whether the user who performed the activity is an administrator. boolean
zscaler_zia.saas_security_activity.object.names The names or identifiers associated with the primary object type. keyword
zscaler_zia.saas_security_activity.object.subnames The names or identifiers associated with the secondary object type, if applicable. keyword
zscaler_zia.saas_security_activity.object.subtype The second object type associated with the activity, if applicable. keyword
zscaler_zia.saas_security_activity.object.type The object type associated with the activity. keyword
zscaler_zia.saas_security_activity.sourcetype NSS feed sourcetype identifier for SaaS Security Activity. keyword
zscaler_zia.saas_security_activity.src_ip The IP address associated with the activity. ip
zscaler_zia.saas_security_activity.tenant The SaaS application tenant associated with the activity. keyword
zscaler_zia.saas_security_activity.time The time and date of the transaction. This excludes the time zone. date
zscaler_zia.saas_security_activity.tz The time zone. This is the same as the time zone you specified when you configured the NSS feed. keyword
zscaler_zia.saas_security_activity.user_name The user who performed the activity. keyword
zscaler_zia.saas_security_activity.version Feed Output Format template version expected by this integration. keyword

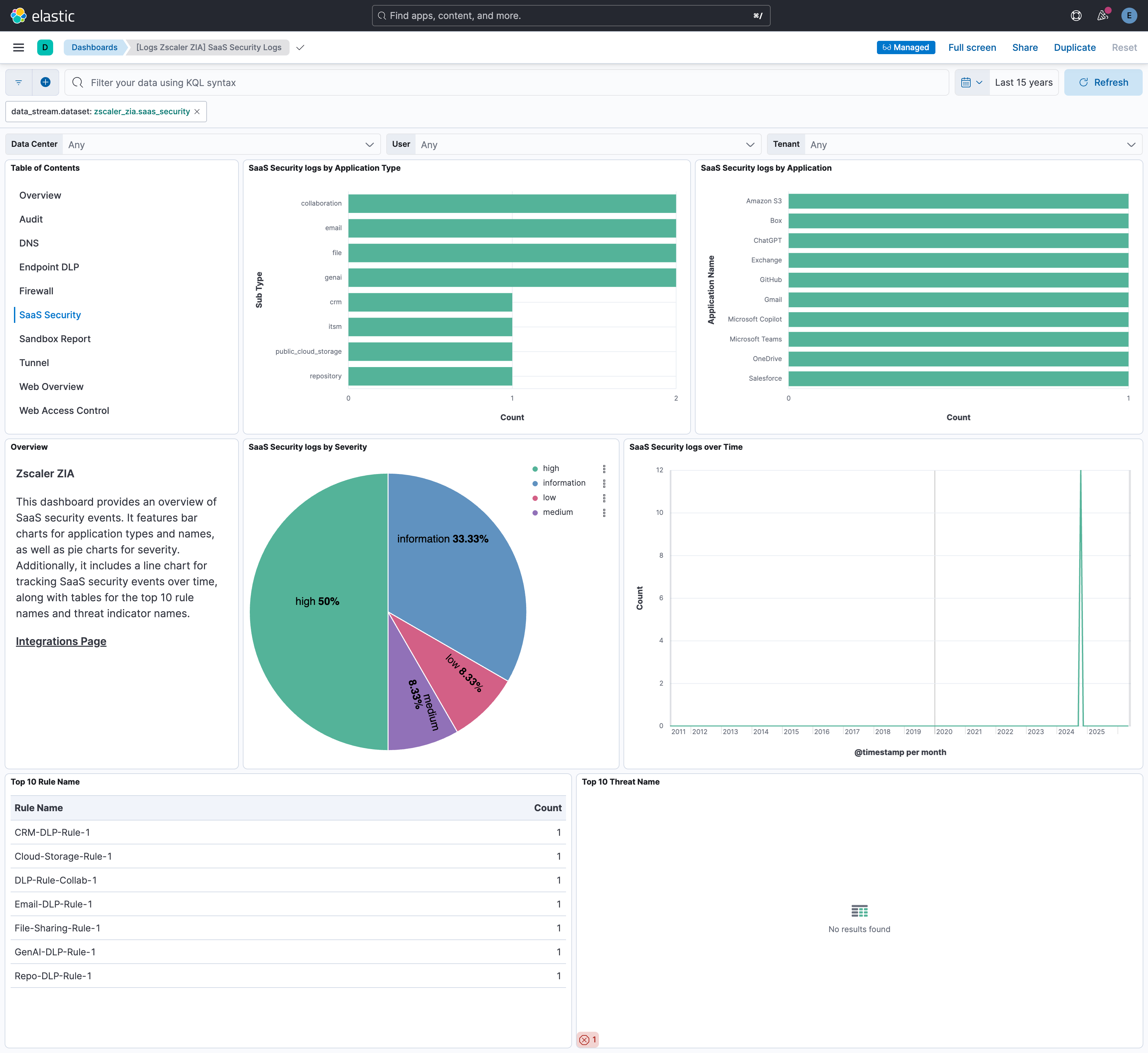

This is the saas_security dataset.

Example
{
    "@timestamp": "2024-11-01T09:55:48.000Z",
    "agent": {
        "ephemeral_id": "9b4f8728-89a4-494b-9e96-833c36bd8337",
        "id": "43cc9f88-ed20-4024-abcd-01e25da67e15",
        "name": "elastic-agent-74083",
        "type": "filebeat",
        "version": "8.18.0"
    },
    "data_stream": {
        "dataset": "zscaler_zia.saas_security",
        "namespace": "22530",
        "type": "logs"
    },
    "destination": {
        "user": {
            "email": [
                "jane.doe@example.org",
                "john.public@example.org",
                "alice.smith@example.com",
                "bob.jones@example.com"
            ]
        }
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "43cc9f88-ed20-4024-abcd-01e25da67e15",
        "snapshot": false,
        "version": "8.18.0"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "network",
            "intrusion_detection"
        ],
        "dataset": "zscaler_zia.saas_security",
        "id": "7379788644480581634",
        "ingested": "2026-05-20T06:26:58Z",
        "kind": "event",
        "original": "{\"application\":{\"name\":\"Slack\"},\"collaboration\":{\"channel\":{\"hostname\":\"teams.example.com\",\"hostname_obfuscated\":\"6389711095\",\"name\":\"engineering-private\",\"name_obfuscated\":\"9769110224\"},\"external_recipients\":\"jane.doe@example.org|john.public@example.org\",\"external_recipients_obfuscated\":\"7531480912|0912753148\",\"internal_recipients\":\"alice.smith@example.com|bob.jones@example.com\",\"internal_recipients_obfuscated\":\"2435617791|7791162435\",\"sender\":\"alice.smith@example.com\",\"sender_obfuscated\":\"6200694987\"},\"company\":{\"name\":\"Example Corp\"},\"copilot_accessible\":\"Yes\",\"datacenter\":{\"city\":\"San Jose\",\"country\":\"US\",\"name\":\"CA Client Node DC\"},\"department\":\"Engineering\",\"dlp\":{\"dict_counts\":\"4|2\",\"dict_names\":\"Credit Cards|Social Security Numbers\",\"engine_names\":\"PCI|HIPAA\",\"identifier\":\"6646484838839025669\"},\"document\":{\"type\":\"Corporate Finance\"},\"file\":{\"owner\":\"jane.doe@example.org\",\"owner_obfuscated\":\"7531480912\"},\"is_incident\":\"Yes\",\"label_name\":\"Confidential\",\"message_id\":\"01U7H7LGKE6AEZ7DPW7ZEYU2WADV7ET3CV\",\"message_id_obfuscated\":\"5300295980\",\"policy\":\"Make internal sharing read only\",\"record_id\":\"7379788644480581634\",\"rule\":{\"label\":\"DLP-Rule-Collab-1\",\"label_obfuscated\":\"3399565100\",\"type\":\"OfflineCASBDLPCOLLAB\"},\"severity\":\"High\",\"sourcesubtype\":\"collaboration\",\"sourcetype\":\"zscalernss-saas_security\",\"tenant\":\"example-tenant\",\"tenant_obfuscated\":\"8794487099\",\"threat\":{\"indicator\":{\"name\":\"None\"},\"malware\":\"None\",\"malware_class\":\"None\"},\"time\":\"1730454948\",\"tz\":\"GMT\",\"user_name\":\"alice.smith@example.com\",\"user_name_obfuscated\":\"6200694987\",\"version\":\"v1\"}",
        "provider": "Zscaler",
        "severity": 73,
        "timezone": "GMT",
        "type": [
            "denied",
            "info"
        ]
    },
    "file": {
        "owner": "jane.doe@example.org"
    },
    "input": {
        "type": "http_endpoint"
    },
    "observer": {
        "geo": {
            "city_name": "San Jose",
            "country_iso_code": "US",
            "name": "CA Client Node DC"
        },
        "name": "CA Client Node DC",
        "product": "Zscaler ZIA",
        "vendor": "Zscaler"
    },
    "organization": {
        "name": "Example Corp"
    },
    "related": {
        "hosts": [
            "teams.example.com"
        ],
        "user": [
            "alice.smith@example.com",
            "jane.doe@example.org",
            "john.public@example.org",
            "bob.jones@example.com"
        ]
    },
    "rule": {
        "name": "DLP-Rule-Collab-1",
        "ruleset": "OfflineCASBDLPCOLLAB"
    },
    "source": {
        "user": {
            "email": "alice.smith@example.com"
        }
    },
    "tags": [
        "preserve_original_event",
        "forwarded",
        "zscaler_zia-saas_security"
    ],
    "user": {
        "email": "alice.smith@example.com",
        "name": "alice.smith@example.com"
    },
    "zscaler_zia": {
        "saas_security": {
            "application": {
                "name": "Slack"
            },
            "collaboration": {
                "channel": {
                    "hostname": "teams.example.com",
                    "hostname_obfuscated": "6389711095",
                    "name": "engineering-private",
                    "name_obfuscated": "9769110224"
                },
                "external_recipients_obfuscated": [
                    "7531480912",
                    "0912753148"
                ],
                "internal_recipients_obfuscated": [
                    "2435617791",
                    "7791162435"
                ],
                "sender_obfuscated": "6200694987"
            },
            "copilot_accessible": true,
            "department": "Engineering",
            "dlp": {
                "dict_counts": [
                    4,
                    2
                ],
                "dict_names": [
                    "Credit Cards",
                    "Social Security Numbers"
                ],
                "engine_names": [
                    "PCI",
                    "HIPAA"
                ],
                "identifier": "6646484838839025669"
            },
            "document": {
                "type": "Corporate Finance"
            },
            "file": {
                "owner_obfuscated": "7531480912"
            },
            "is_incident": true,
            "label_name": "Confidential",
            "message_id": "01U7H7LGKE6AEZ7DPW7ZEYU2WADV7ET3CV",
            "message_id_obfuscated": "5300295980",
            "policy": "Make internal sharing read only",
            "rule": {
                "label_obfuscated": "3399565100"
            },
            "severity": "High",
            "sourcesubtype": "collaboration",
            "sourcetype": "zscalernss-saas_security",
            "tenant": "example-tenant",
            "tenant_obfuscated": "8794487099",
            "user_name_obfuscated": "6200694987",
            "version": "v1"
        }
    }
}
Exported fields
Field Description Type
@timestamp Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events. date
data_stream.dataset The field can contain anything that makes sense to signify the source of the data. Examples include nginx.access, prometheus, endpoint etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. event.dataset should have the same value as data_stream.dataset. Beyond the Elasticsearch data stream naming criteria noted above, the dataset value has additional restrictions: * Must not contain - * No longer than 100 characters constant_keyword
data_stream.namespace A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with default. If no value is used, it falls back to default. Beyond the Elasticsearch index naming criteria noted above, namespace value has the additional restrictions: * Must not contain - * No longer than 100 characters constant_keyword
data_stream.type An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future. constant_keyword
event.dataset Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name. constant_keyword
event.module Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), event.module should contain the name of this module. constant_keyword
input.type Type of Filebeat input. keyword
log.offset Log offset. long
log.source.address Source address from which the log event was read / sent from. keyword
zscaler_zia.saas_security.accessibility_flags A multivalue flag that provides the accessibility information of the asset. keyword
zscaler_zia.saas_security.application.name The name of the sanctioned SaaS application. keyword
zscaler_zia.saas_security.bucket.id The bucket ID. keyword
zscaler_zia.saas_security.bucket.name The bucket name. keyword
zscaler_zia.saas_security.bucket.name_obfuscated The obfuscated version of the bucket name. keyword
zscaler_zia.saas_security.bucket.owner The bucket owner. keyword
zscaler_zia.saas_security.bucket.owner_obfuscated The obfuscated version of the bucket name. keyword
zscaler_zia.saas_security.collab_count The number of collaborators. long
zscaler_zia.saas_security.collab_names The names of the collaborators. keyword
zscaler_zia.saas_security.collab_names_obfuscated The obfuscated version of the names of the collaborators. keyword
zscaler_zia.saas_security.collaboration.channel.hostname The hostname of the shared channel. keyword
zscaler_zia.saas_security.collaboration.channel.hostname_obfuscated The obfuscated version of the hostname of the shared channel. keyword
zscaler_zia.saas_security.collaboration.channel.name The name of the channel. keyword
zscaler_zia.saas_security.collaboration.channel.name_obfuscated The obfuscated version of the channel name. keyword
zscaler_zia.saas_security.collaboration.external_recipients The names of the external recipient names. keyword
zscaler_zia.saas_security.collaboration.external_recipients_obfuscated The obfuscated version of the external recipient names. keyword
zscaler_zia.saas_security.collaboration.internal_recipients The names of the internal recipients. keyword
zscaler_zia.saas_security.collaboration.internal_recipients_obfuscated The obfuscated version of the internal recipient names. keyword
zscaler_zia.saas_security.collaboration.sender The sender's email. keyword
zscaler_zia.saas_security.collaboration.sender_obfuscated The obfuscated version of the sender's email. keyword
zscaler_zia.saas_security.company.id The numeric ID given to a company by Zscaler. keyword
zscaler_zia.saas_security.company.name The company name. keyword
zscaler_zia.saas_security.component The type of component recorded. keyword
zscaler_zia.saas_security.copilot_accessible Indicates whether the asset is accessible by the Microsoft Copilot Readiness Assessment. boolean
zscaler_zia.saas_security.datacenter.city The city where the data center is located. keyword
zscaler_zia.saas_security.datacenter.country The country where the data center is located. keyword
zscaler_zia.saas_security.datacenter.name The name of the data center. keyword
zscaler_zia.saas_security.department The user's department. If authentication is not required and the traffic comes from a location specified in the service, this field displays the name of the gateway location. keyword
zscaler_zia.saas_security.dlp.dict_counts The number of hits for each of the DLP dictionaries that were matched in the transaction. This displays a string field separated by a vertical line (" "). long
zscaler_zia.saas_security.dlp.dict_names The Data Loss Prevention (DLP) dictionary names. keyword
zscaler_zia.saas_security.dlp.dict_names_obfuscated The obfuscated version of the DLP dictionary names. keyword
zscaler_zia.saas_security.dlp.engine_names The DLP engine names. keyword
zscaler_zia.saas_security.dlp.engine_names_obfuscated The obfuscated version of the DLP engine names. keyword
zscaler_zia.saas_security.dlp.identifier The DLP identifier. Whenever a DLP rule is hit, and the appropriate alert is configured, an email containing this ID is sent to your auditors. keyword
zscaler_zia.saas_security.document.subtype The subtype of the document uploaded or downloaded during the transaction. keyword
zscaler_zia.saas_security.document.type The type of document uploaded or downloaded during the transaction. keyword
zscaler_zia.saas_security.email.attachments.file_names The name of the suspicious file detected by the Data at Rest Scanning policy. keyword
zscaler_zia.saas_security.email.attachments.file_names_obfuscated The obfuscated version of the name of the suspicious file detected by the Data at Rest Scanning policy. keyword
zscaler_zia.saas_security.email.attachments.file_sizes The size of the file in bytes. long
zscaler_zia.saas_security.email.attachments.file_types The component file type. keyword
zscaler_zia.saas_security.email.attachments.md5s The component file MD5. keyword
zscaler_zia.saas_security.email.external_recipients The names of external recipients. keyword
zscaler_zia.saas_security.email.external_recipients_count The number of external recipients. long
zscaler_zia.saas_security.email.external_recipients_obfuscated The obfuscated version of the names of external recipients. keyword
zscaler_zia.saas_security.email.internal_recipients The names of internal recipients. keyword
zscaler_zia.saas_security.email.internal_recipients_count The number of internal recipients. long
zscaler_zia.saas_security.email.internal_recipients_obfuscated The obfuscated version of the names of internal recipients. keyword
zscaler_zia.saas_security.email.is_inbound Indicates whether the email was sent or received or not. boolean
zscaler_zia.saas_security.email.message_size_bytes The size of the message in bytes. long
zscaler_zia.saas_security.email.received_time The time at which the transaction was recorded. date
zscaler_zia.saas_security.external_collab_count The number of external collaborators. long
zscaler_zia.saas_security.external_collab_groups The group of collaborators outside your organization with whom the user shares assets. The field can have up to 8 values separated by a vertical line (" "). keyword
zscaler_zia.saas_security.external_collab_groups_obfuscated The obfuscated version of the group of collaborators outside your organization with whom the user shares assets. The field can have up to 8 values separated by a vertical line (" "). keyword
zscaler_zia.saas_security.external_collab_names The names of external collaborators. keyword
zscaler_zia.saas_security.external_collab_names_obfuscated The obfuscated version of external collaborator names. keyword
zscaler_zia.saas_security.external_user_name The username or email address of the external user who performs the transaction. keyword
zscaler_zia.saas_security.file.collaboration_scope The collaboration scope and permissions for SaaS application tenant files. keyword
zscaler_zia.saas_security.file.directory The source location of the files containing sensitive data that were detected by the Data at Rest Scanning DLP or Malware Detection policy. keyword
zscaler_zia.saas_security.file.download_time_ms The download time (in milliseconds) of the suspicious file detected by the Data at Rest Scanning policy. long
zscaler_zia.saas_security.file.extension The type of file that was either uploaded or downloaded. keyword
zscaler_zia.saas_security.file.full_url The SaaS Security public URL used to access a shared file. keyword
zscaler_zia.saas_security.file.full_url_obfuscated The obfuscated version of the full URL. keyword
zscaler_zia.saas_security.file.hash.md5 The MD5 hash for the file. keyword
zscaler_zia.saas_security.file.hash.sha256 The SHA-256 hash for the file. keyword
zscaler_zia.saas_security.file.id The file ID value in a string format. keyword
zscaler_zia.saas_security.file.id_obfuscated The obfuscated version of the file ID value in a string format. keyword
zscaler_zia.saas_security.file.last_modified_time The last modification time of the file/message. date
zscaler_zia.saas_security.file.last_share_user The user who last shared the file that triggered the DLP violation. keyword
zscaler_zia.saas_security.file.last_shared_on The date and time when the file was shared. date
zscaler_zia.saas_security.file.name The name of the suspicious file detected by the Data at Rest Scanning policy. keyword
zscaler_zia.saas_security.file.owner The file owners (inside or outside your organization) who are not provisioned to Internet & SaaS (ZIA). keyword
zscaler_zia.saas_security.file.owner_obfuscated The obfuscated version of the file owners (inside or outside your organization) who are not provisioned to Internet & SaaS. keyword
zscaler_zia.saas_security.file.path The file path. keyword
zscaler_zia.saas_security.file.scan_time_ms The amount of time (in milliseconds) the Data at Rest Scanning policy took to scan content within the tenant. long
zscaler_zia.saas_security.file.size The size of the file in bytes. long
zscaler_zia.saas_security.file.sub_url The URI portion of the full URL. keyword
zscaler_zia.saas_security.file.type_category The category of the file type. keyword
zscaler_zia.saas_security.genai.bot_name The name of the bot. keyword
zscaler_zia.saas_security.genai.run_id The unique identifier of the run (i.e., when a scan is stopped and started). keyword
zscaler_zia.saas_security.genai.scan_id The unique identifier of the scan defined in the Historic Scan Configuration. keyword
zscaler_zia.saas_security.genai.sender_type The type of sender (i.e., bot, system, or user). keyword
zscaler_zia.saas_security.hostname The hostname of the recorded internal URL. keyword
zscaler_zia.saas_security.hostname_obfuscated The obfuscated version of the hostname. keyword
zscaler_zia.saas_security.internal_collab_count The number of internal collaborators. long
zscaler_zia.saas_security.internal_collab_groups The group of collaborators within your organization with whom the user shares assets. The field can have up to 8 values separated by a vertical line (" "). keyword
zscaler_zia.saas_security.internal_collab_groups_obfuscated The obfuscated version of the group of collaborators within your organization with whom the user shares assets. The field can have up to 8 values separated by a vertical line (" "). keyword
zscaler_zia.saas_security.internal_collab_names The names of internal collaborators. keyword
zscaler_zia.saas_security.internal_collab_names_obfuscated The obfuscated version of the internal collaborator names. keyword
zscaler_zia.saas_security.internal_user_name The username or email address of the internal user who performs the transaction. If an internet gateway location is specified and authentication is not required, this field displays the name of the gateway location. keyword
zscaler_zia.saas_security.is_incident Indicates whether the transaction was an incident or not. boolean
zscaler_zia.saas_security.label_name The type of Microsoft Information Protection (MIP) label applied to the assets. keyword
zscaler_zia.saas_security.message_id The message ID assigned by the application. keyword
zscaler_zia.saas_security.message_id_obfuscated The obfuscated version of the message ID assigned by the application. keyword
zscaler_zia.saas_security.object.name The name of the object logged. keyword
zscaler_zia.saas_security.object.type The type of the object logged. keyword
zscaler_zia.saas_security.policy The Data at Rest Scanning policy rule action. keyword
zscaler_zia.saas_security.record_id The unique record identifier for each log. keyword
zscaler_zia.saas_security.repository.name The name of the repository. keyword
zscaler_zia.saas_security.repository.project_name The name of the project. keyword
zscaler_zia.saas_security.rule.label The name of the rule that triggered on the session or aggregated sessions. keyword
zscaler_zia.saas_security.rule.label_obfuscated The obfuscated name of the rule that triggered on the session or aggregated sessions. keyword
zscaler_zia.saas_security.rule.type The type of policy that took action during the transaction. keyword
zscaler_zia.saas_security.severity The severity level of the incident detected by the Data at Rest Scanning DLP policy. keyword
zscaler_zia.saas_security.sourcesubtype keyword
zscaler_zia.saas_security.sourcetype keyword
zscaler_zia.saas_security.tenant The sanctioned SaaS application tenant integrated with the Zscaler service. keyword
zscaler_zia.saas_security.tenant_obfuscated The obfuscated version of the SaaS application tenant. keyword
zscaler_zia.saas_security.threat.indicator.name If the service detects a threat in the transaction, it displays the name of the threat. keyword
zscaler_zia.saas_security.threat.malware If the service detects a threat in the transaction, it displays the virus or spyware type, if applicable. keyword
zscaler_zia.saas_security.threat.malware_class If the service detects a threat in the transaction, it displays the virus and spyware super category, if applicable. keyword
zscaler_zia.saas_security.time The time of the incident in epoch format. date
zscaler_zia.saas_security.tz The time zone. This is the same as the time zone you specified when you configured the NSS feed. keyword
zscaler_zia.saas_security.user_name The username or email address of the user who performs the transaction. keyword
zscaler_zia.saas_security.user_name_obfuscated The obfuscated username or email address of the user who performs the transaction. keyword
zscaler_zia.saas_security.version keyword

This is the sandbox_report dataset.

Example
{
    "@timestamp": "2024-07-04T12:08:18.143Z",
    "agent": {
        "ephemeral_id": "d12fe3a6-bd2e-4729-9303-bdbbc18f187e",
        "id": "7a8d18bc-b73c-424e-a30b-120ddeb66eeb",
        "name": "docker-fleet-agent",
        "type": "filebeat",
        "version": "8.13.0"
    },
    "data_stream": {
        "dataset": "zscaler_zia.sandbox_report",
        "namespace": "ep",
        "type": "logs"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "7a8d18bc-b73c-424e-a30b-120ddeb66eeb",
        "snapshot": false,
        "version": "8.13.0"
    },
    "event": {
        "action": "completed",
        "agent_id_status": "verified",
        "category": [
            "malware"
        ],
        "dataset": "zscaler_zia.sandbox_report",
        "duration": 454557000000,
        "ingested": "2024-07-04T12:08:30Z",
        "kind": "alert",
        "original": "{\"Classification\":{\"Category\":\"MALWARE_BOTNET\",\"DetectedMalware\":\"\",\"Max Score\":100,\"Score\":86,\"Type\":\"MALICIOUS\"},\"FileProperties\":{\"DigitalCerificate\":\"\",\"FileSize\":9810,\"FileType\":\"CMD\",\"Issuer\":\"\",\"MD5\":\"8350ded6d39df158e51d6cfbe36fb012\",\"RootCA\":\"\",\"SHA1\":\"f4dd1d176975c70ba8963ebc654a78a6e345cfb6\",\"SSDeep\":\"192:+cgNT7Zj4tvl2Drc+gEakjqBT1W431lXXH1TR8J:InZjevl2Drc+gEakmBT44rXVR8J\",\"Sha256\":\"aff2d40828597fbf482753bec73cc9fc2714484262258875cc23c7d5a7372cee\"},\"Summary\":{\"Analysis\":\"0\",\"Category\":\"SCRIPT\",\"Duration\":454557,\"FileType\":\"CMD\",\"StartTime\":1509567511,\"Status\":\"COMPLETED\",\"TimeUnit\":\"ms\",\"Url\":\"\"},\"SystemSummary\":{\"Risk\":\"LOW\",\"Signature\":\"Allocates memory within range which is reserved for system DLLs\",\"SignatureSources\":[\"\",\"76F90000 page execute and read and write\"]}}",
        "risk_score": 86,
        "start": "2017-11-01T20:18:31.000Z",
        "type": [
            "info"
        ]
    },
    "file": {
        "hash": {
            "md5": "8350ded6d39df158e51d6cfbe36fb012",
            "sha1": "f4dd1d176975c70ba8963ebc654a78a6e345cfb6",
            "sha256": "aff2d40828597fbf482753bec73cc9fc2714484262258875cc23c7d5a7372cee",
            "ssdeep": "192:+cgNT7Zj4tvl2Drc+gEakjqBT1W431lXXH1TR8J:InZjevl2Drc+gEakmBT44rXVR8J"
        },
        "size": 9810
    },
    "input": {
        "type": "cel"
    },
    "related": {
        "hash": [
            "8350ded6d39df158e51d6cfbe36fb012",
            "f4dd1d176975c70ba8963ebc654a78a6e345cfb6",
            "aff2d40828597fbf482753bec73cc9fc2714484262258875cc23c7d5a7372cee",
            "192:+cgNT7Zj4tvl2Drc+gEakjqBT1W431lXXH1TR8J:InZjevl2Drc+gEakmBT44rXVR8J"
        ]
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "zscaler_zia-sandbox_report"
    ],
    "threat": {
        "indicator": {
            "type": "file"
        }
    },
    "zscaler_zia": {
        "sandbox_report": {
            "classification": {
                "category": "MALWARE_BOTNET",
                "max_score": 100,
                "score": 86,
                "type": "MALICIOUS"
            },
            "file_properties": {
                "file_size": 9810,
                "file_type": "CMD",
                "md5": "8350ded6d39df158e51d6cfbe36fb012",
                "sha1": "f4dd1d176975c70ba8963ebc654a78a6e345cfb6",
                "sha256": "aff2d40828597fbf482753bec73cc9fc2714484262258875cc23c7d5a7372cee",
                "ssdeep": "192:+cgNT7Zj4tvl2Drc+gEakjqBT1W431lXXH1TR8J:InZjevl2Drc+gEakmBT44rXVR8J"
            },
            "summary": {
                "analysis": "0",
                "category": "SCRIPT",
                "duration": 454557,
                "file": {
                    "type": "CMD"
                },
                "start_time": "2017-11-01T20:18:31.000Z",
                "status": "COMPLETED",
                "time_unit": "ms"
            },
            "system_summary": {
                "risk": "LOW",
                "signature": "Allocates memory within range which is reserved for system DLLs",
                "signature_sources": [
                    "76F90000 page execute and read and write"
                ]
            }
        }
    }
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
event.dataset Event dataset. constant_keyword
event.module Event module. constant_keyword
input.type Type of Filebeat input. keyword
log.offset Log offset. long
zscaler_zia.sandbox_report.classification.category keyword
zscaler_zia.sandbox_report.classification.detected_malware keyword
zscaler_zia.sandbox_report.classification.max_score double
zscaler_zia.sandbox_report.classification.score double
zscaler_zia.sandbox_report.classification.type keyword
zscaler_zia.sandbox_report.exploit.risk keyword
zscaler_zia.sandbox_report.exploit.signature keyword
zscaler_zia.sandbox_report.exploit.signature_sources keyword
zscaler_zia.sandbox_report.file_properties.digital_cerificate keyword
zscaler_zia.sandbox_report.file_properties.file_size long
zscaler_zia.sandbox_report.file_properties.file_type keyword
zscaler_zia.sandbox_report.file_properties.issuer keyword
zscaler_zia.sandbox_report.file_properties.md5 keyword
zscaler_zia.sandbox_report.file_properties.root_ca keyword
zscaler_zia.sandbox_report.file_properties.sha1 keyword
zscaler_zia.sandbox_report.file_properties.sha256 keyword
zscaler_zia.sandbox_report.file_properties.ssdeep keyword
zscaler_zia.sandbox_report.networking.risk keyword
zscaler_zia.sandbox_report.networking.signature keyword
zscaler_zia.sandbox_report.networking.signature_sources keyword
zscaler_zia.sandbox_report.origin.country keyword
zscaler_zia.sandbox_report.origin.language keyword
zscaler_zia.sandbox_report.origin.risk keyword
zscaler_zia.sandbox_report.persistence.risk keyword
zscaler_zia.sandbox_report.persistence.signature keyword
zscaler_zia.sandbox_report.persistence.signature_sources keyword
zscaler_zia.sandbox_report.security_bypass.risk keyword
zscaler_zia.sandbox_report.security_bypass.signature keyword
zscaler_zia.sandbox_report.security_bypass.signature_sources keyword
zscaler_zia.sandbox_report.stealth.risk keyword
zscaler_zia.sandbox_report.stealth.signature keyword
zscaler_zia.sandbox_report.stealth.signature_sources keyword
zscaler_zia.sandbox_report.summary.analysis keyword
zscaler_zia.sandbox_report.summary.category keyword
zscaler_zia.sandbox_report.summary.duration long
zscaler_zia.sandbox_report.summary.file.type keyword
zscaler_zia.sandbox_report.summary.start_time date
zscaler_zia.sandbox_report.summary.start_time_unix date
zscaler_zia.sandbox_report.summary.status keyword
zscaler_zia.sandbox_report.summary.time_unit keyword
zscaler_zia.sandbox_report.summary.url keyword
zscaler_zia.sandbox_report.system_summary.risk keyword
zscaler_zia.sandbox_report.system_summary.signature keyword
zscaler_zia.sandbox_report.system_summary.signature_sources keyword

This is the tunnel dataset.

Example
{
    "@timestamp": "2021-12-30T11:20:12.000Z",
    "agent": {
        "ephemeral_id": "85f8a4ec-94a7-4111-9cab-36896851bb15",
        "id": "7a8d18bc-b73c-424e-a30b-120ddeb66eeb",
        "name": "docker-fleet-agent",
        "type": "filebeat",
        "version": "8.13.0"
    },
    "data_stream": {
        "dataset": "zscaler_zia.tunnel",
        "namespace": "ep",
        "type": "logs"
    },
    "destination": {
        "ip": "81.2.69.143"
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "7a8d18bc-b73c-424e-a30b-120ddeb66eeb",
        "snapshot": false,
        "version": "8.13.0"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "zscaler_zia.tunnel",
        "id": "1111111111111111111",
        "ingested": "2024-07-04T12:10:30Z",
        "kind": "event",
        "timezone": "UTC",
        "type": [
            "info"
        ]
    },
    "input": {
        "type": "tcp"
    },
    "log": {
        "source": {
            "address": "192.168.243.6:36470"
        }
    },
    "related": {
        "ip": [
            "81.2.69.143",
            "81.2.69.145"
        ]
    },
    "source": {
        "ip": "81.2.69.145",
        "port": 0
    },
    "tags": [
        "forwarded",
        "zscaler_zia-tunnel"
    ],
    "zscaler_zia": {
        "tunnel": {
            "action": {
                "type": "IPSec Phase2"
            },
            "authentication": {
                "algorithm": "HMAC-SHA-1"
            },
            "destination": {
                "end": {
                    "ip": "81.2.69.143"
                },
                "start": {
                    "ip": "81.2.69.143",
                    "port": 0
                }
            },
            "encryption": {
                "algorithm": "AES"
            },
            "ikeversion": "1",
            "life": {
                "bytes": 0,
                "time": 3600
            },
            "policy": {
                "protocol": "Any"
            },
            "protocol": "ESP",
            "source": {
                "end": {
                    "ip": "81.2.69.145"
                },
                "start": {
                    "ip": "81.2.69.145",
                    "port": 0
                }
            },
            "spi": "123456789",
            "type": "IPSEC IKEV 1",
            "user_ip": "81.2.69.145"
        }
    }
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
event.dataset Event dataset. constant_keyword
event.module Event module. constant_keyword
input.type Type of Filebeat input. keyword
log.offset Log offset. long
log.source.address Source address from which the log event was read / sent from. keyword
zscaler_zia.tunnel.action.type The action type. keyword
zscaler_zia.tunnel.authentication.algorithm The authentication algorithm. keyword
zscaler_zia.tunnel.authentication.type The authentication type. keyword
zscaler_zia.tunnel.bytes.received The bytes received in a 60-second sample window by Zscaler from the customer. long
zscaler_zia.tunnel.bytes.sent The bytes transmitted in a 60-second sample window from Zscaler to the customer. long
zscaler_zia.tunnel.datetime The date and time of the event. date
zscaler_zia.tunnel.day The day of the week. keyword
zscaler_zia.tunnel.day_of_month The day of the month. long
zscaler_zia.tunnel.destination.end.ip Phase 2 policy proposal - Destination IP end. ip
zscaler_zia.tunnel.destination.port The tunnel destination port. long
zscaler_zia.tunnel.destination.start.ip Phase 2 policy proposal - Destination IP start. ip
zscaler_zia.tunnel.destination.start.port Phase 2 policy proposal - Destination port start. long
zscaler_zia.tunnel.destination.vip.address The tunnel destination VIP address. ip
zscaler_zia.tunnel.dpd_packets The number of DPD packets received in a 60-second sample window. long
zscaler_zia.tunnel.encryption.algorithm The encryption algorithm. keyword
zscaler_zia.tunnel.event The tunnel status. keyword
zscaler_zia.tunnel.event_reason The reason for the tunnel status change. keyword
zscaler_zia.tunnel.hour Hours. long
zscaler_zia.tunnel.ikeversion The IKE version. keyword
zscaler_zia.tunnel.life.bytes Life bytes. long
zscaler_zia.tunnel.life.time The lifetime of IKE Phase 2 (seconds). long
zscaler_zia.tunnel.locationname The location name. keyword
zscaler_zia.tunnel.minute Minutes. long
zscaler_zia.tunnel.month The name of the month. keyword
zscaler_zia.tunnel.month_of_year The month of the year. long
zscaler_zia.tunnel.obfuscated.location_name The obfuscated version of the location name. keyword
zscaler_zia.tunnel.obfuscated.vpn_credential_name The obfuscated version of the VPN credential name for the IPSec tunnel. keyword
zscaler_zia.tunnel.packets.received The packets received in a 60-second sample window by Zscaler from the customer. long
zscaler_zia.tunnel.packets.sent The packets transmitted in a 60-second sample window from Zscaler to the customer. long
zscaler_zia.tunnel.policy.protocol Phase 2 policy proposal - Protocol. keyword
zscaler_zia.tunnel.protocol The IPSec tunnel protocol type. keyword
zscaler_zia.tunnel.record.id The unique record identifier for each log. keyword
zscaler_zia.tunnel.second Seconds. long
zscaler_zia.tunnel.source.end.ip Phase 2 policy proposal - Source IP end. ip
zscaler_zia.tunnel.source.ip The tunnel source IP address. ip
zscaler_zia.tunnel.source.port The tunnel source port. long
zscaler_zia.tunnel.source.start.ip Phase 2 policy proposal - Source IP start. ip
zscaler_zia.tunnel.source.start.port Phase 2 policy proposal - Source port start. long
zscaler_zia.tunnel.spi The Security Parameter Index. keyword
zscaler_zia.tunnel.spi_in The initiator cookie. keyword
zscaler_zia.tunnel.spi_out The responder cookie. keyword
zscaler_zia.tunnel.timezone The time zone. keyword
zscaler_zia.tunnel.type The tunnel type. keyword
zscaler_zia.tunnel.user_ip ip
zscaler_zia.tunnel.vendor.name The vendor name of the edge device. keyword
zscaler_zia.tunnel.vpn_credential_name The VPN credential name for the IPSec tunnel. keyword
zscaler_zia.tunnel.year Year. long

This is the web dataset.

Example
{
    "@timestamp": "2023-10-16T22:55:48.000Z",
    "agent": {
        "ephemeral_id": "d4f0fcd9-3b74-4e1f-83b9-fd0c8d451d61",
        "id": "6a071209-1c3e-4c0e-8b84-0c1066ac57fe",
        "name": "elastic-agent-58206",
        "type": "filebeat",
        "version": "8.18.0"
    },
    "cloud": {
        "provider": "zscaler.net"
    },
    "data_stream": {
        "dataset": "zscaler_zia.web",
        "namespace": "36135",
        "type": "logs"
    },
    "destination": {
        "domain": "mail.google.com",
        "ip": "10.0.0.1"
    },
    "device": {
        "id": "1234",
        "model": {
            "identifier": "20L8S7WC08"
        }
    },
    "ecs": {
        "version": "8.11.0"
    },
    "elastic_agent": {
        "id": "6a071209-1c3e-4c0e-8b84-0c1066ac57fe",
        "snapshot": false,
        "version": "8.18.0"
    },
    "event": {
        "action": "allowed",
        "agent_id_status": "verified",
        "category": [
            "web"
        ],
        "dataset": "zscaler_zia.web",
        "id": "123456789",
        "ingested": "2025-12-09T09:09:09Z",
        "kind": "event",
        "outcome": "success",
        "reason": "File Attachment Cautioned",
        "timezone": "GMT",
        "type": [
            "access"
        ]
    },
    "file": {
        "extension": [
            "rar"
        ],
        "hash": {
            "md5": "196a3d797bfee07fe4596b69f4ce1141",
            "sha256": "81ec78bc8298568bb5ea66d3c2972b670d0f7459b6cdbbcaacce90ab417ab15c"
        },
        "name": [
            "nssfeed.txt",
            "nssfeed.exe"
        ],
        "type": "file"
    },
    "host": {
        "hostname": "PC11NLPA:5F08D97BBF43257A8FB4BBF4061A38AE324EF734",
        "name": "thinkpadsmith",
        "os": {
            "type": "ios",
            "version": "Version 10.14.2 (Build 18C54)"
        },
        "type": "Zscaler Client Connector"
    },
    "http": {
        "request": {
            "bytes": 1300,
            "method": "invalid",
            "referrer": "www.example.com"
        },
        "response": {
            "bytes": 10500
        },
        "version": [
            "1.1",
            "1"
        ]
    },
    "input": {
        "type": "tcp"
    },
    "log": {
        "source": {
            "address": "192.168.246.3:42412"
        }
    },
    "network": {
        "protocol": "http"
    },
    "organization": {
        "name": "Zscaler"
    },
    "related": {
        "hash": [
            "154f149b1443fbfa8c121d13e5c019a1",
            "196a3d797bfee07fe4596b69f4ce1141",
            "81ec78bc8298568bb5ea66d3c2972b670d0f7459b6cdbbcaacce90ab417ab15c"
        ],
        "hosts": [
            "thinkpadsmith",
            "PC11NLPA:5F08D97BBF43257A8FB4BBF4061A38AE324EF734"
        ],
        "ip": [
            "192.168.1.10",
            "10.0.0.3",
            "10.1.1.1",
            "192.168.2.200",
            "10.0.0.2",
            "10.0.0.1"
        ],
        "user": [
            "jsmith",
            "jdoe",
            "jdoe@safemarch.com"
        ]
    },
    "rule": {
        "name": [
            "File_Sharing_1",
            "DLP_Rule_1",
            "URL_Filtering_1"
        ]
    },
    "source": {
        "ip": "10.0.0.2",
        "nat": {
            "ip": "192.168.1.10"
        },
        "port": 1235
    },
    "tags": [
        "forwarded",
        "zscaler_zia-web"
    ],
    "threat": {
        "indicator": {
            "name": "196a3d797bfee07fe4596b69f4ce1141"
        }
    },
    "tls": {
        "cipher": "SSL3_CK_RSA_NULL_MD5"
    },
    "url": {
        "domain": "www.trythisencodeurl.com",
        "full": "http://www.trythisencodeurl.com/index",
        "original": "http://www.trythisencodeurl.com/index",
        "path": "/index",
        "scheme": "http"
    },
    "user": {
        "domain": "safemarch.com",
        "email": "jdoe@safemarch.com",
        "name": "jdoe"
    },
    "user_agent": {
        "device": {
            "name": "Other"
        },
        "name": "Other",
        "original": "Mozilla/5.0"
    },
    "zscaler_zia": {
        "web": {
            "alpn_protocol": "FTP",
            "app": {
                "class": "Administration",
                "name": "Adobe Connect"
            },
            "bandwidth_class_name": "Entertainment",
            "bandwidth_rule_name": "Office 365",
            "bandwidth_throttle": "Yes",
            "bypassed": {
                "time": "2023-10-16T22:55:48.000Z",
                "traffic": "0"
            },
            "client": {
                "cipher_reuse": "Unknown",
                "public_ip": "10.0.0.3",
                "ssl": {
                    "fail_count": 100,
                    "fail_reason": "Bad Record Mac"
                },
                "tls_keyex_alg": "X23319LMKEM788",
                "tls_keyex_hybrid_offers": 1,
                "tls_keyex_non_pqc_offers": 0,
                "tls_keyex_pqc_offers": 0,
                "tls_keyex_unknown_offers": 1,
                "tls_sig_alg": "rsa_pss_rsae_sha256",
                "tls_sig_hybrid_offers": 1,
                "tls_sig_non_pqc_offers": 0,
                "tls_sig_pqc_offers": 1,
                "tls_sig_unknown_offers": 0,
                "tls_version": "SSL2"
            },
            "content_type": "application/vnd_apple_keynote",
            "datacenter": {
                "city": "Sa",
                "country": "US",
                "name": "CA Client Node DC"
            },
            "day": "Mon",
            "day_of_month": 16,
            "department": "Sales",
            "device": {
                "appversion": "192.168.1.100",
                "os": {
                    "type": "iOS"
                },
                "owner": "jsmith"
            },
            "df": {
                "host": {
                    "head": "df_hosthead",
                    "name": "df_hostname"
                }
            },
            "dlp": {
                "dictionaries": {
                    "hit_count": "4",
                    "name": "Credit Cards"
                },
                "engine": "HIPAA",
                "identifier": "6646484838839026000",
                "md5": "154f149b1443fbfa8c121d13e5c019a1"
            },
            "dstip_country": "India",
            "eedone": "Yes",
            "epochtime": "2020-01-04T09:00:00.000Z",
            "file": {
                "class": "Active Web Contents",
                "type": "RAR Files"
            },
            "flow_type": "Direct",
            "forward_gateway": {
                "ip": "10.1.1.1",
                "name": "FWD_1"
            },
            "forward_type": "Direct",
            "ft_rulename": "FT Name",
            "hour": 22,
            "is_dst_cntry_risky": "No",
            "is_src_cntry_risky": "Yes",
            "is_ssl_certificate_expired": "Yes",
            "is_ssl_certificate_selfsigned": "Yes",
            "is_ssl_certificate_untrusted": "Pass",
            "key_protection_type": "HSM Protection",
            "location": "Headquarters",
            "malware": {
                "category": "Adware",
                "class": "Sandbox"
            },
            "minute": 55,
            "mobile": {
                "application": {
                    "category": "Communication",
                    "name": "Amazon"
                },
                "dev": {
                    "type": "Google Android"
                }
            },
            "module": "Administration",
            "month": "Oct",
            "month_of_year": 10,
            "nss": {
                "service": {
                    "ip": "192.168.2.200"
                }
            },
            "obfuscated": {
                "app_rule_label": "5300295980",
                "bendwidth": {
                    "class_name": "10831489"
                },
                "client": {
                    "ip": "6200694987",
                    "public": {
                        "ip": "624054738"
                    }
                },
                "device": {
                    "host_name": "2168890624",
                    "name": "2175092224",
                    "owner": "10831489"
                },
                "dlp": {
                    "dictionaries": "10831489",
                    "engine": "4094304256",
                    "rule": {
                        "name": "6857275752"
                    }
                },
                "forward_gateway_name": "8794487099",
                "login": "4094304256",
                "rule": {
                    "name": "3399565100"
                },
                "url": {
                    "category": "7956407282",
                    "filter_rule_label": "4951704103"
                },
                "zpa_app_segment": "7648246731"
            },
            "policy": {
                "reason": "Blocked"
            },
            "product_version": "5.0.902.95524_04",
            "prompt_req": "Prompt",
            "redirect_policy_name": "FWD_Rule_1",
            "referer": {
                "host": "www.example.com for http://www.example.com/index.html"
            },
            "request": {
                "header_size": 300,
                "payload": 1000
            },
            "response": {
                "code": "100",
                "header_size": 500,
                "payload": 10000
            },
            "risk": {
                "score": 10
            },
            "rule": {
                "type": "File Type Control"
            },
            "second": 48,
            "server": {
                "certificate": {
                    "validation": {
                        "period": "Short"
                    }
                },
                "certificate_validation_chain": "Unknown",
                "certificate_validation_type": "EV (Extended Validation)",
                "cipher": "SSL3_CK_RSA_NULL_MD5",
                "cipher_reuse": "Unknown",
                "ocsp_result": "Good",
                "tls_keyex_alg": "X23319LMKEM788",
                "tls_sig_alg": "rsa_pss_rsae_sha256",
                "tls_version": "SSL2",
                "wildcard_certificate": "Unknown"
            },
            "srcip_country": "India",
            "ssl_decrypted": "Yes",
            "ssl_rulename": "SSL Policy",
            "threat": {
                "name": "EICAR Test File",
                "severity": "Critical (90–100)"
            },
            "throttle": {
                "request_size": 5,
                "response_size": 7
            },
            "timezone": "GMT",
            "total": {
                "size": 11800
            },
            "traffic_redirect_method": "DNAT (Destination Translation)",
            "unscannable": {
                "type": "Encrypted File"
            },
            "upload": {
                "doc": {
                    "type_name": "Corporate Finance"
                },
                "file": {
                    "class": "upload_fileclass",
                    "type": "RAR Files"
                }
            },
            "url": {
                "category": {
                    "sub": "Entertainment",
                    "super": "Travel"
                },
                "category_method": "Database A",
                "class": "Bandwidth Loss"
            },
            "user_agent": {
                "class": "Firefox",
                "token": "Google Chrome (0.x)"
            },
            "user_location_name": "userlocationname",
            "year": 2023,
            "z_tunnel_version": "ZTUNNEL_1_0",
            "zpa_app_segment": "ZPA_test_app_segment"
        }
    }
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
event.dataset Event dataset. constant_keyword
event.module Event module. constant_keyword
input.type Type of Filebeat input. keyword
log.offset Log offset. long
log.source.address Source address from which the log event was read / sent from. keyword
zscaler_zia.web.action The action that the service took on the transaction. keyword
zscaler_zia.web.alpn_protocol The Application-Layer Protocol Negotiation (ALPN) protocol. keyword
zscaler_zia.web.app.class The web application class of the application that was accessed. keyword
zscaler_zia.web.app.name The name of the cloud application. keyword
zscaler_zia.web.app.risk_score The computed or assigned risk index for the cloud application. keyword
zscaler_zia.web.app.rule_label The name of the rule that was applied to the application. keyword
zscaler_zia.web.bandwidth_class_name The name of the bandwidth class. keyword
zscaler_zia.web.bandwidth_rule_name The name of the bandwidth rule. keyword
zscaler_zia.web.bandwidth_throttle Indicates whether the transaction was throttled due to a configured bandwidth policy. keyword
zscaler_zia.web.bypassed.time The date and time when the traffic bypassed the Zscaler Client Connector. date
zscaler_zia.web.bypassed.traffic Indicates whether the traffic bypassed the Zscaler Client Connector or not. keyword
zscaler_zia.web.client.cipher The negotiated cipher suite for communication between the client and Zscaler. keyword
zscaler_zia.web.client.cipher_reuse Client cipher reuse information. keyword
zscaler_zia.web.client.internet.ip The client's Internet (NATed Public) IP address. ip
zscaler_zia.web.client.ip The IP address of the user. ip
zscaler_zia.web.client.public_ip The client public IP address. ip
zscaler_zia.web.client.source_port The client source port. long
zscaler_zia.web.client.ssl.fail_count The number of failed client SSL handshake attempts. long
zscaler_zia.web.client.ssl.fail_reason The reason for the client SSL handshake failure. keyword
zscaler_zia.web.client.tls_keyex_alg The TLS client key exchange algorithm. keyword
zscaler_zia.web.client.tls_keyex_hybrid_offers Indicates if the TLS client offered a hybrid key exchange algorithm. long
zscaler_zia.web.client.tls_keyex_non_pqc_offers Indicates if the TLS client offered a non-PQC key exchange algorithm. long
zscaler_zia.web.client.tls_keyex_pqc_offers Indicates if the TLS client offered a post-quantum cryptography (PQC) key exchange algorithm. long
zscaler_zia.web.client.tls_keyex_unknown_offers Indicates if the TLS client offered an unknown key exchange algorithm. long
zscaler_zia.web.client.tls_sig_alg The TLS client digital signature algorithm. keyword
zscaler_zia.web.client.tls_sig_hybrid_offers Indicates if the TLS client offered a hybrid digital signature algorithm. long
zscaler_zia.web.client.tls_sig_non_pqc_offers Indicates if the TLS client offered a non-PQC digital signature algorithm. long
zscaler_zia.web.client.tls_sig_pqc_offers Indicates if the TLS client offered a PQC digital signature algorithm. long
zscaler_zia.web.client.tls_sig_unknown_offers Indicates if the TLS client offered an unknown digital signature algorithm. long
zscaler_zia.web.client.tls_version The TLS version used for communication between the client and Zscaler. keyword
zscaler_zia.web.cloud_name The name of the Zscaler cloud. keyword
zscaler_zia.web.company The name of the company. keyword
zscaler_zia.web.content_type The name of the content type. keyword
zscaler_zia.web.datacenter.city The city where the data center is located. keyword
zscaler_zia.web.datacenter.country The country where the data center is located. keyword
zscaler_zia.web.datacenter.name The name of the data center. keyword
zscaler_zia.web.day The day of the week. keyword
zscaler_zia.web.day_of_month The day of the month. long
zscaler_zia.web.department The department of the user. keyword
zscaler_zia.web.device.appversion The app version the device uses. keyword
zscaler_zia.web.device.hostname The hostname of the device. keyword
zscaler_zia.web.device.model The model of the device. keyword
zscaler_zia.web.device.name The name of the device. keyword
zscaler_zia.web.device.os.type The OS type of the device. keyword
zscaler_zia.web.device.os.version The OS version the device uses. keyword
zscaler_zia.web.device.owner The owner of the device. keyword
zscaler_zia.web.device.type The type of device. keyword
zscaler_zia.web.df.host.head The field contains HTTP/S transactions that indicate domain fronting due to an FQDN mismatch between the request URL and the request's host header. keyword
zscaler_zia.web.df.host.name An optional field that contains the TLS connection's Server Name Indication (SNI). keyword
zscaler_zia.web.dlp.dictionaries.hit_count The number of hits for each of the dictionaries that were matched in the transaction. keyword
zscaler_zia.web.dlp.dictionaries.name The DLP dictionaries that were matched. keyword
zscaler_zia.web.dlp.engine The DLP engine that was matched. keyword
zscaler_zia.web.dlp.identifier The unique identifier of the DLP incident. keyword
zscaler_zia.web.dlp.md5 The MD5 hash of the transaction. keyword
zscaler_zia.web.dlp.rule.name The name of the DLP rule applied to the transaction. keyword
zscaler_zia.web.dstip_country The country associated with the destination IP address. keyword
zscaler_zia.web.eedone Indicates if the characters specified in the Feed Escape Character field of the NSS feed configuration page were hex encoded. keyword
zscaler_zia.web.epochtime The epoch time of the transaction. date
zscaler_zia.web.external.device.id The external device ID that associates a user’s device with the mobile device management (MDM) solution. keyword
zscaler_zia.web.file.class The class of file downloaded during the transaction. keyword
zscaler_zia.web.file.name The name of downloaded files during the transaction. keyword
zscaler_zia.web.file.subtype Applicable to the web traffic processed via Isolation. keyword
zscaler_zia.web.file.type The type of file downloaded during the transaction. keyword
zscaler_zia.web.flow_type The flow type of the transaction. keyword
zscaler_zia.web.forward_gateway.ip The IP address of the gateway used. ip
zscaler_zia.web.forward_gateway.name The name of the gateway defined in a forwarding rule. keyword
zscaler_zia.web.forward_type The type of forwarding method used. keyword
zscaler_zia.web.ft_rulename The name of the File Type Control rule applied to the transaction. Applies only to Allow rules, not Block. keyword
zscaler_zia.web.host The destination hostname. keyword
zscaler_zia.web.hour Hours. long
zscaler_zia.web.is_dst_cntry_risky Indicates whether the country associated with the destination IP address is risky or not. keyword
zscaler_zia.web.is_src_cntry_risky Indicates whether the country associated with the source IP address is risky or not. keyword
zscaler_zia.web.is_ssl_certificate_expired Indicates whether the certificate presented by the server is expired or not. keyword
zscaler_zia.web.is_ssl_certificate_selfsigned Indicates whether the certificate presented by the server to the ZIA Public Service Edge was self-signed. keyword
zscaler_zia.web.is_ssl_certificate_untrusted Indicates whether the server certificate is signed by a Zscaler-trusted certificate authority or not. keyword
zscaler_zia.web.key_protection_type Indicates whether an HSM Protection or a Software Protection intermediate CA certificate is used for the TLS interception. keyword
zscaler_zia.web.location The gateway location or sub-location of the source. keyword
zscaler_zia.web.login The user's login name in email address format. keyword
zscaler_zia.web.malware.category The category of malware that was detected in the transaction. keyword
zscaler_zia.web.malware.class The class of malware that was detected in the transaction. keyword
zscaler_zia.web.md5_hash The MD5 hash of the malware file that was detected in the transaction, or the MD5 of the file that was sent for analysis to the Sandbox engine. keyword
zscaler_zia.web.minute Minutes. long
zscaler_zia.web.mobile.application.category The category of the mobile app. keyword
zscaler_zia.web.mobile.application.name The name of the mobile app. keyword
zscaler_zia.web.mobile.dev.type The type of mobile device. keyword
zscaler_zia.web.module The web application class of the application that was accessed. keyword
zscaler_zia.web.month The name of the month. keyword
zscaler_zia.web.month_of_year The month of the year. long
zscaler_zia.web.nss.service.ip The service IP address of the NSS. ip
zscaler_zia.web.obfuscated.app_rule_label The obfuscated version of the name of the rule that was applied to the application. keyword
zscaler_zia.web.obfuscated.bendwidth.class_name The obfuscated version of the name of the bandwidth class. keyword
zscaler_zia.web.obfuscated.client.ip The obfuscated version of the IP address of the user. keyword
zscaler_zia.web.obfuscated.client.public.ip The obfuscated version of the client public IP address. keyword
zscaler_zia.web.obfuscated.device.host_name The obfuscated version of the hostname of the device. keyword
zscaler_zia.web.obfuscated.device.name The obfuscated version of the name of the device. keyword
zscaler_zia.web.obfuscated.device.owner The obfuscated version of the owner of the device. keyword
zscaler_zia.web.obfuscated.dlp.dictionaries The obfuscated version of the DLP dictionaries that were matched. keyword
zscaler_zia.web.obfuscated.dlp.engine The obfuscated version of the DLP engine that was matched. keyword
zscaler_zia.web.obfuscated.dlp.rule.name The obfuscated version of the name of the DLP rule that was applied. keyword
zscaler_zia.web.obfuscated.forward_gateway_name The obfuscated version of the gateway defined in a forwarding rule. keyword
zscaler_zia.web.obfuscated.login The obfuscated version of the user's login name. keyword
zscaler_zia.web.obfuscated.rule.name The obfuscated version of the name of the redirect/forwarding policy. keyword
zscaler_zia.web.obfuscated.url.category The obfuscated version of the category of the destination URL. keyword
zscaler_zia.web.obfuscated.url.filter_rule_label The obfuscated version of the name of the rule that was applied to the URL filter. keyword
zscaler_zia.web.obfuscated.zpa_app_segment The obfuscated version of the ZPA application segment. keyword
zscaler_zia.web.policy.reason The SSL policy reasons. keyword
zscaler_zia.web.product_version The current version of the product. keyword
zscaler_zia.web.prompt_req The prompt entered by the user in the generative AI application. keyword
zscaler_zia.web.prototype The protocol type of the transaction. keyword
zscaler_zia.web.reason The action that the service took and the policy that was applied. keyword
zscaler_zia.web.record.id The unique record identifier for each log. keyword
zscaler_zia.web.redirect_policy_name The name of the redirect/forwarding policy. keyword
zscaler_zia.web.referer.host The hostname of the referer URL. keyword
zscaler_zia.web.referer.name The HTTP referer URL. keyword
zscaler_zia.web.request.header_size The size of the HTTP request header in bytes. long
zscaler_zia.web.request.method The HTTP request method. keyword
zscaler_zia.web.request.payload The size of the HTTP request payload. long
zscaler_zia.web.request.size The request size in bytes. long
zscaler_zia.web.request.version The HTTP request version. keyword
zscaler_zia.web.response.code The HTTP response code sent to the client. keyword
zscaler_zia.web.response.header_size The size of the HTTP response header in bytes. long
zscaler_zia.web.response.payload The size of the HTTP response payload. long
zscaler_zia.web.response.size The total size of the HTTP response in bytes. long
zscaler_zia.web.response.version The HTTP response version. keyword
zscaler_zia.web.risk.score The Page Risk Index score of the destination URL. double
zscaler_zia.web.rule.name The name of the rule that was applied to the transaction. keyword
zscaler_zia.web.rule.type The type of policy. keyword
zscaler_zia.web.second Seconds. long
zscaler_zia.web.server.certificate.validation.period The expiration of the server certificate. keyword
zscaler_zia.web.server.certificate_validation_chain The validation of the certificate chain. keyword
zscaler_zia.web.server.certificate_validation_type The validation method of the server certificate. keyword
zscaler_zia.web.server.cipher The negotiated cipher suite for communication between Zscaler and the server. keyword
zscaler_zia.web.server.cipher_reuse Server cipher reuse information. keyword
zscaler_zia.web.server.ip The destination server IP address. ip
zscaler_zia.web.server.ocsp_result The OCSP result/certificate revocation result. keyword
zscaler_zia.web.server.tls_keyex_alg The TLS server key exchange algorithm. keyword
zscaler_zia.web.server.tls_sig_alg The TLS client digital signature algorithm. keyword
zscaler_zia.web.server.tls_version The TLS/SSL version used for communication between the ZIA Public Service Edge and the server. keyword
zscaler_zia.web.server.wildcard_certificate The server wildcard certificate. keyword
zscaler_zia.web.sha256 The hash of identical files. keyword
zscaler_zia.web.srcip_country The country associated with the source IP address. keyword
zscaler_zia.web.ssl_decrypted Indicates whether the transaction was SSL inspected or not. keyword
zscaler_zia.web.ssl_rulename The name of the SSL Inspection policy rule that was applied to the transaction. keyword
zscaler_zia.web.threat.name The name of the threat that was detected in the transaction. keyword
zscaler_zia.web.threat.severity The severity of the threat that was detected in the transaction. keyword
zscaler_zia.web.throttle.request_size The throttled transaction size in the Uplink direction (Upload) in bytes. long
zscaler_zia.web.throttle.response_size The throttled transaction size in the Downlink direction (Download) in bytes. long
zscaler_zia.web.time The time and date of the transaction. date
zscaler_zia.web.timezone The time zone. keyword
zscaler_zia.web.total.size The total size of the HTTP transaction in bytes. long
zscaler_zia.web.traffic_redirect_method The traffic forwarding method to ZIA Public Service Edges. keyword
zscaler_zia.web.unscannable.type The unscannable file type. keyword
zscaler_zia.web.upload.doc.type_name The type of document uploaded or downloaded during the transaction. keyword
zscaler_zia.web.upload.file.class The class of file uploaded during the transaction. keyword
zscaler_zia.web.upload.file.name The name of uploaded files during the transaction. keyword
zscaler_zia.web.upload.file.subtype The subtype of the uploaded file (extension name). keyword
zscaler_zia.web.upload.file.type The type of file uploaded during the transaction. keyword
zscaler_zia.web.url.category.sub The category of the destination URL. keyword
zscaler_zia.web.url.category.super The super category of the destination URL. keyword
zscaler_zia.web.url.category_method Refers to the source of the URL's category. keyword
zscaler_zia.web.url.class The class of the destination URL. keyword
zscaler_zia.web.url.filter_rule_label The name of the rule that was applied to the URL filter. keyword
zscaler_zia.web.url.name The destination URL. keyword
zscaler_zia.web.user_agent.class The user agent class. keyword
zscaler_zia.web.user_agent.name The full user agent string for both known and unknown agents. keyword
zscaler_zia.web.user_agent.token The user agent token. keyword
zscaler_zia.web.user_location_name Applicable to the web traffic processed via Isolation. keyword
zscaler_zia.web.year Year. long
zscaler_zia.web.z_tunnel_version The Z-Tunnel version. keyword
zscaler_zia.web.zpa_app_segment The name of the Zscaler Private Access (ZPA) application segment. keyword

This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.

Audit Logs Dashboard
DNS Logs Dashboard
Endpoint DLP Logs Dashboard
Firewall Logs Dashboard
Overview Logs Dashboard
SaaS Security Logs Dashboard
SaaS Security Activity Logs Dashboard
Sandbox Reports Logs Dashboard
Tunnel Logs Dashboard
Web Access Control Logs Dashboard
Web Overview Logs Dashboard
Changelog
Version Details Minimum Kibana version
3.22.0 Enhancement (View pull request)
Enable request trace log removal.

Bug fix (View pull request)
Fix the package version string in the ingest pipeline to correctly display the link present in error.message for saas_security data stream.		 9.0.0
8.18.0
3.21.0 Enhancement (View pull request)
Add support for SaaS Security Activity data stream.		 9.0.0
8.18.0
3.20.0 Enhancement (View pull request)
Use new release field for agentless deployment mode to establish as beta.		 9.0.0
8.18.0
3.19.0 Enhancement (View pull request)
Add support for SaaS Security data stream.		 9.0.0
8.18.0
3.18.0 Enhancement (View pull request)
Adds note about unsupported agentless streams to Zscaler ZIA integration		 9.0.0
8.18.0
3.17.1 Bug fix (View pull request)
Remove duplicate security-solution-default tag references		 9.0.0
8.18.0
3.17.0 Enhancement (View pull request)
Add support for new fields in the DNS and Web Dataset.		 9.0.0
8.18.0
3.16.0 Enhancement (View pull request)
Use links panels in the dashboards.		 9.0.0
8.18.0
3.15.1 Bug fix (View pull request)
Fix pkg_version parameter in the check_template_version script in ingest pipelines.		 9.0.0
8.18.0
3.15.0 Enhancement (View pull request)
Add prompt_req, is_src_cntry_risky and is_dst_cntry_risky fields in web logs.
Users ingesting web logs must update to the latest response format in Zscalar ZIA.
 9.0.0
8.18.0
3.14.0 Enhancement (View pull request)
Use terminate processor instead of fail processor to handle agent errors.		 9.0.0
8.18.0
3.13.0 Enhancement (View pull request)
Remove duplicated installation instructions from the documentation		 9.0.0
8.18.0
3.12.1 Bug fix (View pull request)
Add temporary processor to remove the fields added by the Agentless policy.		 9.0.0
8.18.0
3.12.0 Enhancement (View pull request)
Add strict field template mode for TCP and HTTP Endpoint input data streams.		 9.0.0
8.18.0
3.11.0 Enhancement (View pull request)
Update event.type from info to access, and add the event.outcome ECS field.		 9.0.0
8.18.0
3.10.1 Bug fix (View pull request)
Fix default request trace enabled behavior.		 9.0.0
8.18.0
3.10.0 Enhancement (View pull request)
Enable request trace log removal.		 9.0.0
8.18.0
3.9.0 Enhancement (View pull request)
Added request tracing config option for http_endpoint input.		 9.0.0
8.18.0
3.8.0 Bug fix (View pull request)
Add agentless deployment.		 9.0.0
8.18.0
3.7.2 Bug fix (View pull request)
Added description to ssl nodes in package level manifest.yml file to including links to documentation.		 9.0.0
8.13.0
3.7.1 Bug fix (View pull request)
Updated SSL description in package manifest.yml to be uniform and to include links to documentation.		 9.0.0
8.13.0
3.7.0 Enhancement (View pull request)
Update Kibana constraint to support 9.0.0.		 9.0.0
8.13.0
3.6.3 Bug fix (View pull request)
Use source.nat.ip as alternate for geo IPs in firewall and web logs.		 8.13.0
3.6.2 Bug fix (View pull request)
Drop 'Unknown' values in the audit data stream.		 8.13.0
3.6.1 Bug fix (View pull request)
Defensively copy list parameters in 'Set ECS categorization fields' script.		 8.13.0
3.6.0 Enhancement (View pull request)
Add "preserve_original_event" tag to documents with event.kind manually set to "pipeline_error".		 8.13.0
3.5.0 Enhancement (View pull request)
Add "preserve_original_event" tag to documents with event.kind set to "pipeline_error".		 8.13.0
3.4.0 Enhancement (View pull request)
Add custom input options to HTTP endpoint		 8.13.0
3.3.0 Bug fix (View pull request)
Fix source/destination ip mapping in firewall logs.

Enhancement (View pull request)
Add geoip processor to source and destination ip.		 8.13.0
3.2.4 Bug fix (View pull request)
Improve data processing in the web pipeline.		 8.13.0
3.2.3 Bug fix (View pull request)
Remove department field and add on_failure clauses.		 8.13.0
3.2.2 Bug fix (View pull request)
Sanitize unwanted characters in firewall.		 8.13.0
3.2.1 Bug fix (View pull request)
In web v8, use b64 fields to avoid encoding issues.		 8.13.0
3.2.0 Enhancement (View pull request)
Add hex-encoded fields in web logs.		 8.13.0
3.1.0 Enhancement (View pull request)
Remove url field from web logs.		 8.13.0
3.0.4 Bug fix (View pull request)
Update response format version numbers.		 8.13.0
3.0.3 Bug fix (View pull request)
Add eurl hex-encoded field for url parsing.		 8.13.0
3.0.2 Bug fix (View pull request)
Fix url parsing in Web logs.		 8.13.0
3.0.1 Bug fix (View pull request)
Update NSS Feed Screenshot with updated Feed Output Format of Web.		 8.13.0
3.0.0 Enhancement (View pull request)
Add Audit data-stream.

Enhancement (View pull request)
Add Endpoint DLP data-stream.

Enhancement (View pull request)
Add Sandbox Report data-stream.

Enhancement (View pull request)
Add support for new fields for existing data streams.		 8.13.0
2.20.2 Bug fix (View pull request)
Add additional condition for failure processor.		 8.13.0
2.20.1 Bug fix (View pull request)
Prevent failure on not encoded URLs.		 8.13.0
2.20.0 Enhancement (View pull request)
Removed import_mappings. Update the kibana constraint to ^8.13.0. Modified the field definitions to remove ECS fields made redundant by the ecs@mappings component template.		 8.13.0
2.19.2 Bug fix (View pull request)
Include cintip field to web log template.		 8.12.0
2.19.1 Bug fix (View pull request)
Fix mapping of source.ip and source.nat.ip		 8.12.0
2.19.0 Enhancement (View pull request)
Set sensitive values as secret.		 8.12.0
2.18.3 Bug fix (View pull request)
Remove ignore_failure clause in web events.		 8.3.0
2.18.2 Bug fix (View pull request)
Fix mapping of user identities.		 8.3.0
2.18.1 Enhancement (View pull request)
Changed owners		 8.3.0
2.18.0 Enhancement (View pull request)
ECS version updated to 8.11.0.		 8.3.0
2.17.0 Enhancement (View pull request)
Add question and answer names, and response data to relate.hosts and related.ip.		 8.3.0
2.16.0 Enhancement (View pull request)
Improve 'event.original' check to avoid errors if set.		 8.3.0
2.15.0 Enhancement (View pull request)
ECS version updated to 8.10.0.		 8.3.0
2.14.0 Enhancement (View pull request)
The format_version in the package manifest changed from 2.11.0 to 3.0.0. Removed dotted YAML keys from package manifest. Added 'owner.type: elastic' to package manifest.		 8.3.0
2.13.0 Enhancement (View pull request)
Add tags.yml file so that integration's dashboards and saved searches are tagged with "Security Solution" and displayed in the Security Solution UI.		 8.3.0
2.12.0 Enhancement (View pull request)
Update package to ECS 8.9.0.		 8.3.0
2.11.1 Bug fix (View pull request)
Update the mapping for user.name and host.name fields.		 8.3.0
2.11.0 Enhancement (View pull request)
Ensure event.kind is correctly set for pipeline errors.		 8.3.0
2.10.0 Enhancement (View pull request)
Update package to ECS 8.8.0.		 8.3.0
2.9.0 Enhancement (View pull request)
Update package-spec version to 2.7.0.		 8.3.0
2.8.0 Enhancement (View pull request)
Update package to ECS 8.7.0.		 8.3.0
2.7.3 Enhancement (View pull request)
Map web login user details to ECS.		 8.3.0
2.7.2 Enhancement (View pull request)
Added categories and/or subcategories.		 —
2.7.1 Enhancement (View pull request)
Add support for dynamic ECS mapping.

Bug fix (View pull request)
Resolve the issue related to the user agent field.

Bug fix (View pull request)
Resolve the issue related to fields that contain a NA value.		 8.3.0
2.7.0 Enhancement (View pull request)
Update package to ECS 8.6.0.		 8.3.0
2.6.1 Bug fix (View pull request)
Remove duplicate fields.		 8.3.0
2.6.0 Enhancement (View pull request)
Update Aggregation visualizations to Lens, Add an on_failure processor to the convert, geo_ip, uri_parts and date processors, remove unnecessary white spaces, mapped to related ecs field and convert double quotes to single quotes.		 8.3.0
2.5.0 Enhancement (View pull request)
Update package to ECS 8.5.0.		 8.3.0
2.4.1 Bug fix (View pull request)
Remap network.protocol to valid values for web data stream.		 8.3.0
2.4.0 Enhancement (View pull request)
Update package to ECS 8.4.0		 8.3.0
2.3.1 Enhancement (View pull request)
Updated the documentation links in README file		 8.3.0
2.3.0 Bug fix (View pull request)
Fix issue related URI parts processor.

Enhancement (View pull request)
Added support for optionally configuring secret header and secret value for cloud NSS input.		 8.3.0
2.2.0 Enhancement (View pull request)
Update package to ECS 8.3.0.		 8.3.0
2.1.0 Enhancement (View pull request)
Make GA		 8.3.0
2.0.0 Enhancement (View pull request)
Added input for Cloud NSS using HTTP Endpoint input type.		 8.3.0
0.2.0 Enhancement (View pull request)
Update ECS to 8.2		 —
0.1.3 Enhancement (View pull request)
Updated the image file reference in README file.		 8.0.0
7.16.2
0.1.2 Enhancement (View pull request)
Add documentation for multi-fields.		 8.0.0
7.16.2
0.1.1 Enhancement (View pull request)
Updated the README to describe the Zscaler ZIA setup process in detail.		 8.0.0
7.16.2
0.1.0 Enhancement (View pull request)
Initial draft of the package.		 8.0.0
7.16.2
