Cloudflare Logpush Integration for Elastic


Version	1.46.0 (View all)
Subscription level What's this?	Basic
Developed by What's this?	Elastic
Ingestion method(s)	AWS S3, Azure Blob Storage, Google Cloud Storage, Webhook
Minimum Kibana version(s)	9.0.0 8.17.1

Overview

The Cloudflare Logpush integration allows you to monitor Access Request, Audit, CASB, Device Posture, DLP Forensic Copies, DNS, DNS Firewall, Email Security Alerts, Firewall Event, Gateway DNS, Gateway HTTP, Gateway Network, HTTP Request, Magic IDS, NEL Report, Network Analytics, Page Shield, Sinkhole HTTP, Spectrum Event, Zero Trust Network Session, and Workers Trace Events logs.

Cloudflare is a content delivery network and DDoS mitigation company. Cloudflare provides a network designed to make everything you connect to the Internet secure, private, fast, and reliable; secure your websites, APIs, and Internet applications; protect corporate networks, employees, and devices; and write and deploy code that runs on the network edge.

Compatibility

This integration follows the log schemas and field definitions published in the Cloudflare Log fields reference.

Cloudflare Logpush supports delivering logs to the following destinations, which can all be consumed by this integration:

HTTP destinations
Amazon S3
S3-compatible endpoints (including Cloudflare R2)
Google Cloud Storage
Microsoft Azure Blob Storage

How it works

Cloudflare Logpush pushes logs to the destination of your choice. Elastic Agent then reads those logs and ships them to Elasticsearch, where they are processed through each data stream's ingest pipeline.

The integration supports the following collection modes:

HTTP Endpoint mode — Cloudflare pushes logs directly to an HTTP endpoint hosted by your Elastic Agent.
AWS S3 polling mode — Cloudflare writes logs to an S3 bucket and Elastic Agent polls the bucket by listing its contents and reading new files.
AWS S3 SQS mode — Cloudflare writes logs to S3; S3 publishes object-created notifications to an SQS queue; Elastic Agent receives those notifications from SQS and reads the corresponding S3 objects. This mode supports horizontal scaling across multiple agents.
S3-compatible (Cloudflare R2) polling mode — Cloudflare writes logs to an R2 or other S3-compatible bucket and Elastic Agent polls the bucket using the S3 API.
Azure Blob Storage polling mode — Cloudflare writes logs to an Azure Blob Storage container and Elastic Agent polls the container by listing its contents and reading new files.
Google Cloud Storage polling mode — Cloudflare writes logs to a GCS bucket and Elastic Agent polls the bucket by listing its contents and reading new files.

What data does this integration collect?

The Cloudflare Logpush integration collects logs for the following Cloudflare datasets. Data streams are grouped by whether the underlying dataset is classified as a Cloudflare Zero Trust dataset or a non Zero Trust dataset.

Zero Trust events

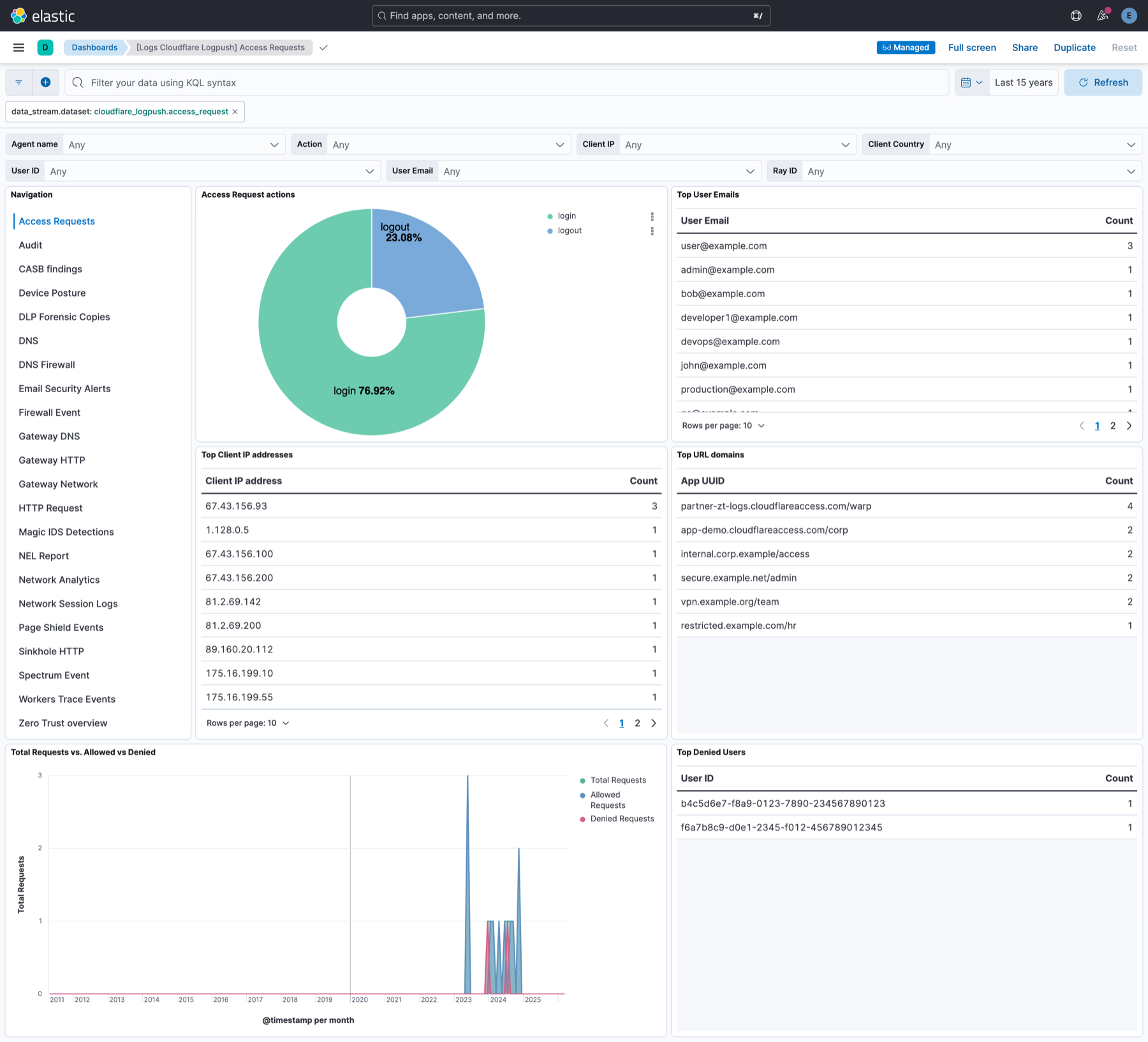

access_request: HTTP requests to sites protected by Cloudflare Access. See Access Requests schema.
audit: Authentication events through Cloudflare Access, plus account-level configuration and administrative actions. See Audit Logs schema.
casb: Security issues detected by Cloudflare CASB in connected SaaS applications. See CASB Findings schema.

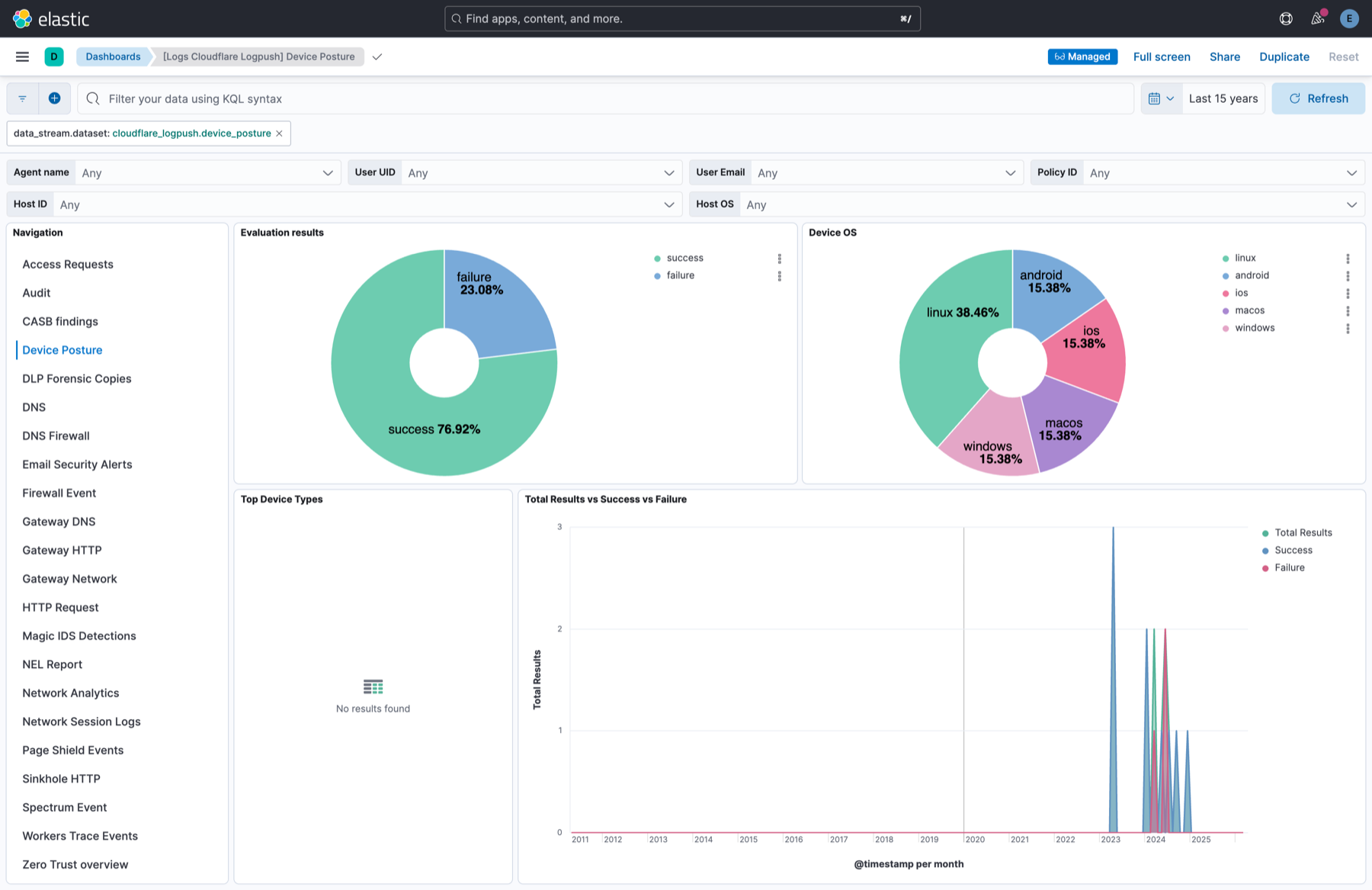

device_posture: Device posture status from the Cloudflare One Client (WARP). See Device Posture Results schema.

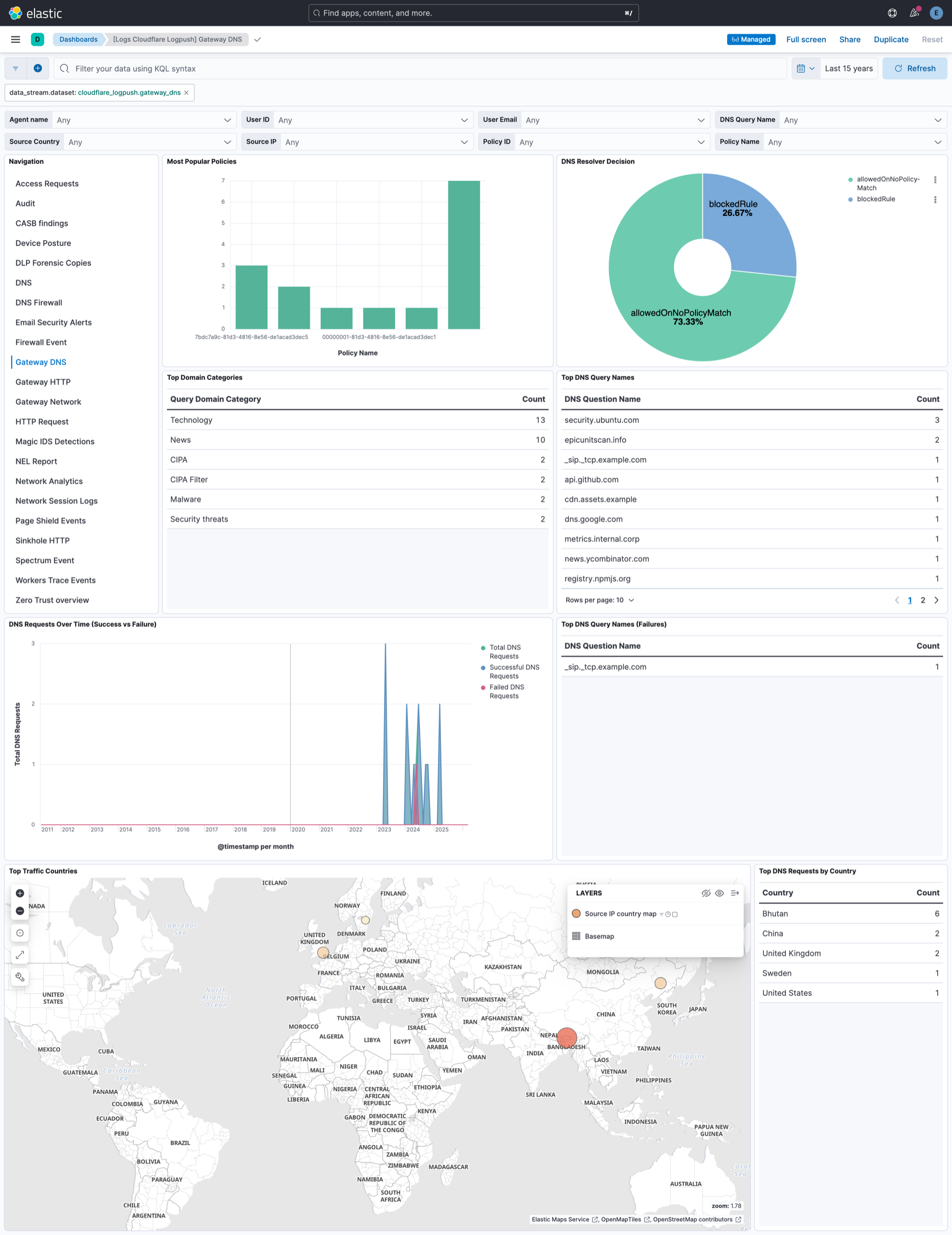

gateway_dns: DNS queries inspected by Cloudflare Gateway. See Gateway DNS schema.
gateway_http: HTTP requests inspected by Cloudflare Gateway. See Gateway HTTP schema.

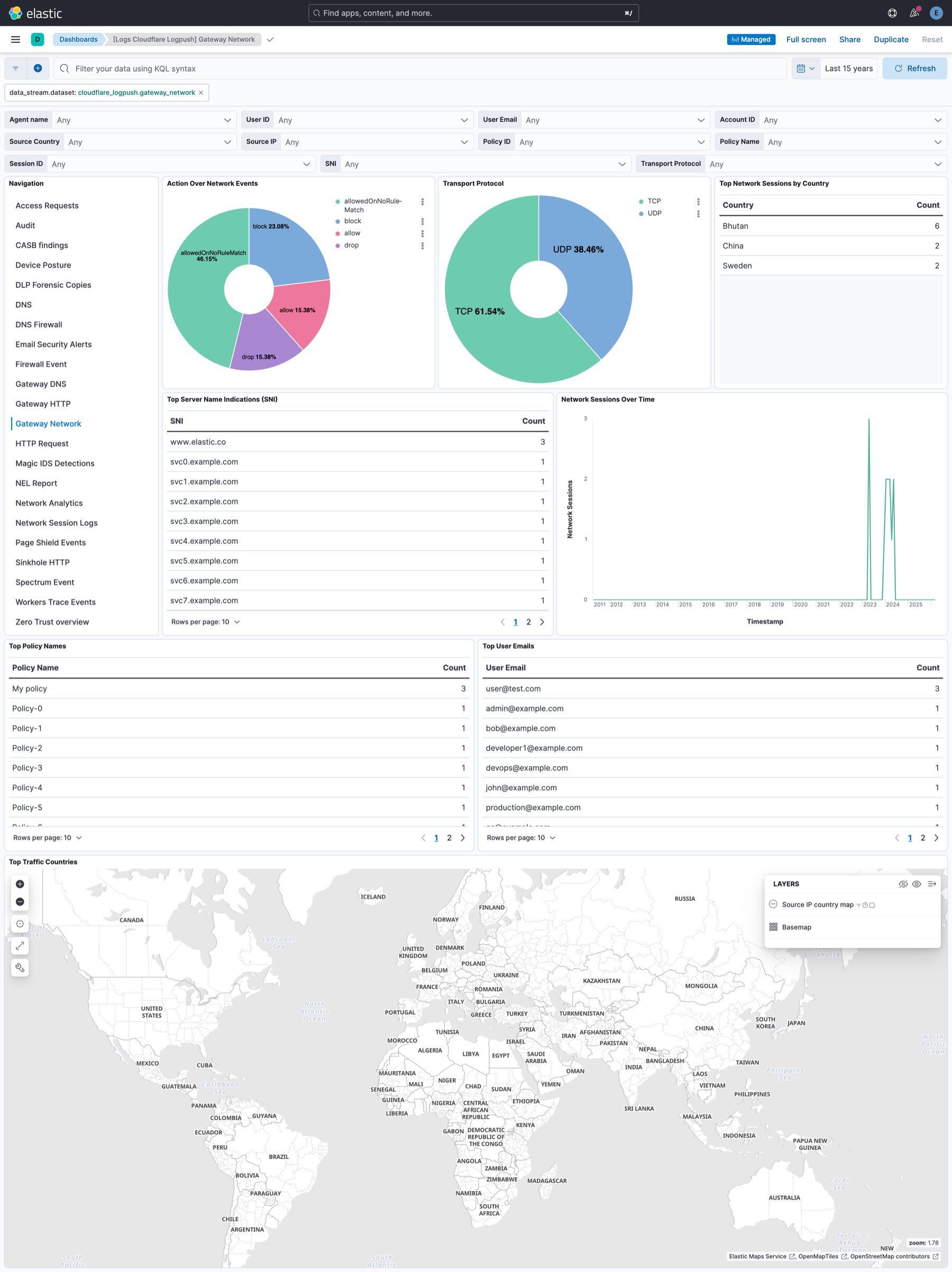

gateway_network: Network packets inspected by Cloudflare Gateway. See Gateway Network schema.

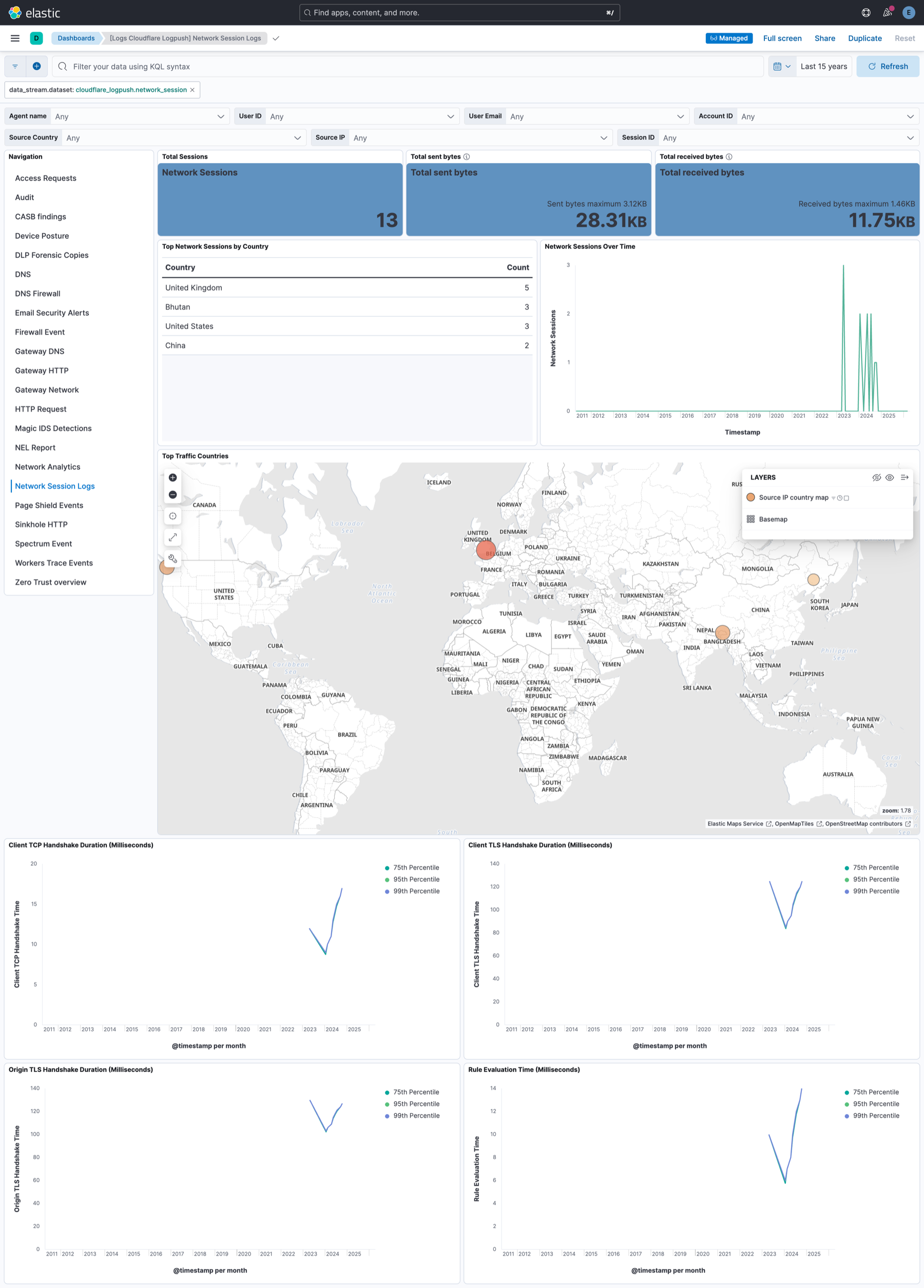

network_session: Network session logs for traffic proxied by Cloudflare Gateway. See Zero Trust Network Session schema.

Non Zero Trust events

dns: Zone-scoped authoritative DNS query logs. See DNS logs schema.
dns_firewall: Cloudflare DNS Firewall query and response logs. See DNS Firewall logs schema.
dlp_forensic_copies: Data Loss Prevention forensic copies of content that matched a DLP profile. See DLP Forensic Copies schema.
email_security_alerts: Cloudflare Email Security alerts for phishing, malware, and other email-based threats. See Email Security Alerts schema.

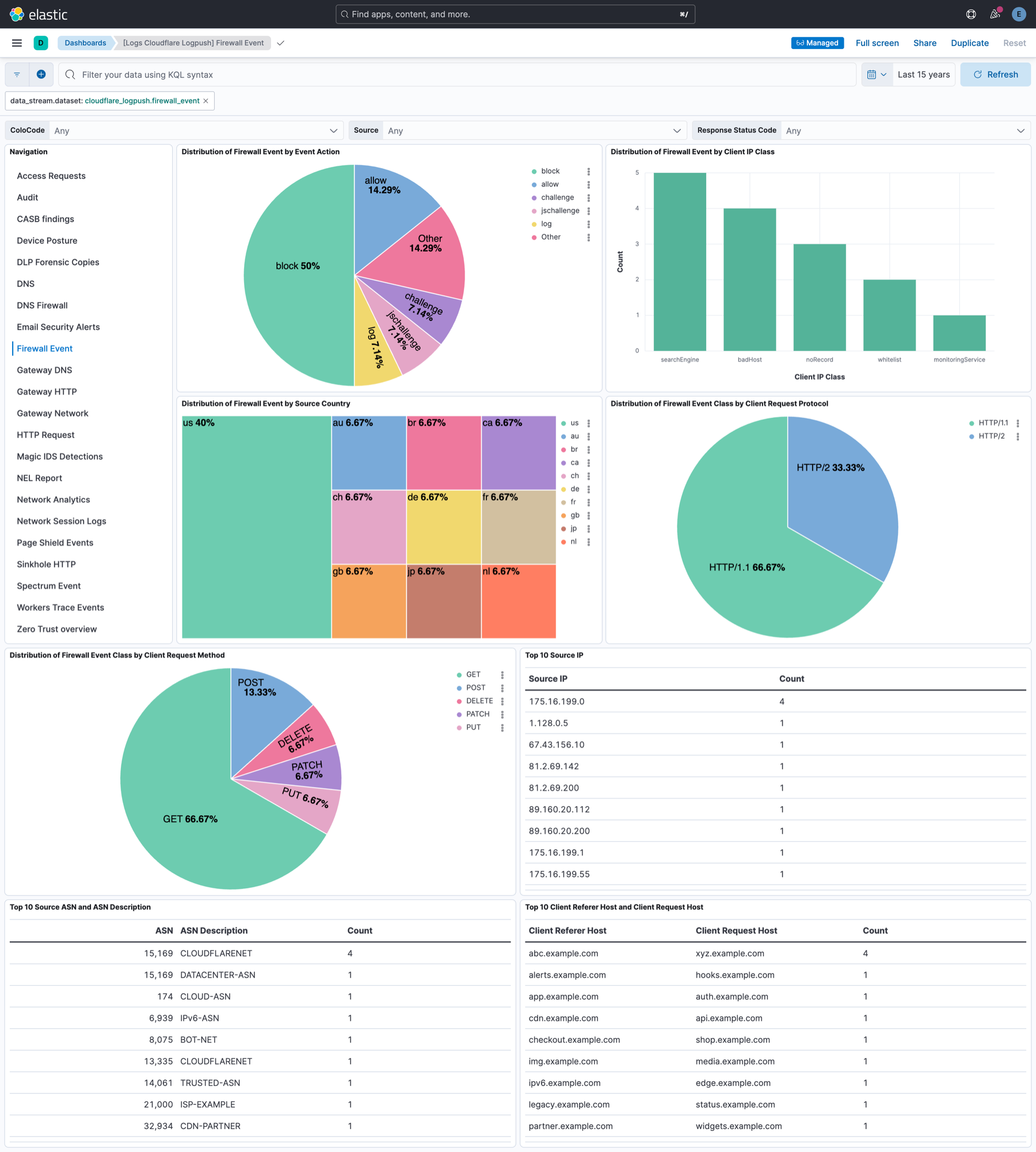

firewall_event: Zone-level Firewall events for requests mitigated by Cloudflare security products (WAF, Rate Limiting, Firewall Rules, etc.). See Firewall Events schema.

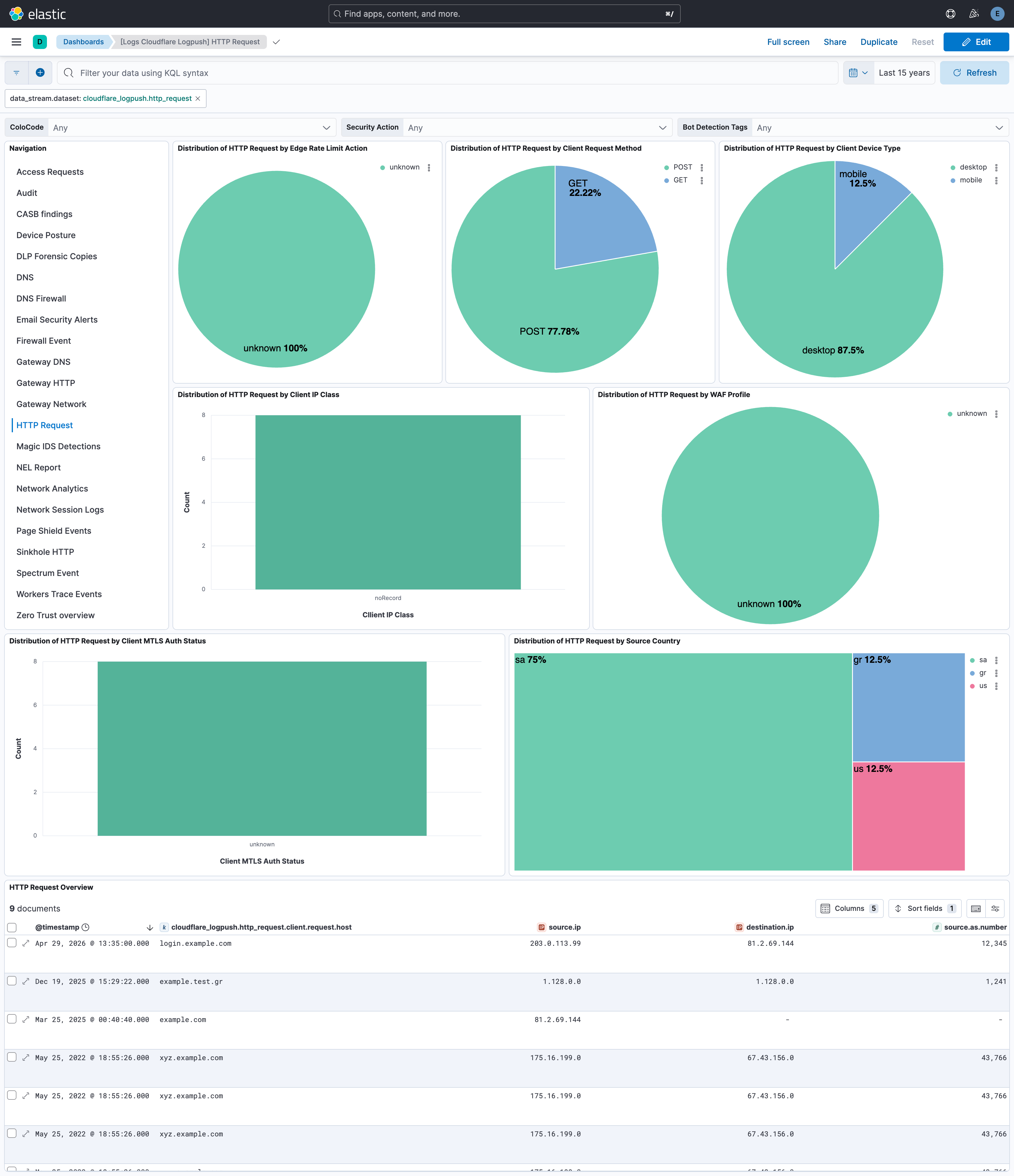

http_request: HTTP/HTTPS request logs served at the Cloudflare edge. See HTTP Requests schema.

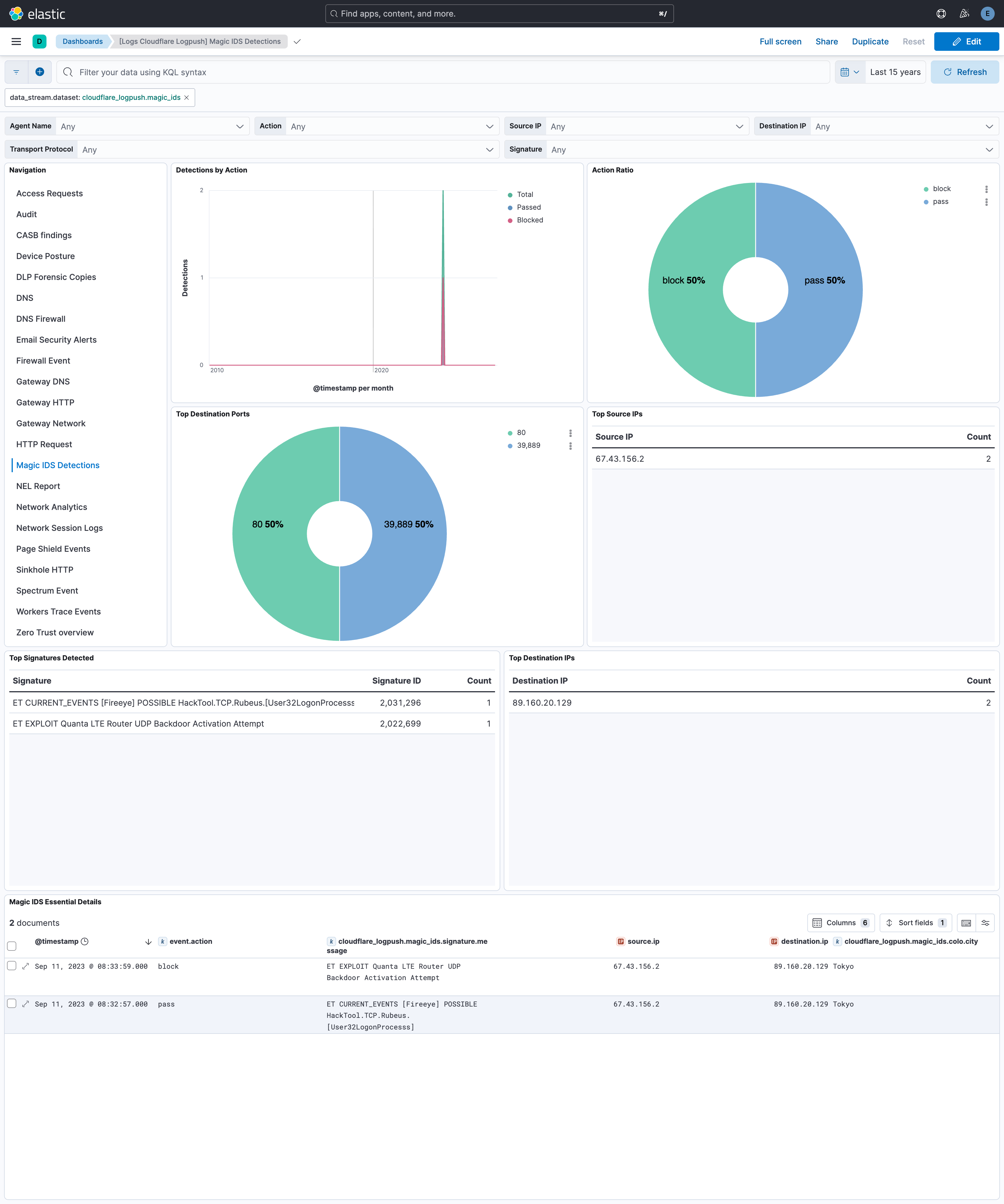

magic_ids: Magic Network Monitoring IDS detection logs. See Magic IDS Detections schema.
nel_report: Network Error Logging (NEL) reports collected from end-user browsers. See NEL Reports schema.

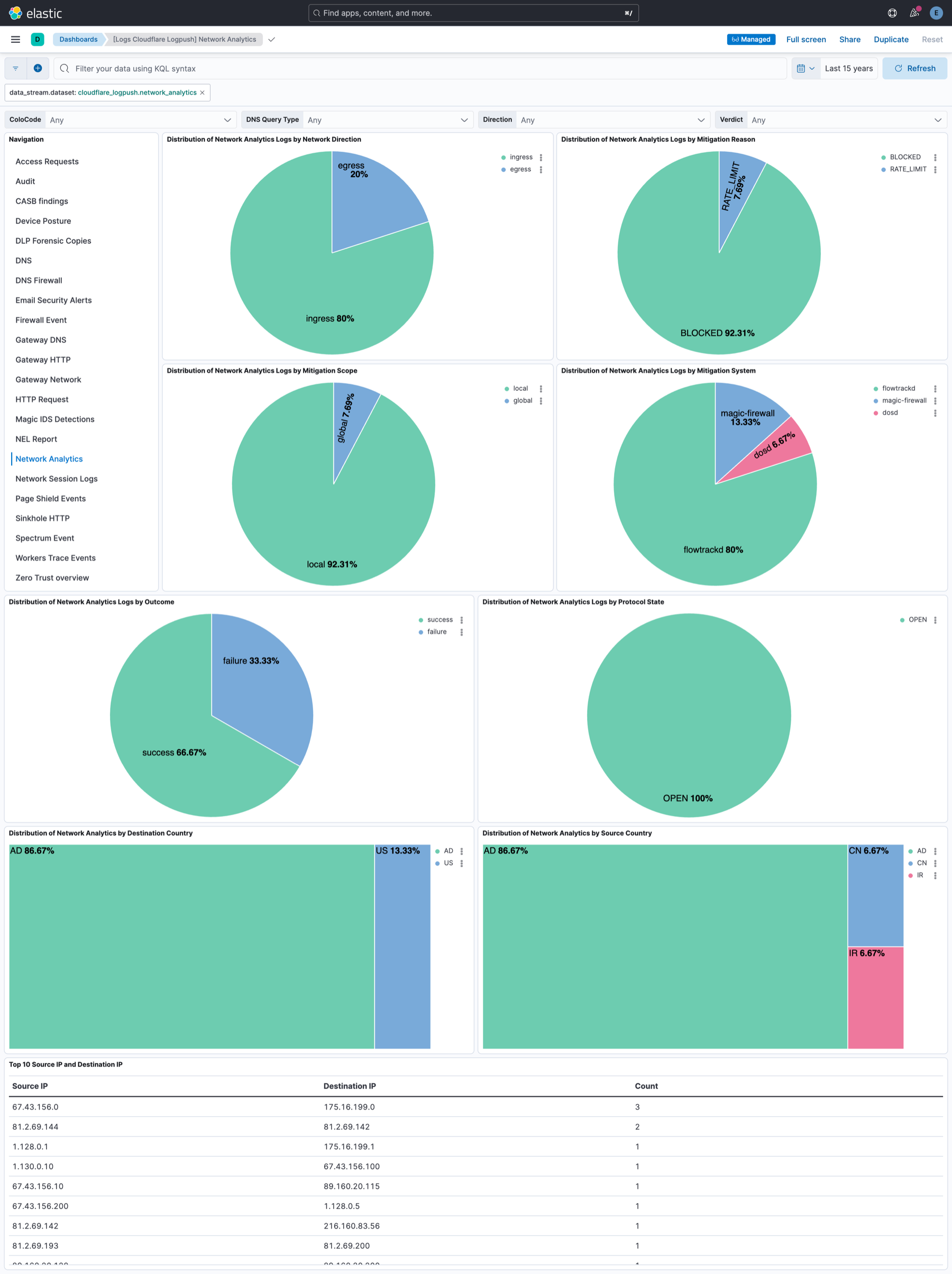

network_analytics: Network Analytics (Magic Transit / Magic WAN packet-sampled flow) logs. See Network Analytics Logs schema.

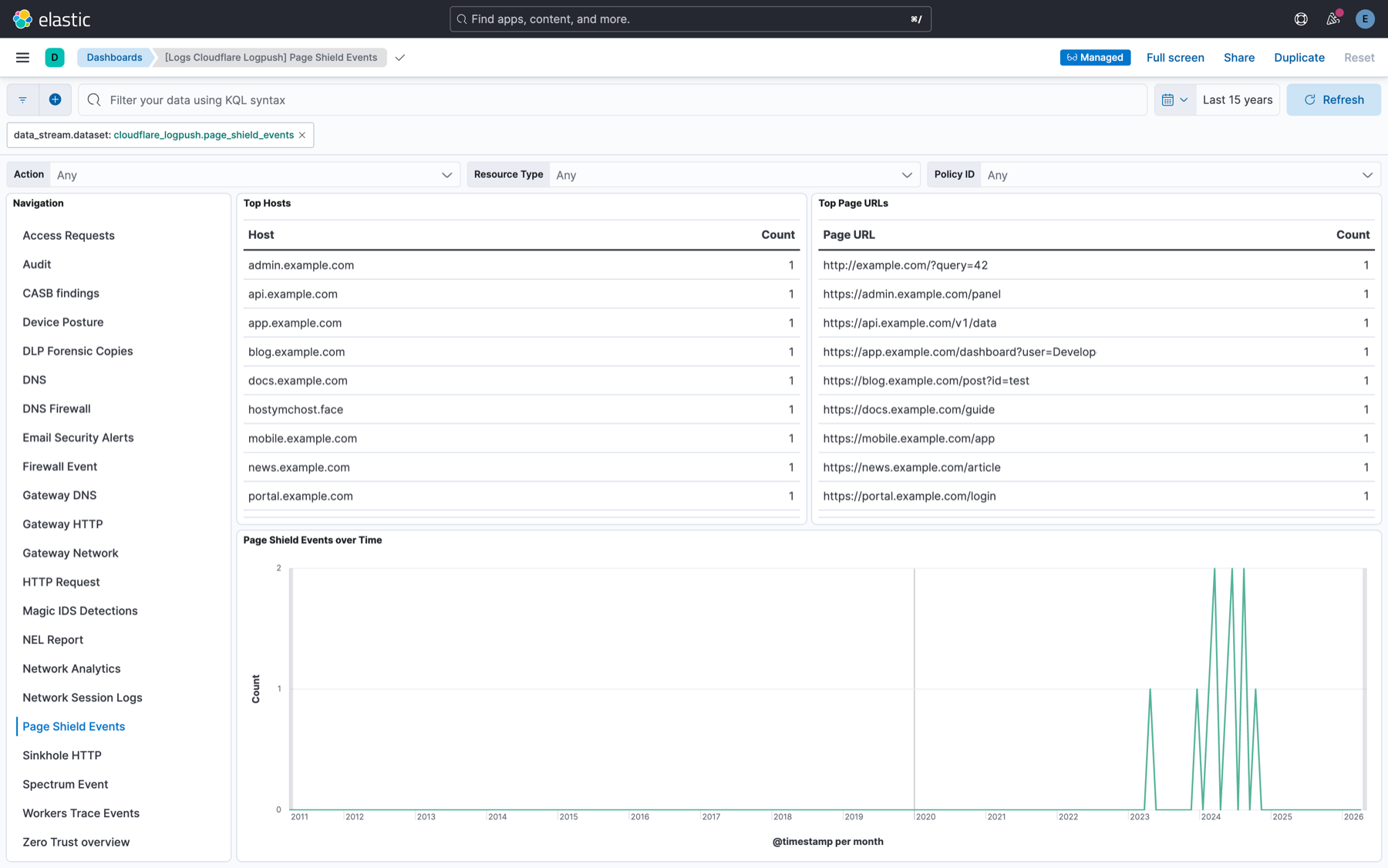

page_shield_events: Page Shield events reporting changes to scripts and connections observed on protected zones. See Page Shield Events schema.
sinkhole_http: HTTP traffic captured by Cloudflare sinkholes. See Sinkhole HTTP logs schema.

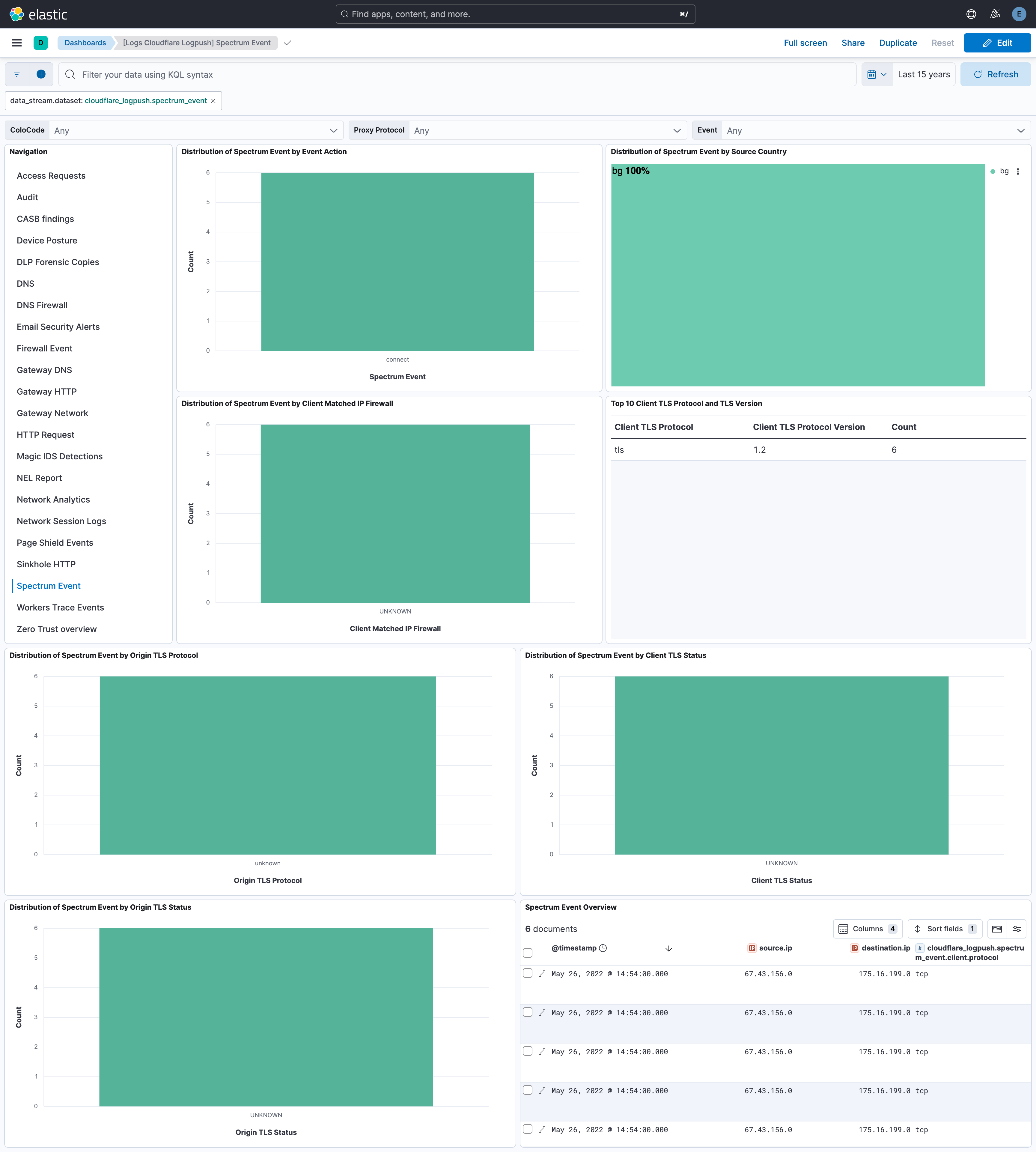

spectrum_event: Cloudflare Spectrum events for TCP/UDP applications proxied through Cloudflare. See Spectrum Events schema.
workers_trace: Cloudflare Workers Trace Events with execution logs and exceptions for Workers scripts. See Workers Trace Events schema.

Supported use cases

Integrating Cloudflare Logpush with Elastic provides centralized visibility across Cloudflare's edge, Zero Trust, and network-layer products. Common use cases include:

Investigating traffic, WAF, and DDoS-mitigation events from the Cloudflare edge (http_request, firewall_event, network_analytics).
Monitoring Zero Trust user activity, policy decisions, and device posture (gateway_http, gateway_dns, gateway_network, access_request, device_posture, network_session).
Detecting data exfiltration and SaaS misconfigurations (dlp_forensic_copies, casb, email_security_alerts).
Auditing administrative activity on the Cloudflare account (audit).
Troubleshooting DNS and client-side performance issues (dns, dns_firewall, nel_report, workers_trace).

What do I need to use this integration?

From Elastic

You need Elasticsearch for storing and searching your data and Kibana for visualizing and managing it. You can use our hosted Elasticsearch Service on Elastic Cloud, which is recommended, or self-manage the Elastic Stack on your own hardware.

From Cloudflare

To use this integration, you must be able to create and manage Cloudflare Logpush jobs for the datasets you want to collect.

Permissions

Creating and managing Logpush jobs requires an API token or user role with the Logs Write permission (or a role that includes it, such as Super Administrator, Administrator, or Log Share with edit permissions). Refer to Cloudflare Logpush permissions for details.

Zone-scoped datasets (for example, http_requests, firewall_events, dns_logs, spectrum_events, nel_reports, page_shield_events) require a zone-scoped token.
Account-scoped datasets (for example, audit_logs, access_requests, casb_findings, device_posture_results, dlp_forensic_copies, email_security_alerts, gateway_*, dns_firewall_logs, magic_ids_detections, network_analytics_logs, sinkhole_http_logs, workers_trace_events, zero_trust_network_sessions) require an account-scoped token.
Zero Trust datasets (Access, Gateway, DEX) additionally require Zero Trust: PII Read.

Destination-specific credentials

Depending on the delivery destination, you also need:

AWS S3 / S3-compatible — an S3 bucket (or Cloudflare R2 bucket) and credentials (Access Key ID / Secret Access Key, or an IAM role) that Elastic Agent can use to list and read objects. For SQS-based delivery, an SQS queue subscribed to S3 object-created events.
Google Cloud Storage — a GCS bucket and a service account key (JSON) with read access to the bucket.
Azure Blob Storage — a storage account, a blob container, and either a shared access key, a connection string, or OAuth2 client credentials with read access to the container.
HTTP Endpoint — a reachable HTTPS endpoint exposed by Elastic Agent. Cloudflare requires a valid TLS certificate on the destination.

How do I deploy this integration?

This integration supports Elastic Agent-based installations.

Agent-based installation

Elastic Agent must be installed. For more details, check the Elastic Agent installation instructions. You can install only one Elastic Agent per host.

Onboard and configure

Configure one of the following delivery pipelines before enabling the integration in Elastic.

Collect data from AWS S3 Bucket

Configure Cloudflare Logpush to Amazon S3 to send Cloudflare's data to an AWS S3 bucket.

The default values of the Bucket Prefix are listed below. However, users can set the parameter Bucket Prefix according to their requirements.

Data Stream Name	Bucket Prefix
Access Request	access_request
Audit Logs	audit_logs
CASB findings	casb
Device Posture Results	device_posture
DLP Forensic Copies	dlp_forensic_copies
DNS	dns
DNS Firewall	dns_firewall
Email Security Alerts	email_security_alerts
Firewall Event	firewall_event
Gateway DNS	gateway_dns
Gateway HTTP	gateway_http
Gateway Network	gateway_network
HTTP Request	http_request
Magic IDS	magic_ids
NEL Report	nel_report
Network Analytics	network_analytics_logs
Page Shield Events	page_shield_events
Zero Trust Network Session	network_session
Sinkhole HTTP	sinkhole_http
Spectrum Event	spectrum_event
Workers Trace Events	workers_trace

Collect data from AWS SQS

If Logpush forwarding to an AWS S3 Bucket hasn't been configured, then first setup an AWS S3 Bucket as mentioned in the above documentation.
Follow the steps below for each Logpush data stream that has been enabled:
1. Create an SQS queue
  - To setup an SQS queue, follow "Step 1: Create an Amazon SQS queue" mentioned in the Amazon documentation.
  - While creating an SQS Queue, please provide the same bucket ARN that has been generated after creating an AWS S3 Bucket.
2. Setup event notification from the S3 bucket using the instructions here. Use the following settings:
  - Event type: All object create events (s3:ObjectCreated:*)
  - Destination: SQS Queue
  - Prefix (filter): enter the prefix for this Logpush data stream, e.g. audit_logs/
  - Select the SQS queue that has been created for this data stream

Note:

A separate SQS queue and S3 bucket notification is required for each enabled data stream.
Permissions for the above AWS S3 bucket and SQS queues should be configured according to the Filebeat S3 input documentation.
Credentials for the above AWS S3 and SQS input types should be configured using the link.
Data collection via AWS S3 Bucket and AWS SQS are mutually exclusive in this case.
It is recommended to use AWS SQS for Cloudflare Logpush.

Collect data from S3-Compatible Cloudflare R2 Buckets

Configure Cloudflare Logpush to Cloudflare R2 (or another S3-compatible endpoint) to push logs into an R2 bucket.

Note:

To obtain the Access Key ID and Secret Access Key, create an R2 API token by following the R2 authentication documentation. Once the token is created successfully, Cloudflare will display the Access Key ID and Secret Access Key values. Use these credentials to authenticate the integration.
When creating the R2 API token, make sure it has Admin permissions. This is needed to list buckets and view bucket configuration.

When configuring the integration to read from S3-Compatible Buckets such as Cloudflare R2, the following steps are required:

Enable the Collect logs via S3 Bucket toggle.
Set the S3-Compatible Bucket Name (shown as [Global][S3] S3-Compatible Bucket Name in the UI) to the R2 bucket name.
Set the Endpoint field to the API endpoint shown in the bucket details. It must be a full URI used as the API endpoint of the service. For Cloudflare R2 buckets, the URI is typically of the form https://<accountid>.r2.cloudflarestorage.com.
Set the Region field to auto. This is required for all non-AWS S3-compatible buckets on Elastic Agent 8.19.12 and later. For Cloudflare R2, the region is always auto per the R2 S3 API documentation.
Bucket Prefix is optional for each data stream.

Collect data from GCS Buckets

Configure Cloudflare Logpush to Google Cloud Storage to ingest data into a GCS bucket.
Configure the GCS bucket names and credentials along with the required configurations under the "Collect Cloudflare Logpush logs via Google Cloud Storage" section.
Make sure the service account and authentication being used has proper levels of access to the GCS bucket. Refer to Manage Service Account Keys for more details.

Note:

The GCS input currently does not support fetching of buckets using bucket prefixes, so the bucket names have to be configured manually for each data stream.
The GCS input accepts a service account JSON key or a service account JSON file for authentication.
The GCS input supports JSON/NDJSON data.

Collect data from Azure Blob Storage

Configure Cloudflare Logpush to Microsoft Azure to ingest data into Azure Blob Storage containers.
Configure Azure Blob Storage container names and credentials along with the required configurations under the "Collect Cloudflare Logpush logs via Azure Blob Storage" section.
Make sure the storage account and authentication being used has proper levels of access to the Azure Blob Storage Container. Follow the documentation here for more details.
If you want to use RBAC for your account, follow the documentation here.

Note:

The Azure Blob Storage input does not support fetching from containers using container prefixes, so the containers' names must be configured manually for each data stream.
The Azure Blob Storage input accepts a service account key (shared credentials key), service account URI (connection string) and OAuth2 credentials for authentication.
The Azure Blob Storage input only supports JSON/NDJSON data.

Collect data from the Cloudflare HTTP Endpoint

Refer to Enable HTTP destination for Cloudflare Logpush.
Add the same custom header along with its value on both sides (Cloudflare job and Elastic Agent HTTP input) for additional security.
For example, while creating a job along with a header and value for a particular dataset:

		curl --location --request POST 'https://api.cloudflare.com/client/v4/zones/<ZONE ID>/logpush/jobs' \
--header 'X-Auth-Key: <X-AUTH-KEY>' \
--header 'X-Auth-Email: <X-AUTH-EMAIL>' \
--header 'Authorization: <BASIC AUTHORIZATION>' \
--header 'Content-Type: application/json' \
--data-raw '{
    "name":"<public domain>",
    "destination_conf": "https://<public domain>:<public port>/<dataset path>?header_Content-Type=application/json&header_<secret_header>=<secret_value>",
    "dataset": "audit",
    "logpull_options": "fields=RayID,EdgeStartTimestamp&timestamps=rfc3339"
}'



Note:

The destination_conf parameter inside the request data should set the Content-Type header to application/json. This is the content type that the HTTP endpoint expects for incoming events.
Default port for the HTTP Endpoint is 9560.
When using the same port for more than one dataset, be sure to specify different dataset paths.
To enable request ACKing, add a wait_for_completion_timeout request query with the timeout for an ACK. See the HTTP Endpoint documentation for details.

Enable the integration in Elastic

In the top search bar in Kibana, search for Integrations.
In the search bar, type Cloudflare Logpush.
Select the Cloudflare Logpush integration from the search results.
Select Add Cloudflare Logpush to add the integration.
Enable and configure only the collection methods which you will use.
- To Collect Cloudflare Logpush logs via HTTP Endpoint, you'll need to:
  - Configure the Listen Address and, per data stream, the Listen Port and URL.
  - Optionally configure Secret Header / Secret Value and SSL Configuration to secure the endpoint.
- To Collect Cloudflare Logpush logs via AWS S3, AWS SQS, or S3-Compatible Buckets, you'll need to:
  - Enable the Collect logs via S3 Bucket toggle when polling an S3 or S3-compatible bucket directly. Leave it disabled to consume S3 object-created events from an SQS queue.
  - For direct polling, configure the [S3] Bucket ARN, the [S3] Access Point ARN, or the [Global][S3] S3-Compatible Bucket Name (for Cloudflare R2 and other S3-compatible providers). For S3-compatible buckets also set Endpoint and Region.
  - Configure credentials using any of: Access Key ID / Secret Access Key (plus an optional Session Token), a Role ARN, or a Shared Credential File / Credential Profile Name.
  - For each enabled data stream, set the [SQS] Queue URL (when using SQS) or the [S3] Bucket Prefix (when polling an S3 / S3-compatible bucket). For R2 / S3-compatible buckets you may also override the bucket name per data stream using the [<Dataset>][S3] S3-Compatible Bucket Name field.
  - Tune throughput with [S3/SQS] Number of Workers and [S3] Interval (polling mode) or [SQS] Visibility Timeout / [SQS] API Timeout (SQS mode).
- To Collect Cloudflare Logpush logs via Google Cloud Storage, you'll need to:
  - Configure Project Id and either JSON Credentials key or JSON Credentials file path.
  - For each data stream, configure the Buckets list and optionally tune Maximum number of workers, Polling, Polling interval, and Bucket Timeout.
- To Collect Cloudflare Logpush logs via Azure Blob Storage, you'll need to:
  - Configure Account Name and (optionally) Storage URL, and authenticate using either a Service Account Key, a Service Account URI, or by enabling Collect logs using OAuth2 authentication and supplying Client ID (OAuth2), Client Secret (OAuth2), and Tenant ID (OAuth2).
  - For each data stream, configure the Containers list and optionally tune Maximum number of workers, Polling, and Polling interval.
Select Save and continue to save the integration.

Validation

Dashboards populated

In the top search bar in Kibana, search for Dashboards.
In the search bar, type Cloudflare Logpush.
Select a dashboard for the dataset you are collecting, and verify the dashboard information is populated.

Troubleshooting

For help with Elastic ingest tools, check Common problems.
For Cloudflare-side troubleshooting and delivery status, refer to the Logpush health dashboard and the relevant destination-specific troubleshooting guide.
When collecting from Cloudflare R2 via the AWS S3 input, the error failed to get AWS region for bucket: operation error S3: GetBucketLocation usually indicates a credentials or permissions problem. Inspect the full API error response to identify the underlying issue.
When using Azure Blob Storage, SAS tokens must have the Write-only permission, the service set to Blob-only (ss=b), and the resource type set to Object-only (srt=o). Set an expiration of at least five years to avoid unexpected token expiry. Refer to Troubleshooting Azure destinations for details.
When using the HTTP Endpoint input, ensure the Elastic Agent endpoint is reachable over HTTPS with a trusted certificate and that any secret.header / secret.value pair configured on the agent matches the header_* parameter defined in the Logpush job's destination_conf.

Performance and scaling

For more information on architectures that can be used for scaling this integration, check the Ingest Architectures documentation.

Additional considerations:

For high-volume zones, AWS SQS mode is recommended because it distributes work across multiple Elastic Agents without requiring bucket polling.
Tune max_upload_bytes, max_upload_records, and max_upload_interval_seconds on the Logpush job to match the throughput your agents and destination can handle.
For each input, adjust the worker count and polling interval to balance latency against API calls / egress costs. The relevant fields are [S3/SQS] Number of Workers and [S3] Interval for the AWS S3 input, and Maximum number of workers with Polling interval for the Google Cloud Storage and Azure Blob Storage inputs.
Use Cloudflare Logpush sampling and filters to reduce the volume of low-value events at the source.

		{
    "@timestamp": "2023-05-23T17:18:33.000Z",
    "agent": {
        "ephemeral_id": "056ec563-a195-426e-9567-24bbfabae21f",
        "id": "b7ff516b-300e-4aa7-9b17-86fb55c9b5c3",
        "name": "elastic-agent-10661",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "client": {
        "as": {
            "number": 35908
        },
        "geo": {
            "continent_name": "Asia",
            "country_iso_code": "BT",
            "country_name": "Bhutan",
            "location": {
                "lat": 27.5,
                "lon": 90.5
            }
        },
        "ip": "67.43.156.93"
    },
    "cloudflare_logpush": {
        "access_request": {
            "action": "login",
            "allowed": true,
            "app": {
                "domain": "partner-zt-logs.cloudflareaccess.com/warp",
                "uuid": "123e4567-e89b-12d3-a456-426614174000"
            },
            "client": {
                "ip": "67.43.156.93"
            },
            "connection": "onetimepin",
            "country": "us",
            "ray": {
                "id": "00c0ffeeabc12345"
            },
            "request": {
                "prompt": "Please provide your reason for accessing the application.",
                "response": "I need to access the application for work purposes."
            },
            "temp_access": {
                "approvers": [
                    "approver1@example.com",
                    "approver2@example.com"
                ],
                "duration": 7200
            },
            "timestamp": "2023-05-23T17:18:33.000Z",
            "user": {
                "email": "user@example.com",
                "id": "166befbb-00e3-5e20-bd6e-27245333949f"
            }
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.access_request",
        "namespace": "60239",
        "type": "logs"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "b7ff516b-300e-4aa7-9b17-86fb55c9b5c3",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "action": "login",
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "cloudflare_logpush.access_request",
        "id": "00c0ffeeabc12345",
        "ingested": "2026-05-11T12:48:12Z",
        "kind": "event",
        "original": "{\"Action\":\"login\",\"Allowed\":true,\"AppDomain\":\"partner-zt-logs.cloudflareaccess.com/warp\",\"AppUUID\":\"123e4567-e89b-12d3-a456-426614174000\",\"Connection\":\"onetimepin\",\"Country\":\"us\",\"CreatedAt\":1684862313000000000,\"Email\":\"user@example.com\",\"IPAddress\":\"67.43.156.93\",\"PurposeJustificationPrompt\":\"Please provide your reason for accessing the application.\",\"PurposeJustificationResponse\":\"I need to access the application for work purposes.\",\"RayID\":\"00c0ffeeabc12345\",\"TemporaryAccessApprovers\":[\"approver1@example.com\",\"approver2@example.com\"],\"TemporaryAccessDuration\":7200,\"UserUID\":\"166befbb-00e3-5e20-bd6e-27245333949f\"}",
        "type": [
            "access",
            "allowed"
        ]
    },
    "input": {
        "type": "http_endpoint"
    },
    "related": {
        "ip": [
            "67.43.156.93"
        ],
        "user": [
            "166befbb-00e3-5e20-bd6e-27245333949f",
            "user@example.com",
            "approver1@example.com",
            "approver2@example.com"
        ]
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-access_request"
    ],
    "url": {
        "domain": "partner-zt-logs.cloudflareaccess.com/warp"
    },
    "user": {
        "email": "user@example.com",
        "id": "166befbb-00e3-5e20-bd6e-27245333949f"
    }
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.access_request.action	What type of record is this. login	logout.	keyword
cloudflare_logpush.access_request.allowed	If request was allowed or denied.	boolean
cloudflare_logpush.access_request.app.domain	The domain of the Application that Access is protecting.	keyword
cloudflare_logpush.access_request.app.uuid	Access Application UUID.	keyword
cloudflare_logpush.access_request.client.ip	The IP address of the client.	ip
cloudflare_logpush.access_request.connection	Identity provider used for the login.	keyword
cloudflare_logpush.access_request.country	Request’s country of origin.	keyword
cloudflare_logpush.access_request.ray.id	Identifier of the request.	keyword
cloudflare_logpush.access_request.request.prompt	Message prompted to the client when accessing the application.	keyword
cloudflare_logpush.access_request.request.response	Justification given by the client when accessing the application.	keyword
cloudflare_logpush.access_request.temp_access.approvers	List of approvers for this access request.	keyword
cloudflare_logpush.access_request.temp_access.duration	Approved duration for this access request.	long
cloudflare_logpush.access_request.timestamp	The date and time the corresponding access request was made.	date
cloudflare_logpush.access_request.user.email	Email of the user who logged in.	keyword
cloudflare_logpush.access_request.user.id	The uid of the user who logged in.	keyword
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

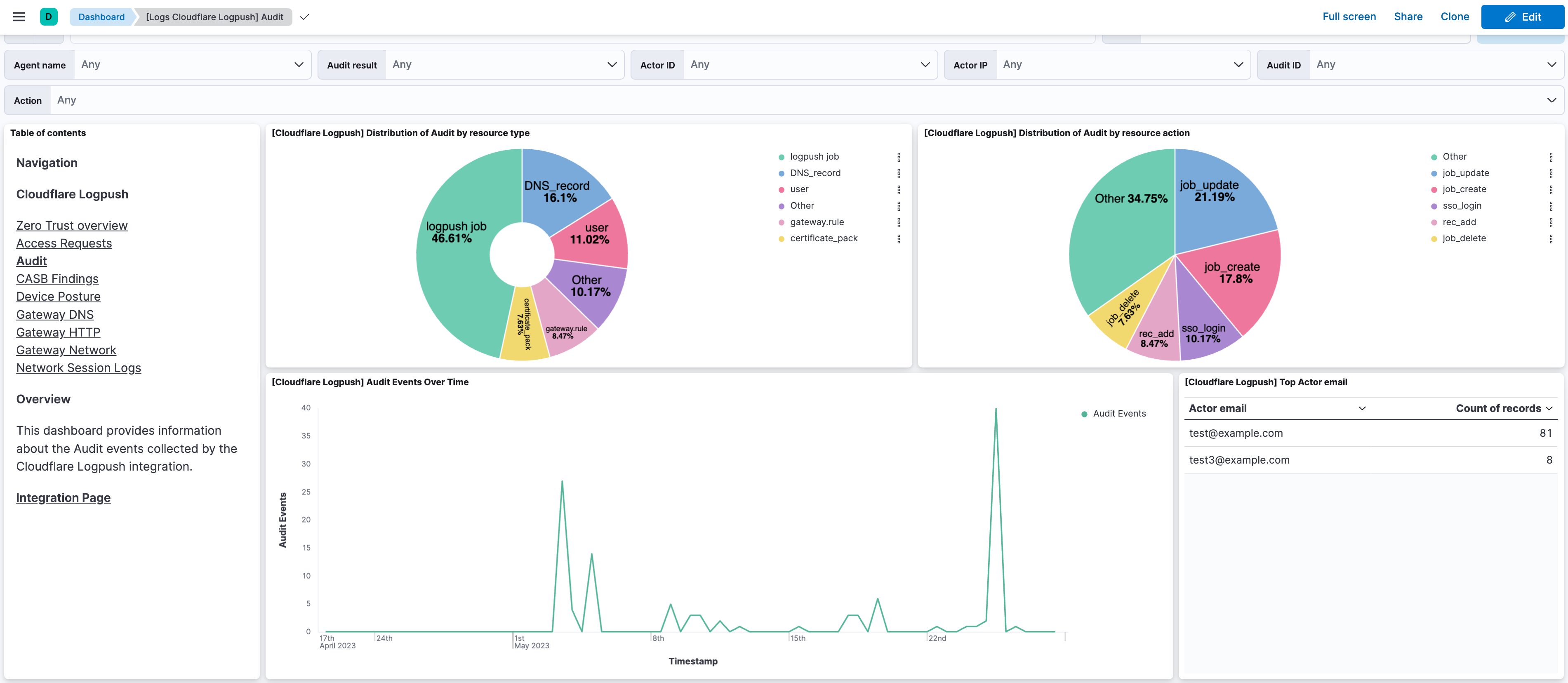

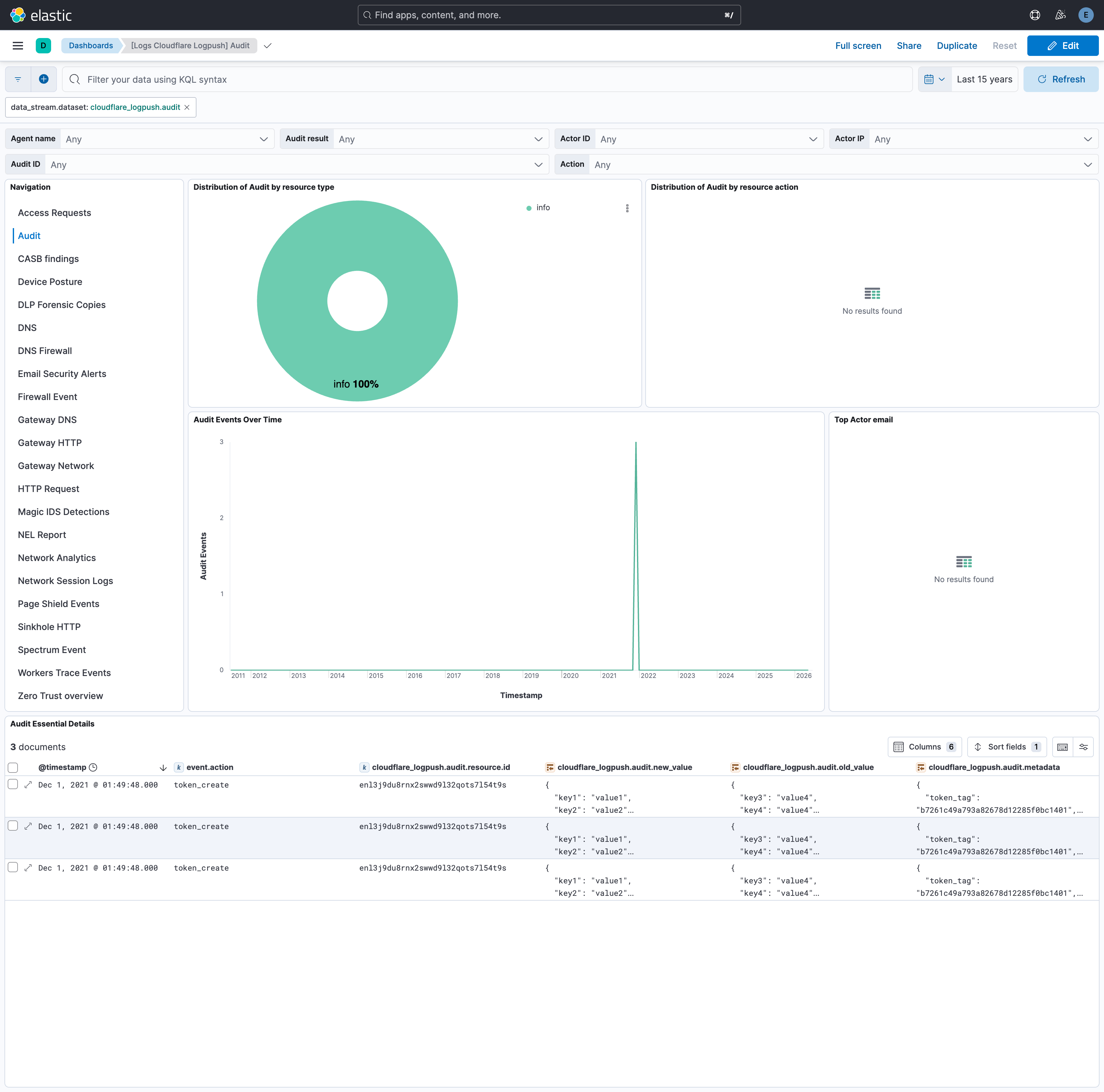

audit

This is the audit dataset.

Example

		{
    "@timestamp": "2021-11-30T20:19:48.000Z",
    "agent": {
        "ephemeral_id": "7caa446a-60b4-42bd-a8be-01eab6c59082",
        "id": "c5ea9366-b921-478c-88a3-2d6437c654b2",
        "name": "elastic-agent-70377",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "audit": {
            "action": {
                "result": "success",
                "type": "token_create"
            },
            "actor": {
                "email": "user@example.com",
                "id": "enl3j9du8rnx2swwd9l32qots7l54t9s",
                "ip": "81.2.69.142",
                "type": "user"
            },
            "id": "73fd39ed-5aab-4a2a-b93c-c9a4abf0c425",
            "interface": "UI",
            "metadata": {
                "token_name": "test",
                "token_tag": "b7261c49a793a82678d12285f0bc1401"
            },
            "new_value": {
                "key1": "value1",
                "key2": "value2"
            },
            "old_value": {
                "key3": "value4",
                "key4": "value4"
            },
            "owner": {
                "id": "enl3j9du8rnx2swwd9l32qots7l54t9s"
            },
            "resource": {
                "id": "enl3j9du8rnx2swwd9l32qots7l54t9s",
                "type": "account"
            },
            "timestamp": "2021-11-30T20:19:48.000Z"
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.audit",
        "namespace": "70305",
        "type": "logs"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "c5ea9366-b921-478c-88a3-2d6437c654b2",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "action": "token_create",
        "agent_id_status": "verified",
        "category": [
            "authentication"
        ],
        "dataset": "cloudflare_logpush.audit",
        "id": "73fd39ed-5aab-4a2a-b93c-c9a4abf0c425",
        "ingested": "2026-05-18T06:36:56Z",
        "kind": "event",
        "original": "{\"ActionResult\":true,\"ActionType\":\"token_create\",\"ActorEmail\":\"user@example.com\",\"ActorID\":\"enl3j9du8rnx2swwd9l32qots7l54t9s\",\"ActorIP\":\"81.2.69.142\",\"ActorType\":\"user\",\"ID\":\"73fd39ed-5aab-4a2a-b93c-c9a4abf0c425\",\"Interface\":\"UI\",\"Metadata\":{\"token_name\":\"test\",\"token_tag\":\"b7261c49a793a82678d12285f0bc1401\"},\"NewValue\":{\"key1\":\"value1\",\"key2\":\"value2\"},\"OldValue\":{\"key3\":\"value4\",\"key4\":\"value4\"},\"OwnerID\":\"enl3j9du8rnx2swwd9l32qots7l54t9s\",\"ResourceID\":\"enl3j9du8rnx2swwd9l32qots7l54t9s\",\"ResourceType\":\"account\",\"When\":\"2021-11-30T20:19:48Z\"}",
        "outcome": "success",
        "provider": "UI",
        "type": [
            "info"
        ]
    },
    "input": {
        "type": "http_endpoint"
    },
    "related": {
        "ip": [
            "81.2.69.142"
        ],
        "user": [
            "enl3j9du8rnx2swwd9l32qots7l54t9s",
            "user@example.com"
        ]
    },
    "source": {
        "ip": "81.2.69.142"
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-audit"
    ],
    "user": {
        "email": "user@example.com",
        "id": "enl3j9du8rnx2swwd9l32qots7l54t9s"
    }
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.audit.action.result	Whether the action was successful.	keyword
cloudflare_logpush.audit.action.type	Type of action taken.	keyword
cloudflare_logpush.audit.actor.email	Email of the actor.	keyword
cloudflare_logpush.audit.actor.id	Unique identifier of the actor in Cloudflare system.	keyword
cloudflare_logpush.audit.actor.ip	Physical network address of the actor.	ip
cloudflare_logpush.audit.actor.type	Type of user that started the audit trail.	keyword
cloudflare_logpush.audit.id	Unique identifier of an audit log.	keyword
cloudflare_logpush.audit.interface	Entry point or interface of the audit log.	text
cloudflare_logpush.audit.metadata	Additional audit log-specific information, Metadata is organized in key:value pairs, Key and Value formats can vary by ResourceType.	flattened
cloudflare_logpush.audit.new_value	Contains the new value for the audited item.	flattened
cloudflare_logpush.audit.old_value	Contains the old value for the audited item.	flattened
cloudflare_logpush.audit.owner.id	The identifier of the user that was acting or was acted on behalf of.	keyword
cloudflare_logpush.audit.resource.id	Unique identifier of the resource within Cloudflare system.	keyword
cloudflare_logpush.audit.resource.type	The type of resource that was changed.	keyword
cloudflare_logpush.audit.timestamp	When the change happened.	date
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

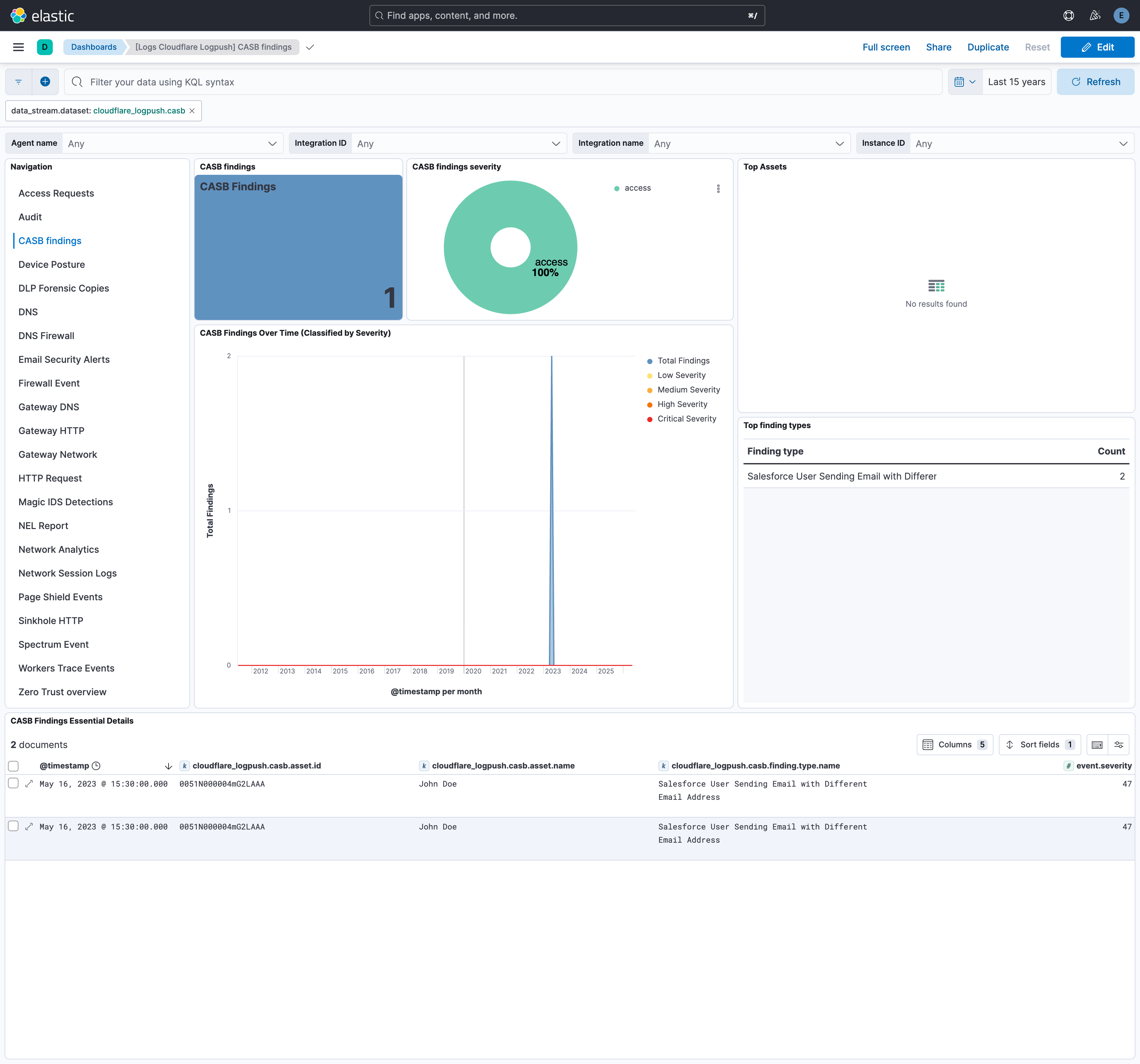

casb

This is the casb dataset.

Example

		{
    "@timestamp": "2023-05-16T10:00:00.000Z",
    "agent": {
        "ephemeral_id": "9565fcd4-e907-4a0c-a16c-3607fde347e3",
        "id": "c7197566-06bc-44aa-884f-c2e78db6d462",
        "name": "elastic-agent-22768",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "casb": {
            "asset": {
                "id": "0051N000004mG2LAAA",
                "metadata": {
                    "Address": {
                        "city": "Singapore",
                        "country": "Singapore",
                        "countryCode": "SG"
                    },
                    "Alias": "JDoe",
                    "BannerPhotoUrl": "/profilephoto/001",
                    "CommunityNickname": "Doe.John",
                    "CompanyName": "MyCompany",
                    "DefaultGroupNotificationFrequency": "N",
                    "Department": "521",
                    "DigestFrequency": "D",
                    "Email": "user@example.com",
                    "EmailEncodingKey": "UTF-8",
                    "EmailPreferencesAutoBcc": true,
                    "EmployeeNumber": "18124",
                    "FirstName": "John",
                    "ForecastEnabled": false,
                    "FullPhotoUrl": "https://photos.com/profilephoto/001",
                    "Id": "0051N000004mG2LAAA",
                    "IsActive": false,
                    "IsProfilePhotoActive": false,
                    "LanguageLocaleKey": "en_US",
                    "LastLoginDate": "2021-10-06T06:32:09.000+0000",
                    "LastName": "Doe",
                    "LocaleSidKey": "en_SG",
                    "MediumBannerPhotoUrl": "/profilephoto/001/E",
                    "Name": "John Doe",
                    "Phone": "+3460000000",
                    "ReceivesAdminInfoEmails": true,
                    "ReceivesInfoEmails": true,
                    "SenderEmail": "sender@example.com",
                    "SmallBannerPhotoUrl": "/profilephoto/001/D",
                    "SmallPhotoUrl": "https://photos.com/photo/001",
                    "TimeZoneSidKey": "Asia/Singapore",
                    "Title": "Customer Solutions Engineer",
                    "UserPermissionsCallCenterAutoLogin": false,
                    "UserPermissionsInteractionUser": true,
                    "UserPermissionsMarketingUser": false,
                    "UserPermissionsOfflineUser": false,
                    "UserPermissionsSupportUser": false,
                    "UserRoleId": "00E2G000001E",
                    "UserType": "Standard",
                    "attributes": {
                        "type": "User",
                        "url": "/services/data/userID"
                    }
                },
                "name": "John Doe",
                "url": "https://example.com/resource"
            },
            "finding": {
                "id": "6b187be4-2dd5-42c5-a37b-111111111111",
                "type": {
                    "id": "a2790c4f-03f5-449f-b209-5f4447f417aa",
                    "name": "Salesforce User Sending Email with Different Email Address",
                    "severity": "Medium"
                }
            },
            "integration": {
                "id": "c772678d-5cf1-4c73-bf3f-111111111111",
                "name": "Salesforce Testing",
                "policy_vendor": "Salesforce Connection"
            },
            "timestamp": "2023-05-16T10:00:00.000Z"
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.casb",
        "namespace": "37356",
        "type": "logs"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "c7197566-06bc-44aa-884f-c2e78db6d462",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "cloudflare_logpush.casb",
        "id": "6b187be4-2dd5-42c5-a37b-111111111111",
        "ingested": "2026-05-21T11:22:13Z",
        "kind": "event",
        "original": "{\"AssetDisplayName\":\"John Doe\",\"AssetExternalID\":\"0051N000004mG2LAAA\",\"AssetLink\":\"https://example.com/resource\",\"AssetMetadata\":{\"AccountId\":null,\"Address\":{\"city\":\"Singapore\",\"country\":\"Singapore\",\"countryCode\":\"SG\",\"geocodeAccuracy\":null,\"latitude\":null,\"longitude\":null,\"postalCode\":null,\"state\":null,\"stateCode\":null,\"street\":null},\"Alias\":\"JDoe\",\"BadgeText\":\"\",\"BannerPhotoUrl\":\"/profilephoto/001\",\"CallCenterId\":null,\"CommunityNickname\":\"Doe.John\",\"CompanyName\":\"MyCompany\",\"ContactId\":null,\"DefaultGroupNotificationFrequency\":\"N\",\"Department\":\"521\",\"DigestFrequency\":\"D\",\"Division\":null,\"Email\":\"user@example.com\",\"EmailEncodingKey\":\"UTF-8\",\"EmailPreferencesAutoBcc\":true,\"EmployeeNumber\":\"18124\",\"Extension\":null,\"Fax\":null,\"FederationIdentifier\":null,\"FirstName\":\"John\",\"ForecastEnabled\":false,\"FullPhotoUrl\":\"https://photos.com/profilephoto/001\",\"Id\":\"0051N000004mG2LAAA\",\"IsActive\":false,\"IsProfilePhotoActive\":false,\"LanguageLocaleKey\":\"en_US\",\"LastLoginDate\":\"2021-10-06T06:32:09.000+0000\",\"LastName\":\"Doe\",\"LastReferencedDate\":null,\"LastViewedDate\":null,\"LocaleSidKey\":\"en_SG\",\"MediumBannerPhotoUrl\":\"/profilephoto/001/E\",\"MobilePhone\":null,\"Name\":\"John Doe\",\"OfflineTrialExpirationDate\":null,\"Phone\":\"+3460000000\",\"ReceivesAdminInfoEmails\":true,\"ReceivesInfoEmails\":true,\"SenderEmail\":\"sender@example.com\",\"SenderName\":null,\"Signature\":null,\"SmallBannerPhotoUrl\":\"/profilephoto/001/D\",\"SmallPhotoUrl\":\"https://photos.com/photo/001\",\"TimeZoneSidKey\":\"Asia/Singapore\",\"Title\":\"Customer Solutions Engineer\",\"UserPermissionsCallCenterAutoLogin\":false,\"UserPermissionsInteractionUser\":true,\"UserPermissionsMarketingUser\":false,\"UserPermissionsOfflineUser\":false,\"UserPermissionsSupportUser\":false,\"UserRoleId\":\"00E2G000001E\",\"UserType\":\"Standard\",\"attributes\":{\"type\":\"User\",\"url\":\"/services/data/userID\"}},\"DetectedTimestamp\":\"2023-05-16T10:00:00Z\",\"FindingTypeDisplayName\":\"Salesforce User Sending Email with Different Email Address\",\"FindingTypeID\":\"a2790c4f-03f5-449f-b209-5f4447f417aa\",\"FindingTypeSeverity\":\"Medium\",\"InstanceID\":\"6b187be4-2dd5-42c5-a37b-111111111111\",\"IntegrationDisplayName\":\"Salesforce Testing\",\"IntegrationID\":\"c772678d-5cf1-4c73-bf3f-111111111111\",\"IntegrationPolicyVendor\":\"Salesforce Connection\"}",
        "severity": 47,
        "type": [
            "access"
        ]
    },
    "input": {
        "type": "http_endpoint"
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-casb"
    ],
    "url": {
        "domain": "example.com",
        "original": "https://example.com/resource",
        "path": "/resource",
        "scheme": "https"
    }
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.casb.asset.id	Unique identifier for an asset of this type. Format will vary by policy vendor.	keyword
cloudflare_logpush.casb.asset.metadata	Metadata associated with the asset. Structure will vary by policy vendor.	flattened
cloudflare_logpush.casb.asset.name	Asset display name.	keyword
cloudflare_logpush.casb.asset.url	URL to the asset. This may not be available for some policy vendors and asset types.	keyword
cloudflare_logpush.casb.finding.id	UUID of the finding in Cloudflare´s system.	keyword
cloudflare_logpush.casb.finding.type.id	UUID of the finding type in Cloudflare´s system.	keyword
cloudflare_logpush.casb.finding.type.name	Human-readable name of the finding type.	keyword
cloudflare_logpush.casb.finding.type.severity	Severity of the finding type.	keyword
cloudflare_logpush.casb.integration.id	UUID of the integration in Cloudflare´s system.	keyword
cloudflare_logpush.casb.integration.name	Human-readable name of the integration.	keyword
cloudflare_logpush.casb.integration.policy_vendor	Human-readable vendor name of the integration´s policy.	keyword
cloudflare_logpush.casb.timestamp	Date and time the finding was first identified.	date
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

device_posture

This is the device_posture dataset.

Example

		{
    "@timestamp": "2023-05-17T12:00:00.000Z",
    "agent": {
        "ephemeral_id": "a37046a3-9b2f-4b9d-916d-28fc59e71dee",
        "id": "99140cdd-ebf8-451d-bda0-e3e77001b75b",
        "name": "elastic-agent-57256",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "device_posture": {
            "eval": {
                "expected": {
                    "operator": "==",
                    "os_distro_name": "ubuntu",
                    "os_distro_revision": "20.04",
                    "version": "5.15.0-1025-gcp"
                },
                "received": {
                    "operator": "==",
                    "os_distro_name": "ubuntu",
                    "os_distro_revision": "20.04",
                    "version": "5.15.0-1025-gcp"
                },
                "result": true
            },
            "host": {
                "id": "083a8354-d56c-11ed-9771-111111111",
                "manufacturer": "Google Compute Engine",
                "model": "Google Compute Engine",
                "name": "zt-test-vm1",
                "os": {
                    "family": "linux",
                    "version": "5.15.0"
                },
                "serial": "GoogleCloud-ABCD1234567890"
            },
            "rule": {
                "category": "os_version",
                "id": "policy-abcdefgh",
                "name": "Ubuntu"
            },
            "timestamp": "2023-05-17T12:00:00.000Z",
            "user": {
                "email": "user@example.com",
                "id": "user-abcdefgh"
            },
            "version": "2023.3.258"
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.device_posture",
        "namespace": "78609",
        "type": "logs"
    },
    "device": {
        "id": "083a8354-d56c-11ed-9771-111111111",
        "manufacturer": "Google Compute Engine",
        "model": {
            "name": "Google Compute Engine"
        },
        "serial_number": "GoogleCloud-ABCD1234567890",
        "type": "linux"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "99140cdd-ebf8-451d-bda0-e3e77001b75b",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "host"
        ],
        "dataset": "cloudflare_logpush.device_posture",
        "ingested": "2026-05-18T06:37:57Z",
        "kind": "event",
        "original": "{\"ClientVersion\":\"2023.3.258\",\"DeviceID\":\"083a8354-d56c-11ed-9771-111111111\",\"DeviceManufacturer\":\"Google Compute Engine\",\"DeviceModel\":\"Google Compute Engine\",\"DeviceName\":\"zt-test-vm1\",\"DeviceSerialNumber\":\"GoogleCloud-ABCD1234567890\",\"DeviceType\":\"linux\",\"Email\":\"user@example.com\",\"OSVersion\":\"5.15.0\",\"PolicyID\":\"policy-abcdefgh\",\"PostureCheckName\":\"Ubuntu\",\"PostureCheckType\":\"os_version\",\"PostureEvaluatedResult\":true,\"PostureExpectedJSON\":{\"operator\":\"==\",\"os_distro_name\":\"ubuntu\",\"os_distro_revision\":\"20.04\",\"version\":\"5.15.0-1025-gcp\"},\"PostureReceivedJSON\":{\"operator\":\"==\",\"os_distro_name\":\"ubuntu\",\"os_distro_revision\":\"20.04\",\"version\":\"5.15.0-1025-gcp\"},\"Timestamp\":\"2023-05-17T12:00:00Z\",\"UserUID\":\"user-abcdefgh\"}",
        "outcome": "success",
        "type": [
            "info"
        ]
    },
    "host": {
        "id": "083a8354-d56c-11ed-9771-111111111",
        "name": "zt-test-vm1",
        "os": {
            "family": "linux",
            "version": "5.15.0"
        }
    },
    "input": {
        "type": "http_endpoint"
    },
    "related": {
        "hosts": [
            "083a8354-d56c-11ed-9771-111111111",
            "zt-test-vm1"
        ],
        "user": [
            "user-abcdefgh",
            "user@example.com"
        ]
    },
    "rule": {
        "category": "os_version",
        "id": "policy-abcdefgh",
        "name": "Ubuntu"
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-device_posture"
    ],
    "user": {
        "email": "user@example.com",
        "id": "user-abcdefgh"
    },
    "user_agent": {
        "version": "2023.3.258"
    }
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.device_posture.eval.expected	JSON object of what the posture check expects from the Zero Trust client.	flattened
cloudflare_logpush.device_posture.eval.received	JSON object of what the Zero Trust client actually uploads.	flattened
cloudflare_logpush.device_posture.eval.result	Whether this posture upload passes the associated posture check, given the requirements posture check at the time of the timestamp.	boolean
cloudflare_logpush.device_posture.host.id	The device ID that performed the posture upload.	keyword
cloudflare_logpush.device_posture.host.manufacturer	The manufacturer of the device that the Zero Trust client is running on.	keyword
cloudflare_logpush.device_posture.host.model	The model of the device that the Zero Trust client is running on.	keyword
cloudflare_logpush.device_posture.host.name	The name of the device that the Zero Trust client is running on.	keyword
cloudflare_logpush.device_posture.host.os.family	The Zero Trust client operating system type.	keyword
cloudflare_logpush.device_posture.host.os.version	The operating system version at the time of upload.	keyword
cloudflare_logpush.device_posture.host.serial	The serial number of the device that the Zero Trust client is running on.	keyword
cloudflare_logpush.device_posture.registration_id	The UUID of the device registration associated with this posture result.	keyword
cloudflare_logpush.device_posture.rule.category	The type of the Zero Trust client check or service provider check.	keyword
cloudflare_logpush.device_posture.rule.id	The posture check ID associated with this device posture result.	keyword
cloudflare_logpush.device_posture.rule.name	The name of the posture check associated with this device posture result.	keyword
cloudflare_logpush.device_posture.timestamp	The date and time the corresponding device posture upload was performed.	date
cloudflare_logpush.device_posture.user.email	The email used to register the device with the Zero Trust client.	keyword
cloudflare_logpush.device_posture.user.id	The uid of the user who registered the device.	keyword
cloudflare_logpush.device_posture.version	The Zero Trust client version at the time of upload.	keyword
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

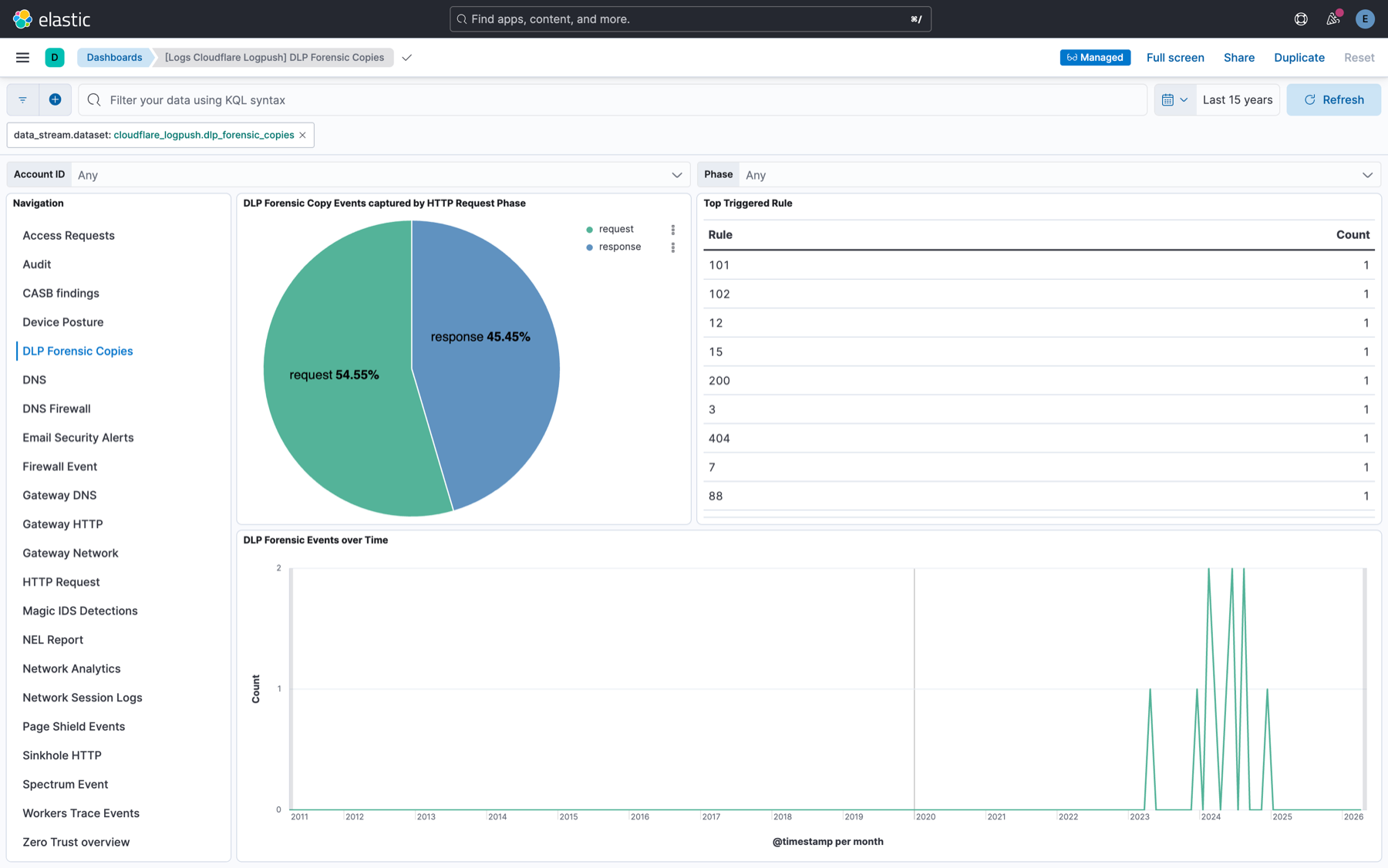

dlp_forensic_copies

This is the dlp_forensic_copies dataset.

Example

		{
    "@timestamp": "2023-05-04T11:29:14.000Z",
    "agent": {
        "ephemeral_id": "46d0e042-e386-4309-83fe-f22fa8cef397",
        "id": "57444465-a0cd-4b2f-a7c9-af783ce1a161",
        "name": "elastic-agent-22795",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "dlp_forensic_copies": {
            "account_id": "acc-id",
            "datetime": "2023-05-04T11:29:14.000Z",
            "forensic_copy_id": "copy-id",
            "gateway_request_id": "req-id",
            "headers": {
                "key1": "val1",
                "key2": "val2"
            },
            "payload": "Tm90aGluZyB0byBzZWUgaGVyZS4gTW92ZSBhbG9uZy4K",
            "phase": "request",
            "triggered_rule_id": "9"
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.dlp_forensic_copies",
        "namespace": "20200",
        "type": "logs"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "57444465-a0cd-4b2f-a7c9-af783ce1a161",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "cloudflare_logpush.dlp_forensic_copies",
        "ingested": "2026-04-29T02:52:34Z",
        "kind": "event",
        "original": "{\"AccountID\":\"acc-id\",\"Datetime\":\"2023-05-04T11:29:14Z\",\"ForensicCopyID\":\"copy-id\",\"GatewayRequestID\":\"req-id\",\"Headers\":{\"key1\":\"val1\",\"key2\":\"val2\"},\"Payload\":\"Tm90aGluZyB0byBzZWUgaGVyZS4gTW92ZSBhbG9uZy4K\",\"Phase\":\"request\",\"TriggeredRuleID\":\"9\"}",
        "type": [
            "info"
        ]
    },
    "input": {
        "type": "http_endpoint"
    },
    "rule": {
        "id": "9"
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-dlp_forensic_copies"
    ]
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.dlp_forensic_copies.account_id	Cloudflare account ID.	keyword
cloudflare_logpush.dlp_forensic_copies.datetime	The date and time the corresponding HTTP request was made.	date
cloudflare_logpush.dlp_forensic_copies.forensic_copy_id	The unique ID for this particular forensic copy.	keyword
cloudflare_logpush.dlp_forensic_copies.gateway_request_id	Cloudflare request ID, as found in Gateway logs.	keyword
cloudflare_logpush.dlp_forensic_copies.headers.*		keyword
cloudflare_logpush.dlp_forensic_copies.payload	Captured request/response data, base64-encoded.	keyword
cloudflare_logpush.dlp_forensic_copies.phase	Phase of the HTTP request this forensic copy was captured from (i.e. "request" or "response").	keyword
cloudflare_logpush.dlp_forensic_copies.triggered_rule_id	The ID of the Gateway firewall rule that triggered this forensic copy.	keyword
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

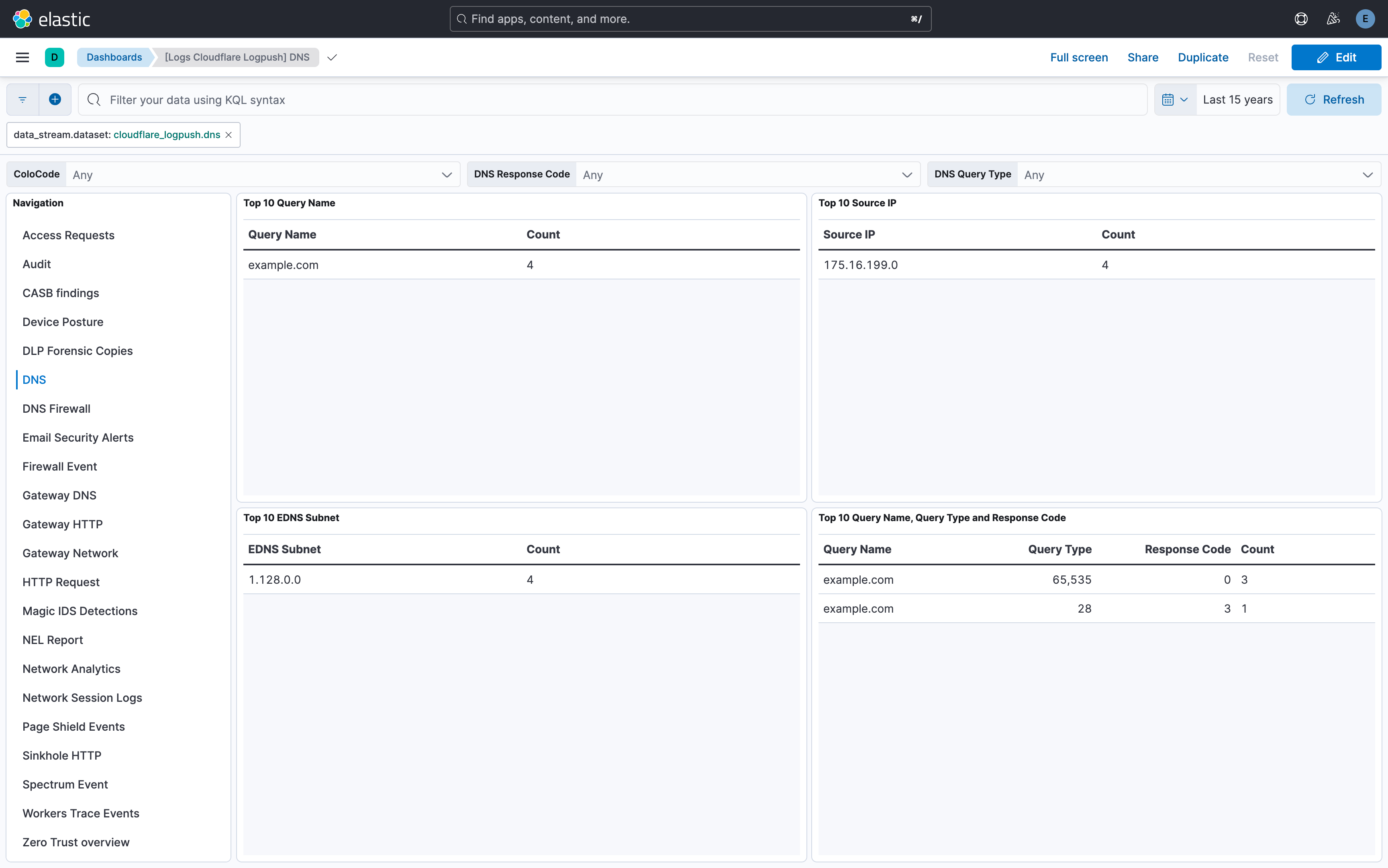

dns

This is the dns dataset.

Example

		{
    "@timestamp": "2022-05-26T09:23:54.000Z",
    "agent": {
        "ephemeral_id": "333c9617-e828-4159-9f0c-85495de4f5a0",
        "id": "c0c3eba6-e72e-4926-b2f7-27938eb1df85",
        "name": "elastic-agent-24362",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "dns": {
            "colo": {
                "code": "MRS"
            },
            "edns": {
                "subnet": "1.128.0.0",
                "subnet_length": 0
            },
            "query": {
                "name": "example.com",
                "type": 65535
            },
            "response": {
                "cached": false,
                "code": 0
            },
            "source": {
                "ip": "175.16.199.0"
            },
            "timestamp": "2022-05-26T09:23:54.000Z"
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.dns",
        "namespace": "34585",
        "type": "logs"
    },
    "dns": {
        "question": {
            "name": "example.com"
        },
        "response_code": "NoError"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "c0c3eba6-e72e-4926-b2f7-27938eb1df85",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "cloudflare_logpush.dns",
        "ingested": "2026-05-18T06:39:07Z",
        "kind": "event",
        "original": "{\"ColoCode\":\"MRS\",\"EDNSSubnet\":\"1.128.0.0\",\"EDNSSubnetLength\":0,\"QueryName\":\"example.com\",\"QueryType\":65535,\"ResponseCached\":false,\"ResponseCode\":0,\"SourceIP\":\"175.16.199.0\",\"Timestamp\":\"2022-05-26T09:23:54Z\"}",
        "type": [
            "info"
        ]
    },
    "input": {
        "type": "http_endpoint"
    },
    "related": {
        "hosts": [
            "example.com"
        ],
        "ip": [
            "175.16.199.0",
            "1.128.0.0"
        ]
    },
    "source": {
        "ip": "175.16.199.0"
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-dns"
    ]
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.dns.colo.code	IATA airport code of data center that received the request.	keyword
cloudflare_logpush.dns.edns.subnet	EDNS Client Subnet (IPv4 or IPv6).	ip
cloudflare_logpush.dns.edns.subnet_length	EDNS Client Subnet length.	long
cloudflare_logpush.dns.query.name	Name of the query that was sent.	keyword
cloudflare_logpush.dns.query.type	Integer value of query type.	long
cloudflare_logpush.dns.response.cached	Whether the response was cached or not.	boolean
cloudflare_logpush.dns.response.code	Integer value of response code.	long
cloudflare_logpush.dns.source.ip	IP address of the client (IPv4 or IPv6).	ip
cloudflare_logpush.dns.timestamp	Timestamp at which the query occurred.	date
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

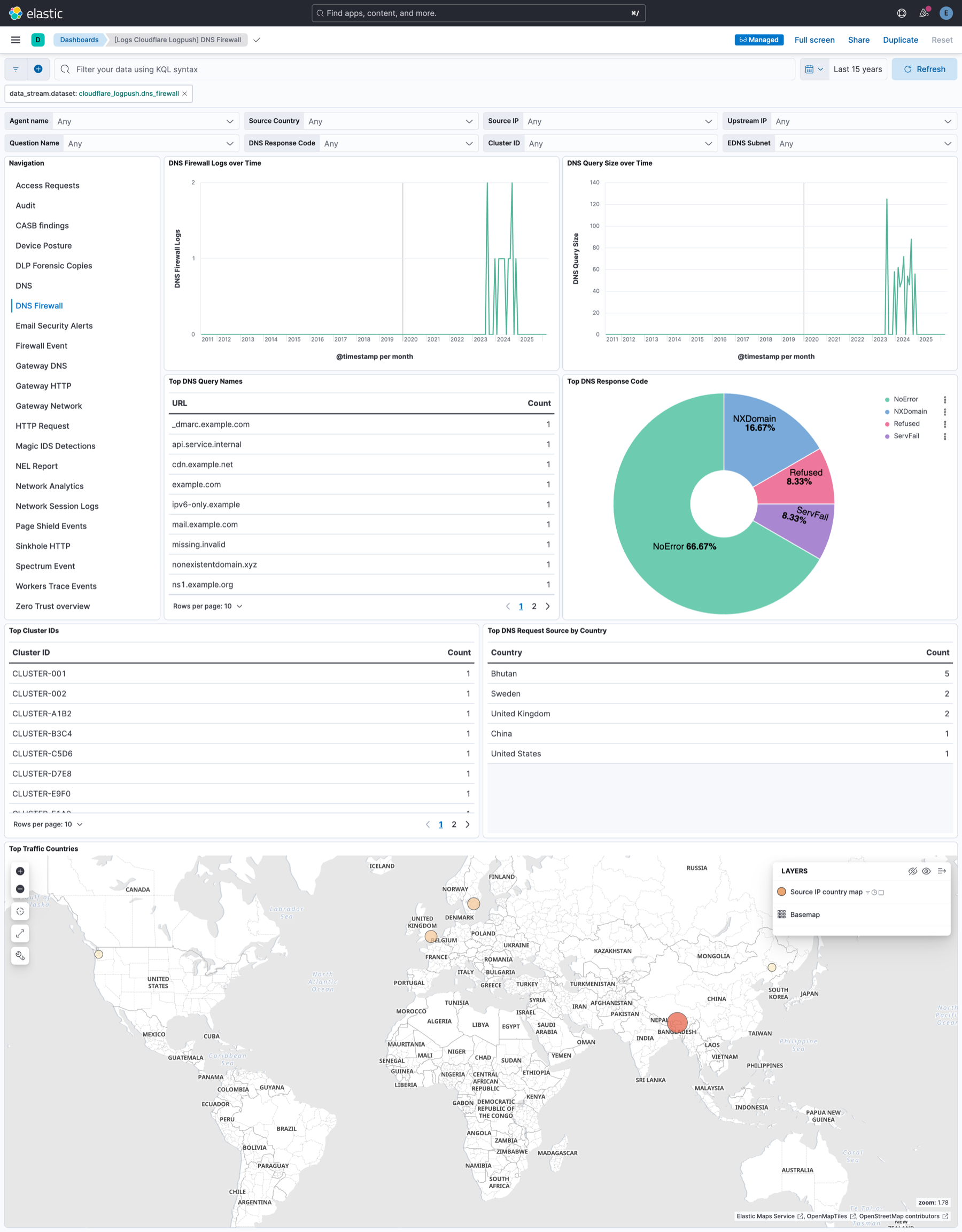

dns_firewall

This is the dns_firewall dataset.

Example

		{
    "@timestamp": "2023-09-19T12:30:00.000Z",
    "agent": {
        "ephemeral_id": "fa7a10f7-96fa-404a-8d48-d6ddb776760c",
        "id": "3d1bd14d-4ca0-4b54-b00e-9ca8f7110ea9",
        "name": "elastic-agent-21286",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "dns_firewall": {
            "cluster_id": "CLUSTER-001",
            "colo": {
                "code": "SFO"
            },
            "edns": {
                "subnet": "67.43.156.0",
                "subnet_length": 24
            },
            "question": {
                "dnssec_ok": true,
                "name": "example.com",
                "recursion_desired": true,
                "size": 60,
                "tcp": false,
                "type": 1
            },
            "response": {
                "cached": true,
                "cached_stale": false,
                "code": "0"
            },
            "source": {
                "ip": "67.43.156.2"
            },
            "timestamp": "2023-09-19T12:30:00.000Z",
            "upstream": {
                "ip": "81.2.69.144",
                "response_code": "0",
                "response_time_ms": 30
            }
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.dns_firewall",
        "namespace": "24235",
        "type": "logs"
    },
    "destination": {
        "geo": {
            "city_name": "London",
            "continent_name": "Europe",
            "country_iso_code": "GB",
            "country_name": "United Kingdom",
            "location": {
                "lat": 51.5142,
                "lon": -0.0931
            },
            "region_iso_code": "GB-ENG",
            "region_name": "England"
        },
        "ip": "81.2.69.144"
    },
    "dns": {
        "question": {
            "name": "example.com",
            "type": "A"
        },
        "response_code": "0"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "3d1bd14d-4ca0-4b54-b00e-9ca8f7110ea9",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "cloudflare_logpush.dns_firewall",
        "ingested": "2026-05-18T06:40:14Z",
        "kind": "event",
        "original": "{\"ClientResponseCode\":0,\"ClusterID\":\"CLUSTER-001\",\"ColoCode\":\"SFO\",\"EDNSSubnet\":\"67.43.156.0\",\"EDNSSubnetLength\":24,\"QueryDO\":true,\"QueryName\":\"example.com\",\"QueryRD\":true,\"QuerySize\":60,\"QueryTCP\":false,\"QueryType\":1,\"ResponseCached\":true,\"ResponseCachedStale\":false,\"SourceIP\":\"67.43.156.2\",\"Timestamp\":\"2023-09-19T12:30:00Z\",\"UpstreamIP\":\"81.2.69.144\",\"UpstreamResponseCode\":0,\"UpstreamResponseTimeMs\":30}",
        "type": [
            "info"
        ]
    },
    "input": {
        "type": "http_endpoint"
    },
    "network": {
        "transport": "udp"
    },
    "related": {
        "ip": [
            "67.43.156.2",
            "67.43.156.0",
            "81.2.69.144"
        ]
    },
    "source": {
        "as": {
            "number": 35908
        },
        "geo": {
            "continent_name": "Asia",
            "country_iso_code": "BT",
            "country_name": "Bhutan",
            "location": {
                "lat": 27.5,
                "lon": 90.5
            }
        },
        "ip": "67.43.156.2"
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-dns_firewall"
    ]
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.dns_firewall.cluster_id	The ID of the cluster which handled this request.	keyword
cloudflare_logpush.dns_firewall.colo.code	IATA airport code of data center that received the request.	keyword
cloudflare_logpush.dns_firewall.edns.subnet	EDNS Client Subnet (IPv4 or IPv6).	ip
cloudflare_logpush.dns_firewall.edns.subnet_length	EDNS Client Subnet length.	long
cloudflare_logpush.dns_firewall.question.dnssec_ok	Indicates if the client is capable of handling a signed response (DNSSEC answer OK).	boolean
cloudflare_logpush.dns_firewall.question.name	Name of the query that was sent.	keyword
cloudflare_logpush.dns_firewall.question.recursion_desired	Indicates if the client means a recursive query (Recursion Desired).	boolean
cloudflare_logpush.dns_firewall.question.size	The size of the query sent from the client in bytes.	long
cloudflare_logpush.dns_firewall.question.tcp	Indicates if the query from the client was made via TCP (if false, then UDP).	boolean
cloudflare_logpush.dns_firewall.question.type	Integer value of query type.	long
cloudflare_logpush.dns_firewall.response.cached	Whether the response was cached or not.	boolean
cloudflare_logpush.dns_firewall.response.cached_stale	Whether the response was cached stale. In other words, the TTL had expired and the upstream nameserver was not reachable.	boolean
cloudflare_logpush.dns_firewall.response.code	DNS response code.	keyword
cloudflare_logpush.dns_firewall.response.reason	Short descriptions with more context around the final DNS Firewall response. See Cloudflare docs for details.	keyword
cloudflare_logpush.dns_firewall.source.ip	The source IP address of the request.	ip
cloudflare_logpush.dns_firewall.timestamp	Timestamp at which the query occurred.	date
cloudflare_logpush.dns_firewall.upstream.ip	IP of the upstream nameserver (IPv4 or IPv6).	ip
cloudflare_logpush.dns_firewall.upstream.response_code	Response code from the upstream nameserver.	keyword
cloudflare_logpush.dns_firewall.upstream.response_time_ms	Upstream response time in milliseconds.	long
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

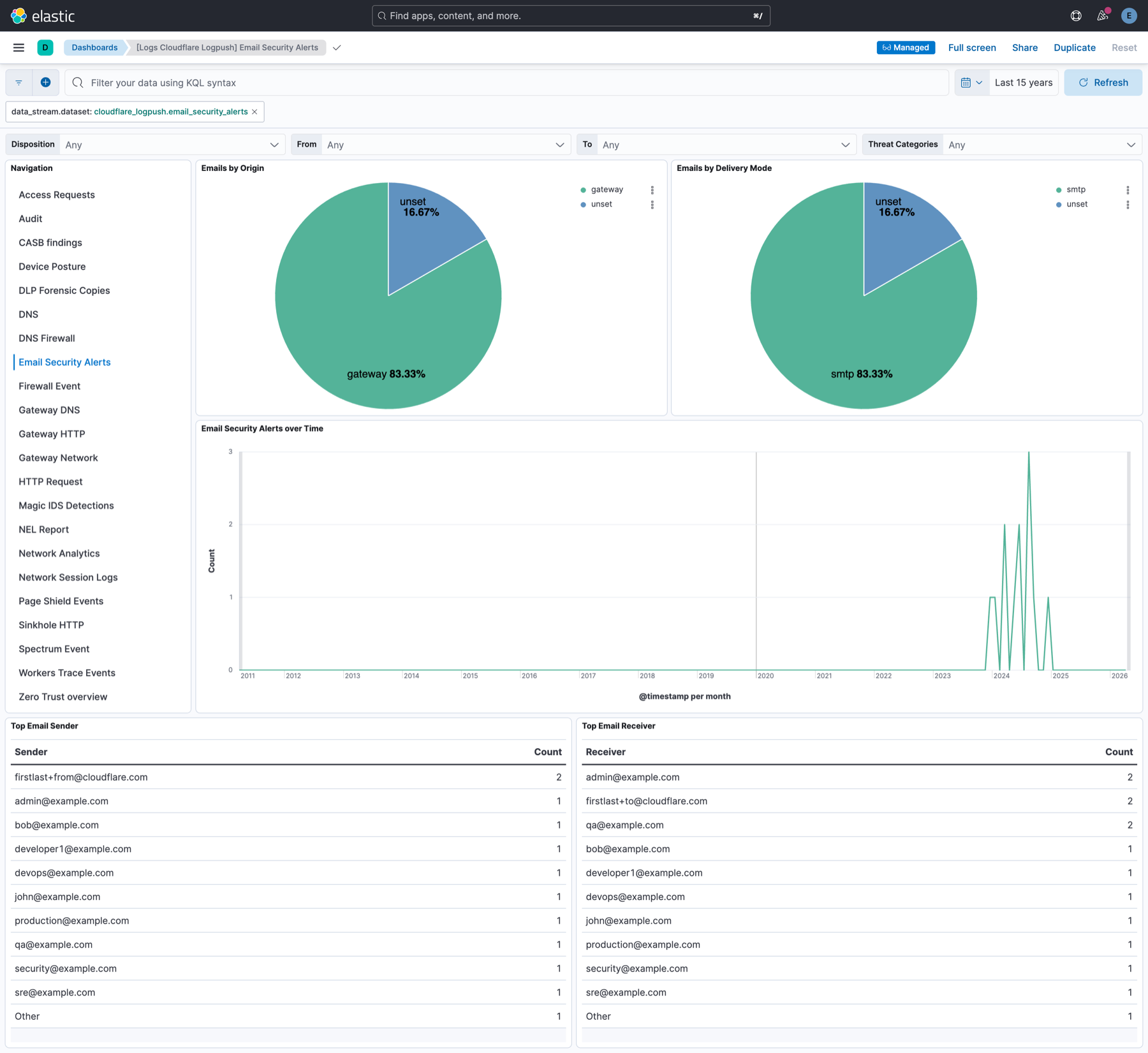

email_security_alerts

This is the email_security_alerts dataset.

Example

		{
    "@timestamp": "2024-08-28T15:32:35.000Z",
    "agent": {
        "ephemeral_id": "9fe4a665-f928-4dfa-92c4-780cee1d74f9",
        "id": "36b125a2-8f42-4f77-b3e7-a7090bcf1c63",
        "name": "elastic-agent-56850",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "email_security_alerts": {
            "alert_id": "4WtWkr6nlBz9sNH-2024-08-28T15:32:35",
            "alert_reasons": [
                "because",
                "said-so"
            ],
            "attachments": [
                {
                    "ContentTypeComputed": "application/x-msi",
                    "ContentTypeProvided": "image/gif",
                    "Decrypted": true,
                    "Encrypted": true,
                    "Md5": "91f073bd208689ddbd248e8989ecae90",
                    "Name": "attachment.gif",
                    "Sha1": "62b77e14e2c43049c45b5725018e78d0f9986930",
                    "Sha256": "3b57505305e7162141fd898ed87d08f92fc42579b5047495859e56b3275a6c06",
                    "Ssdeep": "McAQ8tPlH25e85Q2OiYpD08NvHmjJ97UfPMO47sekO:uN9M553OiiN/OJ9MM+e3"
                }
            ],
            "cc": [
                "firstlast+cc@cloudflare.com"
            ],
            "cc_name": [
                "First Last (cc)"
            ],
            "final_disposition": "malicious",
            "from": "firstlast+from@cloudflare.com",
            "from_name": "First Last (from)",
            "links": [
                "https://example.com"
            ],
            "message_delivery_mode": "unset",
            "message_id": "<Message-ID>",
            "origin": "unset",
            "original_sender": "firstlast+origin@cloudflare.com",
            "reply_to": "firstlast+reply@cloudflare.com",
            "reply_to_name": "First Last (reply)",
            "smtp_envelope_from": "firstlast+env_from@cloudflare.com",
            "smtp_envelope_to": [
                "firstlast+env_to@cloudflare.com"
            ],
            "smtp_helo_server_ip": "81.2.69.144",
            "smtp_helo_server_ip_as_name": "asn",
            "smtp_helo_server_ip_as_number": "42",
            "smtp_helo_server_ip_geo": "US/NV/Las Vegas",
            "smtp_helo_server_name": "servername",
            "subject": "innocuous message: please read",
            "threat_categories": [
                "CredentialHarvester",
                "Dropper"
            ],
            "timestamp": "2024-08-28T15:32:35.000Z",
            "to": "firstlast+to@cloudflare.com",
            "to_name": "First Last (to)"
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.email_security_alerts",
        "namespace": "29526",
        "type": "logs"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "36b125a2-8f42-4f77-b3e7-a7090bcf1c63",
        "snapshot": false,
        "version": "8.17.1"
    },
    "email": {
        "attachments": [
            {
                "file": {
                    "hash": {
                        "md5": "91f073bd208689ddbd248e8989ecae90",
                        "sha1": "62b77e14e2c43049c45b5725018e78d0f9986930",
                        "sha256": "3b57505305e7162141fd898ed87d08f92fc42579b5047495859e56b3275a6c06",
                        "ssdeep": "McAQ8tPlH25e85Q2OiYpD08NvHmjJ97UfPMO47sekO:uN9M553OiiN/OJ9MM+e3"
                    },
                    "mime_type": "application/x-msi",
                    "name": "attachment.gif"
                }
            }
        ],
        "cc": {
            "address": [
                "firstlast+cc@cloudflare.com"
            ]
        },
        "from": {
            "address": [
                "firstlast+from@cloudflare.com"
            ]
        },
        "message_id": "<Message-ID>",
        "reply_to": {
            "address": [
                "firstlast+reply@cloudflare.com"
            ]
        },
        "subject": "innocuous message: please read",
        "to": {
            "address": [
                "firstlast+to@cloudflare.com"
            ]
        }
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "email",
            "network"
        ],
        "dataset": "cloudflare_logpush.email_security_alerts",
        "ingested": "2026-05-18T07:00:14Z",
        "kind": "alert",
        "original": "{\"AlertID\":\"4WtWkr6nlBz9sNH-2024-08-28T15:32:35\",\"AlertReasons\":[\"because\",\"said-so\"],\"Attachments\":[{\"ContentTypeComputed\":\"application/x-msi\",\"ContentTypeProvided\":\"image/gif\",\"Decrypted\":true,\"Encrypted\":true,\"Md5\":\"91f073bd208689ddbd248e8989ecae90\",\"Name\":\"attachment.gif\",\"Sha1\":\"62b77e14e2c43049c45b5725018e78d0f9986930\",\"Sha256\":\"3b57505305e7162141fd898ed87d08f92fc42579b5047495859e56b3275a6c06\",\"Ssdeep\":\"McAQ8tPlH25e85Q2OiYpD08NvHmjJ97UfPMO47sekO:uN9M553OiiN/OJ9MM+e3\"}],\"CC\":[\"firstlast+cc@cloudflare.com\"],\"CCName\":[\"First Last (cc)\"],\"FinalDisposition\":\"malicious\",\"From\":\"firstlast+from@cloudflare.com\",\"FromName\":\"First Last (from)\",\"Links\":[\"https://example.com\"],\"MessageDeliveryMode\":\"unset\",\"MessageID\":\"\\u003cMessage-ID\\u003e\",\"Origin\":\"unset\",\"OriginalSender\":\"firstlast+origin@cloudflare.com\",\"ReplyTo\":\"firstlast+reply@cloudflare.com\",\"ReplyToName\":\"First Last (reply)\",\"SMTPEnvelopeFrom\":\"firstlast+env_from@cloudflare.com\",\"SMTPEnvelopeTo\":[\"firstlast+env_to@cloudflare.com\"],\"SMTPHeloServerIP\":\"81.2.69.144\",\"SMTPHeloServerIPAsName\":\"asn\",\"SMTPHeloServerIPAsNumber\":\"42\",\"SMTPHeloServerIPGeo\":\"US/NV/Las Vegas\",\"SMTPHeloServerName\":\"servername\",\"Subject\":\"innocuous message: please read\",\"ThreatCategories\":[\"CredentialHarvester\",\"Dropper\"],\"Timestamp\":\"2024-08-28T15:32:35Z\",\"To\":\"firstlast+to@cloudflare.com\",\"ToName\":\"First Last (to)\"}",
        "type": [
            "info"
        ]
    },
    "file": [
        {
            "hash": {
                "md5": "91f073bd208689ddbd248e8989ecae90",
                "sha1": "62b77e14e2c43049c45b5725018e78d0f9986930",
                "sha256": "3b57505305e7162141fd898ed87d08f92fc42579b5047495859e56b3275a6c06",
                "ssdeep": "McAQ8tPlH25e85Q2OiYpD08NvHmjJ97UfPMO47sekO:uN9M553OiiN/OJ9MM+e3"
            },
            "mime_type": "application/x-msi",
            "name": "attachment.gif"
        }
    ],
    "input": {
        "type": "http_endpoint"
    },
    "related": {
        "hash": [
            "3b57505305e7162141fd898ed87d08f92fc42579b5047495859e56b3275a6c06",
            "62b77e14e2c43049c45b5725018e78d0f9986930",
            "McAQ8tPlH25e85Q2OiYpD08NvHmjJ97UfPMO47sekO:uN9M553OiiN/OJ9MM+e3",
            "91f073bd208689ddbd248e8989ecae90"
        ],
        "hosts": [
            "servername",
            "cloudflare.com",
            "example.com"
        ],
        "ip": [
            "81.2.69.144"
        ],
        "user": [
            "firstlast+from@cloudflare.com",
            "First Last (from)",
            "firstlast+env_from@cloudflare.com",
            "firstlast+origin@cloudflare.com",
            "First Last (reply)",
            "firstlast+reply@cloudflare.com",
            "firstlast+env_to@cloudflare.com",
            "firstlast+cc@cloudflare.com",
            "First Last (cc)"
        ]
    },
    "server": {
        "address": "servername",
        "domain": "servername",
        "geo": {
            "city_name": "London",
            "continent_name": "Europe",
            "country_iso_code": "GB",
            "country_name": "United Kingdom",
            "location": {
                "lat": 51.5142,
                "lon": -0.0931
            },
            "region_iso_code": "GB-ENG",
            "region_name": "England"
        },
        "ip": "81.2.69.144"
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-email_security_alerts"
    ]
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.email_security_alerts.alert_id	The canonical ID for an Email Security Alert.	keyword
cloudflare_logpush.email_security_alerts.alert_reasons	Human-readable list of findings which contributed to this message's final disposition.	keyword
cloudflare_logpush.email_security_alerts.attachments.*	Metadata of attachments contained in this message.	keyword
cloudflare_logpush.email_security_alerts.attachments.Decrypted	Whether the attachment was decrypted.	boolean
cloudflare_logpush.email_security_alerts.attachments.Encrypted	Whether the attachment was encrypted.	boolean
cloudflare_logpush.email_security_alerts.cc	Email address portions of the CC header provided by the sender.	keyword
cloudflare_logpush.email_security_alerts.cc_name	Name portions of the CC header provided by the sender.	keyword
cloudflare_logpush.email_security_alerts.final_disposition	Final disposition attributed to the message. Possible values are (unset, malicious, suspicious, spoof, spam, and bulk).	keyword
cloudflare_logpush.email_security_alerts.from	Email address portion of the From header provided by the sender.	keyword
cloudflare_logpush.email_security_alerts.from_name	Name portion of the From header provided by the sender.	keyword
cloudflare_logpush.email_security_alerts.links	List of links detected in this message, benign or otherwise; limited to 100 in total.	keyword
cloudflare_logpush.email_security_alerts.message_delivery_mode	The message's mode of transport to Email Security. Possible values are (unset, api, direct, bcc, journal, and retroScan).	keyword
cloudflare_logpush.email_security_alerts.message_id	Value of the Message-ID header provided by the sender.	keyword
cloudflare_logpush.email_security_alerts.origin	The origin of the message. Possible values are (unset, internal, external, secondPartyInternal, thirdPartyInternal, and outbound).	keyword
cloudflare_logpush.email_security_alerts.original_sender	The original sender address as determined by Email Security mail processing.	keyword
cloudflare_logpush.email_security_alerts.reply_to	Email address portion of the Reply-To header provided by the sender.	keyword
cloudflare_logpush.email_security_alerts.reply_to_name	Name portion of the Reply-To header provided by the sender.	keyword
cloudflare_logpush.email_security_alerts.smtp_envelope_from	Value of the SMTP MAIL FROM command provided by the sender.	keyword
cloudflare_logpush.email_security_alerts.smtp_envelope_to	Values of the SMTP RCPT TO command provided by the sender.	keyword
cloudflare_logpush.email_security_alerts.smtp_helo_server_ip	IPv4/v6 of the SMTP HELO server.	ip
cloudflare_logpush.email_security_alerts.smtp_helo_server_ip_as_name	Autonomous System Name of the SMTP HELO server's IP.	keyword
cloudflare_logpush.email_security_alerts.smtp_helo_server_ip_as_number	Autonomous System Number of the SMTP HELO server's IP.	keyword
cloudflare_logpush.email_security_alerts.smtp_helo_server_ip_geo	SMTP HELO server geolocation info (for example, 'US/NV/Las Vegas').	keyword
cloudflare_logpush.email_security_alerts.smtp_helo_server_name	Hostname provided by the SMTP HELO server.	keyword
cloudflare_logpush.email_security_alerts.subject	Value of the Subject header provided by the sender.	keyword
cloudflare_logpush.email_security_alerts.threat_categories	Threat categories attributed by Email Security processing.	keyword
cloudflare_logpush.email_security_alerts.timestamp	Start time of message processing.	date
cloudflare_logpush.email_security_alerts.to	Email address portions of the To header provided by the sender.	keyword
cloudflare_logpush.email_security_alerts.to_name	Name portions of the To header provided by the sender.	keyword
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

firewall_event

This is the firewall_event dataset.

Example

		{
    "@timestamp": "2022-05-31T05:23:43.000Z",
    "agent": {
        "ephemeral_id": "59ac2e94-d18d-446d-aaca-d5f33b2de2d7",
        "id": "deb4d2d8-8dff-4e82-8ae3-f917de372242",
        "name": "elastic-agent-80603",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "firewall_event": {
            "action": "block",
            "client": {
                "asn": {
                    "description": "CLOUDFLARENET",
                    "value": 15169
                },
                "country": "us",
                "ip": "175.16.199.0",
                "ip_class": "searchEngine",
                "referer": {
                    "host": "abc.example.com",
                    "path": "/abc/checkout",
                    "query": "?sourcerer=(default%3A(id%3A!n%2CselectedPatterns%3A!(eqldemo%2C%27logs-endpoint.*-eqldemo%27%2C%27logs-system.*-eqldemo%27%2C%27logs-windows.*-eqldemo%27%2Cmetricseqldemo)))&timerange=(global%3A(linkTo%3A!()%2Ctimerange%3A(from%3A%272022-04-05T00%3A00%3A01.199Z%27%2CfromStr%3Anow-24h%2Ckind%3Arelative%2Cto%3A%272022-04-06T00%3A00%3A01.200Z%27%2CtoStr%3Anow))%2Ctimeline%3A(linkTo%3A!()%2Ctimerange%3A(from%3A%272022-04-05T00%3A00%3A01.201Z%27%2CfromStr%3Anow-24h%2Ckind%3Arelative%2Cto%3A%272022-04-06T00%3A00%3A01.202Z%27%2CtoStr%3Anow)))",
                    "scheme": "referer URL scheme"
                },
                "request": {
                    "host": "xyz.example.com",
                    "method": "GET",
                    "path": "/abc/checkout",
                    "protocol": "HTTP/1.1",
                    "query": "?sourcerer=(default%3A(id%3A!n%2CselectedPatterns%3A!(eqldemo%2C%27logs-endpoint.*-eqldemo%27%2C%27logs-system.*-eqldemo%27%2C%27logs-windows.*-eqldemo%27%2Cmetricseqldemo)))&timerange=(global%3A(linkTo%3A!()%2Ctimerange%3A(from%3A%272022-04-05T00%3A00%3A01.199Z%27%2CfromStr%3Anow-24h%2Ckind%3Arelative%2Cto%3A%272022-04-06T00%3A00%3A01.200Z%27%2CtoStr%3Anow))%2Ctimeline%3A(linkTo%3A!()%2Ctimerange%3A(from%3A%272022-04-05T00%3A00%3A01.201Z%27%2CfromStr%3Anow-24h%2Ckind%3Arelative%2Cto%3A%272022-04-06T00%3A00%3A01.202Z%27%2CtoStr%3Anow)))",
                    "scheme": "https",
                    "user": {
                        "agent": "Mozilla/5.0 (Linux; Android 6.0.1; Nexus 5X Build/MMB29P) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/101.0.4951.64 Mobile Safari/537.36 (compatible; Googlebot/2.1; +http://www.google.com/bot.html)"
                    }
                }
            },
            "edge": {
                "colo": {
                    "code": "IAD"
                },
                "response": {
                    "status": 403
                }
            },
            "kind": "firewall",
            "match_index": 1,
            "meta_data": {
                "filter": "1ced07e066a34abf8b14f2a99593bc8d",
                "type": "customer"
            },
            "origin": {
                "ray": {
                    "id": "00"
                },
                "response": {
                    "status": 0
                }
            },
            "ray": {
                "id": "713d477539b55c29"
            },
            "rule": {
                "id": "7dc666e026974dab84884c73b3e2afe1"
            },
            "source": "firewallrules",
            "timestamp": "2022-05-31T05:23:43.000Z"
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.firewall_event",
        "namespace": "23958",
        "type": "logs"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "deb4d2d8-8dff-4e82-8ae3-f917de372242",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "action": "block",
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "cloudflare_logpush.firewall_event",
        "id": "713d477539b55c29",
        "ingested": "2026-05-11T12:52:16Z",
        "kind": "event",
        "original": "{\"Action\":\"block\",\"ClientASN\":15169,\"ClientASNDescription\":\"CLOUDFLARENET\",\"ClientCountry\":\"us\",\"ClientIP\":\"175.16.199.0\",\"ClientIPClass\":\"searchEngine\",\"ClientRefererHost\":\"abc.example.com\",\"ClientRefererPath\":\"/abc/checkout\",\"ClientRefererQuery\":\"?sourcerer=(default%3A(id%3A!n%2CselectedPatterns%3A!(eqldemo%2C%27logs-endpoint.*-eqldemo%27%2C%27logs-system.*-eqldemo%27%2C%27logs-windows.*-eqldemo%27%2Cmetricseqldemo)))\\u0026timerange=(global%3A(linkTo%3A!()%2Ctimerange%3A(from%3A%272022-04-05T00%3A00%3A01.199Z%27%2CfromStr%3Anow-24h%2Ckind%3Arelative%2Cto%3A%272022-04-06T00%3A00%3A01.200Z%27%2CtoStr%3Anow))%2Ctimeline%3A(linkTo%3A!()%2Ctimerange%3A(from%3A%272022-04-05T00%3A00%3A01.201Z%27%2CfromStr%3Anow-24h%2Ckind%3Arelative%2Cto%3A%272022-04-06T00%3A00%3A01.202Z%27%2CtoStr%3Anow)))\",\"ClientRefererScheme\":\"referer URL scheme\",\"ClientRequestHost\":\"xyz.example.com\",\"ClientRequestMethod\":\"GET\",\"ClientRequestPath\":\"/abc/checkout\",\"ClientRequestProtocol\":\"HTTP/1.1\",\"ClientRequestQuery\":\"?sourcerer=(default%3A(id%3A!n%2CselectedPatterns%3A!(eqldemo%2C%27logs-endpoint.*-eqldemo%27%2C%27logs-system.*-eqldemo%27%2C%27logs-windows.*-eqldemo%27%2Cmetricseqldemo)))\\u0026timerange=(global%3A(linkTo%3A!()%2Ctimerange%3A(from%3A%272022-04-05T00%3A00%3A01.199Z%27%2CfromStr%3Anow-24h%2Ckind%3Arelative%2Cto%3A%272022-04-06T00%3A00%3A01.200Z%27%2CtoStr%3Anow))%2Ctimeline%3A(linkTo%3A!()%2Ctimerange%3A(from%3A%272022-04-05T00%3A00%3A01.201Z%27%2CfromStr%3Anow-24h%2Ckind%3Arelative%2Cto%3A%272022-04-06T00%3A00%3A01.202Z%27%2CtoStr%3Anow)))\",\"ClientRequestScheme\":\"https\",\"ClientRequestUserAgent\":\"Mozilla/5.0 (Linux; Android 6.0.1; Nexus 5X Build/MMB29P) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/101.0.4951.64 Mobile Safari/537.36 (compatible; Googlebot/2.1; +http://www.google.com/bot.html)\",\"Datetime\":\"2022-05-31T05:23:43Z\",\"EdgeColoCode\":\"IAD\",\"EdgeResponseStatus\":403,\"Kind\":\"firewall\",\"MatchIndex\":1,\"Metadata\":{\"filter\":\"1ced07e066a34abf8b14f2a99593bc8d\",\"type\":\"customer\"},\"OriginResponseStatus\":0,\"OriginatorRayID\":\"00\",\"RayID\":\"713d477539b55c29\",\"RuleID\":\"7dc666e026974dab84884c73b3e2afe1\",\"Source\":\"firewallrules\"}",
        "type": [
            "info"
        ]
    },
    "http": {
        "request": {
            "method": "GET"
        },
        "response": {
            "status_code": 403
        },
        "version": "1.1"
    },
    "input": {
        "type": "http_endpoint"
    },
    "network": {
        "protocol": "http"
    },
    "related": {
        "hosts": [
            "abc.example.com",
            "xyz.example.com"
        ],
        "ip": [
            "175.16.199.0"
        ]
    },
    "rule": {
        "id": "7dc666e026974dab84884c73b3e2afe1"
    },
    "source": {
        "as": {
            "number": 15169
        },
        "geo": {
            "country_iso_code": "us"
        },
        "ip": "175.16.199.0"
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-firewall_event"
    ],
    "url": {
        "domain": "xyz.example.com",
        "path": "/abc/checkout",
        "query": "sourcerer=(default%3A(id%3A!n%2CselectedPatterns%3A!(eqldemo%2C%27logs-endpoint.*-eqldemo%27%2C%27logs-system.*-eqldemo%27%2C%27logs-windows.*-eqldemo%27%2Cmetricseqldemo)))&timerange=(global%3A(linkTo%3A!()%2Ctimerange%3A(from%3A%272022-04-05T00%3A00%3A01.199Z%27%2CfromStr%3Anow-24h%2Ckind%3Arelative%2Cto%3A%272022-04-06T00%3A00%3A01.200Z%27%2CtoStr%3Anow))%2Ctimeline%3A(linkTo%3A!()%2Ctimerange%3A(from%3A%272022-04-05T00%3A00%3A01.201Z%27%2CfromStr%3Anow-24h%2Ckind%3Arelative%2Cto%3A%272022-04-06T00%3A00%3A01.202Z%27%2CtoStr%3Anow)))",
        "scheme": "https"
    },
    "user_agent": {
        "device": {
            "name": "Spider"
        },
        "name": "Googlebot",
        "original": "Mozilla/5.0 (Linux; Android 6.0.1; Nexus 5X Build/MMB29P) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/101.0.4951.64 Mobile Safari/537.36 (compatible; Googlebot/2.1; +http://www.google.com/bot.html)",
        "os": {
            "full": "Android 6.0.1",
            "name": "Android",
            "version": "6.0.1"
        },
        "version": "2.1"
    }
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.firewall_event.action	The code of the first-class action the Cloudflare Firewall took on this request.	keyword
cloudflare_logpush.firewall_event.client.asn.description	The ASN of the visitor as string.	keyword
cloudflare_logpush.firewall_event.client.asn.value	The ASN number of the visitor.	long
cloudflare_logpush.firewall_event.client.country	Country from which request originated.	keyword
cloudflare_logpush.firewall_event.client.ip	The visitor IP address (IPv4 or IPv6).	ip
cloudflare_logpush.firewall_event.client.ip_class	The classification of the visitor IP address, possible values are:- 'unknown', 'badHost', 'searchEngine', 'allowlist', 'monitoringService', 'noRecord', 'scan' and 'tor'.	keyword
cloudflare_logpush.firewall_event.client.referer.host	The referer host.	keyword
cloudflare_logpush.firewall_event.client.referer.path	The referer path requested by visitor.	text
cloudflare_logpush.firewall_event.client.referer.query	The referer query-string was requested by the visitor.	keyword
cloudflare_logpush.firewall_event.client.referer.scheme	The referer URL scheme requested by the visitor.	text
cloudflare_logpush.firewall_event.client.request.host	The HTTP hostname requested by the visitor.	keyword
cloudflare_logpush.firewall_event.client.request.method	The HTTP method used by the visitor.	keyword
cloudflare_logpush.firewall_event.client.request.path	The path requested by visitor.	text
cloudflare_logpush.firewall_event.client.request.protocol	The version of HTTP protocol requested by the visitor.	keyword
cloudflare_logpush.firewall_event.client.request.query	The query-string was requested by the visitor.	keyword
cloudflare_logpush.firewall_event.client.request.scheme	The URL scheme requested by the visitor.	text
cloudflare_logpush.firewall_event.client.request.user.agent	Visitor's user-agent string.	text
cloudflare_logpush.firewall_event.content_scan.results	List of content scan results.	keyword
cloudflare_logpush.firewall_event.content_scan.sizes	List of content object sizes.	long
cloudflare_logpush.firewall_event.content_scan.types	List of content types.	keyword
cloudflare_logpush.firewall_event.edge.colo.code	The airport code of the Cloudflare datacenter that served this request.	keyword
cloudflare_logpush.firewall_event.edge.response.status	HTTP response status code returned to browser.	long
cloudflare_logpush.firewall_event.fraud.user_id	A unique identifier generated by the Fraud Detection system for each user.	keyword
cloudflare_logpush.firewall_event.kind	The kind of event, currently only possible values are.	keyword
cloudflare_logpush.firewall_event.leaked_credential_check	Result of the check for leaked credentials. Possible results are: password_leaked	username_and_password_leaked	username_password_similar	username_leaked	clean.	keyword
cloudflare_logpush.firewall_event.match_index	Rules match index in the chain.	long
cloudflare_logpush.firewall_event.meta_data	Additional product-specific information.	flattened
cloudflare_logpush.firewall_event.origin.ray.id	The RayID of the request that issued the challenge/jschallenge.	keyword
cloudflare_logpush.firewall_event.origin.response.status	HTTP origin response status code returned to browser.	long
cloudflare_logpush.firewall_event.ray.id	The RayID of the request.	keyword
cloudflare_logpush.firewall_event.ref	The user-defined identifier for the rule triggered by this request.	keyword
cloudflare_logpush.firewall_event.rule.description	The Cloudflare security product-specific Description of the rule triggered by this request.	keyword
cloudflare_logpush.firewall_event.rule.id	The Cloudflare security product-specific RuleID triggered by this request.	keyword
cloudflare_logpush.firewall_event.source	The Cloudflare security product triggered by this request.	keyword
cloudflare_logpush.firewall_event.timestamp	The date and time the event occurred at the edge.	date
cloudflare_logpush.firewall_event.zone.name	The human-readable name of the zone.	keyword
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

gateway_dns

This is the gateway_dns dataset.

Example

		{
    "@timestamp": "2023-05-02T22:49:53.000Z",
    "agent": {
        "ephemeral_id": "0d5b40c6-2008-4ad0-8cb4-046ba22a95d7",
        "id": "12640826-2373-4835-8e5e-d8c4f9b93657",
        "name": "elastic-agent-32400",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "gateway_dns": {
            "answers": [
                {
                    "data": "CHNlY3VyaXR5BnVidW50dQMjb20AAAEAAQAAAAgABLl9vic=",
                    "type": "1"
                },
                {
                    "data": "CHNlY3VyaXR5BnVidW50dQNjb20AAAEAABAAAAgABLl9viQ=",
                    "type": "1"
                },
                {
                    "data": "CHNlT3VyaXR5BnVidW50dQNjb20AAAEAAQAAAAgABFu9Wyc=",
                    "type": "1"
                }
            ],
            "application_id": 0,
            "colo": {
                "code": "ORD",
                "id": 14
            },
            "destination": {
                "ip": "89.160.20.129",
                "port": 443
            },
            "host": {
                "id": "083a8354-d56c-11ed-9771-6a842b111aaa",
                "name": "zt-test-vm1"
            },
            "location": {
                "id": "f233bd67-78c7-4050-9aff-ad63cce25732",
                "name": "GCP default"
            },
            "matched": {
                "category": {
                    "ids": [
                        7,
                        163
                    ],
                    "names": [
                        "Photography",
                        "Weather"
                    ]
                }
            },
            "policy": {
                "id": "1412",
                "name": "7bdc7a9c-81d3-4816-8e56-de1acad3dec5"
            },
            "protocol": "https",
            "question": {
                "category": {
                    "ids": [
                        26,
                        155
                    ],
                    "names": [
                        "Technology",
                        "Technology"
                    ]
                },
                "name": "security.ubuntu.com",
                "reversed": "com.ubuntu.security",
                "size": 48,
                "type": "A",
                "type_id": 1
            },
            "resolved_ip": [
                "67.43.156.1",
                "67.43.156.2",
                "67.43.156.3"
            ],
            "resolver_decision": "allowedOnNoPolicyMatch",
            "response_code": "0",
            "source": {
                "ip": "67.43.156.2",
                "port": 0
            },
            "timestamp": "2023-05-02T22:49:53.000Z",
            "timezone": "UTC",
            "timezone_inferred_method": "fromLocalTime",
            "user": {
                "email": "user@example.com",
                "id": "166befbb-00e3-5e20-bd6e-27245000000"
            }
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.gateway_dns",
        "namespace": "45159",
        "type": "logs"
    },
    "destination": {
        "as": {
            "number": 29518,
            "organization": {
                "name": "Bredband2 AB"
            }
        },
        "geo": {
            "city_name": "Linköping",
            "continent_name": "Europe",
            "country_iso_code": "SE",
            "country_name": "Sweden",
            "location": {
                "lat": 58.4167,
                "lon": 15.6167
            },
            "region_iso_code": "SE-E",
            "region_name": "Östergötland County"
        },
        "ip": "89.160.20.129",
        "port": 443
    },
    "device": {
        "id": "083a8354-d56c-11ed-9771-6a842b111aaa"
    },
    "dns": {
        "answers": [
            {
                "data": "CHNlY3VyaXR5BnVidW50dQMjb20AAAEAAQAAAAgABLl9vic=",
                "type": "1"
            },
            {
                "data": "CHNlY3VyaXR5BnVidW50dQNjb20AAAEAABAAAAgABLl9viQ=",
                "type": "1"
            },
            {
                "data": "CHNlT3VyaXR5BnVidW50dQNjb20AAAEAAQAAAAgABFu9Wyc=",
                "type": "1"
            }
        ],
        "question": {
            "name": "security.ubuntu.com",
            "type": "A"
        },
        "resolved_ip": [
            "67.43.156.1",
            "67.43.156.2",
            "67.43.156.3"
        ],
        "response_code": "0"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "12640826-2373-4835-8e5e-d8c4f9b93657",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "cloudflare_logpush.gateway_dns",
        "ingested": "2026-05-18T06:42:20Z",
        "kind": "event",
        "original": "{\"ApplicationID\":0,\"ColoCode\":\"ORD\",\"ColoID\":14,\"Datetime\":\"2023-05-02T22:49:53Z\",\"DeviceID\":\"083a8354-d56c-11ed-9771-6a842b111aaa\",\"DeviceName\":\"zt-test-vm1\",\"DstIP\":\"89.160.20.129\",\"DstPort\":443,\"Email\":\"user@example.com\",\"Location\":\"GCP default\",\"LocationID\":\"f233bd67-78c7-4050-9aff-ad63cce25732\",\"MatchedCategoryIDs\":[7,163],\"MatchedCategoryNames\":[\"Photography\",\"Weather\"],\"Policy\":\"7bdc7a9c-81d3-4816-8e56-de1acad3dec5\",\"PolicyID\":\"1412\",\"Protocol\":\"https\",\"QueryCategoryIDs\":[26,155],\"QueryCategoryNames\":[\"Technology\",\"Technology\"],\"QueryName\":\"security.ubuntu.com\",\"QueryNameReversed\":\"com.ubuntu.security\",\"QuerySize\":48,\"QueryType\":1,\"QueryTypeName\":\"A\",\"RCode\":0,\"RData\":[{\"data\":\"CHNlY3VyaXR5BnVidW50dQMjb20AAAEAAQAAAAgABLl9vic=\",\"type\":\"1\"},{\"data\":\"CHNlY3VyaXR5BnVidW50dQNjb20AAAEAABAAAAgABLl9viQ=\",\"type\":\"1\"},{\"data\":\"CHNlT3VyaXR5BnVidW50dQNjb20AAAEAAQAAAAgABFu9Wyc=\",\"type\":\"1\"}],\"ResolvedIPs\":[\"67.43.156.1\",\"67.43.156.2\",\"67.43.156.3\"],\"ResolverDecision\":\"allowedOnNoPolicyMatch\",\"SrcIP\":\"67.43.156.2\",\"SrcPort\":0,\"TimeZone\":\"UTC\",\"TimeZoneInferredMethod\":\"fromLocalTime\",\"UserID\":\"166befbb-00e3-5e20-bd6e-27245000000\"}",
        "outcome": "success",
        "timezone": "UTC",
        "type": [
            "info"
        ]
    },
    "host": {
        "id": "083a8354-d56c-11ed-9771-6a842b111aaa",
        "name": "zt-test-vm1"
    },
    "input": {
        "type": "http_endpoint"
    },
    "network": {
        "protocol": "https"
    },
    "related": {
        "hosts": [
            "083a8354-d56c-11ed-9771-6a842b111aaa",
            "zt-test-vm1",
            "security.ubuntu.com"
        ],
        "ip": [
            "67.43.156.2",
            "89.160.20.129",
            "67.43.156.1",
            "67.43.156.3"
        ],
        "user": [
            "166befbb-00e3-5e20-bd6e-27245000000",
            "user@example.com"
        ]
    },
    "source": {
        "as": {
            "number": 35908
        },
        "geo": {
            "continent_name": "Asia",
            "country_iso_code": "BT",
            "country_name": "Bhutan",
            "location": {
                "lat": 27.5,
                "lon": 90.5
            }
        },
        "ip": "67.43.156.2",
        "port": 0
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-gateway_dns"
    ],
    "user": {
        "email": "user@example.com",
        "id": "166befbb-00e3-5e20-bd6e-27245000000"
    }
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.gateway_dns.account_id	Cloudflare account ID.	keyword
cloudflare_logpush.gateway_dns.answers	The response data objects.	flattened
cloudflare_logpush.gateway_dns.application_id	ID of the application the domain belongs to.	long
cloudflare_logpush.gateway_dns.application_name	Name of the application the domain belongs to.	keyword
cloudflare_logpush.gateway_dns.authoritative_name_server_ip	The IPs of the authoritative nameservers that provided the answers, if any.	ip
cloudflare_logpush.gateway_dns.cname	Resolved intermediate cname domains.	keyword
cloudflare_logpush.gateway_dns.cname_category.ids	ID or IDs of category that the intermediate cname domains belongs to.	keyword
cloudflare_logpush.gateway_dns.cname_category.names	Name or names of category that the intermediate cname domains belongs to.	keyword
cloudflare_logpush.gateway_dns.cname_reversed	Resolved intermediate cname domains in reverse.	keyword
cloudflare_logpush.gateway_dns.colo.code	The name of the colo that received the DNS query.	keyword
cloudflare_logpush.gateway_dns.colo.id	The ID of the colo that received the DNS query.	long
cloudflare_logpush.gateway_dns.custom_resolver.address	IP and port combo used to resolve the custom dns resolver query, if any.	keyword
cloudflare_logpush.gateway_dns.custom_resolver.duration_milli	The time it took for the custom resolver to respond in milliseconds.	long
cloudflare_logpush.gateway_dns.custom_resolver.policy.ids	Custom resolver policy UUIDs, if matched.	keyword
cloudflare_logpush.gateway_dns.custom_resolver.policy.names	Custom resolver policy name, if matched.	keyword
cloudflare_logpush.gateway_dns.custom_resolver.response	Status of the custom resolver response.	keyword
cloudflare_logpush.gateway_dns.destination.ip	The destination IP address the DNS query was made to.	ip
cloudflare_logpush.gateway_dns.destination.port	The destination port used at the edge. The port changes based on the protocol used by the DNS query.	long
cloudflare_logpush.gateway_dns.doh_subdomain	The destination DoH subdomain the DNS query was made to.	keyword
cloudflare_logpush.gateway_dns.dot_subdomain	The destination DoT subdomain the DNS query was made to.	keyword
cloudflare_logpush.gateway_dns.extended_dns_error_codes	List of returned Extended DNS Error Codes.	keyword
cloudflare_logpush.gateway_dns.host.id	UUID of the device where the HTTP request originated from.	keyword
cloudflare_logpush.gateway_dns.host.name	The name of the device where the HTTP request originated from.	keyword
cloudflare_logpush.gateway_dns.initial_category.ids	ID or IDs of category that the queried domains belongs to.	keyword
cloudflare_logpush.gateway_dns.initial_category.names	Name or names of category that the queried domains belongs to.	keyword
cloudflare_logpush.gateway_dns.initial_resolved_ips	The IPs used to correlate existing FQDN matching policy between Gateway DNS and Gateway proxy.	ip
cloudflare_logpush.gateway_dns.internal_dns.duration_ms	The time it took for the internal DNS to respond.	long
cloudflare_logpush.gateway_dns.internal_dns.fallback_strategy	The fallback strategy applied over the internal DNS response.	keyword
cloudflare_logpush.gateway_dns.internal_dns.rcode	The return code sent back by the internal DNS service.	long
cloudflare_logpush.gateway_dns.internal_dns.view_id	The DNS internal view identifier that was sent to the internal DNS service.	keyword
cloudflare_logpush.gateway_dns.internal_dns.zone_id	The DNS zone identifier returned by the internal DNS service.	keyword
cloudflare_logpush.gateway_dns.is_response_cached	Response comes from cache or not.	boolean
cloudflare_logpush.gateway_dns.location.id	UUID of the location the DNS request is coming from.	keyword
cloudflare_logpush.gateway_dns.location.name	Name of the location the DNS request is coming from.	keyword
cloudflare_logpush.gateway_dns.matched.category.ids	ID or IDs of category that the domain was matched with the policy.	long
cloudflare_logpush.gateway_dns.matched.category.names	Name or names of category that the domain was matched with the policy.	keyword
cloudflare_logpush.gateway_dns.matched.indicator_feed.ids	ID or IDs of indicator feed(s) that the domain was matched with the policy.	keyword
cloudflare_logpush.gateway_dns.matched.indicator_feed.names	Name or names of indicator feed(s) that the domain was matched with the policy.	keyword
cloudflare_logpush.gateway_dns.policy.id	ID of the policy/rule that was applied (if any).	keyword
cloudflare_logpush.gateway_dns.policy.name	Name of the policy that was applied (if any).	keyword
cloudflare_logpush.gateway_dns.protocol	The protocol used for the DNS query by the client.	keyword
cloudflare_logpush.gateway_dns.question.application.ids	ID or IDs of applications the queried domain belongs to.	keyword
cloudflare_logpush.gateway_dns.question.application.names	Name or names of applications the queried domain belongs to.	keyword
cloudflare_logpush.gateway_dns.question.category.ids	ID or IDs of category that the domain belongs to.	long
cloudflare_logpush.gateway_dns.question.category.names	Name or names of category that the domain belongs to.	keyword
cloudflare_logpush.gateway_dns.question.id	Globally unique identifier of the query.	keyword
cloudflare_logpush.gateway_dns.question.indicator_feed.ids	ID or IDs of indicator feed(s) that the domain belongs to.	long
cloudflare_logpush.gateway_dns.question.indicator_feed.names	Name or names of indicator feed(s) that the domain belongs to.	keyword
cloudflare_logpush.gateway_dns.question.name	The query name.	keyword
cloudflare_logpush.gateway_dns.question.reversed	Query name in reverse.	keyword
cloudflare_logpush.gateway_dns.question.size	The size of the DNS request in bytes.	long
cloudflare_logpush.gateway_dns.question.type	The type of DNS query.	keyword
cloudflare_logpush.gateway_dns.question.type_id	ID of the type of DNS query.	long
cloudflare_logpush.gateway_dns.redirect_target_uri	Custom URI to which the user was redirected, if any.	keyword
cloudflare_logpush.gateway_dns.registration_id	The UUID of the device registration from which the HTTP request originated.	keyword
cloudflare_logpush.gateway_dns.request_context_category.ids	ID or IDs of the category that was sent to gateway in the EDNS request for filtering.	keyword
cloudflare_logpush.gateway_dns.request_context_category.names	Name or names of the category that was sent to gateway in the EDNS request for filtering.	keyword
cloudflare_logpush.gateway_dns.resolved_ip	The resolved IPs in the response, if any.	ip
cloudflare_logpush.gateway_dns.resolved_ip_details.category.ids	ID or IDs of category that the IPs in the response belongs to.	keyword
cloudflare_logpush.gateway_dns.resolved_ip_details.category.names	Name or names of category that the IPs in the response belongs to.	keyword
cloudflare_logpush.gateway_dns.resolved_ip_details.continent_codes	Continent code of each resolved IP, if any.	keyword
cloudflare_logpush.gateway_dns.resolved_ip_details.country_codes	Country code of each resolved IP, if any.	keyword
cloudflare_logpush.gateway_dns.resolved_ip_details.ips	The resolved IPs in the response, if any.	ip
cloudflare_logpush.gateway_dns.resolver.policy.ids	Resolver policy UUIDs, if any matched.	keyword
cloudflare_logpush.gateway_dns.resolver.policy.names	Resolver policy name, if any matched.	keyword
cloudflare_logpush.gateway_dns.resolver_decision	Result of the DNS query.	keyword
cloudflare_logpush.gateway_dns.resource_records.json	String that represents the JSON array with the returned resource records.	match_only_text
cloudflare_logpush.gateway_dns.resource_records.object	The rdata objects.	flattened
cloudflare_logpush.gateway_dns.response_code	The return code sent back by the DNS resolver.	keyword
cloudflare_logpush.gateway_dns.source.ip	The source IP address making the DNS query.	ip
cloudflare_logpush.gateway_dns.source.port	The port used by the client when they sent the DNS request.	long
cloudflare_logpush.gateway_dns.source_id.continent_code	Continent code of the source IP address making the DNS query.	keyword
cloudflare_logpush.gateway_dns.source_id.country_code	Country code of the source IP address making the DNS query.	keyword
cloudflare_logpush.gateway_dns.timestamp	The date and time the corresponding DNS request was made.	date
cloudflare_logpush.gateway_dns.timezone	Time zone used to calculate the current time, if a matched rule was scheduled with it.	keyword
cloudflare_logpush.gateway_dns.timezone_inferred_method	Method used to pick the time zone for the schedule.	keyword
cloudflare_logpush.gateway_dns.user.email	Email used to authenticate the client.	keyword
cloudflare_logpush.gateway_dns.user.id	User identity where the HTTP request originated from.	keyword
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

gateway_http

This is the gateway_http dataset.

Example

		{
    "@timestamp": "2023-05-03T20:55:05.000Z",
    "agent": {
        "ephemeral_id": "a375df4c-195d-4f86-b947-5f5c8a56c199",
        "id": "c3e9e2f1-198e-4016-96fd-b40d22516ba7",
        "name": "elastic-agent-91580",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "gateway_http": {
            "account_id": "e1836771179f98aabb828da5ea69a348",
            "action": "block",
            "blocked_file": {
                "hash": "91dc1db739a705105e1c763bfdbdaa84c0de8",
                "name": "downloaded_test",
                "reason": "malware",
                "size": 43,
                "type": "bin"
            },
            "destination": {
                "ip": "89.160.20.129",
                "port": 443
            },
            "downloaded_files": [
                "downloaded_file",
                "downloaded_test"
            ],
            "file_info": {
                "files": [
                    {
                        "name": "downloaded_file",
                        "size": 43
                    },
                    {
                        "name": "downloaded_test",
                        "size": 341
                    }
                ]
            },
            "host": {
                "id": "083a8354-d56c-11ed-9771-6a842b100cff",
                "name": "zt-test-vm1"
            },
            "isolated": false,
            "policy": {
                "id": "85063bec-74cb-4546-85a3-e0cde2cdfda2",
                "name": "Block Yahoo"
            },
            "request": {
                "host": "guce.yahoo.com",
                "method": "GET",
                "referrer": "https://www.example.com/",
                "version": "HTTP/2"
            },
            "request_id": "1884fec9b600007fb06a299400000001",
            "response": {
                "status_code": 302
            },
            "source": {
                "internal_ip": "192.168.1.123",
                "ip": "67.43.156.2",
                "port": 47924
            },
            "timestamp": "2023-05-03T20:55:05.000Z",
            "untrusted_certificate_action": "none",
            "uploaded_files": [
                "uploaded_file",
                "uploaded_test"
            ],
            "url": "https://example.com",
            "user": {
                "email": "user@example.com",
                "id": "166befbb-00e3-5e20-bd6e-27245723949f"
            },
            "user_agent": "Mozilla/5.0 (X11; Ubuntu; Linux x86_64) Firefox/112.0"
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.gateway_http",
        "namespace": "98733",
        "type": "logs"
    },
    "destination": {
        "as": {
            "number": 29518,
            "organization": {
                "name": "Bredband2 AB"
            }
        },
        "geo": {
            "city_name": "Linköping",
            "continent_name": "Europe",
            "country_iso_code": "SE",
            "country_name": "Sweden",
            "location": {
                "lat": 58.4167,
                "lon": 15.6167
            },
            "region_iso_code": "SE-E",
            "region_name": "Östergötland County"
        },
        "ip": "89.160.20.129",
        "port": 443
    },
    "device": {
        "id": "083a8354-d56c-11ed-9771-6a842b100cff"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "c3e9e2f1-198e-4016-96fd-b40d22516ba7",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "action": "block",
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "cloudflare_logpush.gateway_http",
        "ingested": "2026-05-18T06:44:52Z",
        "kind": "event",
        "original": "{\"AccountID\":\"e1836771179f98aabb828da5ea69a348\",\"Action\":\"block\",\"BlockedFileHash\":\"91dc1db739a705105e1c763bfdbdaa84c0de8\",\"BlockedFileName\":\"downloaded_test\",\"BlockedFileReason\":\"malware\",\"BlockedFileSize\":43,\"BlockedFileType\":\"bin\",\"Datetime\":\"2023-05-03T20:55:05Z\",\"DestinationIP\":\"89.160.20.129\",\"DestinationPort\":443,\"DeviceID\":\"083a8354-d56c-11ed-9771-6a842b100cff\",\"DeviceName\":\"zt-test-vm1\",\"DownloadedFileNames\":[\"downloaded_file\",\"downloaded_test\"],\"Email\":\"user@example.com\",\"FileInfo\":{\"files\":[{\"name\":\"downloaded_file\",\"size\":43},{\"name\":\"downloaded_test\",\"size\":341}]},\"HTTPHost\":\"guce.yahoo.com\",\"HTTPMethod\":\"GET\",\"HTTPStatusCode\":302,\"HTTPVersion\":\"HTTP/2\",\"IsIsolated\":false,\"PolicyID\":\"85063bec-74cb-4546-85a3-e0cde2cdfda2\",\"PolicyName\":\"Block Yahoo\",\"Referer\":\"https://www.example.com/\",\"RequestID\":\"1884fec9b600007fb06a299400000001\",\"SourceIP\":\"67.43.156.2\",\"SourceInternalIP\":\"192.168.1.123\",\"SourcePort\":47924,\"URL\":\"https://example.com\",\"UntrustedCertificateAction\":\"none\",\"UploadedFileNames\":[\"uploaded_file\",\"uploaded_test\"],\"UserAgent\":\"Mozilla/5.0 (X11; Ubuntu; Linux x86_64) Firefox/112.0\",\"UserID\":\"166befbb-00e3-5e20-bd6e-27245723949f\"}",
        "type": [
            "info",
            "denied"
        ]
    },
    "file": {
        "extension": "bin",
        "hash": {
            "sha256": "91dc1db739a705105e1c763bfdbdaa84c0de8"
        },
        "name": "downloaded_test",
        "size": 43
    },
    "host": {
        "id": "083a8354-d56c-11ed-9771-6a842b100cff",
        "name": "zt-test-vm1"
    },
    "http": {
        "request": {
            "method": "GET",
            "referrer": "https://www.example.com/"
        },
        "response": {
            "status_code": 302
        },
        "version": "HTTP/2"
    },
    "input": {
        "type": "http_endpoint"
    },
    "related": {
        "hash": [
            "91dc1db739a705105e1c763bfdbdaa84c0de8"
        ],
        "hosts": [
            "083a8354-d56c-11ed-9771-6a842b100cff",
            "zt-test-vm1",
            "guce.yahoo.com"
        ],
        "ip": [
            "67.43.156.2",
            "89.160.20.129",
            "192.168.1.123"
        ],
        "user": [
            "166befbb-00e3-5e20-bd6e-27245723949f",
            "user@example.com"
        ]
    },
    "source": {
        "as": {
            "number": 35908
        },
        "geo": {
            "continent_name": "Asia",
            "country_iso_code": "BT",
            "country_name": "Bhutan",
            "location": {
                "lat": 27.5,
                "lon": 90.5
            }
        },
        "ip": "67.43.156.2",
        "port": 47924
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-gateway_http"
    ],
    "url": {
        "domain": "example.com",
        "original": "https://example.com",
        "scheme": "https"
    },
    "user": {
        "email": "user@example.com",
        "id": "166befbb-00e3-5e20-bd6e-27245723949f"
    },
    "user_agent": {
        "original": "Mozilla/5.0 (X11; Ubuntu; Linux x86_64) Firefox/112.0"
    }
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.gateway_http.account_id	Cloudflare account tag.	keyword
cloudflare_logpush.gateway_http.action	Action performed by gateway on the HTTP request.	keyword
cloudflare_logpush.gateway_http.app_control_info	Information about application control operations, APIs, and groups that matched the HTTP request.	flattened
cloudflare_logpush.gateway_http.application.ids	IDs of the applications that matched the session parameters.	keyword
cloudflare_logpush.gateway_http.application.names	Names of the applications that matched the session parameters.	keyword
cloudflare_logpush.gateway_http.application.statuses	Statuses of the applications that matched the HTTP request parameters.	keyword
cloudflare_logpush.gateway_http.blocked_file.hash	Hash of the file blocked in the response, if any.	keyword
cloudflare_logpush.gateway_http.blocked_file.name	File name blocked in the request, if any.	keyword
cloudflare_logpush.gateway_http.blocked_file.reason	Reason file was blocked in the response, if any.	keyword
cloudflare_logpush.gateway_http.blocked_file.size	File size(bytes) blocked in the response, if any.	long
cloudflare_logpush.gateway_http.blocked_file.type	File type blocked in the response eg. exe, bin, if any.	keyword
cloudflare_logpush.gateway_http.category.ids	IDs of the categories that matched the session parameters.	keyword
cloudflare_logpush.gateway_http.category.names	Names of the categories that matched the session parameters.	keyword
cloudflare_logpush.gateway_http.destination.ip	Destination IP of the request.	ip
cloudflare_logpush.gateway_http.destination.port	Destination port of the request.	long
cloudflare_logpush.gateway_http.destination_ip.continent_code	Continent code of the destination IP of the network session.	keyword
cloudflare_logpush.gateway_http.destination_ip.country_code	Country code of the destination IP of the network session.	keyword
cloudflare_logpush.gateway_http.download_matched_dlp.profile_entries	List of matched DLP entries in the HTTP request.	keyword
cloudflare_logpush.gateway_http.download_matched_dlp.profiles	List of matched DLP profiles in the HTTP request.	keyword
cloudflare_logpush.gateway_http.downloaded_files	List of files downloaded in the HTTP request.	keyword
cloudflare_logpush.gateway_http.file_info	Information about files detected within the HTTP request.	flattened
cloudflare_logpush.gateway_http.forensic_copy_status	Status of any associated forensic copies that may have been captured during the request.	keyword
cloudflare_logpush.gateway_http.host.id	UUID of the device where the HTTP request originated from.	keyword
cloudflare_logpush.gateway_http.host.name	The name of the device where the HTTP request originated from.	keyword
cloudflare_logpush.gateway_http.isolated	If the requested was isolated with Cloudflare Browser Isolation or not.	boolean
cloudflare_logpush.gateway_http.policy.id	The gateway policy UUID applied to the request, if any.	keyword
cloudflare_logpush.gateway_http.policy.name	The name of the gateway policy applied to the request, if any.	keyword
cloudflare_logpush.gateway_http.private_app_aud	The private app AUD, if any.	keyword
cloudflare_logpush.gateway_http.proxy_endpoint	The proxy endpoint used on this network session, if any.	keyword
cloudflare_logpush.gateway_http.quarantined	If the request content was quarantined.	keyword
cloudflare_logpush.gateway_http.redirect_target_uri	Custom URI to which the user was redirected, if any.	keyword
cloudflare_logpush.gateway_http.registration_id	The UUID of the device registration from which the HTTP request originated.	keyword
cloudflare_logpush.gateway_http.request.host	Content of the host header in the HTTP request.	keyword
cloudflare_logpush.gateway_http.request.method	HTTP request method.	keyword
cloudflare_logpush.gateway_http.request.referrer	Contents of the referer header in the HTTP request.	keyword
cloudflare_logpush.gateway_http.request.version	Version name for the HTTP request.	keyword
cloudflare_logpush.gateway_http.request_id	Cloudflare request ID.	keyword
cloudflare_logpush.gateway_http.response.status_code	HTTP status code gateway returned to the user. Zero if nothing was returned.	long
cloudflare_logpush.gateway_http.session_id	The session identifier of this network session.	keyword
cloudflare_logpush.gateway_http.source.internal_ip	Local LAN IP of the device. Only available when connected via a GRE/IPsec tunnel on-ramp.	ip
cloudflare_logpush.gateway_http.source.ip	Source IP of the request.	ip
cloudflare_logpush.gateway_http.source.port	Source port of the request.	long
cloudflare_logpush.gateway_http.source_ip.continent_code	Continent code of the source IP of the network session.	keyword
cloudflare_logpush.gateway_http.source_ip.country_code	Country code of the source IP of the network session.	keyword
cloudflare_logpush.gateway_http.timestamp	The date and time the corresponding HTTP request was made.	date
cloudflare_logpush.gateway_http.untrusted_certificate_action	Action taken when an untrusted origin certificate error occurs.	keyword
cloudflare_logpush.gateway_http.upload_matched_dlp.profile_entries	List of matched DLP entries in the HTTP request.	keyword
cloudflare_logpush.gateway_http.upload_matched_dlp.profiles	List of matched DLP profiles in the HTTP request.	keyword
cloudflare_logpush.gateway_http.uploaded_files	List of files uploaded in the HTTP request.	keyword
cloudflare_logpush.gateway_http.url	HTTP request URL.	keyword
cloudflare_logpush.gateway_http.user.email	Email used to authenticate the client.	keyword
cloudflare_logpush.gateway_http.user.id	User identity where the HTTP request originated from.	keyword
cloudflare_logpush.gateway_http.user_agent	Contents of the user agent header in the HTTP request.	keyword
cloudflare_logpush.gateway_http.virtual_network.id	The identifier of the virtual network the device was connected to, if any.	keyword
cloudflare_logpush.gateway_http.virtual_network.name	The name of the virtual network the device was connected to, if any.	keyword
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

gateway_network

This is the gateway_network dataset.

Example

		{
    "@timestamp": "2023-05-18T21:12:57.058Z",
    "agent": {
        "ephemeral_id": "bb2bfd1b-c4db-449d-862d-aef156d1e223",
        "id": "e7be4f6c-e802-4720-9ae6-04ba68f633d6",
        "name": "elastic-agent-69794",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "gateway_network": {
            "account_id": "e1836771179f98aabb828da5ea69a111",
            "action": "allowedOnNoRuleMatch",
            "destination": {
                "ip": "89.160.20.129",
                "port": 443
            },
            "host": {
                "id": "083a8354-d56c-11ed-9771-6a842b100cff",
                "name": "zt-test-vm1"
            },
            "override": {
                "ip": "175.16.199.4",
                "port": 8080
            },
            "policy": {
                "id": "85063bec-74cb-4546-85a3-e0cde2cdfda2",
                "name": "My policy"
            },
            "session_id": "5f2d04be-3512-11e8-b467-0ed5f89f718b",
            "sni": "www.elastic.co",
            "source": {
                "internal_ip": "192.168.1.3",
                "ip": "67.43.156.2",
                "port": 47924
            },
            "timestamp": "2023-05-18T21:12:57.058Z",
            "transport": "tcp",
            "user": {
                "email": "user@example.com",
                "id": "166befbb-00e3-5e20-bd6e-27245723949f"
            }
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.gateway_network",
        "namespace": "92706",
        "type": "logs"
    },
    "destination": {
        "as": {
            "number": 29518,
            "organization": {
                "name": "Bredband2 AB"
            }
        },
        "domain": "www.elastic.co",
        "geo": {
            "city_name": "Linköping",
            "continent_name": "Europe",
            "country_iso_code": "SE",
            "country_name": "Sweden",
            "location": {
                "lat": 58.4167,
                "lon": 15.6167
            },
            "region_iso_code": "SE-E",
            "region_name": "Östergötland County"
        },
        "ip": "89.160.20.129",
        "port": 443
    },
    "device": {
        "id": "083a8354-d56c-11ed-9771-6a842b100cff"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "e7be4f6c-e802-4720-9ae6-04ba68f633d6",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "action": "allowedOnNoRuleMatch",
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "cloudflare_logpush.gateway_network",
        "id": "5f2d04be-3512-11e8-b467-0ed5f89f718b",
        "ingested": "2026-05-18T06:45:50Z",
        "kind": "event",
        "original": "{\"AccountID\":\"e1836771179f98aabb828da5ea69a111\",\"Action\":\"allowedOnNoRuleMatch\",\"Datetime\":1684444377058000000,\"DestinationIP\":\"89.160.20.129\",\"DestinationPort\":443,\"DeviceID\":\"083a8354-d56c-11ed-9771-6a842b100cff\",\"DeviceName\":\"zt-test-vm1\",\"Email\":\"user@example.com\",\"OverrideIP\":\"175.16.199.4\",\"OverridePort\":8080,\"PolicyID\":\"85063bec-74cb-4546-85a3-e0cde2cdfda2\",\"PolicyName\":\"My policy\",\"SNI\":\"www.elastic.co\",\"SessionID\":\"5f2d04be-3512-11e8-b467-0ed5f89f718b\",\"SourceIP\":\"67.43.156.2\",\"SourceInternalIP\":\"192.168.1.3\",\"SourcePort\":47924,\"Transport\":\"tcp\",\"UserID\":\"166befbb-00e3-5e20-bd6e-27245723949f\"}",
        "type": [
            "info"
        ]
    },
    "host": {
        "id": "083a8354-d56c-11ed-9771-6a842b100cff",
        "name": "zt-test-vm1"
    },
    "input": {
        "type": "http_endpoint"
    },
    "network": {
        "transport": "tcp"
    },
    "related": {
        "hosts": [
            "www.elastic.co",
            "083a8354-d56c-11ed-9771-6a842b100cff",
            "zt-test-vm1"
        ],
        "ip": [
            "67.43.156.2",
            "89.160.20.129",
            "175.16.199.4",
            "192.168.1.3"
        ],
        "user": [
            "166befbb-00e3-5e20-bd6e-27245723949f",
            "user@example.com"
        ]
    },
    "source": {
        "as": {
            "number": 35908
        },
        "geo": {
            "continent_name": "Asia",
            "country_iso_code": "BT",
            "country_name": "Bhutan",
            "location": {
                "lat": 27.5,
                "lon": 90.5
            }
        },
        "ip": "67.43.156.2",
        "port": 47924
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-gateway_network"
    ],
    "tls": {
        "client": {
            "server_name": "www.elastic.co"
        }
    },
    "user": {
        "email": "user@example.com",
        "id": "166befbb-00e3-5e20-bd6e-27245723949f"
    }
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.gateway_network.account_id	Cloudflare account tag.	keyword
cloudflare_logpush.gateway_network.action	Action performed by gateway on the session.	keyword
cloudflare_logpush.gateway_network.application.ids	IDs of the applications that matched the session parameters.	keyword
cloudflare_logpush.gateway_network.application.names	Names of the applications that matched the session parameters.	keyword
cloudflare_logpush.gateway_network.category.ids	IDs of the categories that matched the session parameters.	keyword
cloudflare_logpush.gateway_network.category.names	Names of the categories that matched the session parameters.	keyword
cloudflare_logpush.gateway_network.destination.ip	Destination IP of the network session.	ip
cloudflare_logpush.gateway_network.destination.port	Destination port of the network session.	long
cloudflare_logpush.gateway_network.destination_ip.continent_code	Continent code of the destination IP of the network session.	keyword
cloudflare_logpush.gateway_network.destination_ip.country_code	Country code of the destination IP of the network session.	keyword
cloudflare_logpush.gateway_network.detected_protocol	Detected traffic protocol of the network session.	keyword
cloudflare_logpush.gateway_network.host.id	UUID of the device where the network session originated from.	keyword
cloudflare_logpush.gateway_network.host.name	The name of the device where the network session originated from.	keyword
cloudflare_logpush.gateway_network.override.ip	Overridden IP of the network session, if any.	ip
cloudflare_logpush.gateway_network.override.port	Overridden port of the network session, if any.	long
cloudflare_logpush.gateway_network.policy.id	Identifier of the policy/rule that was applied, if any.	keyword
cloudflare_logpush.gateway_network.policy.name	The name of the gateway policy applied to the session, if any.	keyword
cloudflare_logpush.gateway_network.proxy_endpoint	The proxy endpoint used on this network session, if any.	keyword
cloudflare_logpush.gateway_network.registration_id	The UUID of the device registration from which the network session originated.	keyword
cloudflare_logpush.gateway_network.session_id	The session identifier of this network session.	keyword
cloudflare_logpush.gateway_network.sni	Content of the SNI (Server Name Indication) for the TLS network session, if any.	keyword
cloudflare_logpush.gateway_network.source.internal_ip	Local LAN IP of the device. Only available when connected via a GRE/IPsec tunnel on-ramp.	ip
cloudflare_logpush.gateway_network.source.ip	Source IP of the network session.	ip
cloudflare_logpush.gateway_network.source.port	Source port of the network session.	long
cloudflare_logpush.gateway_network.source_ip.continent_code	Continent code of the source IP of the network session.	keyword
cloudflare_logpush.gateway_network.source_ip.country_code	Country code of the source IP of the network session.	keyword
cloudflare_logpush.gateway_network.timestamp	The date and time the corresponding network session was made.	date
cloudflare_logpush.gateway_network.transport	Transport protocol used for this session.	keyword
cloudflare_logpush.gateway_network.user.email	Email associated with the user identity where the network session originated from.	keyword
cloudflare_logpush.gateway_network.user.id	User identity where the network session originated from.	keyword
cloudflare_logpush.gateway_network.virtual_network.id	The identifier of the virtual network the device was connected to, if any.	keyword
cloudflare_logpush.gateway_network.virtual_network.name	The name of the virtual network the device was connected to, if any.	keyword
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

http_request

This is the http_request dataset.

Example

		{
    "@timestamp": "2022-05-25T13:25:26.000Z",
    "agent": {
        "ephemeral_id": "a40fecc1-2ab2-490f-a99b-bdf108a7e6ca",
        "id": "005a84af-709c-46d9-8153-49b95f61e8f6",
        "name": "elastic-agent-60454",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "http_request": {
            "bot": {
                "detection_ids": [
                    7,
                    8,
                    9
                ],
                "score": {
                    "src": "Verified Bot",
                    "value": 20
                },
                "tag": [
                    "bing",
                    "api"
                ]
            },
            "cache": {
                "response": {
                    "bytes": 983828,
                    "status": 200
                },
                "status": "dynamic",
                "tiered_fill": false
            },
            "client": {
                "asn": 43766,
                "country": "sa",
                "device": {
                    "type": "desktop"
                },
                "ip": "175.16.199.0",
                "ip_class": "noRecord",
                "mtls": {
                    "auth": {
                        "fingerprint": "Fingerprint",
                        "status": "unknown"
                    }
                },
                "request": {
                    "bytes": 5800,
                    "host": "xyz.example.com",
                    "method": "POST",
                    "path": "/xyz/checkout",
                    "protocol": "HTTP/1.1",
                    "referer": "https://example.com/s/example/default?sourcerer=(default:(id:!n,selectedPatterns:!(example,%27logs-endpoint.*-example%27,%27logs-system.*-example%27,%27logs-windows.*-example%27)))&timerange=(global:(linkTo:!(),timerange:(from:%272022-05-16T06:26:36.340Z%27,fromStr:now-24h,kind:relative,to:%272022-05-17T06:26:36.340Z%27,toStr:now)),timeline:(linkTo:!(),timerange:(from:%272022-04-17T22:00:00.000Z%27,kind:absolute,to:%272022-04-18T21:59:59.999Z%27)))&timeline=(activeTab:notes,graphEventId:%27%27,id:%279844bdd4-4dd6-5b22-ab40-3cd46fce8d6b%27,isOpen:!t)",
                    "scheme": "https",
                    "source": "edgeWorkerFetch",
                    "uri": "/s/example/api/telemetry/v2/clusters/_stats",
                    "user": {
                        "agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_10_5) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/51.0.2704.103 Safari/537.36"
                    }
                },
                "src": {
                    "port": 0
                },
                "ssl": {
                    "cipher": "NONE",
                    "protocol": "TLSv1.2"
                },
                "tcp_rtt": {
                    "ms": 0
                },
                "xrequested_with": "Request With"
            },
            "cookies": {
                "key": "value"
            },
            "edge": {
                "cf_connecting_o2o": false,
                "colo": {
                    "code": "RUH",
                    "id": 339
                },
                "end_time": "2022-05-25T13:25:32.000Z",
                "pathing": {
                    "op": "wl",
                    "src": "macro",
                    "status": "nr"
                },
                "rate": {
                    "limit": {
                        "action": "unknown",
                        "id": 0
                    }
                },
                "request": {
                    "host": "abc.example.com"
                },
                "response": {
                    "body_bytes": 980397,
                    "bytes": 981308,
                    "compression_ratio": 0,
                    "content_type": "application/json",
                    "status": 200
                },
                "server": {
                    "ip": "1.128.0.0"
                },
                "start_time": "2022-05-25T13:25:26.000Z",
                "time_to_first_byte": {
                    "ms": 5333
                }
            },
            "origin": {
                "dns_response_time": {
                    "ms": 3
                },
                "ip": "67.43.156.0",
                "request_header_send_duration": {
                    "ms": 0
                },
                "response": {
                    "bytes": 0,
                    "duration": {
                        "ms": 5319
                    },
                    "header_receive_duration": {
                        "ms": 5155
                    },
                    "http": {
                        "expires": "2022-05-27T13:25:26.000Z",
                        "last_modified": "2022-05-26T13:25:26.000Z"
                    },
                    "status": 200,
                    "time": 5232000000
                },
                "ssl_protocol": "TLSv1.2",
                "tcp_handshake_duration": {
                    "ms": 24
                },
                "tls_handshake_duration": {
                    "ms": 53
                }
            },
            "parent_ray": {
                "id": "710e98d93d50357d"
            },
            "ray": {
                "id": "710e98d9367f357d"
            },
            "security_level": "off",
            "smart_route": {
                "colo": {
                    "id": 20
                }
            },
            "upper_tier": {
                "colo": {
                    "id": 0
                }
            },
            "waf": {
                "action": "unknown",
                "flag": "0",
                "matched_var": "example",
                "profile": "unknown",
                "rule": {
                    "id": "98d93d5",
                    "message": "matchad variable message"
                },
                "score": {
                    "global": 50,
                    "rce": 1,
                    "sqli": 99,
                    "xss": 90
                }
            },
            "worker": {
                "cpu_time": 0,
                "status": "unknown",
                "subrequest": {
                    "count": 0,
                    "value": true
                }
            },
            "zone": {
                "id": 393347122,
                "name": "example.com"
            }
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.http_request",
        "namespace": "92118",
        "type": "logs"
    },
    "destination": {
        "ip": "67.43.156.0"
    },
    "device": {
        "type": "desktop"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "005a84af-709c-46d9-8153-49b95f61e8f6",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "cloudflare_logpush.http_request",
        "id": "710e98d9367f357d",
        "ingested": "2026-05-18T06:46:51Z",
        "kind": "event",
        "original": "{\"BotDetectionIDs\":[7,8,9],\"BotScore\":20,\"BotScoreSrc\":\"Verified Bot\",\"BotTags\":[\"bing\",\"api\"],\"CacheCacheStatus\":\"dynamic\",\"CacheResponseBytes\":983828,\"CacheResponseStatus\":200,\"CacheTieredFill\":false,\"ClientASN\":43766,\"ClientCountry\":\"sa\",\"ClientDeviceType\":\"desktop\",\"ClientIP\":\"175.16.199.0\",\"ClientIPClass\":\"noRecord\",\"ClientMTLSAuthCertFingerprint\":\"Fingerprint\",\"ClientMTLSAuthStatus\":\"unknown\",\"ClientRequestBytes\":5800,\"ClientRequestHost\":\"xyz.example.com\",\"ClientRequestMethod\":\"POST\",\"ClientRequestPath\":\"/xyz/checkout\",\"ClientRequestProtocol\":\"HTTP/1.1\",\"ClientRequestReferer\":\"https://example.com/s/example/default?sourcerer=(default:(id:!n,selectedPatterns:!(example,%27logs-endpoint.*-example%27,%27logs-system.*-example%27,%27logs-windows.*-example%27)))\\u0026timerange=(global:(linkTo:!(),timerange:(from:%272022-05-16T06:26:36.340Z%27,fromStr:now-24h,kind:relative,to:%272022-05-17T06:26:36.340Z%27,toStr:now)),timeline:(linkTo:!(),timerange:(from:%272022-04-17T22:00:00.000Z%27,kind:absolute,to:%272022-04-18T21:59:59.999Z%27)))\\u0026timeline=(activeTab:notes,graphEventId:%27%27,id:%279844bdd4-4dd6-5b22-ab40-3cd46fce8d6b%27,isOpen:!t)\",\"ClientRequestScheme\":\"https\",\"ClientRequestSource\":\"edgeWorkerFetch\",\"ClientRequestURI\":\"/s/example/api/telemetry/v2/clusters/_stats\",\"ClientRequestUserAgent\":\"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_10_5) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/51.0.2704.103 Safari/537.36\",\"ClientSSLCipher\":\"NONE\",\"ClientSSLProtocol\":\"TLSv1.2\",\"ClientSrcPort\":0,\"ClientTCPRTTMs\":0,\"ClientXRequestedWith\":\"Request With\",\"Cookies\":{\"key\":\"value\"},\"EdgeCFConnectingO2O\":false,\"EdgeColoCode\":\"RUH\",\"EdgeColoID\":339,\"EdgeEndTimestamp\":\"2022-05-25T13:25:32Z\",\"EdgePathingOp\":\"wl\",\"EdgePathingSrc\":\"macro\",\"EdgePathingStatus\":\"nr\",\"EdgeRateLimitAction\":\"unknown\",\"EdgeRateLimitID\":0,\"EdgeRequestHost\":\"abc.example.com\",\"EdgeResponseBodyBytes\":980397,\"EdgeResponseBytes\":981308,\"EdgeResponseCompressionRatio\":0,\"EdgeResponseContentType\":\"application/json\",\"EdgeResponseStatus\":200,\"EdgeServerIP\":\"1.128.0.0\",\"EdgeStartTimestamp\":\"2022-05-25T13:25:26Z\",\"EdgeTimeToFirstByteMs\":5333,\"OriginDNSResponseTimeMs\":3,\"OriginIP\":\"67.43.156.0\",\"OriginRequestHeaderSendDurationMs\":0,\"OriginResponseBytes\":0,\"OriginResponseDurationMs\":5319,\"OriginResponseHTTPExpires\":\"2022-05-27T13:25:26Z\",\"OriginResponseHTTPLastModified\":\"2022-05-26T13:25:26Z\",\"OriginResponseHeaderReceiveDurationMs\":5155,\"OriginResponseStatus\":200,\"OriginResponseTime\":5232000000,\"OriginSSLProtocol\":\"TLSv1.2\",\"OriginTCPHandshakeDurationMs\":24,\"OriginTLSHandshakeDurationMs\":53,\"ParentRayID\":\"710e98d93d50357d\",\"RayID\":\"710e98d9367f357d\",\"SecurityAction\":\"unknown\",\"SecurityLevel\":\"off\",\"SecurityRuleDescription\":\"matchad variable message\",\"SecurityRuleID\":\"98d93d5\",\"SmartRouteColoID\":20,\"UpperTierColoID\":0,\"WAFAttackScore\":50,\"WAFFlags\":\"0\",\"WAFMatchedVar\":\"example\",\"WAFProfile\":\"unknown\",\"WAFRCEAttackScore\":1,\"WAFSQLiAttackScore\":99,\"WAFXSSAttackScore\":90,\"WorkerCPUTime\":0,\"WorkerStatus\":\"unknown\",\"WorkerSubrequest\":true,\"WorkerSubrequestCount\":0,\"ZoneID\":393347122,\"ZoneName\":\"example.com\"}",
        "type": [
            "info"
        ]
    },
    "http": {
        "request": {
            "bytes": 5800,
            "id": "710e98d9367f357d",
            "method": "POST",
            "referrer": "https://example.com/s/example/default?sourcerer=(default:(id:!n,selectedPatterns:!(example,%27logs-endpoint.*-example%27,%27logs-system.*-example%27,%27logs-windows.*-example%27)))&timerange=(global:(linkTo:!(),timerange:(from:%272022-05-16T06:26:36.340Z%27,fromStr:now-24h,kind:relative,to:%272022-05-17T06:26:36.340Z%27,toStr:now)),timeline:(linkTo:!(),timerange:(from:%272022-04-17T22:00:00.000Z%27,kind:absolute,to:%272022-04-18T21:59:59.999Z%27)))&timeline=(activeTab:notes,graphEventId:%27%27,id:%279844bdd4-4dd6-5b22-ab40-3cd46fce8d6b%27,isOpen:!t)"
        },
        "response": {
            "body": {
                "bytes": 980397
            },
            "bytes": 981308,
            "mime_type": "application/json",
            "status_code": 200
        },
        "version": "1.1"
    },
    "input": {
        "type": "http_endpoint"
    },
    "network": {
        "protocol": "http"
    },
    "related": {
        "hash": [
            "Fingerprint"
        ],
        "hosts": [
            "xyz.example.com",
            "abc.example.com"
        ],
        "ip": [
            "1.128.0.0",
            "175.16.199.0",
            "67.43.156.0"
        ]
    },
    "source": {
        "as": {
            "number": 43766
        },
        "geo": {
            "country_iso_code": "sa"
        },
        "ip": "175.16.199.0",
        "port": 0
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-http_request"
    ],
    "tls": {
        "cipher": "NONE",
        "client": {
            "hash": {
                "sha256": "FINGERPRINT"
            }
        },
        "version": "1.2",
        "version_protocol": "tls"
    },
    "url": {
        "domain": "xyz.example.com",
        "original": "https://xyz.example.com/s/example/api/telemetry/v2/clusters/_stats",
        "path": "/s/example/api/telemetry/v2/clusters/_stats",
        "scheme": "https"
    },
    "user_agent": {
        "device": {
            "name": "Mac"
        },
        "name": "Chrome",
        "original": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_10_5) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/51.0.2704.103 Safari/537.36",
        "os": {
            "full": "Mac OS X 10.10.5",
            "name": "Mac OS X",
            "version": "10.10.5"
        },
        "version": "51.0.2704.103"
    }
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.http_request.bot.detection_ids	List of IDs that correlate to the Bot Management Heuristic detections made on a request. Available in Logpush v2 only.	long
cloudflare_logpush.http_request.bot.detection_tags	List of tags that correlate to the Bot Management Heuristic detections made on a request. Available only for Bot Management customers. To enable this feature, contact your account team.	keyword
cloudflare_logpush.http_request.bot.score.src	Detection engine responsible for generating the Bot Score. Possible values are Not Computed, Heuristics, Machine Learning, Behavioral Analysis, Verified Bot, JS Fingerprinting, Cloudflare Service.	text
cloudflare_logpush.http_request.bot.score.value	Cloudflare Bot Score. Scores below 30 are commonly associated with automated traffic.	long
cloudflare_logpush.http_request.bot.tag	Type of bot traffic (if available). Available in Logpush v2 only.	text
cloudflare_logpush.http_request.cache.reserve_used	Cache Reserve was used to serve this request.	boolean
cloudflare_logpush.http_request.cache.response.bytes	Number of bytes returned by the cache.	long
cloudflare_logpush.http_request.cache.response.status	HTTP status code returned by the cache to the edge.	long
cloudflare_logpush.http_request.cache.status	Cache status.	keyword
cloudflare_logpush.http_request.cache.tiered_fill	Tiered Cache was used to serve this request.	boolean
cloudflare_logpush.http_request.client.asn	Client AS number.	long
cloudflare_logpush.http_request.client.city	Approximate city of the client.	keyword
cloudflare_logpush.http_request.client.country	Country of the client IP address.	keyword
cloudflare_logpush.http_request.client.device.type	Client device type.	keyword
cloudflare_logpush.http_request.client.ip	IP address of the client.	ip
cloudflare_logpush.http_request.client.ip_class	Class IP.	keyword
cloudflare_logpush.http_request.client.latitude	Approximate latitude of the client.	keyword
cloudflare_logpush.http_request.client.longitude	Approximate longitude of the client.	keyword
cloudflare_logpush.http_request.client.mtls.auth.fingerprint	The SHA256 fingerprint of the certificate presented by the client during mTLS authentication.	keyword
cloudflare_logpush.http_request.client.mtls.auth.status	The status of mTLS authentication, Only populated on the first request on an mTLS connection.	keyword
cloudflare_logpush.http_request.client.region_code	The ISO-3166-2 region code of the client IP address.	keyword
cloudflare_logpush.http_request.client.request.bytes	Number of bytes in the client request.	long
cloudflare_logpush.http_request.client.request.host	Host requested by the client.	keyword
cloudflare_logpush.http_request.client.request.method	HTTP method of client request.	text
cloudflare_logpush.http_request.client.request.path	URI path requested by the client.	text
cloudflare_logpush.http_request.client.request.protocol	HTTP protocol of client request.	keyword
cloudflare_logpush.http_request.client.request.referer	HTTP request referrer.	text
cloudflare_logpush.http_request.client.request.scheme	The URL scheme requested by the visitor.	text
cloudflare_logpush.http_request.client.request.source	Identifies requests as coming from an external source or another service within Cloudflare.	keyword
cloudflare_logpush.http_request.client.request.uri	URI requested by the client.	text
cloudflare_logpush.http_request.client.request.user.agent	User agent reported by the client.	text
cloudflare_logpush.http_request.client.src.port	Client source port.	long
cloudflare_logpush.http_request.client.ssl.cipher	Client SSL cipher.	text
cloudflare_logpush.http_request.client.ssl.protocol	Client SSL (TLS) protocol.	keyword
cloudflare_logpush.http_request.client.tcp_rtt.ms	The smoothed average of TCP round-trip time (SRTT), For the initial request on a connection, this is measured only during connection setup, For a subsequent request on the same connection, it is measured over the entire connection lifetime up until the time that request is received.	long
cloudflare_logpush.http_request.client.xrequested_with	X-Requested-With HTTP header.	text
cloudflare_logpush.http_request.content_scan.results	List of content scan results.	keyword
cloudflare_logpush.http_request.content_scan.sizes	List of content object sizes.	long
cloudflare_logpush.http_request.content_scan.types	List of content types.	keyword
cloudflare_logpush.http_request.cookies	String key-value pairs for Cookies.	flattened
cloudflare_logpush.http_request.datetime	Timestamp when the request was received.	date
cloudflare_logpush.http_request.edge.cf_connecting_o2o	True if the request looped through multiple zones on the Cloudflare edge.	boolean
cloudflare_logpush.http_request.edge.colo.code	IATA airport code of data center that received the request.	keyword
cloudflare_logpush.http_request.edge.colo.id	Cloudflare edge colo id.	long
cloudflare_logpush.http_request.edge.end_time	Timestamp at which the edge finished sending response to the client.	date
cloudflare_logpush.http_request.edge.pathing.op	Indicates what type of response was issued for this request.	text
cloudflare_logpush.http_request.edge.pathing.src	Details how the request was classified based on security checks.	text
cloudflare_logpush.http_request.edge.pathing.status	Indicates what data was used to determine the handling of this request.	text
cloudflare_logpush.http_request.edge.rate.limit.action	The action taken by the blocking rule; empty if no action taken.	keyword
cloudflare_logpush.http_request.edge.rate.limit.id	The internal rule ID of the rate-limiting rule that triggered a block (ban) or log action.	long
cloudflare_logpush.http_request.edge.request.host	Host header on the request from the edge to the origin.	keyword
cloudflare_logpush.http_request.edge.response.body_bytes	Size of the HTTP response body returned to clients.	long
cloudflare_logpush.http_request.edge.response.bytes	Number of bytes returned by the edge to the client.	long
cloudflare_logpush.http_request.edge.response.compression_ratio	Edge response compression ratio.	double
cloudflare_logpush.http_request.edge.response.content_type	Edge response Content-Type header value.	text
cloudflare_logpush.http_request.edge.response.status	HTTP status code returned by Cloudflare to the client.	long
cloudflare_logpush.http_request.edge.server.ip	IP of the edge server making a request to the origin.	ip
cloudflare_logpush.http_request.edge.start_time	Timestamp at which the edge received request from the client.	date
cloudflare_logpush.http_request.edge.time_to_first_byte.ms	Total view of Time To First Byte as measured at Cloudflare edge.	long
cloudflare_logpush.http_request.firewall.matches.action	Array of actions the Cloudflare firewall products performed on this request.	keyword
cloudflare_logpush.http_request.firewall.matches.rule_id	Array of RuleIDs of the firewall product that has matched the request.	keyword
cloudflare_logpush.http_request.firewall.matches.sources	The firewall products that matched the request.	keyword
cloudflare_logpush.http_request.fraud.attack	The primary attack or use case detected by Fraud detections.	keyword
cloudflare_logpush.http_request.fraud.detection_ids	List of IDs correlating to Fraud detections.	keyword
cloudflare_logpush.http_request.fraud.detection_tags	List of tags correlating to Fraud detections.	keyword
cloudflare_logpush.http_request.fraud.email_risk	Risk of a specific email address (low/medium/high).	keyword
cloudflare_logpush.http_request.fraud.user_id	A unique identifier generated by the Fraud Detection system.	keyword
cloudflare_logpush.http_request.ja3_hash	The MD5 hash of the JA3 fingerprint used to profile SSL/TLS clients.	keyword
cloudflare_logpush.http_request.ja4	The JA4 fingerprint used to profile SSL/TLS clients. Available only for Bot Management customers.	keyword
cloudflare_logpush.http_request.ja4_signals	Inter-request statistics computed for this JA4 fingerprint. JA4Signals field is organized in key:value pairs, where values are numbers. Available only for Bot Management customers.	flattened
cloudflare_logpush.http_request.js_detection_passed	Whether the request passed background JS Detection (passed/failed/missing).	keyword
cloudflare_logpush.http_request.leaked_credential_check	Result of the check for leaked credentials.	keyword
cloudflare_logpush.http_request.origin.dns_response_time.ms	Time taken to receive a DNS response for an origin name.	long
cloudflare_logpush.http_request.origin.ip	IP of the origin server.	ip
cloudflare_logpush.http_request.origin.request_header_send_duration.ms	Time taken to send request headers to origin after establishing a connection.	long
cloudflare_logpush.http_request.origin.response.bytes	Number of bytes returned by the origin server.	long
cloudflare_logpush.http_request.origin.response.duration.ms	Upstream response time, measured from the first datacenter that receives a request.	long
cloudflare_logpush.http_request.origin.response.header_receive_duration.ms	Time taken for origin to return response headers after Cloudflare finishes sending request headers.	long
cloudflare_logpush.http_request.origin.response.http.expires	Value of the origin expires header in RFC1123 format.	date
cloudflare_logpush.http_request.origin.response.http.last_modified	Value of the origin last-modified header in RFC1123 format.	date
cloudflare_logpush.http_request.origin.response.status	Status returned by the origin server.	long
cloudflare_logpush.http_request.origin.response.time	Number of nanoseconds it took the origin to return the response to edge.	long
cloudflare_logpush.http_request.origin.ssl_protocol	SSL (TLS) protocol used to connect to the origin.	text
cloudflare_logpush.http_request.origin.tcp_handshake_duration.ms	Time taken to complete TCP handshake with origin.	long
cloudflare_logpush.http_request.origin.tls_handshake_duration.ms	Time taken to complete TLS handshake with origin.	long
cloudflare_logpush.http_request.parent_ray.id	Ray ID of the parent request if this request was made using a Worker script.	keyword
cloudflare_logpush.http_request.pay_per_crawl_status	Pay Per Crawl outcome.	keyword
cloudflare_logpush.http_request.ray.id	ID of the request.	keyword
cloudflare_logpush.http_request.request.headers	String key-value pairs for RequestHeaders.	flattened
cloudflare_logpush.http_request.response.headers	String key-value pairs for ResponseHeaders.	flattened
cloudflare_logpush.http_request.security_level	The security level configured at the time of this request. This is used to determine the sensitivity of the IP Reputation system.	text
cloudflare_logpush.http_request.smart_route.colo.id	The Cloudflare datacenter used to connect to the origin server if Argo Smart Routing is used. Available in Logpush v2 only.	long
cloudflare_logpush.http_request.upper_tier.colo.id	The “upper tier” datacenter that was checked for a cached copy if Tiered Cache is used. Available in Logpush v2 only.	long
cloudflare_logpush.http_request.verified_bot_category	The category of verified bot.	keyword
cloudflare_logpush.http_request.waf.action	Action taken by the WAF, if triggered.	text
cloudflare_logpush.http_request.waf.flag	Additional configuration flags.	text
cloudflare_logpush.http_request.waf.matched_var	The full name of the most-recently matched variable.	text
cloudflare_logpush.http_request.waf.profile	The Profile of WAF. possible values are:- 'low', 'med', 'high'.	keyword
cloudflare_logpush.http_request.waf.rule.id	ID of the applied WAF rule.	keyword
cloudflare_logpush.http_request.waf.rule.message	Rule message associated with the triggered rule.	text
cloudflare_logpush.http_request.waf.score.global	Overall request score generated by the WAF detection module.	long
cloudflare_logpush.http_request.waf.score.rce	WAF score for a Remote Code Execution (RCE) attack.	long
cloudflare_logpush.http_request.waf.score.sqli	WAF score for an SQL injection (SQLi) attack.	long
cloudflare_logpush.http_request.waf.score.xss	WAF score for a Cross-site scripting (XSS) attack.	long
cloudflare_logpush.http_request.web_assets.labels_managed	Cloudflare-defined labels matched for the request.	keyword
cloudflare_logpush.http_request.web_assets.operation_id	UUID of the matched web asset operation.	keyword
cloudflare_logpush.http_request.worker.cpu_time	Amount of time in microseconds spent executing a worker, if any.	long
cloudflare_logpush.http_request.worker.script_name	The Worker script name that made the request.	keyword
cloudflare_logpush.http_request.worker.status	Status returned from worker daemon.	text
cloudflare_logpush.http_request.worker.subrequest.count	Number of subrequests issued by a worker when handling this request.	long
cloudflare_logpush.http_request.worker.subrequest.value	Whether or not this request was a worker subrequest.	boolean
cloudflare_logpush.http_request.worker.wall_time_us	Real-time in microseconds elapsed between start and end of worker invocation.	long
cloudflare_logpush.http_request.zone.id	Internal zone ID.	long
cloudflare_logpush.http_request.zone.name	The human-readable name of the zone.	keyword
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

magic_ids

This is the magic_ids dataset.

Example

		{
    "@timestamp": "2023-09-11T03:02:57.000Z",
    "agent": {
        "ephemeral_id": "61afdfe3-0dbf-4d46-b45e-fe220ee31911",
        "id": "8fd12f28-f7fa-4364-86a4-9cac977085b9",
        "name": "elastic-agent-50922",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "magic_ids": {
            "action": "pass",
            "colo": {
                "city": "Tokyo",
                "code": "NRT"
            },
            "destination": {
                "ip": "89.160.20.129",
                "port": 80
            },
            "signature": {
                "id": 2031296,
                "message": "ET CURRENT_EVENTS [Fireeye] POSSIBLE HackTool.TCP.Rubeus.[User32LogonProcesss]",
                "revision": 1
            },
            "source": {
                "ip": "67.43.156.2",
                "port": 44667
            },
            "timestamp": "2023-09-11T03:02:57.000Z",
            "transport": "tcp"
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.magic_ids",
        "namespace": "15005",
        "type": "logs"
    },
    "destination": {
        "as": {
            "number": 29518,
            "organization": {
                "name": "Bredband2 AB"
            }
        },
        "geo": {
            "city_name": "Linköping",
            "continent_name": "Europe",
            "country_iso_code": "SE",
            "country_name": "Sweden",
            "location": {
                "lat": 58.4167,
                "lon": 15.6167
            },
            "region_iso_code": "SE-E",
            "region_name": "Östergötland County"
        },
        "ip": "89.160.20.129",
        "port": 80
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "8fd12f28-f7fa-4364-86a4-9cac977085b9",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "action": "pass",
        "agent_id_status": "verified",
        "category": [
            "network",
            "intrusion_detection"
        ],
        "dataset": "cloudflare_logpush.magic_ids",
        "ingested": "2026-05-11T12:57:17Z",
        "kind": "event",
        "original": "{\"Action\":\"pass\",\"ColoCity\":\"Tokyo\",\"ColoCode\":\"NRT\",\"DestinationIP\":\"89.160.20.129\",\"DestinationPort\":80,\"Protocol\":\"tcp\",\"SignatureID\":2031296,\"SignatureMessage\":\"ET CURRENT_EVENTS [Fireeye] POSSIBLE HackTool.TCP.Rubeus.[User32LogonProcesss]\",\"SignatureRevision\":1,\"SourceIP\":\"67.43.156.2\",\"SourcePort\":44667,\"Timestamp\":\"2023-09-11T03:02:57Z\"}",
        "type": [
            "info",
            "allowed"
        ]
    },
    "input": {
        "type": "http_endpoint"
    },
    "network": {
        "transport": "tcp"
    },
    "related": {
        "ip": [
            "89.160.20.129",
            "67.43.156.2"
        ]
    },
    "source": {
        "as": {
            "number": 35908
        },
        "geo": {
            "continent_name": "Asia",
            "country_iso_code": "BT",
            "country_name": "Bhutan",
            "location": {
                "lat": 27.5,
                "lon": 90.5
            }
        },
        "ip": "67.43.156.2",
        "port": 44667
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-magic_ids"
    ]
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.magic_ids.action	What action was taken on the packet. Possible values are pass	block.	keyword
cloudflare_logpush.magic_ids.colo.city	The city where the detection occurred.	keyword
cloudflare_logpush.magic_ids.colo.code	The IATA airport code corresponding to where the detection occurred.	keyword
cloudflare_logpush.magic_ids.destination.ip	The destination IP of the packet which triggered the detection.	ip
cloudflare_logpush.magic_ids.destination.port	The destination port of the packet which triggered the detection. It is set to 0 if the protocol field is set to any.	long
cloudflare_logpush.magic_ids.signature.id	The signature ID of the detection.	long
cloudflare_logpush.magic_ids.signature.message	The signature message of the detection. Describes what the packet is attempting to do.	keyword
cloudflare_logpush.magic_ids.signature.revision	The signature revision of the detection.	long
cloudflare_logpush.magic_ids.source.ip	The source IP of packet which triggered the detection.	ip
cloudflare_logpush.magic_ids.source.port	The source port of the packet which triggered the detection. It is set to 0 if the protocol field is set to any.	long
cloudflare_logpush.magic_ids.timestamp	A timestamp of when the detection occurred.	date
cloudflare_logpush.magic_ids.transport	The layer 4 protocol of the packet which triggered the detection. Possible values are tcp	udp	any. Variant any means a detection occurred at a lower layer (such as IP).	keyword
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

nel_report

This is the nel_report dataset.

Example

		{
    "@timestamp": "2021-07-27T00:01:07.000Z",
    "agent": {
        "ephemeral_id": "aca88611-b6b1-4170-9acb-8a54a45284e0",
        "id": "1d75344d-fd23-4a1c-82d8-b5f5ae8aa4f8",
        "name": "elastic-agent-34059",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "nel_report": {
            "client": {
                "ip": {
                    "asn": {
                        "description": "CLOUDFLARENET",
                        "value": 13335
                    },
                    "country": "US"
                }
            },
            "error": {
                "type": "network-error"
            },
            "last_known_good": {
                "colo": {
                    "code": "SJC"
                }
            },
            "phase": "connection",
            "timestamp": "2021-07-27T00:01:07.000Z"
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.nel_report",
        "namespace": "45047",
        "type": "logs"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "1d75344d-fd23-4a1c-82d8-b5f5ae8aa4f8",
        "snapshot": false,
        "version": "8.17.1"
    },
    "error": {
        "type": "network-error"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "cloudflare_logpush.nel_report",
        "ingested": "2026-05-18T06:47:51Z",
        "kind": "event",
        "original": "{\"ClientIPASN\":\"13335\",\"ClientIPASNDescription\":\"CLOUDFLARENET\",\"ClientIPCountry\":\"US\",\"LastKnownGoodColoCode\":\"SJC\",\"Phase\":\"connection\",\"Timestamp\":\"2021-07-27T00:01:07Z\",\"Type\":\"network-error\"}",
        "type": [
            "info"
        ]
    },
    "input": {
        "type": "http_endpoint"
    },
    "source": {
        "as": {
            "number": 13335,
            "organization": {
                "name": "CLOUDFLARENET"
            }
        },
        "geo": {
            "country_iso_code": "US"
        }
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-nel_report"
    ]
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.nel_report.client.ip.asn.description	Client ASN description.	keyword
cloudflare_logpush.nel_report.client.ip.asn.value	Client ASN.	long
cloudflare_logpush.nel_report.client.ip.country	Client country.	keyword
cloudflare_logpush.nel_report.error.type	The type of error in the phase.	keyword
cloudflare_logpush.nel_report.last_known_good.colo.code	IATA airport code of colo client connected to.	keyword
cloudflare_logpush.nel_report.phase	The phase of connection the error occurred in.	keyword
cloudflare_logpush.nel_report.timestamp	Timestamp for error report.	date
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

network_analytics

This is the network_analytics dataset.

Example

		{
    "@timestamp": "2021-07-27T00:01:07.000Z",
    "agent": {
        "ephemeral_id": "80437a68-d353-483d-bf25-7851c2f11f0d",
        "id": "7995797e-6e9e-4f8b-956d-57acba24e128",
        "name": "elastic-agent-70734",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "network_analytics": {
            "attack": {
                "campaign": {
                    "id": "xyz987"
                },
                "id": "abc777"
            },
            "colo": {
                "country": "AD",
                "geo_hash": "gbuun",
                "geo_location": "gbuun",
                "id": 46,
                "name": "SJC"
            },
            "destination": {
                "as": {
                    "number": {
                        "description": "asn description"
                    }
                },
                "asn": 1900,
                "country": "AD",
                "geo_hash": "gbuun",
                "geo_location": "gbuun",
                "ip": "175.16.199.0",
                "port": 0
            },
            "direction": "ingress",
            "gre": {
                "checksum": 10,
                "ether": {
                    "type": 10
                },
                "header": {
                    "length": 1024
                },
                "key": 10,
                "sequence": {
                    "number": 10
                },
                "version": 10
            },
            "icmp": {
                "checksum": 10,
                "code": 10,
                "type": 10
            },
            "ip": {
                "destination": {
                    "subnet": "/24"
                },
                "fragment": {
                    "offset": 1480
                },
                "header": {
                    "length": 20
                },
                "more": {
                    "fragments": 1480
                },
                "protocol": {
                    "name": "tcp",
                    "value": 6
                },
                "source": {
                    "subnet": "/24"
                },
                "total": {
                    "length": {
                        "buckets": 10,
                        "value": 1024
                    }
                },
                "ttl": {
                    "buckets": 2,
                    "value": 240
                }
            },
            "ipv4": {
                "checksum": 0,
                "dont_fragment": 0,
                "dscp": 46,
                "ecn": 1,
                "identification": 1,
                "options": 1
            },
            "ipv6": {
                "dscp": 46,
                "ecn": 1,
                "extension_headers": [
                    "header"
                ],
                "flow_label": 1,
                "identification": 1
            },
            "mitigation": {
                "reason": "BLOCKED",
                "scope": "local",
                "system": "flowtrackd"
            },
            "outcome": "success",
            "protocol_state": "OPEN",
            "rule": {
                "id": "rule1",
                "set": {
                    "id": "3b64149bfa6e4220bbbc2bd6db589552",
                    "override": {
                        "id": "id1"
                    }
                }
            },
            "sample_interval": 1,
            "source": {
                "as": {
                    "number": {
                        "description": "Source ASN Description"
                    }
                },
                "asn": 1500,
                "country": "AD",
                "geo_hash": "gbuun",
                "geo_location": "gbuun",
                "ip": "67.43.156.0",
                "port": 0
            },
            "tcp": {
                "acknowledgement_number": 1000,
                "checksum": 10,
                "dataoffset": 0,
                "flags": {
                    "string": "Human-readable flags string",
                    "value": 1
                },
                "mss": 512,
                "options": [
                    "mss"
                ],
                "sack": {
                    "blocks": [
                        1
                    ],
                    "permitted": 1
                },
                "sequence_number": 100,
                "timestamp": {
                    "ecr": 100,
                    "value": 100
                },
                "urgent_pointer": 10,
                "window": {
                    "scale": 10,
                    "size": 10
                }
            },
            "timestamp": "2021-07-27T00:01:07.000Z",
            "udp": {
                "checksum": 10,
                "payload_length": 10
            },
            "verdict": "pass"
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.network_analytics",
        "namespace": "88444",
        "type": "logs"
    },
    "destination": {
        "as": {
            "number": 1900
        },
        "geo": {
            "country_iso_code": "AD"
        },
        "ip": "175.16.199.0",
        "port": 0
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "7995797e-6e9e-4f8b-956d-57acba24e128",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "cloudflare_logpush.network_analytics",
        "ingested": "2026-05-25T03:06:49Z",
        "kind": "event",
        "original": "{\"AttackCampaignID\":\"xyz987\",\"AttackID\":\"abc777\",\"ColoCountry\":\"AD\",\"ColoGeoHash\":\"gbuun\",\"ColoID\":46,\"ColoName\":\"SJC\",\"Datetime\":\"2021-07-27T00:01:07Z\",\"DestinationASN\":1900,\"DestinationASNDescription\":\"asn description\",\"DestinationCountry\":\"AD\",\"DestinationGeoHash\":\"gbuun\",\"DestinationPort\":0,\"Direction\":\"ingress\",\"GREChecksum\":10,\"GREEthertype\":10,\"GREHeaderLength\":1024,\"GREKey\":10,\"GRESequenceNumber\":10,\"GREVersion\":10,\"ICMPChecksum\":10,\"ICMPCode\":10,\"ICMPType\":10,\"IPDestinationAddress\":\"175.16.199.0\",\"IPDestinationSubnet\":\"/24\",\"IPFragmentOffset\":1480,\"IPHeaderLength\":20,\"IPMoreFragments\":1480,\"IPProtocol\":6,\"IPProtocolName\":\"tcp\",\"IPSourceAddress\":\"67.43.156.0\",\"IPSourceSubnet\":\"/24\",\"IPTotalLength\":1024,\"IPTotalLengthBuckets\":10,\"IPTtl\":240,\"IPTtlBuckets\":2,\"IPv4Checksum\":0,\"IPv4DontFragment\":0,\"IPv4Dscp\":46,\"IPv4Ecn\":1,\"IPv4Identification\":1,\"IPv4Options\":1,\"IPv6Dscp\":46,\"IPv6Ecn\":1,\"IPv6ExtensionHeaders\":\"header\",\"IPv6FlowLabel\":1,\"IPv6Identification\":1,\"MitigationReason\":\"BLOCKED\",\"MitigationScope\":\"local\",\"MitigationSystem\":\"flowtrackd\",\"Outcome\":\"pass\",\"ProtocolState\":\"OPEN\",\"RuleID\":\"rule1\",\"RulesetID\":\"3b64149bfa6e4220bbbc2bd6db589552\",\"RulesetOverrideID\":\"id1\",\"SampleInterval\":1,\"SourceASN\":1500,\"SourceASNDescription\":\"Source ASN Description\",\"SourceCountry\":\"AD\",\"SourceGeoHash\":\"gbuun\",\"SourcePort\":0,\"TCPAcknowledgementNumber\":1000,\"TCPChecksum\":10,\"TCPDataOffset\":0,\"TCPFlags\":1,\"TCPFlagsString\":\"Human-readable flags string\",\"TCPMss\":512,\"TCPOptions\":\"mss\",\"TCPSackBlocks\":1,\"TCPSacksPermitted\":1,\"TCPSequenceNumber\":100,\"TCPTimestampEcr\":100,\"TCPTimestampValue\":100,\"TCPUrgentPointer\":10,\"TCPWindowScale\":10,\"TCPWindowSize\":10,\"UDPChecksum\":10,\"UDPPayloadLength\":10,\"Verdict\":\"pass\"}",
        "outcome": "success",
        "type": [
            "info"
        ]
    },
    "input": {
        "type": "http_endpoint"
    },
    "network": {
        "direction": "ingress",
        "transport": "tcp"
    },
    "related": {
        "hash": [
            "gbuun"
        ],
        "ip": [
            "67.43.156.0",
            "175.16.199.0"
        ]
    },
    "rule": {
        "id": "rule1"
    },
    "source": {
        "as": {
            "number": 1500
        },
        "geo": {
            "country_iso_code": "AD"
        },
        "ip": "67.43.156.0",
        "port": 0
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-network_analytics"
    ],
    "threat": {
        "group": {
            "id": "xyz987"
        },
        "indicator": {
            "id": [
                "abc777"
            ]
        }
    }
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.network_analytics.attack.campaign.id	Unique identifier of the attack campaign that this packet was a part of, if any.	keyword
cloudflare_logpush.network_analytics.attack.id	Unique identifier of the mitigation that matched the packet, if any.	keyword
cloudflare_logpush.network_analytics.attack.vector	Descriptive name of the type of attack that this packet was a part of, if any. Only for packets matching rules contained within the Cloudflare L3/4 managed ruleset.	keyword
cloudflare_logpush.network_analytics.colo.city	The city where the Cloudflare datacenter that received the packet is located.	keyword
cloudflare_logpush.network_analytics.colo.code	The Cloudflare datacenter that received the packet (nearest IATA airport code).	keyword
cloudflare_logpush.network_analytics.colo.country	The country of colo that received the packet (ISO 3166-1 alpha-2).	keyword
cloudflare_logpush.network_analytics.colo.geo_hash	The Geo Hash where the colo that received the packet is located.	keyword
cloudflare_logpush.network_analytics.colo.geo_location	The latitude and longitude where the colo that received the packet is located.	geo_point
cloudflare_logpush.network_analytics.colo.id	The ID of the colo that received the DNS query.	long
cloudflare_logpush.network_analytics.colo.name	The name of the colo that received the DNS query.	keyword
cloudflare_logpush.network_analytics.destination.as.number.description	The ASN description associated with the destination IP of the packet.	text
cloudflare_logpush.network_analytics.destination.as.number.name	The name of the ASN associated with the destination IP of the packet.	text
cloudflare_logpush.network_analytics.destination.asn	The ASN associated with the destination IP of the packet.	long
cloudflare_logpush.network_analytics.destination.country	The country where the destination IP of the packet is located.	keyword
cloudflare_logpush.network_analytics.destination.geo_hash	The Geo Hash where the destination IP of the packet is located.	keyword
cloudflare_logpush.network_analytics.destination.geo_location	The latitude and longitude where the destination IP of the packet is located.	geo_point
cloudflare_logpush.network_analytics.destination.ip	Value of the Destination Address header field in the IPv4 or IPv6 packet.	ip
cloudflare_logpush.network_analytics.destination.port	Value of the Destination Port header field in the TCP or UDP packet.	long
cloudflare_logpush.network_analytics.direction	The direction in relation to customer network.	keyword
cloudflare_logpush.network_analytics.dns.query.name	The DNS query name (domain) if the packet is a DNS query.	keyword
cloudflare_logpush.network_analytics.dns.query.type	The DNS query type if the packet is a DNS query.	keyword
cloudflare_logpush.network_analytics.gre.checksum	Value of the Checksum header field in the GRE packet.	long
cloudflare_logpush.network_analytics.gre.ether.type	Value of the Ethertype header field in the GRE packet.	long
cloudflare_logpush.network_analytics.gre.header.length	Length of the GRE packet header, in bytes.	long
cloudflare_logpush.network_analytics.gre.key	Value of the Key header field in the GRE packet.	long
cloudflare_logpush.network_analytics.gre.sequence.number	Value of the Sequence Number header field in the GRE packet.	long
cloudflare_logpush.network_analytics.gre.version	Value of the Version header field in the GRE packet.	long
cloudflare_logpush.network_analytics.icmp.checksum	Value of the Checksum header field in the ICMP packet.	long
cloudflare_logpush.network_analytics.icmp.code	Value of the Code header field in the ICMP packet.	long
cloudflare_logpush.network_analytics.icmp.type	Value of the Type header field in the ICMP packet.	long
cloudflare_logpush.network_analytics.ip.destination.subnet	Computed subnet of the Destination Address header field in the IPv4 or IPv6 packet.	keyword
cloudflare_logpush.network_analytics.ip.fragment.offset	Value of the Fragment Offset header field in the IPv4 or IPv6 packet.	long
cloudflare_logpush.network_analytics.ip.header.length	Length of the IPv4 or IPv6 packet header, in bytes.	long
cloudflare_logpush.network_analytics.ip.more.fragments	Value of the More Fragments header field in the IPv4 or IPv6 packet.	long
cloudflare_logpush.network_analytics.ip.protocol.name	Name of the protocol specified by the Protocol header field in the IPv4 or IPv6 packet.	text
cloudflare_logpush.network_analytics.ip.protocol.value	Value of the Protocol header field in the IPv4 or IPv6 packet.	long
cloudflare_logpush.network_analytics.ip.source.subnet	Computed subnet of the Source Address header field in the IPv4 or IPv6 packet.	keyword
cloudflare_logpush.network_analytics.ip.total.length.buckets	Total length of the IPv4 or IPv6 packet, in bytes, with the last two digits truncated.	long
cloudflare_logpush.network_analytics.ip.total.length.value	Total length of the IPv4 or IPv6 packet, in bytes.	long
cloudflare_logpush.network_analytics.ip.ttl.buckets	Value of the TTL header field in the IPv4 packet or the Hop Limit header field in the IPv6 packet, with the last digit truncated.	long
cloudflare_logpush.network_analytics.ip.ttl.value	Value of the TTL header field in the IPv4 packet or the Hop Limit header field in the IPv6 packet.	long
cloudflare_logpush.network_analytics.ipv4.checksum	Value of the Checksum header field in the IPv4 packet.	long
cloudflare_logpush.network_analytics.ipv4.dont_fragment	Value of the Don’t Fragment header field in the IPv4 packet.	long
cloudflare_logpush.network_analytics.ipv4.dscp	Value of the Differentiated Services Code Point header field in the IPv4 packet.	long
cloudflare_logpush.network_analytics.ipv4.ecn	Value of the Explicit Congestion Notification header field in the IPv4 packet.	long
cloudflare_logpush.network_analytics.ipv4.identification	Value of the Identification header field in the IPv4 packet.	long
cloudflare_logpush.network_analytics.ipv4.options	List of Options numbers included in the IPv4 packet header.	long
cloudflare_logpush.network_analytics.ipv6.dscp	Value of the Differentiated Services Code Point header field in the IPv6 packet.	long
cloudflare_logpush.network_analytics.ipv6.ecn	Value of the Explicit Congestion Notification header field in the IPv6 packet.	long
cloudflare_logpush.network_analytics.ipv6.extension_headers	List of Extension Header numbers included in the IPv6 packet header.	text
cloudflare_logpush.network_analytics.ipv6.flow_label	Value of the Flow Label header field in the IPv6 packet.	long
cloudflare_logpush.network_analytics.ipv6.identification	Value of the Identification extension header field in the IPv6 packet.	long
cloudflare_logpush.network_analytics.mitigation.reason	Reason for applying a mitigation to the packet, if any.	keyword
cloudflare_logpush.network_analytics.mitigation.scope	Whether the packet matched a local or global mitigation, if any.	keyword
cloudflare_logpush.network_analytics.mitigation.system	Which Cloudflare system dropped the packet, if any.	keyword
cloudflare_logpush.network_analytics.outcome	The action that Cloudflare systems took on the packet.	keyword
cloudflare_logpush.network_analytics.pfp_custom_tag	The custom network analytics tag set by Programmable Flow Protection.	keyword
cloudflare_logpush.network_analytics.protocol_state	State of the packet in the context of the protocol, if any.	keyword
cloudflare_logpush.network_analytics.rule.id	Unique identifier of the rule contained with the Cloudflare L3/4 managed ruleset that this packet matched, if any.	text
cloudflare_logpush.network_analytics.rule.name	Human-readable name of the rule contained within the Cloudflare L3/4 managed ruleset that this packet matched, if any.	text
cloudflare_logpush.network_analytics.rule.set.id	Unique identifier of the Cloudflare L3/4 managed ruleset containing the rule that this packet matched, if any.	keyword
cloudflare_logpush.network_analytics.rule.set.override.id	Unique identifier of the rule within the accounts root ddos_l4 phase ruleset which resulted in an override of the default sensitivity or action being applied/evaluated, if any.	text
cloudflare_logpush.network_analytics.sample_interval	The sample interval for this log.	long
cloudflare_logpush.network_analytics.source.as.number.description	The ASN description associated with the source IP of the packet.	text
cloudflare_logpush.network_analytics.source.as.number.name	The name of the ASN associated with the source IP of the packet.	text
cloudflare_logpush.network_analytics.source.asn	The ASN associated with the source IP of the packet.	long
cloudflare_logpush.network_analytics.source.country	The country where the source IP of the packet is located.	keyword
cloudflare_logpush.network_analytics.source.geo_hash	The Geo Hash where the source IP of the packet is located.	keyword
cloudflare_logpush.network_analytics.source.geo_location	The latitude and longitude where the source IP of the packet is located.	geo_point
cloudflare_logpush.network_analytics.source.ip	Value of the Source Address header field in the IPv4 or IPv6 packet.	ip
cloudflare_logpush.network_analytics.source.port	Value of the Source Port header field in the TCP or UDP packet.	long
cloudflare_logpush.network_analytics.tcp.acknowledgement_number	Value of the Acknowledgement Number header field in the TCP packet.	long
cloudflare_logpush.network_analytics.tcp.checksum	Value of the Checksum header field in the TCP packet.	long
cloudflare_logpush.network_analytics.tcp.dataoffset	Value of the Data Offset header field in the TCP packet.	long
cloudflare_logpush.network_analytics.tcp.flags.string	Human-readable string representation of the Flags header field in the TCP packet.	text
cloudflare_logpush.network_analytics.tcp.flags.value	Value of the Flags header field in the TCP packet.	long
cloudflare_logpush.network_analytics.tcp.mss	Value of the MSS option header field in the TCP packet.	long
cloudflare_logpush.network_analytics.tcp.options	List of Options numbers included in the TCP packet header.	text
cloudflare_logpush.network_analytics.tcp.sack.blocks	Value of the SACK Blocks option header in the TCP packet.	long
cloudflare_logpush.network_analytics.tcp.sack.permitted	Value of the SACK Permitted option header in the TCP packet.	long
cloudflare_logpush.network_analytics.tcp.sequence_number	Value of the Sequence Number header field in the TCP packet.	long
cloudflare_logpush.network_analytics.tcp.timestamp.ecr	Value of the Timestamp Echo Reply option header in the TCP packet.	long
cloudflare_logpush.network_analytics.tcp.timestamp.value	Value of the Timestamp option header in the TCP packet.	long
cloudflare_logpush.network_analytics.tcp.urgent_pointer	Value of the Urgent Pointer header field in the TCP packet.	long
cloudflare_logpush.network_analytics.tcp.window.scale	Value of the Window Scale option header in the TCP packet.	long
cloudflare_logpush.network_analytics.tcp.window.size	Value of the Window Size header field in the TCP packet.	long
cloudflare_logpush.network_analytics.timestamp	The date and time the event occurred at the edge.	date
cloudflare_logpush.network_analytics.udp.checksum	Value of the Checksum header field in the UDP packet.	long
cloudflare_logpush.network_analytics.udp.payload_length	Value of the Payload Length header field in the UDP packet.	long
cloudflare_logpush.network_analytics.verdict	The action that Cloudflare systems think should be taken on the packet (pass	drop).	keyword
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

network_session

This is the network_session dataset.

Example

		{
    "@timestamp": "2023-05-04T11:29:14.000Z",
    "agent": {
        "ephemeral_id": "6e63fcd5-1e1f-4e3b-a49f-61fc4c2a8ac3",
        "id": "b739e1ec-b1fb-4809-97b7-0635148b839c",
        "name": "elastic-agent-12860",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "network_session": {
            "account_id": "e1836771179f98aabb828da5ea69a111",
            "destination": {
                "bytes": 679,
                "ip": "89.160.20.129",
                "port": 80,
                "tunnel_id": "00000000-0000-0000-0000-000000000000"
            },
            "egress": {
                "colo_name": "ORD",
                "ip": "2a02:cf40::23",
                "port": 41052,
                "rule": {
                    "id": "00000000-0000-0000-0000-000000000000",
                    "name": "Egress Rule 1"
                }
            },
            "host": {
                "id": "083a8354-d56c-11ed-9771-6a842b100cff",
                "name": "zt-test-vm1"
            },
            "ingress": {
                "colo_name": "ORD"
            },
            "offramp": "INTERNET",
            "rule_evaluation": {
                "time_ms": 10
            },
            "session": {
                "end": "2023-05-04T11:29:14.000Z",
                "id": "18881f179300007fb0d06d6400000001",
                "start": "2023-05-04T11:29:14.000Z"
            },
            "source": {
                "bytes": 2333,
                "internal_ip": "1.128.0.1",
                "ip": "67.43.156.2",
                "port": 52994
            },
            "tcp": {
                "client": {
                    "handshake_time_ms": 12
                },
                "connection": {
                    "close_reason": "CLIENT_CLOSED",
                    "reuse": false
                }
            },
            "timestamp": "2023-05-04T11:29:14.000Z",
            "tls": {
                "client": {
                    "cipher": "TLS_AES_128_GCM_SHA256",
                    "handshake_time_ms": 125,
                    "version": "TLS 1.3"
                },
                "server": {
                    "certificate": {
                        "issuer": "DigiCert Inc",
                        "validation_result": "VALID"
                    },
                    "cipher": "TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384",
                    "handshake_time_ms": 130,
                    "version": "TLS 1.2"
                }
            },
            "transport": "TCP",
            "user": {
                "email": "user@example.com",
                "id": "166befbb-00e3-5e20-bd6e-27245723949f"
            },
            "vlan": {
                "id": "0ce99869-63d3-4d5d-bdaf-d4f33df964aa"
            }
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.network_session",
        "namespace": "93612",
        "type": "logs"
    },
    "destination": {
        "as": {
            "number": 29518,
            "organization": {
                "name": "Bredband2 AB"
            }
        },
        "bytes": 679,
        "geo": {
            "city_name": "Linköping",
            "continent_name": "Europe",
            "country_iso_code": "SE",
            "country_name": "Sweden",
            "location": {
                "lat": 58.4167,
                "lon": 15.6167
            },
            "region_iso_code": "SE-E",
            "region_name": "Östergötland County"
        },
        "ip": "89.160.20.129",
        "port": 80
    },
    "device": {
        "id": "083a8354-d56c-11ed-9771-6a842b100cff"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "b739e1ec-b1fb-4809-97b7-0635148b839c",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "network",
            "session"
        ],
        "dataset": "cloudflare_logpush.network_session",
        "duration": 0,
        "end": "2023-05-04T11:29:14.000Z",
        "id": "18881f179300007fb0d06d6400000001",
        "ingested": "2026-05-18T06:49:50Z",
        "kind": "event",
        "original": "{\"AccountID\":\"e1836771179f98aabb828da5ea69a111\",\"BytesReceived\":679,\"BytesSent\":2333,\"ClientTCPHandshakeDurationMs\":12,\"ClientTLSCipher\":\"TLS_AES_128_GCM_SHA256\",\"ClientTLSHandshakeDurationMs\":125,\"ClientTLSVersion\":\"TLS 1.3\",\"ConnectionCloseReason\":\"CLIENT_CLOSED\",\"ConnectionReuse\":false,\"DestinationTunnelID\":\"00000000-0000-0000-0000-000000000000\",\"DeviceID\":\"083a8354-d56c-11ed-9771-6a842b100cff\",\"DeviceName\":\"zt-test-vm1\",\"EgressColoName\":\"ORD\",\"EgressIP\":\"2a02:cf40::23\",\"EgressPort\":41052,\"EgressRuleID\":\"00000000-0000-0000-0000-000000000000\",\"EgressRuleName\":\"Egress Rule 1\",\"Email\":\"user@example.com\",\"IngressColoName\":\"ORD\",\"Offramp\":\"INTERNET\",\"OriginIP\":\"89.160.20.129\",\"OriginPort\":80,\"OriginTLSCertificateIssuer\":\"DigiCert Inc\",\"OriginTLSCertificateValidationResult\":\"VALID\",\"OriginTLSCipher\":\"TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384\",\"OriginTLSHandshakeDurationMs\":130,\"OriginTLSVersion\":\"TLS 1.2\",\"Protocol\":\"TCP\",\"RuleEvaluationDurationMs\":10,\"SessionEndTime\":\"2023-05-04T11:29:14Z\",\"SessionID\":\"18881f179300007fb0d06d6400000001\",\"SessionStartTime\":\"2023-05-04T11:29:14Z\",\"SourceIP\":\"67.43.156.2\",\"SourceInternalIP\":\"1.128.0.1\",\"SourcePort\":52994,\"UserID\":\"166befbb-00e3-5e20-bd6e-27245723949f\",\"VirtualNetworkID\":\"0ce99869-63d3-4d5d-bdaf-d4f33df964aa\"}",
        "start": "2023-05-04T11:29:14.000Z",
        "type": [
            "connection"
        ]
    },
    "host": {
        "id": "083a8354-d56c-11ed-9771-6a842b100cff",
        "name": "zt-test-vm1"
    },
    "input": {
        "type": "http_endpoint"
    },
    "network": {
        "transport": "TCP",
        "vlan": {
            "id": "0ce99869-63d3-4d5d-bdaf-d4f33df964aa"
        }
    },
    "related": {
        "hosts": [
            "083a8354-d56c-11ed-9771-6a842b100cff",
            "zt-test-vm1"
        ],
        "ip": [
            "67.43.156.2",
            "89.160.20.129",
            "2a02:cf40::23",
            "1.128.0.1"
        ],
        "user": [
            "166befbb-00e3-5e20-bd6e-27245723949f",
            "user@example.com"
        ]
    },
    "source": {
        "as": {
            "number": 35908
        },
        "bytes": 2333,
        "geo": {
            "continent_name": "Asia",
            "country_iso_code": "BT",
            "country_name": "Bhutan",
            "location": {
                "lat": 27.5,
                "lon": 90.5
            }
        },
        "ip": "67.43.156.2",
        "port": 52994
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-network_session"
    ],
    "tls": {
        "cipher": "TLS_AES_128_GCM_SHA256",
        "server": {
            "issuer": "DigiCert Inc"
        },
        "version": "1.3",
        "version_protocol": "tls"
    },
    "user": {
        "email": "user@example.com",
        "id": "166befbb-00e3-5e20-bd6e-27245723949f"
    }
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.network_session.account_id	Cloudflare account ID.	keyword
cloudflare_logpush.network_session.destination.bytes	The number of bytes sent from the origin to the client during the network session.	long
cloudflare_logpush.network_session.destination.ip	The IP of the destination (origin) for the network session.	ip
cloudflare_logpush.network_session.destination.port	The port of the destination origin for the network session.	long
cloudflare_logpush.network_session.destination.tunnel_id	Identifier of the Cloudflare One connector to which the network session was routed to, if any.	keyword
cloudflare_logpush.network_session.detected_protocol	Detected traffic protocol of the network session.	keyword
cloudflare_logpush.network_session.egress.colo_name	The name of the Cloudflare colo from which traffic egressed to the origin.	keyword
cloudflare_logpush.network_session.egress.ip	Source IP used when egressing traffic from Cloudflare to the origin.	ip
cloudflare_logpush.network_session.egress.port	Source port used when egressing traffic from Cloudflare to the origin.	long
cloudflare_logpush.network_session.egress.rule.id	Identifier of the egress rule that was applied by the Secure Web Gateway, if any.	keyword
cloudflare_logpush.network_session.egress.rule.name	The name of the egress rule that was applied by the Secure Web Gateway, if any.	keyword
cloudflare_logpush.network_session.host.id	Identifier of the client device which initiated the network session, if applicable.	keyword
cloudflare_logpush.network_session.host.name	Name of the client device which initiated the network session, if applicable.	keyword
cloudflare_logpush.network_session.ingress.colo_name	The name of the Cloudflare colo to which traffic ingressed.	keyword
cloudflare_logpush.network_session.initial_origin_ip	The IP used to correlate FQDN matching between Gateway DNS and proxy.	ip
cloudflare_logpush.network_session.offramp	The type of destination to which the network session was routed.	keyword
cloudflare_logpush.network_session.registration_id	Identifier of the client registration.	keyword
cloudflare_logpush.network_session.resolved_fqdn	The fully qualified domain name of the destination.	keyword
cloudflare_logpush.network_session.rule_evaluation.time_ms	The duration taken by Secure Web Gateway applying applicable Network, HTTP, and Egress rules to the network session in milliseconds.	long
cloudflare_logpush.network_session.session.end	The network session end timestamp with nanosecond precision.	date
cloudflare_logpush.network_session.session.id	The identifier of this network session.	keyword
cloudflare_logpush.network_session.session.start	The network session start timestamp with nanosecond precision.	date
cloudflare_logpush.network_session.sni	The server name indication (SNI) value from the TLS handshake.	keyword
cloudflare_logpush.network_session.source.bytes	The number of bytes sent from the client to the origin during the network session.	long
cloudflare_logpush.network_session.source.internal_ip	Local LAN IP of the device. Only available when connected via a GRE/IPsec tunnel on-ramp.	ip
cloudflare_logpush.network_session.source.ip	Source IP of the network session.	ip
cloudflare_logpush.network_session.source.port	Source port of the network session.	long
cloudflare_logpush.network_session.tcp.client.handshake_time_ms	Duration of handshaking the TCP connection between the client and Cloudflare in milliseconds.	long
cloudflare_logpush.network_session.tcp.connection.close_reason	The reason for closing the connection, only applicable for TCP.	keyword
cloudflare_logpush.network_session.tcp.connection.reuse	Whether the TCP connection was reused for multiple HTTP requests.	boolean
cloudflare_logpush.network_session.timestamp	The network session start timestamp with nanosecond precision.	date
cloudflare_logpush.network_session.tls.client.cipher	TLS cipher suite used in the connection between the client and Cloudflare.	keyword
cloudflare_logpush.network_session.tls.client.handshake_time_ms	Duration of handshaking the TLS connection between the client and Cloudflare in milliseconds.	long
cloudflare_logpush.network_session.tls.client.version	TLS protocol version used in the connection between the client and Cloudflare.	keyword
cloudflare_logpush.network_session.tls.server.certificate.issuer	The issuer of the origin TLS certificate.	keyword
cloudflare_logpush.network_session.tls.server.certificate.validation_result	The result of validating the TLS certificate of the origin.	keyword
cloudflare_logpush.network_session.tls.server.cipher	TLS cipher suite used in the connection between Cloudflare and the origin.	keyword
cloudflare_logpush.network_session.tls.server.handshake_time_ms	Duration of handshaking the TLS connection between Cloudflare and the origin in milliseconds.	long
cloudflare_logpush.network_session.tls.server.version	TLS protocol version used in the connection between Cloudflare and the origin.	keyword
cloudflare_logpush.network_session.transport	Network protocol used for this network session.	keyword
cloudflare_logpush.network_session.user.email	Email address associated with the user identity which initiated the network session.	keyword
cloudflare_logpush.network_session.user.id	User identity where the network session originated from.	keyword
cloudflare_logpush.network_session.vlan.id	Identifier of the virtual network configured for the client.	keyword
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

page_shield_events

This is the page_shield_events dataset.

Example

		{
    "@timestamp": "2023-05-04T11:29:14.000Z",
    "agent": {
        "ephemeral_id": "c4b2e0d0-c5d3-4b55-a279-9c1036902273",
        "id": "f2246fe8-a35d-4718-8e63-2c915bdcc3b2",
        "name": "elastic-agent-20584",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "page_shield_events": {
            "action": "log",
            "csp_directive": "directive",
            "host": "hostymchost.face",
            "page_url": "http://example.com/?query=42",
            "policy_id": "9",
            "resource_type": "other",
            "timestamp": "2023-05-04T11:29:14.000Z",
            "url": "https://example.com/?query=hog",
            "url_contains_cdn_cgi_path": true,
            "url_host": "example.com"
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.page_shield_events",
        "namespace": "37474",
        "type": "logs"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "f2246fe8-a35d-4718-8e63-2c915bdcc3b2",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "action": "log",
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "cloudflare_logpush.page_shield_events",
        "ingested": "2026-05-18T06:50:51Z",
        "kind": "event",
        "original": "{\"Action\":\"log\",\"CSPDirective\":\"directive\",\"Host\":\"hostymchost.face\",\"PageURL\":\"http://example.com/?query=42\",\"PolicyID\":\"9\",\"ResourceType\":\"other\",\"Timestamp\":\"2023-05-04T11:29:14Z\",\"URL\":\"https://example.com/?query=hog\",\"URLContainsCDNCGIPath\":true,\"URLHost\":\"example.com\"}",
        "type": [
            "info"
        ]
    },
    "host": {
        "name": "hostymchost.face"
    },
    "input": {
        "type": "http_endpoint"
    },
    "related": {
        "hosts": [
            "hostymchost.face",
            "example.com"
        ]
    },
    "rule": {
        "id": "9"
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-page_shield_events"
    ],
    "url": {
        "domain": "example.com",
        "original": "https://example.com/?query=hog",
        "path": "/",
        "query": "query=hog",
        "scheme": "https"
    }
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.page_shield_events.action	The action which was taken against the violation. Possible values are (log, allow).	keyword
cloudflare_logpush.page_shield_events.csp_directive	The violated directive in the report.	keyword
cloudflare_logpush.page_shield_events.host	The host where the resource was seen.	keyword
cloudflare_logpush.page_shield_events.page_url	The page URL the violation was seen on.	keyword
cloudflare_logpush.page_shield_events.policy_id	The ID of the policy which was violated.	keyword
cloudflare_logpush.page_shield_events.resource_type	The resource type of the violated directive. Possible values are 'script', 'connection' or 'other' for unmonitored resource types.	keyword
cloudflare_logpush.page_shield_events.timestamp	The timestamp for when the report was received.	date
cloudflare_logpush.page_shield_events.url	The resource URL.	keyword
cloudflare_logpush.page_shield_events.url_contains_cdn_cgi_path	Whether the resource URL contains the CDN-CGI path. (deprecated by Cloudflare)	boolean
cloudflare_logpush.page_shield_events.url_host	The domain host of the URL.	keyword
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

sinkhole_http

This is the sinkhole_http dataset.

Example

		{
    "@timestamp": "2023-09-19T12:00:00.000Z",
    "agent": {
        "ephemeral_id": "f5360237-2b8b-49e3-994a-ef98d531e736",
        "id": "ac021511-d64e-46d7-b66c-ad8a1ed2dd98",
        "name": "elastic-agent-33739",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "sinkhole_http": {
            "account_id": "AC123456",
            "destination": {
                "ip": "89.160.20.129"
            },
            "host": {
                "name": "example.com"
            },
            "request": {
                "body": {
                    "bytes": 39,
                    "content": "{\"action\": \"login\", \"user\": \"john_doe\"}"
                },
                "headers": [
                    "Host: example.com",
                    "User-Agent: Mozilla/5.0",
                    "Accept: */*",
                    "Connection: keep-alive"
                ],
                "method": "POST",
                "password": "password123",
                "referrer": "https://example.com/",
                "uri": "/api/v1/login",
                "url": "https://example.com/api/v1/login"
            },
            "sinkhole_id": "SH001",
            "source": {
                "ip": "67.43.156.2"
            },
            "timestamp": "2023-09-19T12:00:00.000Z",
            "user": {
                "name": "john_doe"
            },
            "user_agent": "Mozilla/5.0"
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.sinkhole_http",
        "namespace": "85580",
        "type": "logs"
    },
    "destination": {
        "as": {
            "number": 29518,
            "organization": {
                "name": "Bredband2 AB"
            }
        },
        "geo": {
            "city_name": "Linköping",
            "continent_name": "Europe",
            "country_iso_code": "SE",
            "country_name": "Sweden",
            "location": {
                "lat": 58.4167,
                "lon": 15.6167
            },
            "region_iso_code": "SE-E",
            "region_name": "Östergötland County"
        },
        "ip": "89.160.20.129"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "ac021511-d64e-46d7-b66c-ad8a1ed2dd98",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "cloudflare_logpush.sinkhole_http",
        "ingested": "2026-05-11T12:59:20Z",
        "kind": "event",
        "original": "{\"AccountID\":\"AC123456\",\"Body\":\"{\\\"action\\\": \\\"login\\\", \\\"user\\\": \\\"john_doe\\\"}\",\"BodyLength\":39,\"DestAddr\":\"89.160.20.129\",\"Headers\":\"Host: example.com\\nUser-Agent: Mozilla/5.0\\nAccept: */*\\nConnection: keep-alive\",\"Host\":\"example.com\",\"Method\":\"POST\",\"Password\":\"password123\",\"R2Path\":\"\",\"Referrer\":\"https://example.com/\",\"SinkholeID\":\"SH001\",\"SrcAddr\":\"67.43.156.2\",\"Timestamp\":\"2023-09-19T12:00:00Z\",\"URI\":\"/api/v1/login\",\"URL\":\"https://example.com/api/v1/login\",\"UserAgent\":\"Mozilla/5.0\",\"Username\":\"john_doe\"}",
        "type": [
            "info"
        ]
    },
    "host": {
        "name": "example.com"
    },
    "http": {
        "request": {
            "body": {
                "bytes": 39,
                "content": "{\"action\": \"login\", \"user\": \"john_doe\"}"
            },
            "method": "POST",
            "referrer": "https://example.com/"
        }
    },
    "input": {
        "type": "http_endpoint"
    },
    "related": {
        "hosts": [
            "example.com"
        ],
        "ip": [
            "89.160.20.129",
            "67.43.156.2"
        ],
        "user": [
            "john_doe"
        ]
    },
    "source": {
        "as": {
            "number": 35908
        },
        "geo": {
            "continent_name": "Asia",
            "country_iso_code": "BT",
            "country_name": "Bhutan",
            "location": {
                "lat": 27.5,
                "lon": 90.5
            }
        },
        "ip": "67.43.156.2"
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-sinkhole_http"
    ],
    "url": {
        "domain": "example.com",
        "original": "https://example.com/api/v1/login",
        "path": "/api/v1/login",
        "scheme": "https"
    },
    "user": {
        "name": "john_doe"
    },
    "user_agent": {
        "device": {
            "name": "Other"
        },
        "name": "Other",
        "original": "Mozilla/5.0"
    }
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.sinkhole_http.account_id	The Account ID.	keyword
cloudflare_logpush.sinkhole_http.destination.ip	The destination IP address of the request.	ip
cloudflare_logpush.sinkhole_http.host.name	The host the request was sent to.	keyword
cloudflare_logpush.sinkhole_http.r2path	The path to the object within the R2 bucket linked to this sinkhole that stores overflow body and header data. Blank if neither headers nor body was larger than 256 bytes.	keyword
cloudflare_logpush.sinkhole_http.request.body.bytes	The length of request body.	long
cloudflare_logpush.sinkhole_http.request.body.content	The request body.	keyword
cloudflare_logpush.sinkhole_http.request.headers	The request headers.	keyword
cloudflare_logpush.sinkhole_http.request.method	The request method.	keyword
cloudflare_logpush.sinkhole_http.request.password	The request password.	keyword
cloudflare_logpush.sinkhole_http.request.referrer	The referrer of the request.	keyword
cloudflare_logpush.sinkhole_http.request.uri	The request Uniform Resource Identifier.	keyword
cloudflare_logpush.sinkhole_http.request.url	The request Uniform Resource Locator.	keyword
cloudflare_logpush.sinkhole_http.sinkhole_id	The ID of the Sinkhole that logged the HTTP Request.	keyword
cloudflare_logpush.sinkhole_http.source.ip	The source IP address of the request.	ip
cloudflare_logpush.sinkhole_http.timestamp	The date and time the sinkhole HTTP request was logged.	date
cloudflare_logpush.sinkhole_http.user.name	The request username.	keyword
cloudflare_logpush.sinkhole_http.user_agent	The request user agent.	keyword
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

spectrum_event

This is the spectrum_event dataset.

Example

		{
    "@timestamp": "2022-05-26T09:24:00.000Z",
    "agent": {
        "ephemeral_id": "3cdde097-c44e-4b3a-916b-78fe2857021a",
        "id": "bf47fe17-7497-4514-a24f-4f663a35147a",
        "name": "elastic-agent-37986",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "spectrum_event": {
            "action": "connect",
            "application": "7ef659a2f8ef4810a9bade96fdad7c75",
            "client": {
                "asn": 200391,
                "bytes": 0,
                "country": "bg",
                "ip": "67.43.156.0",
                "matched_ip_firewall": "UNKNOWN",
                "port": 40456,
                "protocol": "tcp",
                "tcp_rtt": 0,
                "tls": {
                    "cipher": "UNK",
                    "client_hello_server_name": "server name",
                    "protocol": "unknown",
                    "status": "UNKNOWN"
                }
            },
            "colo": {
                "code": "SOF"
            },
            "connect": {
                "time": "2022-05-26T09:24:00.000Z"
            },
            "disconnect": {
                "time": "1970-01-01T00:00:00.000Z"
            },
            "ip_firewall": false,
            "origin": {
                "bytes": 0,
                "ip": "175.16.199.0",
                "port": 3389,
                "protocol": "tcp",
                "tcp_rtt": 0,
                "tls": {
                    "cipher": "UNK",
                    "fingerprint": "0000000000000000000000000000000000000000000000000000000000000000.",
                    "mode": "off",
                    "protocol": "unknown",
                    "status": "UNKNOWN"
                }
            },
            "proxy": {
                "protocol": "off"
            },
            "status": 0,
            "timestamp": "2022-05-26T09:24:00.000Z"
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.spectrum_event",
        "namespace": "18982",
        "type": "logs"
    },
    "destination": {
        "bytes": 0,
        "ip": "175.16.199.0",
        "port": 3389
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "bf47fe17-7497-4514-a24f-4f663a35147a",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "action": "connect",
        "agent_id_status": "verified",
        "category": [
            "network"
        ],
        "dataset": "cloudflare_logpush.spectrum_event",
        "duration": -1653557040000000000,
        "end": "1970-01-01T00:00:00.000Z",
        "id": "7ef659a2f8ef4810a9bade96fdad7c75",
        "ingested": "2026-05-18T06:51:50Z",
        "kind": "event",
        "original": "{\"Application\":\"7ef659a2f8ef4810a9bade96fdad7c75\",\"ClientAsn\":200391,\"ClientBytes\":0,\"ClientCountry\":\"bg\",\"ClientIP\":\"67.43.156.0\",\"ClientMatchedIpFirewall\":\"UNKNOWN\",\"ClientPort\":40456,\"ClientProto\":\"tcp\",\"ClientTcpRtt\":0,\"ClientTlsCipher\":\"UNK\",\"ClientTlsClientHelloServerName\":\"server name\",\"ClientTlsProtocol\":\"unknown\",\"ClientTlsStatus\":\"UNKNOWN\",\"ColoCode\":\"SOF\",\"ConnectTimestamp\":\"2022-05-26T09:24:00Z\",\"DisconnectTimestamp\":\"1970-01-01T00:00:00Z\",\"Event\":\"connect\",\"IpFirewall\":false,\"OriginBytes\":0,\"OriginIP\":\"175.16.199.0\",\"OriginPort\":3389,\"OriginProto\":\"tcp\",\"OriginTcpRtt\":0,\"OriginTlsCipher\":\"UNK\",\"OriginTlsFingerprint\":\"0000000000000000000000000000000000000000000000000000000000000000.\",\"OriginTlsMode\":\"off\",\"OriginTlsProtocol\":\"unknown\",\"OriginTlsStatus\":\"UNKNOWN\",\"ProxyProtocol\":\"off\",\"Status\":0,\"Timestamp\":\"2022-05-26T09:24:00Z\"}",
        "start": "2022-05-26T09:24:00.000Z",
        "type": [
            "info"
        ]
    },
    "http": {
        "response": {
            "status_code": 0
        }
    },
    "input": {
        "type": "http_endpoint"
    },
    "network": {
        "community_id": "1:X7lywUVKlduqRq5SyCRaBj4hLP0=",
        "transport": "tcp"
    },
    "related": {
        "hash": [
            "0000000000000000000000000000000000000000000000000000000000000000."
        ],
        "ip": [
            "67.43.156.0",
            "175.16.199.0"
        ]
    },
    "source": {
        "as": {
            "number": 200391
        },
        "bytes": 0,
        "geo": {
            "country_iso_code": "bg"
        },
        "ip": "67.43.156.0",
        "port": 40456
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-spectrum_event"
    ],
    "tls": {
        "cipher": "UNK",
        "client": {
            "server_name": "server name"
        },
        "server": {
            "hash": {
                "sha256": "0000000000000000000000000000000000000000000000000000000000000000."
            }
        }
    }
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.spectrum_event.action	Event Action.	keyword
cloudflare_logpush.spectrum_event.application	The unique public ID of the application on which the event occurred.	keyword
cloudflare_logpush.spectrum_event.client.asn	Client AS number.	long
cloudflare_logpush.spectrum_event.client.bytes	The number of bytes read from the client by the Spectrum service.	long
cloudflare_logpush.spectrum_event.client.country	Country of the client IP address.	keyword
cloudflare_logpush.spectrum_event.client.ip	Client IP address.	ip
cloudflare_logpush.spectrum_event.client.matched_ip_firewall	Whether the connection matched any IP Firewall rules.	keyword
cloudflare_logpush.spectrum_event.client.port	Client port.	long
cloudflare_logpush.spectrum_event.client.protocol	Transport protocol used by client.	keyword
cloudflare_logpush.spectrum_event.client.tcp_rtt	The TCP round-trip time in nanoseconds between the client and Spectrum.	long
cloudflare_logpush.spectrum_event.client.tls.cipher	The cipher negotiated between the client and Spectrum.	keyword
cloudflare_logpush.spectrum_event.client.tls.client_hello_server_name	The server name in the Client Hello message from client to Spectrum.	keyword
cloudflare_logpush.spectrum_event.client.tls.protocol	The TLS version negotiated between the client and Spectrum.	keyword
cloudflare_logpush.spectrum_event.client.tls.status	Indicates state of TLS session from the client to Spectrum.	keyword
cloudflare_logpush.spectrum_event.colo.code	IATA airport code of data center that received the request.	keyword
cloudflare_logpush.spectrum_event.connect.time	Timestamp at which both legs of the connection (client/edge, edge/origin or nexthop) were established.	date
cloudflare_logpush.spectrum_event.disconnect.time	Timestamp at which the connection was closed.	date
cloudflare_logpush.spectrum_event.ip_firewall	Whether IP Firewall was enabled at time of connection.	boolean
cloudflare_logpush.spectrum_event.origin.bytes	The number of bytes read from the origin by Spectrum.	long
cloudflare_logpush.spectrum_event.origin.ip	Origin IP address.	ip
cloudflare_logpush.spectrum_event.origin.port	Origin Port.	long
cloudflare_logpush.spectrum_event.origin.protocol	Transport protocol used by origin.	keyword
cloudflare_logpush.spectrum_event.origin.tcp_rtt	The TCP round-trip time in nanoseconds between Spectrum and the origin.	long
cloudflare_logpush.spectrum_event.origin.tls.cipher	The cipher negotiated between Spectrum and the origin.	keyword
cloudflare_logpush.spectrum_event.origin.tls.fingerprint	SHA256 hash of origin certificate.	keyword
cloudflare_logpush.spectrum_event.origin.tls.mode	If and how the upstream connection is encrypted.	keyword
cloudflare_logpush.spectrum_event.origin.tls.protocol	The TLS version negotiated between Spectrum and the origin.	keyword
cloudflare_logpush.spectrum_event.origin.tls.status	The state of the TLS session from Spectrum to the origin.	keyword
cloudflare_logpush.spectrum_event.proxy.protocol	Which form of proxy protocol is applied to the given connection.	keyword
cloudflare_logpush.spectrum_event.status	A code indicating reason for connection closure.	long
cloudflare_logpush.spectrum_event.timestamp	Timestamp at which the event took place.	date
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

workers_trace

This is the workers_trace dataset.

Example

		{
    "@timestamp": "2023-07-20T11:35:46.804Z",
    "agent": {
        "ephemeral_id": "965be674-649c-4d4d-a517-a0b096ce6326",
        "id": "3dd2d8dc-5e48-4d17-bbf8-db7c36035fde",
        "name": "elastic-agent-85422",
        "type": "filebeat",
        "version": "8.17.1"
    },
    "cloudflare_logpush": {
        "workers_trace": {
            "dispatch_namespace": "my-worker-dispatch",
            "event": {
                "ray_id": "7e9ae7157ac0c33a",
                "request": {
                    "method": "GET",
                    "url": "http://chat-gpt-little-butterfly-0c3d.example.workers.dev/v2/_catalog"
                },
                "response": {
                    "status": 404
                }
            },
            "exceptions": [
                {
                    "message": "Uncaught TypeError: Cannot read property 'x' of undefined",
                    "stack": "TypeError: Cannot read property 'x' of undefined\n    at fetchHandler (/workers/script.js:12:27)\n    at handleRequest (/workers/script.js:6:13)"
                }
            ],
            "logs": [
                {
                    "level": "info",
                    "message": "Request received for /api/data"
                },
                {
                    "level": "error",
                    "message": "Something went wrong"
                }
            ],
            "outcome": "exception",
            "script": {
                "name": "chat-gpt-little-butterfly-0c3d",
                "tags": [
                    "api",
                    "chatgpt"
                ]
            },
            "timestamp": "2023-07-20T11:35:46.804Z",
            "type": "fetch"
        }
    },
    "data_stream": {
        "dataset": "cloudflare_logpush.workers_trace",
        "namespace": "56374",
        "type": "logs"
    },
    "ecs": {
        "version": "9.3.0"
    },
    "elastic_agent": {
        "id": "3dd2d8dc-5e48-4d17-bbf8-db7c36035fde",
        "snapshot": false,
        "version": "8.17.1"
    },
    "event": {
        "action": "fetch",
        "agent_id_status": "verified",
        "category": [
            "web"
        ],
        "dataset": "cloudflare_logpush.workers_trace",
        "id": "7e9ae7157ac0c33a",
        "ingested": "2026-04-29T03:08:36Z",
        "kind": "event",
        "original": "{\"DispatchNamespace\":\"my-worker-dispatch\",\"Event\":{\"RayID\":\"7e9ae7157ac0c33a\",\"Request\":{\"Method\":\"GET\",\"URL\":\"http://chat-gpt-little-butterfly-0c3d.example.workers.dev/v2/_catalog\"},\"Response\":{\"Status\":404}},\"EventTimestampMs\":1689852946804,\"EventType\":\"fetch\",\"Exceptions\":[{\"Message\":\"Uncaught TypeError: Cannot read property 'x' of undefined\",\"Stack\":\"TypeError: Cannot read property 'x' of undefined\\n    at fetchHandler (/workers/script.js:12:27)\\n    at handleRequest (/workers/script.js:6:13)\"}],\"Logs\":[{\"level\":\"info\",\"message\":\"Request received for /api/data\"},{\"level\":\"error\",\"message\":\"Something went wrong\"}],\"Outcome\":\"exception\",\"ScriptName\":\"chat-gpt-little-butterfly-0c3d\",\"ScriptTags\":[\"api\",\"chatgpt\"]}",
        "outcome": "failure",
        "type": [
            "info",
            "error"
        ]
    },
    "http": {
        "request": {
            "method": "GET"
        },
        "response": {
            "status_code": 404
        }
    },
    "input": {
        "type": "http_endpoint"
    },
    "tags": [
        "preserve_original_event",
        "preserve_duplicate_custom_fields",
        "forwarded",
        "cloudflare_logpush-workers_trace"
    ],
    "url": {
        "domain": "chat-gpt-little-butterfly-0c3d.example.workers.dev",
        "original": "http://chat-gpt-little-butterfly-0c3d.example.workers.dev/v2/_catalog",
        "path": "/v2/_catalog",
        "scheme": "http"
    }
}



Field	Description	Type
@timestamp	Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events.	date
aws.s3.bucket.arn	The AWS S3 bucket ARN.	keyword
aws.s3.bucket.name	The AWS S3 bucket name.	keyword
aws.s3.object.key	The AWS S3 Object key.	keyword
azure.storage.blob.content_type	The content type of the Azure Blob Storage blob object	keyword
azure.storage.blob.name	The name of the Azure Blob Storage blob object	keyword
azure.storage.container.name	The name of the Azure Blob Storage container	keyword
cloudflare_logpush.workers_trace.cpu_time_ms	The amount of CPU time used by the Worker script, in milliseconds.	long
cloudflare_logpush.workers_trace.dispatch_namespace	The Cloudflare Worker dispatch namespace.	keyword
cloudflare_logpush.workers_trace.entrypoint	The name of the entrypoint class in which the Worker began execution.	keyword
cloudflare_logpush.workers_trace.event	Details about the source event.	flattened
cloudflare_logpush.workers_trace.exceptions	List of uncaught exceptions during the invocation.	flattened
cloudflare_logpush.workers_trace.logs	List of console messages emitted during the invocation.	flattened
cloudflare_logpush.workers_trace.outcome	The outcome of the worker script invocation. Possible values are ok	exception.	keyword
cloudflare_logpush.workers_trace.script.name	The Cloudflare Worker script name.	keyword
cloudflare_logpush.workers_trace.script.tags	A list of user-defined tags used to categorize the Worker.	keyword
cloudflare_logpush.workers_trace.script.version	The version of the script that was invoked.	flattened
cloudflare_logpush.workers_trace.timestamp	The timestamp of when the event was received.	date
cloudflare_logpush.workers_trace.type	The event type that triggered the invocation.	keyword
cloudflare_logpush.workers_trace.wall_time_ms	The elapsed wall-clock time in milliseconds for the Worker invocation.	long
data_stream.dataset	The field can contain anything that makes sense to signify the source of the data. Examples include `nginx.access`, `prometheus`, `endpoint` etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. `event.dataset` should have the same value as `data_stream.dataset`. Beyond the Elasticsearch data stream naming criteria noted above, the `dataset` value has additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.namespace	A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with `default`. If no value is used, it falls back to `default`. Beyond the Elasticsearch index naming criteria noted above, `namespace` value has the additional restrictions: * Must not contain `-` * No longer than 100 characters	constant_keyword
data_stream.type	An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future.	constant_keyword
event.dataset	Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name.	constant_keyword
event.module	Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), `event.module` should contain the name of this module.	constant_keyword
gcs.storage.bucket.name	The name of the Google Cloud Storage Bucket.	keyword
gcs.storage.object.content_type	The content type of the Google Cloud Storage object.	keyword
gcs.storage.object.json_data	When parse_json is true, the resulting JSON data is stored in this field.	keyword
gcs.storage.object.name	The content type of the Google Cloud Storage object.	keyword
input.type	Input type	keyword
log.offset	Log offset	long
log.source.address	Source address from which the log event was read / sent from.	keyword

Version	Details	Minimum Kibana version
1.46.0	Enhancement (View pull request) Update README documentation.	9.0.0 8.17.1
1.45.0	Enhancement (View pull request) Ingest pipeline improvements. Enhancement (View pull request) Normalize severity handling in CASB data stream. Enhancement (View pull request) Consolidate timestamp handling to a single script across all data streams. Enhancement (View pull request) Improve ECS mapping across multiple data streams. Enhancement (View pull request) Standardize the error message format and use the latest null-removal script. Enhancement (View pull request) Add `tag` key to each processor in the ingest pipelines. Enhancement (View pull request) Replace `rename` processors with typed `convert` processors for fields whose `fields.yml` mapping is `ip`, `long`, `double`, or `boolean`. This validates incoming values against the declared mapping and prevents off-type values from being silently indexed. Replace grok processors with dissect for simple delimiter-based pattern. Enhancement (View pull request) Update ECS to 9.3.0 and add new fields across multiple data streams.	9.0.0 8.17.1
1.44.2	Bug fix (View pull request) Split comma-separated values in `IPv4Options`, `IPv6ExtensionHeaders`, and `TCPOptions` fields from `network_analytics` data stream. Fix grammatical mistakes in manifest files.	9.0.0 8.17.1
1.44.1	Bug fix (View pull request) Fix multiple ingest pipeline and field definition bugs across data streams: - Fix incorrect field-path references and PascalCase mismatches with Cloudflare JSON keys. - Fix `dns` and `gateway_dns` to populate `related.hosts` and `related.ip` from the correct package fields. - Fix `gateway_network` GeoIP enrichment to tolerate missing source and destination IPs. - Fix `network_analytics` TCP SACK blocks split ordering and empty-string handling. - Fix swapped field descriptions in `firewall_event` and `http_request`. - Remove orphaned `page_shield_events.page` field that was never populated.	9.0.0 8.17.1
1.44.0	Enhancement (View pull request) Add SSL configuration option to the aws-s3 input.	9.0.0 8.17.1
1.43.5	Bug fix (View pull request) Update R2 setup documentation to require the `region` field instead of stating it is not needed.	9.0.0 8.17.1
1.43.4	Bug fix (View pull request) Add `region` variable to the aws-s3 input to fix compatibility with Elastic Agent 8.19.12+ when using non-AWS S3-compatible buckets such as Cloudflare R2.	9.0.0 8.17.1
1.43.3	Bug fix (View pull request) Use triple-brace Mustache templating when referencing variables in ingest pipelines.	9.0.0 8.17.1
1.43.2	Bug fix (View pull request) Fix URI parsing for URIs starting with '/' by constructing complete URIs from scheme, domain, and path components in http_request data stream.	9.0.0 8.17.1
1.43.1	Bug fix (View pull request) Fix uri parsing for http_request data stream.	9.0.0 8.17.1
1.43.0	Enhancement (View pull request) Add `Enable Data Deduplication` toggle for AWS S3 input. By default, it is enabled. When enabled, this setting prevents duplicates but may result in a lower indexing rate because Elasticsearch must check for existing documents before indexing.	9.0.0 8.17.1
1.42.0	Enhancement (View pull request) Add alternative host configuration option support in gcs input.	9.0.0 8.17.1
1.41.0	Enhancement (View pull request) Add Cloudflare `SourceInternalIP` field values to `related.ip` for the gateway_http and gateway_network data streams.	9.0.0 8.17.1
1.40.0	Enhancement (View pull request) Added support for Azure Blob Storage input for all data streams.	9.0.0 8.17.1
1.39.2	Bug fix (View pull request) Do not convert timestamps in spectrum_event datastream that are 0, "0" or "".	9.0.0 8.16.5
1.39.1	Bug fix (View pull request) Fix audit data stream null handling.	9.0.0 8.16.5
1.39.0	Enhancement (View pull request) Update the Cloudflare Logpush integration data streams introduction.	9.0.0 8.16.5
1.38.3	Bug fix (View pull request) Fix duplicate key `number_of_workers` inside gateway_http data stream.	9.0.0 8.16.5
1.38.2	Bug fix (View pull request) Fix handling of TCP SACK block lists.	9.0.0 8.16.5
1.38.1	Bug fix (View pull request) Fix Cloudflare source field rename handling.	9.0.0 8.16.5
1.38.0	Enhancement (View pull request) Add `tls.cipher` ECS mapping for `cloudflare_logpush.http_request.client.ssl.cipher`.	9.0.0 8.16.5
1.37.4	Bug fix (View pull request) Fix the field type of http_request.bot.detection_tags from long to keyword, aligning it with the log source type of string array. This resolves an issue where the field was being ignored due to the "ignored_malformed" index setting, making it unusable in searches.	9.0.0 8.16.5
1.37.3	Bug fix (View pull request) Fix default request trace enabled behavior.	9.0.0 8.16.5
1.37.2	Bug fix (View pull request) Fix geoip processor for gateway_dns and gateway_http when there is no `source.ip` or `destination.ip`.	9.0.0 8.16.5
1.37.1	Bug fix (View pull request) Fix handling of http_request events missing `EdgeStartTimestamp`.	9.0.0 8.16.5
1.37.0	Enhancement (View pull request) Add parse for missing field on Firewall Event dataset.	9.0.0 8.16.5
1.36.0	Enhancement (View pull request) Expand set of supported fields. Enhancement (View pull request) Add page_shield_events, dlp_forensic_copies and email_security_alerts data streams. Enhancement (View pull request) Enable request trace log removal.	9.0.0 8.16.5
1.35.2	Bug fix (View pull request) Fix handling of SQS worker count configuration.	9.0.0 8.16.5
1.35.1	Bug fix (View pull request) Fix handling of http_request events missing `ClientRequestProtocol`.	9.0.0 8.16.5
1.35.0	Enhancement (View pull request) Add support to configure start_timestamp and ignore_older configurations for AWS S3 backed inputs.	9.0.0 8.16.5
1.34.1	Bug fix (View pull request) Updated SSL description in package manifest.yml to be uniform and to include links to documentation.	9.0.0 8.16.2
1.34.0	Enhancement (View pull request) Update Kibana constraint to support 9.0.0.	9.0.0 8.16.2
1.33.0	Enhancement (View pull request) Reduce pipeline errors when expected fields are missing (part 2).	8.16.2
1.32.0	Enhancement (View pull request) Reduce pipeline errors when expected fields are missing.	8.16.2
1.31.0	Enhancement (View pull request) Populate the field event.id for Firewall Events and HTTP Requests.	8.16.2
1.30.0	Enhancement (View pull request) Provide request tracing support.	8.16.2
1.29.0	Enhancement (View pull request) Add support for Access Point ARN when collecting logs via the AWS S3 Bucket.	8.16.2
1.28.0	Enhancement (View pull request) Allow user configuration of server overload behavior for http_endpoint input.	8.16.2
1.27.0	Enhancement (View pull request) Add "preserve_original_event" tag to documents with `event.kind` set to "pipeline_error".	8.13.0
1.26.1	Bug fix (View pull request) Fix string literals in painless scripts.	8.13.0
1.26.0	Enhancement (View pull request) Generically rename non-AWS S3-compatible bucket options.	8.13.0
1.25.0	Enhancement (View pull request) Retain zone name for firewall events.	8.13.0
1.24.0	Enhancement (View pull request) Support new JA4 fields from HTTP Requests logs.	8.13.0
1.23.0	Enhancement (View pull request) Allow @custom pipeline access to event.original without setting preserve_original_event.	8.13.0
1.22.0	Bug fix (View pull request) Deprecate global SQS Queue URL to avoid data loss.	8.13.0
1.21.0	Enhancement (View pull request) Update the kibana constraint to ^8.13.0. Modified the field definitions to remove ECS fields made redundant by the ecs@mappings component template.	8.13.0
1.20.0	Enhancement (View pull request) Improve documentation on how to ingest data from Cloudflare R2.	8.12.0
1.19.0	Enhancement (View pull request) Support new WAF AttackScore fields from HTTP Requests logs.	8.12.0
1.18.0	Enhancement (View pull request) Set sensitive values as secret.	8.12.0
1.17.4	Enhancement (View pull request) Changed owners	8.7.1
1.17.3	Bug fix (View pull request) Fix logic on rename processors when handling new and old security fields in HTTP request data stream.	8.7.1
1.17.2	Bug fix (View pull request) Support updates to security fields in HTTP request data stream.	8.7.1
1.17.1	Bug fix (View pull request) Add content-type header to request in HTTP endpoint documentation.	8.7.1
1.17.0	Enhancement (View pull request) ECS version updated to 8.11.0.	8.7.1
1.16.0	Enhancement (View pull request) Expose 'non_aws_bucket_name' option for the AWS S3 input to ingest data from Cloudflare R2.	8.7.1
1.15.0	Enhancement (View pull request) Improve 'event.original' check to avoid errors if set.	8.7.1
1.14.1	Bug fix (View pull request) Include documentation and mappings for subfields of dns.answers	8.7.1
1.14.0	Enhancement (View pull request) Add BotDetectionIDs field for HTTP request events.	8.7.1
1.13.0	Enhancement (View pull request) Update the package format_version to 3.0.0.	8.7.1
1.12.0	Enhancement (View pull request) Add support for Magic IDS, Firewall DNS and Sinkhole HTTP logs. Enhancement (View pull request) Set the same default port 9560 for every data stream.	8.7.1
1.11.0	Bug fix (View pull request) Correct invalid ECS field usages at root-level.	8.7.1
1.10.0	Enhancement (View pull request) ECS version updated to 8.10.0.	8.7.1
1.9.0	Enhancement (View pull request) Add tags.yml file so that integration's dashboards and saved searches are tagged with "Security Solution" and displayed in the Security Solution UI.	8.7.1
1.8.1	Bug fix (View pull request) Fix handling of timestamps.	8.7.1
1.8.0	Enhancement (View pull request) Update package to ECS 8.9.0.	8.7.1
1.7.0	Enhancement (View pull request) Document duration units.	8.7.1
1.6.0	Enhancement (View pull request) Add support for Workers Trace Events logs.	8.7.1
1.5.0	Enhancement (View pull request) Add new data streams to cover all Zero Trust events.	8.7.0
1.4.0	Enhancement (View pull request) Update package to ECS 8.8.0.	8.0.0
1.3.1	Enhancement (View pull request) fixed a variable naming issue in manifest.yml files for all gcs streams.	8.0.0
1.3.0	Enhancement (View pull request) Added support local AWS SQS queue URLs for each data stream.	8.0.0
1.2.1	Bug fix (View pull request) fixed a variable naming issue in the gcs.yml.hbs files.	8.0.0
1.2.0	Enhancement (View pull request) Update package-spec version to 2.7.0.	8.0.0
1.1.1	Bug fix (View pull request) Fix collection of url fields in firewall_event and http_request datastreams.	8.0.0
1.1.0	Enhancement (View pull request) Update package to ECS 8.7.0.	8.0.0
1.0.0	Enhancement (View pull request) Release Cloudflare Logpush as GA.	8.0.0
0.6.0	Enhancement (View pull request) Use `EdgeStartTimestamp` as `@timestamp` time.	8.0.0
0.5.1	Enhancement (View pull request) Added categories and/or subcategories.	8.0.0
0.5.0	Enhancement (View pull request) Update package to ECS 8.6.0.	8.0.0
0.4.0	Enhancement (View pull request) Added support for GCS input.	8.0.0
0.3.0	Enhancement (View pull request) Update package to ECS 8.5.0.	8.0.0
0.2.1	Bug fix (View pull request) Set default endpoint to empty string	8.0.0
0.2.0	Enhancement (View pull request) Expose Default Region setting to UI	8.0.0
0.1.1	Bug fix (View pull request) Fix line endings.	8.0.0 7.17.0
0.1.0	Enhancement (View pull request) Initial Release.	8.0.0 7.17.0
