Elastic Cloud Enterprise Integration
| Version | 0.0.1
|
| Subscription level What's this? |
Enterprise |
| Developed by What's this? |
Elastic |
| Ingestion method(s) | File |
| Minimum Kibana version(s) | 9.0.0 8.17.0 |
The Elastic Cloud Enterprise integration v0.0.1 is in beta
To use beta integrations, go to the Integrations page in Kibana, scroll down, and toggle on the Display beta integrations option.
The Elastic Cloud Enterprise (ECE) Integration allows you to collect the Adminconsole logs which contain all actions performed through the admin UI and as well as through the API. The Elastic Agent collecting this logs needs to be installed on all Control Planes in ECE, as the Control Planes usually host the adminconsole container.
This has been tested and verified on version ECE 3.8, as well as 4.0
Install the Elastic Agent on the hosts that are running the adminconsole, which are usually your control plane hosts. This will spawn a filestream input which reads the adminconsole.log file.
Example
{
"@timestamp": "2025-05-09T07:43:09.031Z",
"ece_adminconsole": {
"log": {
"deployment": {
"name": "francis"
}
}
},
"ecs": {
"version": "8.17.0"
},
"event": {
"action": "create_deployment",
"category": [
"api"
],
"duration": 1711000000,
"original": "{\"@timestamp\":\"2025-05-09T07:43:09.031238Z\",\"process\":{\"thread\":{\"name\":\"adminconsole-requests-pekko.actor.default-dispatcher-28\"}},\"message\":\"201 Created - philipp - 6d8ed3ff3ddb495496e1c6752f9feb07 - 127.0.0.1 - 172.17.42.1 - POST 89.160.20.112:12443/api/v1/deployments HTTP/1.1 in:2361 out:unknown (1711 ms)\",\"log\":{\"logger\":\"no.found.adminconsole.http.requests\",\"level\":\"INFO\"},\"proxy_ip\":\"172.17.42.1\",\"query_parameters\":\"validate_only=false\",\"request_url\":\"89.160.20.112:12443/api/v1/deployments\",\"trace.id\":\"\",\"api_key_id\":\"unknown\",\"request_method\":\"POST\",\"commit_hash\":\"8ba74f3d10ab89948c8241c842a8e31d3fc70070\",\"request_host\":\"89.160.20.112\",\"request_length\":\"2361\",\"request_payload\":\"{\\\"name\\\":\\\"francis\\\",\\\"resources\\\":{\\\"elasticsearch\\\":[{\\\"ref_id\\\":\\\"main-elasticsearch\\\",\\\"region\\\":\\\"ece-region\\\",\\\"plan\\\":{\\\"cluster_topology\\\":[{\\\"id\\\":\\\"hot_content\\\",\\\"node_roles\\\":[\\\"master\\\",\\\"ingest\\\",\\\"transform\\\",\\\"data_hot\\\",\\\"remote_cluster_client\\\",\\\"data_content\\\"],\\\"zone_count\\\":1,\\\"elasticsearch\\\":{\\\"node_attributes\\\":{\\\"data\\\":\\\"hot\\\"}},\\\"instance_configuration_id\\\":\\\"data.default\\\",\\\"size\\\":{\\\"value\\\":4096,\\\"resource\\\":\\\"memory\\\"}},{\\\"id\\\":\\\"warm\\\",\\\"node_roles\\\":[\\\"data_warm\\\",\\\"remote_cluster_client\\\"],\\\"zone_count\\\":1,\\\"elasticsearch\\\":{\\\"node_attributes\\\":{\\\"data\\\":\\\"warm\\\"}},\\\"instance_configuration_id\\\":\\\"data.highstorage\\\",\\\"size\\\":{\\\"value\\\":0,\\\"resource\\\":\\\"memory\\\"}},{\\\"id\\\":\\\"cold\\\",\\\"node_roles\\\":[\\\"data_cold\\\",\\\"remote_cluster_client\\\"],\\\"zone_count\\\":1,\\\"elasticsearch\\\":{\\\"node_attributes\\\":{\\\"data\\\":\\\"cold\\\"}},\\\"instance_configuration_id\\\":\\\"data.highstorage\\\",\\\"size\\\":{\\\"value\\\":0,\\\"resource\\\":\\\"memory\\\"}},{\\\"id\\\":\\\"frozen\\\",\\\"node_roles\\\":[\\\"data_frozen\\\"],\\\"zone_count\\\":1,\\\"elasticsearch\\\":{\\\"node_attributes\\\":{\\\"data\\\":\\\"frozen\\\"}},\\\"instance_configuration_id\\\":\\\"data.frozen\\\",\\\"size\\\":{\\\"value\\\":0,\\\"resource\\\":\\\"memory\\\"}},{\\\"id\\\":\\\"coordinating\\\",\\\"node_roles\\\":[\\\"ingest\\\",\\\"remote_cluster_client\\\"],\\\"zone_count\\\":1,\\\"instance_configuration_id\\\":\\\"coordinating\\\",\\\"size\\\":{\\\"value\\\":0,\\\"resource\\\":\\\"memory\\\"}},{\\\"id\\\":\\\"master\\\",\\\"node_roles\\\":[\\\"master\\\",\\\"remote_cluster_client\\\"],\\\"zone_count\\\":1,\\\"instance_configuration_id\\\":\\\"master\\\",\\\"size\\\":{\\\"value\\\":0,\\\"resource\\\":\\\"memory\\\"}},{\\\"id\\\":\\\"ml\\\",\\\"node_roles\\\":[\\\"ml\\\",\\\"remote_cluster_client\\\"],\\\"zone_count\\\":1,\\\"instance_configuration_id\\\":\\\"ml\\\",\\\"size\\\":{\\\"value\\\":1024,\\\"resource\\\":\\\"memory\\\"}}],\\\"elasticsearch\\\":{\\\"version\\\":\\\"8.17.4\\\",\\\"enabled_built_in_plugins\\\":[]},\\\"deployment_template\\\":{\\\"id\\\":\\\"default\\\"}},\\\"settings\\\":{\\\"snapshot\\\":{\\\"enabled\\\":false},\\\"dedicated_masters_threshold\\\":6}}],\\\"kibana\\\":[{\\\"ref_id\\\":\\\"main-kibana\\\",\\\"elasticsearch_cluster_ref_id\\\":\\\"main-elasticsearch\\\",\\\"region\\\":\\\"ece-region\\\",\\\"plan\\\":{\\\"cluster_topology\\\":[{\\\"instance_configuration_id\\\":\\\"kibana\\\",\\\"size\\\":{\\\"value\\\":1024,\\\"resource\\\":\\\"memory\\\"},\\\"zone_count\\\":1}],\\\"kibana\\\":{\\\"version\\\":\\\"8.17.4\\\"}}}],\\\"enterprise_search\\\":[],\\\"integrations_server\\\":[{\\\"ref_id\\\":\\\"main-integrations_server\\\",\\\"elasticsearch_cluster_ref_id\\\":\\\"main-elasticsearch\\\",\\\"region\\\":\\\"ece-region\\\",\\\"plan\\\":{\\\"cluster_topology\\\":[{\\\"instance_configuration_id\\\":\\\"integrations.server\\\",\\\"size\\\":{\\\"value\\\":512,\\\"resource\\\":\\\"memory\\\"},\\\"zone_count\\\":1}],\\\"integrations_server\\\":{\\\"version\\\":\\\"8.17.4\\\"}}}]},\\\"settings\\\":{\\\"autoscaling_enabled\\\":false},\\\"metadata\\\":{\\\"system_owned\\\":false}}\",\"auth_type\":\"cookie\",\"status_code\":\"201\",\"auth_user\":\"philipp\",\"response_time\":\"1711\",\"user_agent\":\"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/138.0.0.0 Safari/537.36\",\"request_id\":\"2271905ee3f6e6cc9c76a0c7cccfd1cc\",\"organization_id\":\"6d8ed3ff3ddb495496e1c6752f9feb07\",\"transaction.id\":\"\",\"client_ip\":\"127.0.0.1\"}",
"type": [
"info"
]
},
"http": {
"request": {
"body": {
"bytes": 2361,
"content": "{\"name\":\"francis\",\"resources\":{\"elasticsearch\":[{\"ref_id\":\"main-elasticsearch\",\"region\":\"ece-region\",\"plan\":{\"cluster_topology\":[{\"id\":\"hot_content\",\"node_roles\":[\"master\",\"ingest\",\"transform\",\"data_hot\",\"remote_cluster_client\",\"data_content\"],\"zone_count\":1,\"elasticsearch\":{\"node_attributes\":{\"data\":\"hot\"}},\"instance_configuration_id\":\"data.default\",\"size\":{\"value\":4096,\"resource\":\"memory\"}},{\"id\":\"warm\",\"node_roles\":[\"data_warm\",\"remote_cluster_client\"],\"zone_count\":1,\"elasticsearch\":{\"node_attributes\":{\"data\":\"warm\"}},\"instance_configuration_id\":\"data.highstorage\",\"size\":{\"value\":0,\"resource\":\"memory\"}},{\"id\":\"cold\",\"node_roles\":[\"data_cold\",\"remote_cluster_client\"],\"zone_count\":1,\"elasticsearch\":{\"node_attributes\":{\"data\":\"cold\"}},\"instance_configuration_id\":\"data.highstorage\",\"size\":{\"value\":0,\"resource\":\"memory\"}},{\"id\":\"frozen\",\"node_roles\":[\"data_frozen\"],\"zone_count\":1,\"elasticsearch\":{\"node_attributes\":{\"data\":\"frozen\"}},\"instance_configuration_id\":\"data.frozen\",\"size\":{\"value\":0,\"resource\":\"memory\"}},{\"id\":\"coordinating\",\"node_roles\":[\"ingest\",\"remote_cluster_client\"],\"zone_count\":1,\"instance_configuration_id\":\"coordinating\",\"size\":{\"value\":0,\"resource\":\"memory\"}},{\"id\":\"master\",\"node_roles\":[\"master\",\"remote_cluster_client\"],\"zone_count\":1,\"instance_configuration_id\":\"master\",\"size\":{\"value\":0,\"resource\":\"memory\"}},{\"id\":\"ml\",\"node_roles\":[\"ml\",\"remote_cluster_client\"],\"zone_count\":1,\"instance_configuration_id\":\"ml\",\"size\":{\"value\":1024,\"resource\":\"memory\"}}],\"elasticsearch\":{\"version\":\"8.17.4\",\"enabled_built_in_plugins\":[]},\"deployment_template\":{\"id\":\"default\"}},\"settings\":{\"snapshot\":{\"enabled\":false},\"dedicated_masters_threshold\":6}}],\"kibana\":[{\"ref_id\":\"main-kibana\",\"elasticsearch_cluster_ref_id\":\"main-elasticsearch\",\"region\":\"ece-region\",\"plan\":{\"cluster_topology\":[{\"instance_configuration_id\":\"kibana\",\"size\":{\"value\":1024,\"resource\":\"memory\"},\"zone_count\":1}],\"kibana\":{\"version\":\"8.17.4\"}}}],\"enterprise_search\":[],\"integrations_server\":[{\"ref_id\":\"main-integrations_server\",\"elasticsearch_cluster_ref_id\":\"main-elasticsearch\",\"region\":\"ece-region\",\"plan\":{\"cluster_topology\":[{\"instance_configuration_id\":\"integrations.server\",\"size\":{\"value\":512,\"resource\":\"memory\"},\"zone_count\":1}],\"integrations_server\":{\"version\":\"8.17.4\"}}}]},\"settings\":{\"autoscaling_enabled\":false},\"metadata\":{\"system_owned\":false}}"
},
"id": "2271905ee3f6e6cc9c76a0c7cccfd1cc",
"method": "POST"
},
"response": {
"status_code": 201
}
},
"log": {
"level": "INFO",
"logger": "no.found.adminconsole.http.requests"
},
"message": "201 Created - philipp - 6d8ed3ff3ddb495496e1c6752f9feb07 - 127.0.0.1 - 172.17.42.1 - POST 89.160.20.112:12443/api/v1/deployments HTTP/1.1 in:2361 out:unknown (1711 ms)",
"network": {
"forwarded_ip": "172.17.42.1"
},
"organization": {
"id": "6d8ed3ff3ddb495496e1c6752f9feb07"
},
"process": {
"thread": {
"name": "adminconsole-requests-pekko.actor.default-dispatcher-28"
}
},
"related": {
"hosts": [
"89.160.20.112"
],
"ip": [
"172.17.42.1",
"127.0.0.1"
],
"user": [
"philipp"
]
},
"source": {
"ip": "127.0.0.1"
},
"url": {
"domain": "89.160.20.112",
"original": "https://89.160.20.112:12443/api/v1/deployments",
"path": "/api/v1/deployments",
"port": 12443,
"scheme": "https"
},
"user": {
"name": "philipp"
},
"user_agent": {
"device": {
"name": "Mac"
},
"name": "Chrome",
"original": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/138.0.0.0 Safari/537.36",
"os": {
"full": "Mac OS X 10.15.7",
"name": "Mac OS X",
"version": "10.15.7"
},
"version": "138.0.0.0"
}
}
Exported fields
| Field | Description | Type |
|---|---|---|
| @timestamp | Event timestamp. | date |
| data_stream.dataset | Data stream dataset. | constant_keyword |
| data_stream.namespace | Data stream namespace. | constant_keyword |
| data_stream.type | Data stream type. | constant_keyword |
| ece_adminconsole.log.deployment.es_api | keyword | |
| ece_adminconsole.log.deployment.id | keyword | |
| ece_adminconsole.log.deployment.name | keyword | |
| input.type | Input type | keyword |
| log.file.device_id | Device Id of the log file this event came from. | keyword |
| log.file.fingerprint | Fingerprint of the log file. | keyword |
| log.file.inode | Inode number of the log file. | keyword |
| log.offset | Log offset | long |

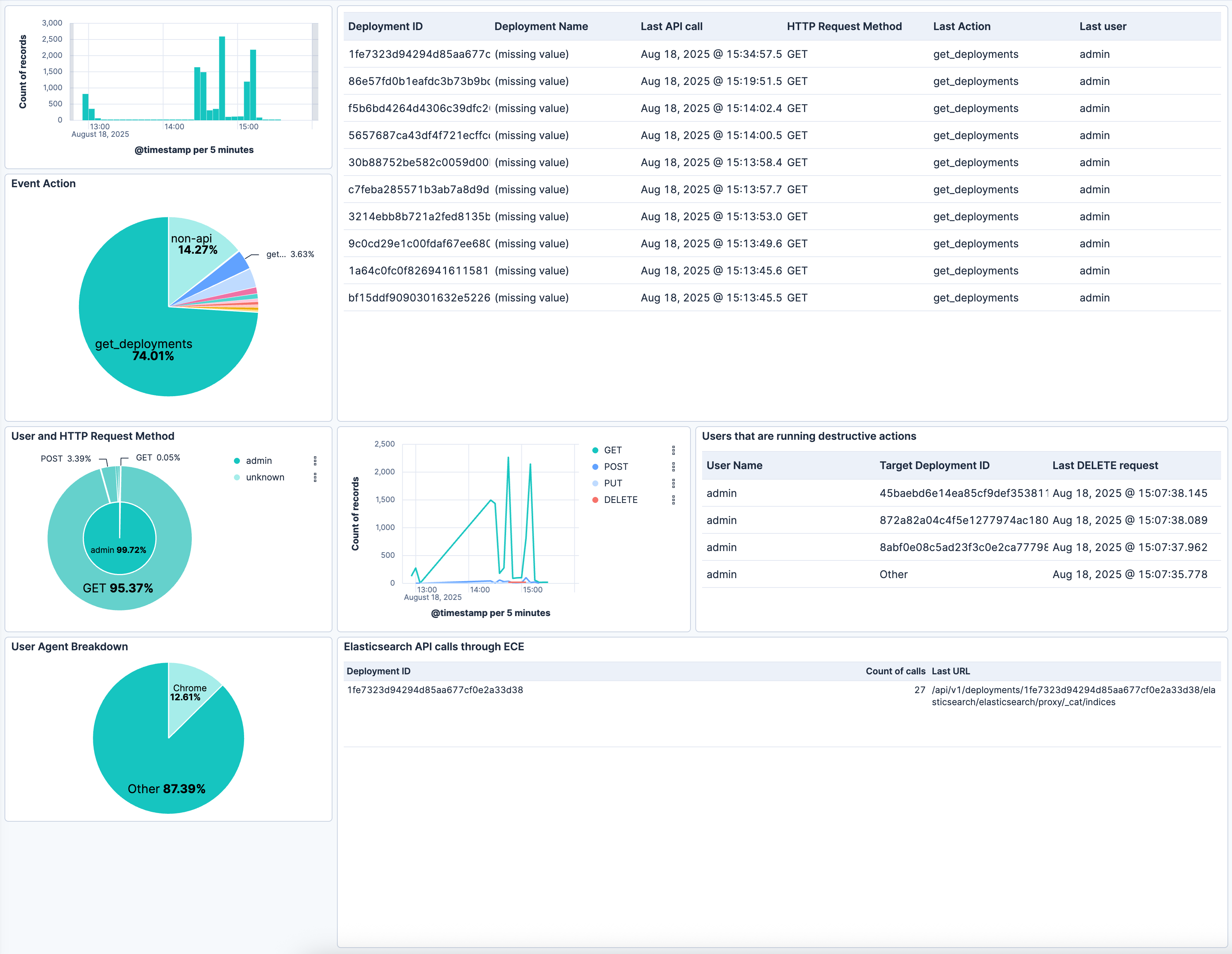

This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.
Changelog
| Version | Details | Minimum Kibana version |
|---|---|---|
| 0.0.1 | Enhancement (View pull request) Initial draft of the package |
— |
