InfluxDB OpenTelemetry Assets


Version	0.1.0 (View all)
Subscription level What's this?	Basic
Developed by What's this?	Elastic
Minimum Kibana version(s)	9.3.1

The InfluxDb OpenTelemetry Assets integration v0.1.0 is in beta

To use beta integrations, go to the Integrations page in Kibana, scroll down, and toggle on the Display beta integrations option.

InfluxDB is an open-source time series database built for high-write-throughput workloads such as infrastructure monitoring, application metrics, IoT sensor data, and real-time analytics. These assets provide dashboards, alert rules, and SLO templates for monitoring InfluxDB instances using OpenTelemetry metrics, covering the HTTP API, storage engine, query controller, task scheduler, and Go runtime.

Compatibility

The InfluxDB OpenTelemetry assets have been tested with InfluxDB 2.x and OpenTelemetry Collector v0.145.0, using metrics scraped from InfluxDB instances exposing Prometheus-format metrics at /metrics.

Requirements

You need Elasticsearch for storing and searching your data and Kibana for visualizing and managing it. You can use our hosted Elasticsearch Service on Elastic Cloud, which is recommended, or self-manage the Elastic Stack on your own hardware.

Setup

Prerequisites

InfluxDB 2.x exposes Prometheus-format metrics at /metrics by default. Ensure the metrics endpoint is reachable from your OpenTelemetry Collector (or Elastic Agent with the Prometheus input). No additional service-side configuration is required.

Configuration

Configure your OpenTelemetry Collector or Elastic Agent to scrape InfluxDB metrics and export them to Elasticsearch with mapping.mode: otel. The following example uses the Prometheus receiver to scrape InfluxDB's /metrics endpoint:

Placeholder	Description	Example
`<INFLUXDB_HOST>`	Hostname or IP of the InfluxDB instance	`localhost`
`<INFLUXDB_METRICS_PORT>`	Port where InfluxDB exposes metrics (default 8086 for HTTP)	`8086`
`<ES_ENDPOINT>`	Elasticsearch endpoint for the `elasticsearch` exporter	`https://your-deployment.es.us-central1.gcp.cloud.es.io:443`
`<ES_API_KEY>`	API key or credentials for Elasticsearch	`${env:ES_API_KEY}`

		receivers:
  prometheus/influxdb:
    config:
      scrape_configs:
        - job_name: influxdb
          metrics_path: /metrics
          static_configs:
            - targets: ["<INFLUXDB_HOST>:<INFLUXDB_METRICS_PORT>"]
processors:

  cumulativetodelta:

  resource:
    attributes:
      - key: data_stream.dataset
        value: influxdb
        action: upsert

exporters:
  elasticsearch/otel:
    endpoints: ["<ES_ENDPOINT>"]
    api_key: "<ES_API_KEY>"
    mapping:
      mode: otel

service:
  pipelines:
    metrics/influxdb:
      receivers: [prometheus/influxdb]
      processors: [resource, cumulativetodelta]
      exporters: [elasticsearch/otel]



Note

Ensure the scrape target matches the InfluxDB instance(s) you want to monitor. For multiple instances, add additional targets or use service discovery.

Reference

Metrics

Refer to the InfluxDB internals metrics documentation for details on the metrics exposed at /metrics. The Prometheus receiver scrapes these metrics and the Elasticsearch exporter maps them to the metrics-influxdb.otel-* index pattern used by the dashboards, alert rules, and SLO templates.

Dashboards

Dashboard	Description

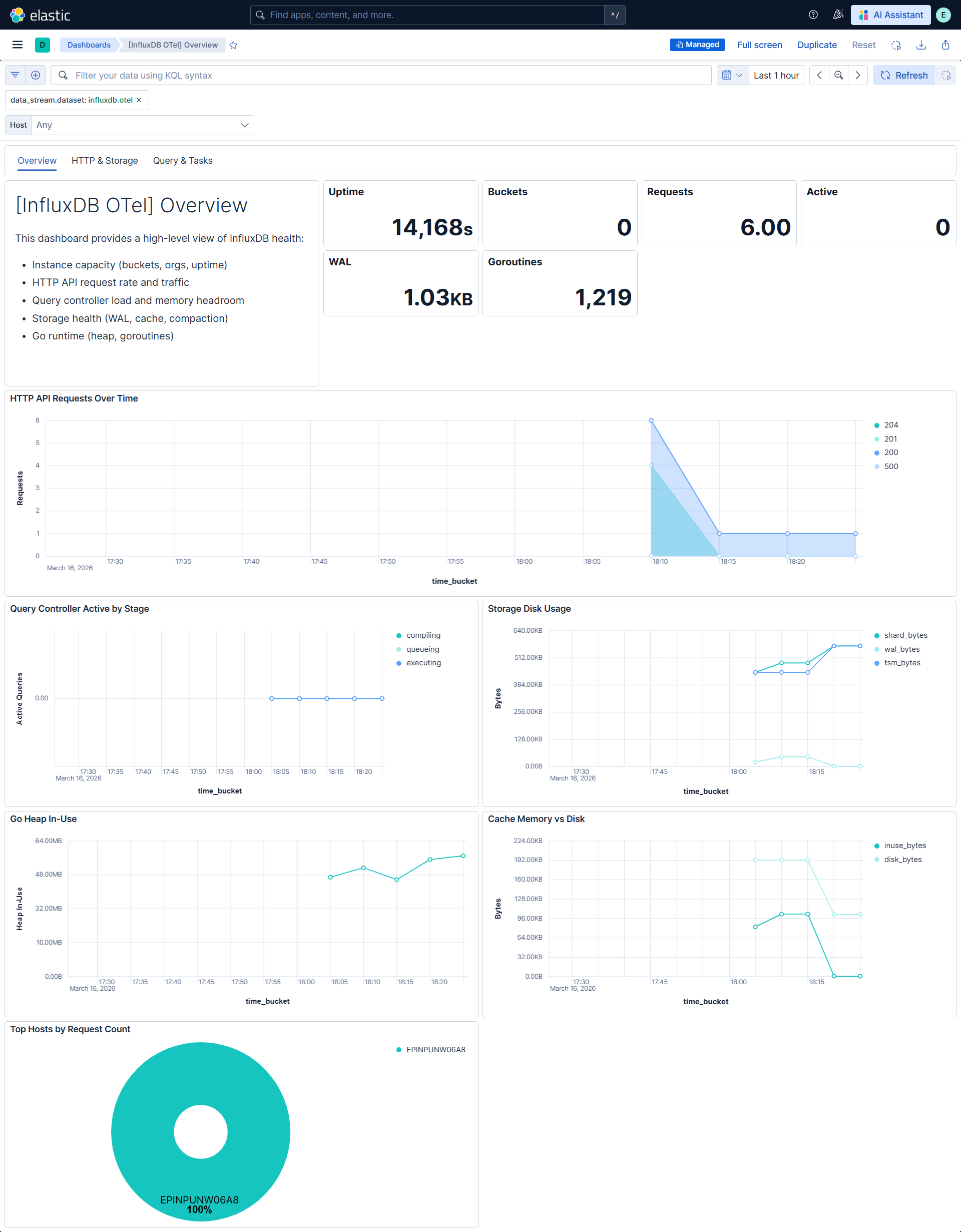

[InfluxDB OTel] Overview	High-level overview of InfluxDB health: instance capacity, HTTP traffic, query controller load, storage health, and Go runtime.

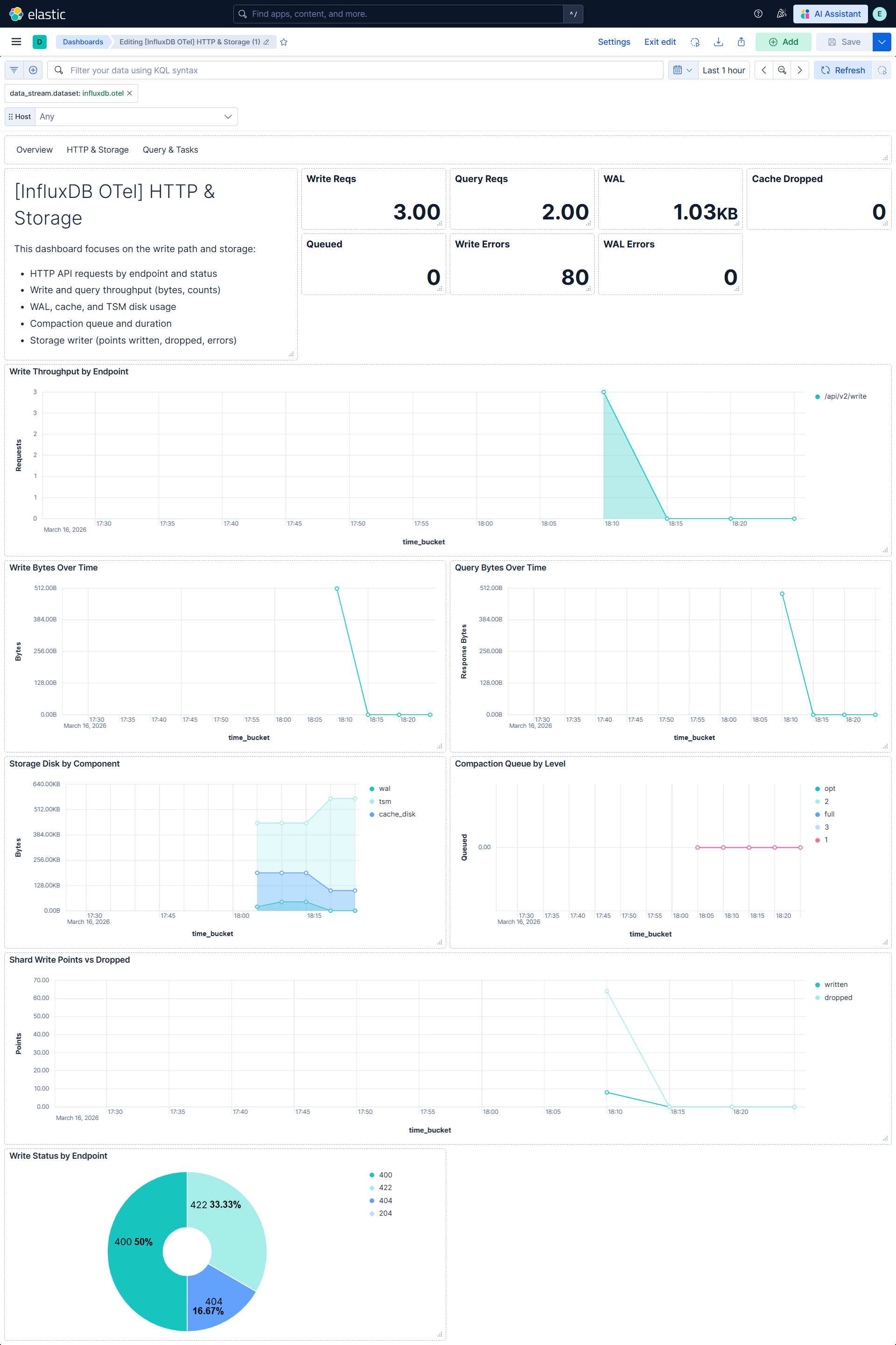

[InfluxDB OTel] HTTP & Storage	HTTP API traffic, write/query throughput, storage health (WAL, cache, compaction), and writer metrics.

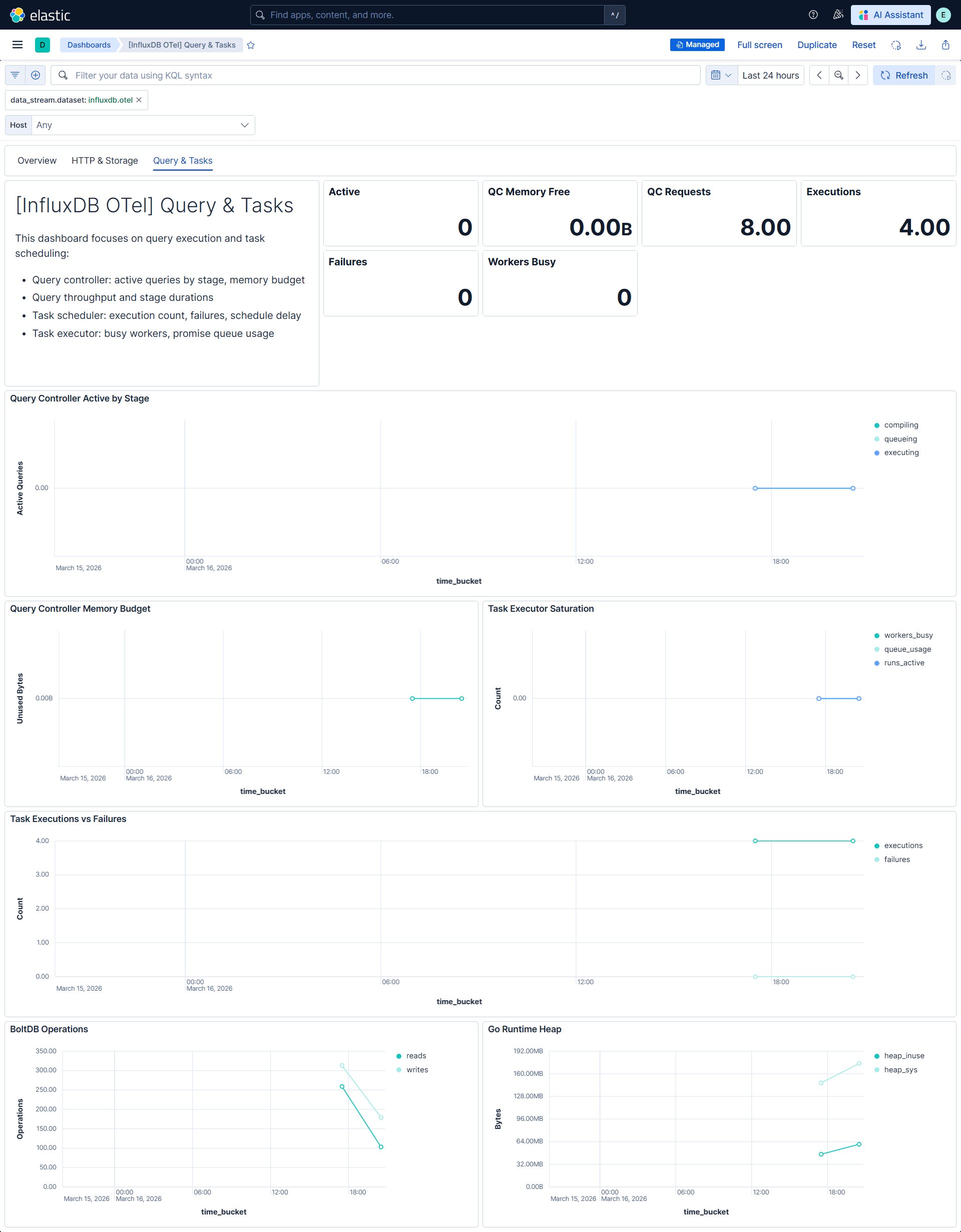

[InfluxDB OTel] Query & Tasks	Query controller load, memory budget, stage durations, task scheduler execution, and task executor saturation.

Alert rules

Alert	Trigger	Severity
[InfluxDB OTel] Scrape target down	Scrape target unreachable (up=0) for the evaluation window	Critical
[InfluxDB OTel] WAL write errors	WAL write error counter increased during the evaluation window	Critical
[InfluxDB OTel] Shard write errors	Shard write error counter increased during the evaluation window	Critical
[InfluxDB OTel] Cache write errors	Cache write error counter increased during the evaluation window	Critical
[InfluxDB OTel] Dropped writes	Shard or cache dropped writes increased during the evaluation window	Critical
[InfluxDB OTel] Storage writer timeouts	Storage writer timeout counter increased during the evaluation window	High
[InfluxDB OTel] HTTP API high error rate	HTTP API non-2XX error rate exceeds 5% over the evaluation window	High
[InfluxDB OTel] Query controller saturated	Query queueing high (>=5) or query controller memory budget exhausted (<10MB)	High
[InfluxDB OTel] Task execution failures	Task execution failure counter increased during the evaluation window	Medium
[InfluxDB OTel] Compaction queue backlog	Compaction queue depth exceeds 10	Medium
[InfluxDB OTel] Go goroutine leak suspected	Goroutine count exceeds 10000	Warning

SLO templates

Note

SLO templates require Elastic Stack version 9.4.0 or later.

SLO	Target	Window	Description
[InfluxDB OTel] HTTP API request latency 99.5% rolling 30 days	99.5%	30-day rolling	Proportion of HTTP API requests completing within 200 ms.
[InfluxDB OTel] Query controller execution latency 99.5% rolling 30 days	99.5%	30-day rolling	Proportion of Flux query executions completing within 5 seconds.

Screenshots

This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.
