Nginx moduleedit

Prefer to use Elastic Agent for this use case?

Refer to the Elastic Integrations documentation.

Learn more

Elastic Agent is a single, unified way to add monitoring for logs, metrics, and other types of data to a host. It can also protect hosts from security threats, query data from operating systems, forward data from remote services or hardware, and more. Refer to the documentation for a detailed comparison of Beats and Elastic Agent.

This module periodically fetches metrics from Nginx servers.

The default metricset is stubstatus.

Compatibilityedit

The Nginx metricsets were tested with Nginx 1.23.2 and are expected to work with all version >= 1.9.

Dashboardedit

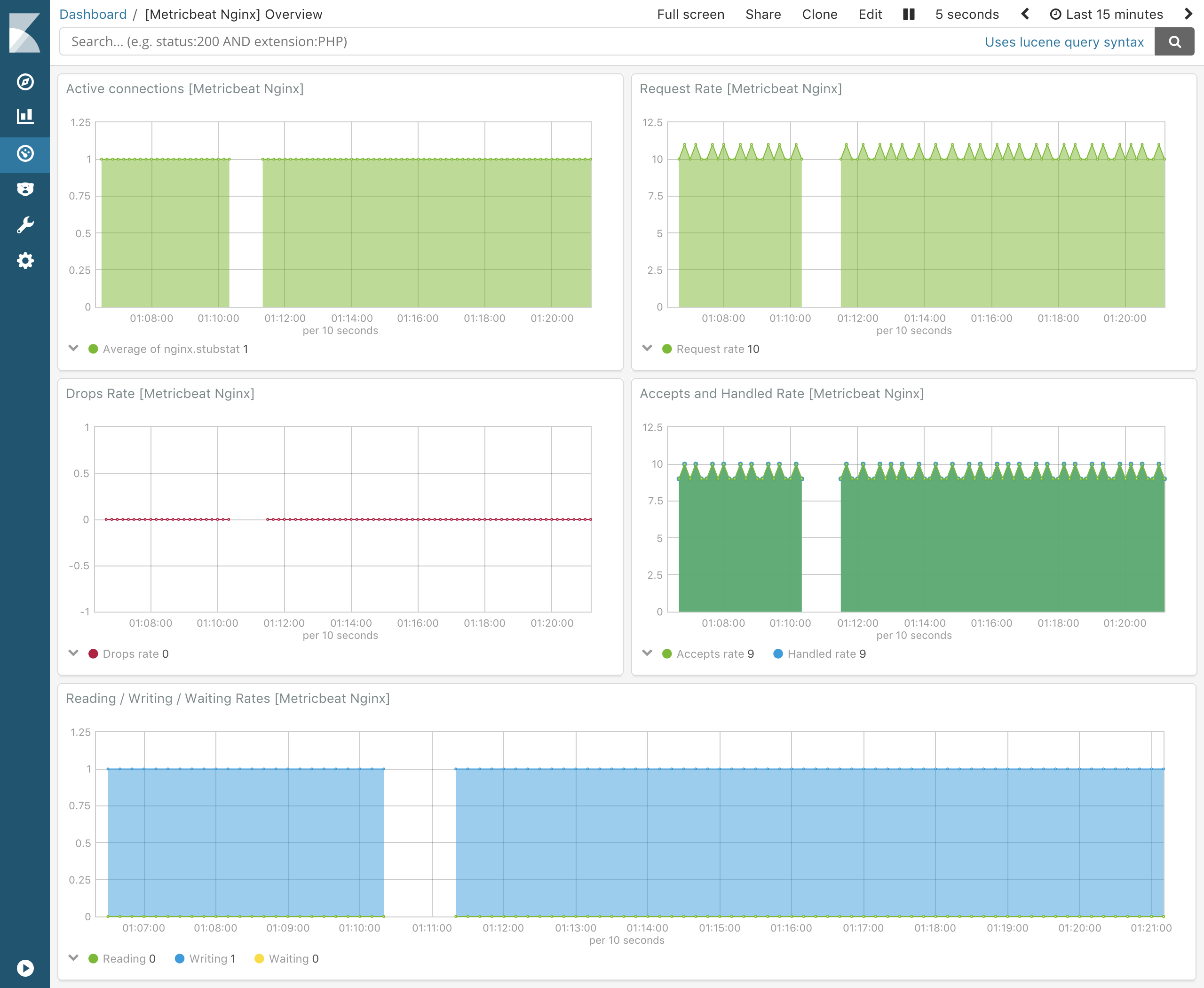

The nginx module comes with a predefined dashboard. For example:

metricbeat nginx

Example configuration

The Nginx module supports the standard configuration options that are described in Modules. Here is an example configuration:

metricbeat.modules:
- module: nginx
  metricsets: ["stubstatus"]
  enabled: true
  period: 10s

  # Nginx hosts
  hosts: ["http://127.0.0.1"]

  # Path to server status. Default nginx_status
  server_status_path: "nginx_status"

This module supports TLS connections when using ssl config field, as described in SSL. It also supports the options described in Standard HTTP config options.

Metricsets

The following metricsets are available:
