ActiveMQ topic metricset
editActiveMQ topic metricsetedit
This is the topic
metricset of the ActiveMQ module.
The metricset provides metrics describing the available ActiveMQ topics, especially exchanged messages (enqueued, dequeued, expired, in-flight), connected consumers and producers.
To collect data, the module communicates with a Jolokia HTTP/REST endpoint
that exposes the JMX metrics over HTTP/REST/JSON (JMX key: org.apache.activemq:brokerName=localhost,destinationName=sample_queue,destinationType=Queue,type=Broker
).

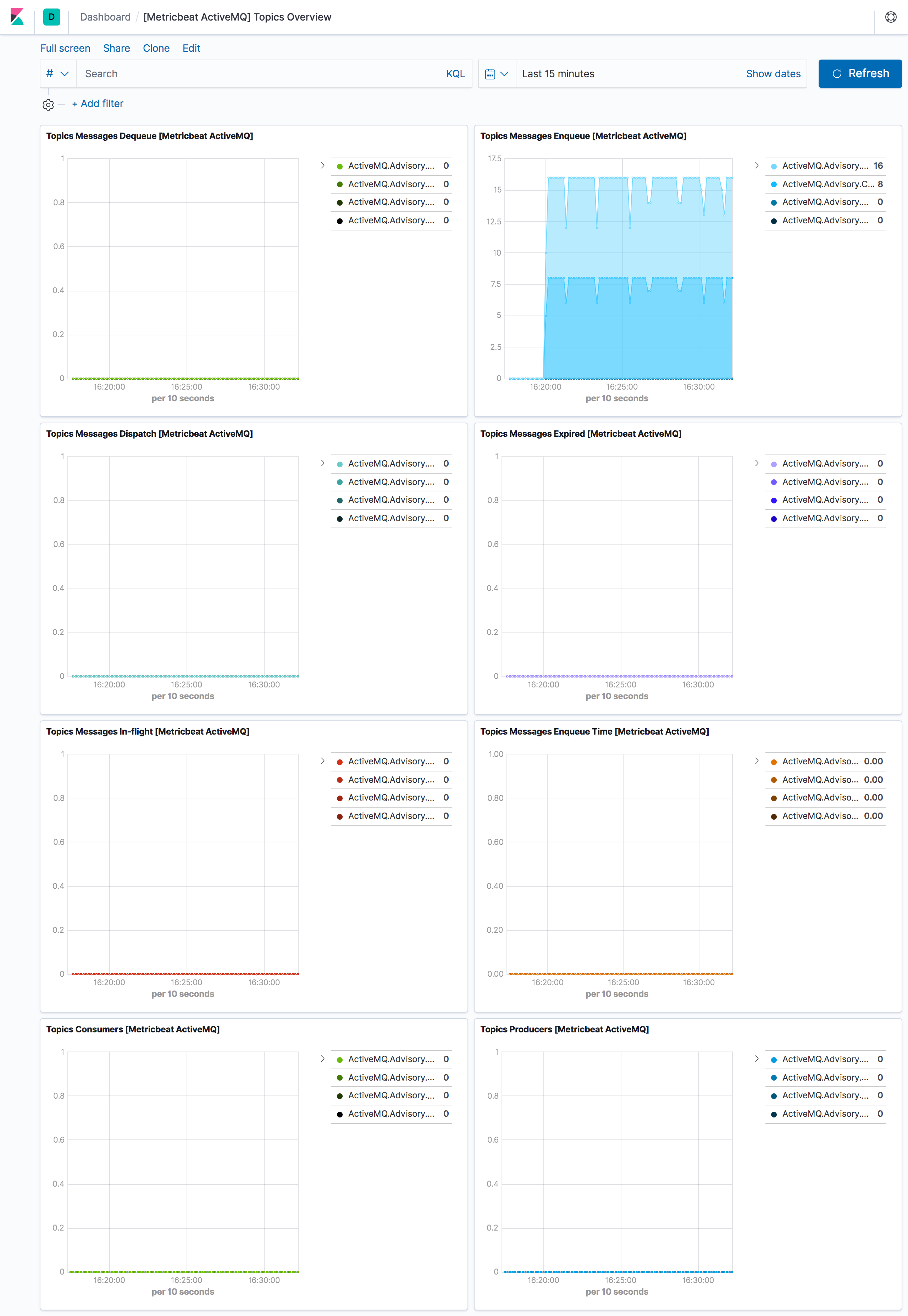

The topic metricset comes with a predefined dashboard:
![metricbeat activemq topics overview](./images/metricbeat-activemq-topics-overview.png)
This is a default metricset. If the host module is unconfigured, this metricset is enabled by default.
For a description of each field in the metricset, see the exported fields section.
Here is an example document generated by this metricset:
{ "@timestamp": "2019-11-19T13:14:29.796Z", "@metadata": { "beat": "metricbeat", "type": "_doc", "version": "8.0.0" }, "service": { "type": "activemq", "address": "localhost:33051" }, "activemq": { "topic": { "name": "sample_topic", "memory": { "broker": { "pct": 0 } }, "mbean": "org.apache.activemq:brokerName=localhost,destinationName=sample_topic,destinationType=Topic,type=Broker", "producers": { "count": 0 }, "consumers": { "count": 0 }, "messages": { "inflight": { "count": 0 }, "expired": { "count": 0 }, "enqueue": { "time": { "max": 0, "avg": 0, "min": 0 }, "count": 2 }, "dequeue": { "count": 0 }, "dispatch": { "count": 0 }, "size": { "avg": 1037 } } } }, "ecs": { "version": "1.2.0" }, "host": { "name": "macbook.local" }, "agent": { "version": "8.0.0", "type": "metricbeat", "ephemeral_id": "99de94c0-c183-438d-9751-428e3ea3bbbd", "hostname": "macbook.local", "id": "8d20f9a9-b24d-419b-97e6-bcccfb64679c" }, "event": { "dataset": "activemq.topic", "module": "activemq", "duration": 34431327 }, "metricset": { "period": 5000, "name": "topic" } }
