IBM MQ moduleedit

Warning

This functionality is in beta and is subject to change. The design and code is less mature than official GA features and is being provided as-is with no warranties. Beta features are not subject to the support SLA of official GA features.

The ibmmq module collects and parses the queue manager error logs from IBM MQ in the standard format.

When you run the module, it performs a few tasks under the hood:

  • Sets the default paths to the log files (but don’t worry, you can override the defaults)
  • Makes sure each multiline log event gets sent as a single event
  • Uses ingest node to parse and process the log lines, shaping the data into a structure suitable for visualizing in Kibana

Compatibilityedit

This module has been tested with IBM MQ v9.1.0.0, but it should be compatible with older versions.

Set up and run the moduleedit

Before doing these steps, verify that Elasticsearch and Kibana are running and that Elasticsearch is ready to receive data from Filebeat.

If you’re running our hosted Elasticsearch Service on Elastic Cloud, or you’ve enabled security in Elasticsearch and Kibana, you need to specify additional connection information before setting up and running the module. See Quick start: modules for common log formats for the complete setup.

To set up and run the module:

  1. Enable the module:

    deb and rpm:

    filebeat modules enable ibmmq

    mac:

    ./filebeat modules enable ibmmq

    brew:

    filebeat modules enable ibmmq

    linux:

    ./filebeat modules enable ibmmq

    win:

    PS > .\filebeat.exe modules enable ibmmq

    This command enables the module config defined in the modules.d directory. See Specify which modules to run for other ways to enable modules.

    To see a list of enabled and disabled modules, run:

    deb and rpm:

    filebeat modules list

    mac:

    ./filebeat modules list

    brew:

    filebeat modules list

    linux:

    ./filebeat modules list

    win:

    PS > .\filebeat.exe modules list
  2. Set up the initial environment:

    deb and rpm:

    filebeat setup -e

    mac:

    ./filebeat setup -e

    linux:

    ./filebeat setup -e

    brew:

    filebeat setup -e

    win:

    PS > .\filebeat.exe setup -e

    The setup command loads the recommended index template for writing to Elasticsearch and deploys the sample dashboards (if available) for visualizing the data in Kibana. This is a one-time setup step.

    The -e flag is optional and sends output to standard error instead of syslog.

    The ingest pipelines used to parse log lines are set up automatically the first time you run the module, assuming the Elasticsearch output is enabled. If you’re sending events to Logstash, or plan to use Beats central management, also see Load ingest pipelines manually.

  3. Run Filebeat.

    If your logs aren’t in the default location, see Configure the module, then run Filebeat after you’ve set the paths variable.

    deb and rpm:

    service filebeat start

    mac:

    ./filebeat -e

    brew:

    filebeat -e

    linux:

    ./filebeat -e

    win:

    PS > Start-Service filebeat

    If the module is configured correctly, you’ll see INFO Harvester started messages for each file specified in the config.

    Note

    Depending on how you’ve installed Filebeat, you might see errors related to file ownership or permissions when you try to run Filebeat modules. See Config File Ownership and Permissions in the Beats Platform Reference for more information.

Example dashboardedit

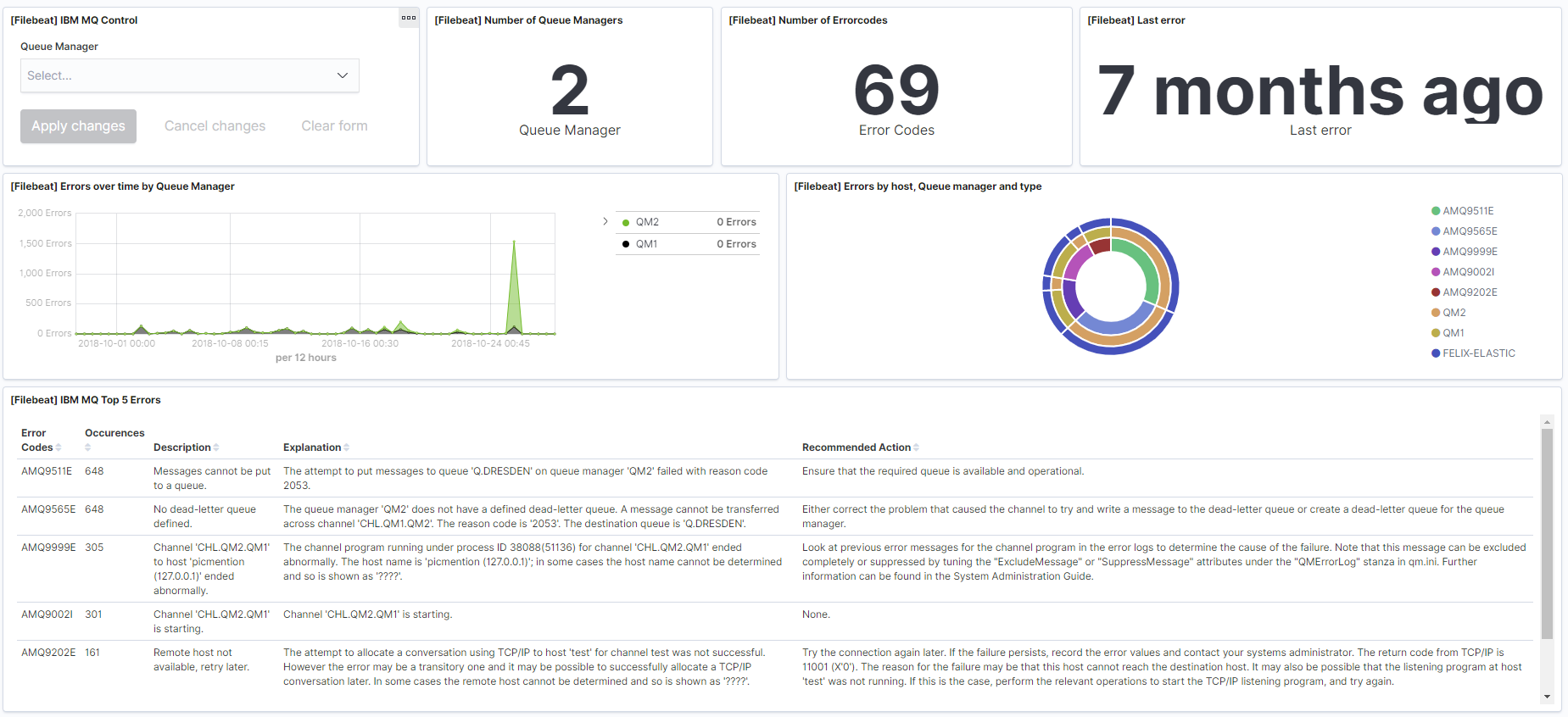

This module comes with a sample dashboard. For example:

filebeat ibmmq

Configure the moduleedit

You can further refine the behavior of the ibmmq module by specifying variable settings in the modules.d/ibmmq.yml file, or overriding settings at the command line.

The following example shows how to set paths in the modules.d/ibmmq.yml file to override the default paths for IBM MQ errorlog:

- module: ibmmq
  errorlog:
    enabled: true
    var.paths: ["C:/ibmmq/logs/*.log"]

Variable settingsedit

Each fileset has separate variable settings for configuring the behavior of the module. If you don’t specify variable settings, the ibmmq module uses the defaults.

For more information, see Specify variable settings. Also see Override input settings.

Tip

When you specify a setting at the command line, remember to prefix the setting with the module name, for example, ibmmq.errorlog.var.paths instead of errorlog.var.paths.

errorlog fileset settingsedit

var.paths
An array of glob-based paths that specify where to look for the log files. All patterns supported by Go Glob are also supported here. For example, you can use wildcards to fetch all files from a predefined level of subdirectories: /path/to/log/*/*.log. This fetches all .log files from the subfolders of /path/to/log. It does not fetch log files from the /path/to/log folder itself. If this setting is left empty, Filebeat will choose log paths based on your operating system.

Fieldsedit

For a description of each field in the module, see the exported fields section.
