ServiceNow SecOps connector and actionedit

The ServiceNow SecOps connector uses the import set API to create ServiceNow security incidents. You can use the connector for rule actions and cases.

Create connectors in Kibanaedit

You can create connectors in Stack Management > Connectors or as needed when you’re creating a rule. You must choose whether to use OAuth for authentication.

ServiceNow SecOps connector using basic auth
ServiceNow SecOps connector using OAuth
Connector configurationedit

ServiceNow SecOps connectors have the following configuration properties:

Client ID
The client ID assigned to your OAuth application.
Client Secret
The client secret assigned to your OAuth application.
JWT verifier key ID
The key identifier assigned to the JWT verifier map of your OAuth application.
Password
The password for HTTP basic authentication.
Private key
The RSA private key that you created for use in ServiceNow.
Private key password
The password for the RSA private key. This value is required if you set a password for your private key.
ServiceNow instance URL
The full ServiceNow instance URL.
Use OAuth authentication
By default, basic authentication is used instead of open authorization (OAuth).
User identifier
The identifier to use for OAuth type authentication. This identifier should be the user field you selected during setup. For example, if the selected user field is Email, the user identifier should be the user’s email address.
Username
The username for HTTP basic authentication.

Test connectorsedit

You can test connectors with the run connector API or as you’re creating or editing the connector in Kibana. For example:

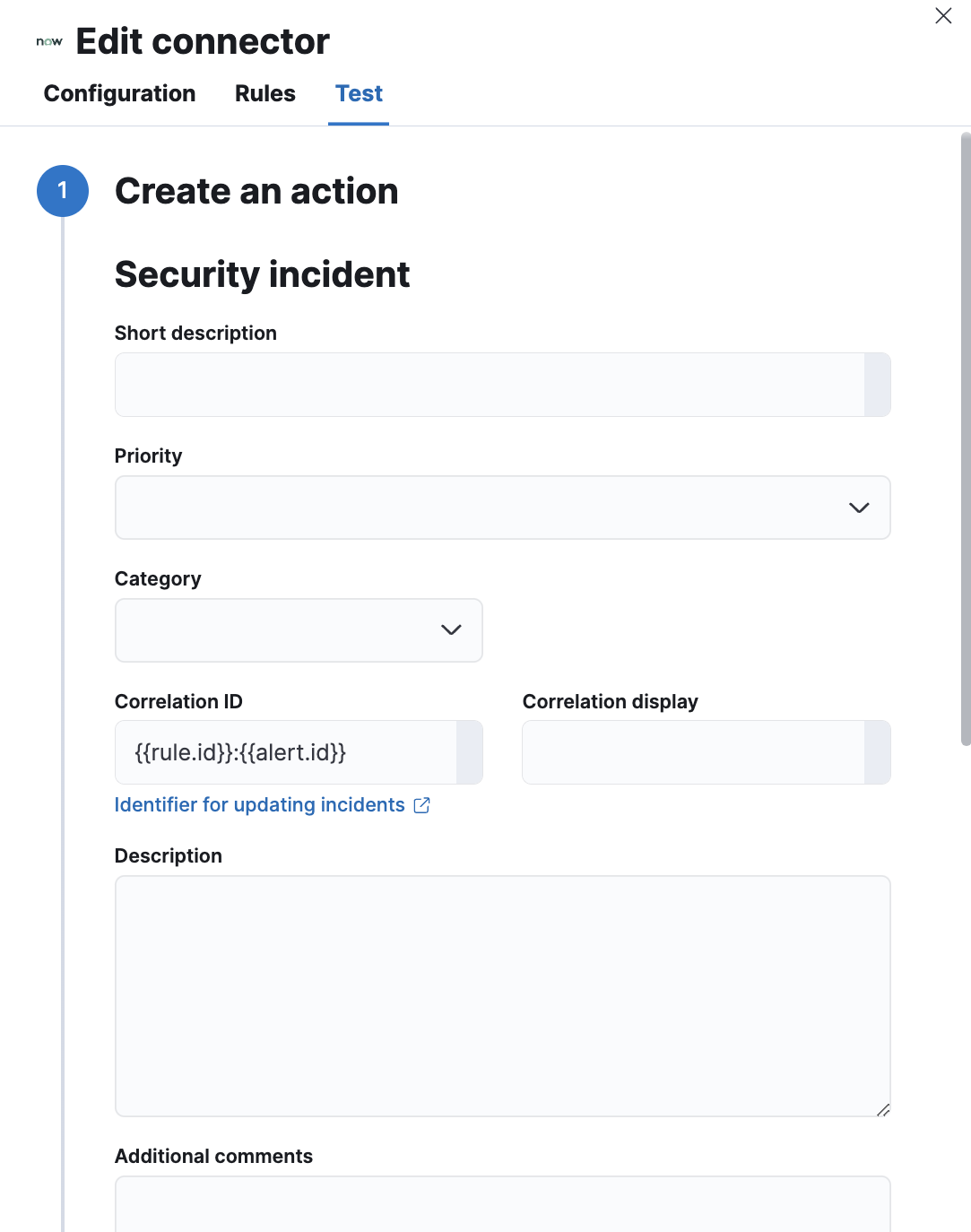

ServiceNow SecOps params test

ServiceNow SecOps actions have the following configuration properties.

Additional comments
Additional information for the client, such as how to troubleshoot the issue.
Category
The category of the incident.
Correlation display
A descriptive label of the alert for correlation purposes in ServiceNow.
Correlation ID

Connectors using the same correlation ID will be associated with the same ServiceNow incident. This value determines whether a new ServiceNow incident will be created or an existing one is updated. Modifying this value is optional; if not modified, the rule ID and alert ID are combined as {{ruleID}}:{{alert ID}} to form the correlation ID value in ServiceNow. The maximum character length for this value is 100 characters.

Using the default configuration of {{ruleID}}:{{alert ID}} ensures that ServiceNow will create a separate incident record for every generated alert that uses a unique alert ID. If the rule generates multiple alerts that use the same alert IDs, ServiceNow creates and continually updates a single incident record for the alert.

Description
The details about the incident.
Priority
The priority of the incident.
Short description
A short description for the incident, used for searching the contents of the knowledge base.
Subcategory
The subcategory of the incident.

Connector networking configurationedit

Use the Action configuration settings to customize connector networking configurations, such as proxies, certificates, or TLS settings. You can set configurations that apply to all your connectors or use xpack.actions.customHostSettings to set per-host configurations.

Configure ServiceNow SecOpsedit

ServiceNow offers free Personal Developer Instances, which you can use to test incidents.

Prerequisitesedit

After upgrading from Elastic Stack version 7.15.0 or earlier to version 7.16.0 or later, you must complete the following within your ServiceNow instance before creating a new ServiceNow SecOps connector or updating an existing one:

  1. Install Elastic for Security Operations (SecOps) from the ServiceNow Store.
  2. Assign cross-scope privileges for the Elastic for Security Operations app.
  3. Create a ServiceNow integration user and assign it the appropriate roles.
  4. Create a Cross-Origin Resource Sharing (CORS) rule.

  5. If you use open authorization (OAuth), you must also:

    1. Create an RSA keypair and add an X.509 Certificate.
    2. Create an OAuth JWT API endpoint for external clients with a JWT Verifiers Map.
Assign cross-scope privilegesedit

The Elastic for Security Operations app requires specific cross-scope privilege records to run successfully. In particular, you must have a privilege record for the Elastic for Security Operations application with the status set to Allowed for each of the following targets:

Target scope Name Type Operation

Global

Glide API: string utilities

Scriptable

Execute API

Global

GlideRecord.insert

Scriptable

Execute API

Global

GlideRecord.setValue

Scriptable

Execute API

Global

GlideRecordSecure.getValue

Scriptable

Execute API

Global

RESTAPIRequest

Scriptable

Execute API

Global

RESTAPIRequestBody

Scriptable

Execute API

Global

ScopedGlideElement

Scriptable

Execute API

Global

ScriptableServiceResultBuilder.setBody

Scriptable

Execute API

Security incident response

sn_si_incident

Table

Read

Threat intelligence support common

sn_ti_m2m_task_observable

Table

Create

Threat intelligence support common

sn_ti_m2m_task_observable

Table

Read

Threat intelligence support common

sn_ti_observable

Table

Create

Threat intelligence support common

sn_ti_observable

Table

Read

Threat intelligence support common

sn_ti_observable_type

Table

Read

To access the cross scope privileges table:

  1. Log into ServiceNow and set your application scope to Elastic for Security Operations.
  2. Click All and search for sys_scope_privilege.

For more details, refer to the ServiceNow product documentation.

Create a ServiceNow integration useredit

To ensure authenticated communication between Elastic and ServiceNow, create a ServiceNow integration user and assign it the appropriate roles.

  1. In your ServiceNow instance, go to System Security → Users and Groups → Users.
  2. Click New.
  3. Complete the form, then right-click on the menu bar and click Save.
  4. Go to the Roles tab and click Edit.

  5. Assign the integration user the following roles:

    • import_set_loader
    • import_transformer
    • personalize_choices
    • sn_si.basic
    • x_elas2_sir_int.integration_user
  6. Click Save.
Create a CORS ruleedit

A CORS rule is required for communication between Elastic and ServiceNow. To create a CORS rule:

  1. In your ServiceNow instance, go to System Web Services → REST → CORS Rules.
  2. Click New.

  3. Configure the rule as follows:

    • Name: Name the rule.
    • REST API: Set the rule to use the Elastic SecOps API by choosing Elastic SIR API [x_elas2_sir_int/elastic_api].
    • Domain: Enter the Kibana URL, including the port number.
  4. Go to the HTTP methods tab and select GET.
  5. Click Submit to create the rule.
Create an RSA keypair and add an X.509 Certificateedit

This step is required to use OAuth for authentication between Elastic and ServiceNow.

Create an RSA keypair:

  1. Use OpenSSL to generate an RSA private key:

    openssl genrsa -out example-private-key.pem 3072
openssl genrsa -passout pass:foobar -out example-private-key-with-password.pem 3072

    Use the passout option to set a password on your private key. This is optional but remember your password if you set one.

  2. Use OpenSSL to generate the matching public key:

    openssl req -new -x509 -key example-private-key.pem -out example-sn-cert.pem -days 360

Add an X.509 certificate to ServiceNow:

  1. In your ServiceNow instance, go to Certificates and select New.

  2. Configure the certificate as follows:

    • Name: Name the certificate.
    • PEM Certificate: Copy the generated public key into this text field.
    Shows new certificate form in ServiceNow
  3. Click Submit to create the certificate.
Create an OAuth JWT API endpoint for external clients with a JWT Verifiers Mapedit

This step is required to use OAuth for authentication between Elastic and ServiceNow.

  1. In your ServiceNow instance, go to Application Registry and select New.

  2. Select Create an OAuth JWT API endpoint for external clients from the list of options.

    Shows application type selection

  3. Configure the application as follows:

    • Name: Name the application.
    • User field: Select the field to use as the user identifier.
    Shows new application form in ServiceNow

    Remember the selected user field. You will use this as the User Identifier Value when creating the connector. For example, if you selected Email for User field, you will use the user’s email for the User Identifier Value.

  4. Click Submit to create the application. You will be redirected to the list of applications.
  5. Select the application you just created.
  6. Find the Jwt Verifier Maps tab and click New.

  7. Configure the new record as follows:

    • Name: Name the JWT Verifier Map.
    • Sys certificate: Click the search icon and select the name of the certificate created in the previous step.
    Shows new JWT Verifier Map form in ServiceNow
  8. Click Submit to create the verifier map.

  9. Note the Client ID, Client Secret and JWT Key ID. You will need these values to create your ServiceNow connector.

    Shows where to find OAuth values in ServiceNow

Update a deprecated ServiceNow SecOps connectoredit

ServiceNow SecOps connectors created in Elastic Stack version 7.15.0 or earlier are marked as deprecated after you upgrade to version 7.16.0 or later. Deprecated connectors have a yellow icon after their name and display a warning message when selected.

Shows deprecated ServiceNow connectors

Deprecated connectors will continue to function with the rules they were added to and can be assigned to new rules. However, it is strongly recommended to update deprecated connectors or create new ones to ensure you have access to connector enhancements, such as updating incidents.

To update a deprecated connector:

  1. Open the main menu and go to Stack Management > Connectors.
  2. Select the deprecated connector to open the Edit connector flyout.
  3. In the warning message, click Update this connector.

  4. Complete the guided steps in the Edit connector flyout.

    1. Install Elastic for Security Operations (SecOps) from the ServiceNow Store and complete the required prerequisites.
    2. Enter the URL of your ServiceNow instance.
    3. Enter the username and password of your ServiceNow instance.
  5. Click Update.
