Monitoring AWS Lambda Java Functionsedit

The Java APM Agent can be used with AWS Lambda to monitor the execution of your AWS Lambda functions.

Note: The Centralized Agent Configuration on the Elasticsearch APM currently does NOT support AWS Lambda.

Quick Startedit

To get started with APM for your Java AWS Lambda functions, follow the steps below.

Prerequisitesedit

You need an APM Server to send APM data to. Follow the APM Quick start if you have not set one up yet. For the best-possible performance, we recommend setting up APM on Elastic Cloud in the same AWS region as your AWS Lambda functions.
Make sure you are using one of the supported AWS Lambda Java runtimes:

Tags Java Runtime Operating System Supported

11

Java 11 (Corretto)

Amazon Linux 2

yes

8.al2

Java 8 (Corretto)

Amazon Linux 2

yes

8

Java 8 (OpenJDK)

Amazon Linux 2018.03

no

Tags	Java Runtime	Operating System	Supported
11	Java 11 (Corretto)	Amazon Linux 2	yes
8.al2	Java 8 (Corretto)	Amazon Linux 2	yes
8	Java 8 (OpenJDK)	Amazon Linux 2018.03	no

Step 1: Select the AWS Region and Architectureedit

Pick the right ARN from this release table for the APM Lambda Extension Layer.

In addition, pick the right ARN from this release table for the APM Agent Layer.

Select the AWS region and architecture of your Lambda function. This documentation will update based on your selections.

region:

architecture:

The selected AWS region and the architecture must match the AWS region and architecture of your AWS Lambda function!

Step 2: Add the APM Layers to your Lambda functionedit

Both the Elastic APM AWS Lambda extension and the Java APM Agent are added to your Lambda function as AWS Lambda Layers. Therefore, you need to add the corresponding Layer ARNs (identifiers) to your Lambda function.

To add the layers to your Lambda function through the AWS Management Console:

Navigate to your function in the AWS Management Console

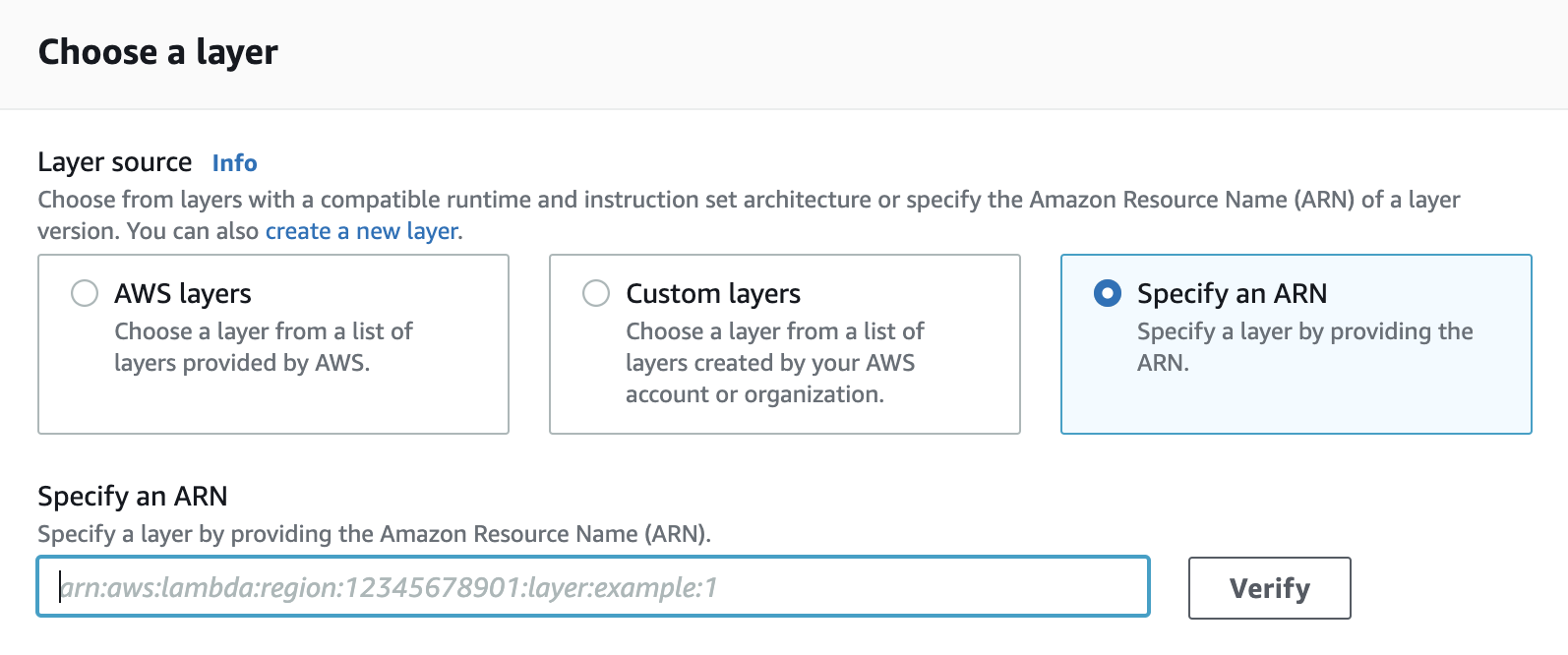

Scroll to the Layers section and click the Add a layer button
Choose the Specify an ARN radio button
Copy and paste the following ARNs of the Elastic APM AWS Lambda extension layer and the APM agent layer in the Specify an ARN text input:
APM Extension layer:
EXTENSION_ARN
APM agent layer:
AGENT_ARN
Click the Add button

To add the Layer ARNs of the Elastic APM AWS Lambda extension and the APM agent through the AWS command line interface execute the following command:

aws lambda update-function-configuration --function-name yourLambdaFunctionName \
--layers EXTENSION_ARN \
AGENT_ARN

In your SAM template.yml file add the Layer ARNs of the Elastic APM AWS Lambda extension and the APM agent as follows:

...
Resources:
  yourLambdaFunction:
    Type: AWS::Serverless::Function
    Properties:
      ...
      Layers:
          - EXTENSION_ARN
          - AGENT_ARN
...

In your serverless.yml file add the Layer ARNs of the Elastic APM AWS Lambda extension and the APM agent to your function as follows:

...
functions:
  yourLambdaFunction:
    handler: ...
    layers:
      - EXTENSION_ARN
      - AGENT_ARN
...

To add theElastic APM AWS Lambda extension and the APM agent to your function add the ARNs to the layers property in your Terraform file:

...
resource "aws_lambda_function" "your_lambda_function" {
  ...
  layers = ["EXTENSION_ARN", "AGENT_ARN"]
}
...

To add the Elastic APM AWS Lambda extension and the APM agent to your container-based function extend the Dockerfile of your function image as follows:

FROM docker.elastic.co/observability/apm-lambda-extension-IMAGE_ARCH:latest AS lambda-extension
AGENT_IMPORT

# FROM ...  <-- this is the base image of your Lambda function

COPY --from=lambda-extension /opt/elastic-apm-extension /opt/extensions/elastic-apm-extension
AGENT_COPY

# ...

Step 3: Configure APM on AWS Lambdaedit

The Elastic APM AWS Lambda extension and the APM Java agent are configured through environment variables on the AWS Lambda function.

For the minimal configuration, you will need the APM Server URL to set the destination for APM data and an APM Secret Token. If you prefer to use an APM API key instead of the APM secret token, use the ELASTIC_APM_API_KEY environment variable instead of ELASTIC_APM_SECRET_TOKEN in the following configuration.

For production environments, we recommend using the AWS Secrets Manager to store your APM authentication key instead of providing the secret value as plaintext in the environment variables.

To configure APM through the AWS Management Console:

Navigate to your function in the AWS Management Console
Click on the Configuration tab
Click on Environment variables
Add the following required variables:

AWS_LAMBDA_EXEC_WRAPPER       = /opt/elastic-apm-handler  # use this exact fixed value
ELASTIC_APM_LAMBDA_APM_SERVER = <YOUR-APM-SERVER-URL>     # this is your APM Server URL
ELASTIC_APM_SECRET_TOKEN      = <YOUR-APM-SECRET-TOKEN>   # this is your APM secret token
ELASTIC_APM_SEND_STRATEGY     = background

Java environment variables configuration section in AWS Console

To configure APM through the AWS command line interface execute the following command:

aws lambda update-function-configuration --function-name yourLambdaFunctionName \
    --environment "Variables={AWS_LAMBDA_EXEC_WRAPPER=/opt/elastic-apm-handler,ELASTIC_APM_LAMBDA_APM_SERVER=<YOUR-APM-SERVER-URL>,ELASTIC_APM_SECRET_TOKEN=<YOUR-APM-SECRET-TOKEN>,ELASTIC_APM_SEND_STRATEGY=background}"

In your SAM template.yml file configure the following environment variables:

...
Resources:
  yourLambdaFunction:
    Type: AWS::Serverless::Function
    Properties:
      ...
      Environment:
          Variables:
            AWS_LAMBDA_EXEC_WRAPPER: /opt/elastic-apm-handler
            ELASTIC_APM_LAMBDA_APM_SERVER: <YOUR-APM-SERVER-URL>
            ELASTIC_APM_SECRET_TOKEN: <YOUR-APM-SECRET-TOKEN>
            ELASTIC_APM_SEND_STRATEGY: background
...

In your serverless.yml file configure the following environment variables:

...
functions:
  yourLambdaFunction:
    ...
    environment:
      AWS_LAMBDA_EXEC_WRAPPER: /opt/elastic-apm-handler
      ELASTIC_APM_LAMBDA_APM_SERVER: <YOUR-APM-SERVER-URL>
      ELASTIC_APM_SECRET_TOKEN: <YOUR-APM-SECRET-TOKEN>
      ELASTIC_APM_SEND_STRATEGY: background
...

In your Terraform file configure the following environment variables:

...
resource "aws_lambda_function" "your_lambda_function" {
  ...
  environment {
    variables = {
      AWS_LAMBDA_EXEC_WRAPPER       = "/opt/elastic-apm-handler"
      ELASTIC_APM_LAMBDA_APM_SERVER = "<YOUR-APM-SERVER-URL>"
      ELASTIC_APM_SECRET_TOKEN      = "<YOUR-APM-SECRET-TOKEN>"
      ELASTIC_APM_SEND_STRATEGY     = "background"
    }
  }
}
...

Environment variables configured for an AWS Lambda function are passed to the container running the lambda function. You can use one of the other options (through AWS Web Console, AWS CLI, etc.) to configure the environment variables or define them directly in your Dockerfile.

We recommend to use an official AWS Lambda base image for your function’s container image. In this case, you will only need to configure the following three environment variables:

AWS_LAMBDA_EXEC_WRAPPER       = "/opt/elastic-apm-handler"
ELASTIC_APM_LAMBDA_APM_SERVER = <YOUR-APM-SERVER-URL>     # this is your APM Server URL
ELASTIC_APM_SECRET_TOKEN      = <YOUR-APM-SECRET-TOKEN>   # this is your APM secret token
ELASTIC_APM_SEND_STRATEGY     = "background"

If your container image is based on a different base image (not including the AWS Lambda runtime utilities), the AWS_LAMBDA_EXEC_WRAPPER configuration option won’t be supported. In this case, you will need to define an extended set of environment variables (which, in the above case, are set through the wrapper script):

JAVA_TOOL_OPTIONS              = "-javaagent:/opt/elastic-apm-agent.jar"
ELASTIC_APM_AWS_LAMBDA_HANDLER = <HANDLER_CLASS_NAME> # the fully qualified class name of your Lambda handler
ELASTIC_APM_METRICS_INTERVAL   = "0s"
ELASTIC_APM_CENTRAL_CONFIG     = "false"
ELASTIC_APM_CLOUD_PROVIDER     = "none"
ELASTIC_APM_LAMBDA_APM_SERVER  = <YOUR-APM-SERVER-URL>     # this is your APM Server URL
ELASTIC_APM_SECRET_TOKEN       = <YOUR-APM-SECRET-TOKEN>   # this is your APM secret token
ELASTIC_APM_SEND_STRATEGY      = "background"

The ELASTIC_APM_SEND_STRATEGY defines when APM data is sent to your Elastic APM backend. To reduce the execution time of your lambda functions, we recommend to use the background strategy in production environments with steady load scenarios.

You can optionally fine-tune the Java agent or the configuration of the Elastic APM AWS Lambda extension.

That’s it; After following the steps above, you’re ready to go! Your Lambda function invocations should be traced from now on.

Read on to learn more about the features and limitations of the Java APM Agent on AWS Lambda Functions.

Features and Caveatsedit

The AWS Lambda as a runtime behaves differently from conventional runtimes. While most APM and monitoring concepts apply to AWS Lambda, there are a few differences and limitations to be aware of.

Performance monitoringedit

Elastic APM automatically measures the performance of your lambda function executions. It records traces for database queries, external HTTP requests, and other slow operations that happen during execution.

By default, the agent will trace the usual supported technologies. To trace other events, take a look at additional method tracing options, however note that due to its asynchronous nature, the Sampling Profiler is not a valid option for AWS Lambda.

Error monitoringedit

Whenever an Exception is thrown by your function handler method, the agent will send an error event to the APM Server and the corresponding transaction will be recorded as a failed transaction. Errors related to traced spans will be sent as well.

Caveatsedit

System and custom metrics are not collected for Lambda functions. This is both because most of those are irrelevant and because the interval-based event sending model is not suitable for FaaS environments.
Central Configuration is disabled, which means that the APM agent configuration cannot be changed without redefining the lambda environment variables or APM agent settings.
Cold starts can be significantly slower when the agent is installed. If this is an issue, following are ways to deal with slow code starts:
- If the only issue with slower cold starts is Lambda timing out, consider increasing the configured timeout.
- The higher memory limit you would allow for your Function, the smaller this effect would be. This is irrelevant for subsequent Function invocations, it is only relevant for cold starts.
- Much of the startup delay is related to the amount of enabled instrumentations. An enabled instrumentation will contribute to this overhead regardless of it being applicable for your specific Lambda function. You can considerably reduce the related overhead by specifying a limited list of enabled instrumentations through the enable_instrumentations config. An automatic way to generate such list is by invoking your Lambda with the agent’s default configurations and a log_level of INFO or lower. After the first lambda invocation, the agent would log a message with the following format: Used instrumentation groups: [aws-lambda, executor, executor-collection, fork-join, ssl-context, urlconnection].
The Sampling Profiler feature would not work because it relies on profiling sessions and subsequent asynchronous processing of the collected data.
