Collect Elastic Agent Builder traces
Elastic Agent Builder can collect agent execution traces into your Elasticsearch deployment. Traces record how each agent round runs, including model calls, tool calls, latency, and token usage, so you can monitor agent activity, debug behavior, and build dashboards on the data.
When an agent runs, Elastic Agent Builder records the run as OpenTelemetry (OTel) traces. Each trace covers one conversation round. A trace is made up of spans that map to the work the agent did, such as model calls and tool calls.
Trace collection is space-aware. Each Kibana space writes its traces to its own data stream, named with the space id, such as traces-agent_builder.otel-default for the default space. Use the traces-agent_builder.otel-* wildcard to work with every space's traces at once.
Elastic Agent Builder ingests this data into managed OpenTelemetry data streams in your Elasticsearch deployment. Execution spans, such as model calls and tool calls, are stored in traces-agent_builder.otel-*, with their timings, token usage, model, and status.
When you opt in to capturing conversation content, that content is stored on the chat spans in traces-agent_builder.otel-* as attributes, covering user prompts, agent responses, system prompts, and tool call details. Content is captured only when you enable it in Trace privacy settings.
These data streams are OTel-compatible and use the standard OTel index templates, so they inherit the mappings, settings, and data lifecycle that Elasticsearch maintains for OTel data.
These are regular data streams, not system or hidden indices. You can explore and analyze the data with the same tools you use for any other data in Elasticsearch, including Discover, Dashboards, Lens, and ES|QL.
Each trace is a set of spans that follow a run from the overall conversation round down to its individual steps, including:
- Each agent execution.
- Each model call.
- Each tool call.
Spans follow OpenTelemetry semantic conventions for generative AI (currently experimental) and carry generative AI attributes for the model, the provider, and token usage. Use them to break down usage and latency by model, agent, or tool. For the exact fields and the prebuilt visualizations that use them, refer to Build dashboards on trace data.
By default, traces record structural metadata only. Conversation content such as prompts and responses is excluded unless an administrator opts in. For details, refer to Trace privacy settings.

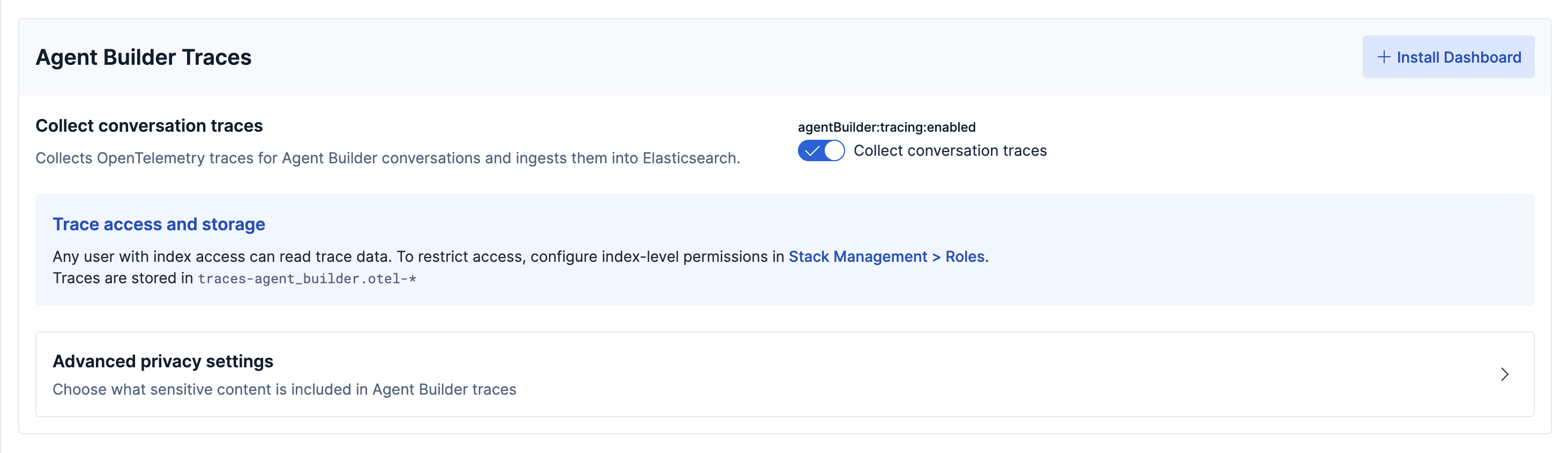

Trace collection is on by default. To manage it, go to Management → GenAI Settings and open the Agent Builder Traces section.
The Collect conversation traces setting turns collection on and off. When it is on, Elastic Agent Builder collects OpenTelemetry traces for agent conversations and ingests them into Elasticsearch. From the same section, you can install a prebuilt overview dashboard for the current Kibana space.
Any user with index access can read trace data. To restrict access, configure index-level privileges in Stack Management → Roles. For details, refer to Grant access to trace data.
By default, traces record structural metadata only, such as token counts, latency, and model names. Conversation content is not captured unless an administrator opts in.

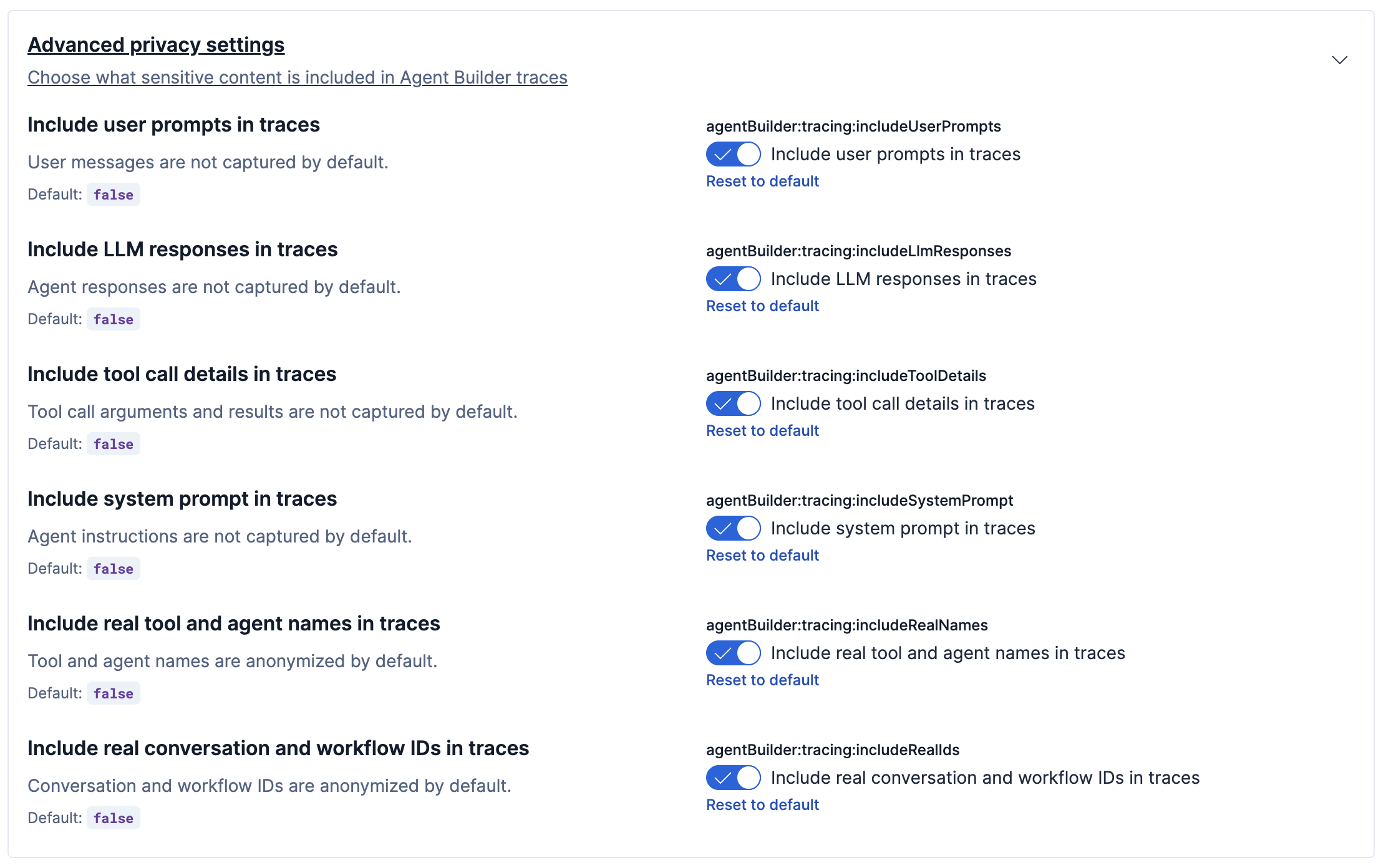

To change what is captured, expand Advanced privacy settings in the Agent Builder Traces section. Each option is off by default.
| Setting | Effect when enabled |
|---|---|
| Include user prompts in traces | Captures user messages. |
| Include LLM responses in traces | Captures agent responses. |
| Include tool call details in traces | Captures tool call arguments and results. |
| Include system prompt in traces | Captures agent instructions. |
| Include real tool and agent names in traces | Records real tool and agent names instead of anonymized values. |
| Include real conversation and workflow IDs in traces | Records real conversation and workflow IDs instead of anonymized values. |
Built-in tools and agents always appear under their real names. When a value is anonymized, Elastic Agent Builder uses a stable identifier, so you can still group and correlate traces without exposing names or IDs.
Trace data is stored in the traces-agent_builder.otel-* data stream. To read it, a role needs read and view_index_metadata on that pattern.
Access is granted at the index level. Any user who can read these data streams can read all collected traces, so trace access is not scoped per user. To control who can read traces, configure index privileges through roles in Stack Management → Roles.
For the full privilege model, including Kibana feature and cluster privileges, refer to Permissions and access control.
When trace collection is on, Elastic Agent Builder provides a prebuilt overview dashboard for agent activity and token usage. You install or reinstall it per space from the Agent Builder Traces settings section. For what each panel shows and the full span and attribute reference, refer to Agent Builder traces overview dashboard.
Because traces are stored in regular data streams, you can also build your own visualizations with Dashboards and Lens, or query the data with ES|QL. To explore traces in natural language, use the built-in traces skill.
In Agent Chat, you can open the trace waterfall for a single conversation round. The button appears only when trace collection is enabled and the round has a trace.
