Filtering in Kibana
This page describes the common ways Kibana offers in most apps for filtering data and refining your initial search queries.
Some apps provide more options, such as Dashboards.
Display data within a specified time range when your index contains time-based events, and a time-field is configured for the selected data view. The default time range is 15 minutes, but you can customize it in Advanced Settings.

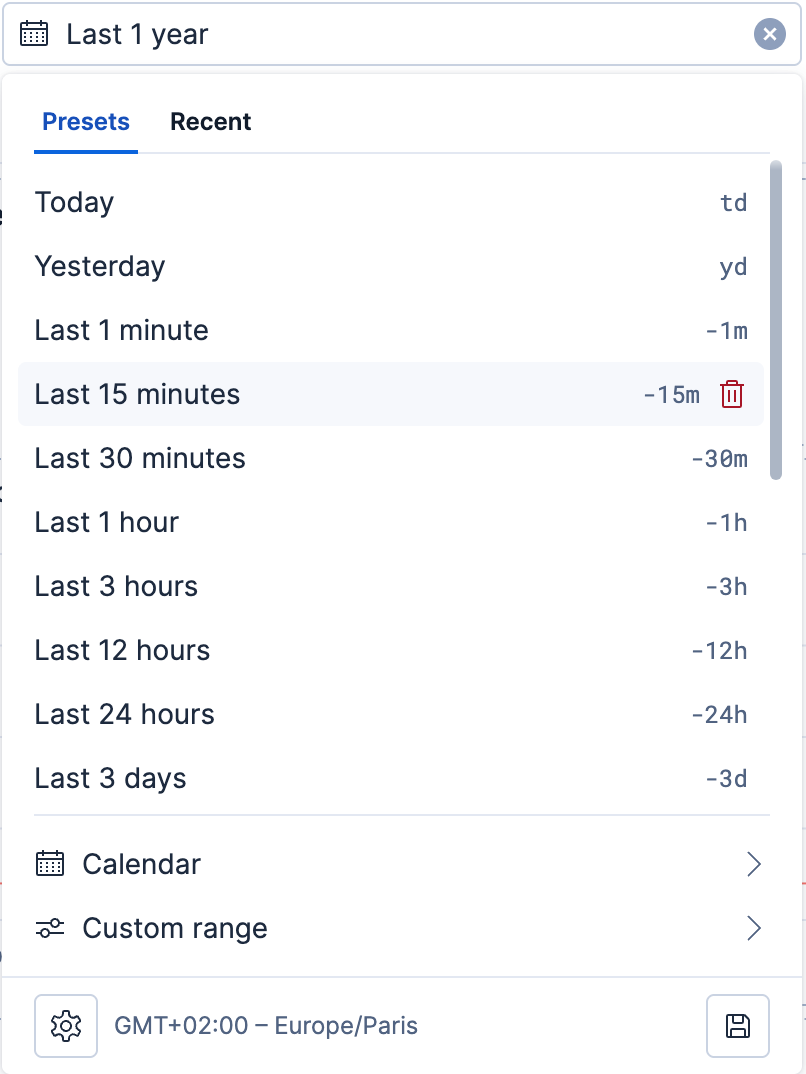

Open the time filter.
Set the time range in one of the following ways:
- For a common range, such as today or the last 15 minutes, select it under Presets.
- To reuse a range that you selected earlier, select Recent.
- If you know the range, enter it directly, such as
last 5 minutesor-12d to now, then press Enter. - To select start and end dates from a calendar, select Calendar, select the dates, then select Apply.
- To configure the start and end separately, select Custom range, set each one as Relative, Absolute, or Now, then select Apply.
When you enter the time range as text, the time filter interprets a single value as a range relative to now, such as 3 days ago. To set the start and end explicitly, enter to or until between two values, such as yesterday to today. You can enter and combine any of the following formats:
| Format | Examples |
|---|---|
| Relative time | -15m, last 5 minutes, past 5 min, next 2 weeks, 2 hours from now. You can spell out time units or abbreviate them, for example m, min, or minutes. |
| Named ranges | today, yesterday, tomorrow, this week, this month until now, last month, next year. The mnemonics td, yd, and tmr stand for today, yesterday, and tomorrow. |
| Absolute time | Dec 1, 2025, 00:00 (default format), 2025-12-01 (ISO 8601), Fri, 1 Dec 2025 00:00:00 GMT (RFC 2822), 12/1/2025 (month/day/year), 1760665383890 (Unix timestamp in seconds or milliseconds). For example, you can paste a date or timestamp copied from a document or a log entry directly into the input. |
| Date math | now-15m, now/w, and other date math expressions. |
| Preset labels | Last 24 hours or any other range listed under Presets. |
The time filter can also give you the text for a range:
- To open the syntax reference, select Discover allowed formats and shorthands.
- To get the text equivalent of a range without typing it, select Custom range and configure the range. The Shorthand field shows the corresponding text, which you can copy and paste into the time filter whenever you need the same range again.
Optionally, you can:
Open Settings to configure automatic refresh and time display:
- Turn Refresh every on or off and set the refresh interval.
- Review Time format and zone, and select Advanced settings to change the time zone if you have access.
- Turn Round relative time ranges on or off.
- Under Absolute time range, select whether timestamps show Minutes, Seconds, or Milliseconds.
Save the current range as a preset for later reuse with , or select Save as preset when applying a range from the Calendar or Custom range panels. Saving a preset also applies the range, and saved ranges appear under Presets. Presets are personal to your user profile, and you can save up to 40. To delete one, point to it under Presets and select Delete preset.
Step through time with the buttons next to the time range: Previous and Next shift the range backward or forward by its own duration, and Zoom out and Zoom in widen or narrow it.

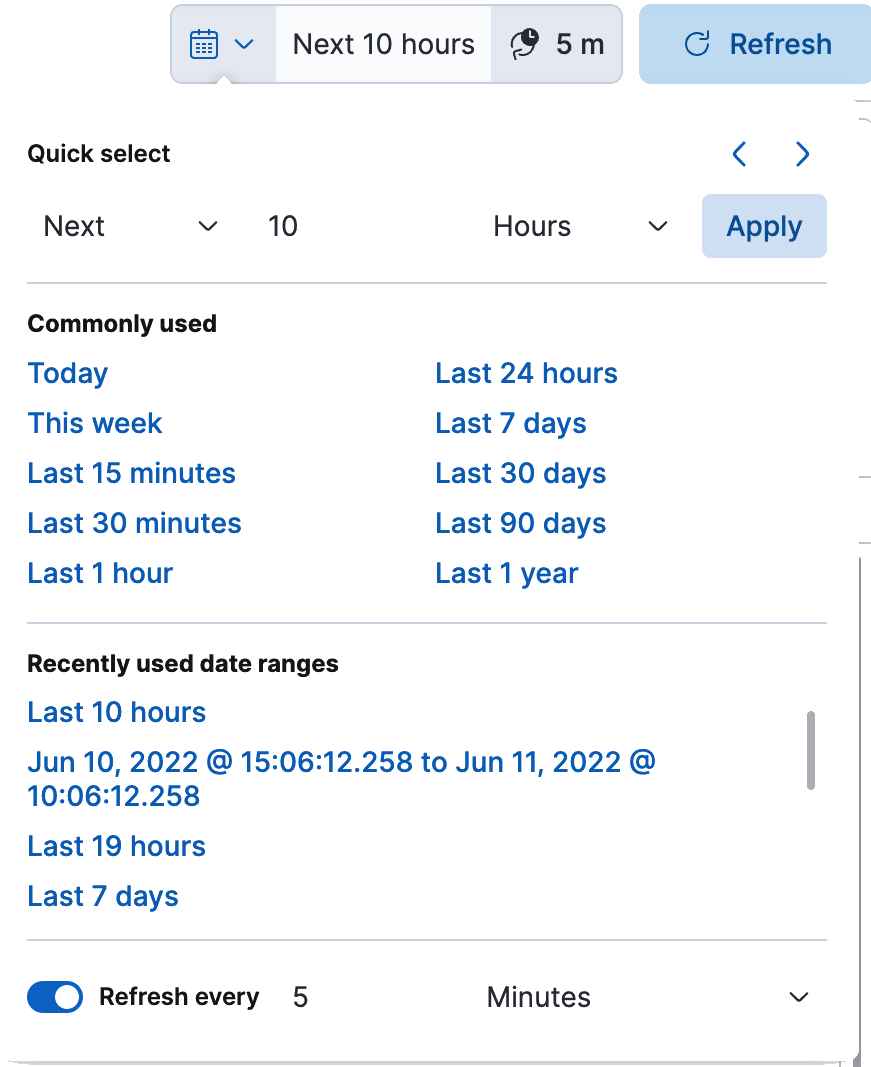

Open the time filter.
Select one of the following:
- Quick select. Set a time based on the last or next number of seconds, minutes, hours, or other time unit.
- Commonly used. Select a time range from options such as Last 15 minutes, Today, and Week to date.
- Recently used date ranges. Use a previously selected date range.
- Refresh every. Specify an automatic refresh rate.

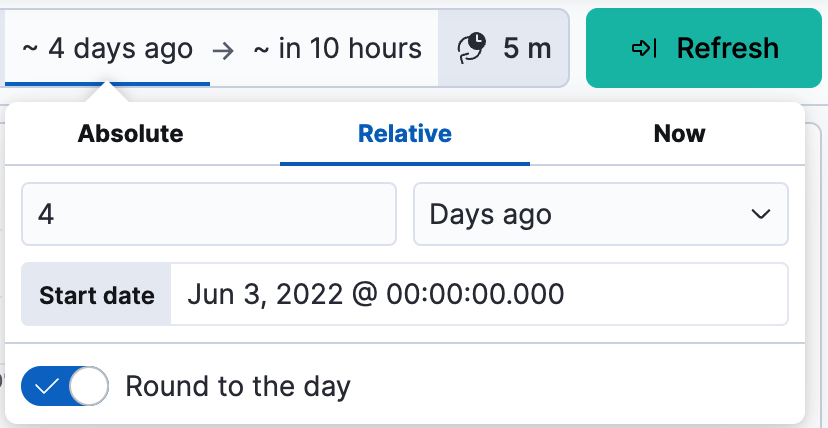

- To set start and end times, select the bar next to the time filter. In the popup, select Absolute, Relative, or Now, then specify the required options.
The global time filter limits the time range of data displayed. In most cases, the time filter applies to the time field in the data view, but some apps allow you to use a different time field.
Using the time filter, you can configure a refresh rate to periodically resubmit your searches.
To manually resubmit a search, click the Refresh button. This is useful when you use Kibana to view the underlying data.

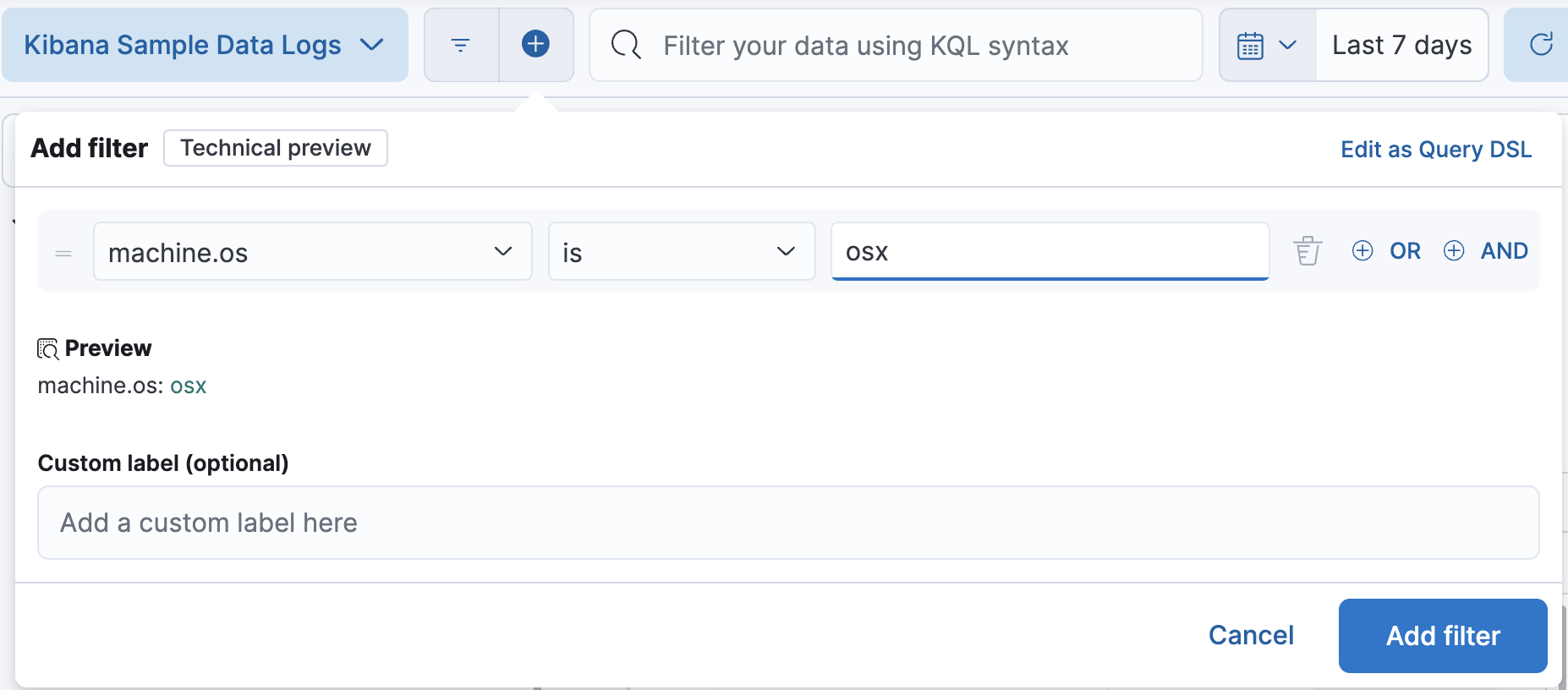

Structured filters are a more interactive way to create Elasticsearch queries, and are commonly used when building dashboards that are shared by multiple analysts. Each filter can be disabled, inverted, or pinned across all apps. Each of the structured filters is combined with AND logic on the rest of the query.
