SQuirreL SQLedit



SQuirreL SQL is a graphical, [multi-platform] Java program that will allow you to view the structure of a JDBC compliant database […​].


 -- http://squirrel-sql.sourceforge.net/
Important

Elastic does not endorse, promote or provide support for this application; for native Elasticsearch integration in this product, please reach out to its vendor.

Prerequisitesedit

  • SQuirreL SQL version 4.0.0 or higher
  • Elasticsearch SQL JDBC driver

Add Elasticsearch JDBC Driveredit

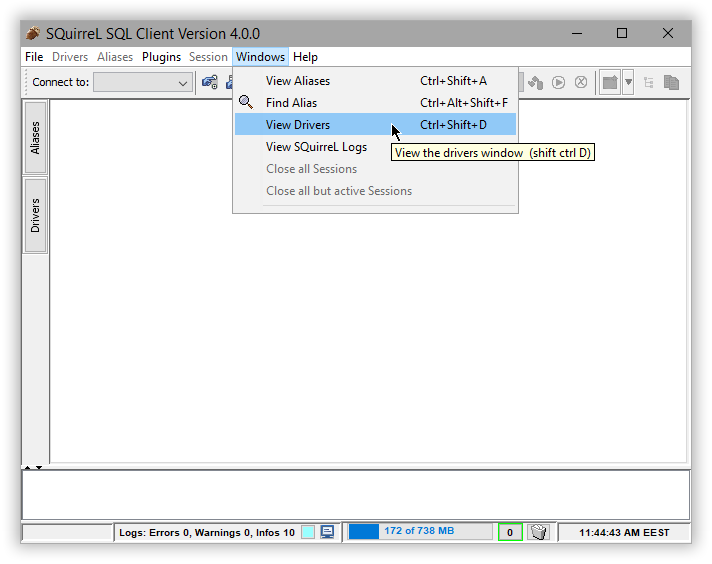

To add the Elasticsearch JDBC driver, use Windows > View Drivers menu (or Ctrl+Shift+D shortcut):

squirell 1 view drivers

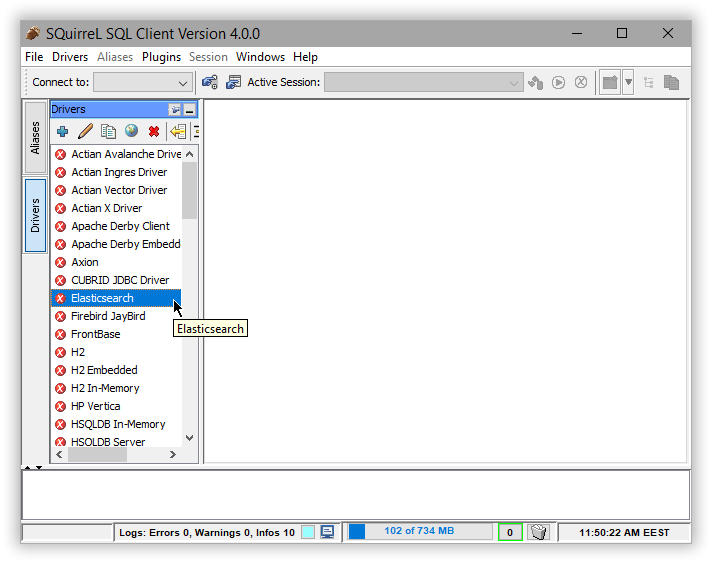

Select Elasticsearch profile from the Drivers panel on the left-hand side (if it is missing check the SQuirreL SQL version or add a new entry to the list through the + button in the upper left corner):

squirell 2 select driver

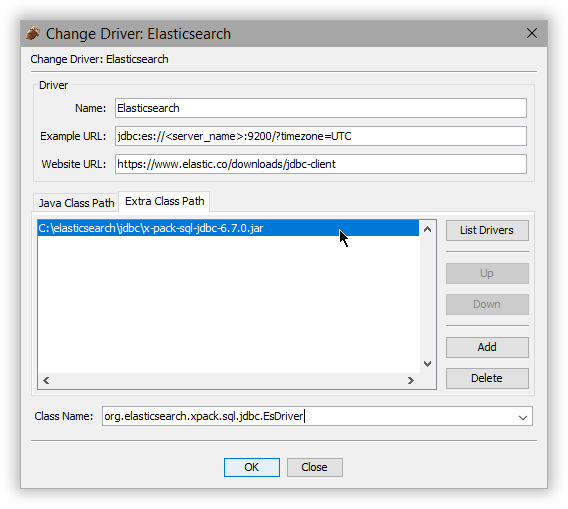

Select the Extra Class Path tab and Add the JDBC jar. Name the connection and List Drivers to have Class Name populated if it is not already filled-in :

squirell 3 add driver

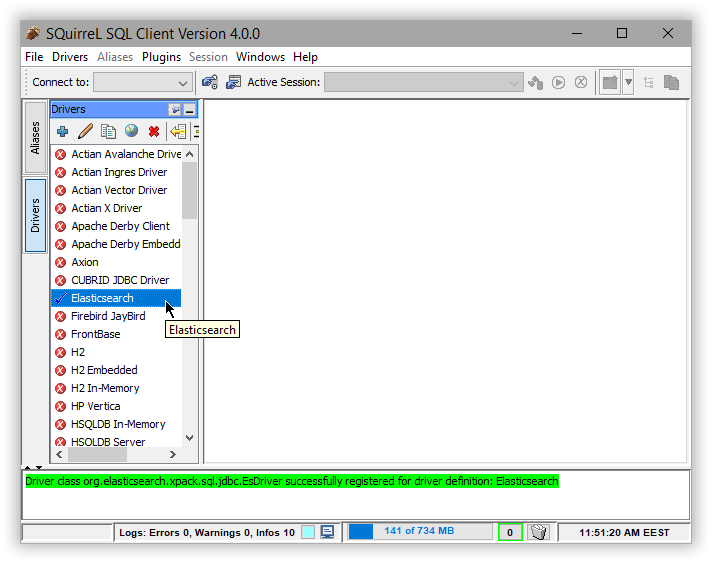

The driver should now appear in the list with a blue check mark next to its name:

squirell 4 driver list

Add an alias for Elasticsearchedit

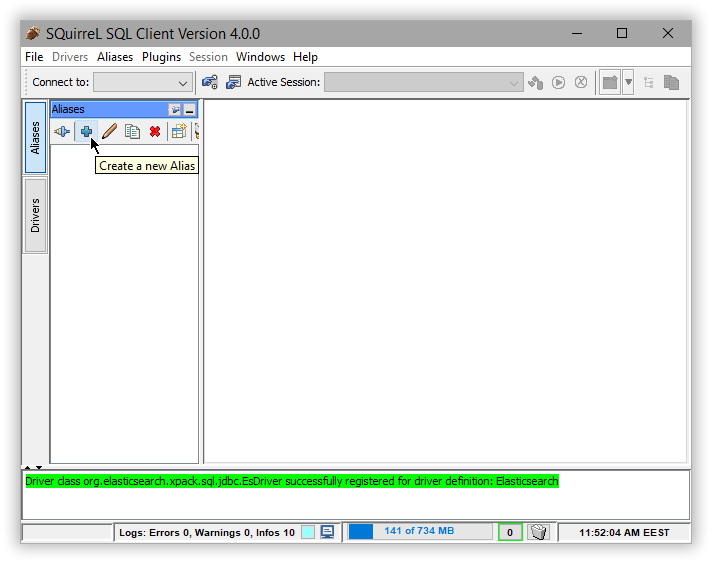

Add a new connection or in SQuirreL terminology an alias using the new driver. To do so, select the Aliases panel on the left and click the + sign:

squirell 5 add alias

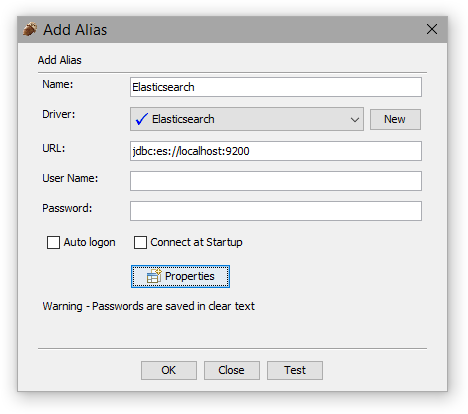

Name the new alias and select the Elasticsearch driver previously added:

squirell 6 alias props

The setup is completed. Double check it by clicking on Test Connection.

Execute SQL queriesedit

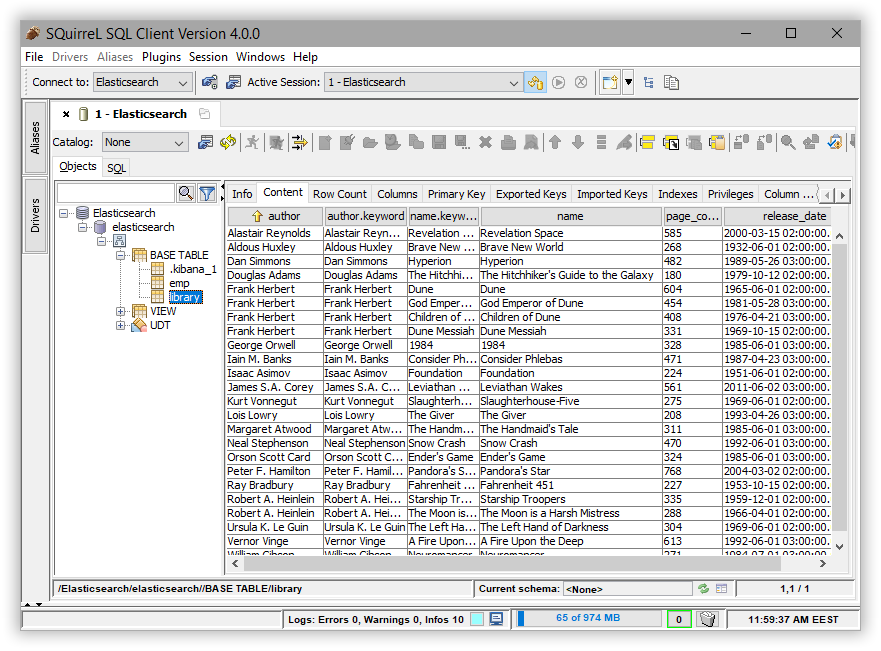

The connection should open automatically (if it has been created before simply click on Connect in the Alias panel). SQuirreL SQL can now issue SQL commands to Elasticsearch:

squirell 7 data
