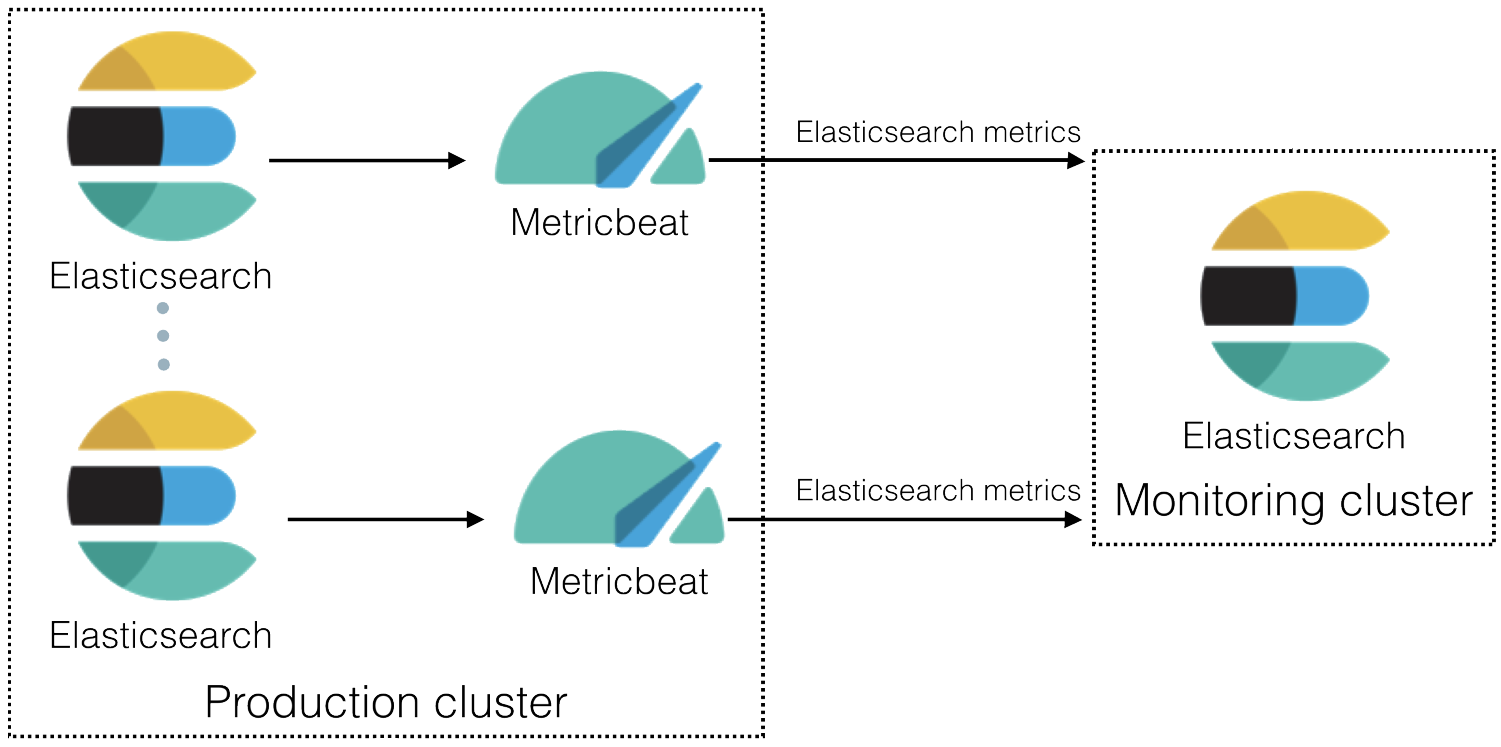

In 6.5 and later, you can use Metricbeat to collect data about Elasticsearch and ship it to the monitoring cluster, rather than routing it through exporters as described in Legacy collection methods.
Metricbeat. Ideally install a single Metricbeat instance configured with
scope: clusterand configure
hoststo point to an endpoint (e.g. a load-balancing proxy) which directs requests to the master-ineligible nodes in the cluster. If this is not possible then install one Metricbeat instance for each Elasticsearch node in the production cluster and use the default
scope: node. When Metricbeat is monitoring Elasticsearch with
scope: nodethen you must install a Metricbeat instance for each Elasticsearch node. If you don’t, some metrics will not be collected. Metricbeat with
scope: nodecollects most of the metrics from the elected master of the cluster, so you must scale up all your master-eligible nodes to account for this extra load and you should not use this mode if you have dedicated master nodes.
Enable the Elasticsearch module in Metricbeat on each Elasticsearch node.
For example, to enable the default configuration for the Elastic Stack monitoring features in the
modules.ddirectory, run the following command:
metricbeat modules enable elasticsearch-xpack
For more information, refer to Elasticsearch module.
Configure the Elasticsearch module in Metricbeat on each Elasticsearch node.
modules.d/elasticsearch-xpack.ymlfile contains the following settings:
- module: elasticsearch xpack.enabled: true period: 10s hosts: ["http://localhost:9200"] #scope: node #username: "user" #password: "secret" #ssl.enabled: true #ssl.certificate_authorities: ["/etc/pki/root/ca.pem"] #ssl.certificate: "/etc/pki/client/cert.pem" #ssl.key: "/etc/pki/client/cert.key" #ssl.verification_mode: "full"
By default, the module collects Elasticsearch monitoring metrics from
http://localhost:9200. If that host and port number are not correct, you must update the
hostssetting. If you configured Elasticsearch to use encrypted communications, you must access it via HTTPS. For example, use a
scopeis set to
nodeand each entry in the
hostslist indicates a distinct node in an Elasticsearch cluster. If you set
clusterthen each entry in the
hostslist indicates a single endpoint for a distinct Elasticsearch cluster (for example, a load-balancing proxy fronting the cluster). You should use
scope: clusterif the cluster has dedicated master nodes, and configure the endpoint in the
hostslist not to direct requests to the dedicated master nodes.
If Elastic security features are enabled, you must also provide a user ID and password so that Metricbeat can collect metrics successfully:
Create a user on the production cluster that has the
remote_monitoring_collectorbuilt-in role. Alternatively, use the
passwordsettings to the Elasticsearch module configuration file.
If TLS is enabled on the HTTP layer of your Elasticsearch cluster, you must either use https as the URL scheme in the
hostssetting or add the
ssl.enabled: truesetting. Depending on the TLS configuration of your Elasticsearch cluster, you might also need to specify additional ssl.* settings.
- Create a user on the production cluster that has the
Optional: Disable the system module in Metricbeat.
By default, the system module is enabled. The information it collects, however, is not shown on the Monitoring page in Kibana. Unless you want to use that information for other purposes, run the following command:
metricbeat modules disable system
Identify where to send the monitoring data.
In production environments, we strongly recommend using a separate cluster (referred to as the monitoring cluster) to store the data. Using a separate monitoring cluster prevents production cluster outages from impacting your ability to access your monitoring data. It also prevents monitoring activities from impacting the performance of your production cluster.
For example, specify the Elasticsearch output information in the Metricbeat configuration file (
If you configured the monitoring cluster to use encrypted communications, you must access it via HTTPS. For example, use a
The Elasticsearch monitoring features use ingest pipelines, therefore the cluster that stores the monitoring data must have at least one ingest node.
If Elasticsearch security features are enabled on the monitoring cluster, you must provide a valid user ID and password so that Metricbeat can send metrics successfully:
For more information about these configuration options, see Configure the Elasticsearch output.
- Start Metricbeat on each node.
- View the monitoring data in Kibana.
