Migrate Datadog Kubernetes dashboards to Elastic Observability in under an hour

The Observability Migration Platform takes a Datadog Kubernetes dashboard and turns it into ES|QL-backed Lens panels in Kibana. It validates queries against your live cluster before upload, and the whole process typically fits in under an hour. This walkthrough uses the Kubernetes - Overview board: pod CPU, working set memory, pod phases, and CrashLoopBackOff counts. Elasticsearch runs ES|QL time series queries up to 30× faster than Prometheus on common gauge and counter workloads in published benchmarks, with up to 2.5× better storage efficiency. Review the migration report and enable alerts when you are ready.

The Datadog Kubernetes dashboard used in this migration

The walkthrough uses Kubernetes - Overview from infra/datadog/dashboards/integrations/kubernetes.json in the migration repository. It is a cluster-wide board with the signals operators check during an incident: pod counts, CPU and memory by host or pod, non-running pods, and containers stuck in CrashLoopBackOff.

Below are representative queries from the source dashboard:

# Pod CPU by host
sum:kubernetes.cpu.usage.total{$scope,$cluster,$label,$node} by {host}

# Pod memory by pod
sum:kubernetes.memory.usage{$scope,$deployment,$statefulset,$replicaset,$daemonset,$cluster,$namespace,!pod_name:no_pod,$label,$service,$node} by {pod_name}

# Pods not running (pressure / scheduling signal)
sum:kubernetes_state.pod.status_phase{$scope,$cluster,$namespace,$deployment,$statefulset,$replicaset,$daemonset,!pod_phase:running,!pod_phase:succeeded,$label,$node,$service} by {kube_cluster_name,kube_namespace,pod_phase}

# CrashLoopBackOff
sum:kubernetes_state.container.status_report.count.waiting{$cluster,$namespace,$deployment,$statefulset,$replicaset,$daemonset,reason:crashloopbackoff,$scope,$daemonset,$label,$node,$service} by {pod_name}

If this board translates cleanly, most production Datadog Kubernetes folders are worth testing with the same workflow.

Why Datadog-to-Elastic migration is faster now

The migration platform automates the query translation and panel rebuilds that used to dominate Datadog moves. Elasticsearch stores Kubernetes metrics efficiently and runs the ES|QL queries those panels use. See Elasticsearch as a metrics backend for benchmark context and storage comparisons.

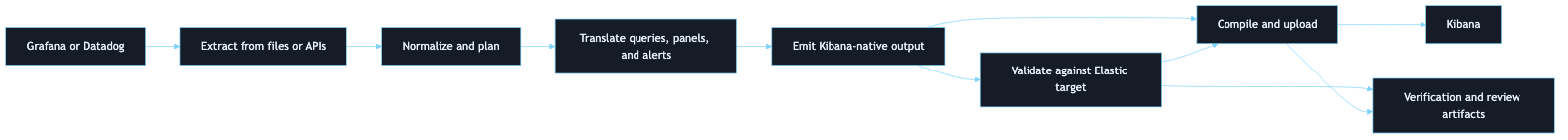

The platform maps Datadog queries to Kibana panels, validates ES|QL against live data, and writes artifacts you can inspect before anything goes to production.

Prerequisites

You need an Elastic Observability Serverless project, a project API key, and the migration CLI installed from the Observability Migration Platform repository.

Export your endpoints and API key:

export ELASTICSEARCH_ENDPOINT="https://YOUR_ES_ENDPOINT"
export KIBANA_ENDPOINT="https://YOUR_KIBANA_ENDPOINT"
export KEY="YOUR_API_KEY"

Install the CLI and confirm the toolchain:

python3 -m venv .venv
.venv/bin/pip install ".[all]"
.venv/bin/obs-migrate doctor

The doctor command checks compile and lint dependencies. Resolve any errors before you migrate production dashboards. Pin a release tag if you plan to run this in CI.

To pull dashboards from the Datadog API instead of JSON files, copy datadog_creds.env.example to datadog_creds.env and set DD_API_KEY, DD_APP_KEY, and DD_SITE.

Ingest Kubernetes metrics first

Empty panels after upload usually mean Elasticsearch does not yet have the series the Datadog queries reference. Make sure to confirm ingest before you run the migration.

There are two common paths to do so:

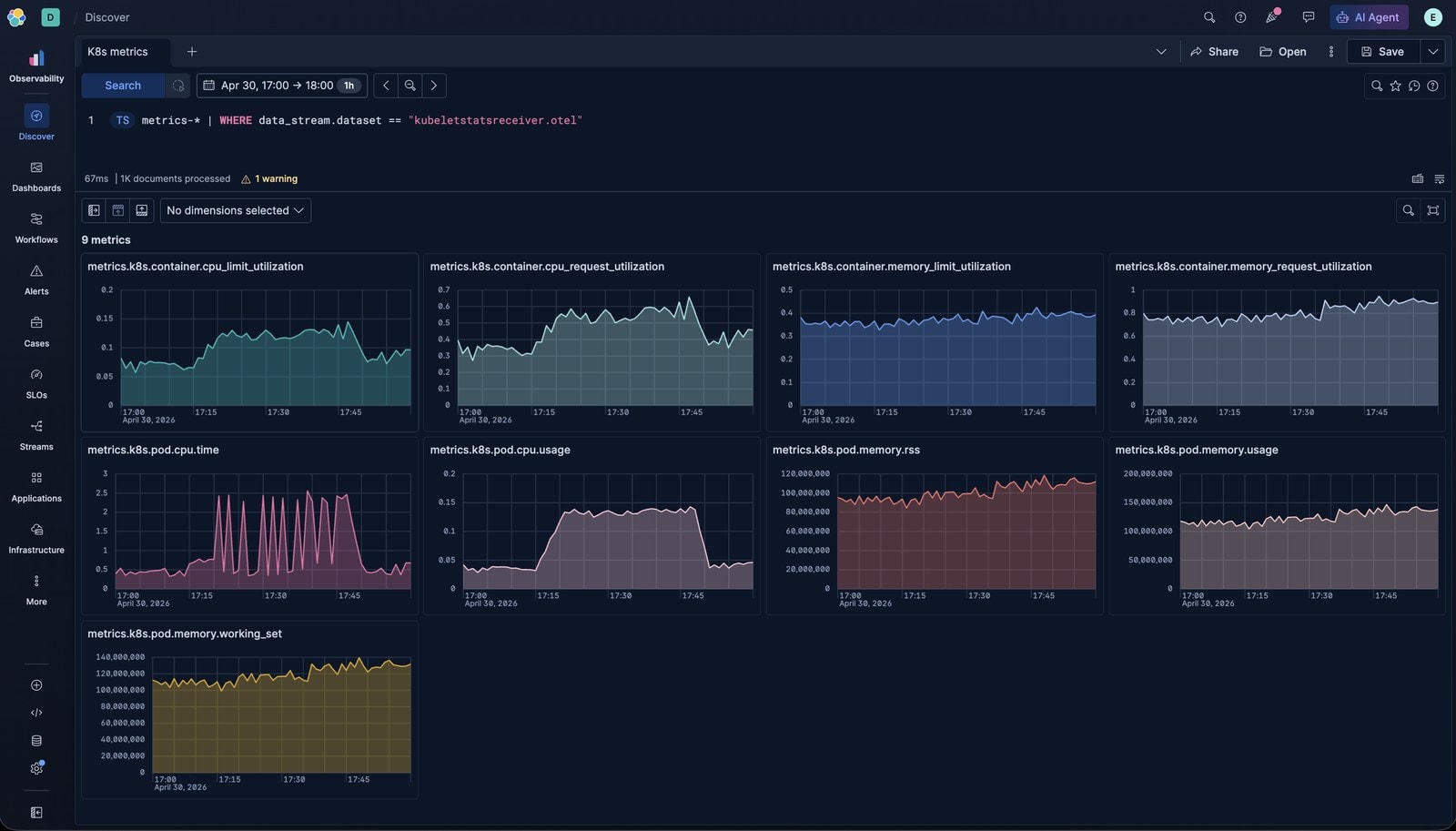

1. OpenTelemetry into managed OTLP with Kubernetes receivers (kubeletstats, k8s_cluster), then explore in Discover
2. Existing Prometheus or agent pipelines that already write pod and node metrics to metrics-*

The migration CLI accepts --field-profile otel to map Datadog tags such as pod_name, kube_namespace, and kube_cluster_name to OpenTelemetry fields like kubernetes.pod.name and kubernetes.namespace. If panels are empty after migration, verify field mapping and the selected time range before you change translator settings.

Run the Datadog dashboard migration CLI

Export the Datadog dashboard JSON from the UI, or copy the sample kubernetes.json from infra/datadog/dashboards/integrations/ in the migration repo. Place files in a directory such as ./datadog_k8s_exports/.

Run the migration from that directory:

datadog-migrate \
  --source files \
  --input-dir ./datadog_k8s_exports \
  --output-dir ./migration_output \
  --assets all \
  --field-profile otel \
  --data-view "metrics-*" \
  --logs-index "logs-*" \
  --upload \
  --kibana-url "$KIBANA_ENDPOINT" \
  --kibana-api-key "$KEY" \
  --ensure-data-views \
  --create-alert-rules \
  --validate \
  --es-url "$ELASTICSEARCH_ENDPOINT" \
  --es-api-key "$KEY"

These flags matter for Kubernetes boards:

• --field-profile otel maps Datadog Kubernetes fields to OpenTelemetry field names in Elasticsearch
• --assets all includes dashboards and Datadog monitor definitions when present
• --validate runs emitted ES|QL against your cluster before upload
• --create-alert-rules creates Kibana rules in a disabled state

The unified CLI performs the same work:

obs-migrate migrate \
  --source datadog \
  --input-mode files \
  --input-dir ./datadog_k8s_exports \
  --output-dir ./migration_output \
  --assets all \
  --field-profile otel \
  --data-view "metrics-*" \
  --logs-index "logs-*" \
  --validate \
  --es-url "$ELASTICSEARCH_ENDPOINT" \
  --es-api-key "$KEY" \
  --kibana-url "$KIBANA_ENDPOINT" \
  --kibana-api-key "$KEY" \
  --upload \
  --create-alert-rules

To fetch a dashboard from Datadog directly:

datadog-migrate \
  --source api \
  --env-file datadog_creds.env \
  --dashboard-ids YOUR_DASHBOARD_ID \
  --output-dir ./migration_output \
  --assets all \
  --field-profile otel \
  --data-view "metrics-*" \
  --validate \
  --es-url "$ELASTICSEARCH_ENDPOINT" \
  --es-api-key "$KEY" \
  --kibana-url "$KIBANA_ENDPOINT" \
  --kibana-api-key "$KEY" \
  --upload

Validate the migrated Datadog dashboard in Kibana

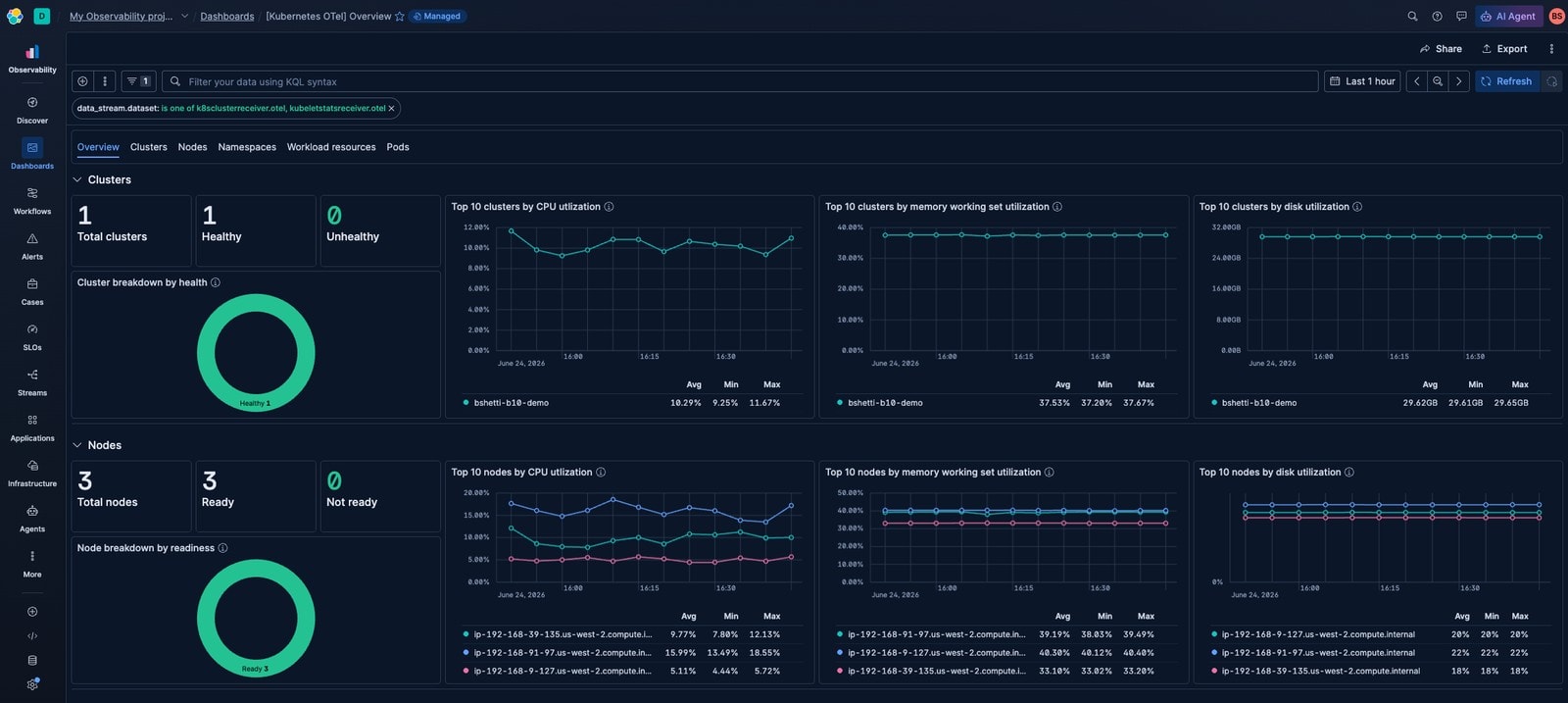

Open Kibana → Dashboards and locate the migrated Kubernetes - Overview board. Confirm that cluster and namespace pod counts, CPU and memory series, pod phase panels, CrashLoopBackOff widgets, and deployment replica charts return data for your selected time range.

If you migrated monitors, open Observability → Rules. Imported rules remain disabled until you enable them after reviewing thresholds.

The CLI also writes local artifacts under ./migration_output/:

• dashboards/yaml/ contains the translated dashboard definition.
• dashboards/migration_report.json lists panels that translated automatically and panels flagged for manual review.
• alerts/ contains monitor translations when monitors were included in the export.

Handle manual-review panels

Some Datadog widget types do not translate on the first pass. Exotic formulas, log-only panels, and unsupported widgets appear as manual-review entries in the migration report rather than as silently broken charts.

Datadog coverage is narrower than Grafana in some areas. Read the migration report before you commit to full parity with leadership. The platform prefers conservative failures over uploading panels that look correct but query the wrong fields.

Related Datadog and Grafana migration guides

For the Grafana PromQL version of this workflow, see Migrate your Grafana Kubernetes dashboard to Elastic Observability. For platform-level context, see Migrating Datadog and Grafana dashboards and alerts to Kibana. Review known limitations before you migrate every production folder.
