When we wrote that Elasticsearch is becoming a columnar database, the sharpest reply we got was that it already is one. That reply is correct on the facts. Doc values, the per-field column store that Elasticsearch inherited from Lucene, arrived in 2013, and nearly every aggregation, sort, and query in Elasticsearch Query Language (ES|QL) has read them since Elasticsearch 2.0 made them the default. Each field's values sit together in their own file on disk. So the interesting question is what else a columnar database needs (rather than whether we store columns), and the answer turns out to be five things.

Doc values were built to make aggregations, sorting, and grouping possible on a document engine, and they do that job well. Columnar Mode changes what the columns are for, and this post walks through the five properties that separate storing columns from being a columnar database.

Five properties separate a column store from a columnar database

Doc values were an optimization on top of _source

For most of the last decade, the original JSON document was the source of truth and the columns were a derived convenience. That ordering has consequences throughout the engine.

Because the engine could always fall back to _source, per-field storage was allowed to be lossy. Text fields had no doc values at all, since text could be reread from the stored document when needed. Even synthetic source, which reconstructs a document from its fields rather than storing a copy, sometimes reads from row-shaped structures to stay faithful to the JSON that arrived, with values that exceed ignore_above and fields that arrived unmapped going into stored fields.

The result is a clear contract; whatever JSON you send, you get back, and the columns accelerate everything else. For an engine whose job is to return your documents, that’s the right way round. Columnar Mode inverts it. Every field stores itself exactly once as doc values, doc values cannot be turned off, text fields get doc values, too, and the document is reconstructed from the columns when something asks for it.

How dictionary encoding handles high-cardinality data

Sorted doc values, the default for keyword fields, store a dictionary of distinct values plus one ordinal per document pointing into it. This is an excellent trade when values repeat. A host.name field drawn from a hundred machines, or a status code that’s almost always 200, compresses beautifully and groups quickly.

It works like the index cards in a warehouse. When 50 crates hold the same product, one card and 50 pointers beats writing the product name 50 times. When 50 crates hold the same product, you can store the product name in the index with the list of 50 crate IDs. When every crate holds something unique, you might as well just put the product name on the crates; the index will help you find what crate you want, but it won't save ink.

High-cardinality fields describe a lot of real data, including URLs and trace identifiers, along with message bodies. Columnar Mode, which skips the dictionary and compresses the values in blocks instead, uses binary doc values for high-cardinality strings. Which of the two a field gets isn’t something you configure. The engine decides per field, based on the values it sees, so each column is encoded for the data it actually holds instead of one default applied to every field. Pure columnar systems have long carried cardinality in their type system, but usually as something you declare, and you own the consequences when the data shifts underneath it. Here, it’s the engine's job.

Why every field builds an inverted index by default

By default, a keyword field also builds an inverted index and a numeric field also builds a BKD tree. That happens on every field because at write time the engine doesn’t know which capability you’ll want at read time, significantly increasing the footprint of each field. Those structures also have to be rebuilt during segment merges, which costs CPU exactly when ingest is heaviest.

Our time series engine (TSDB) is proof of what happens when you stop paying for capability that the workload doesn’t use. Replacing the indices on @timestamp and dimension fields with doc value skippers, which are sparse structures holding the minimum and maximum value for each block of documents, removed 10 bytes of the original 25 bytes per OpenTelemetry (OTel) data point. There was no measurable query regression on time range and dimension filters, and indexing CPU dropped by about 10%, as a bonus.

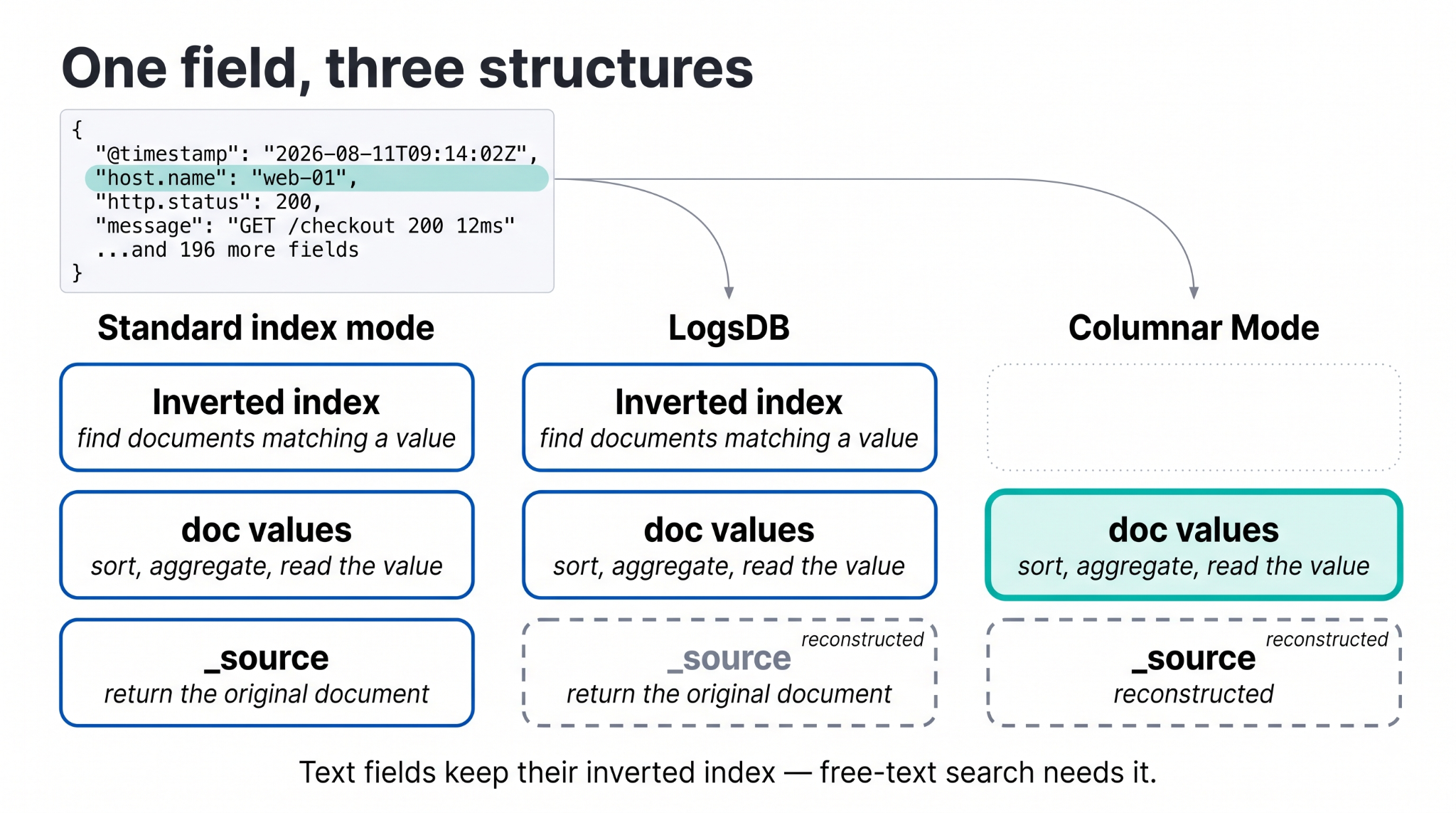

Columnar Mode generalizes that default. Fields aren’t indexed unless something needs them to be, with only text-mapped fields keeping their inverted index for fast free-text search.

Metadata fields like _id and _routing were row-shaped

The fields you never think about followed the same document-first design. The _id field was a stored field plus an inverted index. Custom _routing was a stored field. Sequence numbers were kept for optimistic concurrency control, regardless of whether a workload ever updated a document.

TSDB deals with all three. It synthesizes _id from the _tsid and @timestamp values that already identify a data point, using a segment-level bloom filter to catch duplicates, which removes 5 bytes per data point with no loss of functionality. It trims sequence numbers once replication no longer needs them, which removes 4 bytes. Add a codec block size increase from 128 to 512 elements for another 2 bytes, and those four changes contribute across versions 9.1 through 9.4 to the 21 bytes that took OTel metrics from 25 bytes per data point down to 3.75.

Columnar Mode makes those ideas general rather than metrics-specific. By general availability (GA), all metadata fields will store themselves as doc values, while we plan to follow up and add a sort id mode synthesizing the identifier from the index sort fields, in addition to derived fields that will generalize what _tsid does for time series to any set of fields.

Columnar query execution in the ES|QL compute engine

A column store only pays off if the engine reads it as columns. Aggregations inherited the document-at-a-time shape from search, which is the natural fit for an engine built around documents. Reading columns instead lets the engine hand a whole block of values to a single instruction, and that’s where the numbers below come from.

The ES|QL compute engine changed that shape, and TSDB again shows the size of the effect:

• Vectorized execution of time series aggregations was worth up to 8x on its own.

• Decoding on-disk data straight into the primitive arrays the engine aggregates over, with no intermediate copies, was worth roughly another 10x.

• Constant blocks turned repeated values into a form of in-memory run-length encoding.

• Filter pushdown moved filters down to Lucene, where skippers can discard whole blocks unopened.

Together with the rest of the block-level query work, query latency improved by up to 160x compared to earlier versions.

That work continues. Skipper-aware operators, aggregations that group on ordinals and convert to real values as late as possible, and richer per-block summaries are all in progress, and they benefit every index mode because every mode reads doc values underneath.

What Columnar Mode changes for logs and analytical data

Storing values in columns is a storage detail. A columnar database needs five things:

1. The columns are the only copy of the data.

2. Each column is encoded for the data it actually holds.

3. Metadata is columnar, too.

4. Fields add indices only when something needs them.

5. The query engine processes blocks of values rather than records or documents.

TSDB reached all five for metrics in Elasticsearch 9.4, which is why the numbers in this post come from metrics rather than from a slide. Columnar Mode applies the same treatment to logs and security telemetry, along with analytical data. It’s in technical preview in Elasticsearch 9.5, with GA targeted for 9.7.

The release and timing of any features or functionality described in this post remain at Elastic's sole discretion. Any features or functionality not currently available may not be delivered on time or at all.
