vLLM Prometheus metrics for self- hosted LLM tuning: TTFT, KV Cache, and GPU Utilization

Somewhere in your company there is a team that cannot use Claude, GPT, or Gemini — not because they don't want to, but because their data isn't allowed to leave a jurisdiction, a network boundary, or due to a contract. Claims files. Patient notes, source code under an export-control regime, etc.

That team still wants a model. So the request lands on an SRE's desk, and it sounds deceptively small: "Can you stand up an open-weight model for the claims team? Sixty people. It has to run on our hardware." They aren't even allowed to use a neocloud. There is a cost associated with this, but we won't explore that part. Just the part that covers running the model and observing the configuration.

Standing it up is the easy half. Four manifests and an afternoon, and you have a model answering questions. The hard part arrives a week later, when someone says "it feels slow" and you realize you have no idea whether the deployment is configured well, badly, or catastrophically — and no obvious way to find out.

This guide shows you how Elastic Observability can help you analyze the metrics from the configuration. It walks through tuning a real vLLM deployment using the metrics vLLM already emits. vLLM exposes these on a /metrics endpoint in Prometheus exposition format — no instrumentation, no sidecar, no code change — which is why every query in this guide starts from a Prometheus scrape. The goal: turn "it feels slow" into a specific, defensible decision.

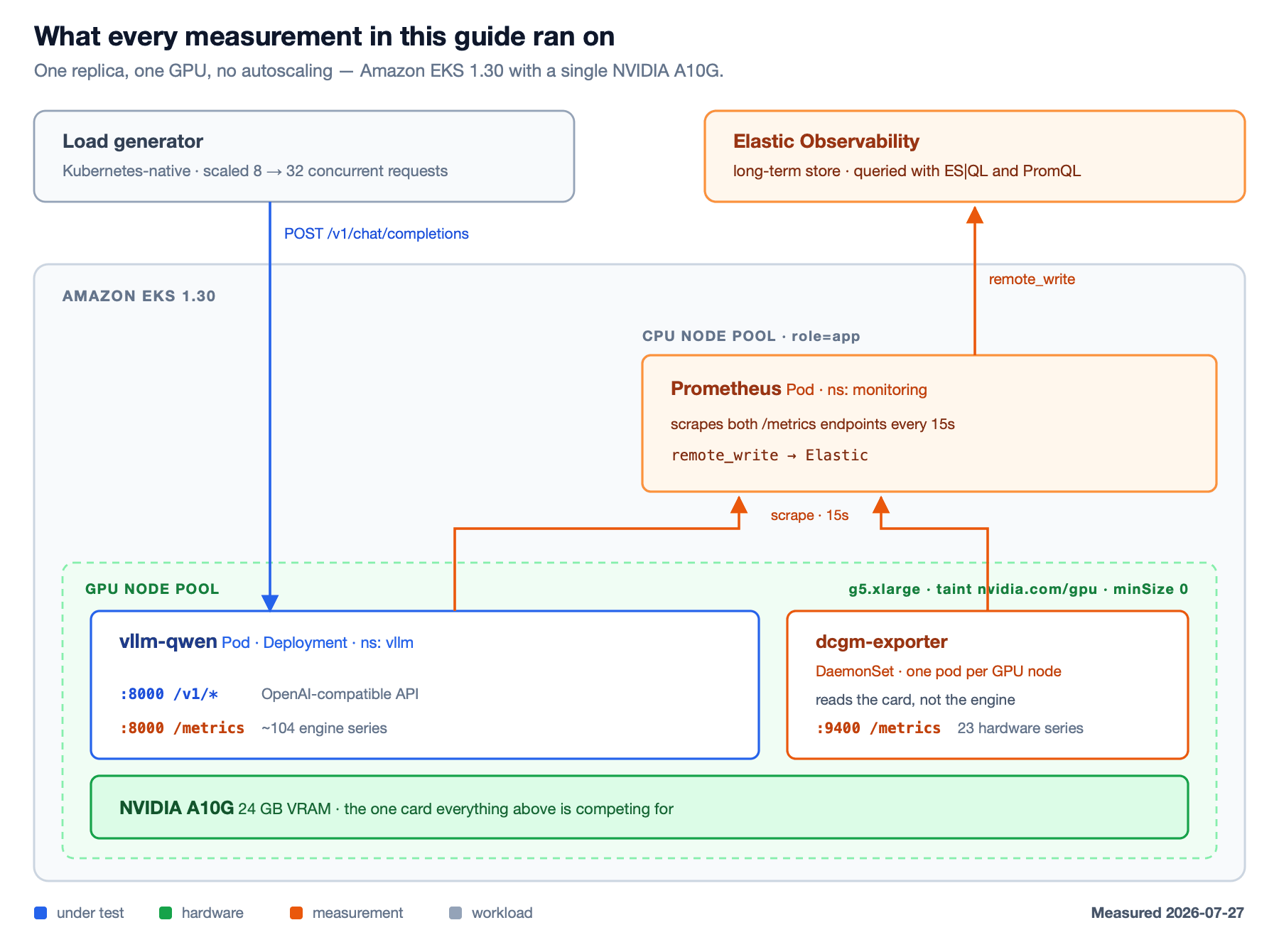

Test environment: vLLM on a Kubernetes cluster using NVIDIA A10G with dcgm-exporter and Prometheus metrics

Every figure in this guide was measured on the following stack — one replica, one GPU, no autoscaling.

• Workload — Kubernetes-native load generator, scaled from 8 to 32 concurrent requests.
• Model — Qwen/Qwen2.5-3B-Instruct, bf16, --max-model-len 4096
• Engine — vLLM v0.23.0, OpenAI-compatible server, Prometheus /metrics on :8000
• GPU — NVIDIA A10G, 24 GB — an AWS g5.xlarge
• Cluster — Amazon EKS 1.30, tainted GPU node pool with minSize: 0
• Telemetry — Prometheus scraping every 15s, plus dcgm-exporter on :9400, shipped via remote_write
• Analysis — Elastic Observability, queried with ES|QL and PromQL
• Measured — 2026-07-27

Why is it hard for an SRE to self-host and tune an open-weight LLM?

The difficulty is not the deployment, it's the tuning which has no feedback loop. vLLM starts, serves, and reports success whether it's configured brilliantly or wastefully. Nothing tells you which.

When loading up the model, your manifest would have this configuration:

      containers:
        - name: vllm
          image: vllm/vllm-openai:v0.23.0  # pin an exact release — metric names shift between versions
          args:
            - "--model=Qwen/Qwen2.5-3B-Instruct"
            - "--max-model-len=4096"         # cap context → predictable KV-cache size
            # A10G has native bf16 — do NOT add --dtype=half (T4-only).
          ports:
            - name: http
              containerPort: 8000            # OpenAI API + /metrics

But you can run into specific issues, such as: Hugging Face downloads take minutes. If your cluster expects a server to start in 30 seconds, it will assume the app is dead and kill it mid-download, putting you in an infinite crash loop.

Or you could have a hardware mismatch, and potentially degrade your model’s speed or precision because hardware architectures vary

or a bevy of other issues.

Once the model is finally running, optimizing performance is complete guesswork because default metrics don't tell you if you're being efficient.

You could use nvidia-smi, but this only understands raw hardware state, not application software logic.

Now that you have it running, a few hours to maybe even a day in, the team says "it feels slow." You are, functionally, tuning blind.

How do you tune a self-hosted vLLM deployment?

You're not an inference engineer, you own forty other services besides this one, and you don't have a forward-deployed engineer from a model vendor on call. But tuning an LLM server turns out to need exactly one skill you already have: reading telemetry and reasoning about saturation. The only missing piece is telemetry that exists and means something.

It does. vLLM emits a rich Prometheus endpoint out of the box — latency decomposed by inference phase, cache hit rates, batch occupancy, token accounting, completion outcomes. Almost nobody looks at it. The rest of this guide is how to read it.

Defining the workload: sixty users, short prompts, streaming responses

With the slowness detected and reported, you gather the usage profile of the users. Their usage pattern is as follows:

• ~60 users, but not concurrent. Realistic peak is 8–12 simultaneous in-flight requests; sustained is lower.
• Short prompts, long answers. The user pastes a paragraph and asks for a structured summary. Prompts run ~50 tokens; useful answers run 500–1,000.
• Interactive, streaming UI. Perceived speed is dominated by time to first token (TTFT), not total time — the same psychology as a chat interface.
• Heavy prompt reuse. Every request carries the same system prompt and the same policy-language boilerplate.

From that, you write down actual service objectives — the step most self-hosted LLM projects skip:

• TTFT p95 < 300 ms
• inter-token latency < 50 ms (≥ 20 tokens/sec, faster than reading speed)
• zero queueing at 12 concurrent
• error + abort rate < 0.5%

Those four numbers are the point of everything that follows. Without them, "it feels slow" has no answer. With them, every metric below passes or fails a stated bar.

How do you get Prometheus metrics out of vLLM and the GPU?

There are two sources, and you need both.

• vLLM reports on itself — latency by phase, cache hit rates, batch occupancy, token counts — on /metrics at its serving port, with no adapter and no instrumentation work.
• The GPU reports separately, through NVIDIA's dcgm-exporter on :9400 (NVIDIA Data Center GPU Manager (DCGM) is a suite of tools and libraries designed to comprehensively manage, monitor, and diagnose enterprise-grade NVIDIA GPUs in clusters and data centers). vLLM tells you what the engine thinks is happening; DCGM tells you what the card is actually doing. Step 6 is built entirely on the gap between those two answers.

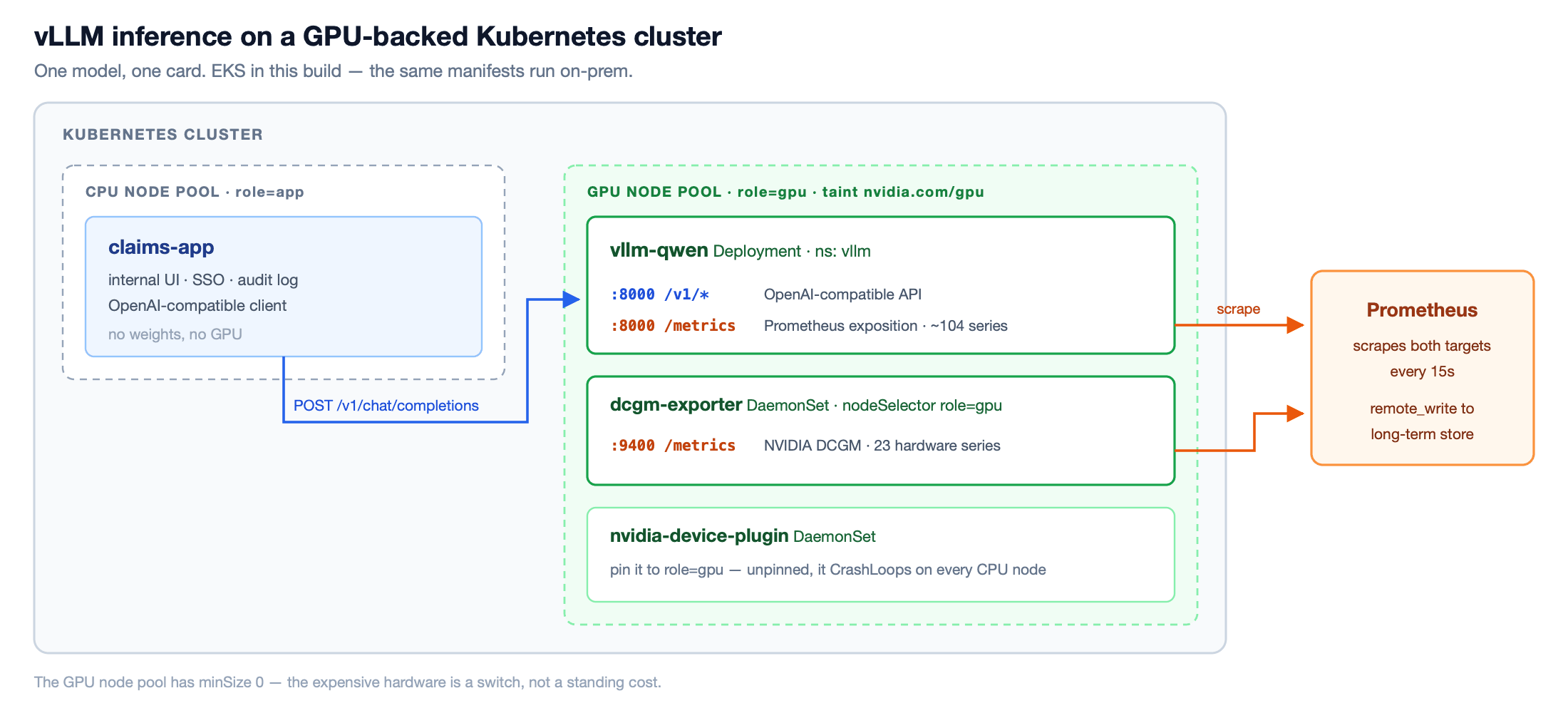

On this EKS cluster that means three things running side by side:

• vLLM as a plain Deployment on the tainted g5.xlarge GPU node pool. For one model on one card, a Deployment and a Service is the whole architecture.
• dcgm-exporter as a DaemonSet, pinned to the same GPU nodes.
• A Prometheus server on a CPU node, scraping both endpoints every 15 seconds.

Nothing here is AWS-specific. The production version is the same manifests on an on-prem cluster with L40S or H100 nodes — which is the point of doing this on Kubernetes rather than on a vendor's platform.

What about KServe and llm-d?

Neither was run for this guide, and neither changes where the metrics come from. KServe and llm-d sit on top of vLLM rather than replacing it — vLLM is still the engine, so /metrics is still the source of every number here. Each adds its own layer on top (KServe: autoscaler and revision metrics; llm-d: router and cache-routing metrics), but the inference telemetry underneath is identical.

What they change is when you need them — and each promotion is triggered by a metric you're already collecting:

How do you ship the vLLM metrics and DCGM metrics to Observability

A Prometheus scraping inside the cluster only holds hours of data — the metrics have to reach a store you can still query next week. There are two paths for that, and they are not equivalent.

Path A — OpenTelemetry Collector. Puts inference metrics into the same pipeline as your traces and logs. One collector, one auth path, one mental model. The cost is that Prometheus metrics sent through OTLP get normalized: the stored schema ends up neither purely Prometheus nor purely OTel, and metric names shift.

Path B — native Prometheus remote_write. Stands up a small Prometheus that scrapes both endpoints and pushes to a backend speaking the remote-write protocol. Names and labels land untouched, _sum / _count / _bucket histogram parts stay intact, and existing queries keep working.

For a tuning exercise, choose Path B. That's what produced every number in this guide. The reason is narrow but decisive: tuning means comparing against the vLLM documentation and the vLLM community, and both speak in exact metric names. When your chart says vllm:kv_cache_usage_perc, you can search for it.

The deployment is two YAML files — a Prometheus Deployment with two scrape jobs and a remote_write block, plus a Secret holding the backend credential. In this build the destination was an Elastic Serverless project, which exposes a Prometheus remote-write endpoint and lands data in a time-series data stream, metrics-vllm.prometheus-inference.

Two things cost me real time. If your backend has a separate ingest host for OTLP versus its main API, remote-write usually lives on the main API host, not the ingest one — pointing at the wrong one returns a 404 that looks like a path error. And the credential needs index-write privileges, not just ingest authentication; a key that works fine for OTLP can authenticate successfully and then 403 on every sample. Check prometheus_remote_storage_samples_failed_total on the Prometheus itself before looking anywhere else.

How do you confirm vLLM metrics landed in Elastic?

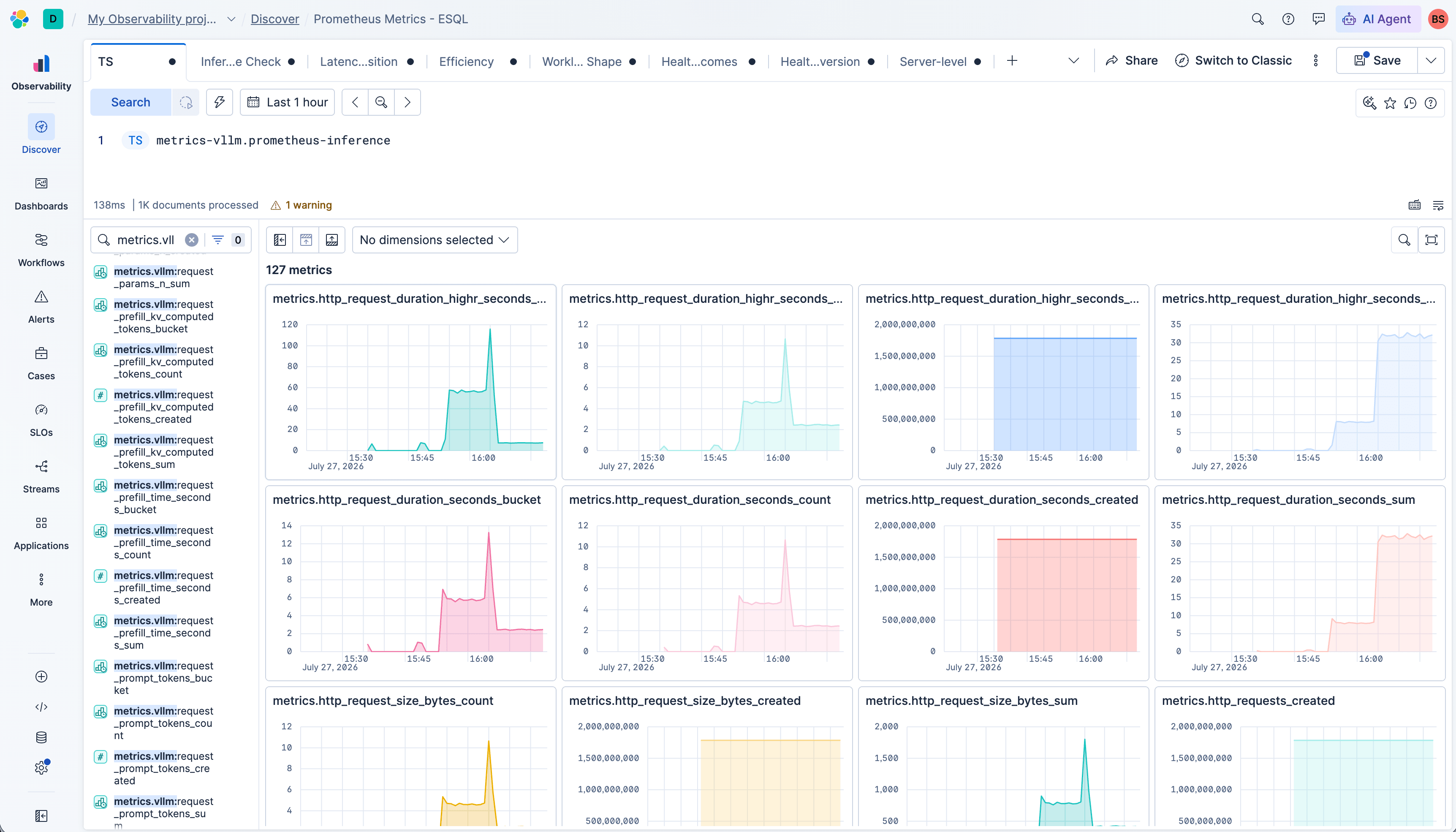

Once the pipeline is up, look at the field list. Roughly 127 metric series arrive from a single vLLM pod plus DCGM:

This screen is more useful than it looks. Scanning the field list is how you confirm your vLLM version's exact metric names — they do shift between major vLLM releases, and a dashboard built against the wrong names fails silently by returning nothing rather than erroring.

Two gotchas when querying vLLM metrics

Both produce results that look like "the metrics aren't working" when the pipeline is perfectly healthy.

vLLM metric names contain a colon (vllm:num_requests_running), so they need escaping in most query languages. More insidiously, if you filter by metric name across several metrics and then aggregate only one of them, you get rows back — full of nulls, with no error. Each Prometheus metric lands in its own field, so naming the field is the filter; you don't need the name predicate at all.

Counters need rate functions, gauges don't. vllm:generation_tokens_total is cumulative and monotonic — taking a max of it gives the pod's lifetime total, not its throughput. Gauges like vllm:num_requests_running, vllm:num_requests_waiting and vllm:kv_cache_usage_perc are instantaneous and want max or average. Mixing these up produces charts that are wrong but plausible, which is considerably worse than charts that are empty.

Which vLLM Prometheus metrics actually matter?

A reference for the metrics used in this guide, what each tells you, and the condition worth watching. Names are as vLLM emits them; the DCGM_FI_* series come from dcgm-exporter.

Step 1: Where does vLLM latency go? TTFT, prefill, and decode decomposed

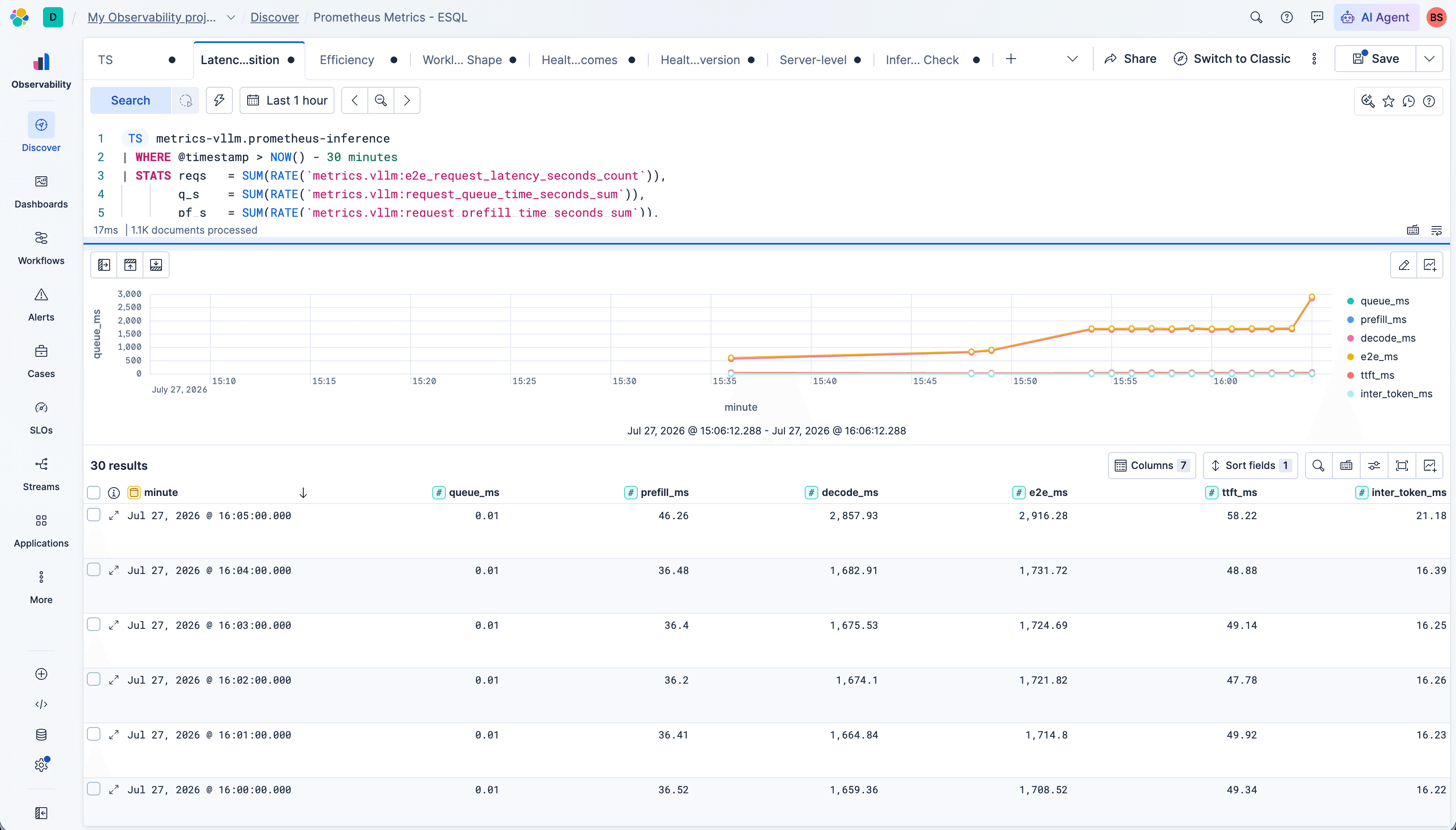

Decompose total latency into queue, prefill, and decode before optimizing anything. vLLM reports all three separately, and they have completely different fixes. This is the single most valuable chart in the setup.

The query averages each phase's cumulative time by request count in the same window — in Prometheus terms, rate(vllm:request_prefill_time_seconds_sum) / rate(vllm:e2e_request_latency_seconds_count), and the same for queue and decode:

TS metrics-vllm.prometheus-inference
| WHERE @timestamp > NOW() - 30 minutes
| STATS reqs = SUM(RATE(`metrics.vllm:e2e_request_latency_seconds_count`)),
        q_s  = SUM(RATE(`metrics.vllm:request_queue_time_seconds_sum`)),
        pf_s = SUM(RATE(`metrics.vllm:request_prefill_time_seconds_sum`)),
        dc_s = SUM(RATE(`metrics.vllm:request_decode_time_seconds_sum`))
    BY minute = BUCKET(@timestamp, 1 minute)
| EVAL queue_ms   = ROUND(q_s  / reqs * 1000, 2),
       prefill_ms = ROUND(pf_s / reqs * 1000, 1),
       decode_ms  = ROUND(dc_s / reqs * 1000, 1)
| KEEP minute, queue_ms, prefill_ms, decode_ms
| SORT minute ASC

At 8 concurrent requests on the A10G:

minute    | queue_ms | prefill_ms | decode_ms | e2e_ms  | ttft_ms | inter_token_ms
22:55:00  | 0.01     | 37.98      | 1664.69   | 1715.18 | 50.81   | 16.23
22:56:00  | 0.01     | 40.99      | 1670.44   | 1723.78 | 53.50   | 16.20

Read it against the objectives:

• TTFT is 51 ms against a 300 ms target. Passing, with almost 6× headroom. Perceived responsiveness is not the problem, whatever was said in the meeting.
• Inter-token latency is 16 ms — about 62 tokens/sec against a 50 ms / 20 tok-s bar. Text arrives roughly three times faster than a person reads it.
• Queue time is 0.01 ms. Nothing is waiting for admission; the engine has capacity to spare at this concurrency.
• Decode is 1,665 ms against 38 ms of prefill — 97% of the time is decode.

That last line is the finding. Every optimization aimed at prefill is worthless for this workload. Chunked prefill, prompt compression, a faster attention kernel for long contexts — all real techniques, all irrelevant when prefill is 2% of the time. Decode is memory-bandwidth-bound, so the levers that would actually move it are quantization, tensor parallelism across two cards, or a smaller model. A single chart eliminated the wrong shopping list.

Watch vllm:request_queue_time_seconds specifically. It is the earliest saturation signal in the entire vLLM metric set — queue time climbs before vllm:num_requests_waiting becomes visibly non-zero, because a request can wait milliseconds for admission without ever registering as queued at scrape time. If you alert on one thing from this section, alert on queue time crossing a small absolute threshold.

Step 2: Is vLLM using the GPU efficiently? KV cache, prefix caching, and batch occupancy

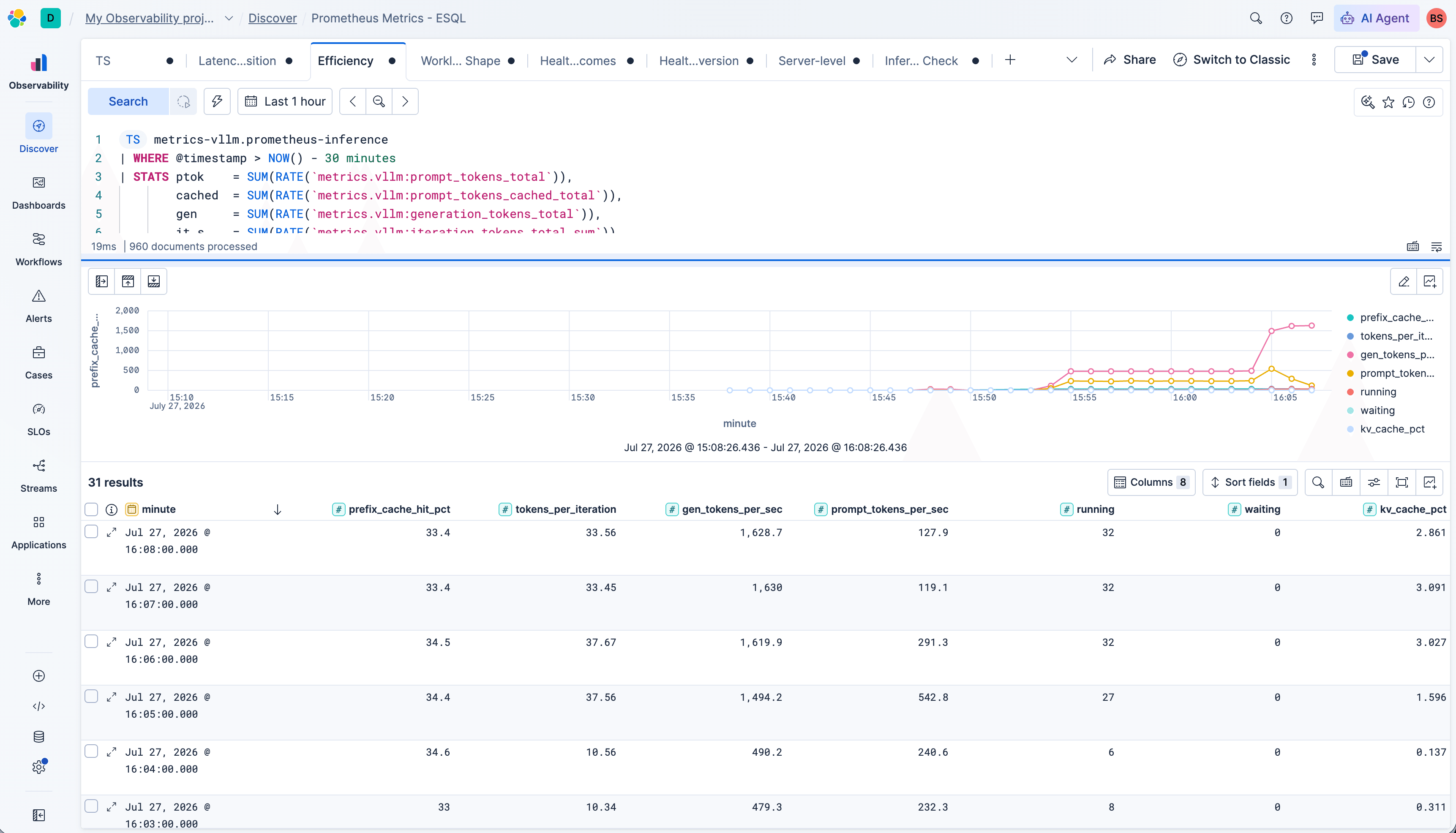

Four metrics answer this: prefix-cache hit rate, tokens per iteration, KV-cache occupancy, and running-vs-waiting requests. Latency tells you the experience is good; these tell you whether you're overpaying for it.

TS metrics-vllm.prometheus-inference
| WHERE @timestamp > NOW() - 30 minutes
| STATS ptok    = SUM(RATE(`metrics.vllm:prompt_tokens_total`)),
        cached  = SUM(RATE(`metrics.vllm:prompt_tokens_cached_total`)),
        gen     = SUM(RATE(`metrics.vllm:generation_tokens_total`)),
        it_s    = SUM(RATE(`metrics.vllm:iteration_tokens_total_sum`)),
        it_c    = SUM(RATE(`metrics.vllm:iteration_tokens_total_count`)),
        running = MAX(`metrics.vllm:num_requests_running`),
        waiting = MAX(`metrics.vllm:num_requests_waiting`),
        kv      = MAX(`metrics.vllm:kv_cache_usage_perc`)
    BY minute = BUCKET(@timestamp, 1 minute)
| EVAL prefix_cache_hit_pct = ROUND(cached / ptok * 100, 1),
       tokens_per_iteration = ROUND(it_s / it_c, 2),
       gen_tokens_per_sec   = ROUND(gen, 1),
       kv_cache_pct         = ROUND(kv * 100, 3)
| KEEP minute, prefix_cache_hit_pct, tokens_per_iteration,
       gen_tokens_per_sec, running, waiting, kv_cache_pct
| SORT minute ASC

minute   | prefix_cache_hit_pct | tokens_per_iteration | gen_tok/s | running | waiting | kv_cache_pct
22:55:00 | 32.5                 | 10.36                | 479.1     | 8.0     | 0.0     | 0.255
22:59:00 | 32.3                 | 10.34                | 480.0     | 8.0     | 0.0     | 0.121

A 32% prefix-cache hit rate is a third of all prefill work simply not done. The claims team's requests share a system prompt and policy boilerplate, and vLLM's automatic prefix caching recognizes that. This is a direct argument for raising prompt standardization: the more the application puts shared context in a consistent leading position, the higher this climbs and the cheaper every request gets. It is also the number that will crater the day a naive round-robin load balancer sits in front of two replicas — precisely the condition that justifies llm-d's cache-aware routing.

tokens_per_iteration ≈ 10.3 with 8 concurrent requests is continuous batching working correctly. Each forward pass through the model advances about ten sequences at once. If this sat near 1.0 with multiple requests in flight, batching would be broken and you'd be paying full model-forward cost per token per user. This metric proves you're getting vLLM's core value.

What does vllm:kv_cache_usage_perc actually measure?

vllm:kv_cache_usage_perc reports occupancy of vLLM's pre-allocated KV block pool — not physical GPU memory. At startup, vLLM reserves a fraction of VRAM (governed by --gpu-memory-utilization, default 0.9) and carves a KV block pool out of that reservation. This gauge reports how full that pool is.

That's why it read 0.25% here. Eight concurrent requests holding ~150 tokens each barely touch an A10G's block budget. The pool is large, and correctly so. Push the same server to 32 concurrent requests with 512–1,024 token generations and it moves — to about 2.8%. Still small.

The instinct is to read a number that low as "the cache is broken" or "I've massively over-provisioned." Both are wrong. Treating this gauge as a VRAM proxy is the most common self-hosted vLLM configuration error I see. Step 6 shows exactly how far apart the two are.

Step 3: What shape is your vLLM inference workload?

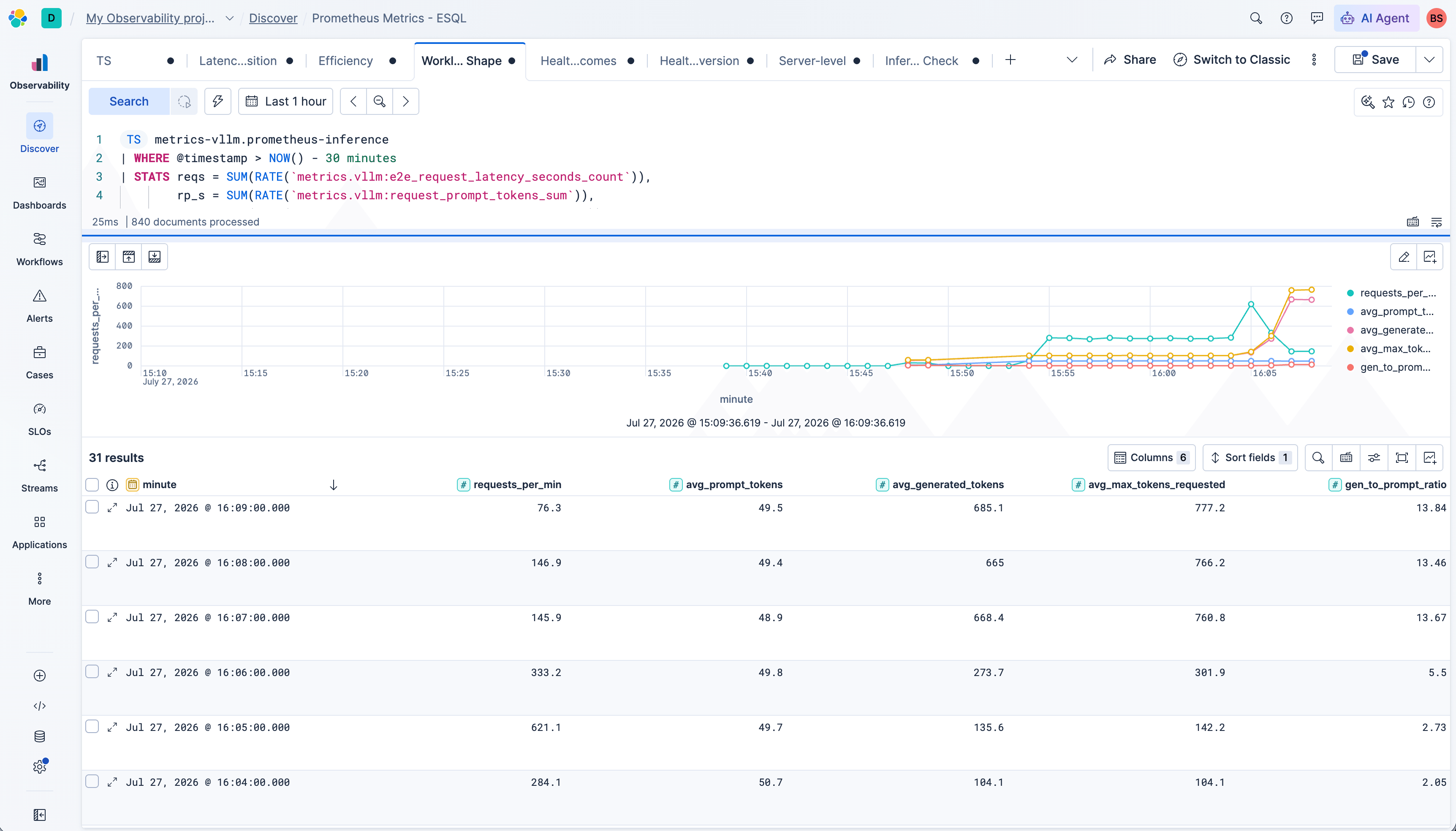

Confirm the workload is what you think it is before tuning anything. This is the panel that explains a latency "regression" that isn't your fault.

minute   | requests_per_min | avg_prompt_tokens | avg_generated_tokens | avg_max_tokens | gen_to_prompt_ratio
22:55:00 | 282.2            | 49.6              | 103.6                | 103.6          | 2.09
23:01:00 | 276.0            | 50.6              | 103.0                | 103.0          | 2.04

The generation-to-prompt ratio is 2.04 — this workload writes twice as much as it reads. That single ratio is the explanation for Step 1's 97%-decode finding, and it holds for any summarize-and-draft use case. If the team later adds a long-document RAG feature, prompts jump to thousands of tokens, the ratio inverts, the workload becomes prefill-bound, and the correct tuning changes completely. Watching this ratio is how you learn your workload changed character before someone files a ticket.

Now the column that should bother you: avg_generated_tokens equals avg_max_tokens exactly. Every request is stopping because it hit its token ceiling, not because the model finished its thought. The screenshot shows the same pattern holding as generation lengths scale to ~685 tokens against a ~777 ceiling.

In a load test that's an artifact of the generator. In production, that number is users getting cut off mid-sentence — and it is invisible in every latency metric you have. Which brings us to the metric that catches it.

Step 4: Are vLLM requests actually succeeding? Checking finished_reason

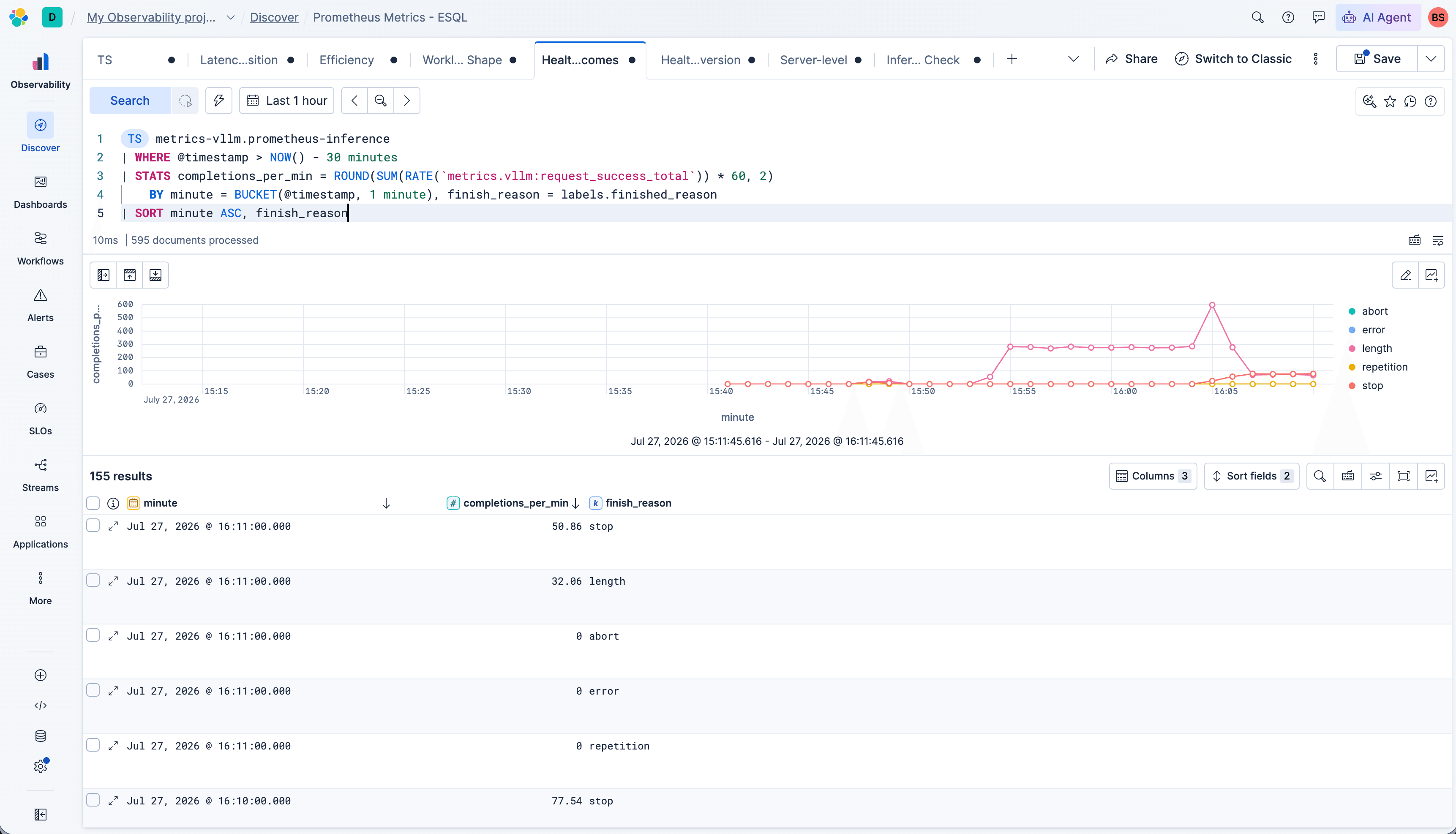

Break vllm:request_success_total down by its finished_reason label. This is the closest thing self-hosted inference has to an application-level SLI, and it catches a failure mode no latency chart can.

TS metrics-vllm.prometheus-inference
| WHERE @timestamp > NOW() - 30 minutes
| STATS completions_per_min = ROUND(SUM(RATE(`metrics.vllm:request_success_total`)) * 60, 2)
    BY minute = BUCKET(@timestamp, 1 minute), finish_reason = labels.finished_reason
| SORT minute ASC, finish_reason

Five outcomes, each meaning something different operationally:

Under the small load generator the split was 100% length — expected, since it requested a fixed ceiling. In the screenshot, at a mixed load, stop and length run side by side at roughly 51 and 32 completions/min. That mix is the healthy shape: most requests finishing on their own, a minority hitting the ceiling.

The lesson generalizes. error and abort are what you page on. But the stop-to-length ratio is what you review weekly, because drift toward length means answers are being truncated and no latency dashboard on earth will tell you.

One blind spot to close: vllm:* metrics only count requests the engine accepted. Malformed JSON, 4xx, auth failures and dropped connections never reach it. Those live in http_requests_total with status and handler labels — worth a panel beside this one, because "the model is broken" reports frequently turn out to be the gateway in front of it.

Step 5: What NVIDIA DCGM metrics say the GPU is actually doing

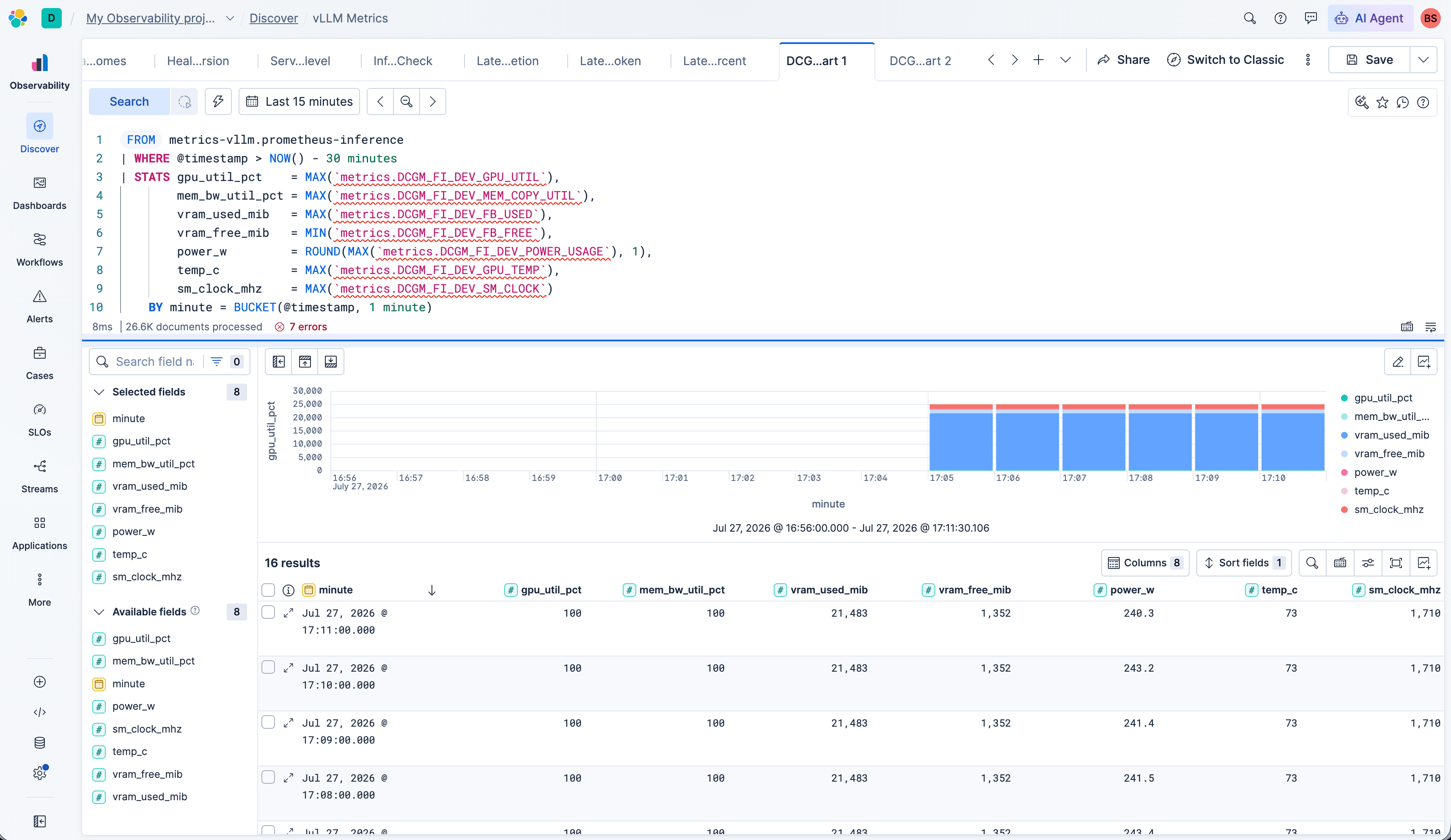

Use NVIDIA DCGM as an independent witness to vLLM's own account. Everything so far is the engine describing itself; DCGM describes the silicon.

FROM metrics-vllm.prometheus-inference
| WHERE @timestamp > NOW() - 30 minutes
| STATS gpu_util_pct    = MAX(`metrics.DCGM_FI_DEV_GPU_UTIL`),
        mem_bw_util_pct = MAX(`metrics.DCGM_FI_DEV_MEM_COPY_UTIL`),
        vram_used_mib   = MAX(`metrics.DCGM_FI_DEV_FB_USED`),
        vram_free_mib   = MIN(`metrics.DCGM_FI_DEV_FB_FREE`),
        power_w         = ROUND(MAX(`metrics.DCGM_FI_DEV_POWER_USAGE`), 1),
        temp_c          = MAX(`metrics.DCGM_FI_DEV_GPU_TEMP`)
    BY minute = BUCKET(@timestamp, 1 minute)
| SORT minute ASC

→ 100% GPU util · 21,483 MiB used / 1,352 MiB free · 240 W · 73 °C

100% utilization and 94% VRAM. Under the conventional reading, this card is maxed out and it's time to ask for more hardware. That reading is wrong.

Why is GPU utilization a misleading metric for LLM inference?

DCGM_FI_DEV_GPU_UTIL means "a kernel is resident on the device," not "the device is doing useful work." It reads 100% for a perfectly-tuned server and 100% for a badly-tuned one, so it cannot distinguish them. The DCGM profiling counters can:

gr_engine_active 99.8%  ·  tensor_active 16.6%  ·  dram_active 80.4%

Read those three together. The GPU's compute engine is busy essentially all the time — but its tensor cores, the units that do the actual matrix math, are active only 16.6%, while DRAM is active 80.4%. The card is not computing. It is waiting on memory.

This is independent, hardware-level confirmation of what Step 1 inferred purely from timings: decode is memory-bandwidth-bound. Two entirely different instruments, two different layers of the stack, one conclusion — the difference between a hypothesis and a finding.

It also permanently retires GPU utilization as a capacity metric for LLM inference. If your GPU capacity planning rests on DCGM_FI_DEV_GPU_UTIL — and most does — it rests on nothing.

Step 6: vLLM KV cache vs GPU VRAM, and why they disagree

Put vllm:kv_cache_usage_perc and physical VRAM usage on one 0–100% axis. They describe the same GPU memory, they sit at opposite ends of the chart, and both are correct.

minute   | running | gen_tok_s | kv_cache_pct | vram_used_pct | gpu_util | dram_active_pct | tensor_active_pct | tokens_per_watt
00:05:00 | 31      | 1627.5    | 2.82         | 94.1          | 100.0    | 80.4            | 16.6              | 6.80

KV cache at 2.8%. VRAM at 94.1%.

vLLM pre-allocates a large fraction of VRAM at startup — governed by --gpu-memory-utilization, default 0.9 — and carves its KV block pool out of that reservation. vllm:kv_cache_usage_perc reports occupancy of the pool. DCGM reports what the driver sees, which is the whole reservation, whether or not it's holding anything.

The operational consequences are precise, and they're the practical payoff of the entire exercise:

• Autoscale on vllm:kv_cache_usage_perc and vllm:num_requests_waiting. These describe admission capacity — whether the engine can take another request right now.
• Capacity-plan on VRAM. This describes physical space — whether a second model could ever fit on this card. (It can't. 1.3 GB free.)
• Never alert on VRAM. It will page you at 3 a.m. for a healthy, mostly-idle server, every single night, forever.

And tokens_per_watt — generated tokens divided by power draw, 6.8 here — is a genuine cost-efficiency metric. It's comparable across GPU models, batch settings and quantization levels in a way that neither latency nor utilization is. When you go back to Finance for card number two, this is the number that makes the argument: at 32 concurrent we sustain 1,627 tokens/sec at 240 watts, and here's what that becomes on an L40S.

vLLM tuning decisions: what the SRE does with these Prometheus metrics

Six steps, thirty minutes, one server. The verdict against the stated objectives:

The configuration is correct for this department, and the department is over-provisioned rather than under-provisioned. That's a defensible, evidence-backed answer to "it feels slow" — and it redirects the investigation to the app, the gateway, or the prompt, which is where the problem actually is.

The concrete follow-ups, each tied to a metric rather than a hunch:

1. Stop optimizing prefill. — vllm:request_decode_time_seconds vs vllm:request_prefill_time_seconds. Decode is 97% of the time against prefill's 2%, confirmed twice. Chunked prefill and prompt compression are off the table for this workload.
2. If more throughput is needed, quantize before buying hardware. — DCGM_FI_PROF_PIPE_TENSOR_ACTIVE (16.6%) vs DCGM_FI_PROF_DRAM_ACTIVE (80.4%). The bottleneck is memory bandwidth, not compute, so an FP8 or AWQ build of the same model is the highest-leverage single change: it moves fewer bytes per token, which is exactly the constrained resource.
3. Raise the client-side max_tokens ceiling. — vllm:request_success_total{finished_reason}. Every request finishing on length rather than stop is a user getting cut off mid-answer. This is the one finding that's a live user-experience defect. You need to increase the prompt max_token limit.
4. Standardize the prompt prefix. — vllm:prompt_tokens_cached_total over vllm:prompt_tokens_total, 32% today. But it should be better (more like 70%) More shared boilerplate in a consistent leading position raises it, and it's free.
5. Set the autoscaling trigger now, before it's needed. — vllm:kv_cache_usage_perc and vllm:num_requests_waiting. Scale when the first crosses ~60% or the second stays above zero. Do not scale on DCGM_FI_DEV_GPU_UTIL — it's pinned at 100% regardless.
6. Alert on queue time, not on VRAM. — vllm:request_queue_time_seconds is the earliest true saturation signal; DCGM_FI_DEV_FB_USED is a constant that looks like an emergency.
7. Revisit when the workload changes shape. — vllm:request_generation_tokens over vllm:request_prompt_tokens, 2.04 today. When the RAG feature ships that ratio inverts, the workload becomes prefill-bound, and half of this analysis needs redoing. The chart tells you the day it happens.

Notice that most of the metrics are looking at the vLLM metrics not the GPU metrics in helping optimize. These are still within the limit of a single service, but when you get vllm:num_requests_waiting to persistently non-zero, then you need to run KServe or you can use KEDA and HPA autoscaling. But you get the metrics to help you determine or allow KServe to scale. So you can see that understanding these metrics are crucial to tuning the inference service.

Elastic Observability can provide this to you.

Why self-hosted LLM tuning is an SRE problem, not an ML problem

Self-hosting an open-weight model is not primarily an ML problem. It is a capacity and saturation problem — something SREs have been extremely good at for twenty years. The blocker was never skill. It was that the telemetry sat unexamined on a /metrics endpoint nobody scraped, in a schema nobody had mapped to the questions they actually had.

Once it's collected, the reasoning is familiar work in unfamiliar clothes:

• Decompose latency by phase before optimizing anything (queue / prefill / decode).
• Distinguish the logical resource from the physical one (KV block pool ≠ VRAM), and know which each metric describes.
• Never trust a single-source utilization number — corroborate the engine's account with the hardware's.
• Tie every knob to a metric and every metric to a stated objective, so tuning converges instead of wandering.

For a team that isn't allowed to send its data anywhere, that difference — between running a model and operating one — is the whole ballgame. The department gets a capability it's otherwise locked out of, and the SRE gets to answer questions about it with numbers.

Frequently asked questions

What does vllm:kv_cache_usage_perc measure? It measures occupancy of vLLM's pre-allocated KV block pool, not physical GPU memory. vLLM reserves a fraction of VRAM at startup (--gpu-memory-utilization, default 0.9) and carves the KV pool from that reservation. In this deployment it read 2.8% while DCGM reported 94.1% VRAM used on the same card at the same moment. Use it as an autoscaling signal; use VRAM for capacity planning.

Why is my vLLM deployment decode-bound? Because the workload generates more tokens than it reads. Compare vllm:request_decode_time_seconds against vllm:request_prefill_time_seconds, and check the generation-to-prompt token ratio. In this deployment the ratio was 2.04 — twice as many output tokens as input — which produced 1,665 ms of decode against 38 ms of prefill. Decode is memory-bandwidth-bound, so quantization, tensor parallelism, or a smaller model help; prefill optimizations do not.

Should I autoscale vLLM on GPU utilization? No. DCGM_FI_DEV_GPU_UTIL means a kernel is resident on the device, not that the device is doing useful work — it reads 100% for both a well-tuned and a badly-tuned server. Autoscale on vllm:kv_cache_usage_perc (around 60%) or on vllm:num_requests_waiting staying above zero, since those describe whether the engine can admit another request.

Why does my GPU show 100% utilization when it isn't fully used? Because GPU utilization only reports kernel residency. Check the DCGM profiling counters instead: in this deployment DCGM_FI_PROF_GR_ENGINE_ACTIVE was 99.8% while DCGM_FI_PROF_PIPE_TENSOR_ACTIVE was only 16.6% and DCGM_FI_PROF_DRAM_ACTIVE was 80.4%. That combination means the GPU is waiting on memory bandwidth rather than computing.

How do I get vLLM metrics into Prometheus? vLLM already exposes Prometheus exposition format on /metrics at its serving port — no adapter or instrumentation needed. Point a Prometheus scrape job at the vLLM Service, add a second job for dcgm-exporter on :9400, and use remote_write to ship to long-term storage. Sending through an OpenTelemetry Collector also works but normalizes the metric names, which makes them harder to match against vLLM documentation.

What TTFT should I target for an interactive LLM application? For a streaming chat-style interface, a p95 time-to-first-token under 300 ms feels immediate, and inter-token latency under 50 ms (about 20 tokens/sec) outpaces reading speed. This deployment measured 51 ms TTFT and 16 ms inter-token latency on a 3B model on a single NVIDIA A10G, leaving roughly 6× headroom.

Why are all my vLLM requests finishing with length? Because they're hitting the max_tokens ceiling instead of the model choosing to stop. Break vllm:request_success_total down by its finished_reason label: a high length share means answers are being truncated mid-sentence. This is invisible in every latency metric, so review the stop-to-length ratio regularly and raise the client-side ceiling if it drifts.

When should I move from a plain vLLM Deployment to KServe or llm-d? Move to KServe when vllm:num_requests_waiting is persistently non-zero at peak and you need replicas to appear without human intervention. Move to llm-d when your prefix-cache hit rate collapses across replicas — a sign that load balancing scattered conversations that shared a prefix — or when prefill time starts stealing measurably from decode.
