Deploy Elastic in air-gapped and disconnected environments

Elastic is fully operational when deployed in air-gapped and disconnected networks.

By
Chaison Griffin
Summary
  • Elastic air-gapped deployments include self-managed, Elastic Cloud Enterprise (ECE), and Elastic Cloud for Kubernetes (ECK).
  • Elastic makes it possible to locally host all required components to ensure Security, EDR, search, observability, and other capabilities are fully operational offline.
  • Internal or private Certificate Authorities are easily configurable within Elastic to ensure all communications are secured using TLS.

Government agencies and military organizations often operate their own private, secure  networks. Many of these are disconnected and air-gapped networks, meaning they have no access to the public internet. This often complicates what products and services they can use, especially because more and more tools are hosted exclusively in the cloud.

This situation extends beyond the public sector. It’s increasingly common for companies operating in the financial, medical, and research sectors to host resources completely disconnected from the outside world to ensure maximum security. No matter the reason, Elastic provides full offline capabilities for the Elasticsearch Platform, including our search, security, and observability solutions.

In this blog, we’ll walk through the options Elastic provides for air-gapped architecture and services as well as provide step-by-step guidance on how to navigate certificate requirements and trust management.

Deployment methods

Elastic supports multiple deployment models to meet different operational and security requirements. These can be broadly categorized into SaaS and non-SaaS deployments.

In this blog, we’ll focus on non-SaaS deployment models, which enable Elastic to operate in air-gapped or disconnected environments.

These deployment models can be used in:

  • On-premises data centers

  • Public or government cloud environments, including GovCloud

  • Deployable or tactical kits with limited or intermittent connectivity

  • Ships, submarines, or airplanes

Elastic in air-gapped environments

Elastic is fully operational in disconnected and air-gapped environments. All capabilities function the same way as in internet-connected deployments, provided the required supporting services are hosted locally.

Elastic enables customers to mirror or locally deploy all external dependencies, eliminating runtime internet requirements.

Core services that can be locally hosted

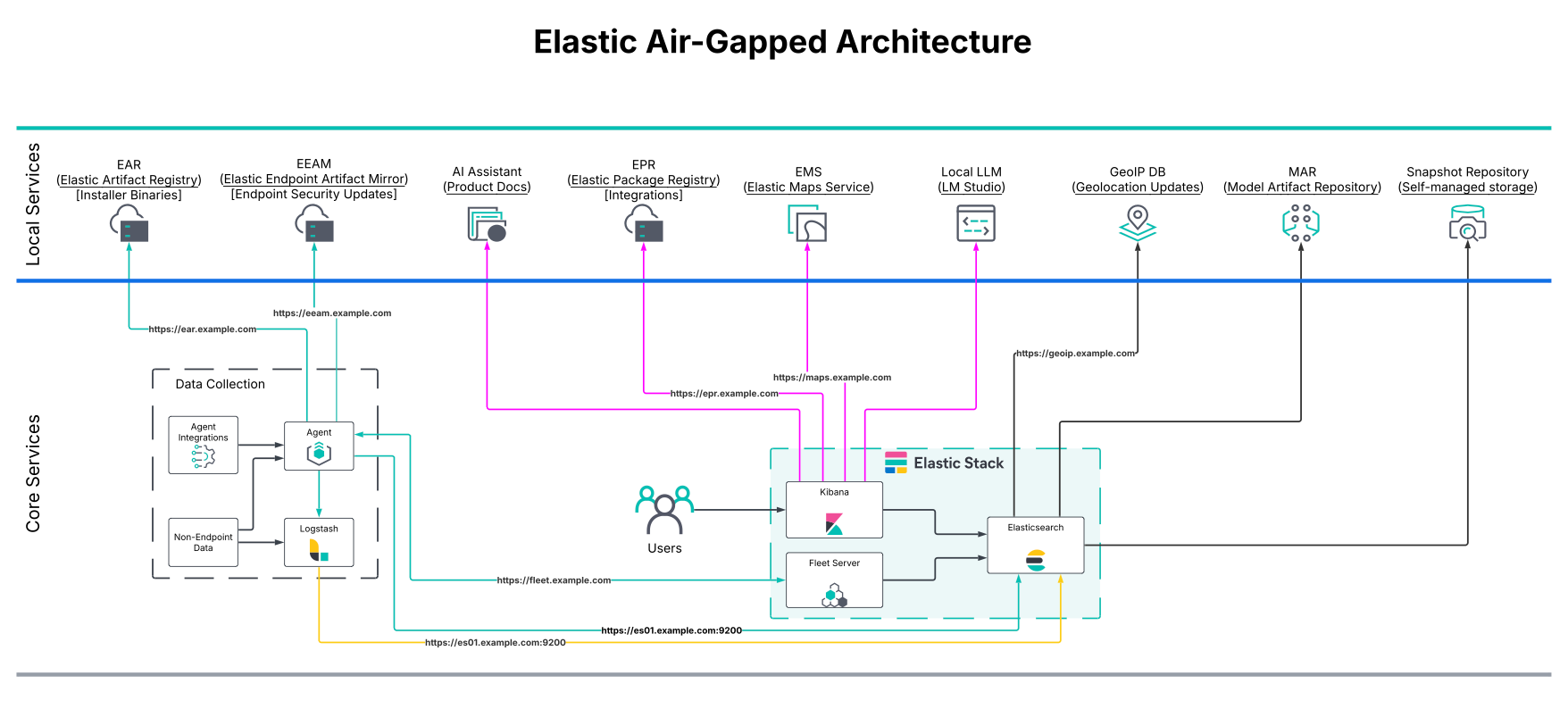

Elastic air-gapped architecture

Most Elastic supporting services are delivered as containerized applications. The containers can be deployed within Kubernetes or locally on a VM using docker or podman.

Network and access considerations

  • Services are typically deployed behind a reverse proxy (e.g., NGINX or Apache)

  • Reverse proxies are commonly used for:

    • SSL/TLS termination

    • Centralized access control

    • Simplified DNS and routing

Elastic Air-gapped architecture

TLS certificates and trust management

Operating in disconnected environments often requires the use of self-signed certificates or certificates signed by an internal Certificate Authority (CA).

Elastic supports multiple methods to ensure secure communication between clients and Elastic services, such as Elasticsearch, Kibana, and Fleet.

If an organization uses an internal CA, it:

  • Issues TLS certificates for all Elastic services using that CA

  • Distributes the CA certificate to:

    • Host operating systems

    • Workstations

    • Container trust stores

This allows native trust validation without additional configuration.

Elastic ships with an internal CA to configure HTTPS within the Elastic Stack. By default, this CA is set up and signs the certificates that are used during the initial setup of Elasticsearch.

It is recommended to use the Elastic CA to generate the certificates needed for other components, such as Kibana and Fleet.

Alternate approach: Trusted authority CA

If an organization has their own trusted authority CA, you can use the elasticsearch-certutil command to generate the CSR needed to configure HTTPS for Elasticsearch and Kibana.

Configure CA trust from Fleet

It’s not always possible to distribute the CA certificates to all endpoints. In these situations, Elastic also provides the option to define CA trust information within Fleet policies for Elastic Agent communications.

In Fleet, for the Elasticsearch output, you have two options to configure TLS certificate details that all Agents will use to validate the certificates of the Elasticsearch nodes:

  1. Elasticsearch CA trusted fingerprint

  2. Advanced YAML configuration

The benefit of configuring the certificate settings within Fleet is that all agents will then trust the Elasticsearch certificates regardless of whether or not the endpoint has the appropriate CAs added to the local trust store.

certificate settings within Fleet

Option 1: Elasticsearch CA trusted fingerprint

Obtain the fingerprint of the CA using the following command: openssl x509 -fingerprint -sha256 -in config/certs/http_ca.crt

It’s recommended to use the top-level root CA if you have intermediate certificates. If the fingerprint of the certificate is present anywhere in the certificate chain during the handshake, then the handshake will continue normally.

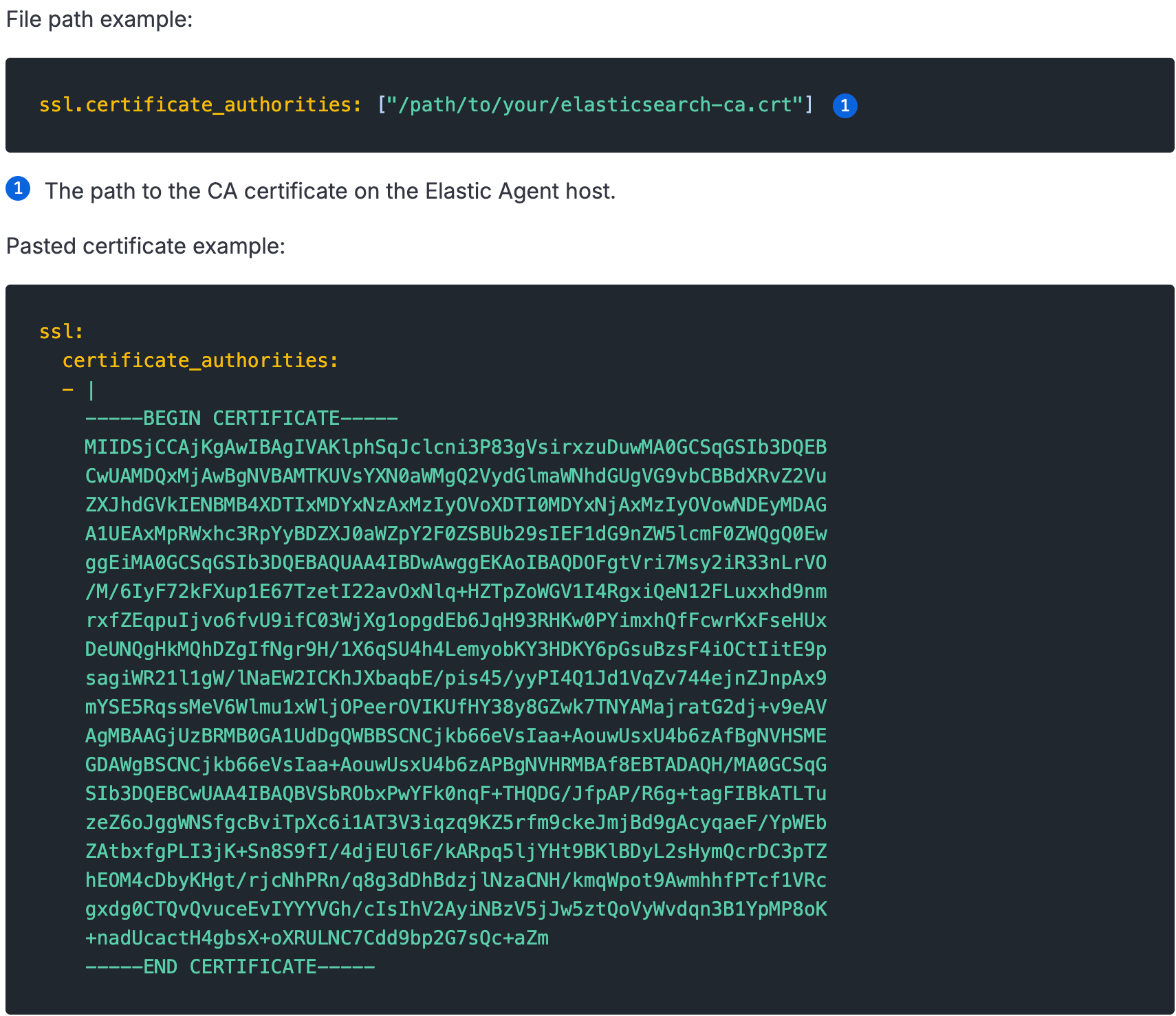

Option 2: Advanced YAML configuration

For the advanced settings, you have several options to specify which CA should be used.

Advanced YAML configuration

Refer to the Fleet output settings and Fleet secure connections pages for more details on the options allowed for configuring CA trusts.

Certificate architecture considerations

Each Elastic component requires its own TLS certificate, including:

  • Elasticsearch

  • Kibana

  • Fleet Server

This requirement applies even when services are deployed behind a reverse proxy or load balancer.

Elastic enforces this model to:

  • Protect data in transit

  • Ensure secure service-to-service communication

  • Support deployments without external proxies or load balancers

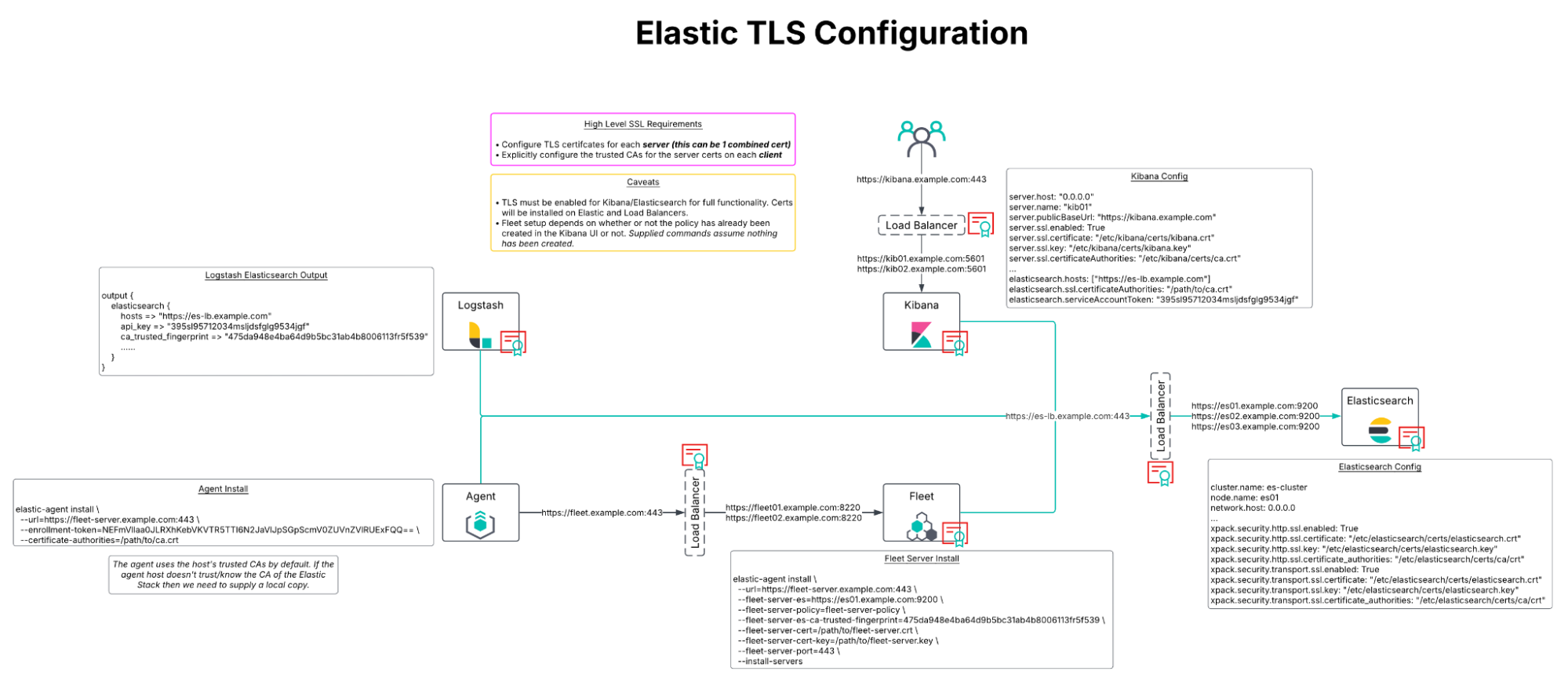

Elastic TLS Configuration

Next steps for operating Elastic in air-gapped and disconnected environments

Because Elastic is fully operational in air-gapped and disconnected environments, organizations can deploy the same search, security, and observability platform across both connected and non-connected networks.

As a result, organizations can:

  • Reduce operational complexity

  • Minimize tool sprawl

  • Maintain consistent workflows, detections, and analytics across environments

By supporting secure, local-first architectures without sacrificing functionality, Elastic delivers a unique advantage for mission-critical and regulated environments.

To learn more about what Elastic can do for your organization in these austere environments, reach out to our team.
