Release a bug fix for supporting older package version

When a bug fix needs to be released for an older package version, the backport workflow handles most of the process automatically: branch creation, cherry-picking, changelog syncing, and PR assignment. The steps below cover how to set up a backport branch and apply a fix. For example: in this PR (AWS package version 1.23.4), support for Kibana version 7.x was dropped and the AWS package version was bumped from 1.19.5 to 1.20.0. A bug was later found in the EC2 dashboard that needed to be fixed for Kibana version 7.x, so instead of adding a new AWS package version 1.23.5, a fix was needed between 1.19.5 and 1.20.0 — creating a new version (for example, 1.19.6) based on 1.19.5.

Contents:

  1. Find the git commit for the target package version
  2. Add a backport branch entry and open a PR (skip if the branch already exists)
  3. Create a PR for the bug fix
  4. Update the changelog in main

The backport checklist comment drives step 3 automatically for most cases — after your PR is merged to main, a checklist is posted on it; tick the branches you want and the workflow creates the backport PRs.

In the example above, the commit to be fixed is the one right before this PR updating package aws:

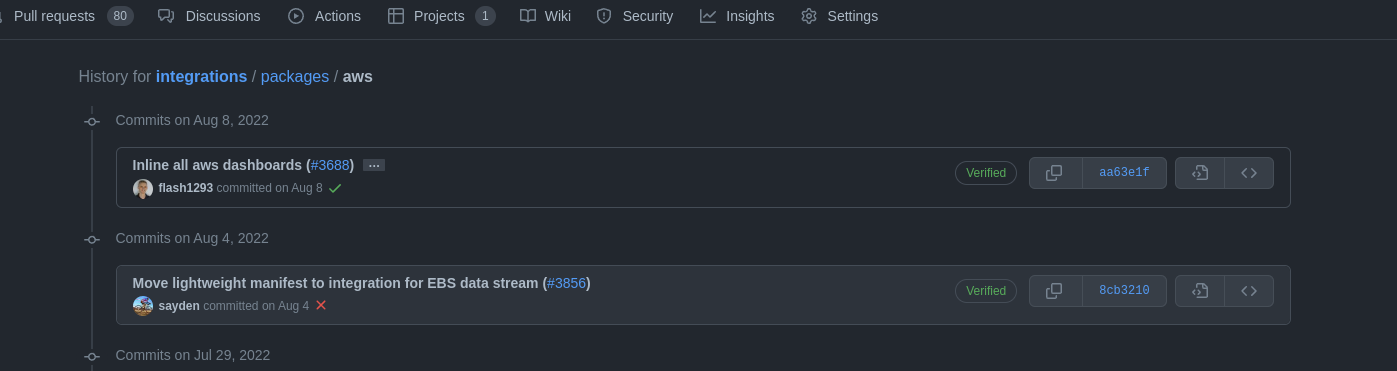

  • Using the web:

  • Using the command line:

    • Using the helper script dev/scripts/get_release_commit.sh, which finds the commit directly from the package name and version:

      Syntax:

      ./dev/scripts/get_release_commit.sh -p <package_name> -v <version>

      Example:

      $ ./dev/scripts/get_release_commit.sh -p aws -v 1.19.5
8cb321075afb9b77ea965e1373a03a603d9c9796

    • Alternatively, using git log:

      Syntax:

      git log --grep "#<pr_id>" -- packages/<package_name>
git log -n 1 <merge_commit>^ -- packages/<package_name>

      Example:

      $ git log --grep "#3688" -- packages/aws
commit aa63e1f6a61d2a017e1f88af2735db129cc68e0c
Author: Joe Reuter <xx@email.de>
Date:   Mon Aug 8 17:14:55 2022 +0200

    Inline all aws dashboards (#3688)

    * inline all aws dashboards

    * format

    * apply the right format

    * inline again

    * format
$ git log -n 1 aa63e1f6a61d2a017e1f88af2735db129cc68e0c^ -- packages/aws
commit 8cb321075afb9b77ea965e1373a03a603d9c9796
Author: Mario Castro <xx@gmail.com>
Date:   Thu Aug 4 16:52:06 2022 +0200

    Move lightweight manifest to integration for EBS data stream (#3856)

Step 2: Add a backport branch entry and open a PR

The backport branch is created automatically when a new entry is merged into .backports.yml.

  • Recommended: use the backport add-entry subcommand

    This command resolves the base commit automatically (combining steps 1 and 2) and inserts the entry in the correct position in the file. Build the tool from the repository root first:

    # Requires Go 1.26+ (see cmd/backport/go.mod)
go build -C cmd/backport -o "$PWD/build/backport" .

    Then run:

    ./build/backport add-entry <package_name> <base_version>

    Example:

    $ ./build/backport add-entry aws 1.19.5
Added: branch=backport-aws-1.19 base_commit=8cb321075afb9b77ea965e1373a03a603d9c9796

  • Alternatively: add the entry manually

    Open a PR adding the entry for the branch you need:

    - package: <package_name>
  branch: backport-<package_name>-<major>.<minor>
  base_version: "<version>"
  base_commit: "<commit_from_step_1>"
  maintained_until: null
  archived: false
  remove_other_packages: true

    Example for the aws package at version 1.19.5:

    - package: aws
  branch: backport-aws-1.19
  base_version: "1.19.5"
  base_commit: "8cb321075afb9b77ea965e1373a03a603d9c9796"
  maintained_until: null
  archived: false
  remove_other_packages: true

    Fields:

    • package — required. Package name as defined in the name field of manifest.yml.
    • branch — required. Name of the backport branch to create, following the format backport-<package_name>-<major>.<minor>.
    • base_version — required. The package version to branch from (e.g. 1.19.5, 1.0.0-beta1).
    • base_commit — required. The commit SHA found in the previous step.
    • maintained_until — optional. null for a new active branch. Set to a YYYY-MM-DD date when the branch has a known end-of-life: the branch is automatically excluded from the checklist and branch creation once that date passes (strictly before today in UTC). Prefer this over archived: true when the end-of-life date is known in advance. See Suppressing a branch from the checklist.
    • archived — required. false for a new active branch. Set to true to immediately exclude the branch from the checklist and branch creation, with no fixed end-of-life date. Archiving does not delete the branch — packages can still be published from it; archiving only removes it from automated tooling. See Suppressing a branch from the checklist.
    • remove_other_packages — required. true: the target package is kept along with its requires.* dependencies and .link file source packages, transitively expanded; all others are removed from packages/. false: all packages are kept. Set to true for the standard case — it keeps the branch lean and avoids running tests for unrelated packages on every PR.

Once the PR is opened, CI automatically:

  • Validates the new entry schema (check-backports-inventory)
  • Runs a dry run of the branch creation, which verifies that the package is published, the commit exists, the commit publishes the expected version, and the branch does not already exist — without pushing anything

The PR requires review from the elastic/ecosystem team (they are the CODEOWNERS of .backports.yml). Once merged to main, the branch backport-<package_name>-<major>.<minor> is created and pushed automatically. A comment is posted on the merged PR confirming success or failure of the branch creation.

When remove_other_packages: true is set in .backports.yml (the standard case), the backport branch is created with the target package and its requires.* dependencies and .link source packages, transitively expanded — all unrelated packages are removed. This keeps the branch lean and avoids running tests for unrelated packages on every PR opened against it.

  • Automatic: via the backport checklist

    Once the fix is merged to main, tick the branches you want in the checklist comment posted on the merged PR and the auto-backport.yml workflow creates the backport PRs automatically — see Backport checklist comment. If the workflow encounters a conflict or error it marks the branch with ⚠️ in the checklist; use backport_apply.sh below to resolve it manually.

  • Manual: use backport_apply.sh

    For ad-hoc backports, retries, or fixes applied directly to a backport branch, backport_apply.sh handles the entire process: cherry-picking the commit, bumping the patch version, writing the changelog entry, syncing package owners, and opening a PR.

    # Basic usage
dev/scripts/backport_apply.sh \
  --sha <merge_commit_sha> \
  --package <package_name> \
  --target <branch_or_version> \
  --open-pr

# With assignee resolution (pass the original PR number on main)
dev/scripts/backport_apply.sh \
  --sha <merge_commit_sha> \
  --package <package_name> \
  --target <branch_or_version> \
  --open-pr \
  --origin-pr-number <pr_number>

    Required arguments:

    Argument Description
    --sha Merge commit SHA of the bug fix PR on main to cherry-pick (minimum 8 characters).
    --package Package name as it appears in manifest.yml.
    --target Version series (e.g. 6.14) or full branch name (e.g. backport-aws-6.14); the branch name is derived automatically from the version series.

    Common optional flags:

    Flag Description
    --open-pr Create a GitHub PR after pushing the working branch.
    --dry-run Commit locally and skip push and PR creation; use to review the result before opening a PR.
    --origin-pr-number Number of the source PR on main; used to auto-assign the backport PR to the original author or merger. Optional — omit if running outside a PR context.

    What the script does, in order:

    1. Fetches the backport branch and creates a local working branch (auto-backport/<pkg>-<version>-<sha8>).
    2. Cherry-picks <sha>, auto-resolving version-only conflicts in manifest.yml; restores changelog.yml to HEAD (it is regenerated in the next step).
    3. Bumps the patch version in manifest.yml and inserts a new changelog.yml entry (with a placeholder link that is fixed after the PR is opened).
    4. Syncs package owners from main as a separate commit — see Package owner synchronization.
    5. With --open-pr:
      1. Pushes the working branch and opens a PR against the backport branch.
      2. Replaces the placeholder link in changelog.yml with the real backport PR URL and pushes a second Fix changelog link to backport PR commit.

    If the cherry-pick conflicts on files beyond a version-line difference in manifest.yml, the script reports the conflicting files and cleans up. In this case, apply the fix manually using the alternative path below.

  • Alternative: manual cherry-pick

    Create a new branch in your own remote (do not use a name starting with backport-), apply the bug fix, bump the patch version in manifest.yml, and add a changelog.yml entry. Open a PR targeting the backport branch.

    Once this PR is merged, the new version of the package is published automatically. The changelog sync to main (step 4) fires automatically — no manual action needed.

    For subsequent fixes to the same version, no new branch is needed — open a new PR against the same backport branch.

This step is handled automatically. When a backport PR is merged, the sync-backport-changelog.yml workflow fires and opens a PR against main that adds the new changelog entry for the backport version. The sync PR is created with two labels:

  • backport:sync-changelog — identifies it as an automated sync PR.
  • changelog-link-check:skip — skips the changelog link validation (the entry's link points to the backport PR, not the sync PR itself).

The sync PR is also automatically assigned: the workflow uses the backport PR's author if they are not a bot and have write/maintain/admin access on the repository, otherwise the merger if they are not a bot and have write/maintain/admin access. If neither qualifies, no assignee is set.

After the workflow runs, a comment is posted on the merged backport PR linking to the sync PR or reporting a failure. No manual action is needed.

Retrying a failed sync: if the workflow posts a failure comment, it includes a /sync-changelog retry hint. Any repository member with write, maintain, or admin access can re-trigger the sync by commenting /sync-changelog on the original merged backport PR — no dummy commit required. The workflow will overwrite any stale working branch left by the previous attempt and open the sync PR. Commenting on an unmerged PR exits silently with no side effects.

Backport branches are created from historical commits, so their manifest.yml owner field and .github/CODEOWNERS entries may be stale from the start and can drift further as packages change hands on main. Because GitHub resolves PR reviewers from the CODEOWNERS on the PR's base branch, a stale backport branch notifies the wrong team.

Two mechanisms keep owners in sync.

When backport_apply.sh (a wrapper around backport apply) creates a backport PR, it automatically syncs the package's owners from main as a separate commit on top of the cherry-pick:

  • What is synced: the owner.github field in manifest.yml, the package's own .github/CODEOWNERS line, and any sub-path entries nested under the package (data streams, kibana/ directory, and other subdirectory overrides).
  • Commit message: Sync <package> package owners from main
  • No-op: if the owners already match main, the commit is skipped silently.
  • Warn-and-continue: if main cannot be fetched, a warning is printed and the apply continues without syncing. If the package no longer exists on main, the sync is skipped silently. The backport PR is still opened; the CI check below surfaces any remaining mismatch.

A Buildkite step runs on every pull request targeting a backport-* branch (triggered when packages/** or .github/CODEOWNERS changes) and posts a comment on the PR with one of three outcomes:

  • ✅ In sync — Package owners are in sync with main. No action needed.
  • Mismatch — Package owners are out of sync with main: followed by a list of packages and the team(s) they should now be owned by. Update manifest.yml (owner.github) and .github/CODEOWNERS for each listed package to match the teams shown.
  • Check failed — The backport owner check failed to run with a link to the build log. This is usually a transient network error fetching main; re-run the build.

The step is currently soft_fail: true — a mismatch posts a warning comment but does not block merge.

This section describes the backport checklist comment, which is posted on a pull request after it is merged to main. It is only posted for pull requests that change at least one package with active backport branches that is not suppressed. No checklist comment is posted for pull requests merged into any other branch, such as a backport-* branch.

When a pull request is merged to main, the backport-packages-detect.yml workflow runs on the resulting push to main. It finds the merged PR, detects the packages changed by it, and posts a comment on that PR listing the active backport branches for each of those packages. The comment is posted only after merge, so it does not appear while the PR is open. It only appears when at least one package changed by the PR has active backport branches in .backports.yml. Packages listed in skip_checklist_packages are ignored when making that decision (see Suppressing a package from the checklist), and the comment is not posted for sync-changelog PRs (labeled backport:sync-changelog).

The comment ends with a cc line mentioning the PR author and the person who merged it (just the author if they are the same person), so both are notified.

Example comment:

## Backport branches

> [!IMPORTANT]
> Only active backport branches for packages changed by this PR are shown.

Tick the branches you want to backport to. A backport PR will be opened automatically for each branch you check.

Backport a change when it fixes behavior a branch already has; leave new behavior on `main`. See [when and why to backport](https://github.com/elastic/integrations/wiki/Package-Backports) if you are unsure.

**aws**
- [ ] `backport-aws-1.19` (maintained until 2027-06-30)
- [ ] `backport-aws-6.x`

---

> [!TIP]
> If a branch above is no longer required, set `archived: true` in its entry in `.backports.yml` to stop it appearing here.
> If the branch has a known end-of-life date, prefer `maintained_until: "YYYY-MM-DD"` — it will be excluded automatically once that date passes.

cc @pr-author @pr-merger

Tick a checkbox for each branch you want to backport to. Because the checklist is posted after the PR is merged, nothing is backported until someone ticks a box. Editing the comment triggers the auto-backport.yml workflow, which creates a backport PR for each newly checked branch and updates the comment as it goes (✅ = success, ⚠️ = conflict or error). Notes:

  • Only edits to the bot-posted checklist comment trigger the workflow, and only by users with write, maintain, or admin access on the repository.
  • Ticking several boxes in quick succession is safe: runs for the same PR are queued rather than cancelled, and a branch that already has a backport PR is not backported twice.
  • A branch you missed can be ticked at any time after the merge; the workflow picks it up and creates the backport PR.
  • Each backport PR is automatically assigned to the original PR's author (if they are not a bot and have write/maintain/admin access on the repository) or to the merger (if they are not a bot and have write/maintain/admin access on the repository).
  • If you do not intend to backport, leave all checkboxes unticked.

To stop a branch appearing in the checklist, update its entry in .backports.yml:

  • archived: true — excludes the branch immediately, with no fixed end-of-life date.
  • maintained_until: "YYYY-MM-DD" — excludes the branch automatically once that date passes (strictly before today in UTC); preferred when the end-of-life date is known.

Archiving a branch does not delete it. Packages can still be published from an archived branch; archiving only removes the branch from the checklist and branch creation.

To hide all checklist entries for a package across all PRs, add it to the top-level skip_checklist_packages list in .backports.yml:

skip_checklist_packages:
  - security_detection_engine

Packages in skip_checklist_packages are excluded from the checklist comment (no checkboxes are shown) but still participate in changelog syncing and other automated backport flows. Use this for packages whose backport workflow is managed separately.

These issues occur when working on backport branches based on older commits where CI infrastructure has since changed. If CI on your backport branch is failing with an unfamiliar error, check here first.

  1. Missing elastic-package stack shellinit in backport branch:

    • Affected versions: elastic-package < v0.86.0. From v0.86.0 onward, elastic-package reads the stack connection settings (Elasticsearch host, username, password, CA cert) automatically from the current profile, so shellinit is no longer required.

    • Example of the error:

      Error: could not create kibana client: undefined environment variable: ELASTIC_PACKAGE_KIBANA_HOST. If you have started the Elastic stack using the elastic-package tool, please load stack environment variables using 'eval "$(elastic-package stack shellinit)"' or set their values manually

    • Solution: add elastic-package stack shellinit command in .buildkite/scripts/common.sh.

  2. License file not found in backport branch:

    • Example of the error:

      Error: checking package failed: building package failed: copying license text file: failure while looking for license "licenses/Elastic-2.0.txt" in repository: failed to find repository license: stat /opt/buildkite-agent/builds/bk-agent-prod-gcp-1703092724145948143/elastic/integrations/licenses/Elastic-2.0.txt: no such file or directory

    • Solution: Remove line defining ELASTIC_PACKAGE_REPOSITORY_LICENSE environment variable.

  3. Unknown flag --coverage-format in backport branch:

    • Example of the error:

      Error: unknown flag: --coverage-format

    • Cause: The --coverage-format flag was introduced in elastic-package v0.96.0 (2024-01-18). Backport branches based on commits predating that release use an older elastic-package version that does not recognise the flag.

    • Solution: Remove the --coverage-format flag from the relevant script on the backport branch.

  4. Docker Compose YAML unmarshal error in backport branch:

    • Example of the error:

      Error: error running package system tests: could not complete test run: could not setup service: could not get Docker Compose configuration for service: yaml: unmarshal errors: line 8: cannot unmarshal !!seq into map[string]string

    • Affected versions: elastic-package < v0.96.0.

    • Cause: elastic-package < v0.96.0 always calls the standalone docker-compose binary directly (not the docker compose CLI plugin). A CI infrastructure update replaced the standalone binary installation (with_docker_compose) with the Docker CLI plugin (with_docker_compose_plugin). Docker 26.1.2+ ships docker-compose-plugin v2.24.7+ as a system binary, which elastic-package < v0.96.0 picks up instead of the pinned version. Docker Compose v2.23+ changed the environment field in its config output from a YAML map to a sequence (!!seq), which the older elastic-package struct (Environment map[string]string) cannot unmarshal. Pinning DOCKER_COMPOSE_VERSION in the pipeline file does not help because that variable only controls the CLI plugin installed at ~/.docker/cli-plugins/, which pre-v0.96.0 elastic-package never uses.

      From v0.96.0 onward, elastic-package tries docker compose (CLI plugin) first and falls back to docker-compose (standalone), so it picks up the pinned plugin version and the error does not occur.

    • Solution: On the backport branch, make the following changes (see example commit):

      1. Revert DOCKER_COMPOSE_VERSION in .buildkite/pipeline.yml, .buildkite/pipeline.publish.yml, and .buildkite/pipeline.serverless.yml back to the value that was in use on that branch before the CI sync (e.g. v2.17.2). The variable controls which standalone binary is downloaded, so it must match a version < v2.23.0 to avoid the !!seq format.
      2. Restore the with_docker_compose function in .buildkite/scripts/common.sh (which downloads and installs the pinned standalone docker-compose binary into ${BIN_FOLDER}, the first entry on PATH).
      3. Call with_docker_compose from test_one_package.sh and test_integrations_with_serverless.sh alongside any existing plugin installation.

      This ensures elastic-package < v0.96.0 finds the pinned standalone binary before the system-installed v2.24.7+.
