Saved Objects

Saved Objects allow Kibana plugins to use Elasticsearch like a primary database. Think of them as an Object Document Mapper for Elasticsearch. Once a plugin has registered one or more Saved Object types, the Saved Objects client can be used to query or perform create, read, update and delete operations on each type.

Terminology: A Saved Object type is the schema and configuration that a plugin registers for a kind of document (name, mappings, model versions, etc.). Saved Objects are the document instances of that type stored in Elasticsearch. The sections below cover both how to define and evolve Saved Object types and how to perform CRUD on Saved Object instances via the Core service (see Use).

By using Saved Objects your plugin can take advantage of the following features:

• Migrations can evolve your document's schema by transforming documents and ensuring that the field mappings on the index are always up to date.
• a HTTP API is automatically exposed for each type (unless hidden=true is specified).
• a Saved Objects client that can be used from both the server and the browser.
• Users can import or export Saved Objects using the Saved Objects management UI or the Saved Objects import/export API.
• By declaring references, an object's entire reference graph will be exported. This makes it easy for users to export e.g. a dashboard object and have all the visualization objects required to display the dashboard included in the export.
• When the X-Pack security and spaces plugins are enabled these transparently provide RBAC access control and the ability to organize Saved Objects into spaces.

Saved Objects are secured using Kibana's privileges model, unlike data in Elasticsearch data indices, which is secured using Elasticsearch's model.

Saved Objects are "space aware". Each object exists in the space it was created in, and any additional spaces it has been shared with. See Share across spaces for details.

Feature controls provide another level of isolation for Saved Objects. Admins can grant users and roles read, write, or no access to each Saved Object type independently.

OLS is a planned feature, not yet implemented. Once available, it will allow individual objects to be private to their owner, shared with selected users, or made fully public — similar to how sharing in Google Docs works.

By default all Saved Object types share the same index. If you expect a type to have many unique fields or a large number of instances, store it in a dedicated index by setting the indexPattern field when registering the type. Reporting and Task Manager both use this capability.

Saved Objects are stored in system indices and cannot be searched like regular Elasticsearch data. If you see the phrase "[X] as data", it refers to this limitation: users cannot build custom dashboards or visualizations over Saved Object data the way they can with data in ordinary Elasticsearch indices.

A Saved Object can be embedded inside another Saved Object ("by value") rather than saved as a standalone item ("by reference"). For example, when a user adds a visualization to a dashboard without saving it to the library, the visualization data is nested inside the dashboard Saved Object. This keeps the library smaller and avoids unexpected propagation of edits, since the embedded object exists in exactly one place.

Note: the terms "by value" and "by reference" are internal developer concepts and are not surfaced to end users.

This documentation is organized into the following sections:

• Structure — Parts of a Saved Object type definition (name, index pattern, mappings, model versions) and the structure of a model version.
• Create a type — Register a new Saved Object type, define mappings and references, and define the initial model version.
• Update a type — Upgrade existing Saved Object types (legacy transition and new model versions).
• Validate type changes — Test model versions, ensure safe type definition changes, and troubleshoot validation failures.
• Delete a type — Remove a Saved Object type registration.
• CRUD operations — Perform CRUD on Saved Object instances via the Core service (create, get, find, update, delete). Do not use the deprecated HTTP API.
• Export and import — Exporting and importing Saved Object documents.
• Share across spaces — Sharing saved objects across spaces (namespace types, conversion, deep links, legacy URL aliases).

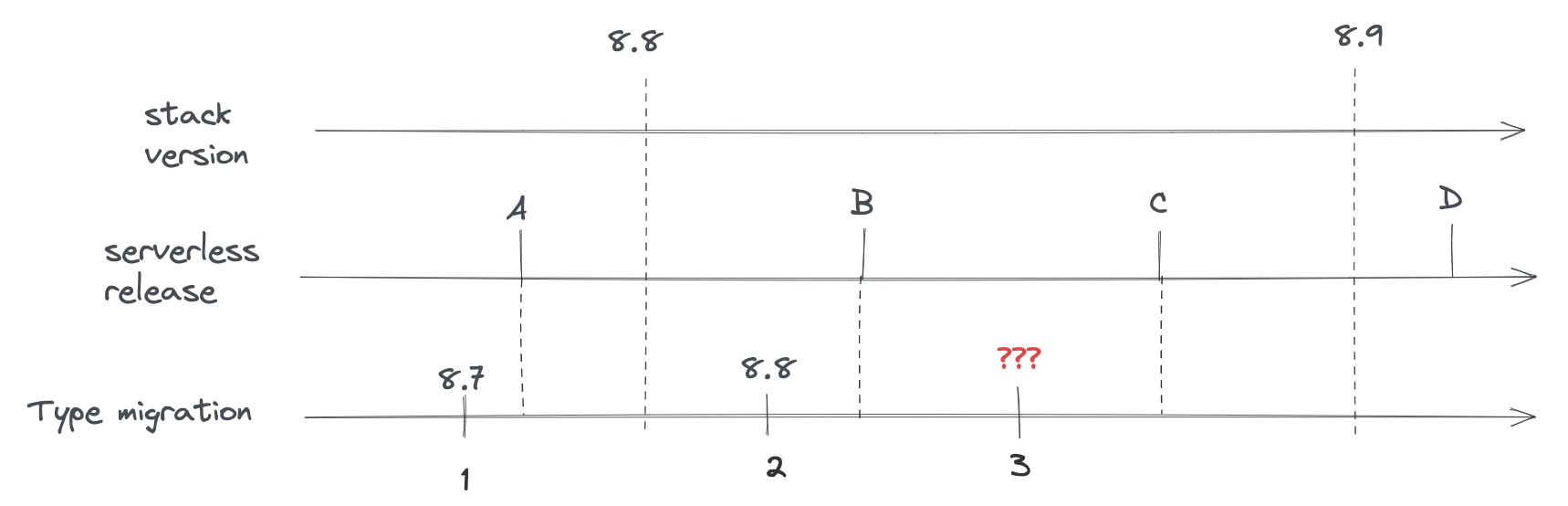

• Migrations — How type schema and mapping changes are rolled out on Classic stack and Serverless.
