Ingest logs from a Node.js web application using Filebeatedit

This guide demonstrates how to ingest logs from a Node.js web application and deliver them securely into an Elasticsearch Service deployment. You’ll set up Filebeat to monitor a JSON-structured log file that has standard Elastic Common Schema (ECS) formatted fields, and you’ll then view real-time visualizations of the log events in Kibana as requests are made to the Node.js server. While Node.js is used for this example, this approach to monitoring log output is applicable across many client types. See the list of available ECS logging plugins.

You are going to learn how to:

Time required: 1.5 hours

Prerequisitesedit

To complete these steps you need the following applications installed on your system:

  • Node.js - You will set up a simple Node.js web server and client application. See the Node.js download page for installation instructions.

For the three packages below, we recommend creating a working directory where you’ll install the packages using the Node package manager (NPM). Later on, you will run your Node.js webserver and client from the same directory so that it can use the packages. However, if you choose, you can also install the Node packages globally by running the Node package install commands with the -g option. See the NPM package installation instructions for details.

  • winston - This is a popular logging package for Node.js. Create a new, local directory and run the command below to install winston in it:

    npm install winston
  • The Elastic Common Schema (ECS) formatter for the Node.js winston logger - This plugin formats your Node.js logs into an ECS structured JSON format ideally suited for ingestion into Elasticsearch. To install the ECS winston logger, run the following command in your working directory so that the package is installed in the same location as the winston package:

    npm install @elastic/ecs-winston-format
  • Got - Got is a "Human-friendly and powerful HTTP request library for Node.js." - This plugin can be used to query the sample web server used in the tutorial. To install the Got package, run the following command in your working directory:

    npm install got

Get Elasticsearch Serviceedit

Follow these steps to create an Elasticsearch Service deployment. The deployment includes an Elasticsearch cluster to index the log data, and a Kibana instance to create visualizations and view the data as it updates.

  1. Get a free trial.
  2. Log into Elastic Cloud.
  3. Click Create deployment.
  4. Give your deployment a name. You can leave all other settings at their default values.
  5. Click Create deployment and save your Elastic deployment credentials. You will need these credentials later on.
  6. You also need the Cloud ID later on, as it simplifies sending data to Elastic Cloud. Click on the deployment name from the Elastic Cloud portal or the Deployments page and copy down the information under Cloud ID:

    A picture highlighting the Cloud ID information available for the deployment

    You can also get Elasticsearch Service through AWS, Azure, and GCP marketplaces.

Create a Node.js web application with loggingedit

Next, create a basic Node.js script that runs a web server and logs HTTP requests.

  1. In the same local directory where you installed the winston and ECS formatter packages, create a new file webserver.js and save it with these contents:

    const http = require('http')
    const winston = require('winston')
    const ecsFormat = require('@elastic/ecs-winston-format')

    const logger = winston.createLogger({
      level: 'debug',
      format: ecsFormat({ convertReqRes: true }),
      transports: [
        //new winston.transports.Console(),
        new winston.transports.File({
          //path to log file
          filename: 'logs/log.json',
          level: 'debug'
        })
      ]
    })

    const server = http.createServer(handler)
    server.listen(3000, () => {
      logger.info('listening at http://localhost:3000')
    })

    function handler (req, res) {
     res.setHeader('Foo', 'Bar')
      res.end('ok')
      logger.info('handled request', { req, res })
    }

    This Node.js script runs a web server at http://localhost:3000 and uses the winston logger to send logging events, based on HTTP requests, to the file log.json.

  2. Try a test run of the Node.js script:

    node webserver.js
  3. With the script running, open a web browser to http://localhost:3000 and there should be a simple ok message.
  4. In the directory where you created webserver.js, you should now find a newly created log.json file. Open the file and check the contents. There should be one log entry indicating that Node.js is listening on the localhost port, and another entry for the HTTP request from when you opened localhost in your browser.

    Leave webserver.js running for now and we’ll send it some HTTP requests.

Create a Node.js HTTP request applicationedit

In this step, you’ll create a Node.js application that sends HTTP requests to your web server.

  1. In your working directory, create a file _webrequests.js and save it with these contents:

    const got = require('got');

    const addresses = [
        'aardvark@the.zoo',
        'crocodile@the.zoo',
        'elephant@the.zoo',
        'emu@the.zoo',
        'hippopotamus@the.zoo',
        'llama@the.zoo',
        'octopus@the.zoo',
        'otter@the.zoo',
        'panda@the.zoo',
        'pangolin@the.zoo',
        'tortoise@the.zoo',
        'walrus@the.zoo'
    ];

    const method = [
        'get',
        'put',
        'post'
    ];

    async function sleep(millis) {
        return new Promise(resolve => setTimeout(resolve, millis));
    }

    (async () => {
        while (true) {
            var type = Math.floor(Math.random() * method.length);
            var email = Math.floor(Math.random() * addresses.length);
            var sleeping = Math.floor(Math.random() * 9) + 1;

            switch (method[type]) {
                case 'get':
                    try {
                        const response = await got.get('http://localhost:3000/', {
                            headers: {
                                from: addresses[email]
                            }
                        }).json();
                        console.log(response.body);
                    } catch (error) {
                        console.log(error.response.body);
                    }
                    break; // end case 'get'
                case 'put':
                    try {
                        const response = await got.put('http://localhost:3000/', {
                            headers: {
                                from: addresses[email]
                            }
                        }).json();
                        console.log(response.body);
                    } catch (error) {
                        console.log(error.response.body);
                    }
                    break; // end case 'put'
                case 'post':
                    try {
                        const {
                            data
                        } = await got.post('http://localhost:3000/', {
                            headers: {
                                from: addresses[email]
                            }
                        }).json();
                        console.log(data);
                    } catch (error) {
                        console.log(error.response.body);
                    }
                    break; // end case 'post'
            } // end switch on method
        await sleep(sleeping * 1000);
        }
    })();

    This Node.js app generates HTTP requests with a random method of type GET, POST, or PUT, and a random from request header using various pretend email addresses. The requests are sent at random intervals between 1 and 10 seconds.

    The Got package is used to send the requests, and they are directed to your web server at http://localhost:3000. To learn about sending custom headers such as the from field used in this example, see headers in the Got documentation.

  2. In a new terminal window, give the Node.js script a trial run:

    node webrequests.js
  3. After the script has run for about 30 seconds, enter CTRL + C to stop it. Have a look at your Node.js logs/log.json file. It should contain some entries like this one:

    {"@timestamp":"2021-09-09T18:42:20.799Z","log.level":"info","message":"handled request","ecs":{"version":"1.6.0"},"http":{"version":"1.1","request":{"method":"POST","headers":{"user-agent":"got (https://github.com/sindresorhus/got)","from":"octopus@the.zoo","accept":"application/json","accept-encoding":"gzip, deflate, br","host":"localhost:3000","connection":"close","content-length":"0"},"body":{"bytes":0}},"response":{"status_code":200,"headers":{"foo":"Bar"}}},"url":{"path":"/","full":"http://localhost:3000/"},"client":{"address":"::ffff:127.0.0.1","ip":"::ffff:127.0.0.1","port":49930},"user_agent":{"original":"got (https://github.com/sindresorhus/got)"}}

    Each log entry contains details of the HTTP request. In particular, in this example you can see the timestamp of the request, a request method of type PUT, and a request from header with the email address octopus@the.zoo. Your example will likely be a bit different since the request type and the email address are generated randomly.

    Having your logs written in a JSON format with ECS fields allows for easy parsing and analysis, and for standardization with other applications. A standard, easily parsible format becomes increasingly important as the volume and type of data captured in your logs expands over time.

  4. After confirming that both webserver.js and webrequests.js run as expected, enter CTRL + C to stop the Node.js script, and also delete log.json.

Set up Filebeatedit

Filebeat offers a straightforward, easy to configure way to monitor your Node.js log files and port the log data into Elasticsearch Service.

Get Filebeat

  1. Download Filebeat and unpack it on the local server from which you want to collect data.

Configure Filebeat to access Elasticsearch Service

  1. In <localpath>/filebeat-<version>/ (where <localpath> is the directory where Filebeat is installed and <version> is the Filebeat version number), open the filebeat.yml configuration file for editing.
  2. In the Elastic Cloud section of filebeat.yml, remove the comment pound sign (#) from the lines cloud.id: and cloud.auth:.
  3. For cloud.auth, add the username and password for your deployment that you recorded in Step 5 of Get Elasticsearch Service. The format is <username>:<password>, for example elastic:57ugj782kvkwmSKg8uVe.
  4. For cloud.id, add the deployment’s Cloud ID that you recorded in Step 6 of Get Elasticsearch Service. You can include or omit the <deploymentname>: prefix at the beginning of the Cloud ID. Both versions work fine.

    Note that you do not need to comment out the output.elasticsearch.hosts and setup.kibana.host options in filebeat.yml. The Elastic Cloud options take precedence automatically.

    # =============================== Elastic Cloud ================================

    # These settings simplify using Filebeat with the Elastic Cloud (https://cloud.elastic.co/).

    # The cloud.id setting overwrites the `output.elasticsearch.hosts` and
    # `setup.kibana.host` options.
    # You can find the `cloud.id` in the Elastic Cloud web UI.
    cloud.id: my-deployment:yTMtd5VzdKEuP2NwPbNsb3VkLtKzLmldJDcyMzUyNjBhZGP7MjQ4OTZiNTIxZTQyOPY2C2NeOGQwJGQ2YWQ4M5FhNjIyYjQ9ODZhYWNjKDdlX2Yz4ELhRYJ7

    # The cloud.auth setting overwrites the `output.elasticsearch.username` and
    # `output.elasticsearch.password` settings. The format is `<user>:<pass>`.
    cloud.auth: elastic:591KhtuAgTP46by9C4EmhGuk

Configure Filebeat inputs

Filebeat has several ways to collect logs. For this example, you’ll configure log collection manually.

In the filebeat.inputs section of filebeat.yml, set enabled: to true, and set paths: to the location of your web server log file. In this example, set the same directory where you saved webserver.js:

filebeat.inputs:

# Each - is an input. Most options can be set at the input level, so
# you can use different inputs for various configurations.
# Below are the input specific configurations.

- type: log

  # Change to true to enable this input configuration.
  enabled: true

  # Paths that should be crawled and fetched. Glob based paths.
  paths:
    - /path/to/logs/log.json

You can specify a wildcard (*) character to indicate that all log files in the specified directory should be read. You can also use a wildcard to read logs from multiple directories. For example /var/log/*/*.log.

Add the JSON input options

Filebeat’s input configuration options include several settings for decoding JSON messages. Log files are decoded line by line, so it’s important that they contain one JSON object per line.

For this example, Filebeat uses the following four decoding options.

  json.keys_under_root: true
  json.overwrite_keys: true
  json.add_error_key: true
  json.expand_keys: true

To learn more about these settings see JSON input configuration options and Decode JSON fields in the Filebeat Reference.

Append the four JSON decoding options to the Filebeat inputs section of filebeat.yml, so that the section now looks like this:

# ============================== Filebeat inputs ===============================

filebeat.inputs:

# Each - is an input. Most options can be set at the input level, so
# you can use different inputs for various configurations.
# Below are the input specific configurations.

- type: log

  # Change to true to enable this input configuration.
  enabled: true

  # Paths that should be crawled and fetched. Glob based paths.
  paths:
    - /path/to/logs/log.json
  json.keys_under_root: true
  json.overwrite_keys: true
  json.add_error_key: true
  json.expand_keys: true

Finish setting up Filebeat

Filebeat comes with predefined assets for parsing, indexing, and visualizing your data. To load these assets, run the following from the Filebeat installation directory:

./filebeat setup -e

Depending on variables including the installation location, environment, and local permissions, you might need to change the ownership of filebeat.yml. You can also try running the command as root: sudo ./filebeat setup -e or you can disable strict permission checks by running the command with the --strict.perms=false option.

The setup process takes a couple of minutes. If everything goes successfully you should see a confirmation message:

Loaded Ingest pipelines

The Filebeat index pattern is now available in Elasticsearch. To verify:

  1. Login to Kibana.
  2. Open the Kibana main menu and click Stack Management and then Index Patterns.
  3. In the search bar, search for filebeat. You should see filebeat-* in the search results.

Optional: Use an API key to authenticate

For additional security, instead of using basic authentication you can generate an Elasticsearch API key through the Elastic Cloud console, and then configure Filebeat to use the new key to connect securely to the Elastic Cloud.

  1. Log in to the Elasticsearch Service Console.
  2. Select your deployment on the home page in the Elasticsearch Service card or go to the deployments page.
  3. Narrow your deployments by name, ID, or choose from several other filters. To customize your view, use a combination of filters, or change the format from a grid to a list.
  4. From your deployment menu, click Elasticsearch and then API Console.
  5. Select Post from the drop-down list and enter /_security/api_key in the field.
  6. Enter the following request:

    {
     "name": "filebeat-api-key",
     "role_descriptors": {
       "logstash_read_write": {
         "cluster": ["manage_index_templates", "monitor"],
         "index": [
           {
             "names": ["filebeat-*"],
             "privileges": ["create_index", "write", "read", "manage"]
           }
         ]
       }
     }
    }

    This creates an API key with the cluster monitor privilege which gives read-only access for determining the cluster state, and manage_index_templates which allows all operations on index templates. Some additional privileges also allow create_index, write, and manage operations for the specified index. The index manage privilege is added to enable index refreshes.

  7. Click Submit. The output should be similar to the following:

    {
      "api_key": "tV1dnfF-GHI59ykgv4N0U3",
      "id": "2TBR42gBabmINotmvZjv",
      "name": "filebeat-api-key"
    }
  8. Add your API key information to the Elasticsearch Output section of filebeat.yml, just below output.elasticsearch:. Use the format <id>:<api_key>. If your results are as shown in this example, enter 2TBR42gBabmINotmvZjv:tV1dnfF-GHI59ykgv4N0U3.
  9. Add a pound (#) sign to comment out the cloud.auth: elastic:<password> line, since Filebeat will use the API key instead of the deployment username and password to authenticate.

    # =============================== Elastic Cloud ================================

    # These settings simplify using Filebeat with the Elastic Cloud (https://cloud.elastic.co/).

    # The cloud.id setting overwrites the `output.elasticsearch.hosts` and
    # `setup.kibana.host` options.
    # You can find the `cloud.id` in the Elastic Cloud web UI.
    cloud.id: my-deployment:yTMtd5VzdKEuP2NwPbNsb3VkLtKzLmldJDcyMzUyNjBhZGP7MjQ4OTZiNTIxZTQyOPY2C2NeOGQwJGQ2YWQ4M5FhNjIyYjQ9ODZhYWNjKDdlX2Yz4ELhRYJ7

    # The cloud.auth setting overwrites the `output.elasticsearch.username` and
    # `output.elasticsearch.password` settings. The format is `<user>:<pass>`.
    #cloud.auth: elastic:591KhtuAgTP46by9C4EmhGuk

    # ================================== Outputs ===================================

    # Configure what output to use when sending the data collected by the beat.

    # ---------------------------- Elasticsearch Output ----------------------------
    output.elasticsearch:
      # Array of hosts to connect to.
      api_key: "2TBR42gBabmINotmvZjv:tV1dnfF-GHI59ykgv4N0U3"

Send the Node.js logs to Elasticsearchedit

It’s time to send some log data into Elasticsearch!

Launch Filebeat and webserver.js

Launch Filebeat by running the following from the Filebeat installation directory:

./filebeat -e -c filebeat.yml

In this command:

  • The -e flag sends output to the standard error instead of the configured log output.
  • The -c flag specifies the path to the Filebeat config file.

Just in case the command doesn’t work as expected, check the Filebeat quick start for the detailed command syntax for your operating system. You can also try running the command as root: sudo ./filebeat -e -c filebeat.yml.

Filebeat should now be running and monitoring the contents of log.json, which actually doesn’t exist yet. So, let’s create it. Open a new terminal instance and run the webserver.js Node.js script:

node webserver.js

Next, run the Node.js webrequests.js script to send random requests to the Node.js web server.

node webrequests.js

Let the script run for a few minutes and maybe brew up a quick coffee or tea ☕ . After that, make sure that the log.json file is generated as expected and is populated with several log entries.

Verify the log entries in Elasticsearch Service

The next step is to confirm that the log data has successfully found it’s way into Elasticsearch Service.

  1. Login to Kibana.
  2. Open the Kibana main menu and click Stack Management and then Index Patterns.
  3. In the search bar, search for filebeat. You should see filebeat-* in the search results.
  4. click filebeat-*.

The filebeat index pattern shows a list of fields and their details:

A screen capture of the Kibana "filebeat-*" index pattern page with various fields listed

Create log visualizations in Kibanaedit

Now it’s time to create visualizations based off of the application log data.

  1. Open the Kibana main menu and click Dashboard and then Create dashboard.
  2. Click Create visualization. The Lens visualization editor opens.
  3. In the index pattern dropdown box, select filebeat-*, if it isn’t already selected.
  4. In the CHART TYPE dropdown box, select Bar vertical stacked, if it isn’t already selected.
  5. Check that the time filter is set to Last 15 minutes.
  6. From the Available fields list, drag and drop the @timestamp field onto the visualization builder.
  7. Drag and drop the http.request.method field onto the visualization builder.
  8. A stacked bar chart now shows the relative frequency of each of the three request methods used in our example, measured over time.

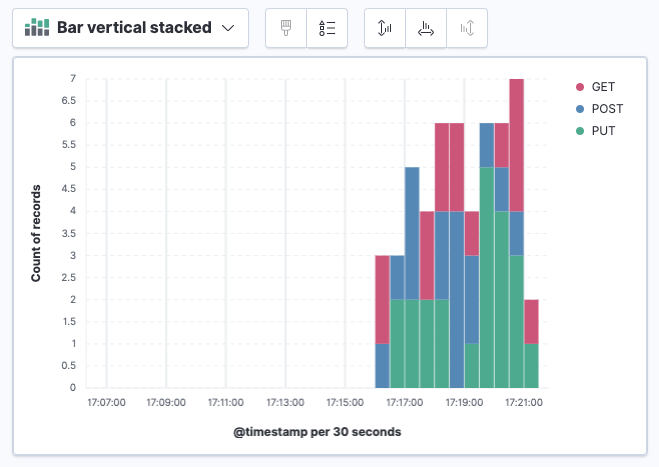

    A screen capture of the Kibana "Bar vertical stacked" visualization with several bars. The X axis shows "Count of records" and the Y axis shows "@timestamp per 30 seconds". Each bar is divided into three HTTP request methods: GET

  9. Click Save and return to add this visualization to your dashboard.

Let’s create a second visualization.

  1. Click Create visualization.
  2. Again, make sure that CHART TYPE is set to Bar vertical stacked.
  3. From the Available fields list, drag and drop the @timestamp field onto the visualization builder.
  4. Drag and drop the http.request.headers.from field onto the visualization builder.
  5. In the chart settings area, under Break down by, click Top values of http.request.headers.from and set Number of values to 12. In this example there are twelve different email addresses used in the HTTP from header, so this parameter sets all of them to appear in the chart legend.
  6. Click Refresh. A stacked bar chart now shows the relative frequency of each of the HTTP from headers over time.

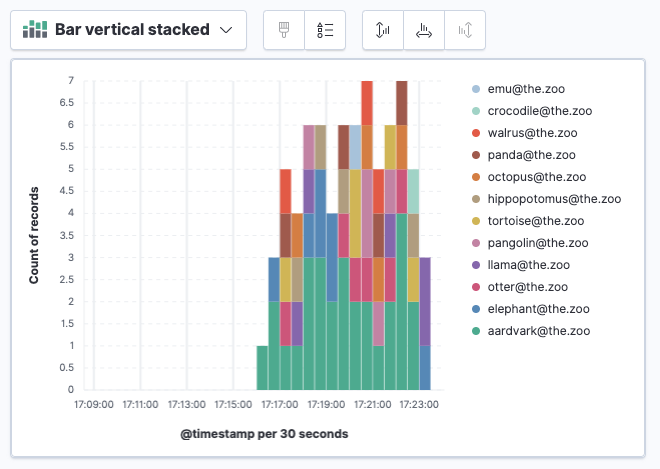

    A screen capture of the visualization builder

  7. Click Save and return to add this visualization to your dashboard.

And now for the final visualization.

  1. Click Create visualization.
  2. In the CHART TYPE dropdown box, select Donut.
  3. From the list of available fields, drag and drop the http.request.method field onto the visualization builder. A donut chart appears.

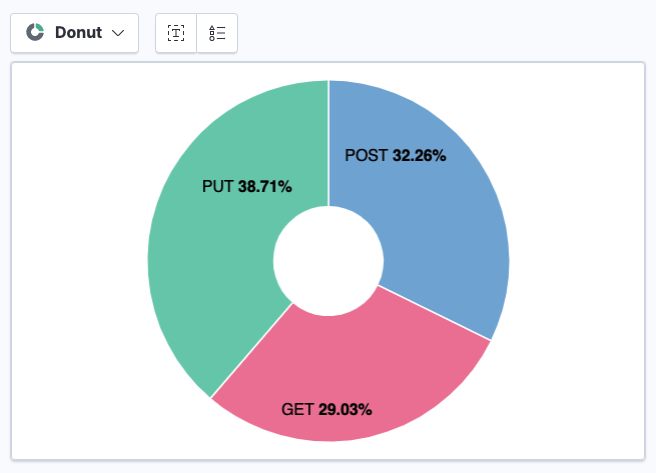

    A screen capture of a donut chart divided into three sections

  4. Click Save and return to add this visualization to your dashboard.
  5. Click Save and add a title to save your new dashboard.

You now have a Kibana dashboard with three visualizations: a stacked bar chart showing the frequency of each HTTP request method over time, another stacked bar chart showing the frequency of various HTTP from headers over time, and a donut chart showing the relative frequency of each HTTP request method type.

You can add titles to the visualizations, resize and position them as you like, and then save your changes.

View log data updates in real time

  1. Click Refresh on the Kibana dashboard. Since the application webrequests.js continues to run and send HTTP requests to the Node.js server, webserver.js continues to generate log data, and your Kibana visualizations update with that data with each page refresh.

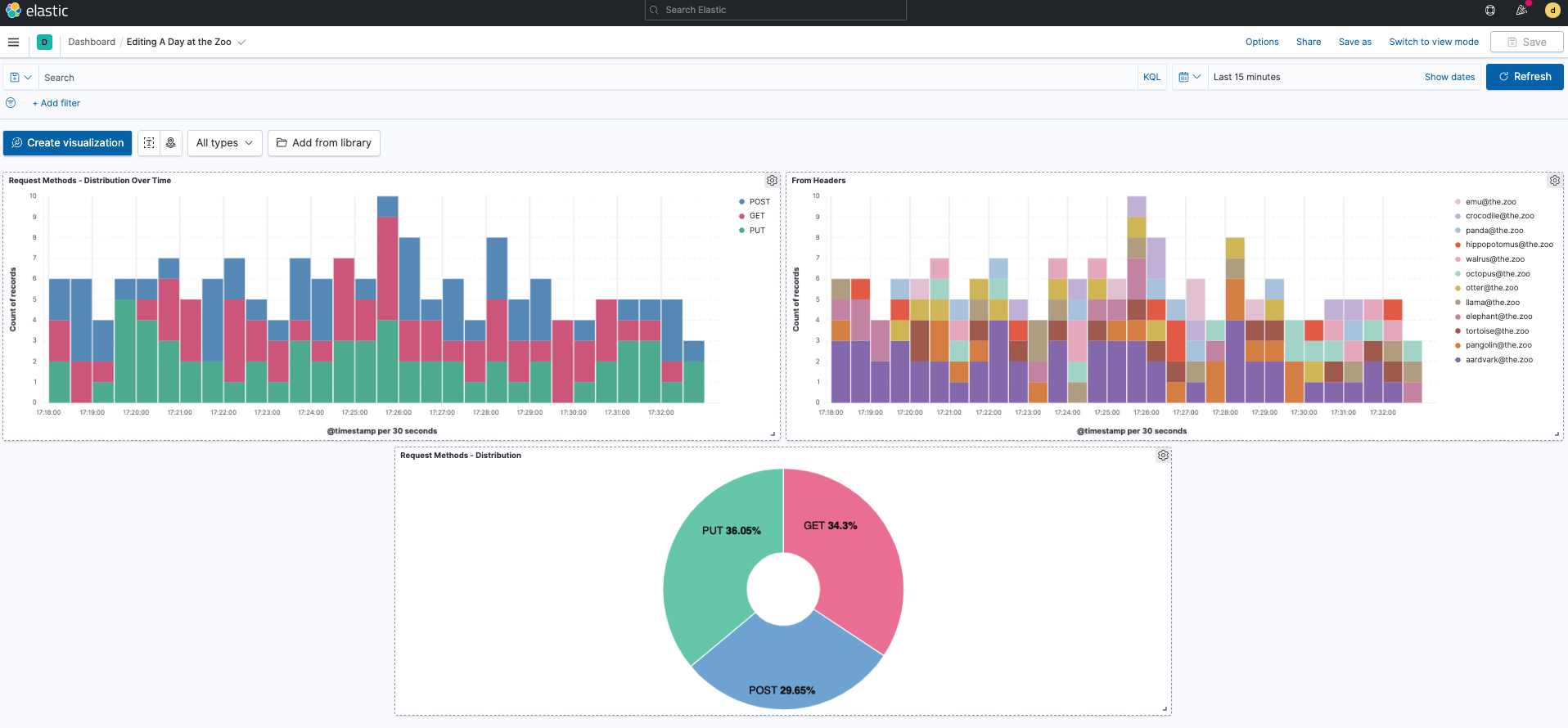

    A screen capture of the completed Kibana dashboard

  2. As your final step, remember to stop Filebeat, the Node.js web server, and the client. Enter CTRL + C in the terminal window for each application to stop them.

You now know how to monitor log files from a Node.js web application, deliver the log event data securely into an Elasticsearch Service deployment, and then visualize the results in Kibana in real time. Consult the Filebeat documentation to learn more about the ingestion and processing options available for your data. You can also explore our Elasticsearch Service documentation to learn all about working in Elastic Cloud.
