Collecting OpenShift container logs using Red Hat’s OpenShift Logging Operator

Learn how to optimize OpenShift logs collected with Red Hat OpenShift Logging Operator, as well as format and route them efficiently in Elasticsearch.

Collecting OpenShift container logs using Red Hat’s OpenShift Logging Operator

This blog explores a possible approach to collecting and formatting OpenShift Container Platform logs and audit logs with Red Hat OpenShift Logging Operator. We recommend using Elastic® Agent for the best possible experience! We will also show how to format the logs to Elastic Common Schema (ECS) for the best experience viewing, searching, and visualizing your logs. All examples in this blog are based on OpenShift 4.14.

Why use OpenShift Logging Operator?

A lot of enterprise customers use OpenShift as their orchestrating solution. The advantages of this approach are:

  • It is developed and supported by Red Hat

  • It can automatically update the OpenShift cluster along with the Operating system to make sure that they are and remain compatible

  • It can speed up developing life cycles with features like source to image

  • It uses enhanced security

In our consulting experience, this latter aspect poses challenges and frictions with OpenShift administrators when we try to install an Elastic Agent to collect the logs of the pods. Indeed, Elastic Agent requires the files of the host to be mounted in the pod, and it also needs to be run in privileged mode. (Read more about the permissions required by Elastic Agent in the official Elasticsearch® Documentation). While the solution we explore in this post requires similar privileges under the hood, it is managed by the OpenShift Logging Operator, which is developed and supported by Red Hat.

Which logs are we going to collect?

In OpenShift Container Platform, we distinguish three broad categories of logs: audit, application, and infrastructure logs:

  • Audit logs describe the list of activities that affected the system by users, administrators, and other components.

  • Application logs are composed of the container logs of the pods running in non-reserved namespaces.

  • Infrastructure logs are composed of container logs of the pods running in reserved namespaces like openshift*, kube*, and default along with journald messages from the nodes.

In the following, we will consider only audit and application logs for the sake of simplicity. In this post, we will describe how to format audit and application Logs in the format expected by the Kubernetes integration to take the most out of Elastic Observability.

Getting started

To collect the logs from OpenShift, we must perform some preparation steps in Elasticsearch and OpenShift.

Inside Elasticsearch

We first install the Kubernetes integration assets. We are mainly interested in the index templates and ingest pipelines for the logs-kubernetes.container_logs and logs-kubernetes.audit_logs.

To format the logs received from the ClusterLogForwarder in ECS format, we will define a pipeline to normalize the container logs. The field naming convention used by OpenShift is slightly different from that used by ECS. To get a list of exported fields from OpenShift, refer to Exported fields | Logging | OpenShift Container Platform 4.14. To get a list of exported fields of the Kubernetes integration, you can refer to Kubernetes fields | Filebeat Reference [8.11] | Elastic and Logs app fields | Elastic Observability [8.11]. Further, specific fields like kubernetes.annotations must be normalized by replacing dots with underscores. This operation is usually done automatically by Elastic Agent.

PUT _ingest/pipeline/openshift-2-ecs
{
  "processors": [
    {
      "rename": {
        "field": "kubernetes.pod_id",
        "target_field": "kubernetes.pod.uid",
        "ignore_missing": true
      }
    },
    {
      "rename": {
        "field": "kubernetes.pod_ip",
        "target_field": "kubernetes.pod.ip",
        "ignore_missing": true
      }
    },
    {
      "rename": {
        "field": "kubernetes.pod_name",
        "target_field": "kubernetes.pod.name",
        "ignore_missing": true
      }
    },
    {
      "rename": {
        "field": "kubernetes.namespace_name",
        "target_field": "kubernetes.namespace",
        "ignore_missing": true
      }
    },
    {
      "rename": {
        "field": "kubernetes.namespace_id",
        "target_field": "kubernetes.namespace_uid",
        "ignore_missing": true
      }
    },
    {
      "rename": {
        "field": "kubernetes.container_id",
        "target_field": "container.id",
        "ignore_missing": true
      }
    },
    {
      "dissect": {
        "field": "container.id",
        "pattern": "%{container.runtime}://%{container.id}",
        "ignore_failure": true
      }
    },
    {
      "rename": {
        "field": "kubernetes.container_image",
        "target_field": "container.image.name",
        "ignore_missing": true
      }
    },
    {
      "set": {
        "field": "kubernetes.container.image",
        "copy_from": "container.image.name",
        "ignore_failure": true
      }
    },
    {
      "set": {
        "copy_from": "kubernetes.container_name",
        "field": "container.name",
        "ignore_failure": true
      }
    },
    {
      "rename": {
        "field": "kubernetes.container_name",
        "target_field": "kubernetes.container.name",
        "ignore_missing": true
      }
    },
    {
      "set": {
        "field": "kubernetes.node.name",
        "copy_from": "hostname",
        "ignore_failure": true
      }
    },
    {
      "rename": {
        "field": "hostname",
        "target_field": "host.name",
        "ignore_missing": true
      }
    },
    {
      "rename": {
        "field": "level",
        "target_field": "log.level",
        "ignore_missing": true
      }
    },
    {
      "rename": {
        "field": "file",
        "target_field": "log.file.path",
        "ignore_missing": true
      }
    },
    {
      "set": {
        "copy_from": "openshift.cluster_id",
        "field": "orchestrator.cluster.name",
        "ignore_failure": true
      }
    },
    {
      "dissect": {
        "field": "kubernetes.pod_owner",
        "pattern": "%{_tmp.parent_type}/%{_tmp.parent_name}",
        "ignore_missing": true
      }
    },
    {
      "lowercase": {
        "field": "_tmp.parent_type",
        "ignore_missing": true
      }
    },
    {
      "set": {
        "field": "kubernetes.pod.{{_tmp.parent_type}}.name",
        "value": "{{_tmp.parent_name}}",
        "if": "ctx?._tmp?.parent_type != null",
        "ignore_failure": true
      }
    },
    {
      "remove": {
        "field": [
          "_tmp",
          "kubernetes.pod_owner"
          ],
          "ignore_missing": true
      }
    },
    {
      "script": {
        "description": "Normalize kubernetes annotations",
        "if": "ctx?.kubernetes?.annotations != null",
        "source": """
        def keys = new ArrayList(ctx.kubernetes.annotations.keySet());
        for(k in keys) {
          if (k.indexOf(".") >= 0) {
            def sanitizedKey = k.replace(".", "_");
            ctx.kubernetes.annotations[sanitizedKey] = ctx.kubernetes.annotations[k];
            ctx.kubernetes.annotations.remove(k);
          }
        }
        """
      }
    },
    {
      "script": {
        "description": "Normalize kubernetes namespace_labels",
        "if": "ctx?.kubernetes?.namespace_labels != null",
        "source": """
        def keys = new ArrayList(ctx.kubernetes.namespace_labels.keySet());
        for(k in keys) {
          if (k.indexOf(".") >= 0) {
            def sanitizedKey = k.replace(".", "_");
            ctx.kubernetes.namespace_labels[sanitizedKey] = ctx.kubernetes.namespace_labels[k];
            ctx.kubernetes.namespace_labels.remove(k);
          }
        }
        """
      }
    },
    {
      "script": {
        "description": "Normalize special Kubernetes Labels used in logs-kubernetes.container_logs to determine service.name and service.version",
        "if": "ctx?.kubernetes?.labels != null",
        "source": """
        def keys = new ArrayList(ctx.kubernetes.labels.keySet());
        for(k in keys) {
          if (k.startsWith("app_kubernetes_io_component_")) {
            def sanitizedKey = k.replace("app_kubernetes_io_component_", "app_kubernetes_io_component/");
            ctx.kubernetes.labels[sanitizedKey] = ctx.kubernetes.labels[k];
            ctx.kubernetes.labels.remove(k);
          }
        }
        """
      }
    }
    ]
}

Similarly, to handle the audit logs like the ones collected by Kubernetes, we define an ingest pipeline:

PUT _ingest/pipeline/openshift-audit-2-ecs
{
  "processors": [
    {
      "script": {
        "source": """
        def audit = [:];
        def keyToRemove = [];
        for(k in ctx.keySet()) {
          if (k.indexOf('_') != 0 && !['@timestamp', 'data_stream', 'openshift', 'event', 'hostname'].contains(k)) {
            audit[k] = ctx[k];
            keyToRemove.add(k);
          }
        }
        for(k in keyToRemove) {
          ctx.remove(k);
        }
        ctx.kubernetes=["audit":audit];
        """,
        "description": "Move all the 'kubernetes.audit' fields under 'kubernetes.audit' object"
      }
    },
    {
      "set": {
        "copy_from": "openshift.cluster_id",
        "field": "orchestrator.cluster.name",
        "ignore_failure": true
      }
    },
    {
      "set": {
        "field": "kubernetes.node.name",
        "copy_from": "hostname",
        "ignore_failure": true
      }
    },
    {
      "rename": {
        "field": "hostname",
        "target_field": "host.name",
        "ignore_missing": true
      }
    },
    {
      "script": {
        "if": "ctx?.kubernetes?.audit?.annotations != null",
        "source": """
          def keys = new ArrayList(ctx.kubernetes.audit.annotations.keySet());
          for(k in keys) {
            if (k.indexOf(".") >= 0) {
              def sanitizedKey = k.replace(".", "_");
              ctx.kubernetes.audit.annotations[sanitizedKey] = ctx.kubernetes.audit.annotations[k];
              ctx.kubernetes.audit.annotations.remove(k);
            }
          }
          """,
        "description": "Normalize kubernetes audit annotations field as expected by the Integration"
      }
    }
  ]
}

The main objective of the pipeline is to mimic what Elastic Agent is doing: storing all audit fields under the kubernetes.audit object.

We are not going to use the conventional @custom pipeline approach because the fields must be normalized before invoking the logs-kubernetes.container_logs integration pipeline that uses fields like kubernetes.container.name and kubernetes.labels to determine the fields service.name and service.version. Read more about custom pipelines in Tutorial: Transform data with custom ingest pipelines | Fleet and Elastic Agent Guide [8.11].

The OpenShift Cluster Log Forwarder writes the data in the indices app-write and audit-write by default. It is possible to change this behavior, but it still tries to prepend the prefix “app” and the suffix “write”, so we opted to send the data to the default destination and use the reroute processor to send it to the right data streams. Read more about the Reroute Processor in our blog Simplifying log data management: Harness the power of flexible routing with Elastic and our documentation Reroute processor | Elasticsearch Guide [8.11] | Elastic.

In this case, we want to redirect the container logs (app-write index) to logs-kubernetes.container_logs and the Audit logs (audit-write) to logs-kubernetes.audit_logs:

PUT _ingest/pipeline/app-write-reroute-pipeline
{
  "processors": [
    {
      "pipeline": {
        "name": "openshift-2-ecs",
        "description": "Format the Openshift data in ECS"
      }
    },
    {
      "set": {
        "field": "event.dataset",
        "value": "kubernetes.container_logs"
      }
    },
    {
      "reroute": {
        "destination": "logs-kubernetes.container_logs-openshift"
      }
    }
  ]
}



PUT _ingest/pipeline/audit-write-reroute-pipeline
{
  "processors": [
    {
      "pipeline": {
        "name": "openshift-audit-2-ecs",
        "description": "Format the Openshift data in ECS"
      }
    },
    {
      "set": {
        "field": "event.dataset",
        "value": "kubernetes.audit_logs"
      }
    },
    {
      "reroute": {
        "destination": "logs-kubernetes.audit_logs-openshift"
      }
    }
  ]
}

Please note that given that app-write and audit-write do not follow the data stream naming convention, we are forced to add the destination field in the reroute processor. The reroute processor will also fill up the data_stream fields for us. Note that this step is done automatically by Elastic Agent at source.

Further, we create the indices with the default pipelines we created to reroute the logs according to our needs.

PUT app-write
{
  "settings": {
      "index.default_pipeline": "app-write-reroute-pipeline"
   }
}


PUT audit-write
{
  "settings": {
    "index.default_pipeline": "audit-write-reroute-pipeline"
  }
}

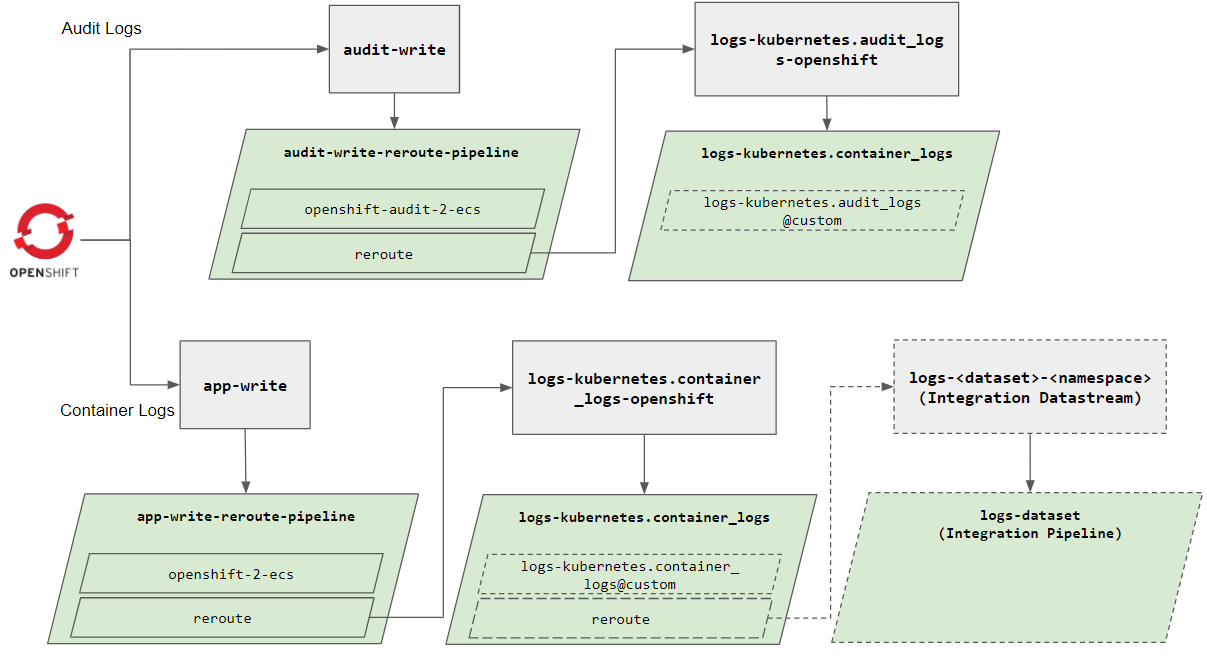

Basically, what we did can be summarized in this picture:

openshift-summary-blog

Let us take the container logs. When the operator attempts to write in the app-write index, it will invoke the default_pipeline “app-write-reroute-pipeline” that formats the logs into ECS format and reroutes the logs to logs-kubernetes.container_logs-openshift datastreams. This calls the integration pipeline that invokes, if it exists, the logs-kubernetes.container_logs@custom pipeline. Finally, the logs-kubernetes_container_logs pipeline may reroute the logs to another data set and namespace utilizing the elastic.co/dataset and elastic.co/namespace annotations as described in the Kubernetes integration documentation, which in turn can lead to the execution of an another integration pipeline.

Create a user for sending the logs

We are going to use basic authentication because, at the time of writing, it is the only supported authentication method for Elasticsearch in OpenShift logging. Thus, we need a role that allows the user to write and read the app-write, and audit-write logs (required by the OpenShift agent) and auto_configure access to logs-*-* to allow custom Kubernetes rerouting:

PUT _security/role/YOURROLE
{
    "cluster": [
      "monitor"
    ],
    "indices": [
      {
        "names": [
          "logs-*-*"
        ],
        "privileges": [
          "auto_configure",
          "create_doc"
        ],
        "allow_restricted_indices": false
      },
      {
        "names": [
          "app-write",
          "audit-write",
        ],
        "privileges": [
          "create_doc",
          "read"
        ],
        "allow_restricted_indices": false
      }
    ],
    "applications": [],
    "run_as": [],
    "metadata": {},
    "transient_metadata": {
      "enabled": true
    }

}



PUT _security/user/YOUR_USERNAME
{
  "password": "YOUR_PASSWORD",
  "roles": ["YOURROLE"]
}

On OpenShift

On the OpenShift Cluster, we need to follow the official documentation of Red Hat on how to install the Red Hat OpenShift Logging and configure Cluster Logging and the Cluster Log Forwarder.

We need to install the Red Hat OpenShift Logging Operator, which defines the ClusterLogging and ClusterLogForwarder Resources. Afterward, we can define the Cluster Logging resource:

apiVersion: logging.openshift.io/v1
kind: ClusterLogging
metadata:
  name: instance
  namespace: openshift-logging
spec:
  collection:
    logs:
      type: vector
      vector: {}

The Cluster Log Forwarder is the resource responsible for defining a daemon set that will forward the logs to the remote Elasticsearch. Before creating it, we need to create in the same namespace as the ClusterLogForwarder a secret containing the Elasticsearch credentials for the user we created previously in the namespace, where the ClusterLogForwarder will be deployed:

apiVersion: v1
kind: Secret
metadata:
  name: elasticsearch-password
  namespace: openshift-logging
type: Opaque
stringData:
  username: YOUR_USERNAME
  password: YOUR_PASSWORD

Finally, we create the ClusterLogForwarder resource:

kind: ClusterLogForwarder
apiVersion: logging.openshift.io/v1
metadata:
  name: instance
  namespace: openshift-logging
spec:
  outputs:
    - name: remote-elasticsearch
      secret:
        name: elasticsearch-password
      type: elasticsearch
      url: "https://YOUR_ELASTICSEARCH_URL:443"
      elasticsearch:
        version: 8 # The default is version 6 with the _type field
  pipelines:
    - inputRefs:
        - application
        - audit
      name: enable-default-log-store
      outputRefs:
        - remote-elasticsearch

Note that we explicitly defined the version of Elasticsearch to be 8, otherwise the ClusterLogForwarder will send the _type field, which is not compatible with Elasticsearch 8 and that we collect only application and audit logs.

Result

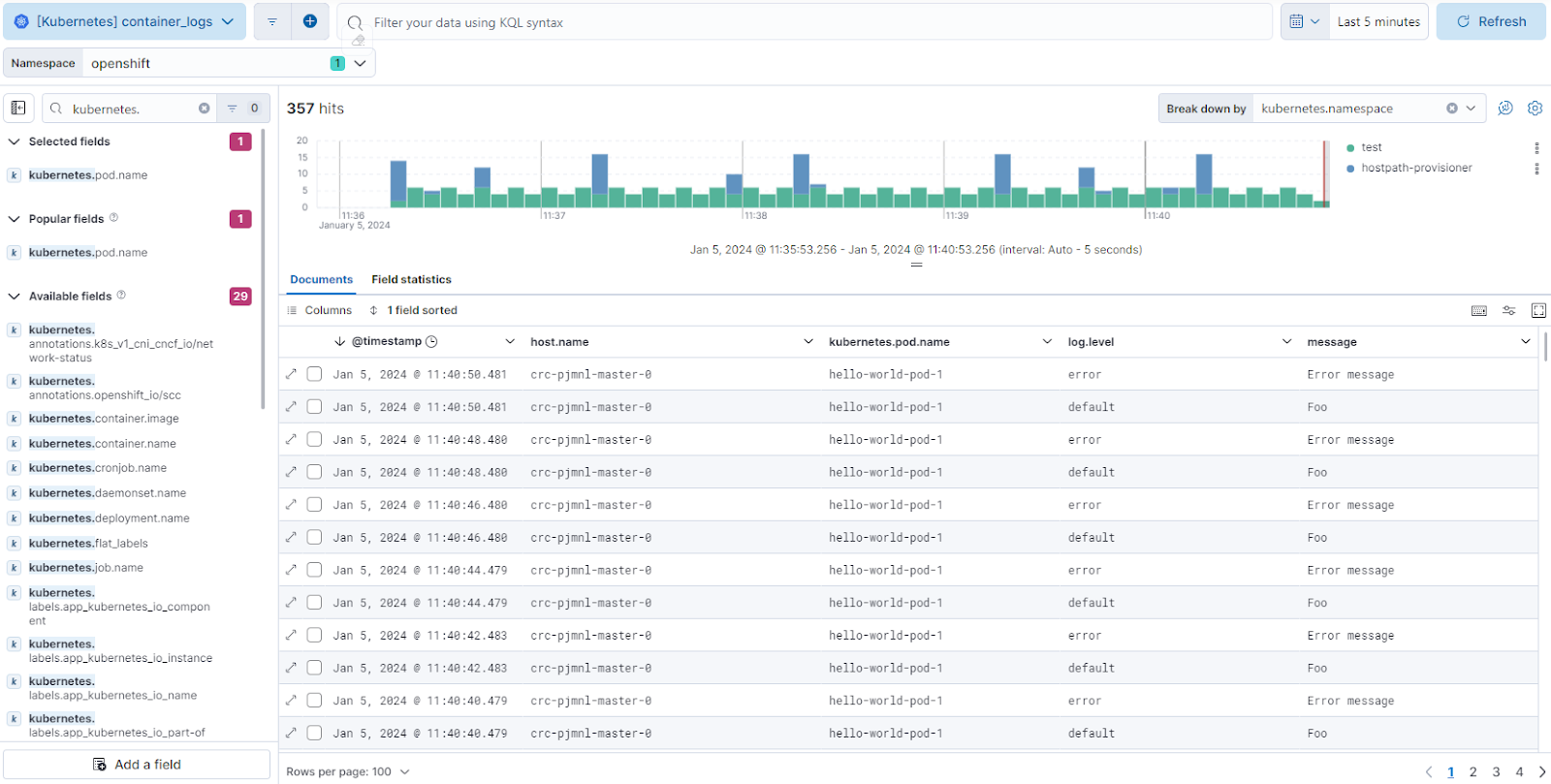

Once the logs are collected and passed through all the pipelines, the result is very close to the out-of-the-box Kubernetes integration. There are important differences, like the lack of host and cloud metadata information that don’t seem to be collected (at least without an additional configuration). We can view the Kubernetes container logs in the logs explorer:

openshift-summary-blog-graphs

In this post, we described how you can use the OpenShift Logging Operator to collect the logs of containers and audit logs. We still recommend leveraging Elastic Agent to collect all your logs. It is the best user experience you can get. No need to maintain or transform the logs yourself to ECS formatting. Additionally, Elastic Agent uses API keys as the authentication method and collects metadata like cloud information that allow you in the long run to do more.

Learn more about log monitoring with the Elastic Stack.

Have feedback on this blog? Share it here.

The release and timing of any features or functionality described in this post remain at Elastic's sole discretion. Any features or functionality not currently available may not be delivered on time or at all.
