Getting started: Monitor your Kubernetes infrastructureedit

This guide demonstrates how to use the Elastic Kubernetes integration to observe your Kubernetes infrastructure. You’ll set up an Elastic Cloud deployment, where most of the configuration happens automatically. You’ll then learn how to monitor your Kubernetes logs and metrics to proactively detect issues in your cluster.

In this tutorial, you’ll deploy the Elastic Stack, install an Elastic Agent on your host to collect logs and metrics, and visualize information from those collected logs and metrics.


To get started, you need:

  • An internet connection and an email address for your Elastic Cloud trial
  • An active Kubernetes cluster.
  • The kube-state-metrics (KSM) service deployed on your Kubernetes cluster.

If you don’t already have the KSM service deployed, you can follow these steps to set it up (more detailed instructions can be found on the main page of the KSM service repository):

  1. Check that your Kubernetes cluster is version 1.8 or higher. If not, refer to the Kubernetes Deployment section of the the KSM service readme for instructions.
  2. If you are using Google Kubernetes Engine (GKE), your GCP identity must have the cluster-admin role. If it isn’t assigned already, you can assign the role by running:

    kubectl create clusterrolebinding cluster-admin-binding --clusterrole=cluster-admin --user=$(gcloud info --format='value(config.account)')
  3. Clone the kube-state-metrics repository to a local directory:

    git clone
  4. Change directories into the cloned repository:

    cd kube-state-metrics
  5. Deploy the project to your Kubernetes cluster:

    kubectl apply -f examples/standard

    The results should be like the following: created created
    deployment.apps/kube-state-metrics created
    serviceaccount/kube-state-metrics created
    service/kube-state-metrics created
  6. To test that the KSM service is running, run the following command to expose the service:

    kubectl port-forward svc/kube-state-metrics -n kube-system 8080:8080

    The result should be:

    Forwarding from -> 8080
    Forwarding from [::1]:8080 -> 8080

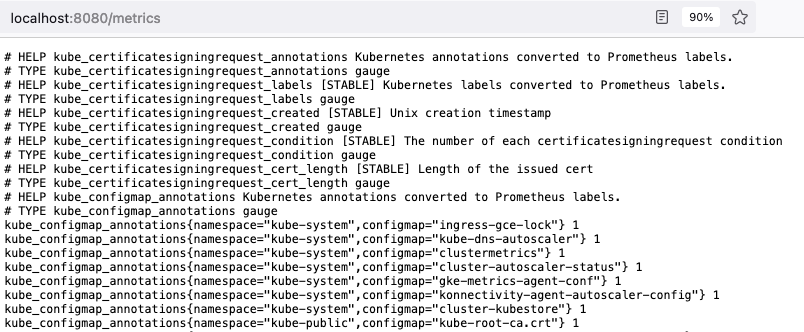

  7. Now, open up a web browser to address localhost:8080/metrics. If things are working properly, you will see a flow of metrics data from your cluster.

    KSM metrics data

With the prerequisites out of the way, you’re ready to get started!

Step 1: Create an Elastic Cloud deploymentedit

If you’ve already signed up for a trial deployment you can skip this step.

An Elastic Cloud deployment offers you all of the features of the Elastic Stack as a hosted service. To test drive your first deployment, sign up for a free Elastic Cloud trial:

  1. Go to our Elastic Cloud Trial page.
  2. Enter your email address and a password.

    Start your free Elastic Cloud trial
  3. After you’ve logged in, you can create a deployment. Give your deployment a name and select Create deployment.

    Create your first deployment
  4. While the deployment sets up, make a note of your elastic superuser password and keep it in a safe place.
  5. Once the deployment is ready, select Continue. At this point, you access Kibana and a selection of setup guides.

Step 2: Run the integration setup guideedit

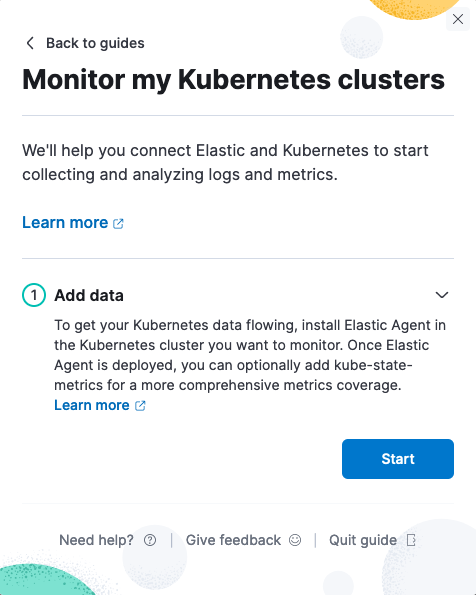

  1. Choose the Monitor Kubernetes clusters card. The guide opens on the first step.

    Observe my Kubernetes infrastructure - Step 1

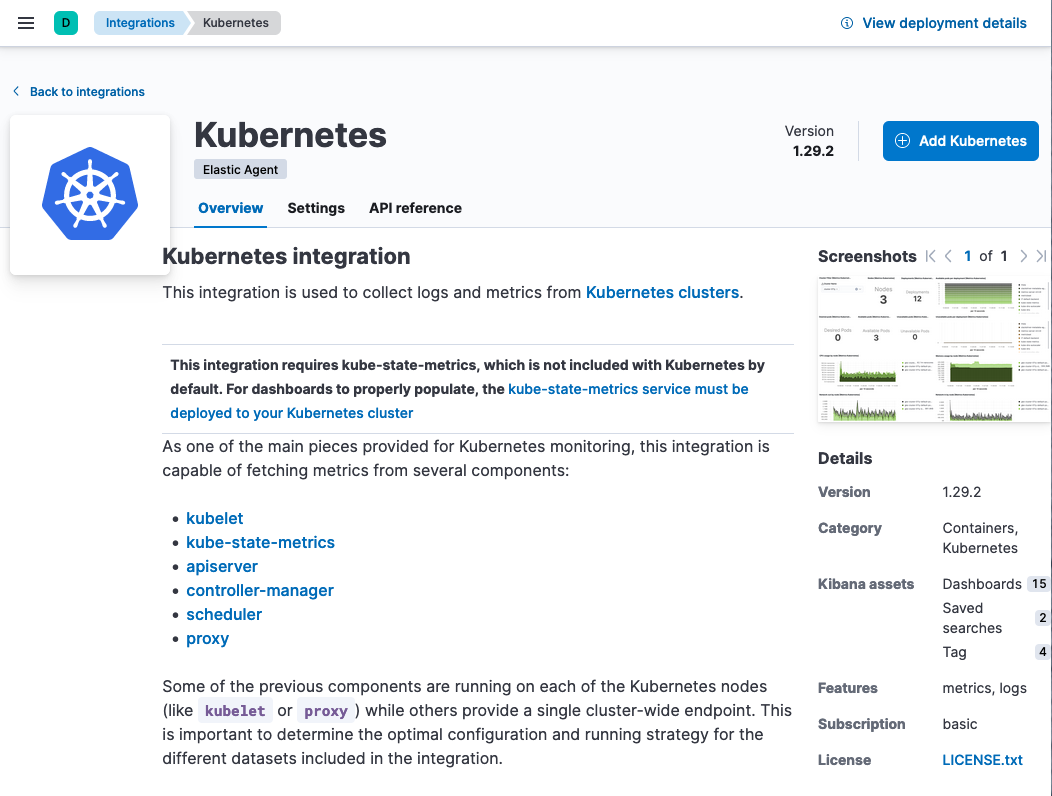

  2. In the guide, on the Add data tab, select Start. The Elastic Kubernetes integration page opens.

    Kubernetes integration page

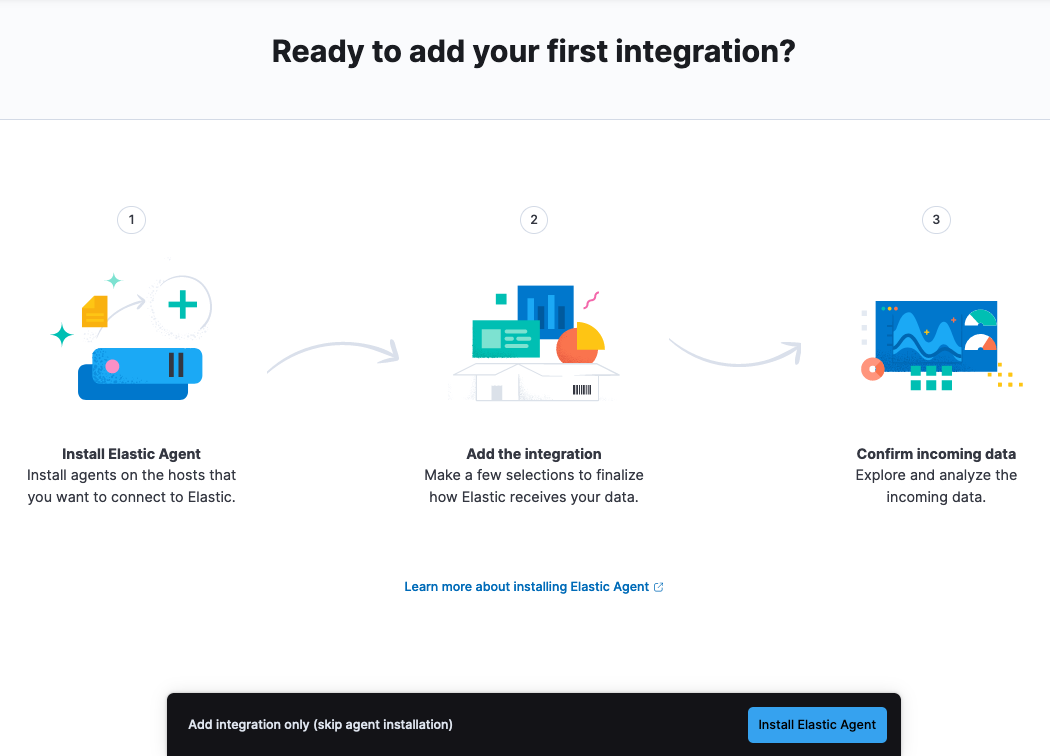

  3. Select Add Kubernetes, and you’re ready to add your first integration.

    Add integration page

Step 3: Install Elastic Agent on your clusteredit

The Elastic Kubernetes integration uses Elastic Agent, a single, unified way to add monitoring for logs, metrics, and other types of data to a host. It can also protect hosts from security threats, query data from operating systems, and more. A single agent makes it easy and fast to deploy monitoring across your infrastructure. Each agent has a single policy (a collection of input settings) that you can update to add integrations for new data sources, security protections, and more.

Your new Elastic Cloud deployment includes a pre-configured instance of Fleet Server, which manages the Elastic Agents that you can use to monitor a host system, in this case your Kubernetes cluster.

  1. On the Ready to add your first integration? page, select Install Elastic Agent.
  2. Follow the steps in the guide to configure and enroll Elastic Agent in Fleet:

    1. Download the provided manifest file or copy the text to a new file in a local directory. The file should be named elastic-agent-managed-kubernetes.yml.
    2. From the directory with the manifest file, run the apply command:

      kubectl apply -f elastic-agent-managed-kubernetes.yml

      The result should be:

      daemonset.apps/elastic-agent created created created created created created created
      serviceaccount/elastic-agent created

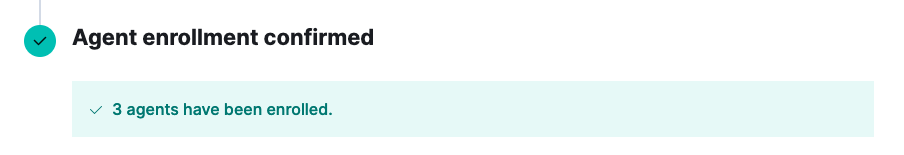

  3. In the integration setup guide, wait for confirmation that Elastic Agent is enrolled in Fleet. This can take a few minutes.

    Agent enrollment confirmed

    You can also view the status of your Elastic Agents at any time by navigating in Kibana to the Fleet page. Our test Kubernetes cluster has three nodes, so three Elastic Agents are configured.

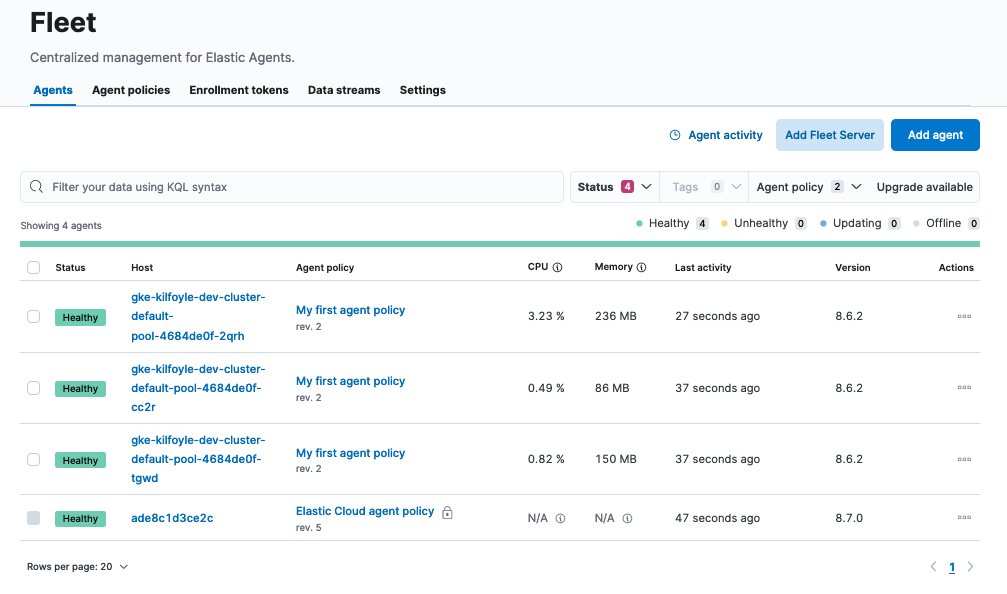

    Fleet page showing enrolled Elastic Agents

    You can also check the status of your the Elastic Agents in your Kubernetes cluster by running the get pods command:

    kubectl -n kube-system get pods -l app=elastic-agent

    Once the Elastic Agents are up and running, the result should be:

    NAME                  READY   STATUS    RESTARTS   AGE
    elastic-agent-b72dp   1/1     Running   0          3m35s
    elastic-agent-p2t39   1/1     Running   0          3m35s
    elastic-agent-xmfhg   1/1     Running   0          3m35s

    Your Kubernetes cluster logs should also show that the Elastic Agent pods were created successfully. Filter by elastic-agent to see just the applicable logs:

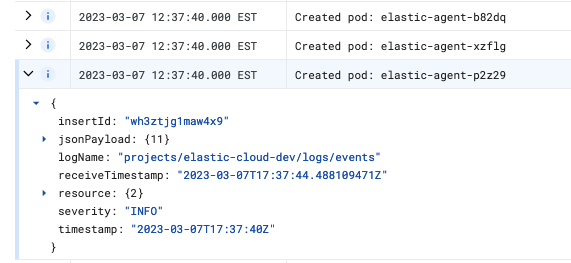

    Cluster logs showing three Elastic Agent pods were created

In case you have problems, you can check the troubleshooting steps provided in the setup guide. The Kubernetes logs and the get pods command can also be useful for diagnosing any issues.

In the event of any memory-related errors, you might need to adjust resource limits of the Elastic Agent container in the elastic-agent-managed-kubernetes.yml manifest file, to increase the default memory values under resources: limits and resources: requests. Container resource usage depends on the number of data streams and the environment size.

Step 4: Add the Elastic Kubernetes integrationedit

  1. Select Add the integration.
  2. Choose the type of metrics and logs that you want to monitor. If you like, you can leave all of the defaults for now and adjust these settings later to suit your needs.

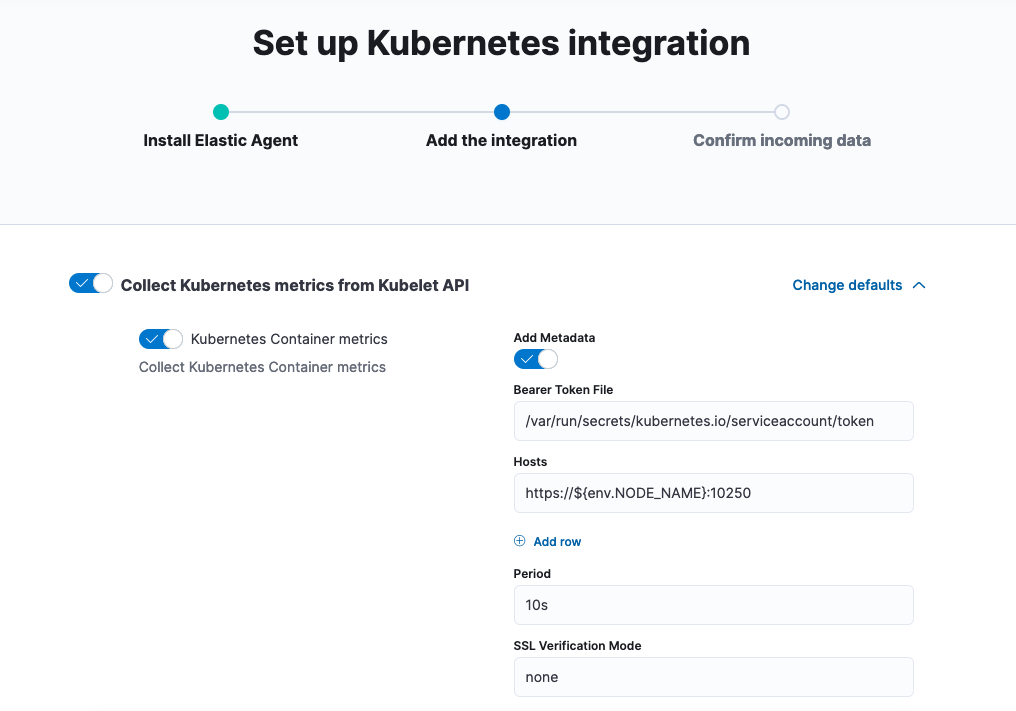

    Configure the integration

Step 5: View your Kubernetes dataedit

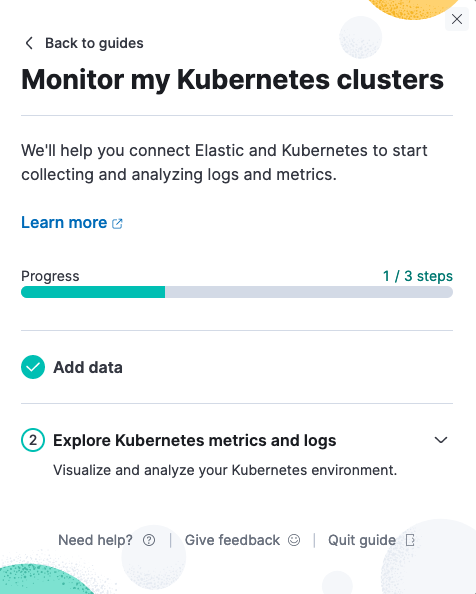

  1. Select Confirm incoming data. Wait a moment for the Elastic Agent policy to save, and then the Kubernetes integration setup guide opens on the second step.

    Observe my Kubernetes infrastructure - Step 2
  2. In the guide, on the Explore Kubernetes metrics and logs tab, select Start. The Kibana [Metrics Kubernetes] Cluster Overview dashboard opens.

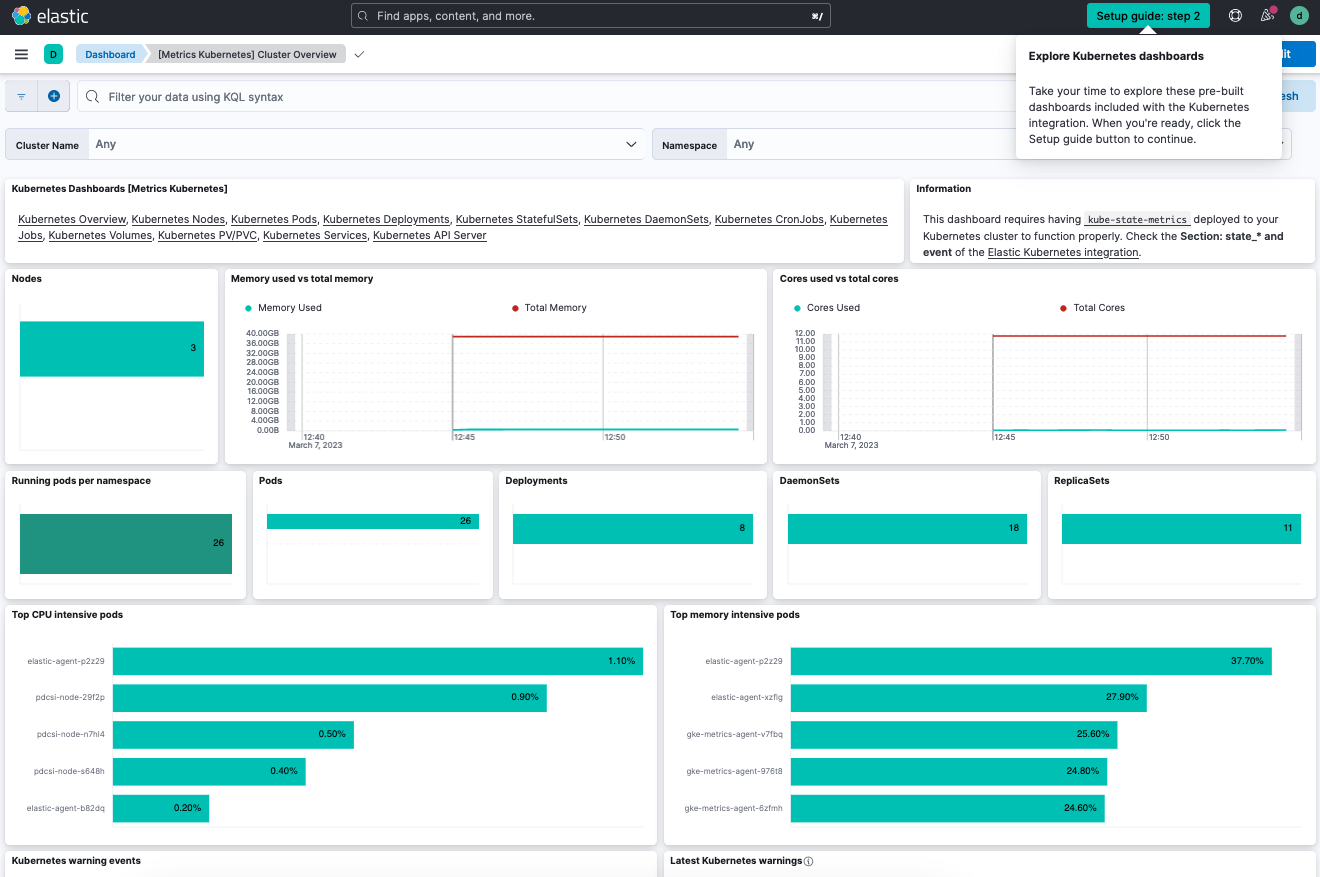

    Metrics Kubernetes Cluster Overview dashboard

    You can use the dashboard filters to drill down to a specific cluster or namespace. You can also filter the time period for the metrics to any range, either absolute or relative to the current time.

  3. On the Kubernetes Dashboards [Metrics Kubernetes] card, try out some of the other dashboards that are available.

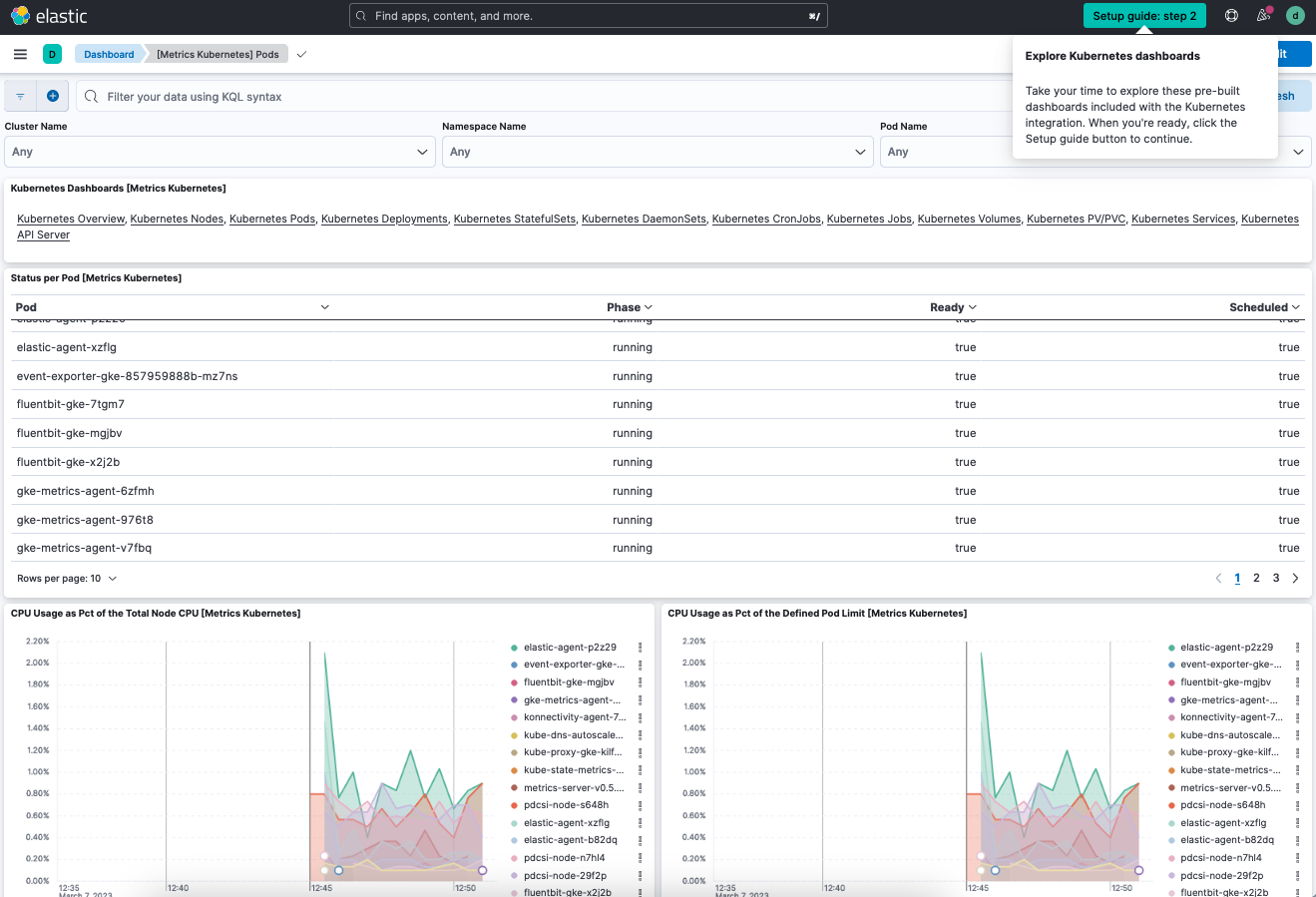

    For example, on the Kubernetes Pods dashboard, the default visualizations capture the pods status, CPU usage, memory usage, and network traffic:

    Metrics Kubernetes Pods dashboard

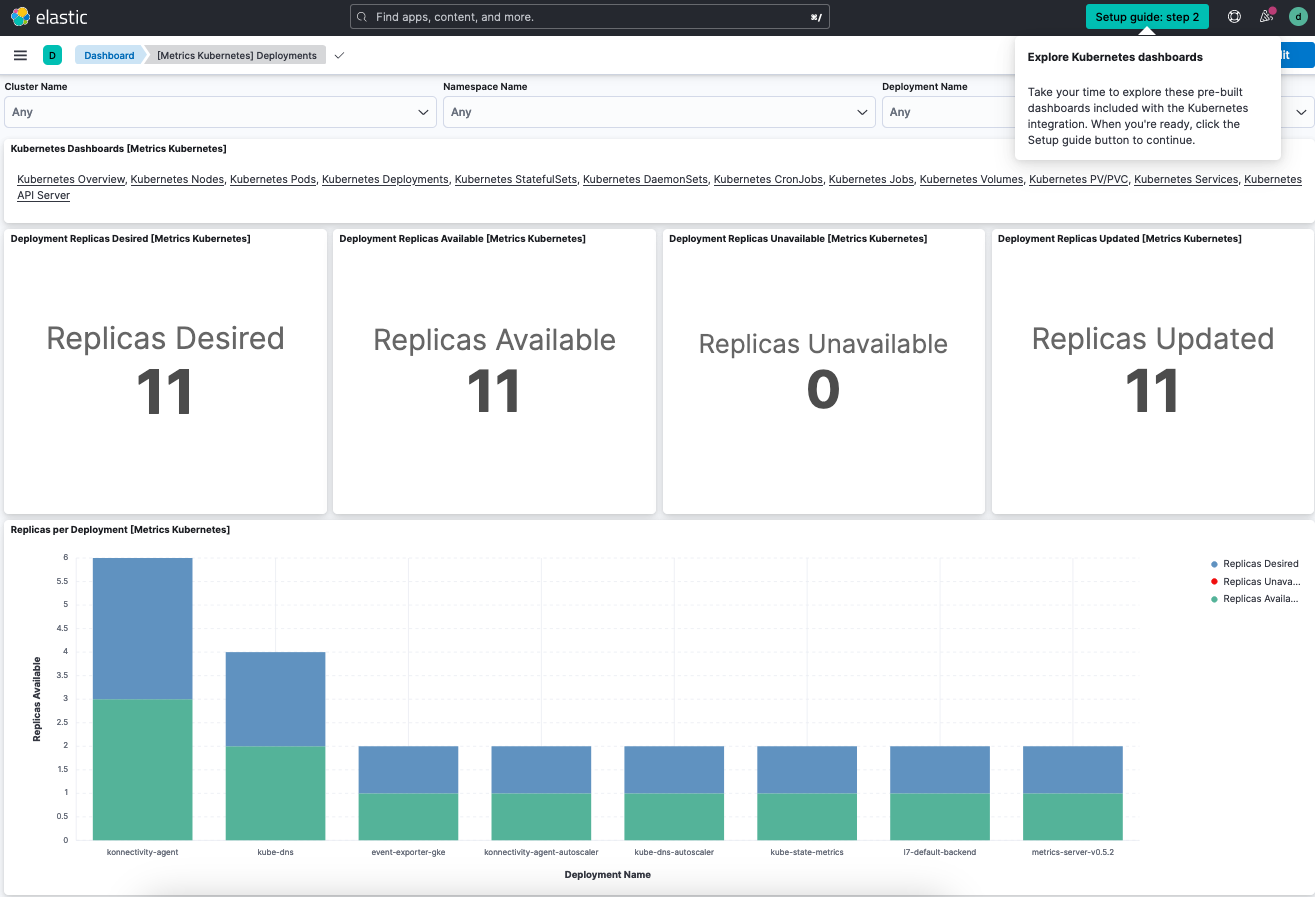

    On the Kubernetes Deployments dashboard, you can view all deployments and replicas: desired, available, unavailable, and updated.

    Metrics Kubernetes Deployments dashboard
  4. On the Elastic banner, select Setup guide: step 2. The guide opens on the second step.

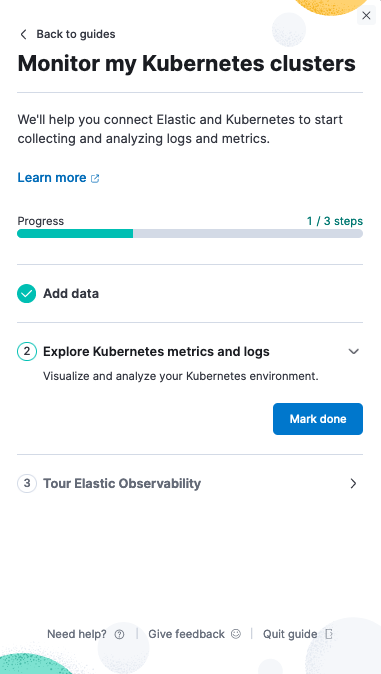

    Observe my Kubernetes infrastructure - Step 1
  5. Since you’ve now tried out a few Kibana dashboards, select Mark done.
  6. Under the Tour Elastic Observability tab, select Start to learn more about Elastic Observability. The remaining steps in the setup guide will introduce you to additional features for monitoring your Kubernetes cluster logs and metrics data, to help you better assess your cluster’s performance over time.

You have now successfully configured monitoring for your Kubernetes infrastructure using the Elastic Kubernetes integration! To learn more about the Elastic Kubernetes integration, check the Kubernetes integration documentation.
