Preconfigured connectorsedit

If you are running Kibana on-prem, you can preconfigure a connector to have all the information it needs prior to startup by adding it to the kibana.yml file.

Elasticsearch Service provides a preconfigured email connector but you cannot create additional preconfigured connectors.

Preconfigured connectors offer the following benefits:

  • Require no setup. Configuration and credentials needed to run an action are predefined, including the connector name and ID.
  • Appear in all spaces because they are not saved objects.
  • Cannot be edited or deleted.

Create preconfigured connectorsedit

Add xpack.actions.preconfigured settings to your kibana.yml file. The settings vary depending on which type of connector you’re adding.

This example shows a valid configuration for a Slack connector and a Webhook connector:

  xpack.actions.preconfigured:
    my-slack1:
      actionTypeId: .slack
      name: 'Slack #xyz'
      secrets:
        webhookUrl: 'https://hooks.slack.com/services/abcd/efgh/ijklmnopqrstuvwxyz'
    webhook-service:
      actionTypeId: .webhook
      name: 'Email service'
      config:
        url: 'https://email-alert-service.elastic.co'
        method: post
        headers:
          header1: value1
          header2: value2
      secrets:
        user: elastic
        password: changeme

The key is the connector identifier, my-slack1 in this example.

actionTypeId is the action type identifier.

name is the name of the preconfigured connector.

config is the configuration specific to the connector type.

secrets is the sensitive configuration, such as username, password, and keys, specific to the connector type.

Sensitive properties, such as passwords, can also be stored in the Kibana keystore.

Built-in preconfigured connectorsedit

Kibana provides the following built-in preconfigured connectors:

View preconfigured connectorsedit

When you open the main menu, click Stack Management > Connectors. Preconfigured connectors appear regardless of which space you are in. They are tagged as “preconfigured”, and you cannot delete them.

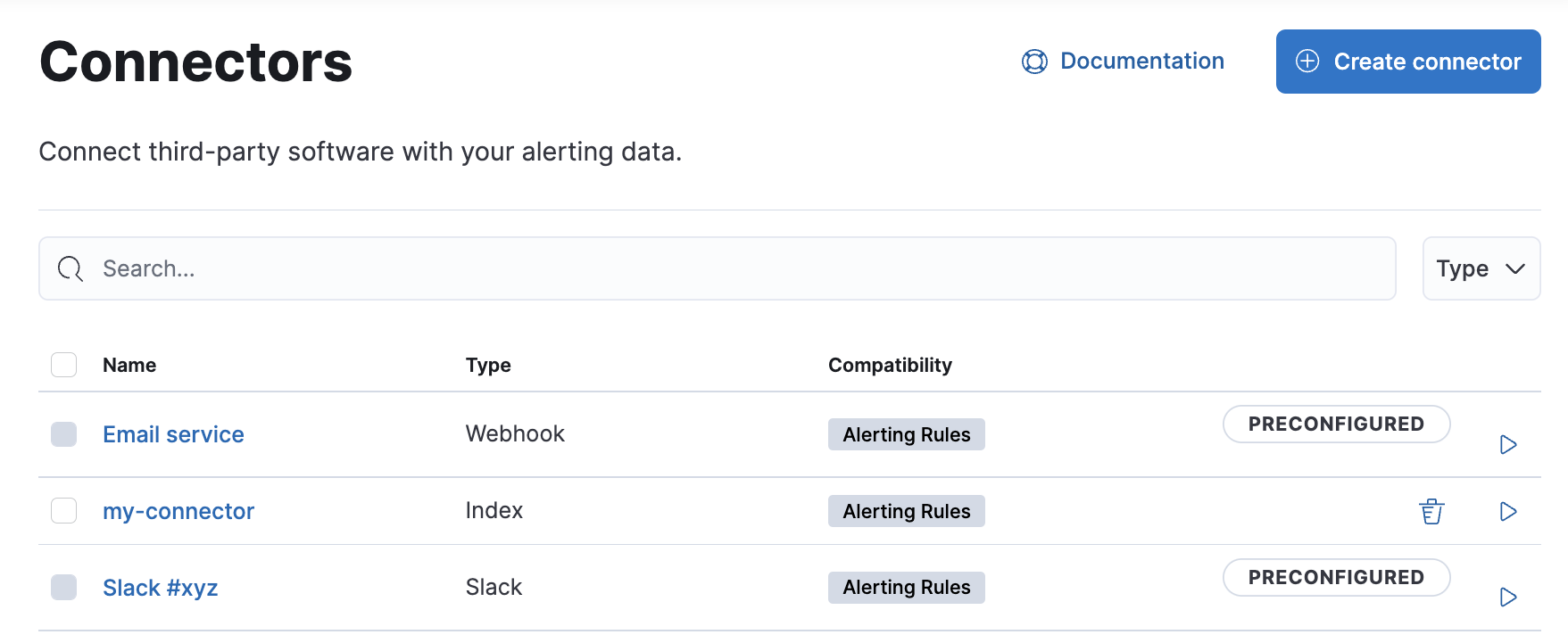

Connectors managing tab with pre-configured

Clicking a preconfigured connector shows the description, but not the configuration.
