Index connector and actionedit

An index connector indexes a document into Elasticsearch.

You can create index connectors in Kibana or by using the create connector API. Alternatively, you can use the preconfigured alert history Elasticsearch index connector. If you are running Kibana on-prem, you can also create more preconfigured index connectors.

Create connectors in Kibanaedit

You can create connectors in Stack Management > Connectors or as needed when you’re creating a rule. For example:

Index connector
Connector configurationedit

Index connectors must have a name and an Elasticsearch index. You can optionally set the refresh policy and the time field, which contains the details about when each alert condition was detected.

Create preconfigured connectorsedit

If you are running Kibana on-prem, you can define connectors by adding xpack.actions.preconfigured settings to your kibana.yml file. For example:

    name: preconfigured-index-connector-type
    actionTypeId: .index
      index: .kibana
      refresh: true
      executionTimeField: my-field

By default, the refresh policy is false.

For more information, go to Preconfigured connectors.

Preconfigured alert history Elasticsearch index connectoredit

This functionality is in technical preview and may be changed or removed in a future release. Elastic will work to fix any issues, but features in technical preview are not subject to the support SLA of official GA features.

Kibana offers a preconfigured index connector to facilitate indexing active alert data into Elasticsearch.

To use this connector, set xpack.actions.preconfiguredAlertHistoryEsIndex to true.

When you subsequently create rules, you can use the Alert history Elasticsearch index (preconfigured) connector.

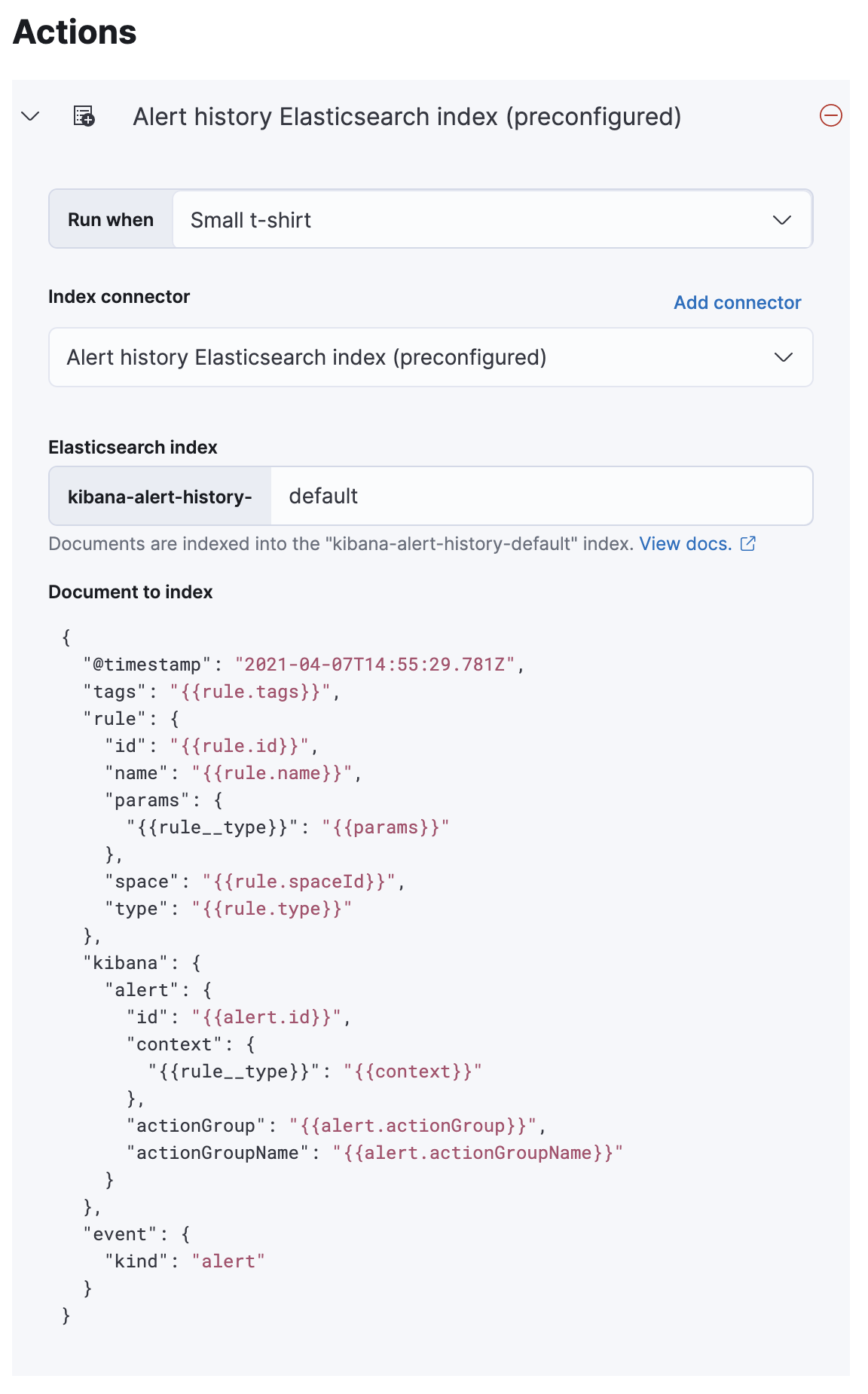

Select pre-configured alert history connectors

Documents are indexed using a preconfigured schema that captures the action variables available for the rule. By default, these documents are indexed into the kibana-alert-history-default index, but you can specify a different index. Index names must start with kibana-alert-history- to take advantage of the preconfigured alert history index template.

  • To write documents to the preconfigured index, you must have all or write privileges to the kibana-alert-history-* indices. Refer to Kibana role management for more information.
  • The kibana-alert-history-* indices are not configured to use ILM so they must be maintained manually. If the index size grows large, consider using the delete by query API to clean up older documents in the index.

Test connectorsedit

You can test connectors with the run connector API or as you’re creating or editing the connector in Kibana. For example:

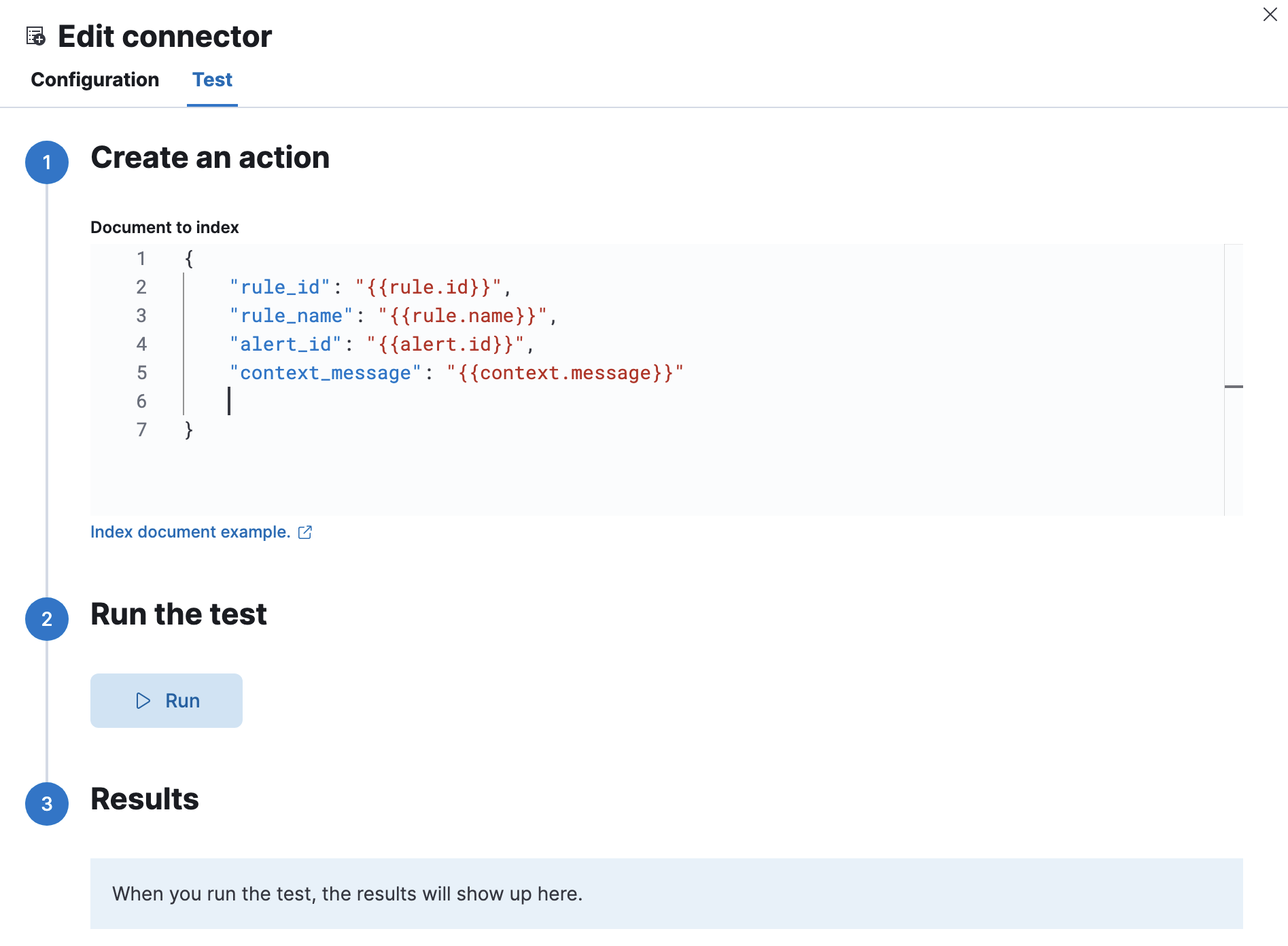

Index params test

Index connector actions contain a document in JSON format. For example, if you have an index with the following properties:

PUT test
    "settings" : {
        "number_of_shards" : 1
    "mappings" : {
        "properties" : {
            "rule_id" : { "type" : "text" },
            "rule_name" : { "type" : "text" },
            "alert_id" : { "type" : "text" },
            "context_message": { "type" : "text" }

Your test document could contain the following properties and variables:

    "rule_id": "{{}}",
    "rule_name": "{{}}",
    "alert_id": "{{}}",
    "context_message": "{{context.message}}"
