Quick start: Get application traces into the Elastic Stackedit

This functionality is experimental and may be changed or removed completely in a future release. Elastic will take a best effort approach to fix any issues, but experimental features are not subject to the support SLA of official GA features.

This guide describes how to:

  • Collect Application Performance Monitoring (APM) data
  • Send APM data to the Elastic Stack
  • Explore and visualize the data in real-time

For feedback and questions, please contact us in the discuss forum.

Prerequisitesedit

  • Please read the Fleet limitations.
  • The APM integration is experimental and has a number of known limitations. Please read the list of known limitations.
  • You need Elasticsearch for storing and searching your data, and Kibana for visualizing and managing it. You can use our hosted Elasticsearch Service on Elastic Cloud (recommended), or self-manage the Elastic Stack on your own hardware.

    Here’s what you need for each deployment type:

Step 1: Set up Fleetedit

Use Fleet in Kibana to get APM data into the Elastic Stack.

The first time you use Fleet, you might need to set it up and add a Fleet Server:

No extra setup is required. Elastic Cloud runs a hosted version of Fleet Server.

To confirm that Fleet Server is available in your deployment:

  1. Log in to Kibana and go to Management > Fleet.
  2. Click the Agents tab.
  3. Under Host, confirm that Fleet Server is running and healthy.

Fleet Server is the agent enrolled in the Elastic Cloud agent policy. This policy is managed by Elastic Cloud. You cannot modify it.

Don’t see the Fleet Server agent? Make sure your deployment includes an APM & Fleet node. This node is required to use Fleet Server.

Edit page showing settings for APM & Fleet node

For more information, see Fleet Server.

Step 2: Add an Elastic Agent to Fleetedit

Don’t confuse Elastic Agent with APM agents–they are different components. In a later step, you’ll instrument your code with APM agents and send the data to an APM Server instance that Elastic Agent spins up.

Elastic Agent is a single, unified agent that you can deploy to hosts or containers to collect data and send it to the Elastic Stack. Behind the scenes, Elastic Agent runs the Beats shippers or Elastic Endpoint required for your configuration.

If you plan on enabling Real User Monitoring (RUM), you must run Elastic Agent centrally. If RUM is disabled, you should run Elastic Agent on edge machines.

To send APM data to the Elastic Stack:

  1. On the Agents tab in Fleet, click Add agent.
  2. Under Enroll in Fleet, follow the in-product installation steps.

    add agent

    See the download page for other installation options.

Notes:

  • Use the default agent policy to get started quickly. This policy includes a system integration for collecting logs and metrics from the host system. You can change the policy later.
  • The install command installs the Elastic Agent as a managed service, enrolls it in the selected policy, and starts the service. For example:

    ./elastic-agent install -f --url=https://10.0.2.2:8220 \
    --enrollment-token=blJqaUdua0JqYXA0bmNscVVjUkE6ZGh4WWNRSHRRek9aSS1paEs2cHdFQQ==
  • Because Elastic Agent is installed as an auto-starting service, it will restart automatically if the system is rebooted.
  • To see where files are installed, see Installation layout.

If installation is successful, you’ll see the agent on the Agents tab in Fleet. Notice that the Default policy is assigned to the agent.

Fleet showing enrolled agents

If the status hangs at Enrolling, make sure the elastic-agent process is running.

If you run into problems, see Troubleshoot common problems.

Step 3: Add the APM integrationedit

Next, you’ll browse a catalog of integrations, then add an APM integration to the default policy used by your agent. You use policies to manage settings across a group of agents. An agent policy may contain any number of integrations for collecting observability data from the various services running on your host.

  1. In Kibana, go back to Management > Fleet, and click the Integrations tab. Use the search bar to find the Elastic APM integration.

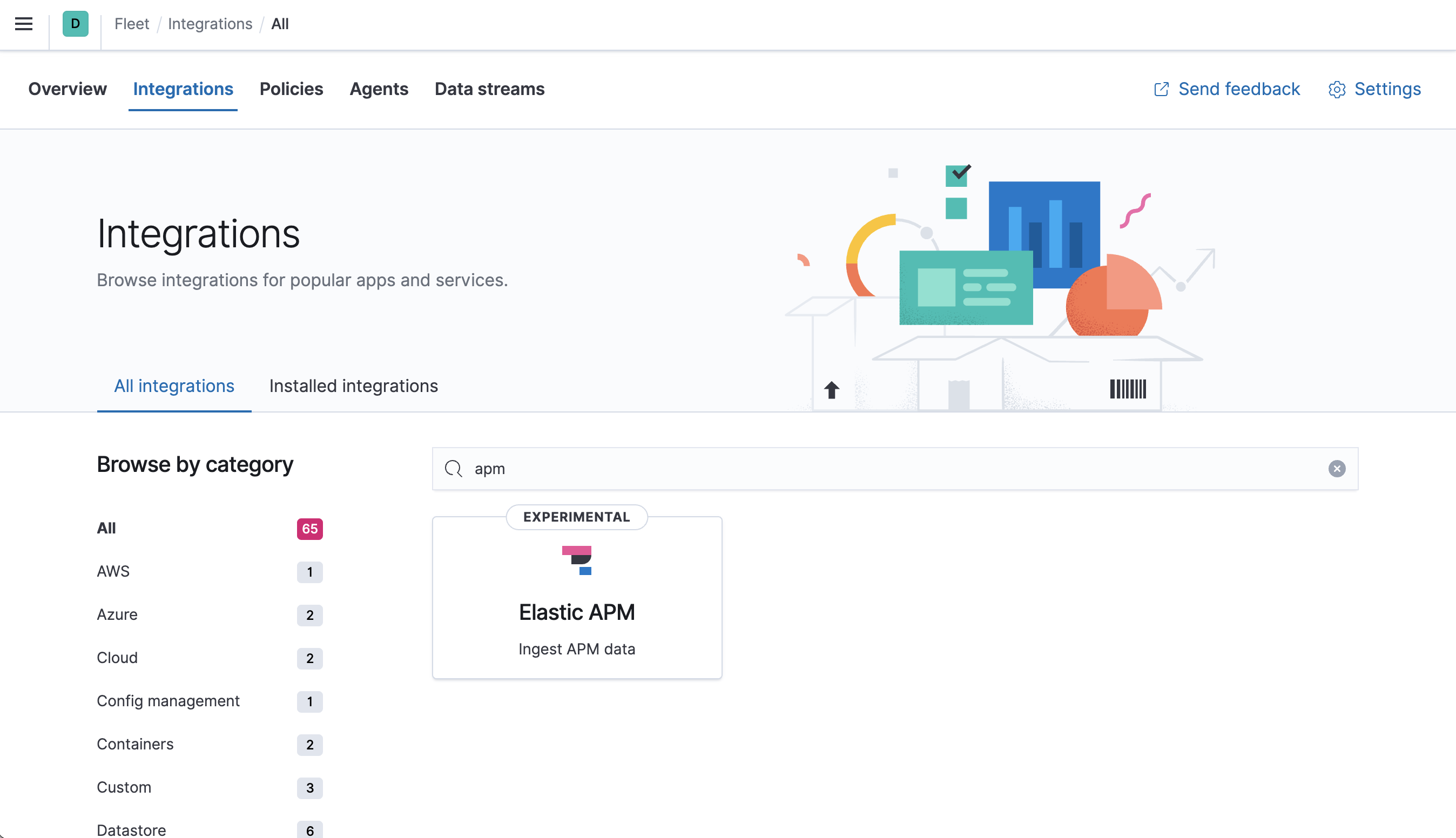

    Fleet showing APM integration
  2. Click the APM integration to see more details about it, then click Add Elastic APM.

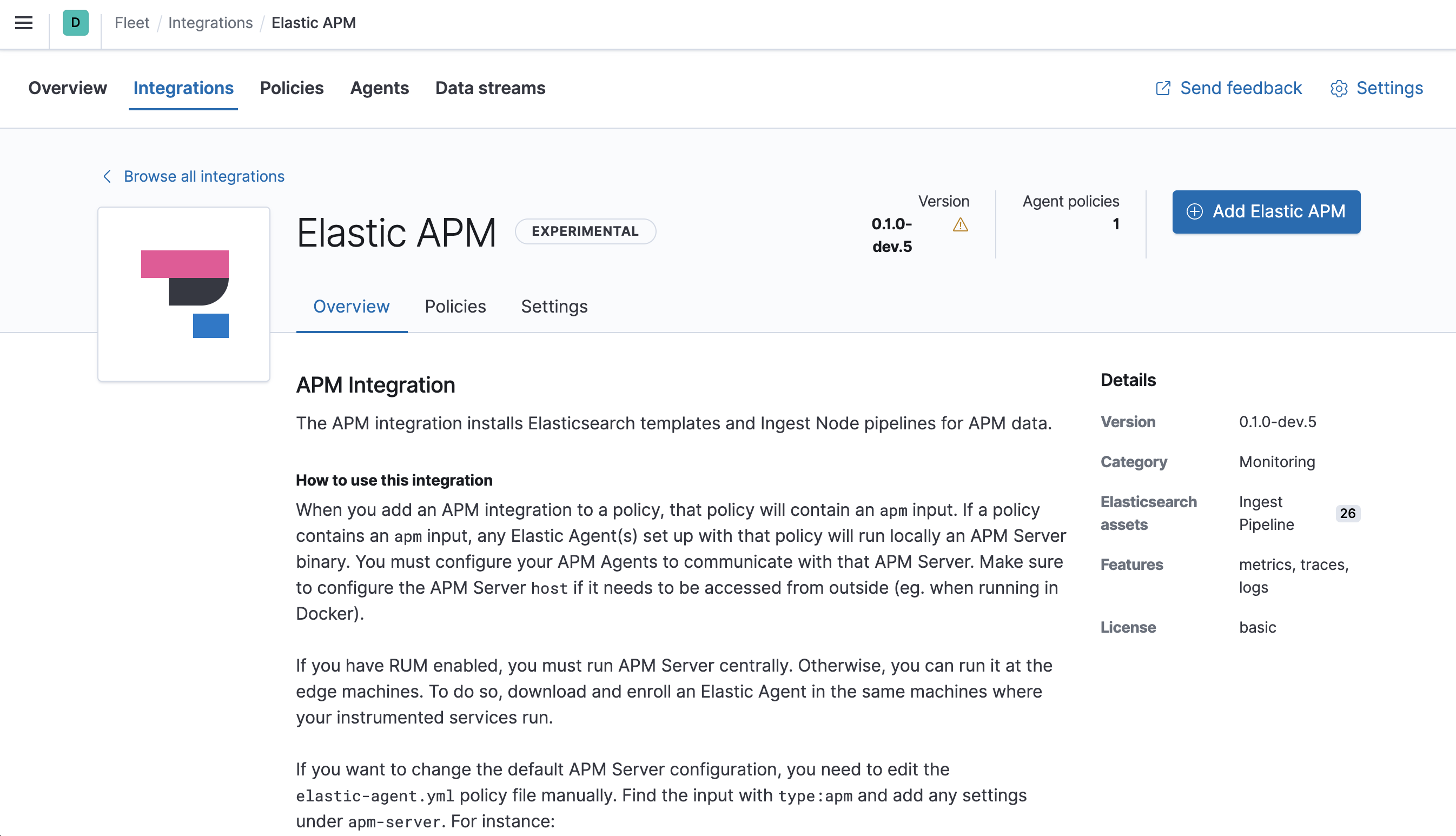

    Fleet showing APM integration overview
  3. On the Add APM integration page, select the default policy.

    In this guide, you add integrations to the default policy created by Kibana. After you learn the basics, you can create your own policies and assign them to agents.

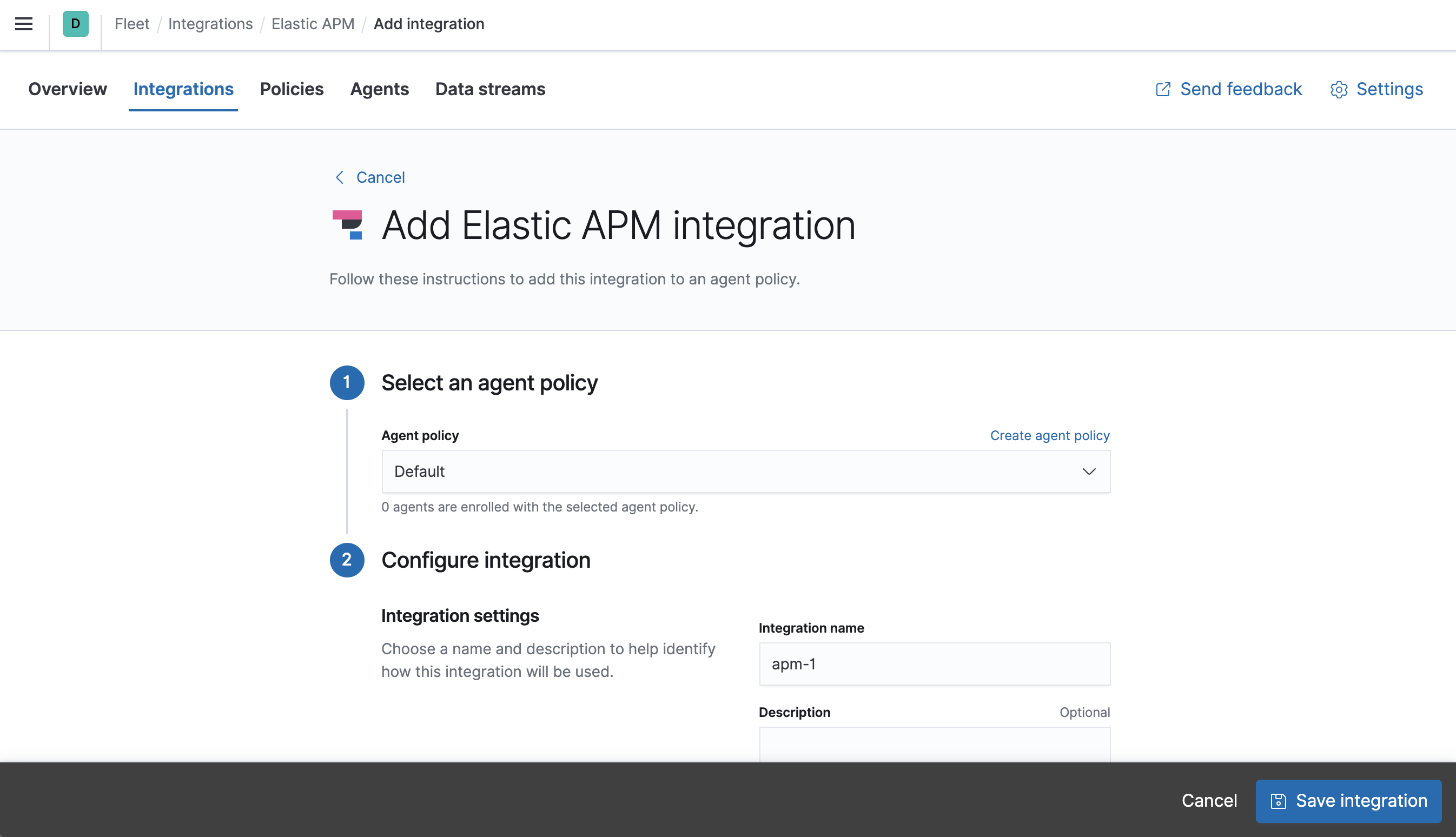

    Fleet Add APM integration page
  4. Under Configure integration, click the down arrow next to Collect application traces. Under Host, define the host and port where APM Server will listen. Inspect or change other settings.
  5. To see the updated policy, click the Policies tab, then click the Default policy link.

    The newly added APM integration should appear under Integrations in the default policy, along with the default system-1 integration.

    Fleet showing default agent policy with apm-1 datasource

    All Elastic Agents that use this policy will collect APM data from your instrumented services.

Step 4: Install APM agentsedit

APM agents are written in the same language as your service. To monitor a new service, you must install the agent and configure it with a service name, APM Server host, and Secret token.

  • Service name: The APM integration maps an instrumented service’s name–defined in each APM agent’s configuration– to the index that its data is stored in Elasticsearch. Service names are case-insensitive and must be unique. For example, you cannot have a service named Foo and another named foo. Special characters will be removed from service names and replaced with underscores (_).
  • APM Server URL: The host and port that APM Server listens for events on. This should match the host and port defined when setting up the APM integration.
  • Secret token: Authentication method for APM agent and APM Server communication. This should match the secret token defined when setting up the APM integration.

You can edit your APM integration settings if you need to change the APM Server URL or secret token to match your APM agents.

Download the APM agent

Download the agent jar from Maven Central. Do not add the agent as a dependency to your application.

Start your application with the javaagent flag

Add the -javaagent flag and configure the agent with system properties.

  • Set required service name
  • Set custom APM Server URL (default: http://localhost:8200)
  • Set the base package of your application
java -javaagent:/path/to/elastic-apm-agent-<version>.jar \
     -Delastic.apm.service_name=my-application \
     -Delastic.apm.server_urls=http://localhost:8200 \
     -Delastic.apm.secret_token= \
     -Delastic.apm.application_packages=org.example \
     -jar my-application.jar

Learn more in the agent reference

Step 5: View your dataedit

Back in Kibana, under Observability, select APM. You should see application performance monitoring data flowing into the Elastic Stack!

The built-in apm_user role is not compatible with the APM integration as it only provides read access to apm-* indices. For a list of indices users need access to, see APM data streams

APM app with data

What’s next?edit

  • Now that data is streaming into the Elastic Stack, take your investigation to a deeper level! Use Elastic Observability to unify your logs, metrics, uptime, and application performance data.
  • Want to protect your endpoints from security threats? Try Elastic Security. Adding endpoint protection is just another integration that you add to the agent policy!
  • Are your eyes bleary from staring at a wall of screens? Create alerts and find out about problems while sipping your favorite beverage poolside.
  • Want Elastic to do the heavy lifting? Use machine learning to detect anomalies.
  • Got everything working like you want it? Roll out your agent policies to other hosts by deploying Elastic Agents across your infrastructure!
