Microsoft Power BI Desktop

This functionality is experimental and may be changed or removed completely in a future release. Elastic will take a best effort approach to fix any issues, but experimental features are not subject to the support SLA of official GA features.



Power BI is a business analytics solution that lets you visualize your data and share insights across your organization, or embed them in your app or website.


 -- https://powerbi.microsoft.com/en-us/what-is-power-bi/

Prerequisites

  • Microsoft Power BI Desktop 2.63 or higher
  • Elasticsearch SQL ODBC driver
  • A preconfigured User or System DSN (see Configuration section on how to configure a DSN).

Data loading

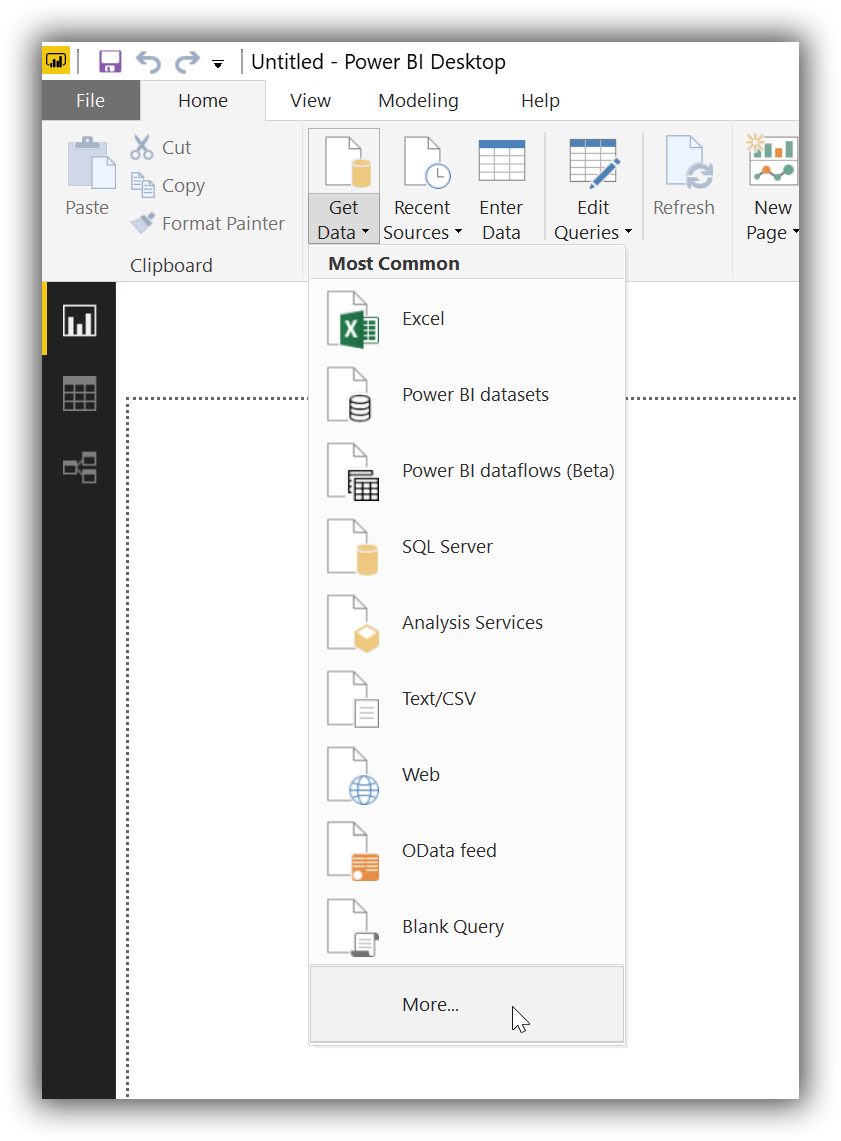

First, you’ll need to choose ODBC as the source to load data from. Once launched, click on the Get Data button (under Home tab), then on the More…​ button at the bottom of the list:

Get Data / More…​. apps pbi fromodbc1

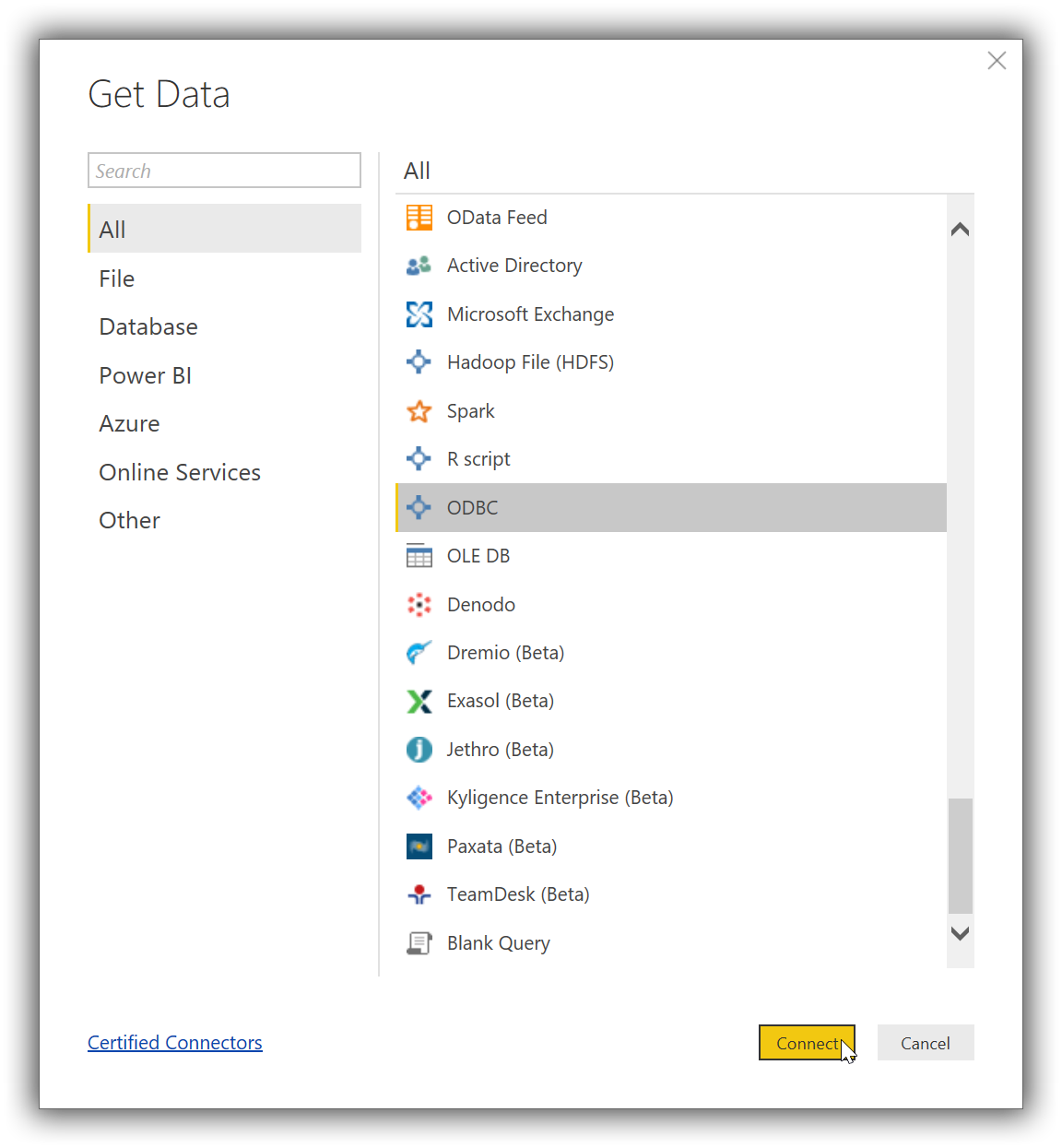

In the new opened window scroll at the bottom of the All list and select the ODBC entry, then click on the Connect button:

ODBC / Connect. apps pbi fromodbc2

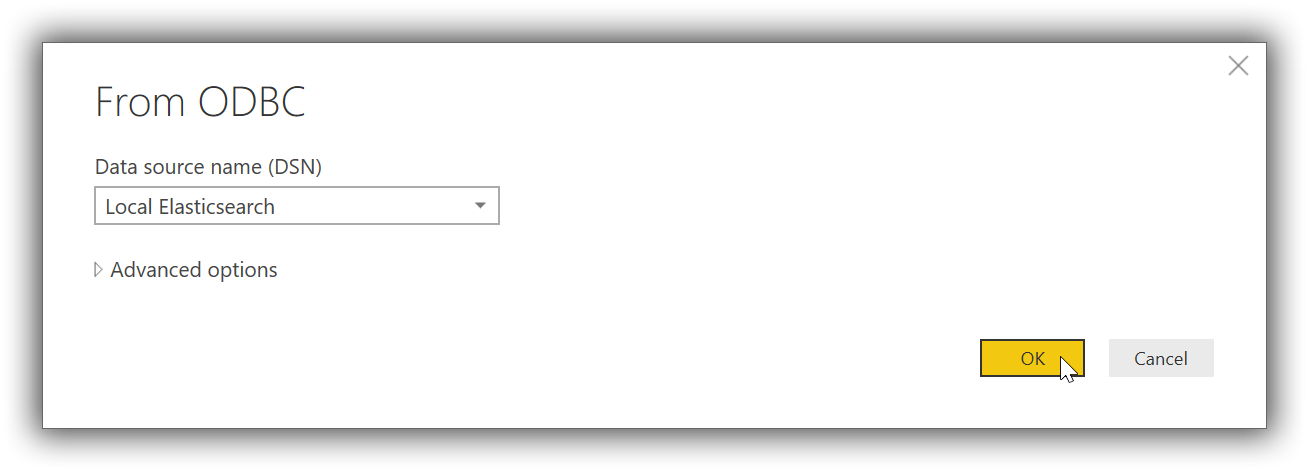

This will replace current window with a new From ODBC one, where you’ll have to select a previously configured DSN:

Choose a DSN. apps pbi dsn

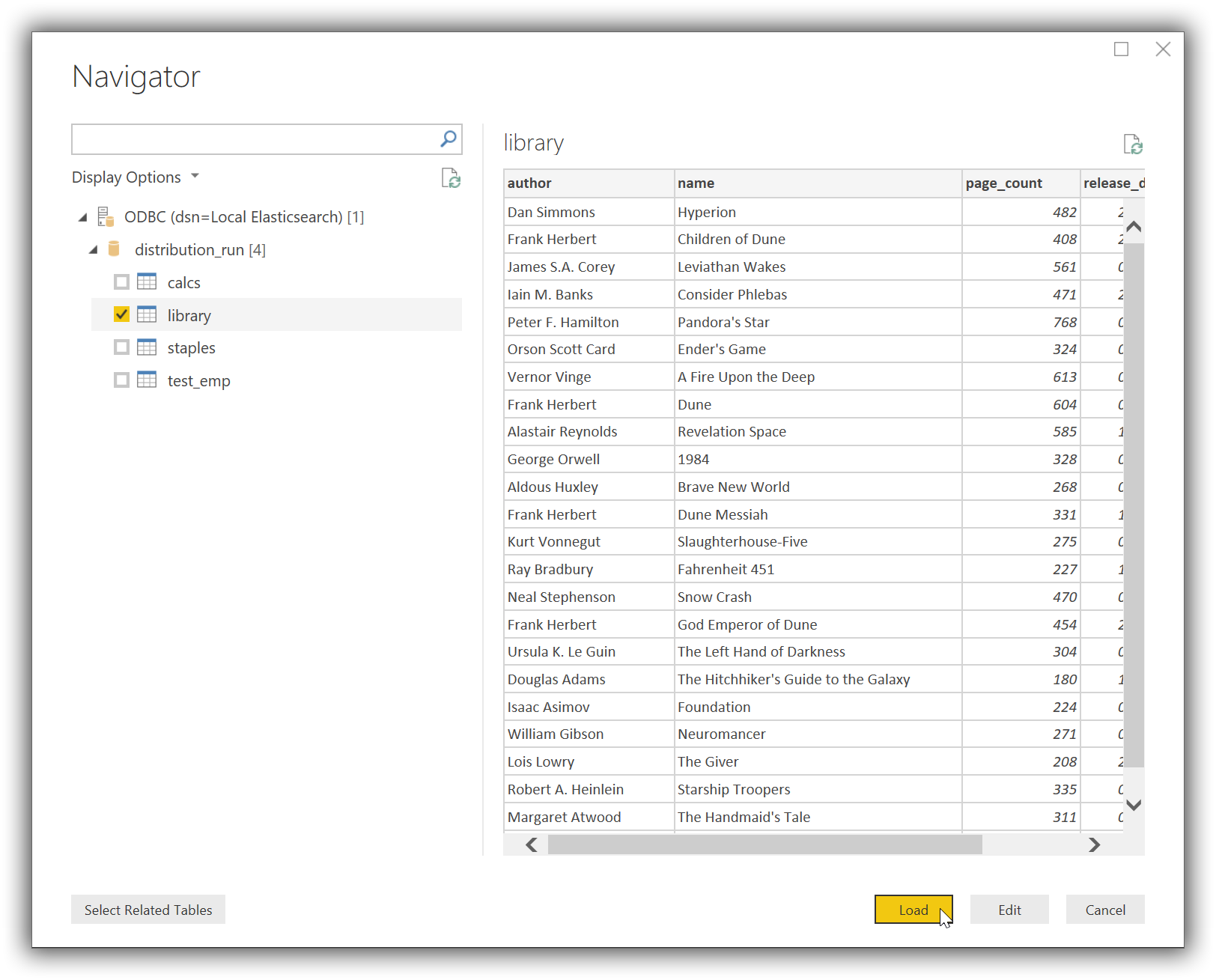

Once connected Power BI will read Elasticsearch’s catalog and offer the user a choice of tables (indices) to load data from. Clicking on one of the tables will load a preview of the data within:

Pick table to load. apps pbi picktable

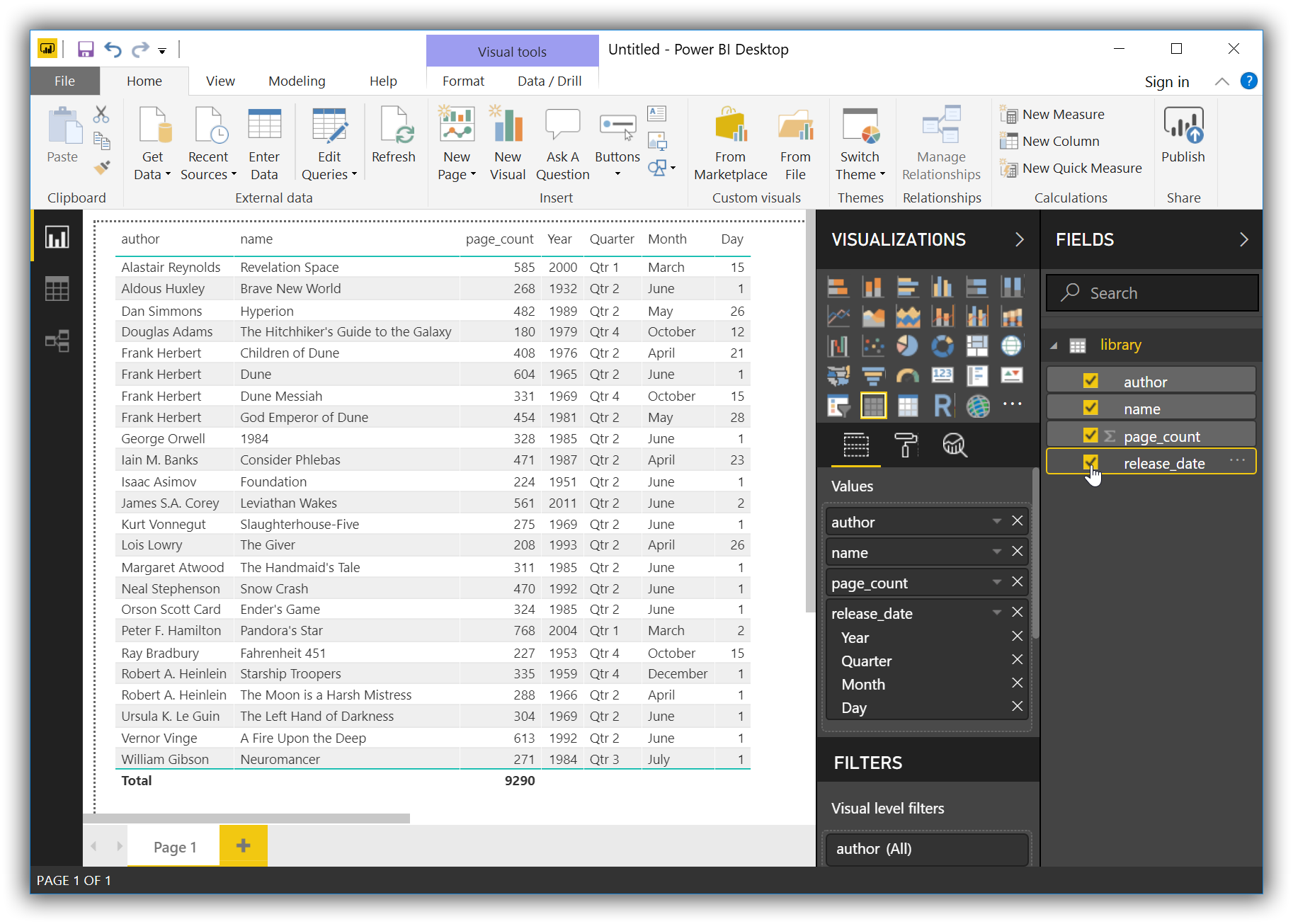

Now tick the chosen table and click on the Load button. Power BI will now load and anlyze the data, populating a list with the available columns. These can now be used to build the desired visualisation:

Visualize the data. apps pbi loaded
