Creating Jobs

Machine learning jobs contain the configuration information and metadata necessary to perform an analytical task. They also contain the results of the analytical task.

Note

This tutorial uses Kibana to create jobs and view results, but you can alternatively use APIs to accomplish most tasks. For API reference information, see Machine Learning APIs.

The X-Pack machine learning features in Kibana use pop-ups. You must configure your web browser so that it does not block pop-up windows or create an exception for your Kibana URL.

To work with jobs in Kibana:

  1. Open Kibana in your web browser and log in. If you are running Kibana locally, go to http://localhost:5601/.
  2. Click Machine Learning in the side navigation:

    Job Management

You can choose to create single metric, multi-metric, or advanced jobs in Kibana. In this tutorial, the goal is to detect anomalies in the total requests received by your applications and services. The sample data contains a single key performance indicator to track this, which is the total requests over time. It is therefore logical to start by creating a single metric job for this KPI.

Tip

If you are using aggregated data, you can create an advanced job and configure it to use a summary_count_field. The machine learning algorithms will make the best possible use of summarized data in this case. For simplicity in this tutorial we will not make use of that advanced functionality.

Creating a Single Metric Job

A single metric job contains a single detector. A detector defines the type of analysis that will occur (for example, max, average, or rare analytical functions) and the fields that will be analyzed.

To create a single metric job in Kibana:

  1. Click Machine Learning in the side navigation, then click Create new job.
  2. Click Create single metric job.

    Create a new job
  3. Click the server-metrics index.

    Select an index
  4. Configure the job by providing the following information:

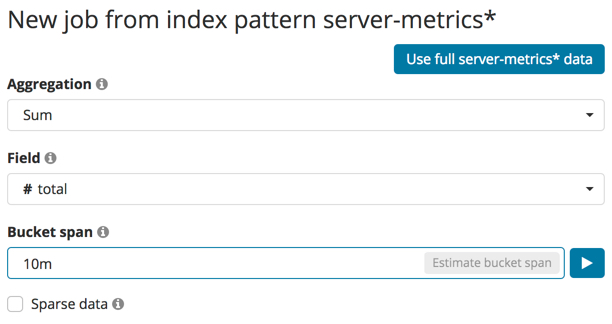

    Create a new job from the server-metrics index
    1. For the Aggregation, select Sum. This value specifies the analysis function that is used.

      Some of the analytical functions look for single anomalous data points. For example, max identifies the maximum value that is seen within a bucket. Others perform some aggregation over the length of the bucket. For example, mean calculates the mean of all the data points seen within the bucket. Similarly, count calculates the total number of data points within the bucket. In this tutorial, you are using the sum function, which calculates the sum of the specified field’s values within the bucket.

    2. For the Field, select total. This value specifies the field that the detector uses in the function.

      Note

      Some functions such as count and rare do not require fields.

    3. For the Bucket span, enter 10m. This value specifies the size of the interval that the analysis is aggregated into.

      The X-Pack machine learning features use the concept of a bucket to divide up the time series into batches for processing. For example, if you are monitoring the total number of requests in the system, using a bucket span of 1 hour would mean that at the end of each hour, it calculates the sum of the requests for the last hour and computes the anomalousness of that value compared to previous hours.

      The bucket span has two purposes: it dictates over what time span to look for anomalous features in data, and also determines how quickly anomalies can be detected. Choosing a shorter bucket span enables anomalies to be detected more quickly. However, there is a risk of being too sensitive to natural variations or noise in the input data. Choosing too long a bucket span can mean that interesting anomalies are averaged away. There is also the possibility that the aggregation might smooth out some anomalies based on when the bucket starts in time.

      The bucket span has a significant impact on the analysis. When you’re trying to determine what value to use, take into account the granularity at which you want to perform the analysis, the frequency of the input data, the duration of typical anomalies and the frequency at which alerting is required.

  5. Determine whether you want to process all of the data or only part of it. If you want to analyze all of the existing data, click Use full server-metrics* data. If you want to see what happens when you stop and start datafeeds and process additional data over time, click the time picker in the Kibana toolbar. Since the sample data spans a period of time between March 23, 2017 and April 22, 2017, click Absolute. Set the start time to March 23, 2017 and the end time to April 1, 2017, for example. Once you’ve got the time range set up, click the Go button.

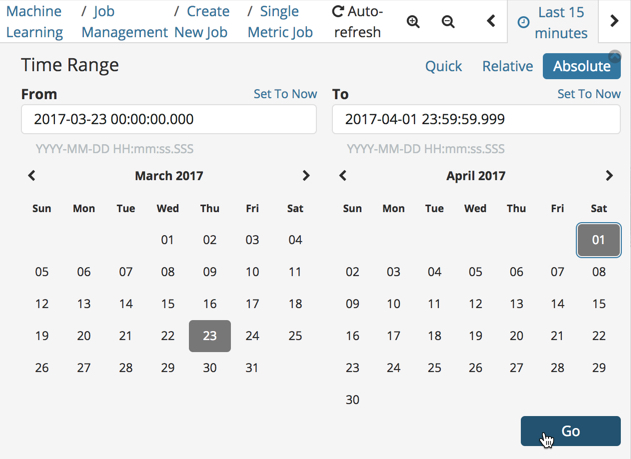

    Setting the time range for the datafeed

    A graph is generated, which represents the total number of requests over time.

  6. Provide a name for the job, for example total-requests. The job name must be unique in your cluster. You can also optionally provide a description of the job.
  7. Click Create Job.

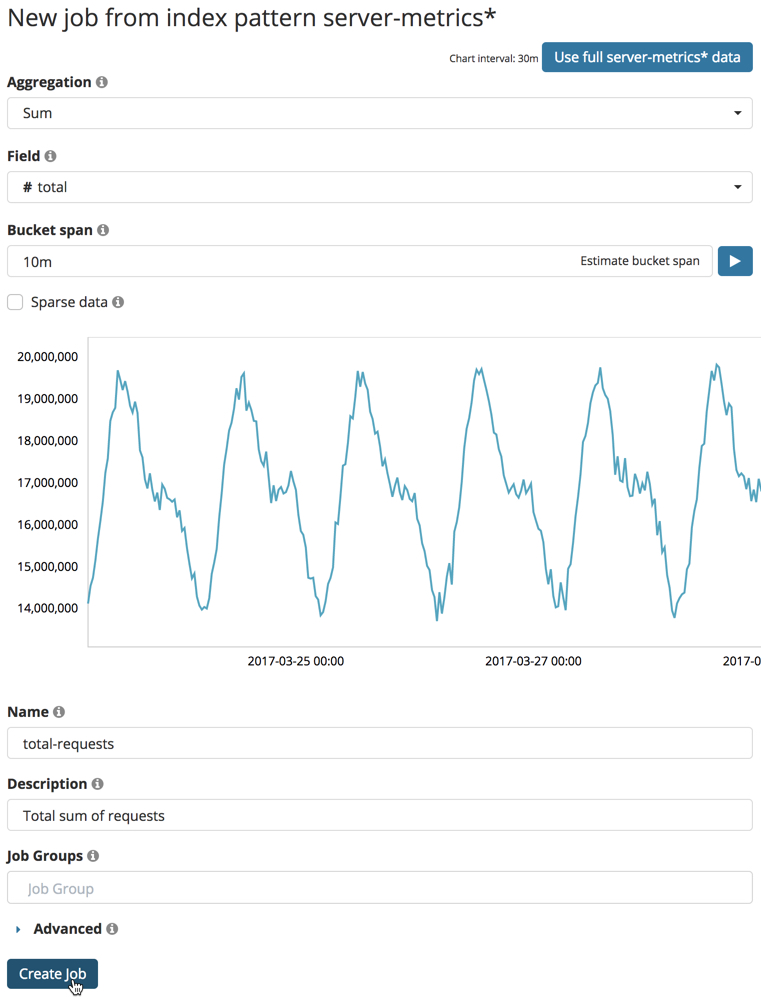

    A graph of the total number of requests over time

As the job is created, the graph is updated to give a visual representation of the progress of machine learning as the data is processed. This view is only available whilst the job is running.

Tip

The create_single_metic.sh script creates a similar job and datafeed by using the machine learning APIs. You can download that script by clicking here: create_single_metric.sh For API reference information, see Machine Learning APIs.
