Dropbox is a cloud-based storage service for organizations of all sizes, allowing teams to create, store, share and automatically synchonize documents across desktop, web and mobile. The Dropbox connector provided with Workplace Search automatically captures, syncs and indexes the following items:

Configuring the Dropbox Connectoredit

Configuring the Dropbox connector is the first step prior to connecting the Dropbox service to Workplace Search, and requires that you create an OAuth App from the Dropbox platform. To get started, first log in to Dropbox and access your administrative dashboard:

Step 1. Login to Dropbox’s App Developer Portal.

Step 2. Click the Create app button:

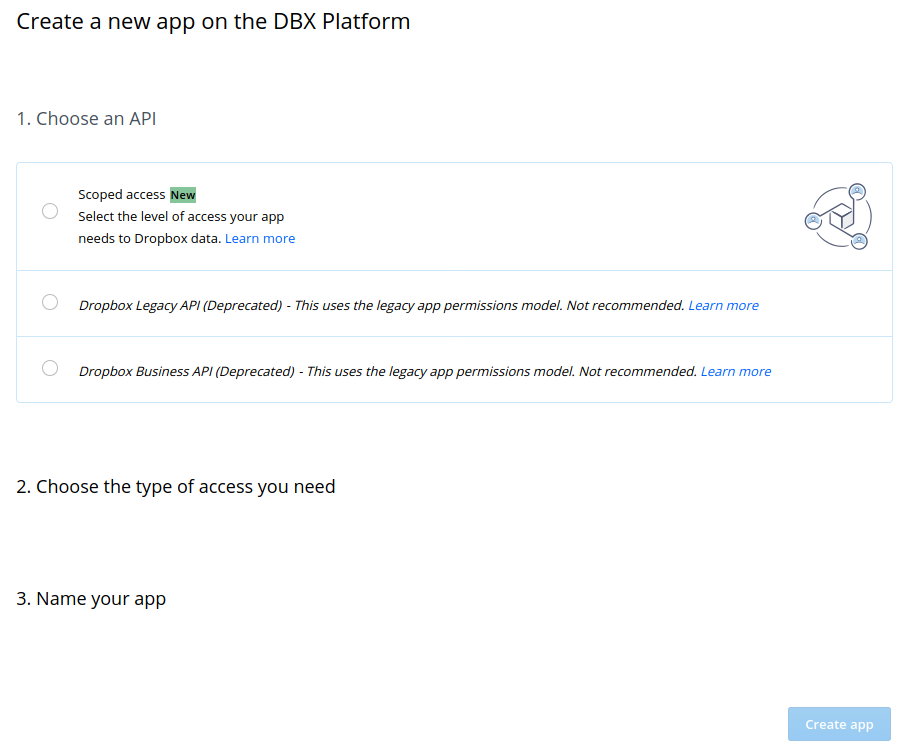

You should see the Create a new app form.

Before we create a new app, there are two important things to understand:

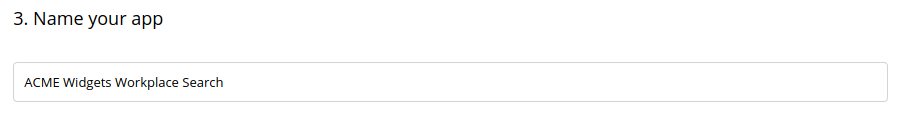

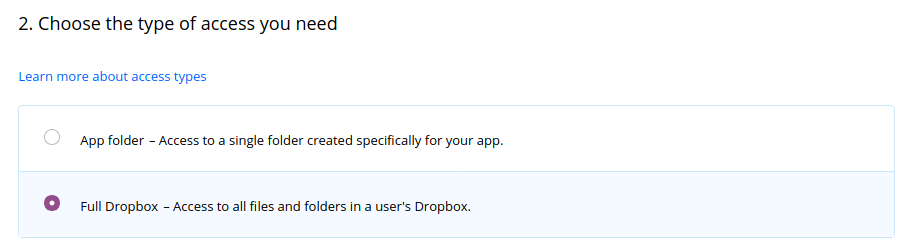

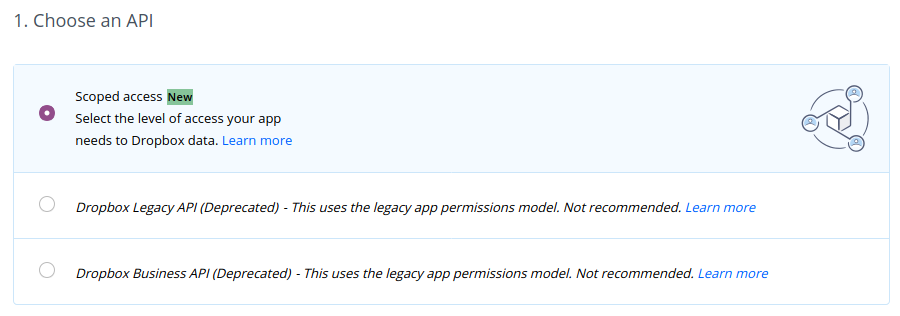

Step 3. Choose Scoped access and Full Dropbox, and enter a name in the Name your app field. The name must be unique within Dropbox (e.g. Organization Name Workplace Search).

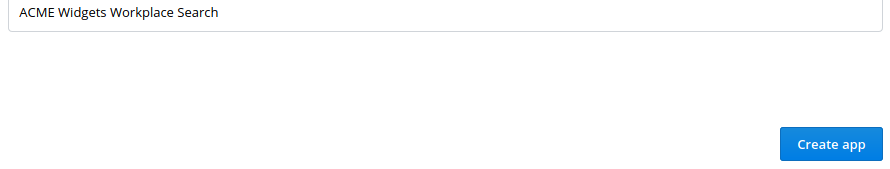

Step 4. Choose create app to submit the Create a new app form.

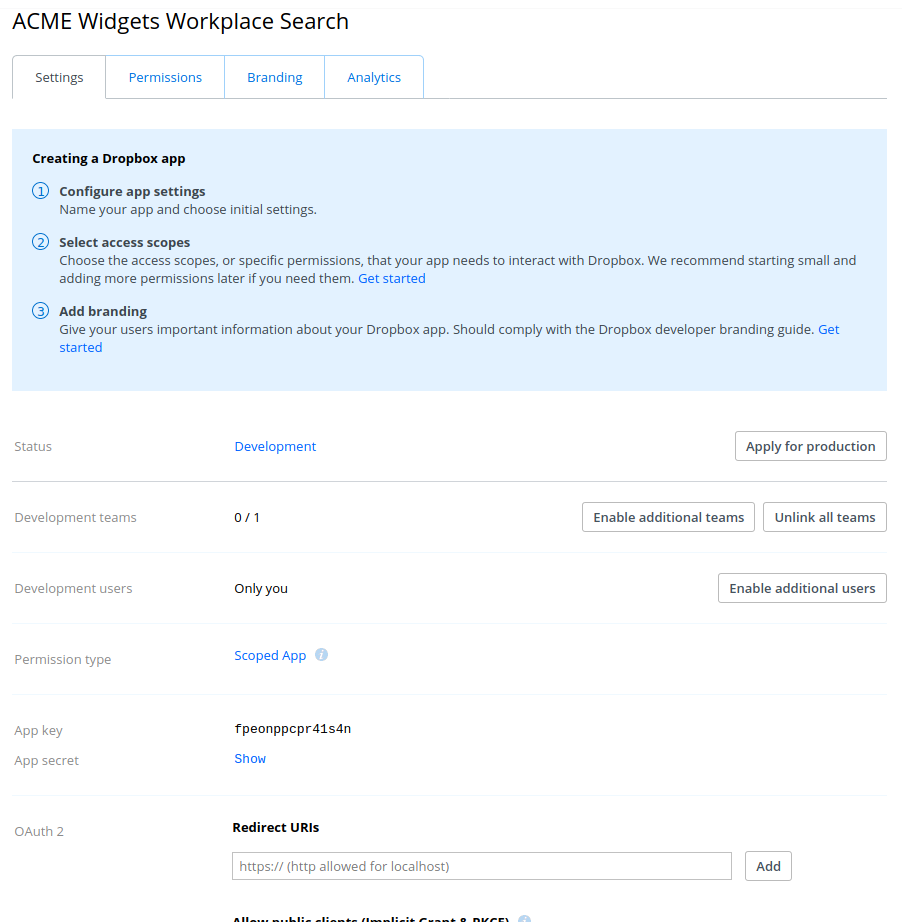

Your app is created, and you should now see the Settings form.

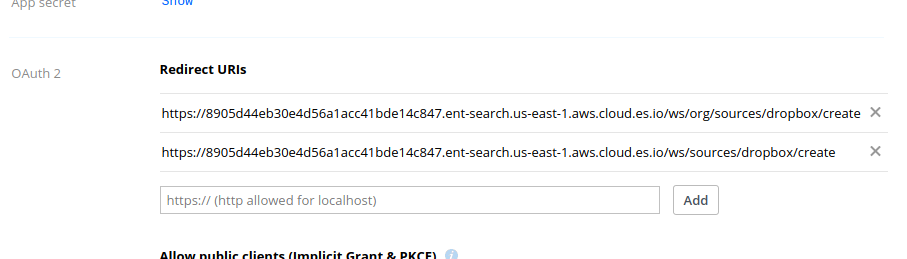

Step 5. Within OAuth 2 and Redirect URIs, add the appropriate redirect URIs.

The redirect URIs required vary by which user interface you are using to manage Enterprise Search. Enterprise Search in Kibana and standalone Enterprise Search use different redirect URIs. See user interfaces for details on each UI.

When using standalone Enterprise Search, add the following two redirect URIs, substituting <WS_BASE_URL> with the base URL at which Workplace Search is hosted (scheme + host, no path).

<WS_BASE_URL>/ws/org/sources/dropbox/create
<WS_BASE_URL>/ws/sources/dropbox/create

Examples:

# Deployment using a custom domain name
https://www.example.com/ws/org/sources/dropbox/create
https://www.example.com/ws/sources/dropbox/create

# Deployment using a default Elastic Cloud domain name
https://8905d44eb30e4d56a1acc41bde14c847.ent-search.us-east-1.aws.cloud.es.io:443/ws/org/sources/dropbox/create
https://8905d44eb30e4d56a1acc41bde14c847.ent-search.us-east-1.aws.cloud.es.io:443/ws/sources/dropbox/create

# Unsecured local development environment
http://localhost:3002/ws/org/sources/dropbox/create
http://localhost:3002/ws/sources/dropbox/create

Choose Add to save each URL.

When using Enterprise Search in Kibana, use the following redirect URI, substituting <KIBANA_BASE_URL> with the base URL of your Kibana instance. This should correspond with the value of kibana.external_url in your enterprise-search.yml:

<KIBANA_BASE_URL>/app/enterprise_search/workplace_search/sources/added

Examples:

# Deployment using a custom domain name for Kibana
https://www.example.com/app/enterprise_search/workplace_search/sources/added

# Deployment using a default Elastic Cloud domain name for Kibana
https://c3397e558e404195a982cb68e84fbb42.kb.us-east-1.aws.found.io:443/app/enterprise_search/workplace_search/sources/added

# Unsecured local Kibana environment
http://localhost:5601/app/enterprise_search/workplace_search/sources/added

Choose Add to save the URL.

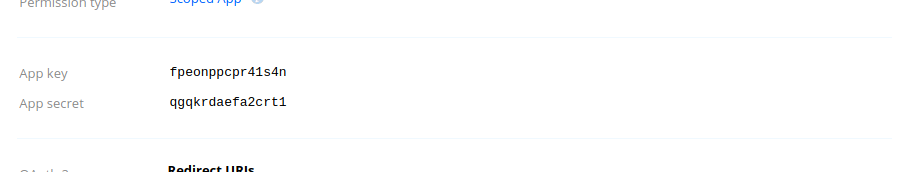

Step 6. Reveal the App Key and App Secret and keep them in a secure and handy location: they will be required shortly.

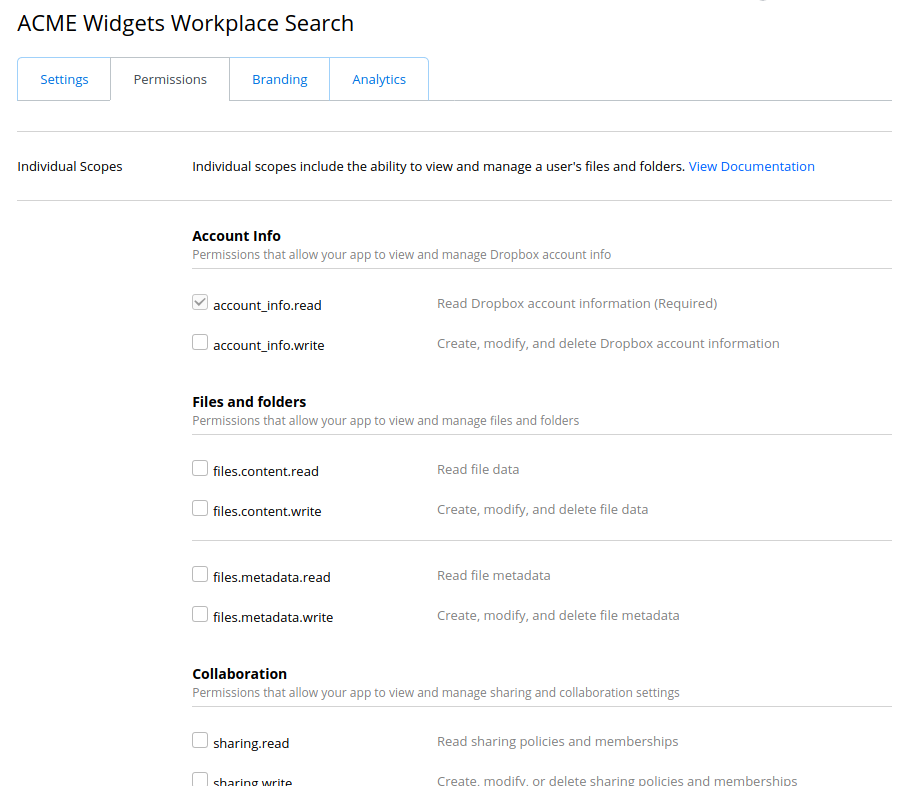

Step 7. Choose Permissions to change to the Permissions form.

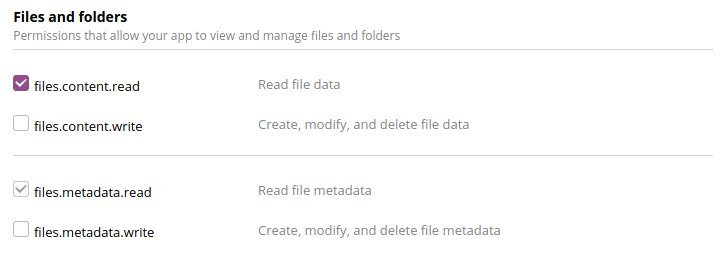

Choose only the following permissions:

Adding permissions beyond the instructed list can cause errors when syncing content from Dropbox.

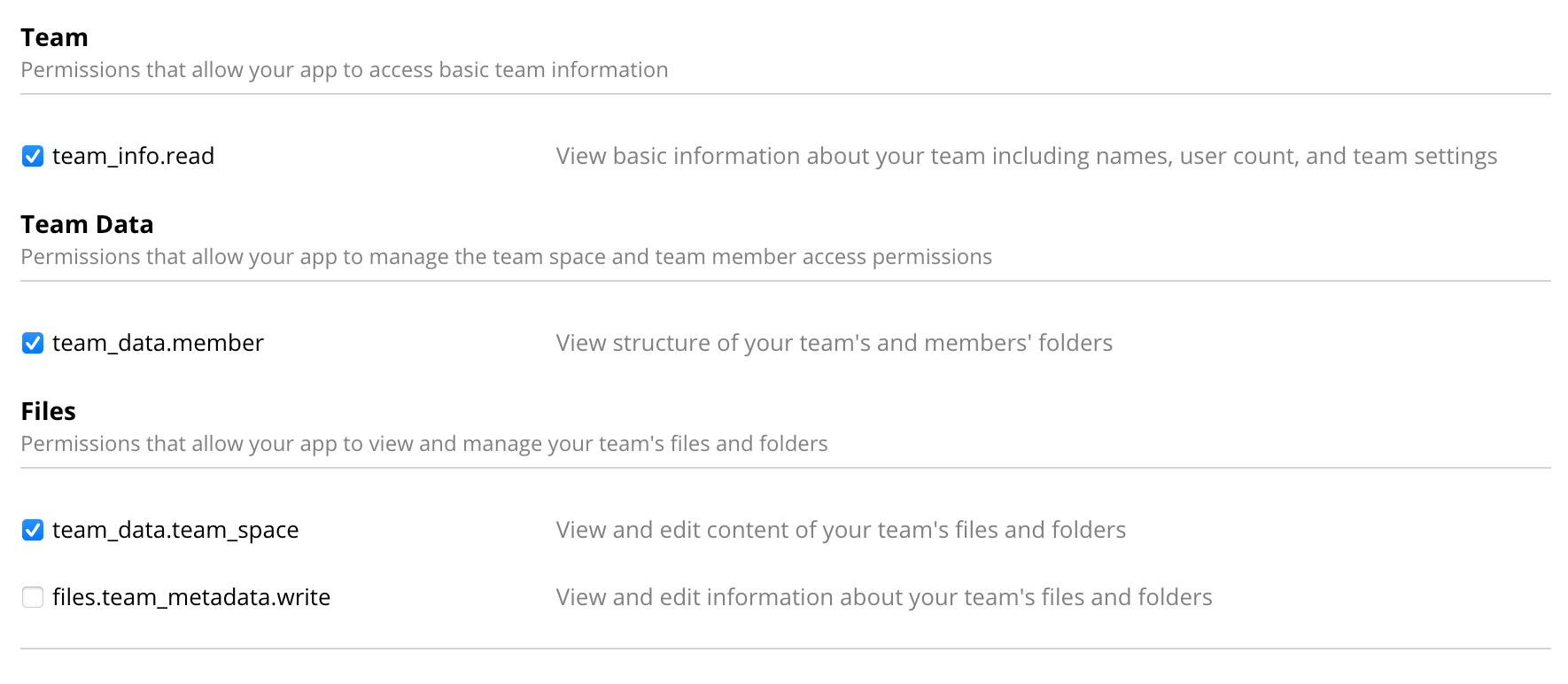

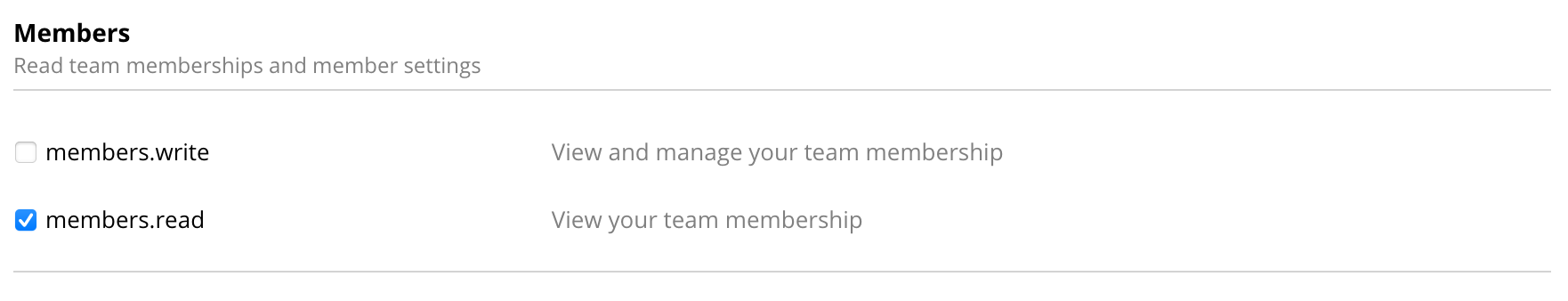

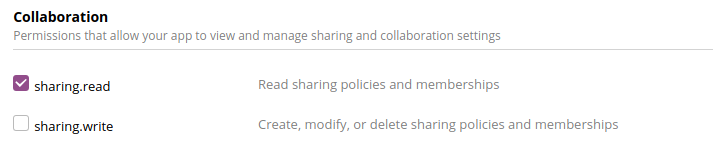

If and only if you intend to enable document-level permissions then you must also choose these additional permissions:

Adding permissions beyond the instructed list can cause errors when syncing content from Dropbox.

Choose Submit to save your changes within the Permissions form.

Step 8. From the Workplace Search administrative dashboard’s Sources area, locate Dropbox, click Configure and provide both the Client ID and Client Secret.

Voilà! The Dropbox connector is now configured, and ready to be used to synchronize content. In order to capture data, you must now connect a Dropbox instance with the adequate authentication credentials.

Connecting Dropbox to Workplace Searchedit

Once the Dropbox connector has been configured, you may connect a Dropbox instance to your organization.

Step 1. Head to your organization’s Workplace Search administrative dashboard, and locate the Sources tab.

Step 2. Click Add a new source.

Step 3. Select Dropbox in the Configured Sources list, and follow the Dropbox authentication flow as presented.

Step 4. Upon the successful authentication flow, you will be redirected to Workplace Search.

Dropbox content will now be captured and will be ready for search gradually as it is synced. Once successfully configured and connected, the Dropbox synchronization automatically occurs every 2 hours.

Limiting the content to be indexededit

If you don’t need to index all the available content, you can specify the indexing rules via the API. This will help shorten indexing times and limit the size of the index. See Customizing indexing. For Dropbox, applicable rule types would be path_template and file_extension.

Synchronized fieldsedit

The following table lists the fields synchronized from the connected source to Workplace Search. The attributes in the table apply to the default search application, as follows:
