Dead letter queues (DLQ)edit

The dead letter queue (DLQ) is designed as a place to temporarily write events that cannot be processed. The DLQ gives you flexibility to investigate problematic events without blocking the pipeline or losing the events. Your pipeline keeps flowing, and the immediate problem is averted. But those events still need to be addressed.

You can process events from the DLQ with the dead_letter_queue input plugin .

Processing events does not delete items from the queue, and the DLQ sometimes needs attention. See Track dead letter queue size and Clear the dead letter queue for more info.

How the dead letter queue worksedit

By default, when Logstash encounters an event that it cannot process because the data contains a mapping error or some other issue, the Logstash pipeline either hangs or drops the unsuccessful event. In order to protect against data loss in this situation, you can configure Logstash to write unsuccessful events to a dead letter queue instead of dropping them.

The dead letter queue is currently supported only for the Elasticsearch output. The dead letter queue is used for documents with response codes of 400 or 404, both of which indicate an event that cannot be retried.

Each event written to the dead letter queue includes the original event, metadata that describes the reason the event could not be processed, information about the plugin that wrote the event, and the timestamp when the event entered the dead letter queue.

To process events in the dead letter queue, create a Logstash pipeline configuration that uses the dead_letter_queue input plugin to read from the queue. See Processing events in the dead letter queue for more information.

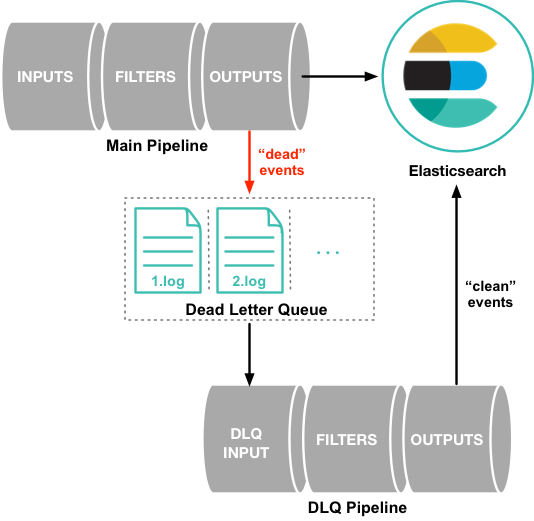

Diagram showing pipeline reading from the dead letter queue

Elasticsearch processing and the dead letter queueedit

HTTP request failure. If the HTTP request fails (because Elasticsearch is unreachable or because it returned an HTTP error code), the Elasticsearch output retries the entire request indefinitely. In these scenarios, the dead letter queue has no opportunity to intercept.

HTTP request success. The Elasticsearch Bulk API can perform multiple actions using the same request. If the Bulk API request is successful, it returns 200 OK, even if some documents in the batch have failed. In this situation, the errors flag for the request will be true.

The response body can include metadata indicating that one or more specific actions in the bulk request could not be performed, along with an HTTP-style status code per entry to indicate why the action could not be performed. If the DLQ is configured, individual indexing failures are routed there.

Even if you regularly process events, events remain in the dead letter queue. The dead letter queue requires manual intervention to clear it.

Configuring Logstash to use dead letter queuesedit

Dead letter queues are disabled by default. To enable dead letter queues, set the dead_letter_queue_enable option in the logstash.yml settings file:

dead_letter_queue.enable: true

Dead letter queues are stored as files in the local directory of the Logstash instance. By default, the dead letter queue files are stored in path.data/dead_letter_queue. Each pipeline has a separate queue. For example, the dead letter queue for the main pipeline is stored in LOGSTASH_HOME/data/dead_letter_queue/main by default. The queue files are numbered sequentially: 1.log, 2.log, and so on.

You can set path.dead_letter_queue in the logstash.yml file to specify a different path for the files:

path.dead_letter_queue: "path/to/data/dead_letter_queue"

Dead letter queue entries are written to a temporary file, which is then renamed to a dead letter queue segment file, which is then eligible for ingestion. The rename happens either when this temporary file is considered full, or when a period of time has elapsed since the last dead letter queue eligible event was written to the temporary file.

This length of time can be set using the dead_letter_queue.flush_interval setting. This setting is in milliseconds, and defaults to 5000ms. A low value here will mean in the event of infrequent writes to the dead letter queue more, smaller, queue files may be written, while a larger value will introduce more latency between items being "written" to the dead letter queue, and being made available for reading by the dead_letter_queue input.

Note that this value cannot be set to lower than 1000ms.
dead_letter_queue.flush_interval: 5000

You may not use the same dead_letter_queue path for two different Logstash instances.

File rotationedit

Dead letter queues have a built-in file rotation policy that manages the file size of the queue. When the file size reaches a preconfigured threshold, a new file is created automatically.

By default, the maximum size of each dead letter queue is set to 1024mb. To change this setting, use the dead_letter_queue.max_bytes option. Entries will be dropped if they would increase the size of the dead letter queue beyond this setting.

Processing events in the dead letter queueedit

When you are ready to process events in the dead letter queue, you create a pipeline that uses the dead_letter_queue input plugin to read from the dead letter queue. The pipeline configuration that you use depends, of course, on what you need to do. For example, if the dead letter queue contains events that resulted from a mapping error in Elasticsearch, you can create a pipeline that reads the "dead" events, removes the field that caused the mapping issue, and re-indexes the clean events into Elasticsearch.

The following example shows a simple pipeline that reads events from the dead letter queue and writes the events, including metadata, to standard output:

input {
  dead_letter_queue {
    path => "/path/to/data/dead_letter_queue"
    commit_offsets => true
    pipeline_id => "main"
  }
}

output {
  stdout {
    codec => rubydebug { metadata => true }
  }
}

The path to the top-level directory containing the dead letter queue. This directory contains a separate folder for each pipeline that writes to the dead letter queue. To find the path to this directory, look at the logstash.yml settings file. By default, Logstash creates the dead_letter_queue directory under the location used for persistent storage (path.data), for example, LOGSTASH_HOME/data/dead_letter_queue. However, if path.dead_letter_queue is set, it uses that location instead.

When true, saves the offset. When the pipeline restarts, it will continue reading from the position where it left off rather than reprocessing all the items in the queue. You can set commit_offsets to false when you are exploring events in the dead letter queue and want to iterate over the events multiple times.

The ID of the pipeline that’s writing to the dead letter queue. The default is "main".

For another example, see Example: Processing data that has mapping errors.

When the pipeline has finished processing all the events in the dead letter queue, it will continue to run and process new events as they stream into the queue. This means that you do not need to stop your production system to handle events in the dead letter queue.

Events emitted from the dead_letter_queue input plugin plugin will not be resubmitted to the dead letter queue if they cannot be processed correctly.

Reading from a timestampedit

When you read from the dead letter queue, you might not want to process all the events in the queue, especially if there are a lot of old events in the queue. You can start processing events at a specific point in the queue by using the start_timestamp option. This option configures the pipeline to start processing events based on the timestamp of when they entered the queue:

input {
  dead_letter_queue {
    path => "/path/to/data/dead_letter_queue"
    start_timestamp => "2017-06-06T23:40:37"
    pipeline_id => "main"
  }
}

For this example, the pipeline starts reading all events that were delivered to the dead letter queue on or after June 6, 2017, at 23:40:37.

Example: Processing data that has mapping errorsedit

In this example, the user attempts to index a document that includes geo_ip data, but the data cannot be processed because it contains a mapping error:

{"geoip":{"location":"home"}}

Indexing fails because the Logstash output plugin expects a geo_point object in the location field, but the value is a string. The failed event is written to the dead letter queue, along with metadata about the error that caused the failure:

{
   "@metadata" => {
    "dead_letter_queue" => {
       "entry_time" => #<Java::OrgLogstash::Timestamp:0x5b5dacd5>,
        "plugin_id" => "fb80f1925088497215b8d037e622dec5819b503e-4",
      "plugin_type" => "elasticsearch",
           "reason" => "Could not index event to Elasticsearch. status: 400, action: [\"index\", {:_id=>nil, :_index=>\"logstash-2017.06.22\", :_type=>\"doc\", :_routing=>nil}, 2017-06-22T01:29:29.804Z My-MacBook-Pro-2.local {\"geoip\":{\"location\":\"home\"}}], response: {\"index\"=>{\"_index\"=>\"logstash-2017.06.22\", \"_type\"=>\"doc\", \"_id\"=>\"AVzNayPze1iR9yDdI2MD\", \"status\"=>400, \"error\"=>{\"type\"=>\"mapper_parsing_exception\", \"reason\"=>\"failed to parse\", \"caused_by\"=>{\"type\"=>\"illegal_argument_exception\", \"reason\"=>\"illegal latitude value [266.30859375] for geoip.location\"}}}}"
    }
  },
  "@timestamp" => 2017-06-22T01:29:29.804Z,
    "@version" => "1",
       "geoip" => {
    "location" => "home"
  },
        "host" => "My-MacBook-Pro-2.local",
     "message" => "{\"geoip\":{\"location\":\"home\"}}"
}

To process the failed event, you create the following pipeline that reads from the dead letter queue and removes the mapping problem:

input {
  dead_letter_queue {
    path => "/path/to/data/dead_letter_queue/"
  }
}
filter {
  mutate {
    remove_field => "[geoip][location]"
  }
}
output {
  elasticsearch{
    hosts => [ "localhost:9200" ]
  }
}

The dead_letter_queue input reads from the dead letter queue.

The mutate filter removes the problem field called location.

The clean event is sent to Elasticsearch, where it can be indexed because the mapping issue is resolved.

Track dead letter queue sizeedit

Monitor the size of the dead letter queue before it becomes a problem. By checking it periodically, you can determine the maximum queue size that makes sense for each pipeline.

The size of the DLQ for each pipeline is available in the node stats API.

pipelines.${pipeline_id}.dead_letter_queue.queue_size_in_bytes.

Where {pipeline_id} is the name of a pipeline with DLQ enabled.

Clear the dead letter queueedit

The dead letter queue cannot be cleared with the upstream pipeline running.

The dead letter queue is a directory of pages. To clear it, stop the pipeline and delete location/<file-name>.

${path.data}/dead_letter_queue/${pipeline_id}

Where {pipeline_id} is the name of a pipeline with DLQ enabled.

The pipeline creates a new dead letter queue when it starts again.
