You can generate a report that contains a Kibana dashboard, visualization, saved search, or Canvas workpad. Depending on the object type, you can export the data as a PDF, PNG, or CSV document, which you can keep for yourself, or share with others.
Reporting is available from the Share menu in Discover, Visualize, Dashboard, and Canvas.
The reporting features are automatically enabled in Kibana. It runs a custom build of the Chromium web browser, which runs on the server in headless mode to load Kibana and capture the rendered Kibana charts as images.
Chromium is an open-source project not related to Elastic, but the Chromium binary for Kibana has been custom-built by Elastic to ensure it works with minimal setup. However, the Kibana server OS might still require additional dependencies for Chromium. See the Reporting troubleshooting section for more information about the system dependencies for different operating systems.
Roles and privilegesedit
To generate a report, you must have the
reporting_user role. You also need
the appropriate Kibana privileges to access the objects that you
want to report on and the Elasticsearch indices. See Reporting and security
for an example.
Generate a report manuallyedit
- Open the dashboard, visualization, Canvas workpad, or saved search that you want to include in the report.
- In the Kibana toolbar, click Share. If you are working in Canvas, click the share icon .
Select the option appropriate for your object. You can export:
- A dashboard or visualization as either a PNG or PDF document
- A Canvas workpad as a PDF document
- A saved search as a CSV document
Generate the report.
A notification appears when the report is complete.
When you export a data table or saved search from a dashboard report, the PDF includes only the visible data.
Layout and sizingedit
The layout and size of the PDF or PNG image depends on the Kibana app with which the Reporting plugin is integrated. For Canvas, the worksheet dimensions determine the size for Reporting. In other apps, the dimensions are taken on the fly by looking at the size of the visualization elements or panels on the page.
The size dimensions are part of the reporting job parameters. Therefore, to make the report output larger or smaller, you can change the size of the browser. This resizes the shareable container before generating the report, so the desired dimensions are passed in the job parameters.

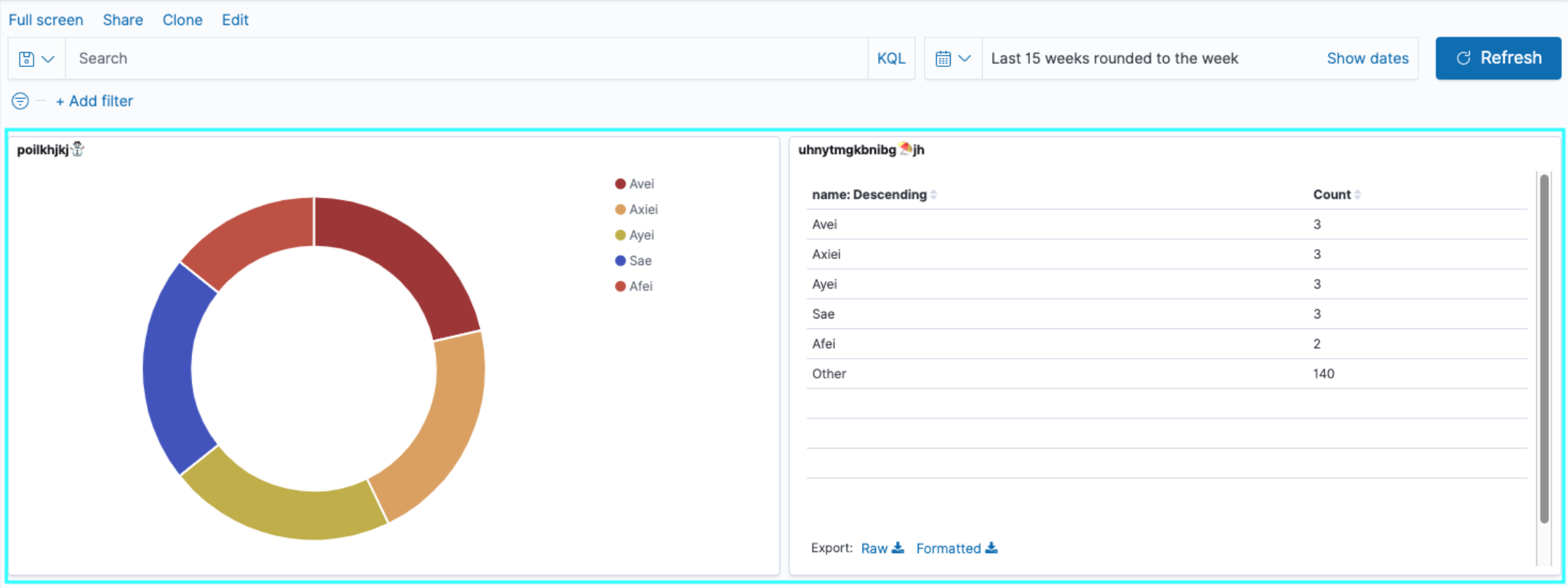

In the following Kibana dashboard, the shareable container is highlighted. The shareable container is captured when you click the Generate or Copy POST URL button. It might take some trial and error before you’re satisfied with the layout and dimensions in the resulting PNG or PDF image.
Optimize PDF for print—dashboard onlyedit

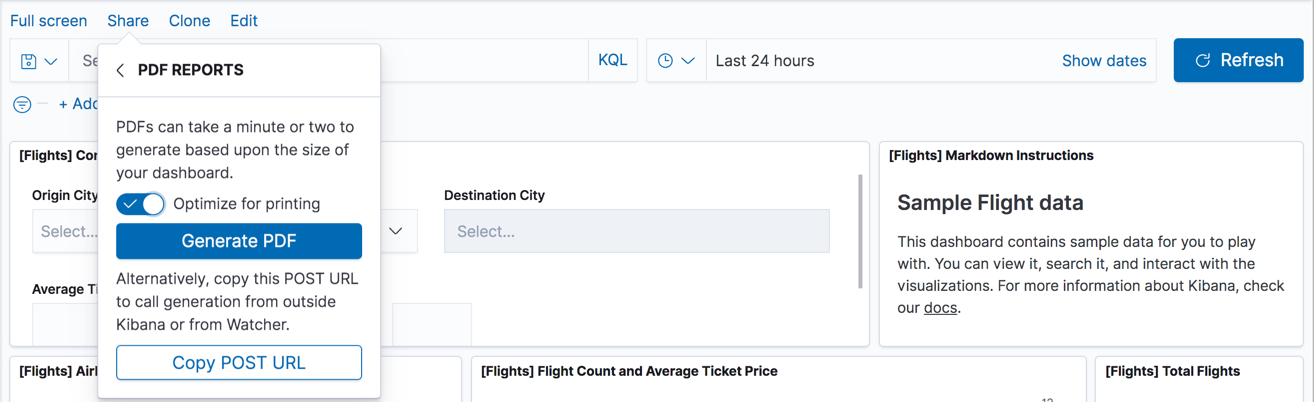

To create a printer-friendly PDF with multiple A4 portrait pages and two visualizations per page, turn on Optimize for printing.
View and manage report historyedit
For a list of your reports, open the menu, then go to Stack Management > Alerts and Insights > Reporting. From this view, you can monitor the generation of a report and download reports that you previously generated.
Automatically generate a reportedit
To automatically generate a report from a script or with Watcher, see Automating report generation.
