Line, Area, and Bar chartsedit

Line, Area, and Bar charts allow you to plot your data on X/Y axis.

First you need to select your metrics which define Value axis.

Metric Aggregations:

Count
The count aggregation returns a raw count of the elements in the selected index pattern.
Average
This aggregation returns the average of a numeric field. Select a field from the drop-down.
Sum
The sum aggregation returns the total sum of a numeric field. Select a field from the drop-down.
Min
The min aggregation returns the minimum value of a numeric field. Select a field from the drop-down.
Max
The max aggregation returns the maximum value of a numeric field. Select a field from the drop-down.
Unique Count
The cardinality aggregation returns the number of unique values in a field. Select a field from the drop-down.
Standard Deviation
The extended stats aggregation returns the standard deviation of data in a numeric field. Select a field from the drop-down.
Top Hit
The top hits aggregation returns one or more of the top values from a specific field in your documents. Select a field from the drop-down, how you want to sort the documents and choose the top fields, and how many values should be returned.
Percentiles
The percentile aggregation divides the values in a numeric field into percentile bands that you specify. Select a field from the drop-down, then specify one or more ranges in the Percentiles fields. Click the X to remove a percentile field. Click + Add to add a percentile field.
Percentile Rank
The percentile ranks aggregation returns the percentile rankings for the values in the numeric field you specify. Select a numeric field from the drop-down, then specify one or more percentile rank values in the Values fields. Click the X to remove a values field. Click +Add to add a values field.

Parent Pipeline Aggregations:

For each of the parent pipeline aggregations you have to define the metric for which the aggregation is calculated. That could be one of your existing metrics or a new one. You can also nest this aggregations (for example to produce 3rd derivative)

Derivative
The derivative aggregation calculates the derivative of specific metrics.
Cumulative Sum
The cumulative sum aggregation calculates the cumulative sum of a specified metric in a parent histogram
Moving Average
The moving average aggregation will slide a window across the data and emit the average value of that window
Serial Diff
The serial differencing is a technique where values in a time series are subtracted from itself at different time lags or period

Sibling Pipeline Aggregations:

Just like with parent pipeline aggregations you need to provide a metric for which to calculate the sibling aggregation. On top of that you also need to provide a bucket aggregation which will define the buckets on which the sibling aggregation will run

Average Bucket
The avg bucket calculates the (mean) average value of a specified metric in a sibling aggregation
Sum Bucket
The sum bucket calculates the sum of values of a specified metric in a sibling aggregation
Min Bucket
The min bucket calculates the minimum value of a specified metric in a sibling aggregation
Max Bucket
The max bucket calculates the maximum value of a specified metric in a sibling aggregation

You can add an aggregation by clicking the + Add Metrics button.

Enter a string in the Custom Label field to change the display label.

The buckets aggregations determine what information is being retrieved from your data set.

Before you choose a buckets aggregation, specify if you are splitting slices within a single chart or splitting into multiple charts. A multiple chart split must run before any other aggregations. When you split a chart, you can change if the splits are displayed in a row or a column by clicking the Rows | Columns selector.

The X axis of this chart is the buckets axis. You can define buckets for the X axis, for a split area on the chart, or for split charts.

This chart’s X axis supports the following aggregations. Click the linked name of each aggregation to visit the main Elasticsearch documentation for that aggregation.

Date Histogram
A date histogram is built from a numeric field and organized by date. You can specify a time frame for the intervals in seconds, minutes, hours, days, weeks, months, or years. You can also specify a custom interval frame by selecting Custom as the interval and specifying a number and a time unit in the text field. Custom interval time units are s for seconds, m for minutes, h for hours, d for days, w for weeks, and y for years. Different units support different levels of precision, down to one second. Intervals are labeled at the start of the interval, using the date-key returned by Elasticsearch. For example, the tooltip for a monthly interval will show the first day of the month.
Histogram
A standard histogram is built from a numeric field. Specify an integer interval for this field. Select the Show empty buckets checkbox to include empty intervals in the histogram.
Range
With a range aggregation, you can specify ranges of values for a numeric field. Click Add Range to add a set of range endpoints. Click the red (x) symbol to remove a range.
Date Range
A date range aggregation reports values that are within a range of dates that you specify. You can specify the ranges for the dates using date math expressions. Click Add Range to add a set of range endpoints. Click the red (x) symbol to remove a range.
IPv4 Range
The IPv4 range aggregation enables you to specify ranges of IPv4 addresses. Click Add Range to add a set of range endpoints. Click the red (x) symbol to remove a range.
Terms
A terms aggregation enables you to specify the top or bottom n elements of a given field to display, ordered by count or a custom metric.
Filters
You can specify a set of filters for the data. You can specify a filter as a query string or in JSON format, just as in the Discover search bar. Click Add Filter to add another filter. Click the Label button icon label button to open the label field, where you can type in a name to display on the visualization.
Significant Terms
Displays the results of the experimental significant terms aggregation.

Once you’ve specified an X axis aggregation, you can define sub-aggregations to refine the visualization. Click + Add Sub Aggregation to define a sub-aggregation, then choose Split Area or Split Chart, then select a sub-aggregation from the list of types.

When multiple aggregations are defined on a chart’s axis, you can use the up or down arrows to the right of the aggregation’s type to change the aggregation’s priority.

Enter a string in the Custom Label field to change the display label.

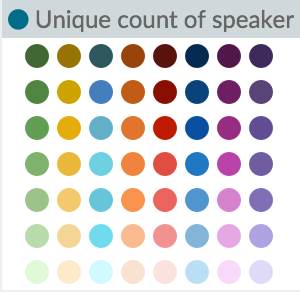

You can customize the colors of your visualization by clicking the color dot next to each label to display the color picker.

An array of color dots that users can select

Enter a string in the Custom Label field to change the display label.

You can click the Advanced link to display more customization options for your metrics or bucket aggregation:

Exclude Pattern
Specify a pattern in this field to exclude from the results.
Include Pattern
Specify a pattern in this field to include in the results.
JSON Input
A text field where you can add specific JSON-formatted properties to merge with the aggregation definition, as in the following example:
{ "script" : "doc['grade'].value * 1.2" }

In Elasticsearch releases 1.4.3 and later, this functionality requires you to enable dynamic Groovy scripting.

The availability of these options varies depending on the aggregation you choose.

Metrics & Axesedit

Select the Metrics & Axes tab to change the way each individual metric is shown on the chart. The data series are styled in the Metrics section, while the axes are styled in the X and Y axis sections.

Metricsedit

Modify how each metric from the Data panel is visualized on the chart.

Chart type
Choose between Area, Line, and Bar types.
Mode
stack the different metrics, or plot them next to each other
Value Axis
choose the axis you want to plot this data too (the properties of each are configured under Y-axes).
Line mode
should the outline of lines or bars appear smooth, straight, or stepped.

Y-axisedit

Style all the Y-axes of the chart.

Position
position of the Y-axis (left or right for vertical charts, and top or bottom for horizontal charts).
Scale type
scaling of the values (linear, log, or square root)
Advanced Options
Labels - Show Labels
Allows you to hide axis labels
Labels - Filter Labels
If filter labels is enabled some labels will be hidden in case there is not enough space to display them
Labels - Rotate
You can enter the number in degrees for how much you want to rotate labels
Labels - Truncate
You can enter the size in pixels to which the label is truncated
Scale to Data Bounds
The default Y-axis bounds are zero and the maximum value returned in the data. Check this box to change both upper and lower bounds to match the values returned in the data. Checking this option may cause that the bar, which value equals to the lower bounds/ upper bounds (in case only negative values are depicted) is hidden. To avoid that, you can define bounds margin. Via bounds margin you specify a value, which decreases/increases the lower/upper bounds when displaying the plot.
Custom Extents
You can define custom minimum and maximum for each axis

X-Axisedit

Position
position of the X-Axis (left or right for horizontal charts, and top or bottom for vertical charts).
Advanced Options
Labels - Show Labels
Allows you to hide axis labels
Labels - Filter Labels
If filter labels is enabled some labels will be hidden in case there is not enough spave to display them
Labels - Rotate
You can enter the number in degrees for how much you want to rotate labels
Labels - Truncate
You can enter the size in pixels to which the label is truncated

Panel Settingsedit

These are options that apply to the entire chart and not just the individual data series.

Common optionsedit

Legend Position
Move your legend to the left, right, top or bottom
Show Tooltip
Enables or disables the display of tooltip on hovering over chart objects
Current Time Marker
Show a line indicating the current time

Grid optionsedit

You can enable grid on the chart. By default grid is displayed on the category axis only.

X-axis
You can disable the display of grid lines on category axis
Y-axis
You can choose on which (if any) of the value axes you want to display grid lines
