Set the time rangeedit

Display data within a specified time range when your index contains time-based events, and a time-field is configured for the selected index pattern. The default time range is 15 minutes, but you can customize it in Advanced Settings.

  1. Click clock icon.
  2. Choose one of the following:

    • Quick select to use a recent time range, then use the back and forward arrows to move through the time ranges.
    • Commonly used to use a time range from options such as Last 15 minutes, Today, and Week to date.
    • Recently used date ranges to use a previously selected data range.
    • Refresh every to specify an automatic refresh rate.

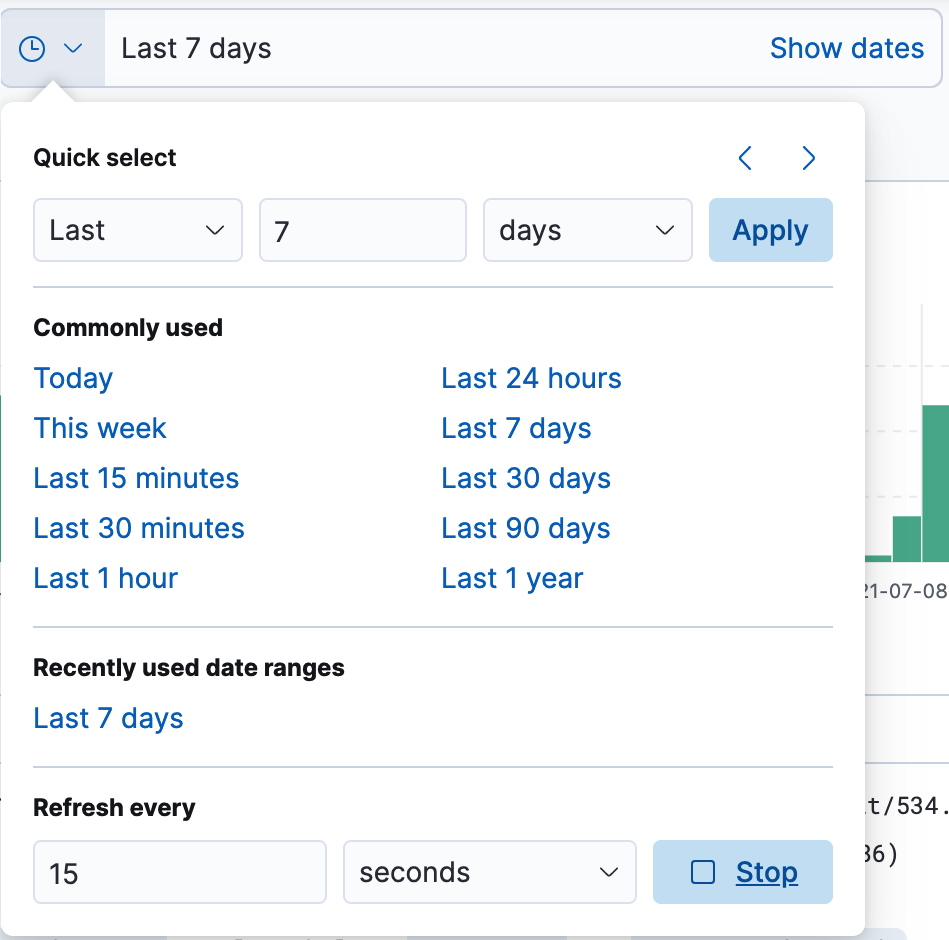

      Time filter menu
  3. To set start and end times, click the bar next to the time filter. In the popup, select Absolute, Relative or Now, then specify the required options.

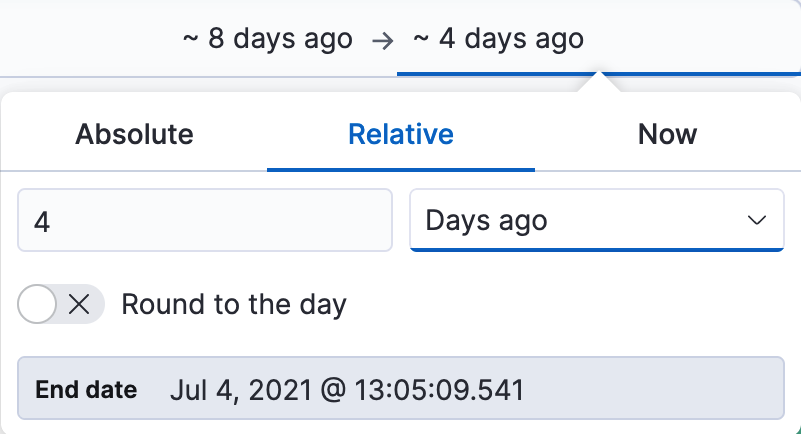

    Time filter showing relative time
