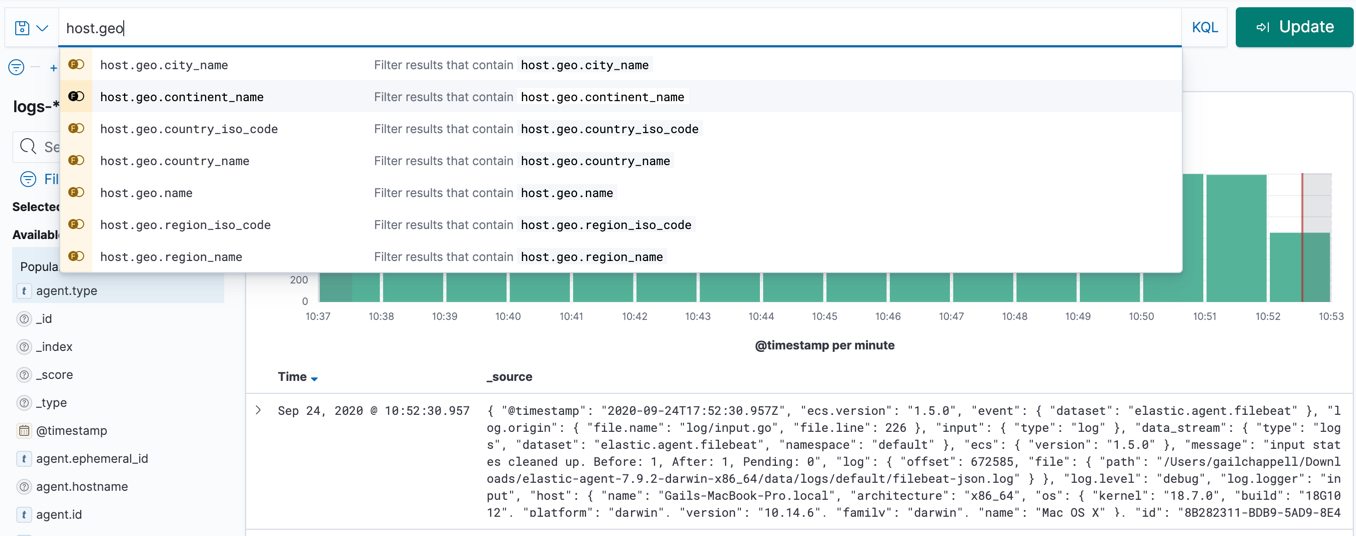

The Kibana Query Language (KQL) makes it easy to find the fields and syntax for your Elasticsearch query. If you have the Basic tier or above, simply place your cursor in the Search field. As you type, you’ll get suggestions for fields, values, and operators.

If you prefer to use Kibana’s legacy query language, based on the Lucene query syntax, click KQL next to the Search field, and then turn off KQL.

Terms queryedit

A terms query matches documents that contain one or more exact terms in a field.

To match documents where the response field is 200:

response:200

To match documents with the phrase "quick brown fox" in the message field.

message:"quick brown fox"

Without the quotes, the query matches documents regardless of the order in which they appear. Documents with "quick brown fox" match, and so does "quick fox brown".

Boolean queriesedit

KQL supports or, and, and not. By default, and has a higher precedence than or. To override the default precedence, group operators in parentheses.

To match documents where response is 200, extension is php, or both:

response:200 or extension:php

To match documents where response is 200 and extension is php:

response:200 and extension:php

To match documents where response is 200 or 404.

response:(200 or 404)

To match documents where response is 200 and extension is either php or css:

response:200 and (extension:php or extension:css)

To match documents where response is 200 and extension is php or extension is css, and response is anything:

response:200 and extension:php or extension:css

To match documents where response is not 200:

not response:200

To match documents where response is 200 but extension is not php or css.

response:200 and not (extension:php or extension:css)

To match multi-value fields that contain a list of terms:

tags:(success and info and security)

Range queriesedit

KQL supports >, >=, <, and <= on numeric and date types.

account_number >= 100 and items_sold <= 200

Date range queriesedit

Typically, Kibana’s time filter is sufficient for setting a time range, but in some cases you might need to search on dates. Include the date range in quotes.

@timestamp < "2021-01-02T21:55:59"

@timestamp < "2021-01"

@timestamp < "2021"

Exist queriesedit

An exist query matches documents that contain a value for a field, in this case, response:

response:*

Wildcard queriesedit

To match documents where machine.os starts with win, such as "windows 7" and "windows 10":

machine.os:win*

To match multiple fields:

machine.os*:windows 10

This syntax is handy when you have text and keyword versions of a field. The query checks machine.os and machine.os.keyword for the term windows 10.

Nested field queriesedit

A main consideration for querying nested fields is how to match parts of the nested query to the individual nested documents. You can:

In the following document, items is a nested field. Each document in the nested field contains a name, stock, and category.

{
  "grocery_name": "Elastic Eats",
  "items": [
    {
      "name": "banana",
      "stock": "12",
      "category": "fruit"
    },
    {
      "name": "peach",
      "stock": "10",
      "category": "fruit"
    },
    {
      "name": "carrot",
      "stock": "9",
      "category": "vegetable"
    },
    {
      "name": "broccoli",
      "stock": "5",
      "category": "vegetable"
    }
  ]
}

Match a single documentedit

To match stores that have more than 10 bananas in stock:

items:{ name:banana and stock > 10 }

items is the nested path. Everything inside the curly braces (the nested group) must match a single nested document.

The following query does not return any matches because no single nested document has bananas with a stock of 9.

items:{ name:banana and stock:9 }

Match different documentsedit

The following subqueries are in separate nested groups and can match different nested documents:

items:{ name:banana } and items:{ stock:9 }

name:banana matches the first document in the array and stock:9 matches the third document in the array.

Match single and different documentsedit

To find a store with more than 10 bananas that also stocks vegetables:

items:{ name:banana and stock > 10 } and items:{ category:vegetable }

The first nested group (name:banana and stock > 10) must match a single document, but the category:vegetables subquery can match a different nested document because it is in a separate group.

Nested fields inside other nested fieldsedit

KQL supports nested fields inside other nested fields—you have to specify the full path. In this document, level1 and level2 are nested fields:

{
  "level1": [
    {
      "level2": [
        {
          "prop1": "foo",
          "prop2": "bar"
        },
        {
          "prop1": "baz",
          "prop2": "qux"
        }
      ]
    }
  ]
}

To match on a single nested document:

level1.level2:{ prop1:foo and prop2:bar }
