You’ve learned how to create and style a Timelion visualization in the previous two sections. This section will explore the mathematical functions Timelion offers. You will continue to use the Metricbeat data to create a new Timelion visualization for inbound and outbound network traffic. To start, you’ll need to add a new Timelion visualization to the sheet.

In the top menu, click `Add`

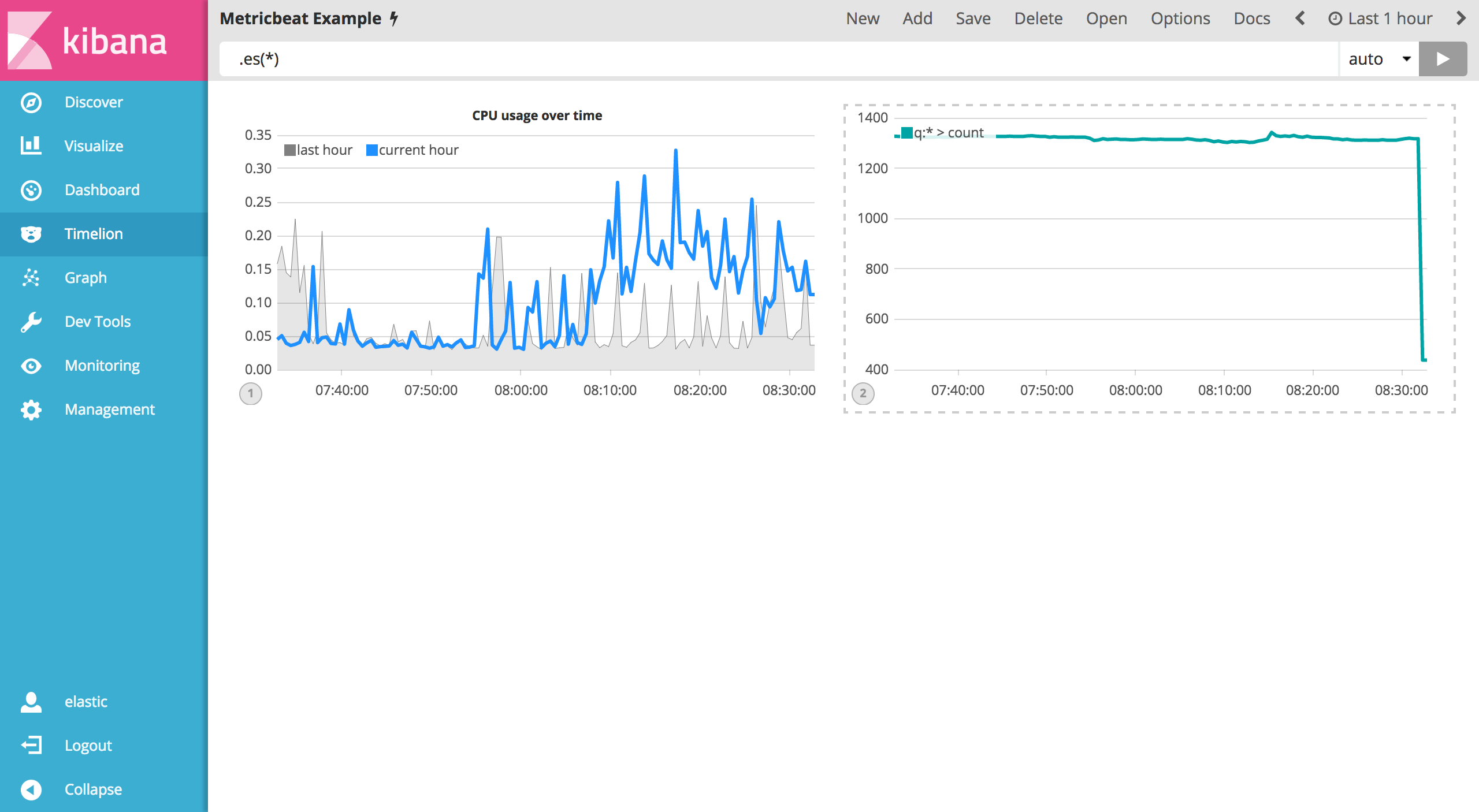

to add a second visualization. When added to the sheet, you’ll notice that the query bar has been replaced with the default `.es(*)`

expression. This is because the query is associated with the visualization on the Timelion sheet you have selected.

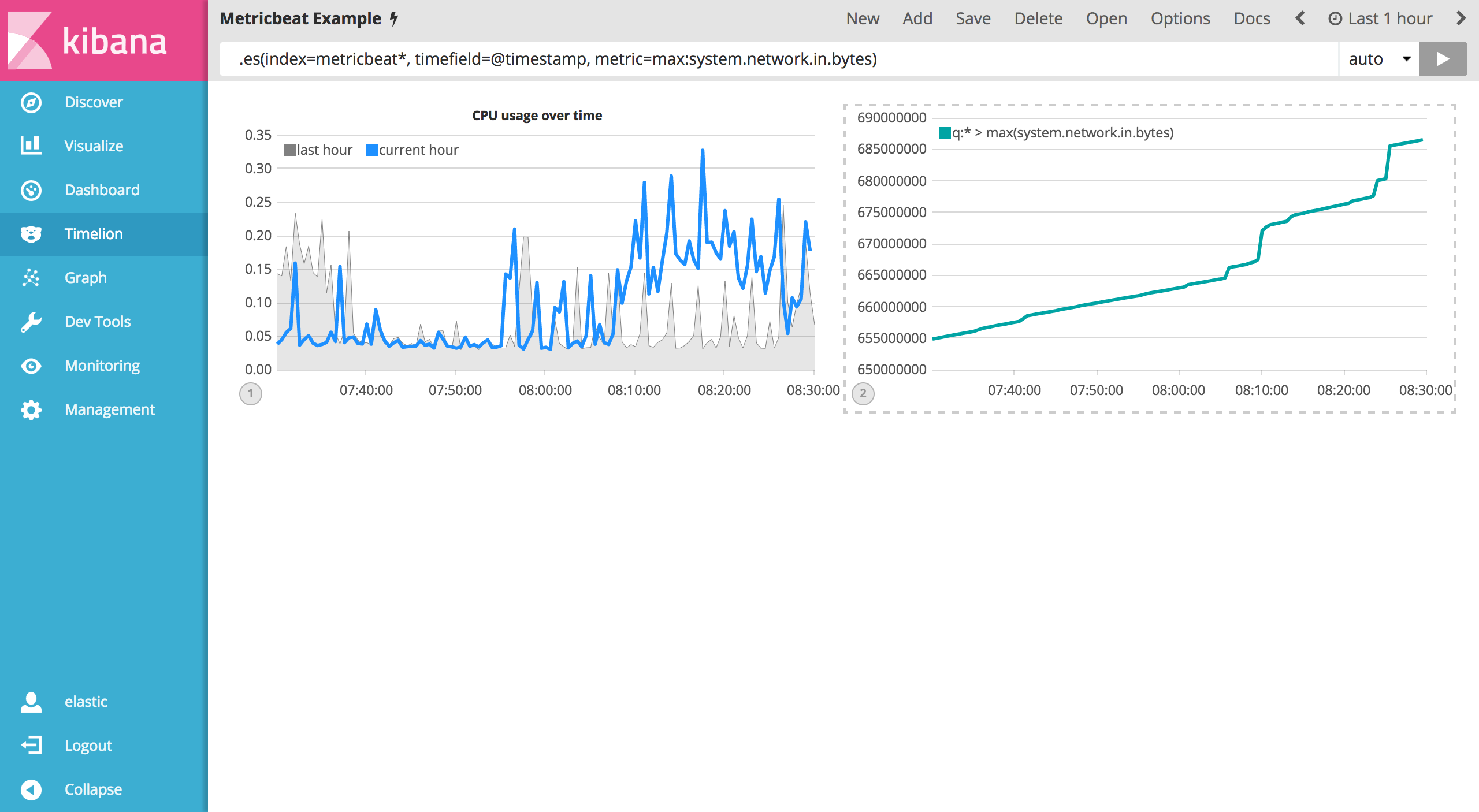

To start tracking the inbound / outbound network traffic, your first expression will calculate the maximum value of `system.network.in.bytes`

. Enter the expression below into your Timelion query bar:

.es(index=metricbeat*, timefield=@timestamp, metric=max:system.network.in.bytes)

Monitoring network traffic is much more valuable when plotting the rate of change. The `derivative()`

function is used do just that - plot the change in values over time. This can be easily done by appending the `.derivative()`

to the end of an expression. Use the following expression to update your visualization:

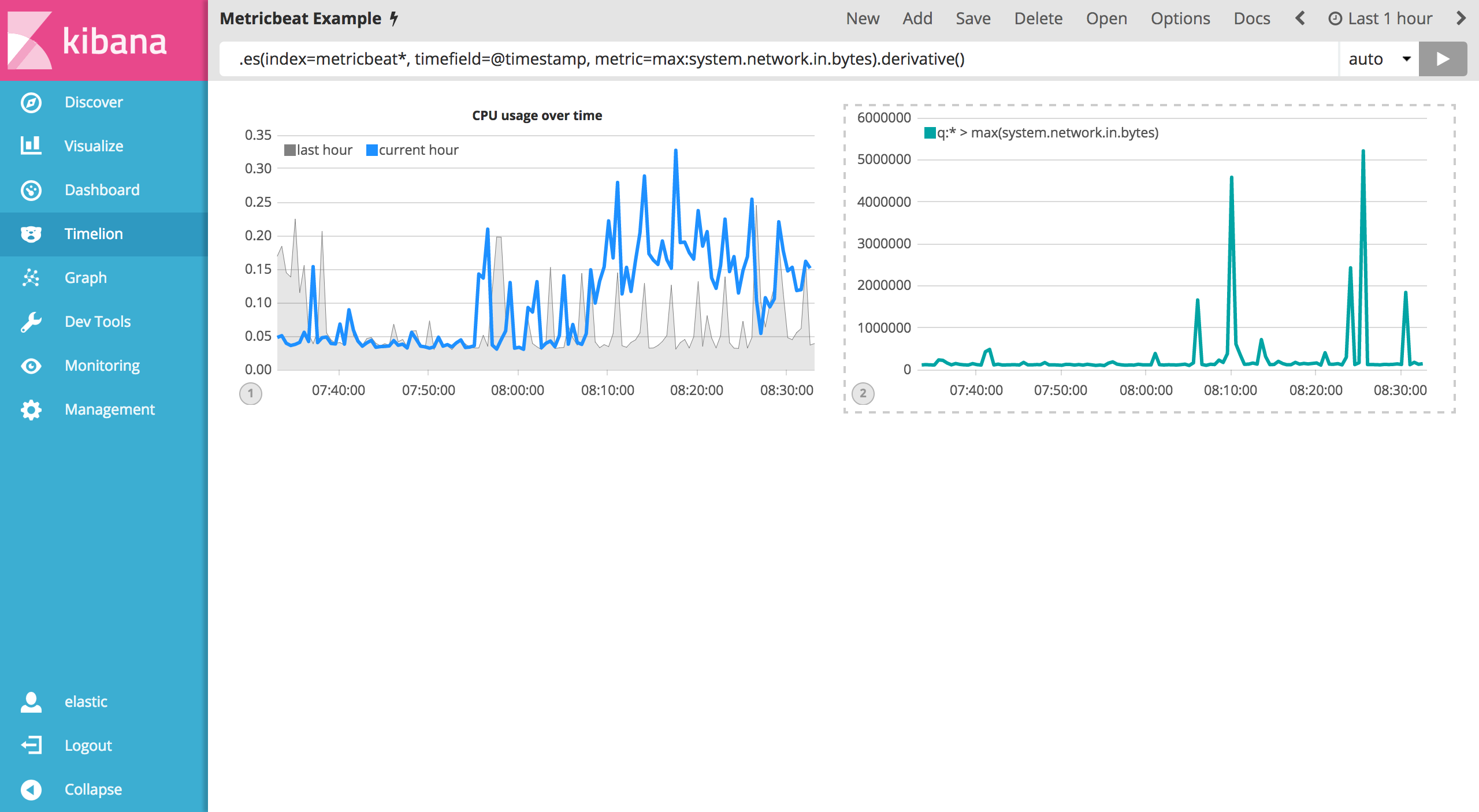

.es(index=metricbeat*, timefield=@timestamp, metric=max:system.network.in.bytes).derivative()

Now for the outbound traffic. You’ll need to add a similar calculation for `system.network.out.bytes`

. Since outbound traffic is leaving your machine, it makes sense to represent this metric as a negative number. The `.multiply()`

function will multiply the series by a number, the result of a series or a list of series. For this example, you will use `.multiply(-1)`

to convert the outbound network traffic to a negative value. Use the following expression to update your visualization:

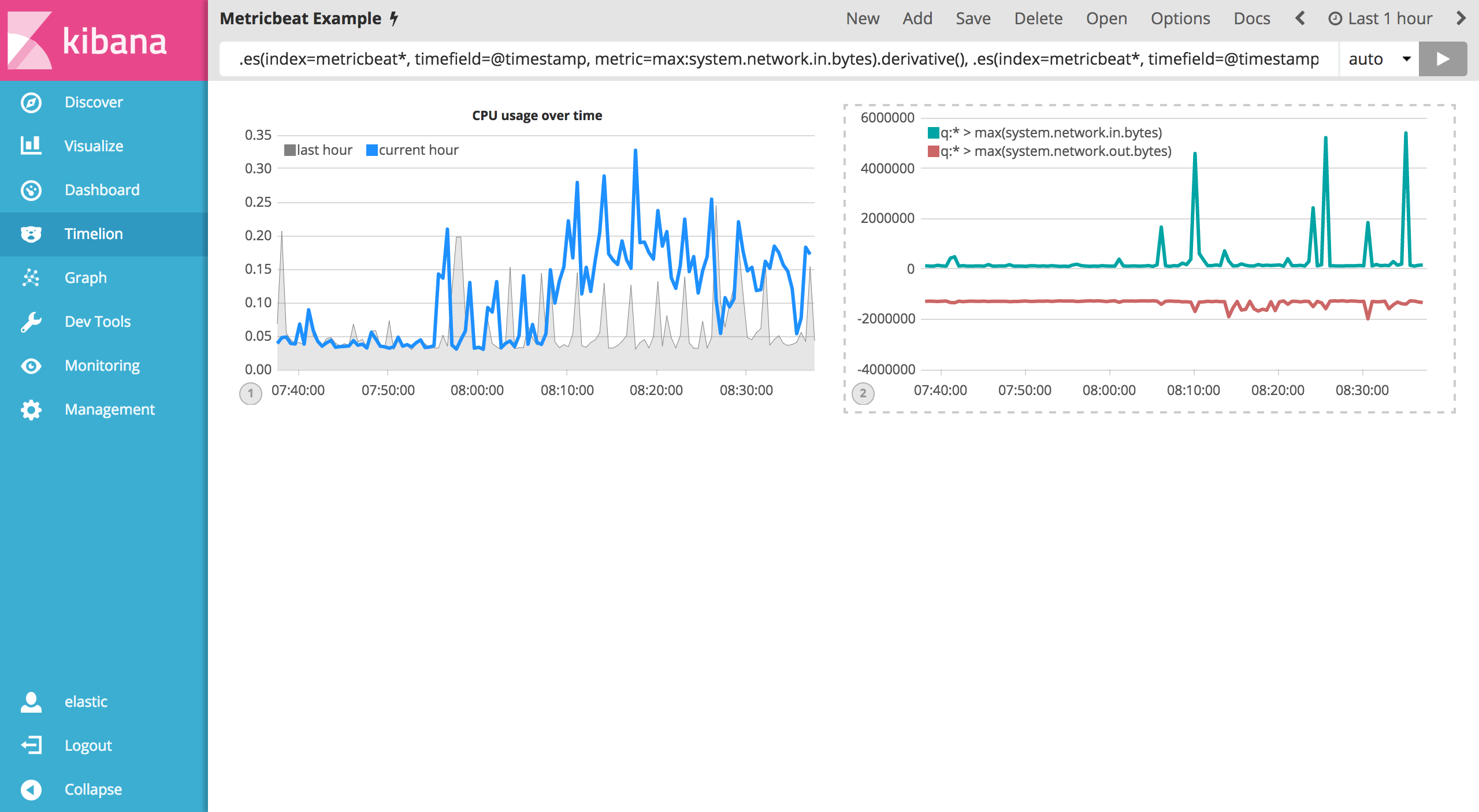

.es(index=metricbeat*, timefield=@timestamp, metric=max:system.network.in.bytes).derivative(), .es(index=metricbeat*, timefield=@timestamp, metric=max:system.network.out.bytes).derivative().multiply(-1)

To make this visualization a bit easier to consume, convert the series from bytes to megabytes. Timelion has a `.divide()`

function that can be used. `.divide()`

accepts the same input as `.multiply()`

and will divide the series by the divisor defined. Use the following expression to update your visualization:

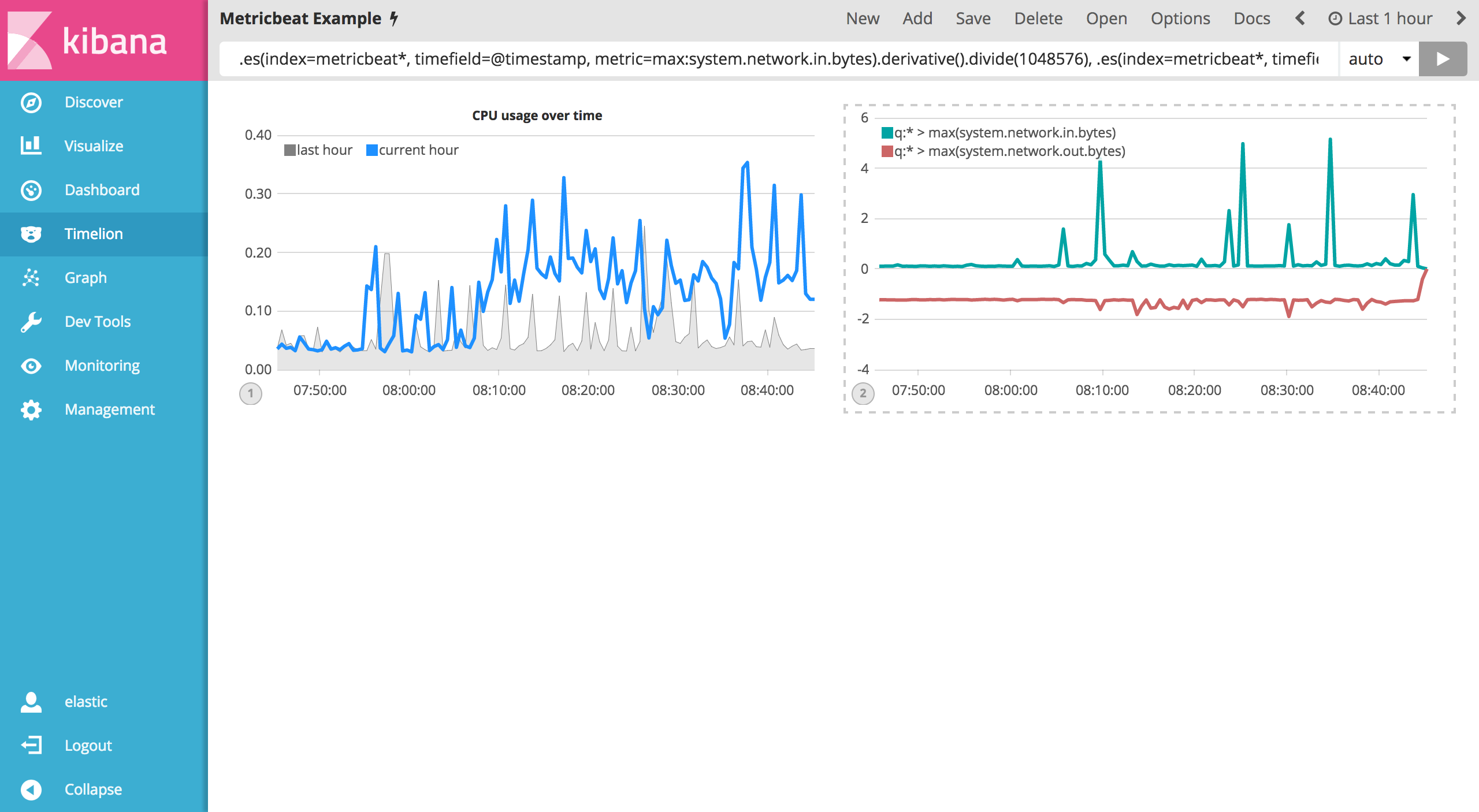

.es(index=metricbeat*, timefield=@timestamp, metric=max:system.network.in.bytes).derivative().divide(1048576), .es(index=metricbeat*, timefield=@timestamp, metric=max:system.network.out.bytes).derivative().multiply(-1).divide(1048576)

Utilizing the formatting functions `.title()`

, `.label()`

, `.color()`

, `.lines()`

and `.legend()`

learned in the last section, let’s clean up the visualization a bit. Use the following expression to update your visualization:

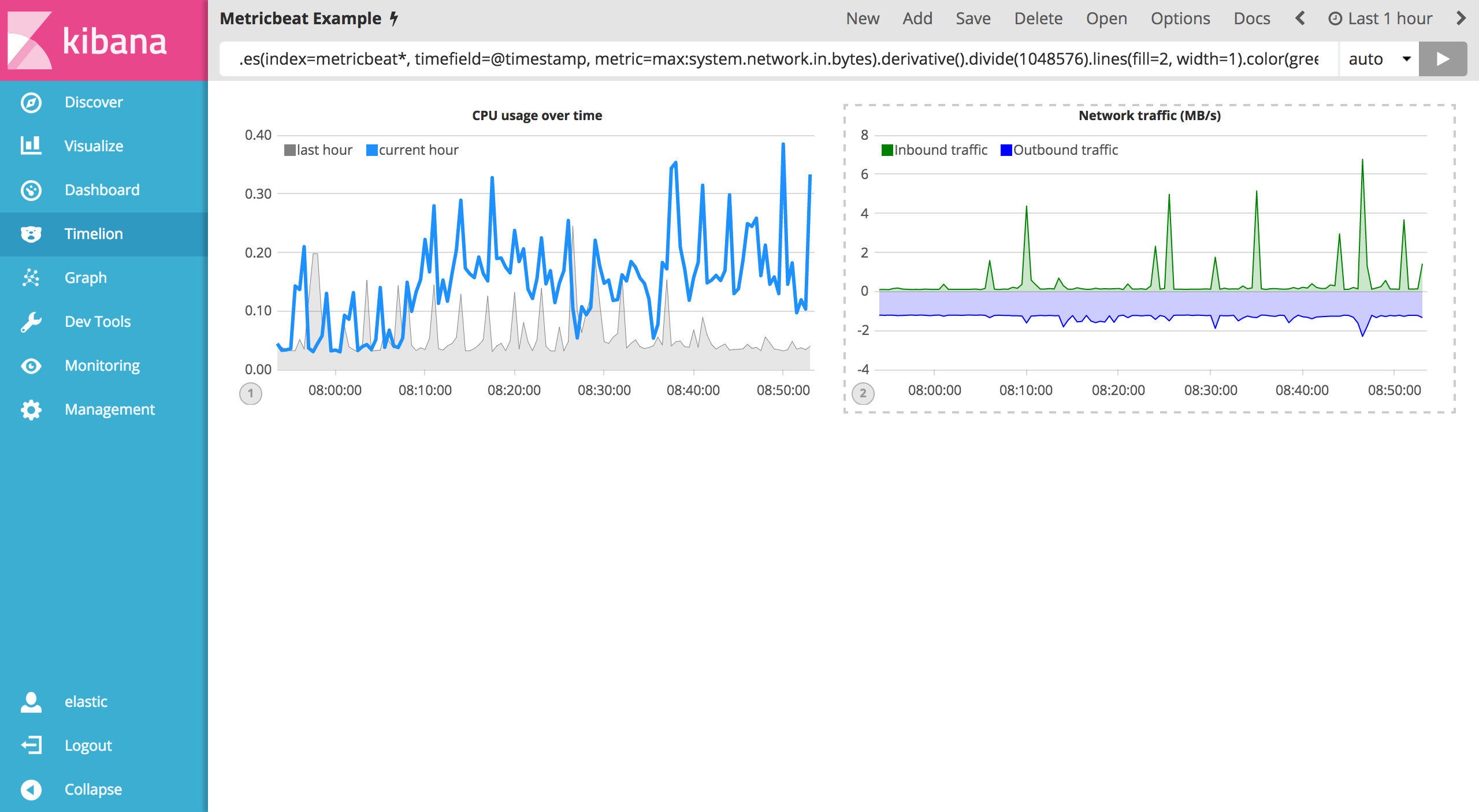

.es(index=metricbeat*, timefield=@timestamp, metric=max:system.network.in.bytes).derivative().divide(1048576).lines(fill=2, width=1).color(green).label("Inbound traffic").title("Network traffic (MB/s)"), .es(index=metricbeat*, timefield=@timestamp, metric=max:system.network.out.bytes).derivative().multiply(-1).divide(1048576).lines(fill=2, width=1).color(blue).label("Outbound traffic").legend(columns=2, position=nw)

Save your changes and continue on to the next section to learn about conditional logic and tracking trends.
