Fleet Server scalabilityedit

This page summarizes the resource and Fleet Server configuration requirements needed to scale your deployment of Elastic Agents. To scale Fleet Server, you need to modify settings in your deployment and the Fleet Server agent policy.

First modify your Fleet deployment settings in Elastic Cloud:

  1. Log in to Elastic Cloud and go to your deployment.
  2. Under Deployments > deployment name, click Edit.
  3. Under Integrations Server:

    • Modify the compute resources available to the server to accommodate a higher scale of Elastic Agents
    • Modify the availability zones to satisfy fault tolerance requirements

    For recommended settings, refer to Scaling recommendations (Elastic Cloud).

    Fleet Server hosted agent

Next modify the Fleet Server configuration by editing the agent policy:

  1. In Fleet, click Agent Policies. Click on the Elastic Cloud agent policy to edit it.
  2. Open the Actions menu and select Edit integration.

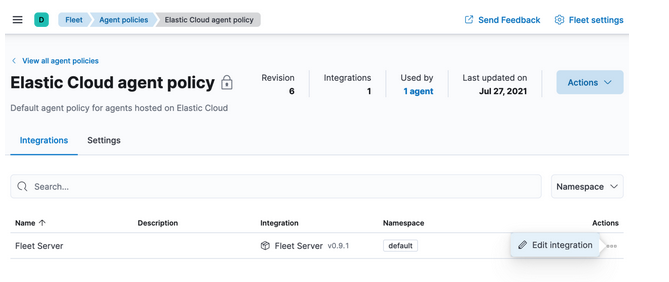

    Elastic Cloud policy
  3. Under Fleet Server, modify Max Connections and other advanced settings as described in Scaling recommendations (Elastic Cloud).

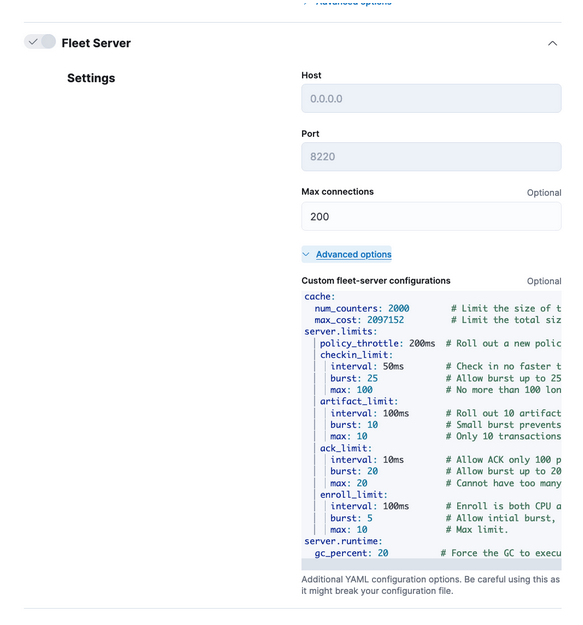

    Fleet Server configuration
Advanced Fleet Server optionsedit

The following advanced settings are available to fine tune your Fleet Server deployment.

cache
num_counters
Size of the hash table. Best practice is to have this set to 10x max connections.
max_cost
Total size of the cache.
server.limits
policy_throttle
How often a new policy is rolled out to the agents.
checkin_limit.interval
How fast the agents can check in to the Fleet Server.
checkin_limit.burst
Burst of check-ins allowed before falling back to the rate defined by interval.
checkin_limit.max
Maximum number of agents.
artifact_limit.max
Maximum number of agents that can call the artifact API concurrently. It allows the user to avoid overloading the Fleet Server from artifact API calls.
artifact_limit.interval
How often artifacts are rolled out. Default of 100ms allows 10 artifacts to be rolled out per second.
artifact_limit.burst
Number of transactions allowed for a burst, controlling oversubscription on outbound buffer.
ack_limit.max
Maximum number of agents that can call the Ack API concurrently. It allows the user to avoid overloading the Fleet Server from Ack API calls.
ack_limit.interval
How often an acknowledgment (ACK) is sent. Default value of 10ms enables 100 ACKs per second to be sent.
ack_limit.burst
Burst of ACKs to accommodate (default of 20) before falling back to the rate defined in interval.
enroll_limit.max
Maximum number of agents that can call the Enroll API concurrently. This setting allows the user to avoid overloading the Fleet Server from Enrollment API calls.
enroll_limit.interval
Interval between processing enrollment request. Enrollment is both CPU and RAM intensive, so the number of enrollment requests needs to be limited for overall system health. Default value of 100ms allows 10 enrollments per second.
enroll_limit.burst
Burst of enrollments to accept before falling back to the rate defined by interval.
Scaling recommendations (Elastic Cloud)edit

The following tables provide resource requirements and scaling guidelines based on the number of agents required by your deployment:

Resource requirements by number of agentsedit
Number of Agents Memory vCPU Elasticsearch Cluster size

50

512MB

Up to 2.5 vCPU

480GB disk | 16GB RAM | up to 5 vCPU

5,000

1GB

Up to 2.5 vCPU

960GB disk | 32GB RAM | 5 vCPU

7,500

2GB

Up to 2.5 vCPU

1.88TB disk | 64GB RAM | 9.8 vCPU

10,000

4GB

Up to 2.5 vCPU

3.75TB disk | 128GB RAM | 19.8 vCPU

12,500

8G

Up to 2.5 vCPU

7.5TB disk | 256GB RAM | 39.4 vCPU

30,000

16GB

2.5 vCPU

7.5TB disk | 256GB RAM | 39.4 vCPU

50,000

32GB

2.5 vCPU

11.25TB disk | 384GB RAM |59.2 vCPU

Recommended settings by number of deployed Elastic Agentsedit

You might need to scroll to the right to see all the table columns.

50

5,000

7,500

10,000

12,500

30,000

50,000

Max Connections

100

7,000

10,000

20,000

32,000

32,000

32,000

Cache settings

num_counters

2000

20000

40000

80000

160000

160000

320000

max_cost

2097152

20971520

50971520

104857600

209715200

209715200

209715200

Server limits

policy_throttle

200ms

50ms

10ms

5ms

5ms

2ms

5ms

checkin_limit:

interval

50ms

5ms

2ms

1ms

500us

500us

500us

burst

25

500

1000

2000

4000

4000

4000

max

100

5001

7501

10001

12501

15001

25001

artifact_limit:

interval

100ms

5ms

2ms

1ms

500us

500us

500us

burst

10

500

1000

2000

4000

4000

4000

max

10

1000

2000

4000

8000

8000

8000

ack_limit:

interval

10ms

4ms

2ms

1ms

500us

500us

500us

burst

20

500

1000

2000

4000

4000

4000

max

20

1000

2000

4000

8000

8000

8000

enroll_limit:

interval

100ms

20ms

10ms

10ms

10ms

10ms

10ms

burst

5

50

100

100

100

100

100

max

10

100

200

200

200

200

200

Server runtime settings

gc_percent

20

20

20

20

20

20

20
