Function Score Queryedit
The function_score
allows you to modify the score of documents that are
retrieved by a query. This can be useful if, for example, a score
function is computationally expensive and it is sufficient to compute
the score on a filtered set of documents.
To use function_score
, the user has to define a query and one or
more functions, that compute a new score for each document returned
by the query.
function_score
can be used with only one function like this:
GET /_search { "query": { "function_score": { "query": { "match_all": {} }, "boost": "5", "random_score": {}, "boost_mode":"multiply" } } }
See Function Score Query for a list of supported functions.
Furthermore, several functions can be combined. In this case one can optionally choose to apply the function only if a document matches a given filtering query
GET /_search { "query": { "function_score": { "query": { "match_all": {} }, "boost": "5", "functions": [ { "filter": { "match": { "test": "bar" } }, "random_score": {}, "weight": 23 }, { "filter": { "match": { "test": "cat" } }, "weight": 42 } ], "max_boost": 42, "score_mode": "max", "boost_mode": "multiply", "min_score" : 42 } } }
Boost for the whole query.

See Function Score Query for a list of supported functions.
The scores produced by the filtering query of each function do not matter.
If no filter is given with a function this is equivalent to specifying
"match_all": {}
First, each document is scored by the defined functions. The parameter
score_mode
specifies how the computed scores are combined:

scores are multiplied (default)

scores are summed

scores are averaged

the first function that has a matching filter is applied

maximum score is used

minimum score is used
Because scores can be on different scales (for example, between 0 and 1 for decay functions but arbitrary for field_value_factor
) and also
because sometimes a different impact of functions on the score is desirable, the score of each function can be adjusted with a user defined
weight
. The weight
can be defined per function in the functions
array (example above) and is multiplied with the score computed by
the respective function.
If weight is given without any other function declaration, weight
acts as a function that simply returns the weight
.
In case score_mode
is set to avg
the individual scores will be combined by a weighted average.
For example, if two functions return score 1 and 2 and their respective weights are 3 and 4, then their scores will be combined as
(1*3+2*4)/(3+4)
and not (1*3+2*4)/2
.
The new score can be restricted to not exceed a certain limit by setting
the max_boost
parameter. The default for max_boost
is FLT_MAX.
The newly computed score is combined with the score of the
query. The parameter boost_mode
defines how:

query score and function score is multiplied (default)

only function score is used, the query score is ignored

query score and function score are added

average

max of query score and function score

min of query score and function score
By default, modifying the score does not change which documents match. To exclude
documents that do not meet a certain score threshold the min_score
parameter can be set to the desired score threshold.
For min_score
to work, all documents returned by the query need to be scored and then filtered out one by one.
The function_score
query provides several types of score functions.

script_score

weight

random_score

field_value_factor

decay functions:
gauss
,linear
,exp
Script scoreedit
The script_score
function allows you to wrap another query and customize
the scoring of it optionally with a computation derived from other numeric
field values in the doc using a script expression. Here is a
simple sample:
GET /_search { "query": { "function_score": { "query": { "match": { "message": "elasticsearch" } }, "script_score" : { "script" : { "source": "Math.log(2 + doc['likes'].value)" } } } } }
On top of the different scripting field values and expression, the
_score
script parameter can be used to retrieve the score based on the
wrapped query.
Scripts compilation is cached for faster execution. If the script has parameters that it needs to take into account, it is preferable to reuse the same script, and provide parameters to it:
GET /_search { "query": { "function_score": { "query": { "match": { "message": "elasticsearch" } }, "script_score" : { "script" : { "params": { "a": 5, "b": 1.2 }, "source": "params.a / Math.pow(params.b, doc['likes'].value)" } } } } }
Note that unlike the custom_score
query, the
score of the query is multiplied with the result of the script scoring. If
you wish to inhibit this, set "boost_mode": "replace"
Weightedit
The weight
score allows you to multiply the score by the provided
weight
. This can sometimes be desired since boost value set on
specific queries gets normalized, while for this score function it does
not. The number value is of type float.
"weight" : number
Randomedit
The random_score
generates scores that are uniformly distributed from 0 up to
but not including 1. By default, it uses the internal Lucene doc ids as a
source of randomness, which is very efficient but unfortunately not
reproducible since documents might be renumbered by merges.
In case you want scores to be reproducible, it is possible to provide a seed
and field
. The final score will then be computed based on this seed, the
minimum value of field
for the considered document and a salt that is computed
based on the index name and shard id so that documents that have the same
value but are stored in different indexes get different scores. Note that
documents that are within the same shard and have the same value for field
will however get the same score, so it is usually desirable to use a field that
has unique values for all documents. A good default choice might be to use the
_seq_no
field, whose only drawback is that scores will change if the document
is updated since update operations also update the value of the _seq_no
field.
It was possible to set a seed without setting a field, but this has been
deprecated as this requires loading fielddata on the _id
field which consumes
a lot of memory.
GET /_search { "query": { "function_score": { "random_score": { "seed": 10, "field": "_seq_no" } } } }
Field Value factoredit
The field_value_factor
function allows you to use a field from a document to
influence the score. It’s similar to using the script_score
function, however,
it avoids the overhead of scripting. If used on a multivalued field, only the
first value of the field is used in calculations.
As an example, imagine you have a document indexed with a numeric likes
field and wish to influence the score of a document with this field, an example
doing so would look like:
GET /_search { "query": { "function_score": { "field_value_factor": { "field": "likes", "factor": 1.2, "modifier": "sqrt", "missing": 1 } } } }
Which will translate into the following formula for scoring:
sqrt(1.2 * doc['likes'].value)
There are a number of options for the field_value_factor
function:

Field to be extracted from the document.

Optional factor to multiply the field value with, defaults to

Modifier to apply to the field value, can be one of:
Modifier  Meaning


Do not apply any multiplier to the field value

Take the common logarithm of the field value

Add 1 to the field value and take the common logarithm

Add 2 to the field value and take the common logarithm

Take the natural logarithm of the field value

Add 1 to the field value and take the natural logarithm

Add 2 to the field value and take the natural logarithm

Square the field value (multiply it by itself)

Take the square root of the field value

Reciprocate the field value, same as

missing

Value used if the document doesn’t have that field. The modifier and factor are still applied to it as though it were read from the document.
Keep in mind that taking the log() of 0, or the square root of a negative number is an illegal operation, and an exception will be thrown. Be sure to limit the values of the field with a range filter to avoid this, or use `log1p` and `ln1p`.
Decay functionsedit
Decay functions score a document with a function that decays depending on the distance of a numeric field value of the document from a user given origin. This is similar to a range query, but with smooth edges instead of boxes.
To use distance scoring on a query that has numerical fields, the user
has to define an origin
and a scale
for each field. The origin
is needed to define the “central point” from which the distance
is calculated, and the scale
to define the rate of decay. The
decay function is specified as
"DECAY_FUNCTION": { "FIELD_NAME": { "origin": "11, 12", "scale": "2km", "offset": "0km", "decay": 0.33 } }
The

The specified field must be a numeric, date, or geopoint field.
In the above example, the field is a geo_point
and origin can
be provided in geo format. scale
and offset
must be given with a unit in
this case. If your field is a date field, you can set scale
and offset
as
days, weeks, and so on. Example:
GET /_search { "query": { "function_score": { "gauss": { "date": { "origin": "20130917", "scale": "10d", "offset": "5d", "decay" : 0.5 } } } } }
The date format of the origin depends on the

The

The point of origin used for calculating distance. Must be given as a
number for numeric field, date for date fields and geo point for geo fields.
Required for geo and numeric field. For date fields the default is

Required for all types. Defines the distance from origin + offset at which the computed
score will equal

If an

The
In the first example, your documents might represents hotels and contain a geo location field. You want to compute a decay function depending on how far the hotel is from a given location. You might not immediately see what scale to choose for the gauss function, but you can say something like: "At a distance of 2km from the desired location, the score should be reduced to one third." The parameter "scale" will then be adjusted automatically to assure that the score function computes a score of 0.33 for hotels that are 2km away from the desired location.
In the second example, documents with a field value between 20130912 and 20130922 would get a weight of 1.0 and documents which are 15 days from that date a weight of 0.5.

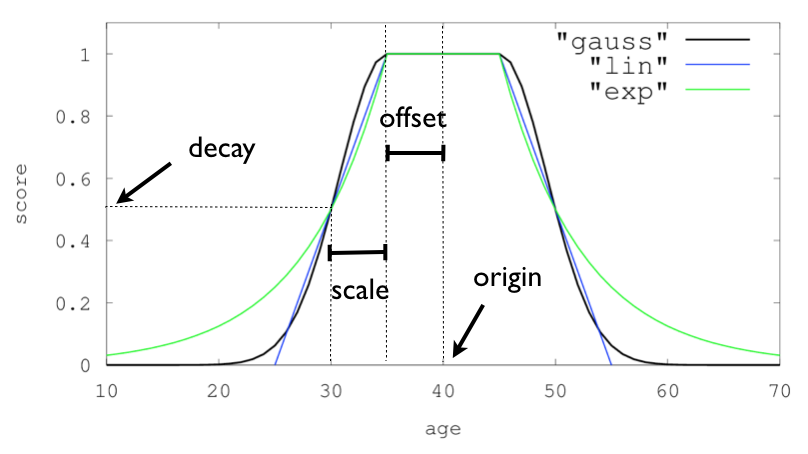

Supported decay functionsedit
The DECAY_FUNCTION
determines the shape of the decay:

gauss

Normal decay, computed as:
where is computed to assure that the score takes the value
decay
at distancescale
fromorigin
+offset
See Normal decay, keyword
gauss
for graphs demonstrating the curve generated by thegauss
function.
exp

Exponential decay, computed as:
where again the parameter is computed to assure that the score takes the value
decay
at distancescale
fromorigin
+offset
See Exponential decay, keyword
exp
for graphs demonstrating the curve generated by theexp
function.
linear

Linear decay, computed as:
.
where again the parameter
s
is computed to assure that the score takes the valuedecay
at distancescale
fromorigin
+offset
In contrast to the normal and exponential decay, this function actually sets the score to 0 if the field value exceeds twice the user given scale value.
For single functions the three decay functions together with their parameters can be visualized like this (the field in this example called "age"):
Multivalues fieldsedit
If a field used for computing the decay contains multiple values, per default the value closest to the origin is chosen for determining the distance.
This can be changed by setting multi_value_mode
.

Distance is the minimum distance

Distance is the maximum distance

Distance is the average distance

Distance is the sum of all distances
Example:
"DECAY_FUNCTION": { "FIELD_NAME": { "origin": ..., "scale": ... }, "multi_value_mode": "avg" }
Detailed exampleedit
Suppose you are searching for a hotel in a certain town. Your budget is limited. Also, you would like the hotel to be close to the town center, so the farther the hotel is from the desired location the less likely you are to check in.
You would like the query results that match your criterion (for example, "hotel, Nancy, nonsmoker") to be scored with respect to distance to the town center and also the price.
Intuitively, you would like to define the town center as the origin and
maybe you are willing to walk 2km to the town center from the hotel.
In this case your origin for the location field is the town center
and the scale is ~2km.
If your budget is low, you would probably prefer something cheap above something expensive. For the price field, the origin would be 0 Euros and the scale depends on how much you are willing to pay, for example 20 Euros.
In this example, the fields might be called "price" for the price of the hotel and "location" for the coordinates of this hotel.
The function for price
in this case would be
and for location
:
Suppose you want to multiply these two functions on the original score, the request would look like this:
GET /_search { "query": { "function_score": { "functions": [ { "gauss": { "price": { "origin": "0", "scale": "20" } } }, { "gauss": { "location": { "origin": "11, 12", "scale": "2km" } } } ], "query": { "match": { "properties": "balcony" } }, "score_mode": "multiply" } } }
Next, we show how the computed score looks like for each of the three possible decay functions.
Normal decay, keyword gauss
edit
When choosing gauss
as the decay function in the above example, the
contour and surface plot of the multiplier looks like this:
Suppose your original search results matches three hotels :
 "Backback Nap"
 "Drink n Drive"
 "BnB Bellevue".
"Drink n Drive" is pretty far from your defined location (nearly 2 km) and is not too cheap (about 13 Euros) so it gets a low factor a factor of 0.56. "BnB Bellevue" and "Backback Nap" are both pretty close to the defined location but "BnB Bellevue" is cheaper, so it gets a multiplier of 0.86 whereas "Backpack Nap" gets a value of 0.66.
Exponential decay, keyword exp
edit
When choosing exp
as the decay function in the above example, the
contour and surface plot of the multiplier looks like this:
Linear decay, keyword linear
edit
When choosing linear
as the decay function in the above example, the
contour and surface plot of the multiplier looks like this:
Supported fields for decay functionsedit
Only numeric, date, and geopoint fields are supported.
What if a field is missing?edit
If the numeric field is missing in the document, the function will return 1.
