Access performance metricsedit

Cluster performance metrics are available directly in the Elasticsearch Add-On for Heroku console. The graphs on this page include a subset of Elasticsearch Add-On for Heroku-specific performance metrics.

For advanced views or production monitoring, enable logging and monitoring. The monitoring application provides more advanced views for Elasticsearch and JVM metrics, and includes a configurable retention period.

To access cluster performance metrics:

  1. Log in to the Elasticsearch Add-On for Heroku console.
  2. On the deployments page, select your deployment.

    Narrow your deployments by name, ID, or choose from several other filters. To customize your view, use a combination of filters, or change the format from a grid to a list. For example, you might want to select Is unhealthy and Has master problems to get a short list of deployments that need attention.

  3. From your deployment menu, go to the Performance page.

The following metrics are available:

CPU usageedit

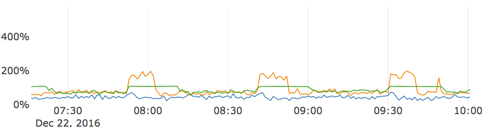

Graph showing CPU usage

Shows the maximum usage of the CPU resources assigned to your Elasticsearch cluster, as a percentage. CPU resources are relative to the size of your cluster, so that a cluster with 32GB of RAM gets assigned twice as many CPU resources as a cluster with 16GB of RAM. All clusters are guaranteed their share of CPU resources, as Elasticsearch Add-On for Heroku infrastructure does not overcommit any resources. CPU credits permit boosting the performance of smaller clusters temporarily, so that CPU usage can exceed 100%.

CPU creditsedit

Graph showing available CPU credits

Shows your remaining CPU credits, measured in seconds of CPU time. CPU credits enable the boosting of CPU resources assigned to your cluster to improve performance temporarily when it is needed most. For more details check How to use vCPU to boost your instance.

Number of requestsedit

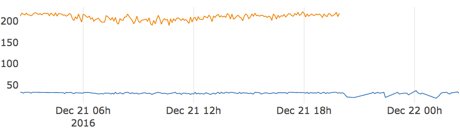

Graph showing the number of requests

Shows the number of requests that your cluster receives per second, separated into search requests and requests to index documents. This metric provides a good indicator of the volume of work that your cluster typically handles over time which, together with other performance metrics, helps you determine if your cluster is sized correctly. Also lets you check if there is a sudden increase in the volume of user requests that might explain an increase in response times.

Search response timesedit

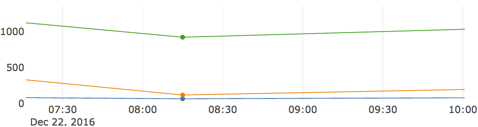

Graph showing search response times

Indicates the amount of time that it takes for your Elasticsearch cluster to complete a search query, in milliseconds. Response times won’t tell you about the cause of a performance issue, but they are often a first indicator that something is amiss with the performance of your Elasticsearch cluster.

Index response timesedit

Graph showing index response times

Indicates the amount of time that it takes for your Elasticsearch cluster to complete an indexing operation, in milliseconds. Response times won’t tell you about the cause of a performance issue, but they are often a first indicator that something is amiss with the performance of your Elasticsearch cluster.

Memory pressure per nodeedit

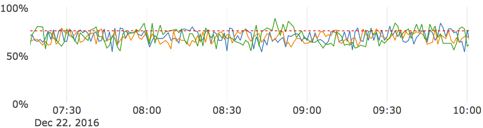

Graph showing memory pressure per node

Indicates the total memory used by the JVM heap over time. We’ve configured Elasticsearch’s garbage collector to keep memory usage below 75% for heaps of 8GB or larger. For heaps smaller than 8GB, the threshold is 85%. If memory pressure consistently remains above this threshold, you might need to resize your cluster or reduce memory consumption. Check how high memory pressure can cause performance issues.

GC overhead per nodeedit

Graph showing the garbage collection overhead per node

Indicates the overhead involved in JVM garbage collection to reclaim memory.

Tips for working with performance metricsedit

Performance correlates directly with resources assigned to your cluster, and many of these metrics will show some sort of correlation with each other when you are trying to determine the cause of a performance issue. Take a look at some of the scenarios included in this section to learn how you can determine the cause of performance issues.

It is not uncommon for performance issues on Elasticsearch Add-On for Heroku to be caused by an undersized cluster that cannot cope with the workload it is being asked to handle. If your cluster performance metrics often shows high CPU usage or excessive memory pressure, consider increasing the size of your cluster soon to improve performance. This is especially true for clusters that regularly reach 100% of CPU usage or that suffer out-of-memory failures; it is better to resize your cluster early when it is not yet maxed out than to have to resize a cluster that is already overwhelmed. Changing the configuration of your cluster may add some overhead if data needs to be migrated to the new nodes, which can increase the load on a cluster further and delay configuration changes.

To help diagnose high CPU usage you can also use the Elasticsearch nodes hot threads API, which identifies the threads on each node that have the highest CPU usage or that have been executing for a longer than normal period of time.

Got an overwhelmed cluster that needs to be upsized? Try enabling maintenance mode first. It will likely help with configuration changes.

Work with the metrics shown in Cluster Performance Metrics section to help you find the information you need:

  • Hover on any part of a graph to get additional information. For example, hovering on a section of a graph that shows response times reveals the percentile that responses fall into at that point in time:

    Hover over the metric graph
  • Zoom in on a graph by drawing a rectangle to select a specific time window. As you zoom in one metric, other performance metrics change to show data for the same time window.

    Zoom the metric graph
  • Pan around with Pan in a metric graph to make sure that you can get the right parts of a metric graph as you zoom in.
  • Reset the metric graph axes with Reset the metric graph, which returns the graphs to their original scale.

Cluster performance metrics are shown per node and are color-coded to indicate which running Elasticsearch instance they belong to.

Cluster restarts after out-of-memory failuresedit

For clusters that suffer out-of-memory failures, it can be difficult to determine whether the clusters are in a completely healthy state afterwards. For this reason, Elasticsearch Add-On for Heroku automatically reboots clusters that suffer out-of-memory failures.

You will receive an email notification to let you know that a restart occurred. For repeated alerts, the emails are aggregated so that you do not receive an excessive number of notifications. Either resizing your cluster to reduce memory pressure or reducing the workload that a cluster is being asked to handle can help avoid these cluster restarts.
