haproxy moduleedit

The haproxy module collects and parses logs from a (haproxy) process.

When you run the module, it performs a few tasks under the hood:

  • Sets the default paths to the log files (but don’t worry, you can override the defaults)
  • Makes sure each multiline log event gets sent as a single event
  • Uses ingest node to parse and process the log lines, shaping the data into a structure suitable for visualizing in Kibana
  • Deploys dashboards for visualizing the log data

Read the quick start to learn how to configure and run modules.

Compatibilityedit

The haproxy module was tested with logs from haproxy running on AWS Linux as a gateway to a cluster of microservices.

The module was also tested with HAProxy 1.8, 1.9 and 2.0 running on a Debian.

This module is not available for Windows.

Configure the moduleedit

You can further refine the behavior of the haproxy module by specifying variable settings in the modules.d/haproxy.yml file, or overriding settings at the command line.

The module is by default configured to run via syslog on port 9001. However it can also be configured to read from a file path. See the following example.

- module: haproxy
  log:
    enabled: true
    var.paths: ["/var/log/haproxy.log"]
    var.input: "file"

Variable settingsedit

Each fileset has separate variable settings for configuring the behavior of the module. If you don’t specify variable settings, the haproxy module uses the defaults.

For advanced use cases, you can also override input settings. See Override input settings.

When you specify a setting at the command line, remember to prefix the setting with the module name, for example, haproxy.log.var.paths instead of log.var.paths.

log fileset settingsedit

var.paths
An array of glob-based paths that specify where to look for the log files. All patterns supported by Go Glob are also supported here. For example, you can use wildcards to fetch all files from a predefined level of subdirectories: /path/to/log/*/*.log. This fetches all .log files from the subfolders of /path/to/log. It does not fetch log files from the /path/to/log folder itself. If this setting is left empty, Filebeat will choose log paths based on your operating system.

Time zone supportedit

This module parses logs that don’t contain time zone information. For these logs, Filebeat reads the local time zone and uses it when parsing to convert the timestamp to UTC. The time zone to be used for parsing is included in the event in the event.timezone field.

To disable this conversion, the event.timezone field can be removed with the drop_fields processor.

If logs are originated from systems or applications with a different time zone to the local one, the event.timezone field can be overwritten with the original time zone using the add_fields processor.

See Processors for information about specifying processors in your config.

Example dashboardedit

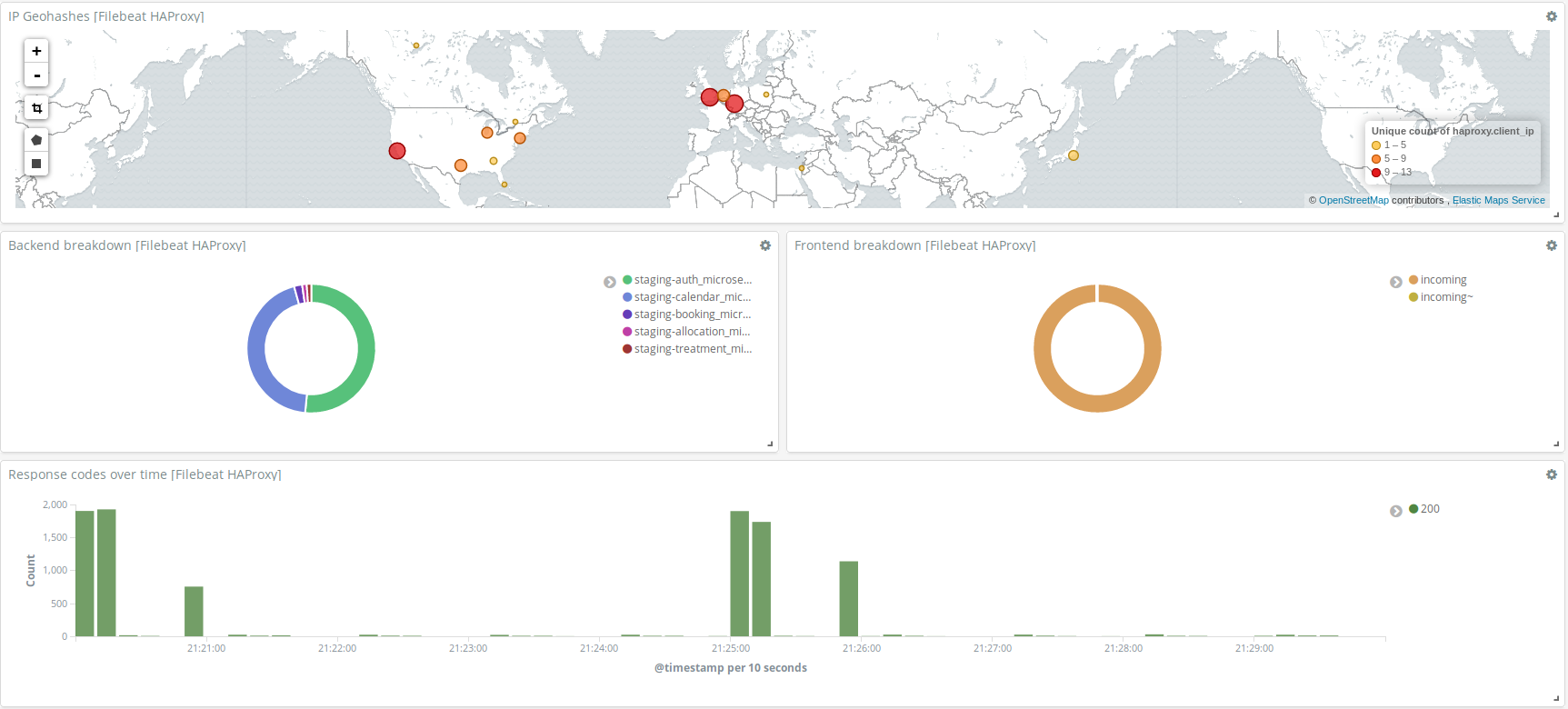

This module comes with a sample dashboard showing geolocation, distribution of requests between backends and frontends, and status codes over time. For example:

kibana haproxy overview

Fieldsedit

For a description of each field in the module, see the exported fields section.
