Initial research exposing JOKERSPY

This research article explores a recently discovered intrusion we’re calling REF9134, which involves using the sh.py backdoor to deploy the macOS Swiftbelt enumeration tool. sh.py and xcc have recently been dubbed JOKERSPY by Bitdefender.

Specifically, this research covers:

• How Elastic Security Labs identified reconnaissance from the adversary group
• The adversary’s steps to evade detection using xcc, installing the sh.py backdoor, and deploying enumeration tools

A deeper look at this attack may be published at a later date.

In late May of 2023, an adversary with existing access in a prominent Japanese cryptocurrency exchange tripped one of our diagnostic endpoint alerts that detected the execution of a binary (xcc). xcc is not trusted by Apple, and the adversary self-signed using the native macOS tool codesign. While this detection in itself was not necessarily innocuous, the industry vertical and additional activity we observed following these initial alerts caught our eye and caused us to pay closer attention.

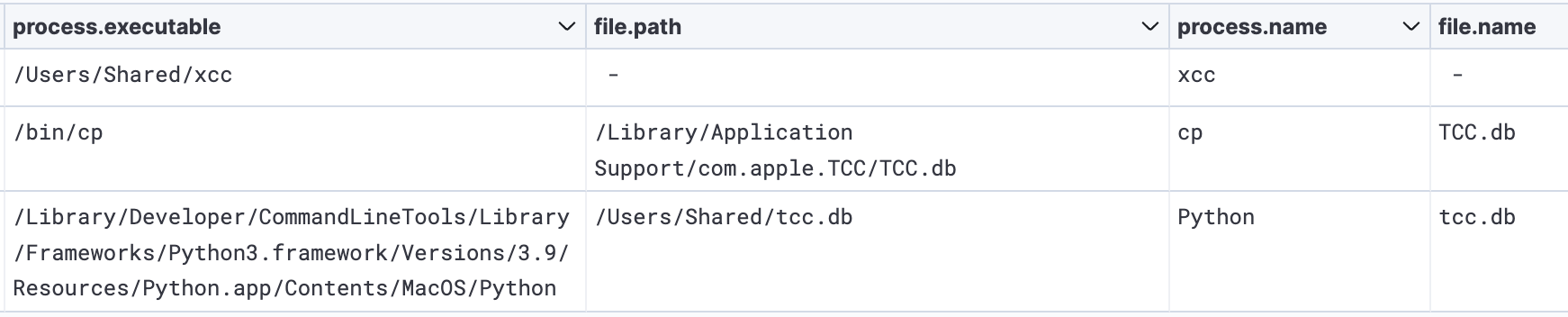

Following the execution of xcc, we observed the threat actor attempting to bypass TCC permissions by creating their own TCC database and trying to replace the existing one. On June 1st a new Python-based tool was seen executing from the same directory as xcc and was utilized to execute an open-source macOS post-exploitation enumeration tool known as Swiftbelt.

REF9134 is an intrusion into a large Japan-based cryptocurrency service provider focusing on asset exchange for trading Bitcoin, Ethereum, and other common cryptocurrencies.

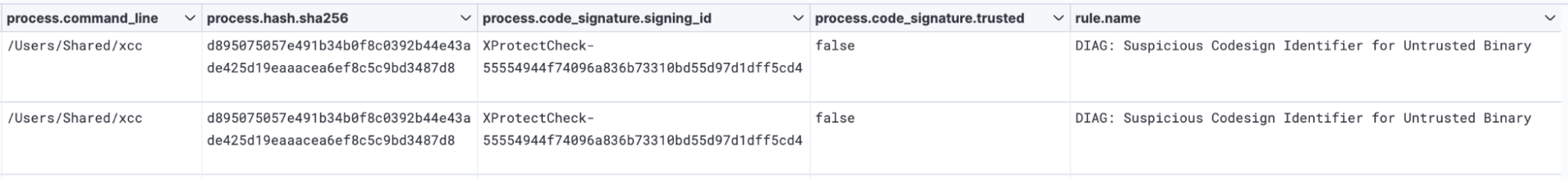

xcc (d895075057e491b34b0f8c0392b44e43ade425d19eaaacea6ef8c5c9bd3487d8) is a self-signed multi-architecture binary written in Swift which is used to evaluate current system permissions. The version observed by Elastic Security Labs is signed as XProtectCheck-55554944f74096a836b73310bd55d97d1dff5cd4, and has a code signature resembling publicly known and untrusted payloads.

During analysis of this binary, researchers identified two unique paths, /Users/joker/Developer/Xcode/DerivedData/ and /Users/joker/Downloads/Spy/XProtectCheck/XProtectCheck/, which stood out as anomalous. The default path for compiling code with Xcode is /Users/[username]/Developer/Xcode/DerivedData.

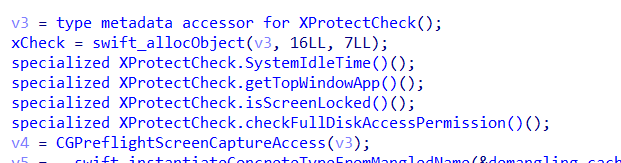

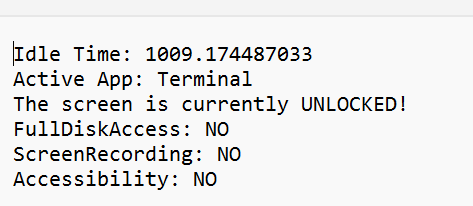

These introspection permissions are managed by the native Transparency, Consent, and Control (TCC) feature. Researchers determined that xcc checks FullDiskAccess and ScreenRecording permissions, as well as checking if the screen is currently locked and if the current process is a trusted accessibility client.

On May 31st, researchers observed three non-native DyLibs deployed to /Users/shared/keybag/ called libcrypto.1.0.0.dylib, libncursesw.5.dylib, and libssl.1.0.0.dylib. On MacOS, keys for file and keychain Data Protection are stored in keybags, and pertain to iOS, iPadOS, watchOS, and tvOS. At this time, researchers propose that this staging serves a defense evasion purpose and speculate that they may contain useful vulnerabilities. The threat actor may plan to introduce these vulnerabilities to otherwise patched systems or applications.

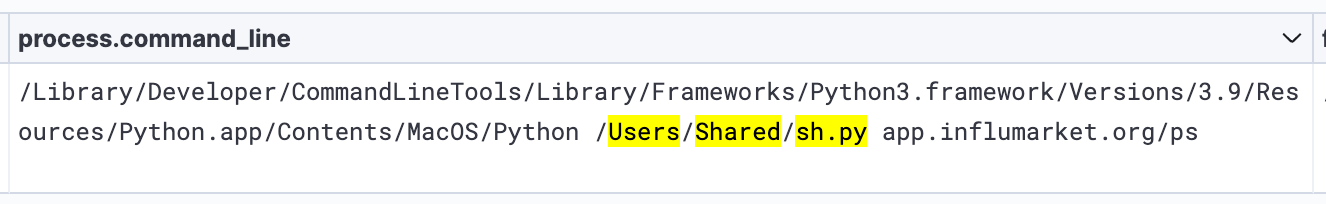

sh.py is a Python backdoor used to deploy and execute other post-exploitation capabilities like Swiftbelt.

The malware loads its configuration from ~/Public/Safari/sar.dat. The configuration file contains crucial elements such as command-and-control (C2) URLs, a sleep timer for beaconing purposes (the default value is 5 seconds), and a unique nine-digit identifier assigned to each agent.

On June 1st, the compromised system registered a signature alert for MacOS.Hacktool.Swiftbelt, a MacOS enumeration capability inspired by SeatBelt and created by the red-teamer Cedric Owens. Unlike other enumeration methods, Swiftbelt invokes Swift code to avoid creating command line artifacts. Notably, xcc variants are also written using Swift.

The signature alert indicated that Swiftbelt was written to /Users/shared/sb and executed using the bash shell interpreter, sh. The full command line observed by researchers was Users/Shared/sb /bin/sh -c /users/shared/sb > /users/shared/sb.log 2>&1, demonstrating that the threat actor captured results in sb.log while errors were directed to STDOUT.

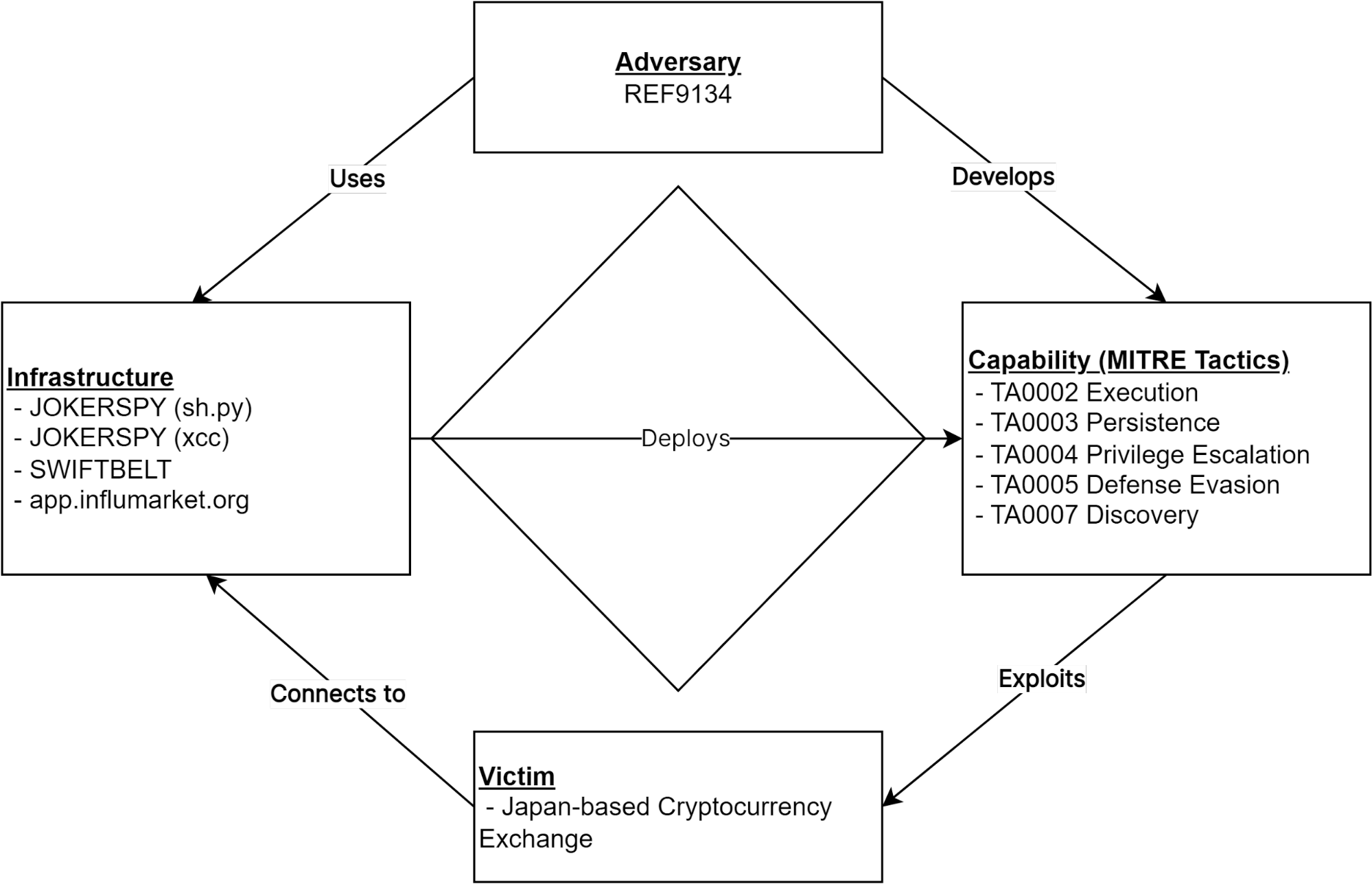

Elastic Security utilizes the Diamond Model to describe high-level relationships between the adversaries, capabilities, infrastructure, and victims of intrusions. While the Diamond Model is most commonly used with single intrusions, and leveraging Activity Threading (section 8) as a way to create relationships between incidents, an adversary-centered (section 7.1.4) approach allows for a, although cluttered, single diamond.

Tactics represent the why of a technique or sub-technique. It is the adversary’s tactical goal: the reason for performing an action. These are the tactics observed by Elastic Security Labs in this campaign:

• Execution
• Persistence
• Privilege Escalation
• Defense Evasion
• Discovery

Techniques and Sub techniques represent how an adversary achieves a tactical goal by performing an action. These are the techniques observed by Elastic Security Labs in this campaign:

• Command and Scripting Interpreter
• Dylib Hijacking
• Potential Exploitation for Privilege Execution
• Potential Abuse Elevation Control Mechanism
• Hide Artifacts
• Masquerading
• Obfuscating Files or Information
• Subvert Trust Controls
• Application Window Discovery
• Screen Capture
• Crytpoistic Software
• Data from Local System

• Non-Native Dylib Extracted into Suspicious Directory
• Potential Privilege Escalation via TCC bypass with fake TCC.db

Elastic Security has created YARA rules to identify this activity. Below are YARA rules to identify the JOKERSPY backdoor and SwiftBelt tool.

All observables are also available for download in both ECS and STIX format in a combined zip bundle.

The following observables were discussed in this research.
