System socket dataset
editSystem socket dataset
editThis functionality is in beta and is subject to change. The design and code is less mature than official GA features and is being provided as-is with no warranties. Beta features are not subject to the support SLA of official GA features.
This is the socket dataset of the system module.
It is implemented for Linux only.
Example dashboard

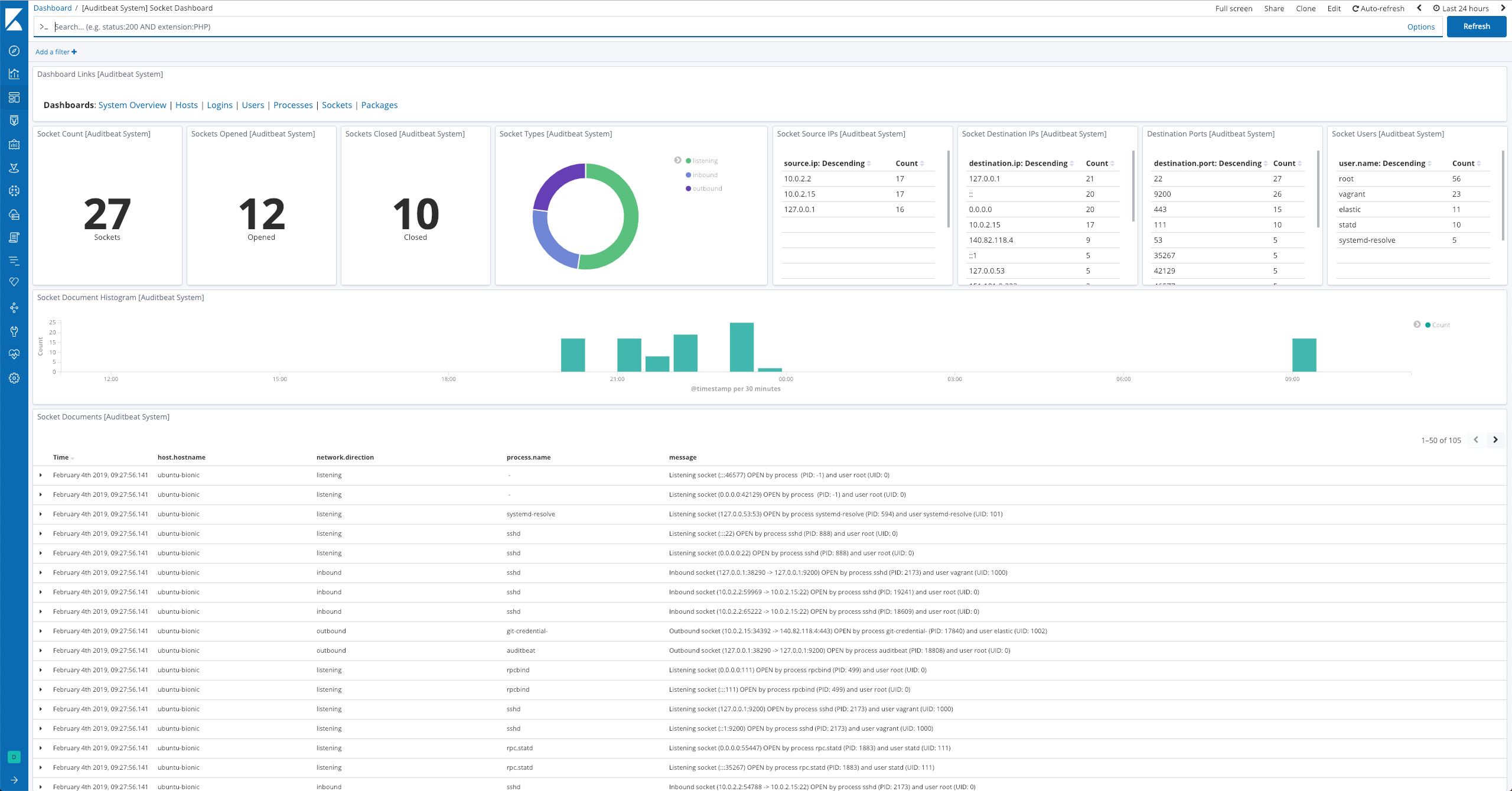

editThe dataset comes with a sample dashboard:
Fields
editFor a description of each field in the dataset, see the exported fields section.
Here is an example document generated by this dataset:
{
"@timestamp": "2017-10-12T08:05:34.853Z",
"destination": {
"ip": "10.0.2.15",
"port": 22
},
"event": {
"action": "socket_closed",
"dataset": "socket",
"kind": "event",
"module": "system"
},
"message": "Inbound socket (10.0.2.2:55270 -\u003e 10.0.2.15:22) CLOSED by process sshd (PID: 22799) and user root (UID: 0)",
"network": {
"direction": "inbound",
"type": "ipv4"
},
"process": {
"name": "sshd",
"pid": 22799
},
"service": {
"type": "system"
},
"socket": {
"entity_id": "fIj66YRoGyoe8dML"
},
"source": {
"ip": "10.0.2.2",
"port": 55270
},
"user": {
"id": 0,
"name": "root"
}
}
