Data Quality dashboardedit

The Data Quality dashboard shows you whether your data is correctly mapped to the Elastic Common Schema (ECS). Successful mapping enables you to search, visualize, and interact with your data throughout Elastic Security and Kibana.

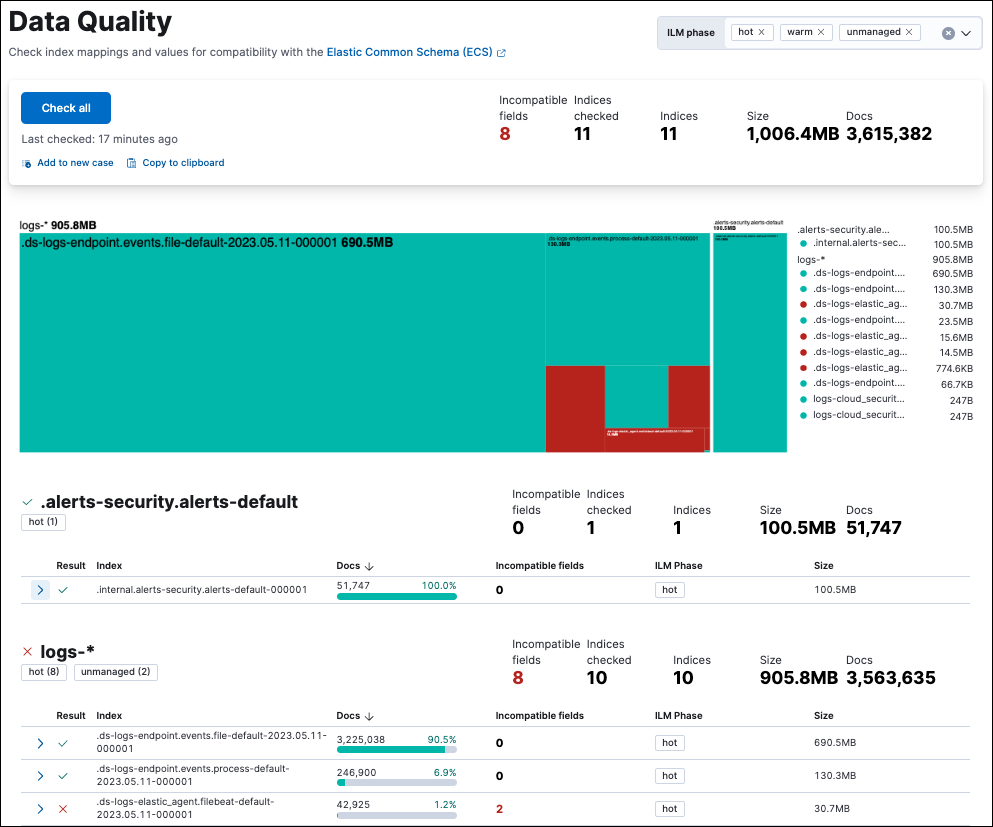

The Data Quality dashboard

Use the Data Quality dashboard to:

  • Check one or multiple indices for unsuccessful mappings, to help you identify problems (the indices used by Elastic Security appear by default).
  • View the amount of data stored in each of your indices.
  • View detailed information about the fields in checked indices.
  • Track unsuccessful mappings by creating a case or Markdown report based on data quality results.

The Data Quality dashboard doesn’t show data from cold or frozen data tiers. It also doesn’t display data from remote clusters using cross-cluster search. To view data from another cluster, log in to that cluster’s Kibana instance.

Check indicesedit

When you open the dashboard, data does not appear until you select indices to check.

  • Check multiple indices: To check all indices in the current data view, click Check all at the top of the dashboard. A progress indicator will appear.

To customize which indices are checked when you click Check all, change the current data view.

  • Check a single index: To check a single index, expand it using the arrow on the left. Checking a single index is faster than checking all indices.

Visualize checked indicesedit

The treemap that appears at the top of the dashboard shows the relative size of your indices. The color of each index’s node refers to its status:

  • Blue: Not yet checked.
  • Green: Checked, no incompatible fields found.
  • Red: Checked, one or more incompatible fields found.

Click a node in the treemap to expand the corresponding index.

Learn more about checked index fieldsedit

After an index is checked, an X (❌) or a checkmark (✅) appears in its Result column. The X (❌) indicates mapping problems in an index. To view index details, including which fields weren’t successfully mapped, click the arrow next to the result.

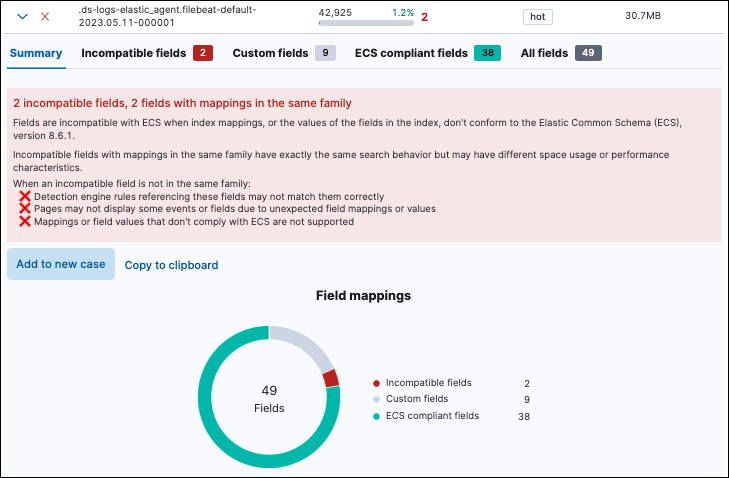

An expanded index with some failed results in the Data Quality dashboard

Export data quality resultsedit

You can share data quality results to help track your team’s remediation efforts. First, follow the instructions under Check indices to generate results, then either:

  • Export results for all indices in the current data view:

    1. At the top of the dashboard, under the Check all button, are two buttons that allow you to share results. Exported results include all the data which appears in the dashboard.
    2. Click Add to new case to open a new case.
    3. Click Copy to clipboard to copy a Markdown report to your clipboard.
  • Export results for one index:

    1. Expand an index that has at least one incompatible field by clicking the arrow to the left of its Result.
    2. From the Summary or Incompatible fields tabs, select Add to new case to open a new case, or click Copy to clipboard to copy a Markdown report to your clipboard.

For more information about how to fix mapping problems, refer to Mapping.
