Webhook - Case Management connector and actionedit

The Webhook - Case Management connector uses axios to send POST, PUT, and GET requests to a case management RESTful API web service.

Create connectors in Kibanaedit

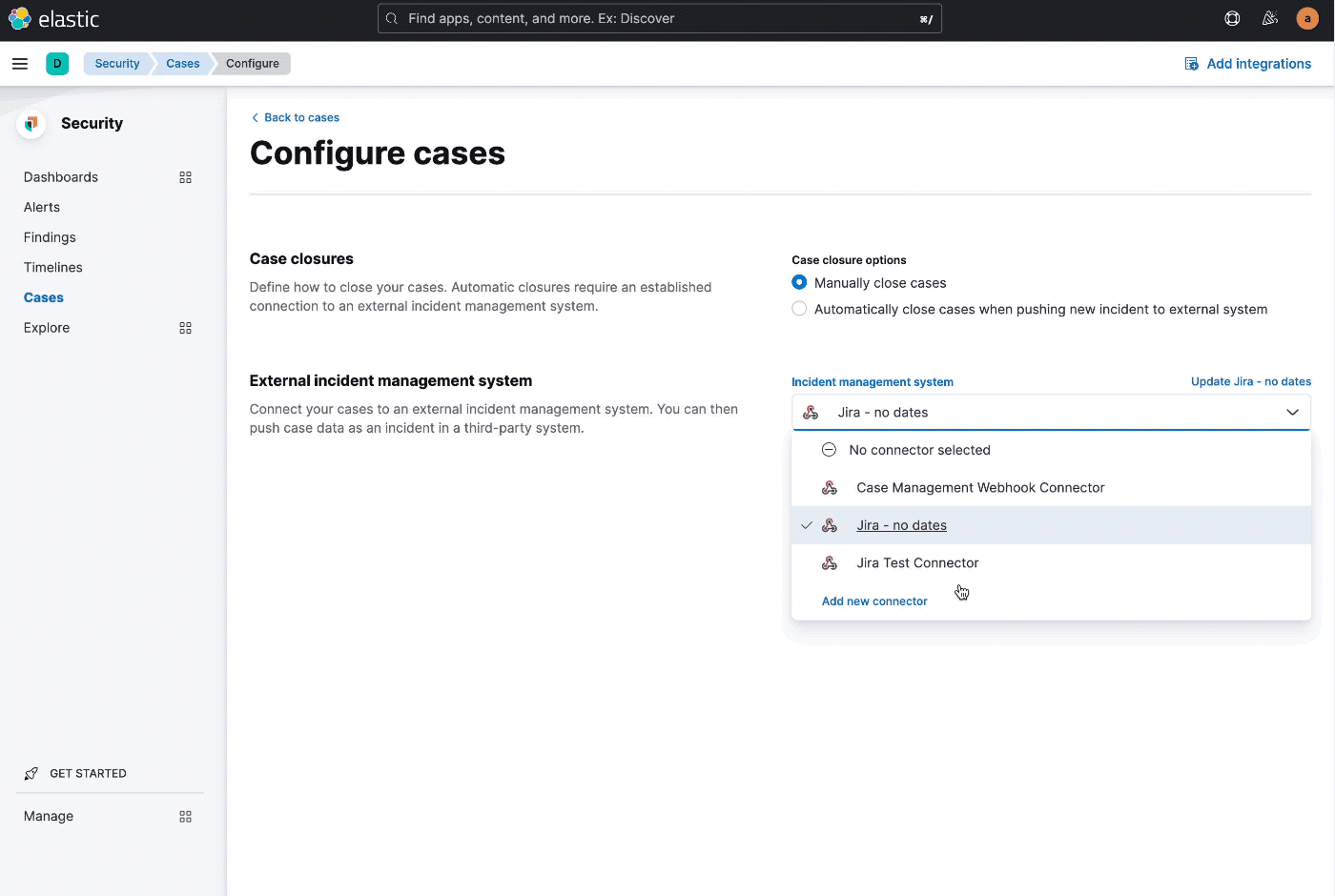

You can create connectors in Stack Management > Connectors or as needed when you’re creating a rule. For example:

Webhook - Case Management connector
Connector configurationedit

Webhook - Case Management connectors have the following configuration properties:

Name
The name of the connector. The name is used to identify a connector in the management UI connector listing and in the connector list when configuring an action.
Require authentication
If true, a username and password for login type authentication must be provided.
Username
Username for HTTP basic authentication.
Password
Password for HTTP basic authentication.
Headers
A set of key-value pairs sent as headers with the request URLs for the create case, update case, get case, and create comment methods.
Create case method
REST API HTTP request method to create a case in the third-party system, either post(default), put, or patch.
Create case URL
REST API URL to create a case in the third-party system. If you are using the xpack.actions.allowedHosts setting, make sure the hostname is added to the allowed hosts.
Create case object

A JSON payload sent to the create case URL to create a case. Use the variable selector to add case data to the payload. Required variables are case.title and case.description. For example:

{
	"fields": {
	  "summary": {{{case.title}}},
	  "description": {{{case.description}}},
	  "labels": {{{case.tags}}}
	}
}

Due to Mustache template variables (the text enclosed in triple braces, for example, {{{case.title}}}), the JSON is not validated in this step. The JSON is validated after the Mustache variables have been placed when REST method runs. Manually ensure that the JSON is valid, disregarding the Mustache variables, so the later validation will pass.

Create case response - case ID key
JSON key in the create case response that contains the external case ID.
Get case URL

REST API URL to GET case by ID from the third-party system. Use the variable selector to add the external system ID to the URL. If you are using the xpack.actions.allowedHosts setting, make sure the hostname is added to the allowed hosts. For example:

https://testing-jira.atlassian.net/rest/api/2/issue/{{{external.system.id}}}

Due to Mustache template variables (the text enclosed in triple braces, for example, {{{case.title}}}), the JSON is not validated in this step. The JSON is validated after the Mustache variables have been placed when REST method runs. Manually ensure that the JSON is valid, disregarding the Mustache variables, so the later validation will pass.

Get case response - title key
JSON key in get case response that contains the external case title
External case view URL

URL to view case in the external system. Use the variable selector to add the external system ID or external system title to the URL. For example:

https://testing-jira.atlassian.net/browse/{{{external.system.title}}}
Update case method
REST API HTTP request method to update the case in the third-party system, either post, put(default), or patch.
Update case URL

REST API URL to update the case by ID in the third-party system. Use the variable selector to add the external system ID to the URL. If you are using the xpack.actions.allowedHosts setting, make sure the hostname is added to the allowed hosts. For example:

https://testing-jira.atlassian.net/rest/api/2/issue/{{{external.system.ID}}}
Update case object

A JSON payload sent to the update case URL to update the case. Use the variable selector to add Kibana Cases data to the payload. Required variables are case.title and case.description. For example:

{
	"fields": {
	  "summary": {{{case.title}}},
	  "description": {{{case.description}}},
	  "labels": {{{case.tags}}}
	}
}

Due to Mustache template variables (which is the text enclosed in triple braces, for example, {{{case.title}}}), the JSON is not validated in this step. The JSON is validated after the Mustache variables have been placed when REST method runs. Manually ensure that the JSON is valid to avoid future validation errors; disregard Mustache variables during your review.

Create comment method
(Optional) REST API HTTP request method to create a case comment in the third-party system, either post, put(default), or patch.
Create comment URL

(Optional) REST API URL to create a case comment by ID in the third-party system. Use the variable selector to add the external system ID to the URL. If you are using the xpack.actions.allowedHosts setting, make sure the hostname is added to the allowed hosts. For example:

https://testing-jira.atlassian.net/rest/api/2/issue/{{{external.system.id}}}/comment
Create comment object

(Optional) A JSON payload sent to the create comment URL to create a case comment. Use the variable selector to add Kibana Cases data to the payload. The required variable is case.comment. For example:

{
  "body": {{{case.comment}}}
}

Due to Mustache template variables (the text enclosed in triple braces, for example, {{{case.title}}}), the JSON is not validated in this step. The JSON is validated once the mustache variables have been placed and when REST method runs. We recommend manually ensuring that the JSON is valid, disregarding the Mustache variables, so the later validation will pass.

Create preconfigured connectorsedit

If you are running Kibana on-prem, you can define connectors by adding xpack.actions.preconfigured settings to your kibana.yml file. For example:

xpack.actions.preconfigured:
  my-case-management-webhook:
    name: Case Management Webhook Connector
    actionTypeId: .cases-webhook
    config:
      hasAuth: true
      headers:
        'content-type': 'application/json'
      createIncidentUrl: 'https://testing-jira.atlassian.net/rest/api/2/issue'
      createIncidentMethod: 'post'
      createIncidentJson: '{"fields":{"summary":{{{case.title}}},"description":{{{case.description}}},"labels":{{{case.tags}}}'
      getIncidentUrl: 'https://testing-jira.atlassian.net/rest/api/2/issue/{{{external.system.id}}}'
      getIncidentResponseExternalTitleKey: 'key'
      viewIncidentUrl: 'https://testing-jira.atlassian.net/browse/{{{external.system.title}}}'
      updateIncidentUrl: 'https://testing-jira.atlassian.net/rest/api/2/issue/{{{external.system.id}}}'
      updateIncidentMethod: 'put'
      updateIncidentJson: '{"fields":{"summary":{{{case.title}}},"description":{{{case.description}}},"labels":{{{case.tags}}}'
      createCommentMethod: 'post',
      createCommentUrl: 'https://testing-jira.atlassian.net/rest/api/2/issue/{{{external.system.id}}}/comment',
      createCommentJson: '{"body": {{{case.comment}}}}',
    secrets:
      user: testuser
      password: passwordvalue
config

Defines information for the connector type.

hasAuth
A boolean that corresponds to Requires authentication. If true, this connector will require values for user and password inside the secrets configuration. Defaults to true.
headers
A record<string, string> that corresponds to Headers.
createIncidentUrl
A URL string that corresponds to Create Case URL.
createIncidentMethod
A string that corresponds to Create Case Method.
createIncidentJson
A stringified JSON with Mustache variables that corresponds to Create Case JSON.
createIncidentResponseKey
A string from the response body of the create case method that corresponds to the External Service Id.
getIncidentUrl
A URL string with an External Service Id Mustache variable that corresponds to Get Case URL.
getIncidentResponseExternalTitleKey
A string from the response body of the get case method that corresponds to the External Service Title.
viewIncidentUrl
A URL string with either the External Service Id or External Service Title Mustache variable that corresponds to View Case URL.
updateIncidentUrl
A URL string that corresponds to Update Case URL.
updateIncidentMethod
A string that corresponds to Update Case Method.
updateIncidentJson
A stringified JSON with Mustache variables that corresponds to Update Case JSON.
createCommentUrl
A URL string that corresponds to Create Comment URL.
createCommentMethod
A string that corresponds to Create Comment Method.
createCommentJson
A stringified JSON with Mustache variables that corresponds to Create Comment JSON.
secrets

Defines sensitive information for the connector type.

user
A string that corresponds to User. Required if hasAuth is set to true.
password
A string that corresponds to Password. Required if hasAuth is set to true.

Test connectorsedit

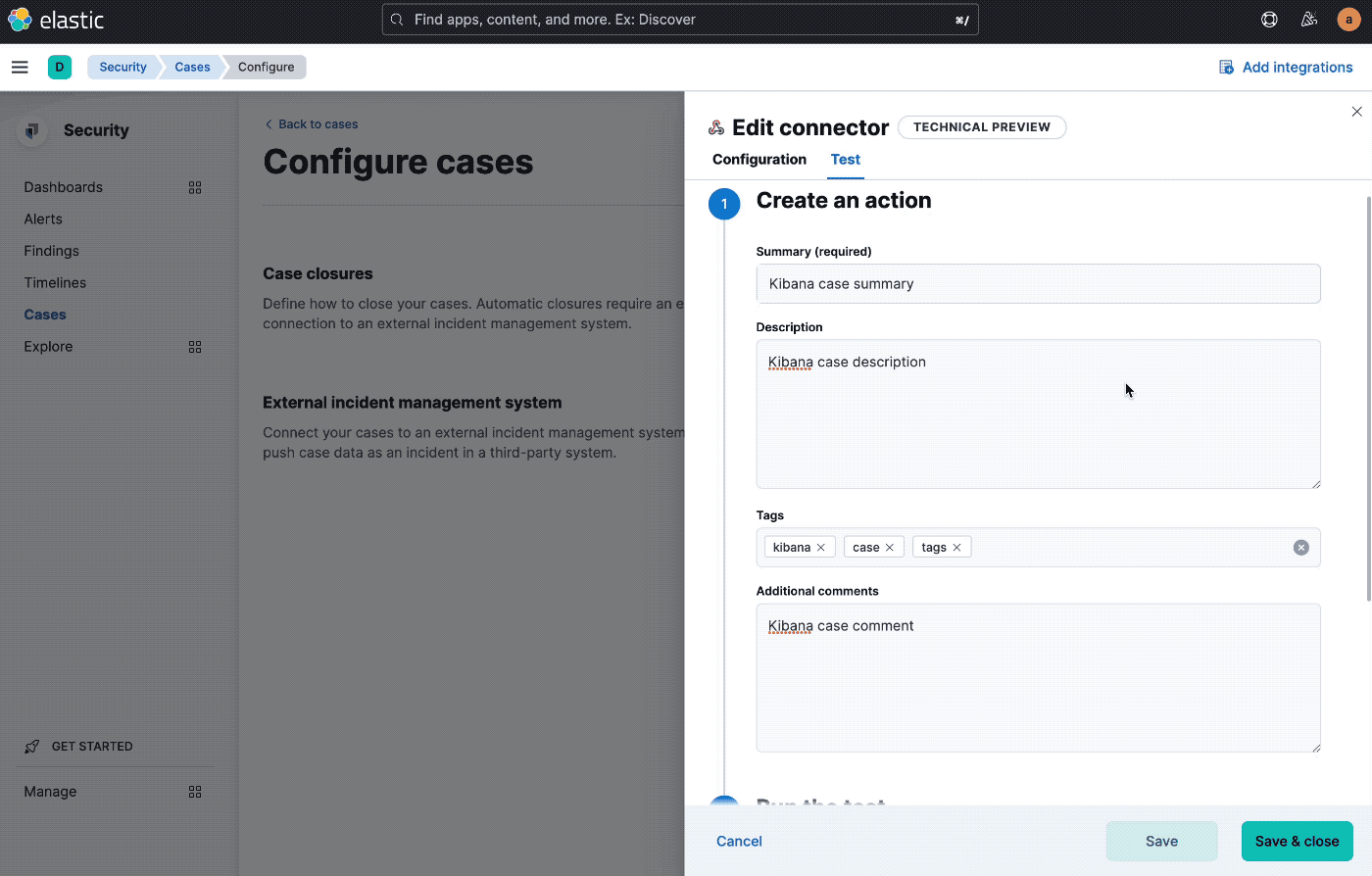

You can test connectors with the run connector API or as you’re creating or editing the connector in Kibana. For example:

Webhook - Case Management params test

Webhook - Case Management actions have the following configuration properties:

Title
A title for the issue, which is used for searching the contents of the knowledge base.
Description
The details about the incident.
Labels
The labels for the incident.
Additional comments
Additional information for the client, such as how to troubleshoot the issue.

Connector networking configurationedit

Use the action configuration settings to customize connector networking configurations, such as proxies, certificates, or TLS settings. You can set configurations that apply to all your connectors or use xpack.actions.customHostSettings to set per-host configurations.
